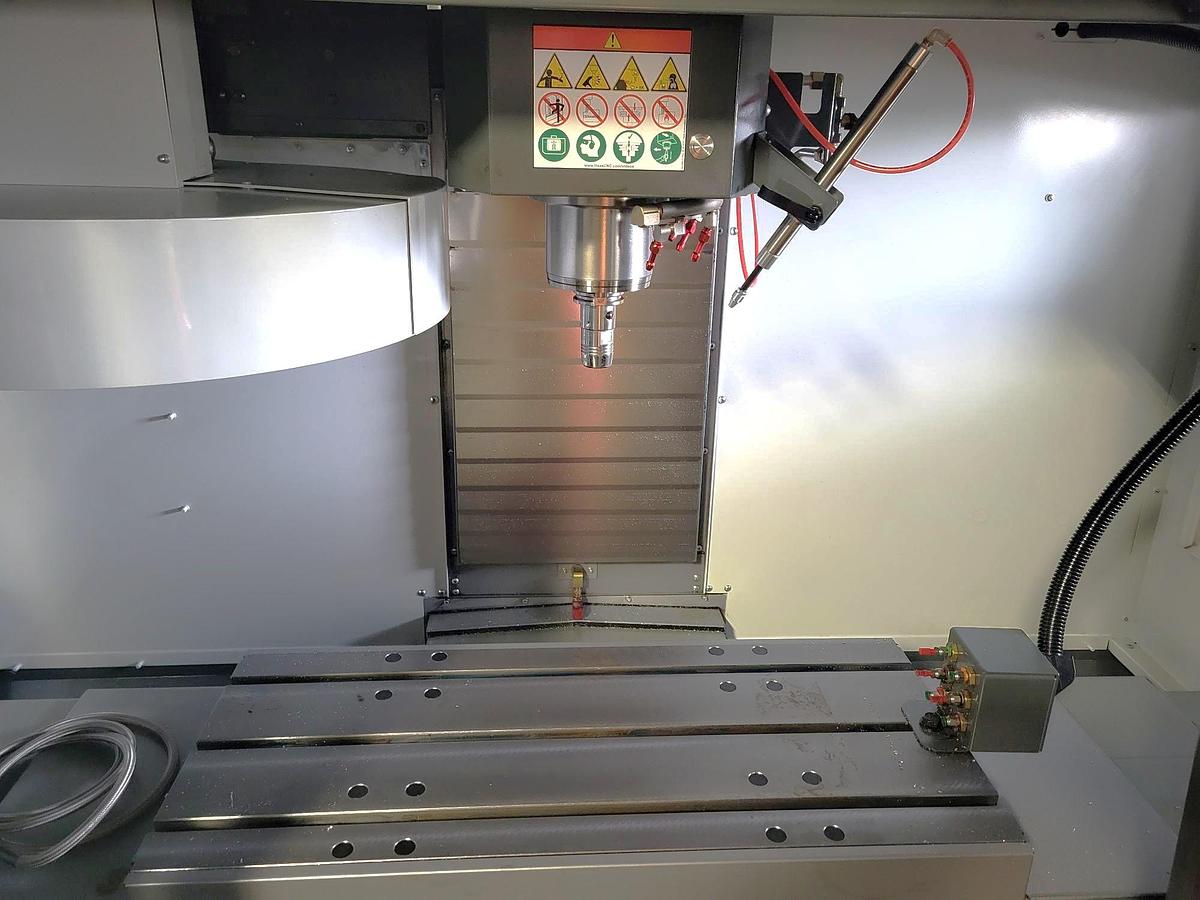

2023 Haas VF2 with 10,000 RPM, High Spd Machining, Chip Auger, Haas Chip Lift, Auto Air Gun, Programmable Air, Very Low Hours
2023 Haas VF2 with 10,000 RPM, High Spd Machining, Chip Auger, Haas Chip Lift, Auto Air Gun, Programmable Air, Very Low Hours
Contact us for price
Location:Ontario, Canada
or
Call (863) 439-6066
Description
10,000 RPM In Line Grease Packed Spindle Option
Auger Style Chip Conveyor
Haas Chip Lift - Conveys Chips from Auger Chute into Hopper
Auto Air Gun
High Speed Machining
Auto Door
Edge Sensor
Programmable Air for Dual Vices or Two Pneumatic Devices Through Control
Remote Jog Handle XL
Rigid Tapping
1 GB Programming Memory
Early Power Failure Detection Module
Memory Key Lock Switch
Wi-Fi Connection for Haas Control

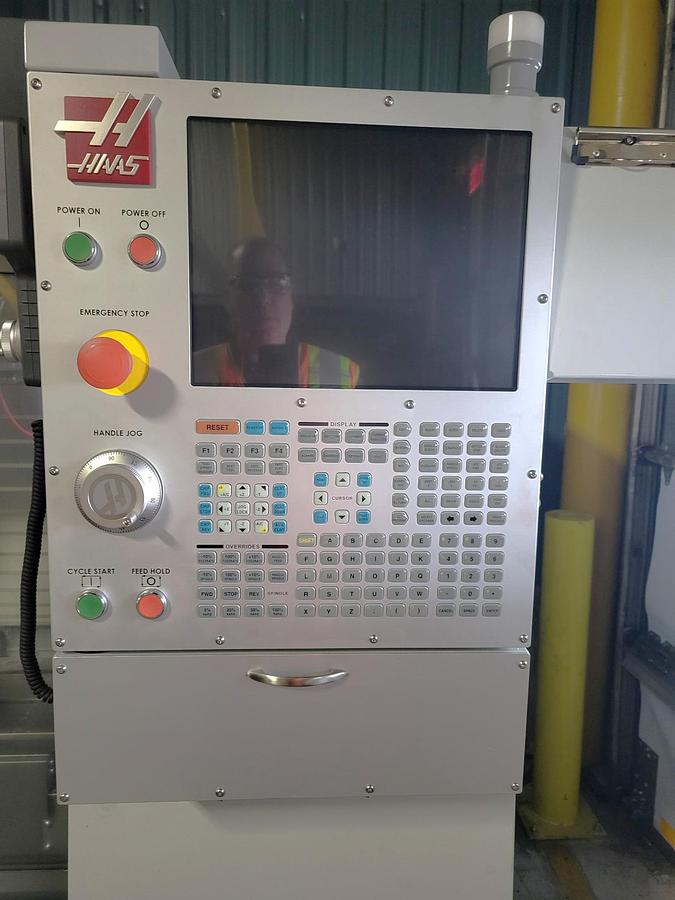

15" Color LCD Monitor
Parameter Unlock Option
Ethernet Interface
USB Port Interface
RS 232 Port Interface
55 Gallon Coolant System with Tank & Pump
600/230V Isolation Transformer
**Price New Today as Equipped at $101,693 with Current 5% Option Discounting**
Specifications
| Manufacturer | Haas |
| Model | VF2 |
| Year | 2023 |
| Condition | Used |
| Stock Number | 120711 |
| Table Size | 36" x 18" |
| Maximum Table Load | 3,000 lbs |
| X-axis travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM - Direct Drive |
| Spindle Motor | 30 HP |
| Tool Magazine Capacity | 20 Station ATC - Umbrella Style |
| Rapid Traverse Rates | 1,000 IPM |
| Machine Dimensions LxWxH | 95" x 95" x 100" |
| Machine Weight | 9,000 lbs |
