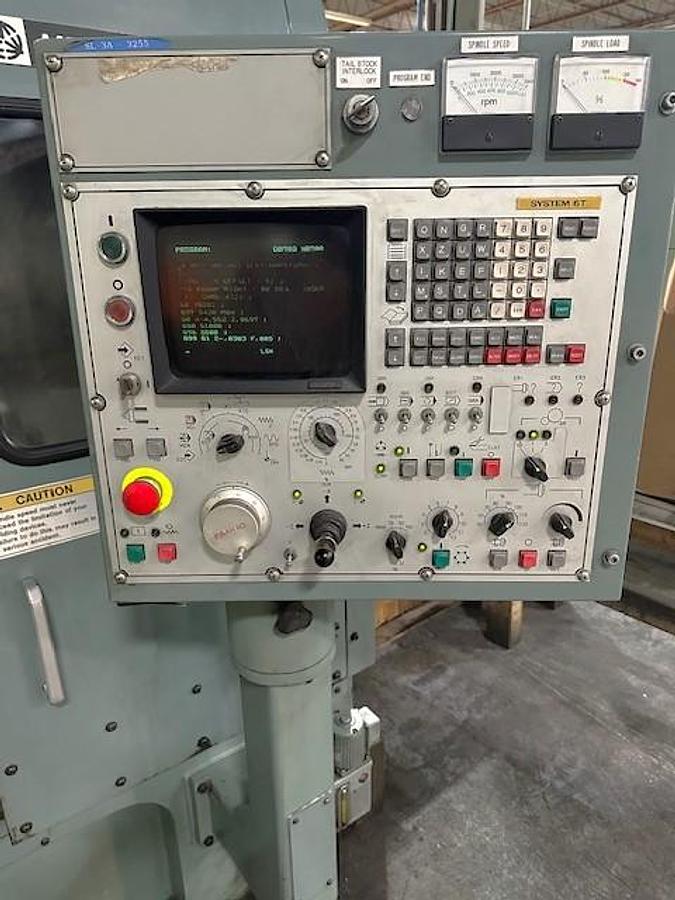

1983 Mori Seiki SL-3A with Fanuc 6TB Control, 10" 3 Jaw Hyd Chuck, Tailstock, Under Power Holding Tolerance
1983 Mori Seiki SL-3A with Fanuc 6TB Control, 10" 3 Jaw Hyd Chuck, Tailstock, Under Power Holding Tolerance
$12,500 (USD)
Location:Texas
or
Call (863) 439-6066
Description

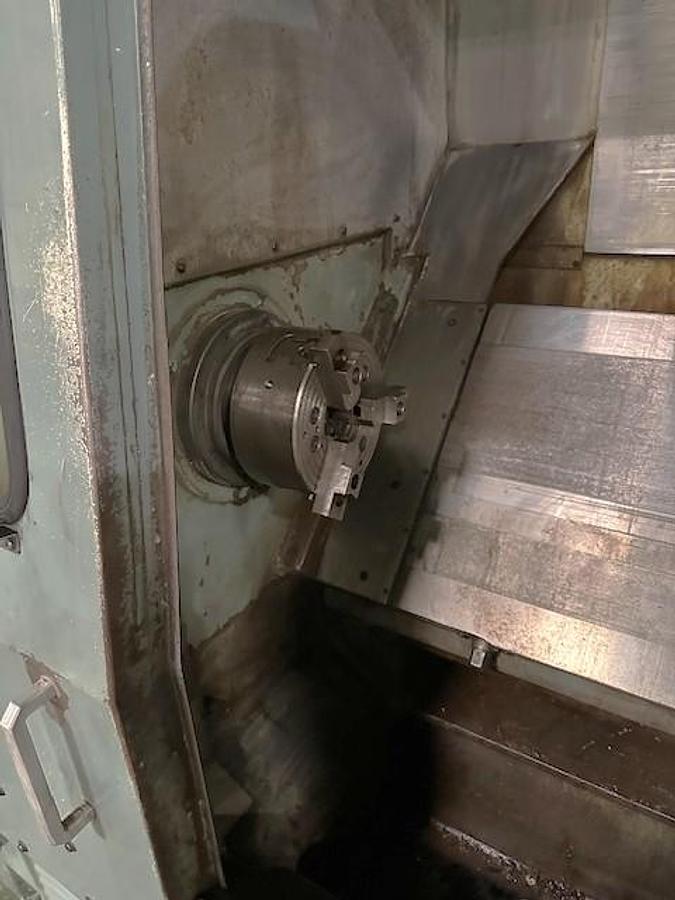

10" 3 Jaw Hydraulic Chuck
Tailstock
RS 232 Port Interface
Hardened Boxed Ways On A True Slant Bed
Coolant System with Tank & Pump
Some Tool Blocks
Some Manuals
Specifications
| Manufacturer | Mori Seiki |
| Model | SL-3A |
| Year | 1983 |
| Condition | Used |
| Stock Number | 120707 |
| Chuck size | 10" 3 Jaw Hydraulic |
| Swing over bed | 22.4" |
| Swing over cross slide | 13.7" |
| Maximum machining diameter | 9.4" |
| Maximum Machining Length | 21.6" |
| Distance Between Centers | 24" |
| Maximum Bar Capacity | 1.625" |
| X-axis travel | 6.3" |
| Z-axis travel | 20.47" |
| Spindle Nose / Spindle Bore | A2-6" / 2.2" |
| Spindle speed | 35 ~ 3500 RPM |
| Spindle motor | 20 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 354 IPM |
| Tailstock Travel / Quill Taper | 3.15" / MT #3 |
| Machine dimensions | 120"x62"x71" |
| Machine weight | 9,240 lbs. |
