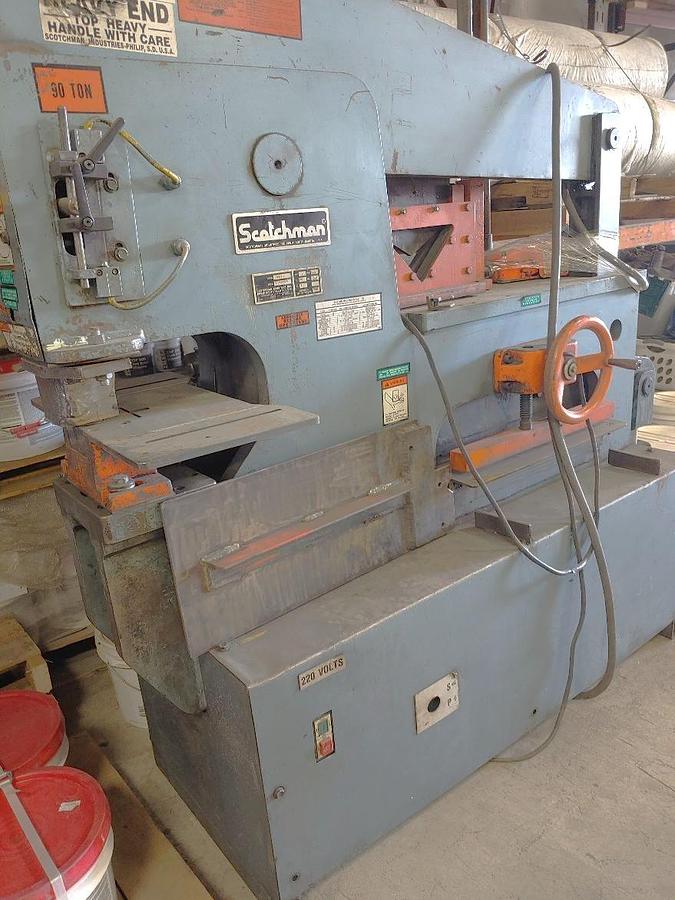

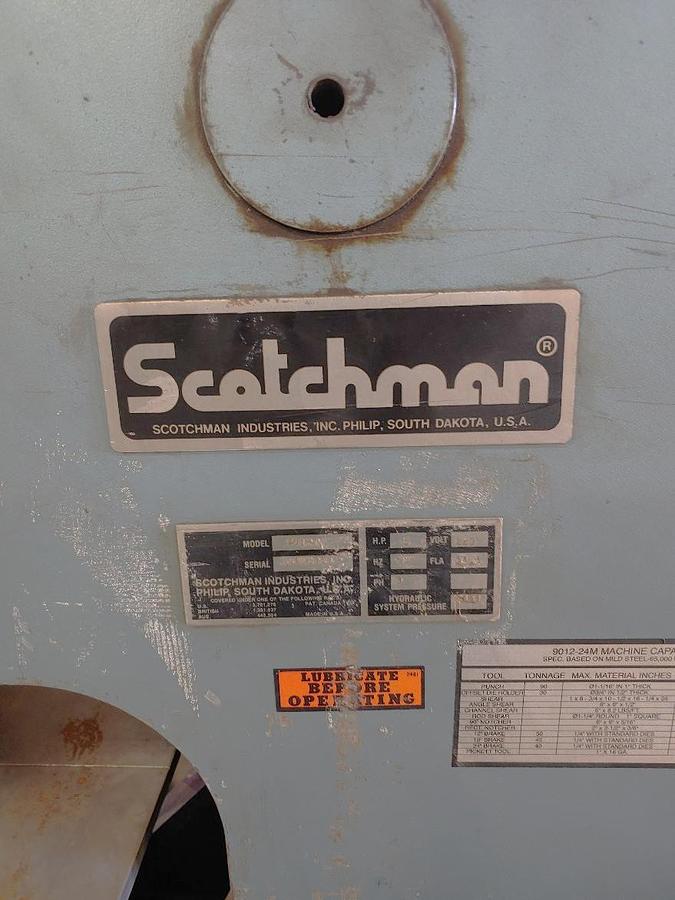

Scotchman 9012-24M 90 Ton Iron Worker

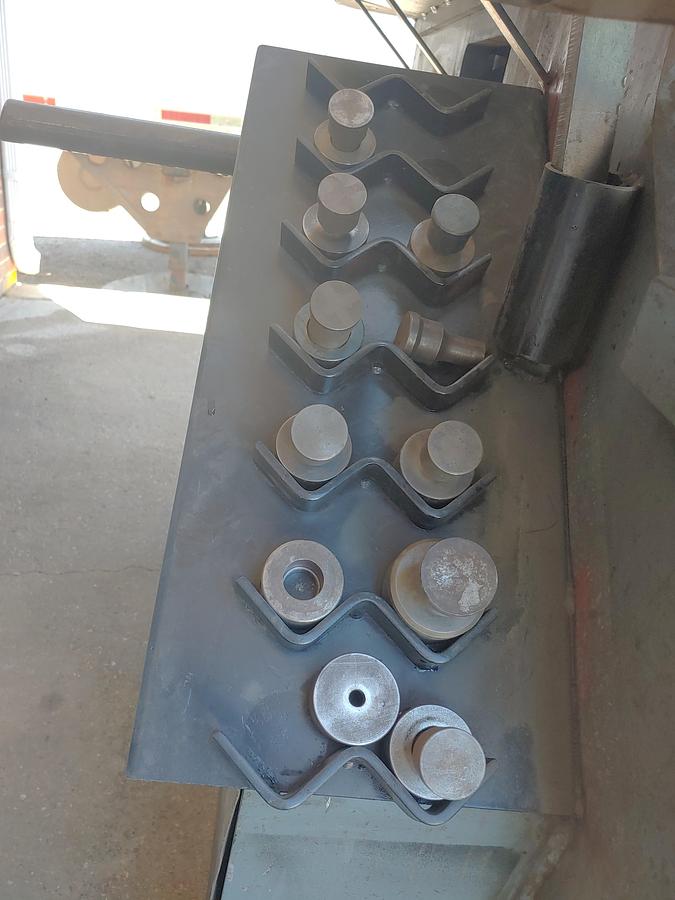

90 Ton Punch Station

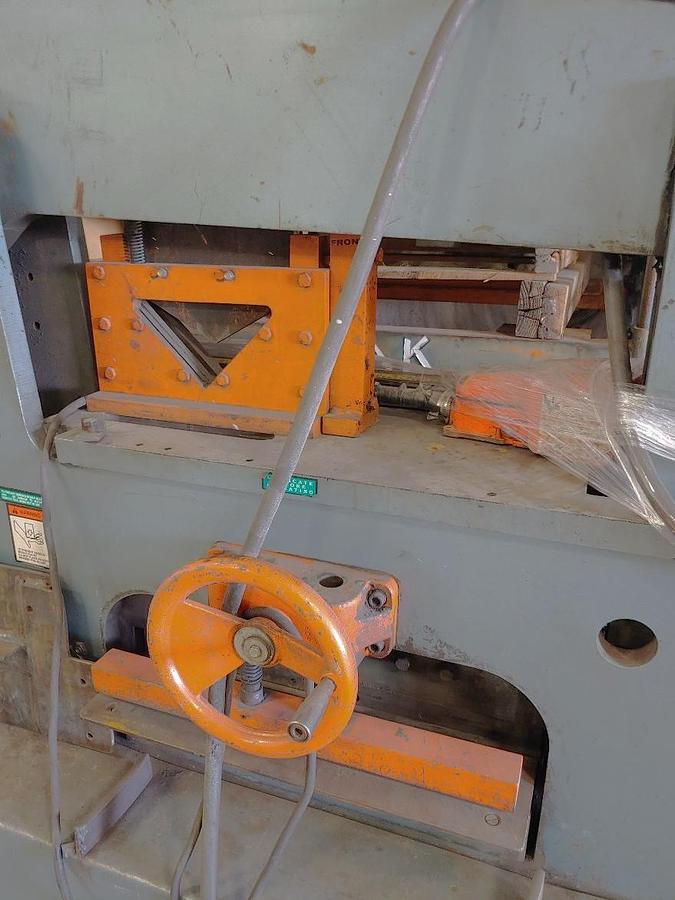

24" Wide Flat Bar Shear

Angle Shear Capability

Punch Gauging Table

Punch Jog Control

Remote Foot Pedal

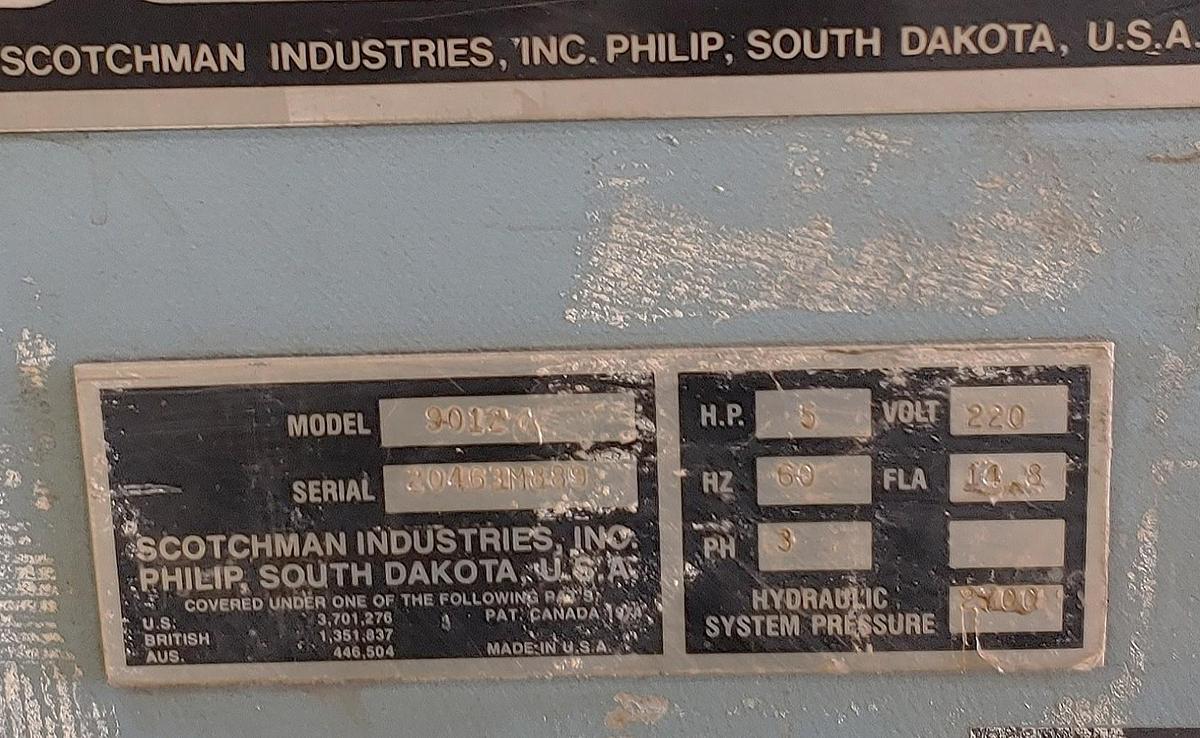

Wired 220V 3 Phase Power

The Scotchman 9012-24M Iron Worker is a robust fabrication machine designed for heavy-duty tasks. It offers a punching power of 90 tons, with a throat depth of 12 inches, and can handle a maximum capacity of punching a 1.125-inch hole through 1-inch thick materials. This machine efficiently shears angles up to 6 inches by 6 inches by 0.5 inches at 90 degrees and handles flat bars measuring 24 inches with capacities of 1 inch by 8 inches or 1/4 inch by 24 inches. For shearing, the 9012-24M is versatile with capabilities for square bars ranging from 1/4 inch to 1 inch and round bars from 1/4 inch to 1 1/4 inches. The square tube shear accommodates dimensions from 1/2 inch to 2 inches with a 12 gauge thickness. It also features rectangular notching capabilities of 2 inches by 2 1/5 inches by 3/8 inch, ideal for precise and reliable notching tasks. Powered by a 5 HP motor, the machine runs efficiently while its substantial build is reflected in its dimensions of 76 inches in length, 26 inches in width, and 70 inches in height, with a weight of 4,300 lbs. Suitable for varied industrial applications, this ironworker offers substantial reliability and versatility for fabrication shops looking to enhance productivity with durable and precise machinery.
