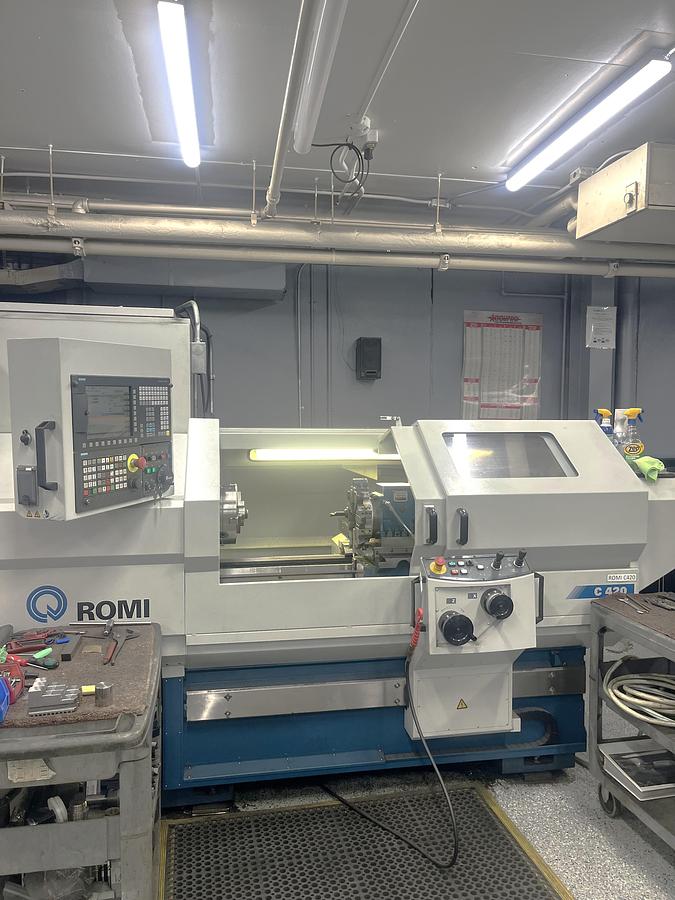

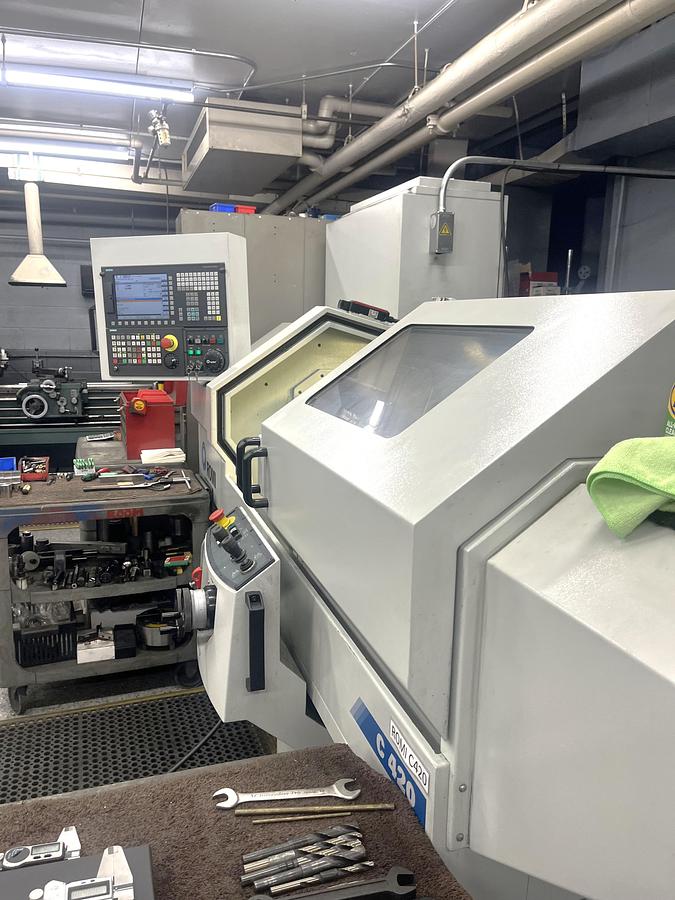

2016 Romi C-420 Combination Teach Type CNC Lathe, 10" Chuck, 2.6" Bar Cap., 8 Station Turret, Tailstock, Hand Wheels
2016 Romi C-420 Combination Teach Type CNC Lathe, 10" Chuck, 2.6" Bar Cap., 8 Station Turret, Tailstock, Hand Wheels
Contact us for price
Location:New York, NY
or
Call (863) 439-6066
Description

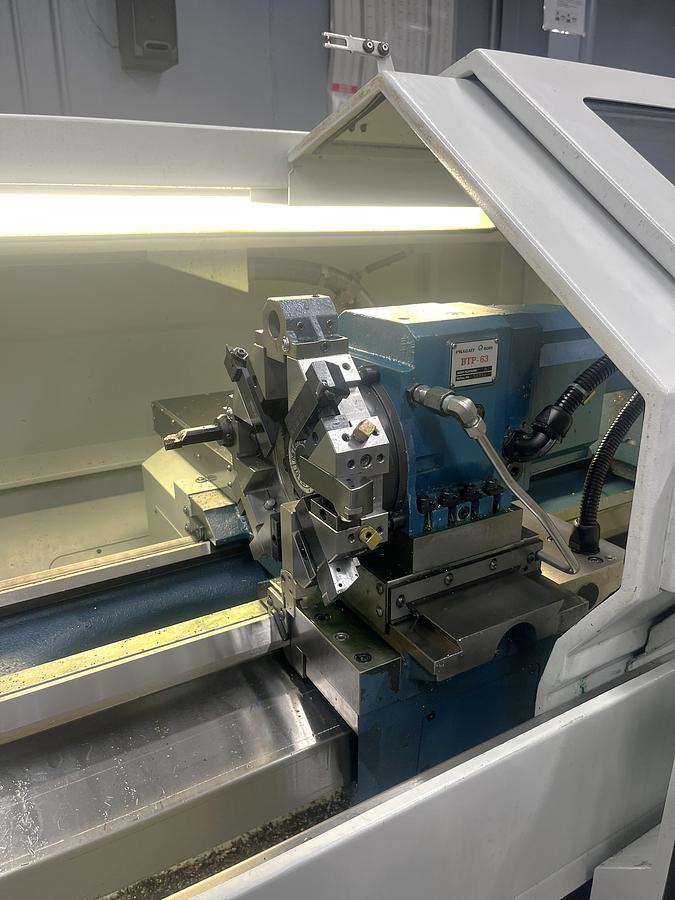

8 Station Pragati Indexable Turret
Manual Tailstock

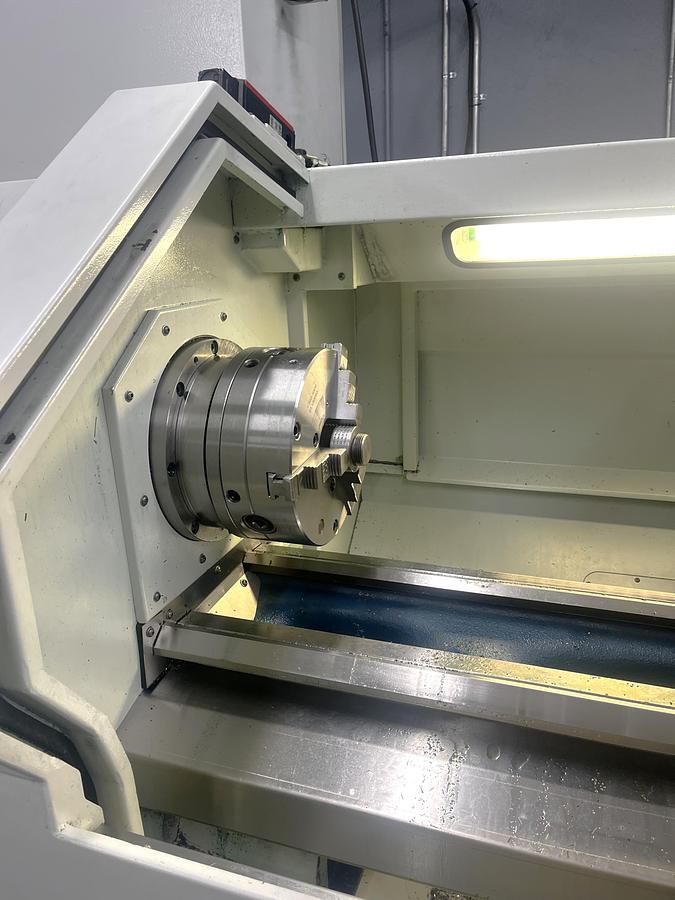

10" 3 Jaw Manual Chuck
Manual Hand Wheels with Joysticks
RMMP (Romi Manual Machining Package)
-allows for both manual mode using hand wheels and auto mode using joysticks & start cycles
Belt Driven Headstock
10.4" Color LCD Monitor
Conversational Programming Ability as well as G Code
Linear & Circular Interpolation
Backround Editing
3 MB Programmning Memory
USB Port Interface
Flash Card Interface
RS 232 Port Interface
Direct Drive Type Transmission
Hardened & Ground Ways
Wired 480V Electrics, 24 Amps Full Load
Specifications
| Manufacturer | Romi |
| Model | C-420 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 120704 |

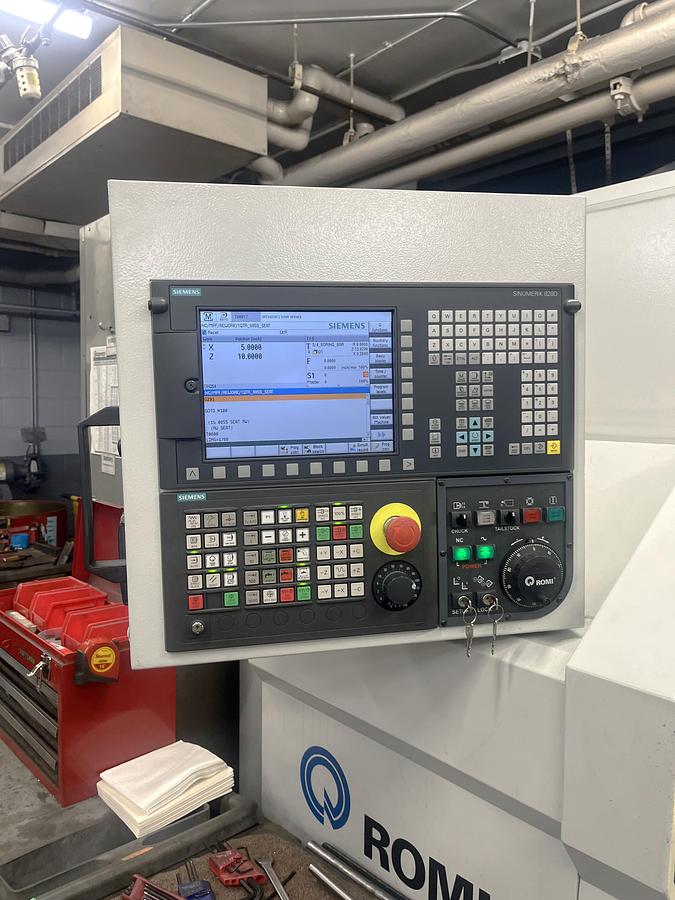

| Machine Control | Siemens 828D Control w/ Conversational Programming |
| Chuck Size | 10" 3 Jaw Manual |
| Maximum Swing | 17" |
| Maximum Swing Over Cross Slide | 7.85" |
| Distance Between Centers | 39.4" |
| Maximum Turning Diameter | 7.9" |
| Height of Centers | 8.5" |
| X-axis travel | 8.7" |
| Z-Axis Travel | 42" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.6" / 2.6" |
| Spindle Speed | 3- 3,000 RPM |
| Spindle Motor | 12.5 HP |
| Rapid Traverse Rates | 394 IPM |
| Tailstock Quill Diameter / Quill Travel | 2.4" / 4.7" |
| Tailstock Quill Taper | MT #4 |
| Machine Dimensions LxWxH | 122" x 49" |
| Machine Weight | 5,600 lbs. |
