2007 Mazak Integrex 400-IV/1500, 40 atc, Chip Conveyor, Tooling
2007 Mazak Integrex 400-IV/1500, 40 atc, Chip Conveyor, Tooling
Contact us for price
Location:Georgia
or
Call (863) 439-6066
Description
Y Axis Capability B Axis Pendulum Head Full "C" Axis Spindle Rotation Live Milling/Drilling Capability 15" 3 Jaw Hydraulic Chuck 40 Tool Magazine
Programmable Tailstock
High-Pressure Coolant Pump
Coolant Thru Mill Head Chip Conveyor Automatic Tool Eye
IC Memory Card Interface Cardbus Interface - 2 Slots LAN Port Interface USB Port Interface Multi Tap Transformer 230/460 Volt
Set ujp for Tool Probe (Probe not included) All Available Manuals
Misc. Tooling Mill Holders, ER-40 Collet Holders, Boring Bars, Grooving, Threading
Specifications
| Manufacturer | Mazak |
| Model | Integrex 400-IV/1500, 40 atc, Chip Conveyor, Tooling |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120703 |

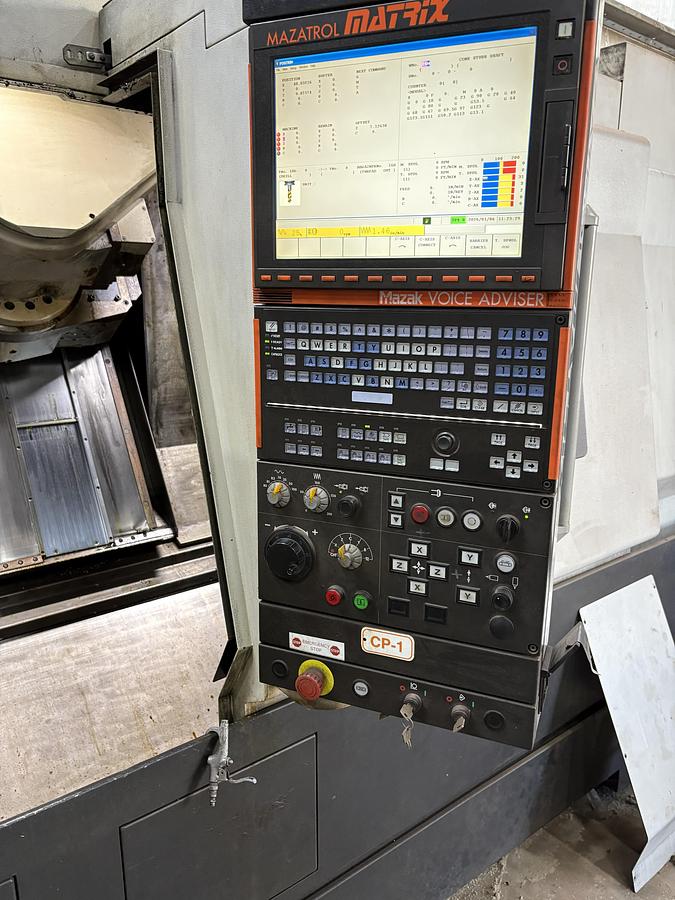

| Control | Mazatrol Matrix |

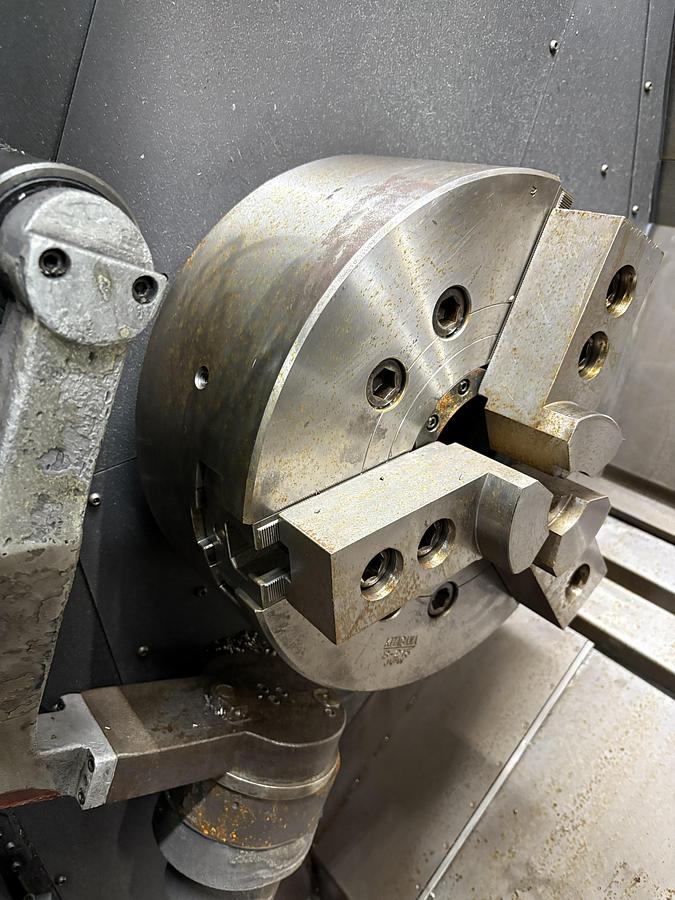

| Chuck Sizes Main / Subspindle | 15" Hydraulic Chuck |
| Maximum Swing / Using Y Axis | 34" / 26"-30" |
| Maximum Cutting Length | 60" |
| Distance Between Centers | 60" |
| X-Axis Travel | 24.8" |
| Y-Axis Travel | +/- 4.53" |
| Z-Axis Travel | 62.41" |
| B-Axis Tilt Movement | 225 Degrees in .001 Increment |
| C Axis Spindle Rotation | .0001 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 4.4" / 4.0" |
| Spindle Speeds | 35 - 3,300 RPM |
| Spindle Motor | 40 HP |
| Rotary Tool Speed / Rotary Motor | 12,000 RPM / 25 HP |
| Tool Magazine Capacity | 40 ATC Capto C6 |
| Rapid Traverse Rates (X, Y, Z) | 1496 IPM, 1024 IPM, 1496 IPM |
| Machine Dimensions | 202" x 93" x 115" |
| Machine Weight | 28,500 lbs. |
