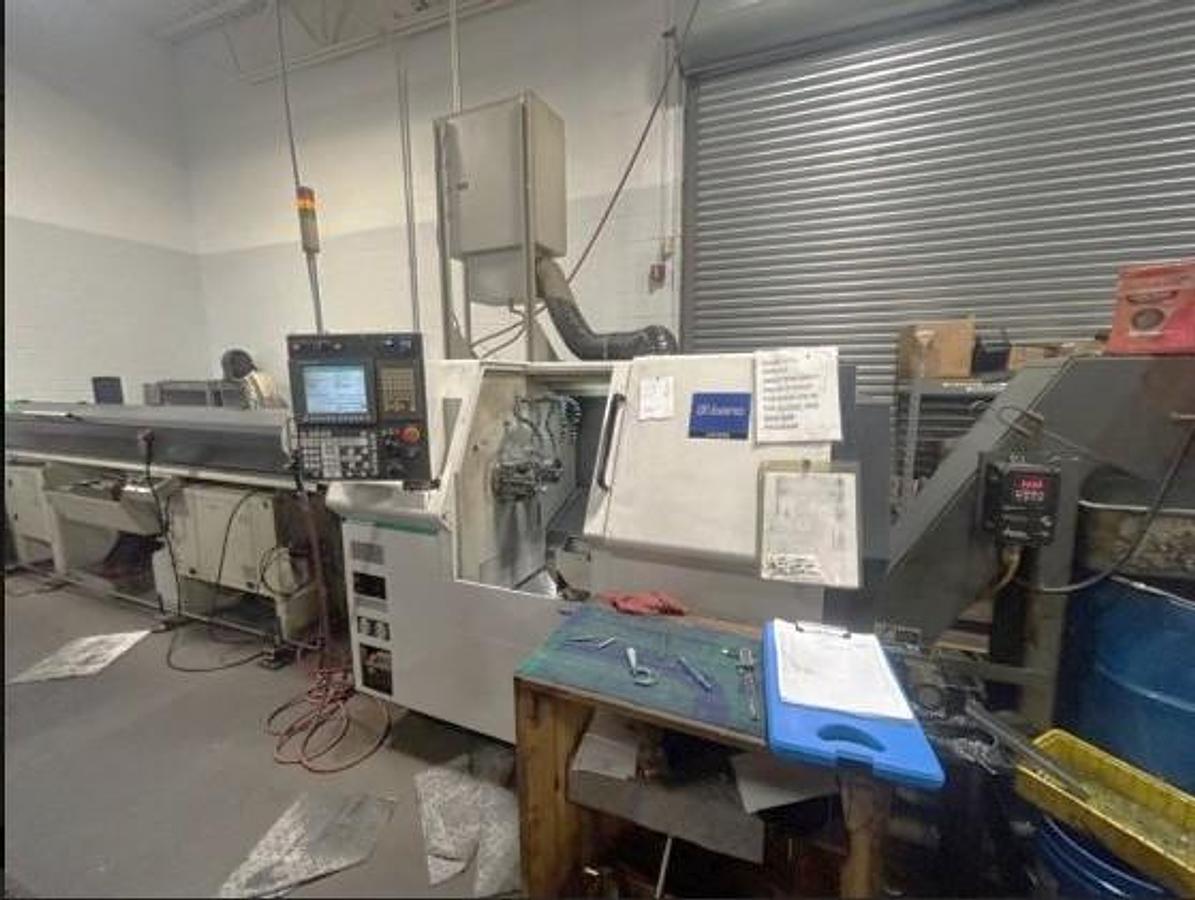

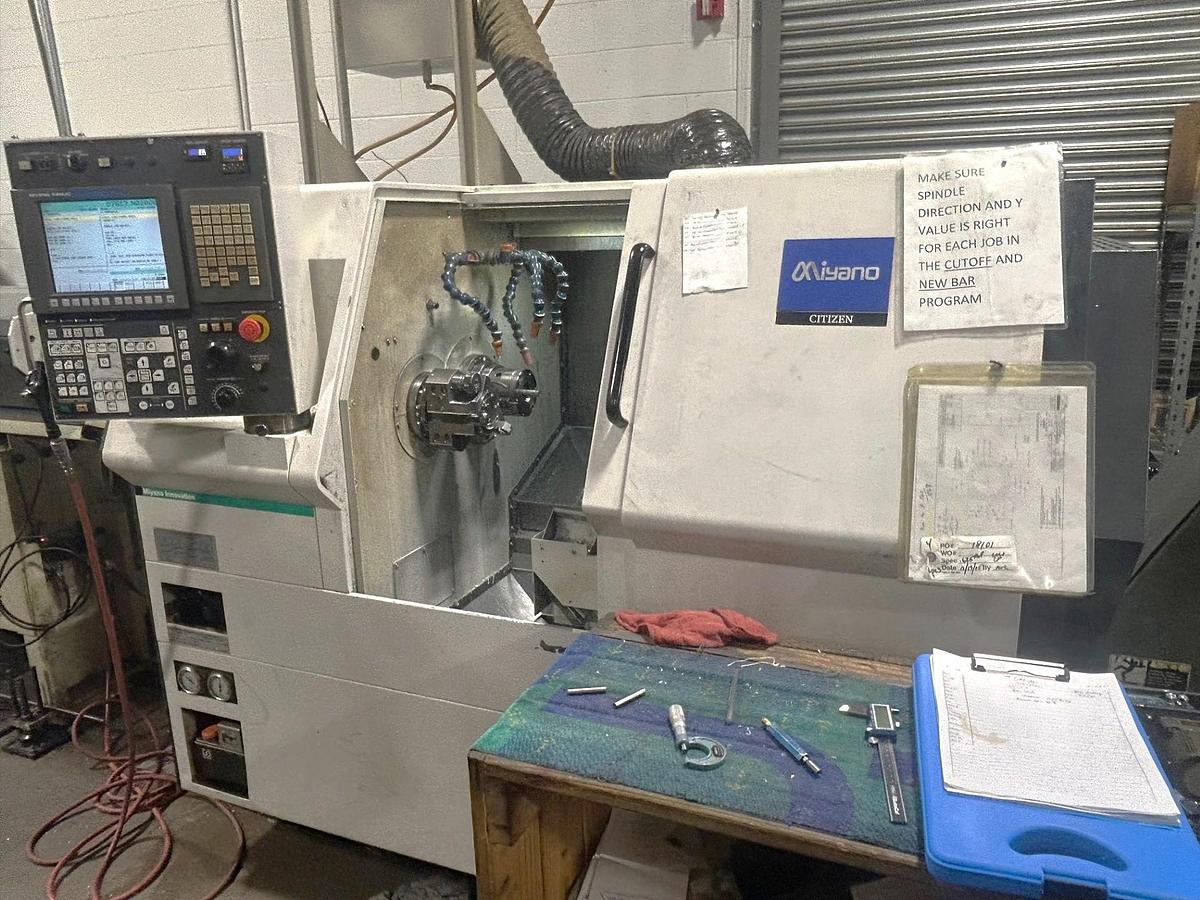

2011 Miyano DNA-42 DHY, Twin Turret Design, Twin Spindles, Y Axis on Upper Turret, Milling Capability, Barfeed, Chip Conveyor
2011 Miyano DNA-42 DHY, Twin Turret Design, Twin Spindles, Y Axis on Upper Turret, Milling Capability, Barfeed, Chip Conveyor
$62,500 (USD)
Location:Pennsylvania
or
Call (863) 439-6066
Description

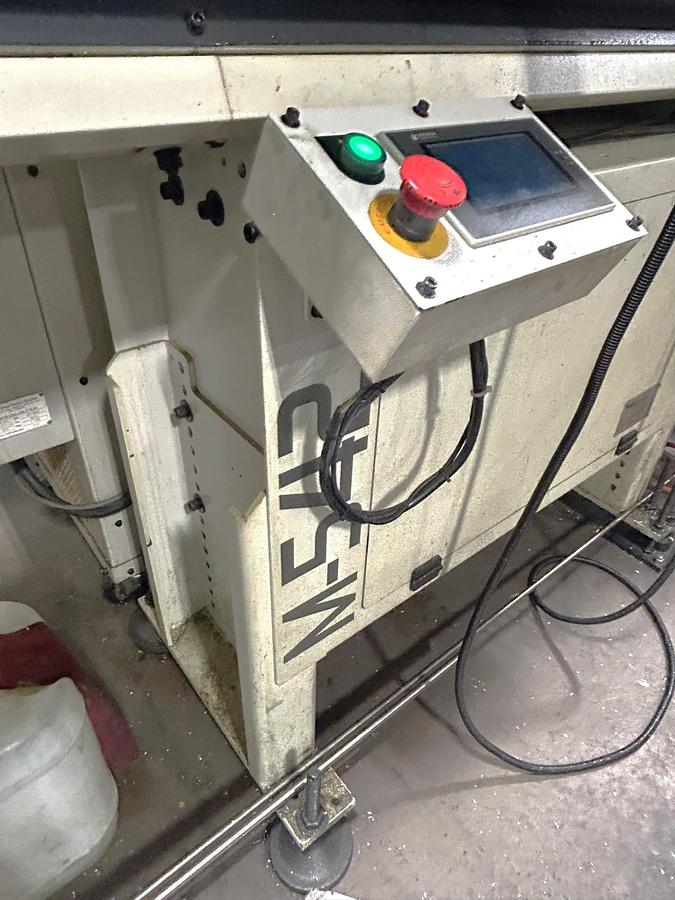

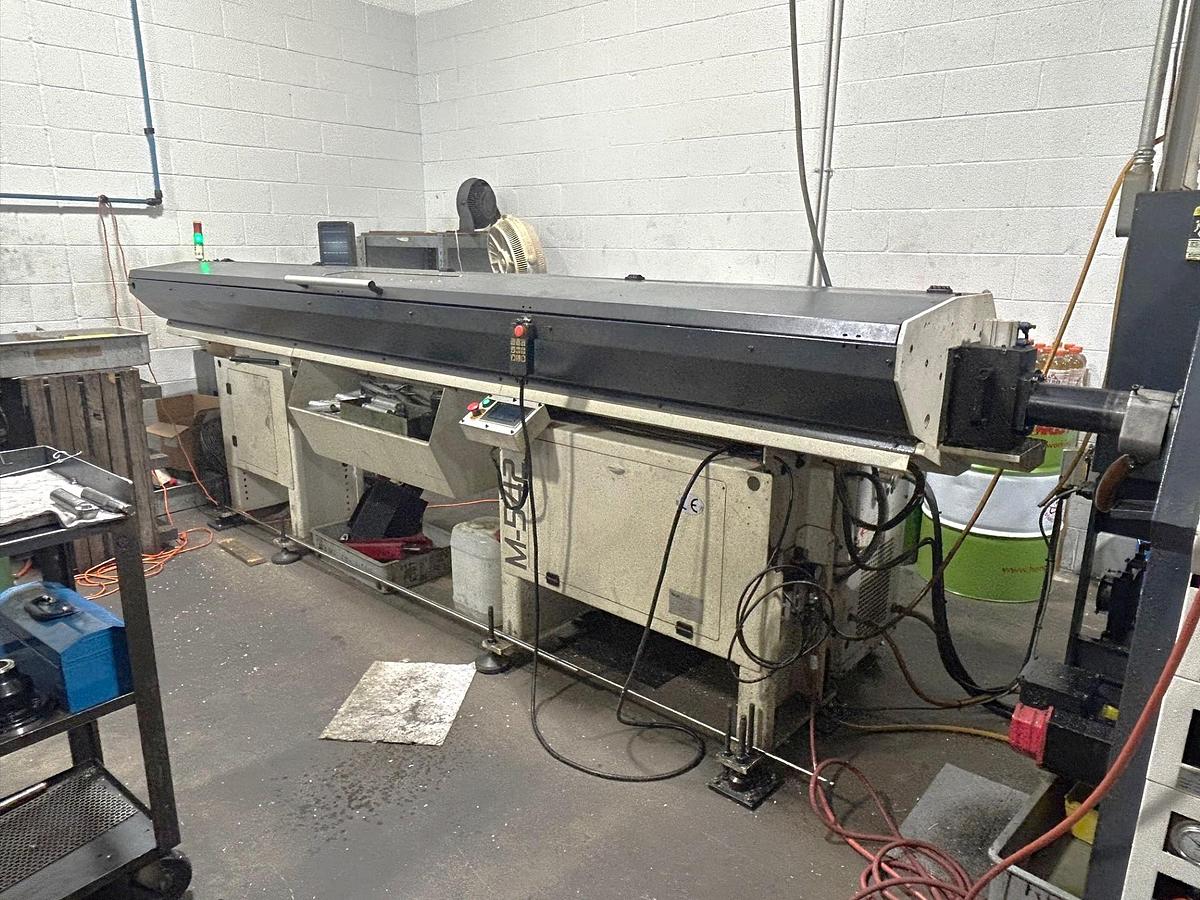

Miyano M-542 (Edge Patriot 338) Magazine Bar Feed
Live Milling/Drilling Capability
Subspindle

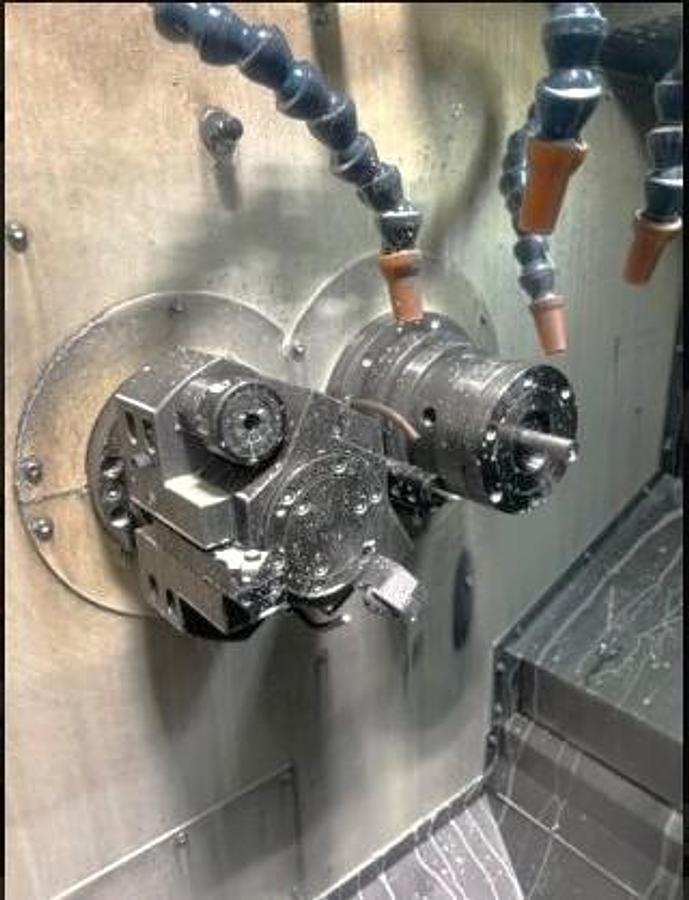

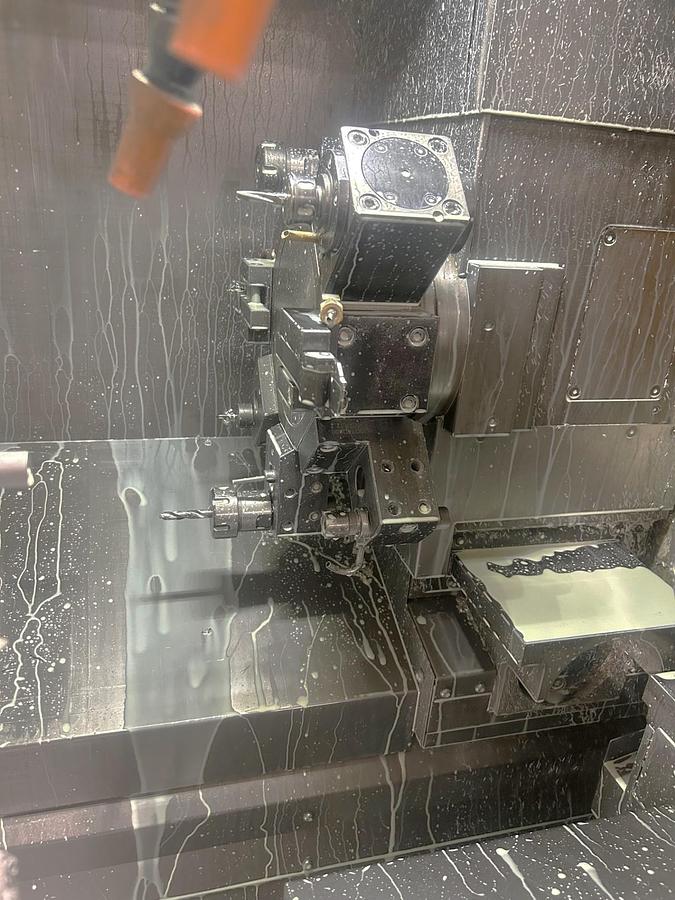

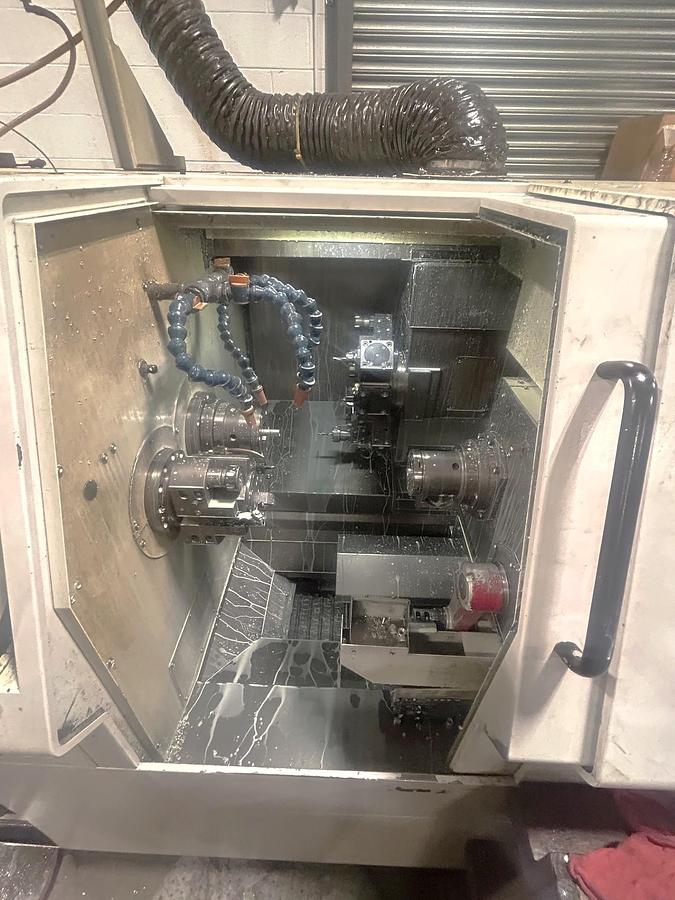

Dual Front/Rear Turret Design
C Axis Spindle Rotation Both Spindles
Y Axis Capability on Rear Turret
Hainbuch Collet Chuck on Main Spindle
Hainbuch Collet Chuck on Subspindle

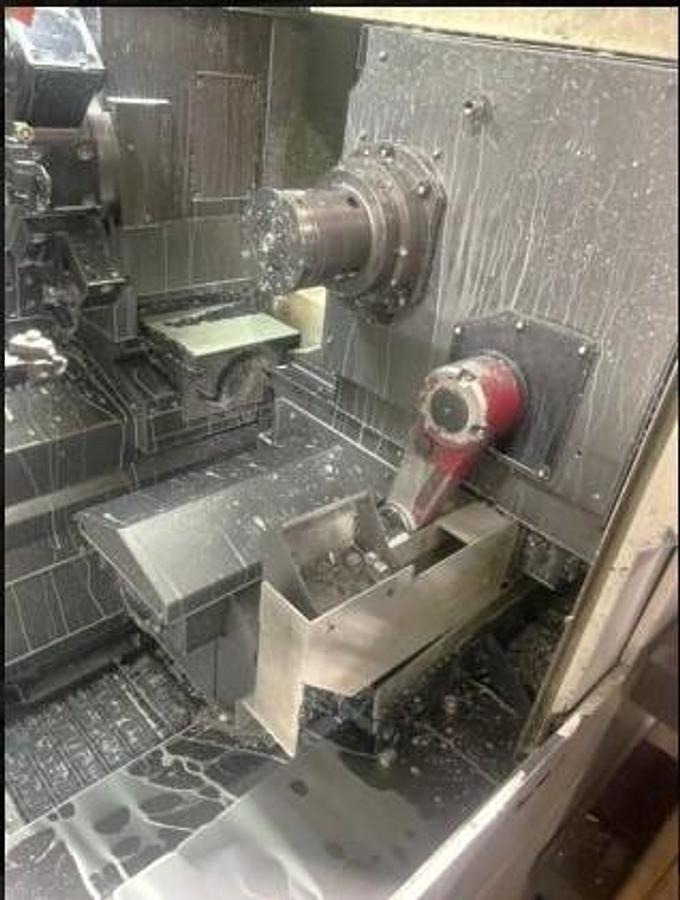

Automatic Parts Catcher
Parts Exit Conveyor

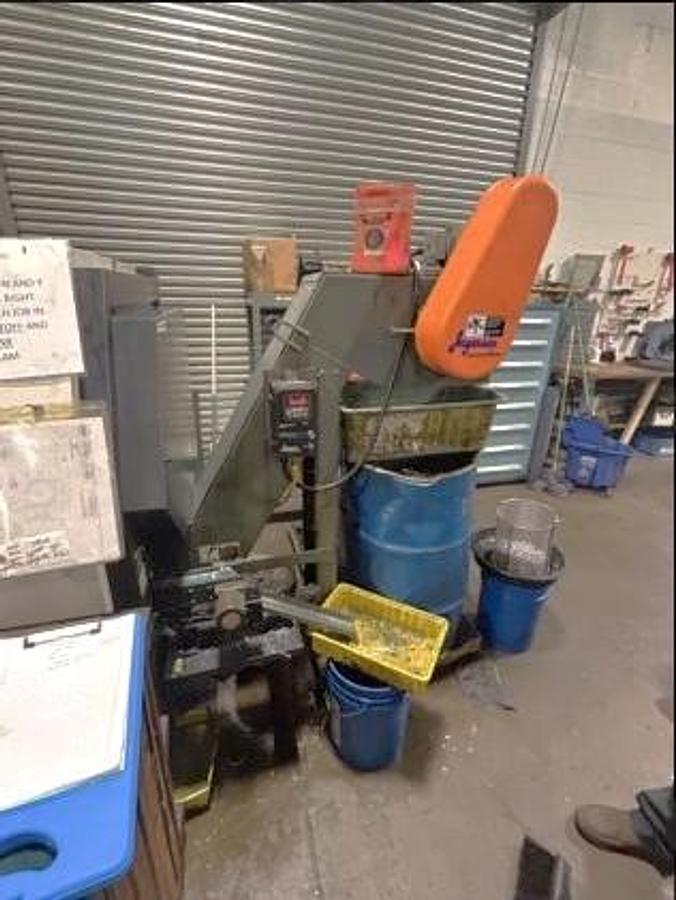

Chip Conveyor

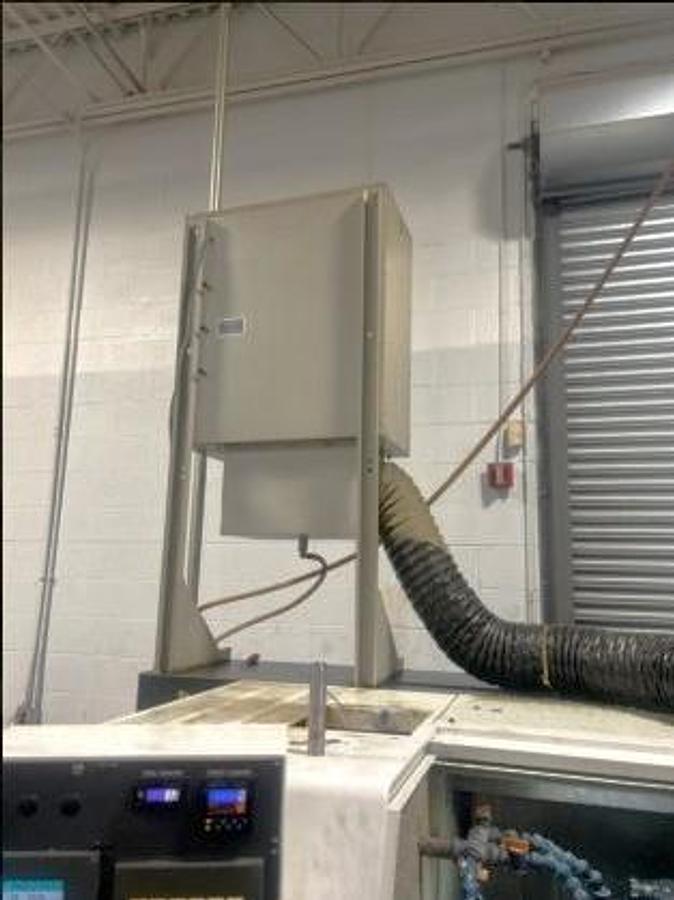

Mist Collector
Rigid Tapping
Fixed Headstock Design
RS 232 Port Interface
Complete Coolant System with Tank & Pump

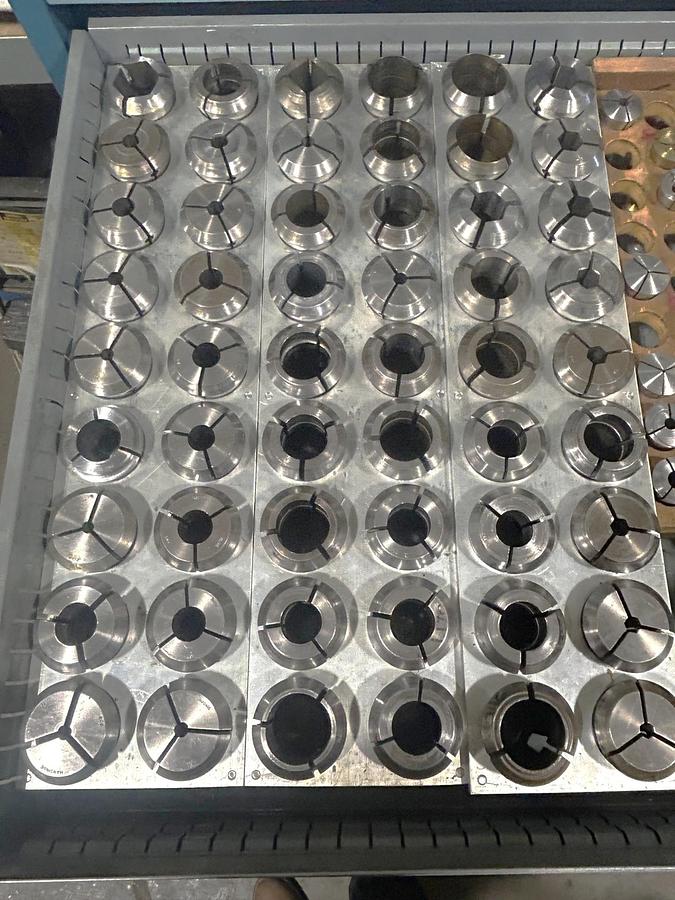

All Available Tooling as seen in photos
All Available Manuals

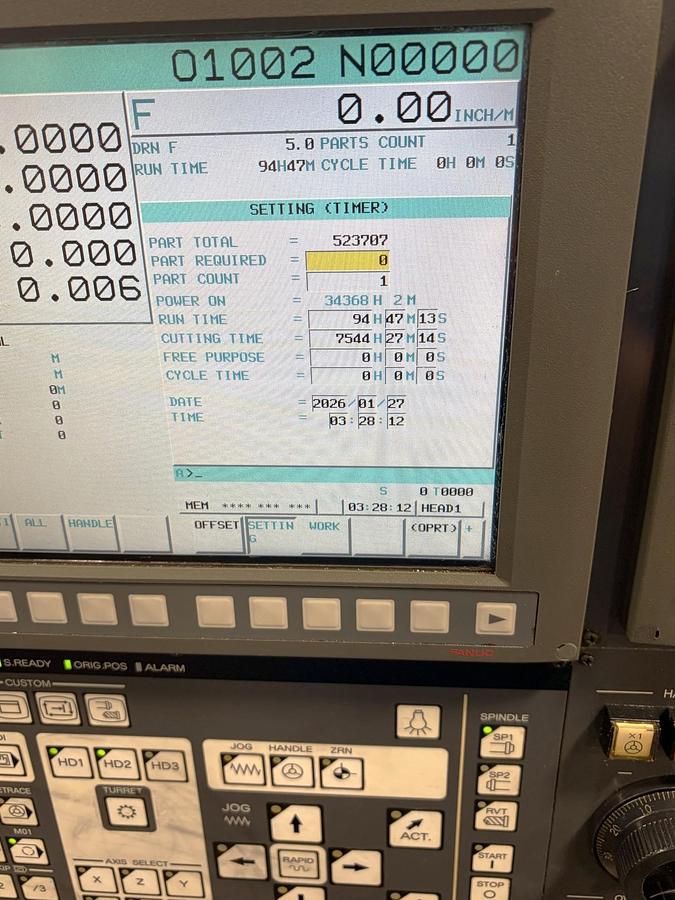

**Power On Hours 34,368**
**Cutting Hours 7,544**
Specifications
| Manufacturer | Miyano |
| Model | DNA-42 DHY |
| Year | 2011 |
| Condition | Used |
| Stock Number | 120698 |

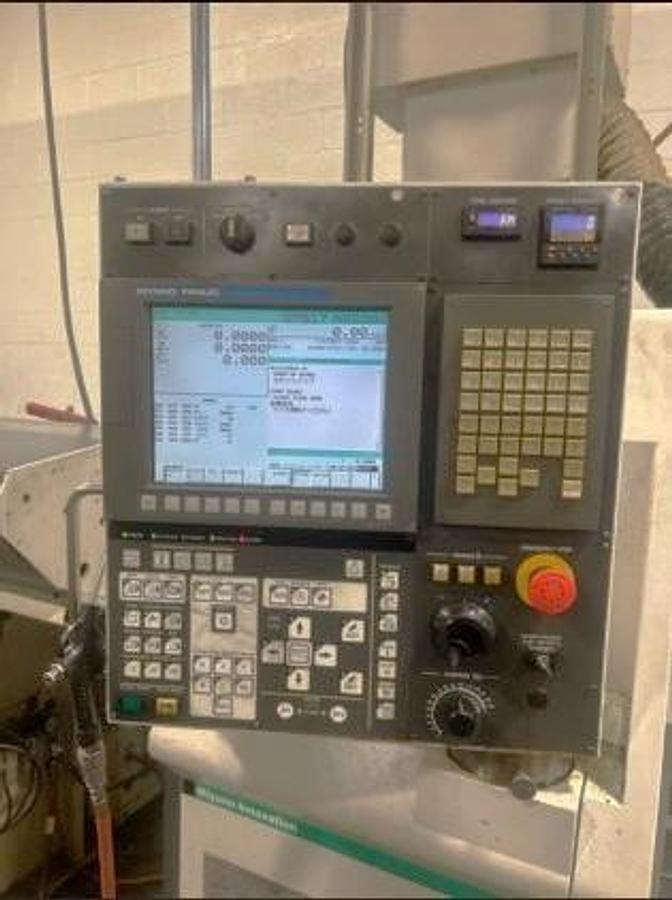

| Machine Control | Miyano / Fanuc Control |
| Chuck types main / subspindle | Collet Chuck / Collet Chuck |
| Maximum Machining Diameter | 1.65" |
| Standard Machining Length | 3.94" |
| Maximum Bar Capacity Spindle 1 / Spindle 2 | 1.65" / 1.34" |
| X-Axis Travel - Both X1 and X2 | 5.52" |
| Y-Axis Travel | +/- 1.379" |
| Z-Axis Travel - Z1 / Z2 | 9.26" / 14.18" |
| B-Axis Travel (Subspindle) | 12.21" |
| C-Axis Spindle Rotation - Both | 0.001 Degree |
| Maximum Spindle Speed - Spindle 1 / Spindle 2 | 6,000 RPM / 5,000 RPM |
| Spindle Motor - Main / Subspindle | 10 HP / 7.4 HP |
| Live Tooling Speed | 5,000 RPM |
| Live Milling Motor | 3.75 HP |
| Number of Turret Positiions - Front Turret / Rear Turret | 6 Positions / 8 Positions |
| Number of Live Tools Capable - Rear Turret | 8 Positons |
| Rapid Traverse Rates X1, Z1 / Y1, X2, Z2 | 788 IPM / 473 IPM |
| Machine Dimensions | 88.25" x 58" x 66.2" |
| Machine Weight | 6,600 lbs. |
