2020 Doosan DVF 6500 5 Axis Trunnion VMC with 18,000 RPM, 60 ATC, Coolant Thru Spindle, Probing, Chip Conveyor
RARE FIND !!!
2020 Doosan DVF 6500 5 Axis Trunnion VMC with 18,000 RPM, 60 ATC, Coolant Thru Spindle, Probing, Chip Conveyor
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description

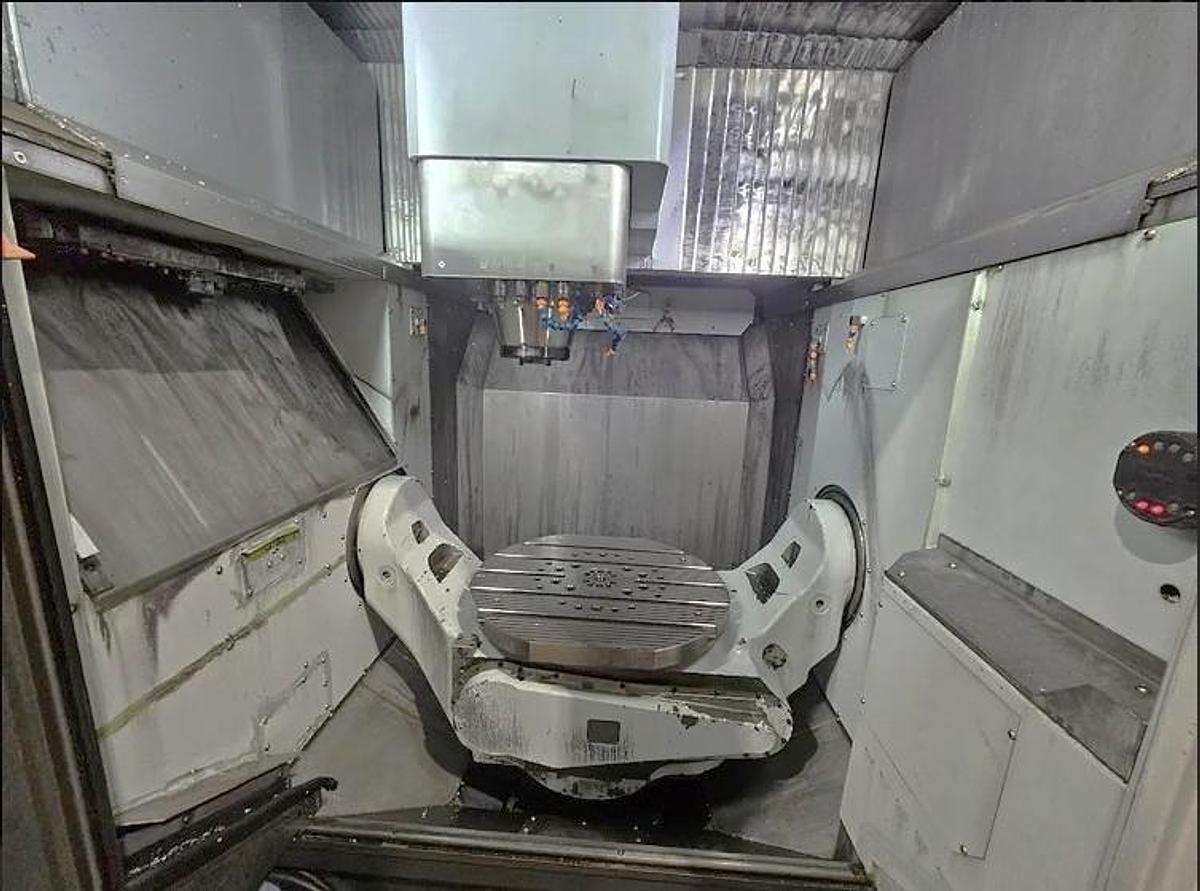

Simultaneous 5 Axis Capability with Trunnion Style Table
Coolant thru the Spindle
60 Station Tool Changer with CAT #40 Big Plus

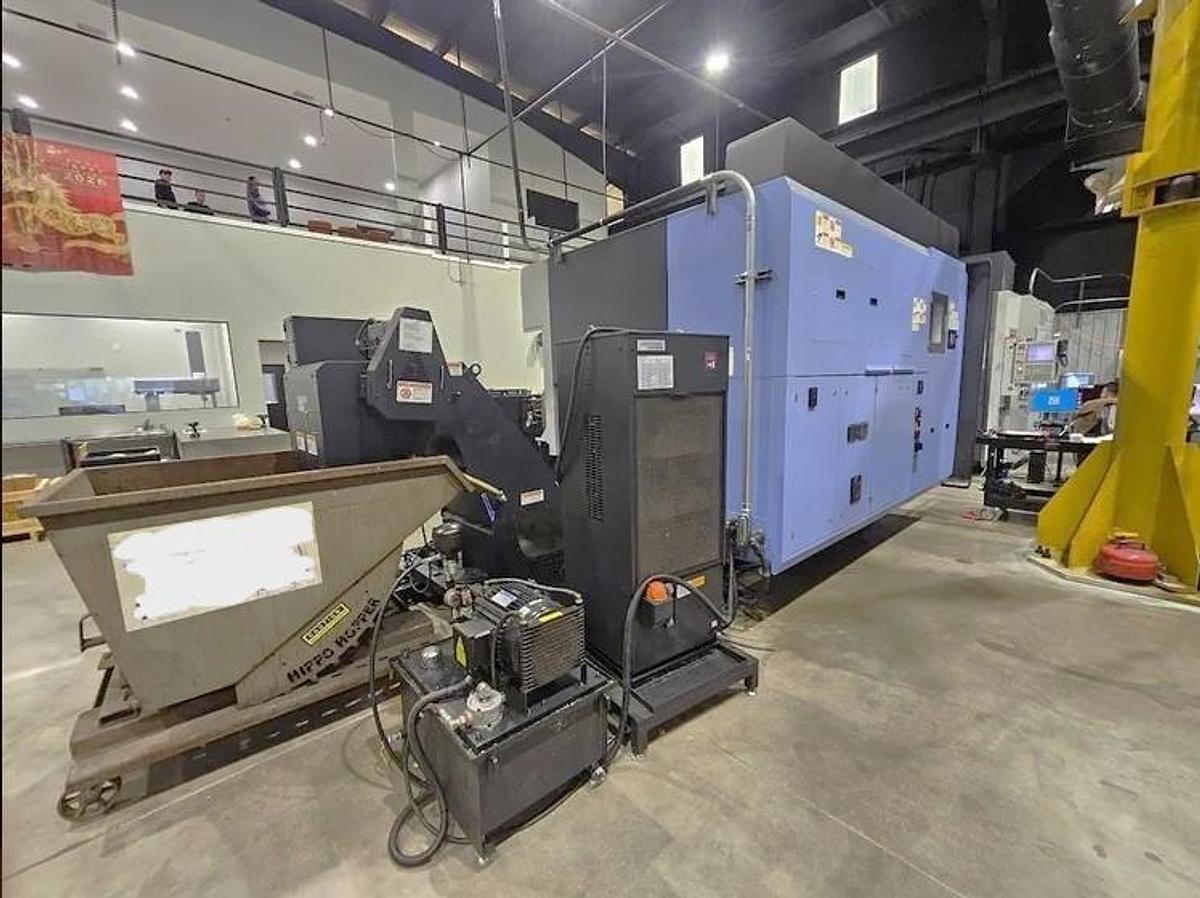

18,000 RPM Spindle Renishaw Tool & Part Probing Chip Conveyor
Dual Chip Augers
Table Equipped with 6 Rotary Ports for (4) Hydraulic/(2) Air Through Table
Operator Panel for Hydraulic Fixturing
Hydraulic Pump for Fixture Interface (200 Bar)
Flood Coolant
Bed Flushing Coolant
Air Gun
Thermal Compensation Sensor (Spindle & Structural)
Remote Jog Handle

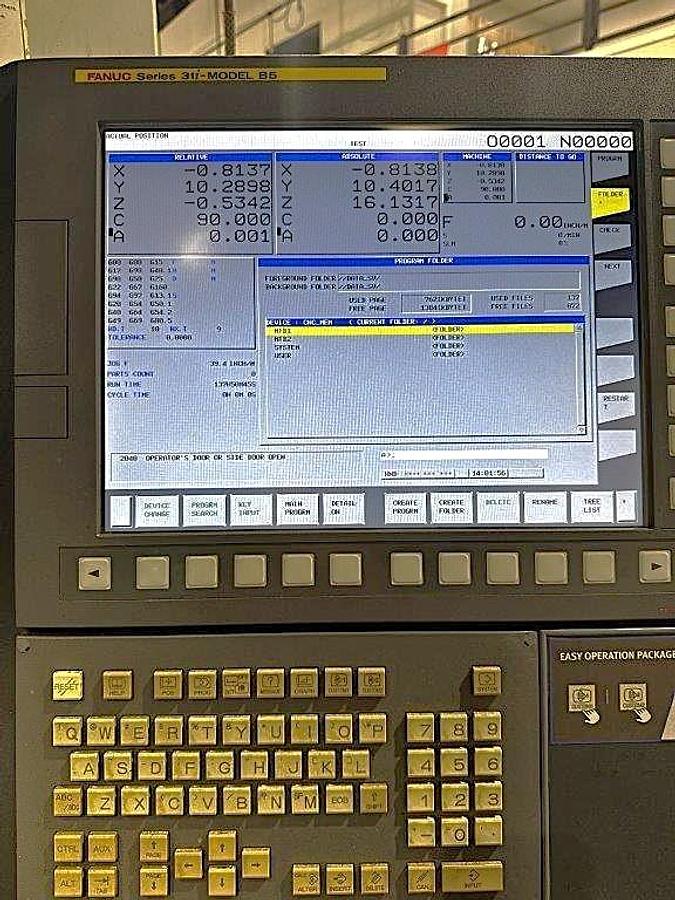

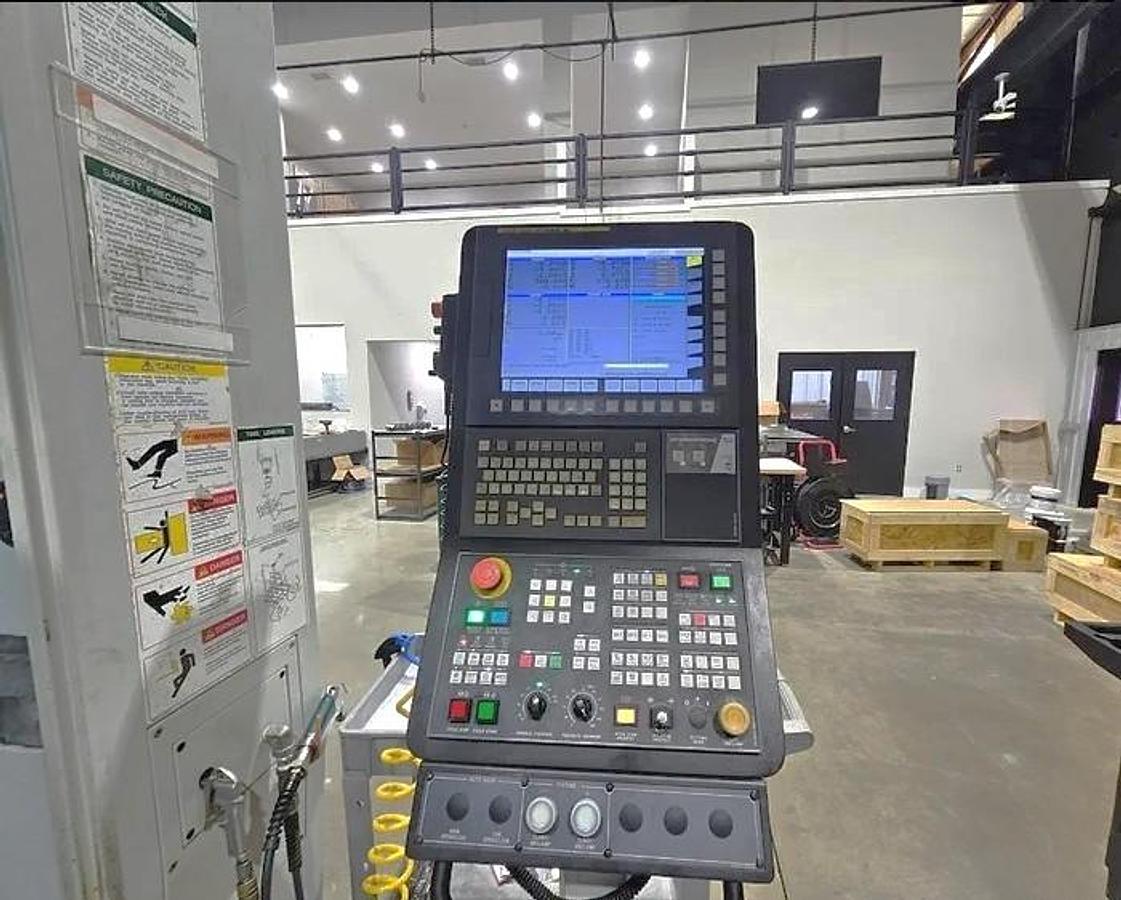

15" Touch Screen Control All Available Manuals
Machine Delivered New in 2022, Price New As Equipped at well over $400,000
Specifications
| Manufacturer | Doosan |
| Model | DVF 6500 5 Axis Trunnion VMC |
| Year | 2020 |
| Condition | Used |
| Stock Number | 120697 |
| Control | Fanuc 31i-B5 Plus |
| Table Size | 25.6" |
| Maximum Table Load | 1,323 lbs. |
| Maximum Workpiece Diameter | 33.1" |
| Maximum Workpeice Height | 19.7" |
| X-Axis Travel | 29.5" |
| Y-Axis Travel | 30.9" |
| Z-Axis Travel | 23.6" |
| B-Axis Tilt Movement | +110 Degrees, - 30 Degrees |
| B-Axis RPM | 20 RPM |
| C-Axis Rotation | .0001 Degrees |
| C-Axis RPM | 20 RPM |
| Spindle Taper | CAT 40 - Big Plus |
| Spindle Speed | 18,000 RPM |
| Spindle Motor | 30 HP |
| Tool Magazine Capacity | 60 Station Tool Changer |
| Tool Change Time Tool to Tool | 1.3 seconds |
| Tool Change Time Chip to Chip | 5.3 seconds |
| Rapid Traverse Rates | 1575 IPM |
| Machine Dimensions LxWxH | not available |
| Machine Weight | 32,000 lbs |
