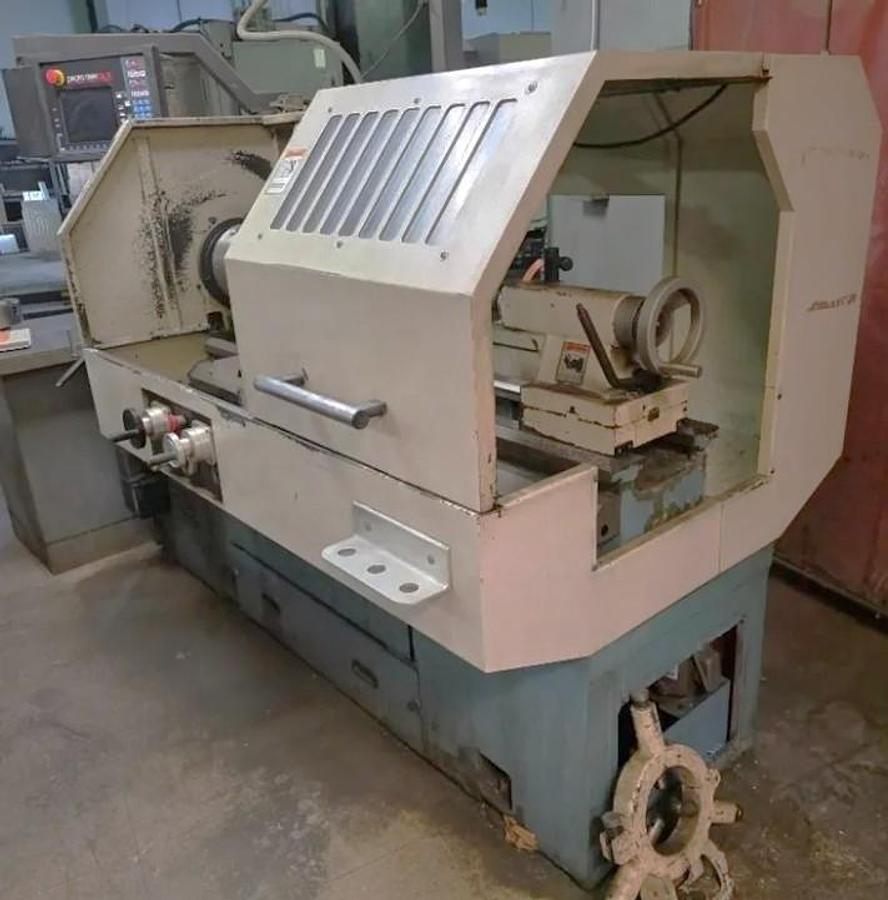

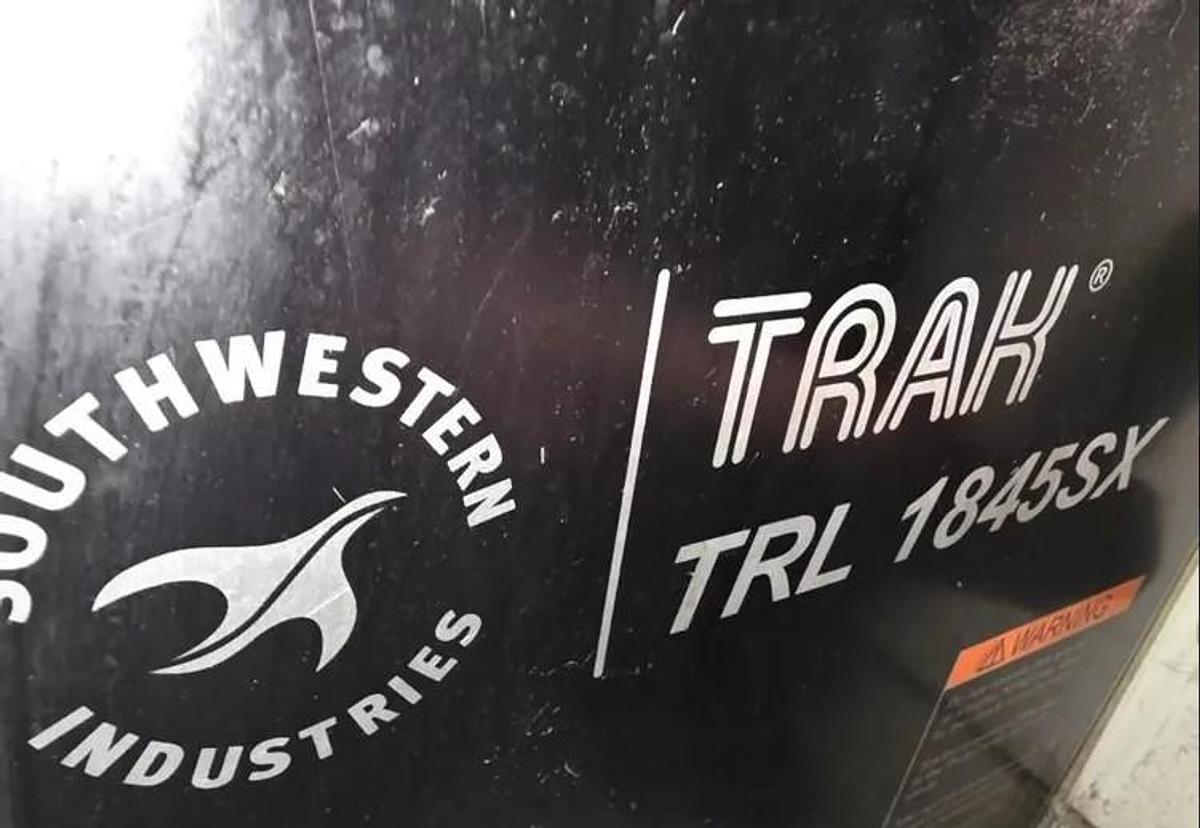

2012 Southwestern Industries TRAK TRL 1845SX
2012 Southwestern Industries TRAK TRL 1845SX
$26,950 (USD)
Location:Kentucky
or
Call (863) 439-6066
Description

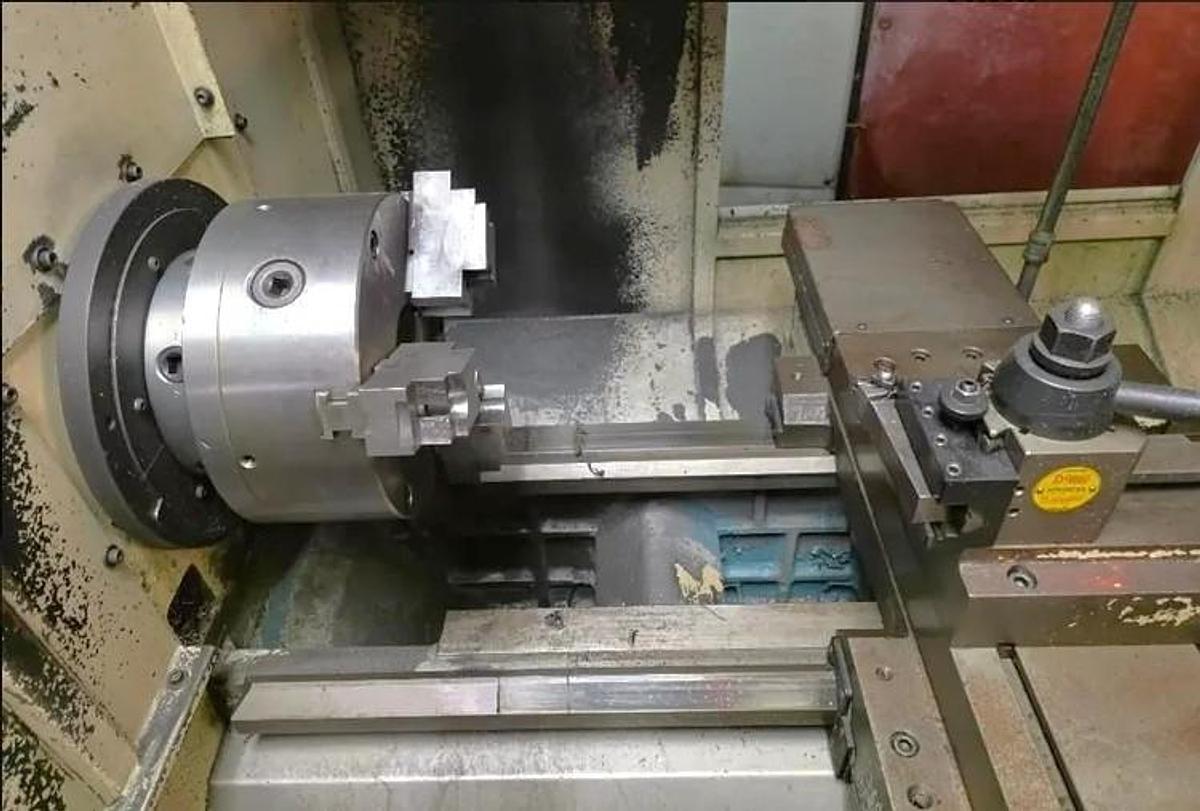

8" 3 Jaw Manual Chuck
Dorian Tool Post
Tailstock

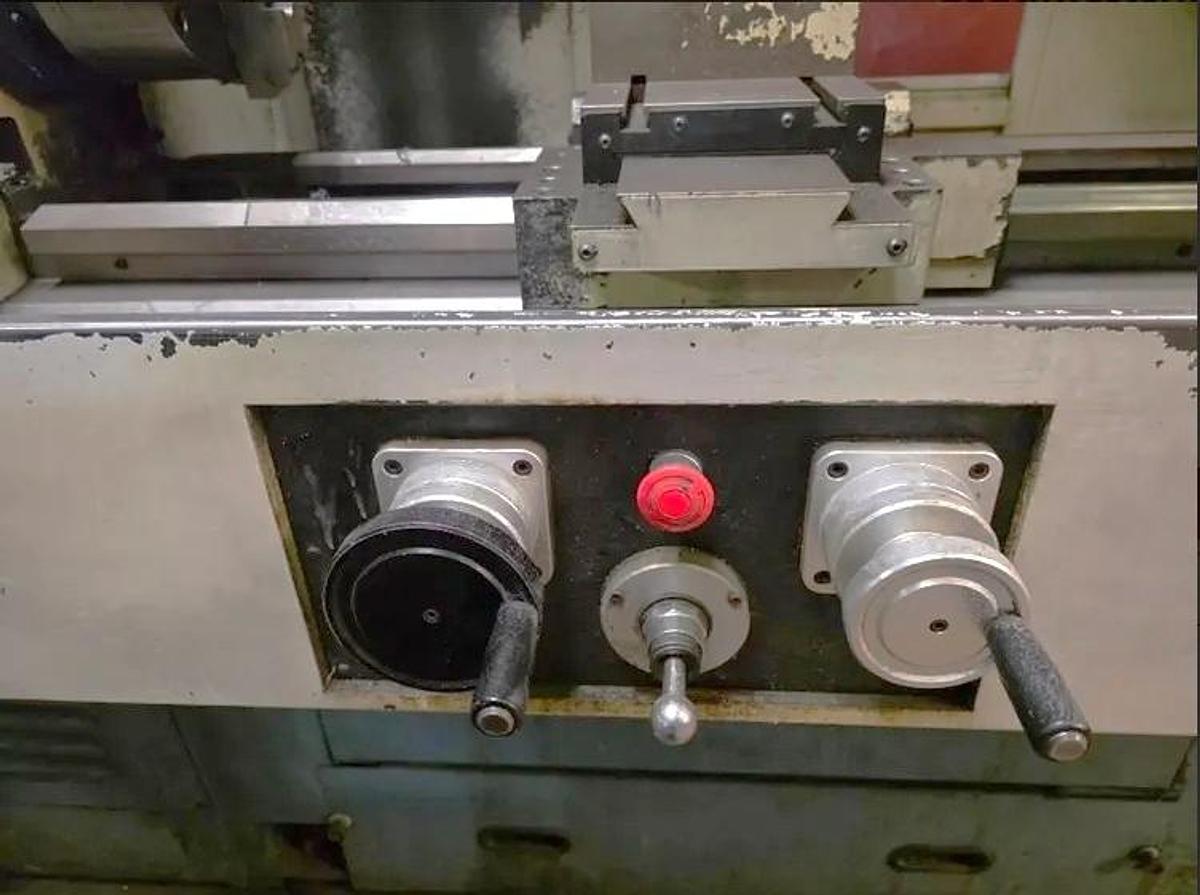

Electronic Handwheels and Joystick
AC Spindle Drive
Constant Surface Speeds
10.4" Color Active Matrix Screen
Networking Interface
RS232 Port Interface
Coolant System with Pump
Wired 220V 3 Phase Electrics
Specifications
| Manufacturer | Southwestern Industries |
| Model | TRAK TRL 1845SX |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120693 |

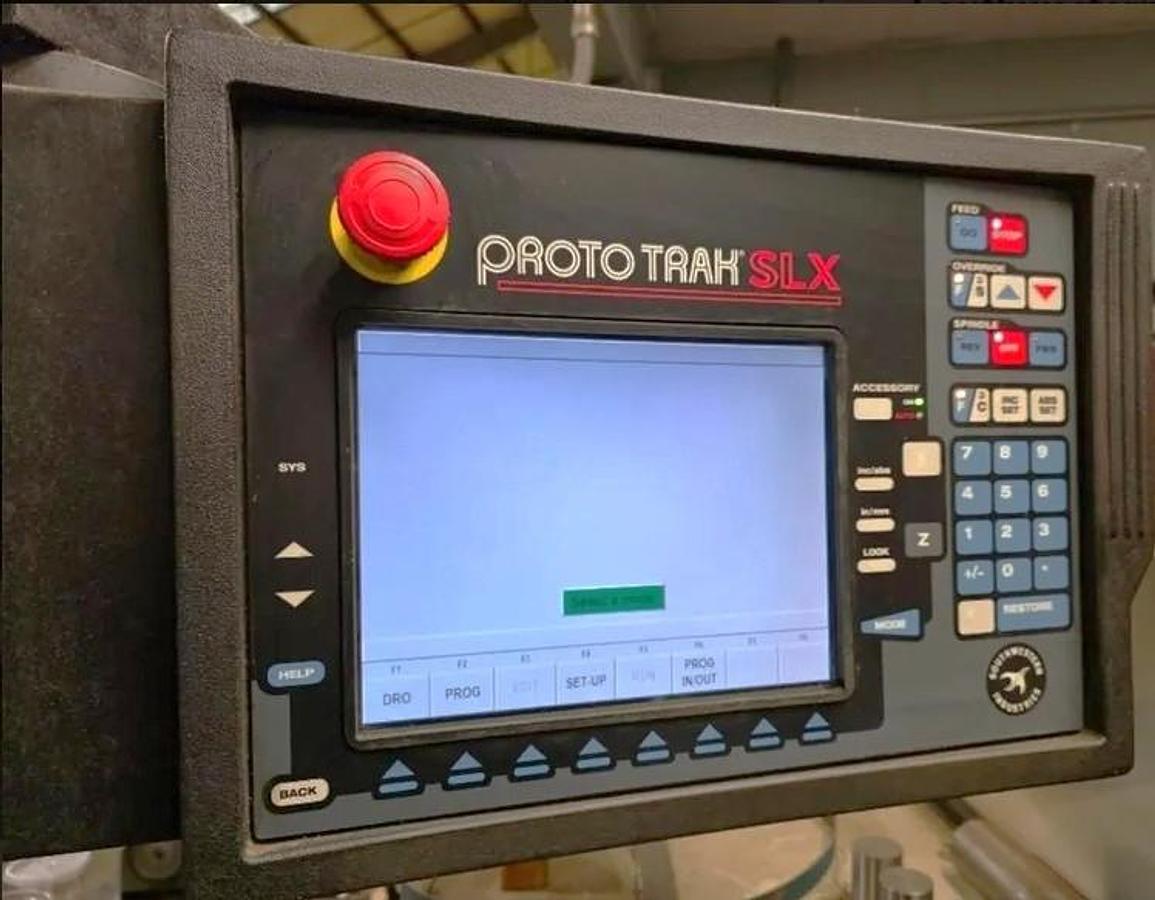

| Machine Control | Prototrak SLX |
| Chuck Size | 8" 3-Jaw Manual |
| Maximum Swing over Bed | 18.1" |
| Maximum Swing Over Cross Slide | 9" |
| Distance Between Centers | 45" |
| Spindle Nose / Spindle Bore | D1-6 / 2.36" |

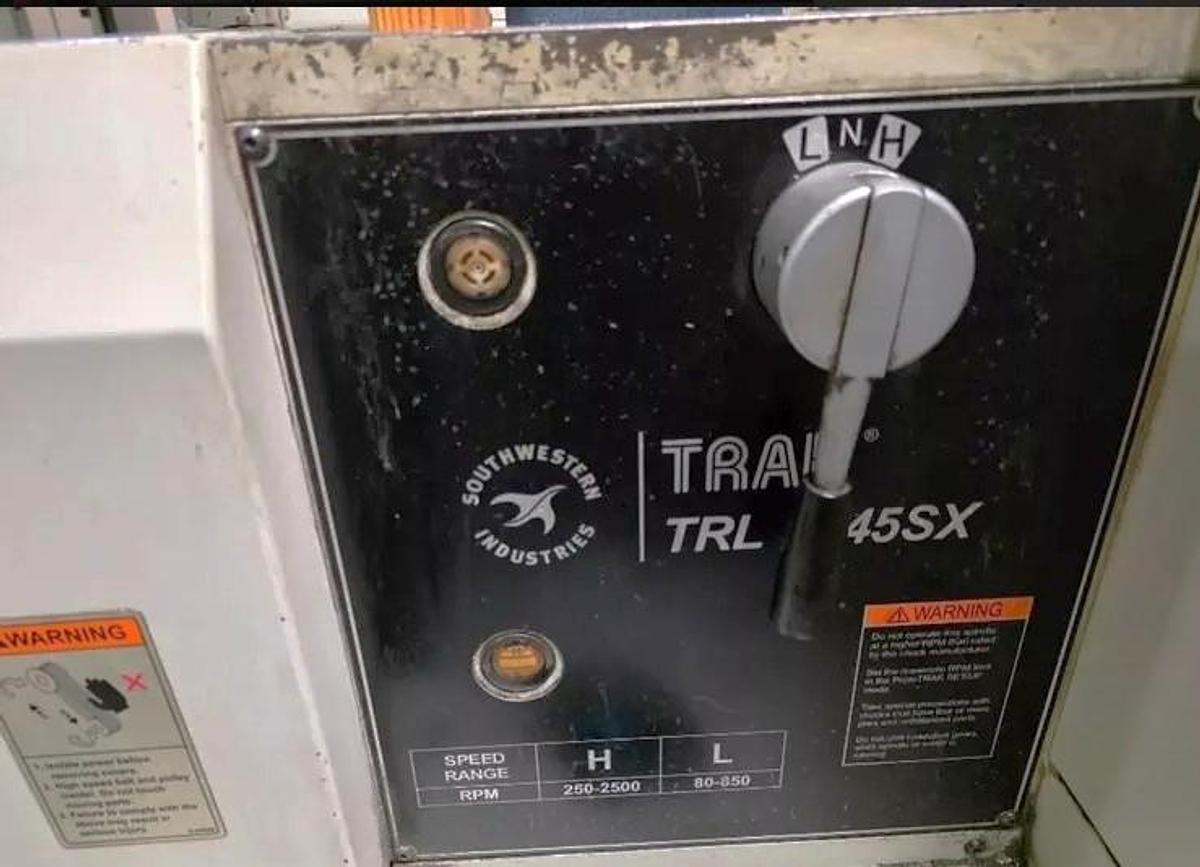

| Spindle Speeds | 80-850 RPM / 250-2,500 RPM |
| Number of Tool Positions | 1 Tool Post Quick Change |
| Spindle Motor | 10 HP |
| Rapid Traverse Rates X/Z | 100 IPM / 150 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.96" / 7.125" / #5MT |
| Power Requirements | 220V / 3 Phase / 60Hz |
| Machine Dimensions LxWxH | 94"x53"x73" |
| Machine Weight | 4,000 lbs |
