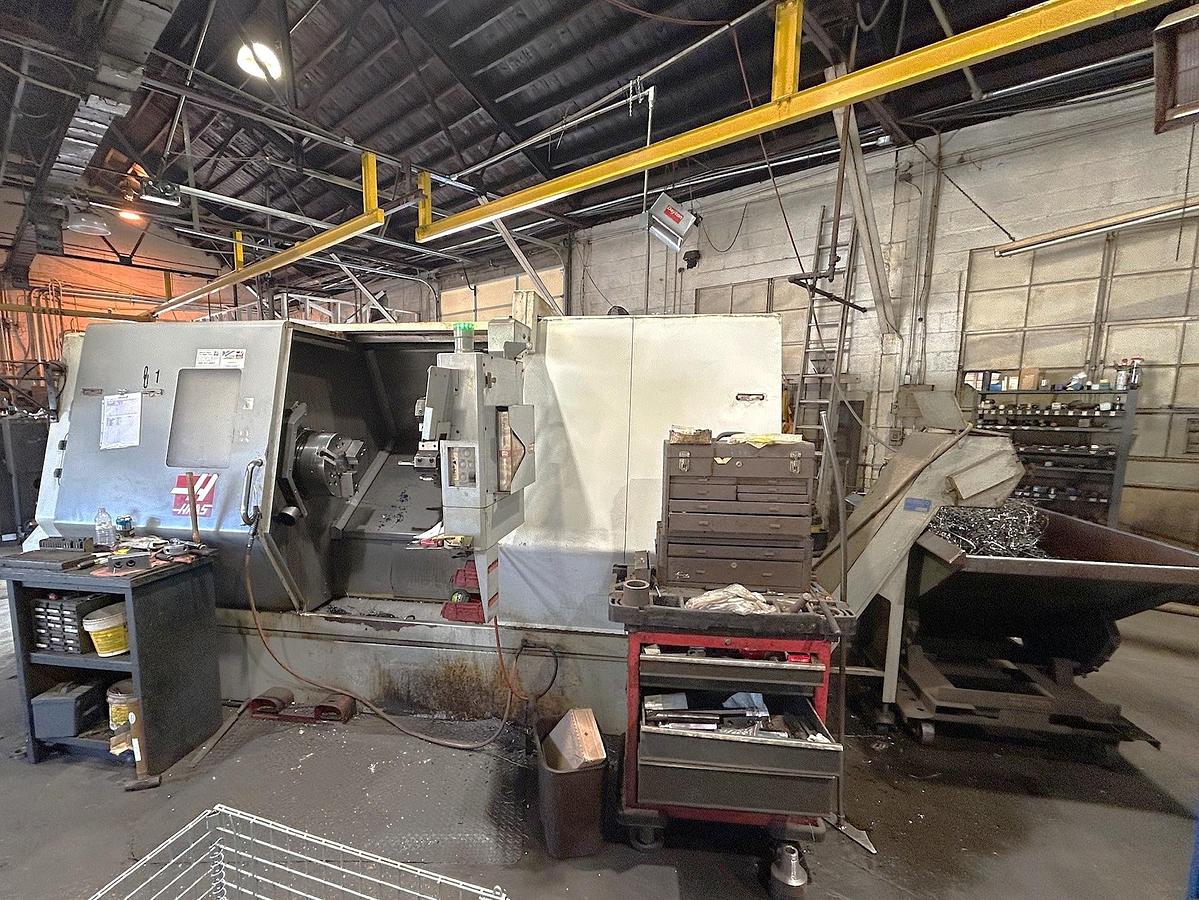

2005 Haas SL-40T with Steady Rest, 15" Chuck, Toolsetter, Tailstock, Chip Conveyor, 4" Bar Capacity, 55 HP Package, Geared Head

2005 Haas SL-40T with Steady Rest, 15" Chuck, Toolsetter, Tailstock, Chip Conveyor, 4" Bar Capacity, 55 HP Package, Geared Head
$32,500 (USD)
Location:Oklahoma
Description

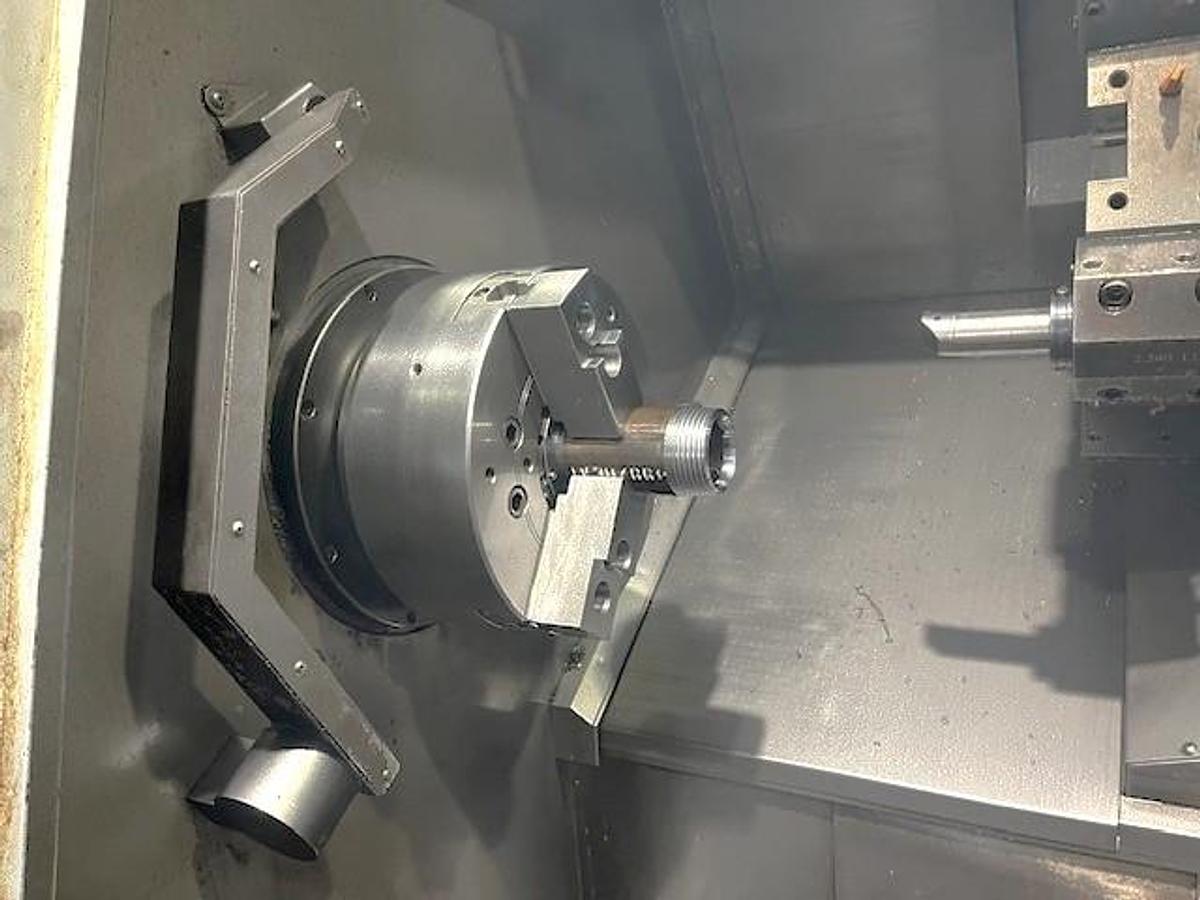

15" 3 Jaw Hydraulic Chuck 4" Bar Capacity
Steady Rest Tool Presetter

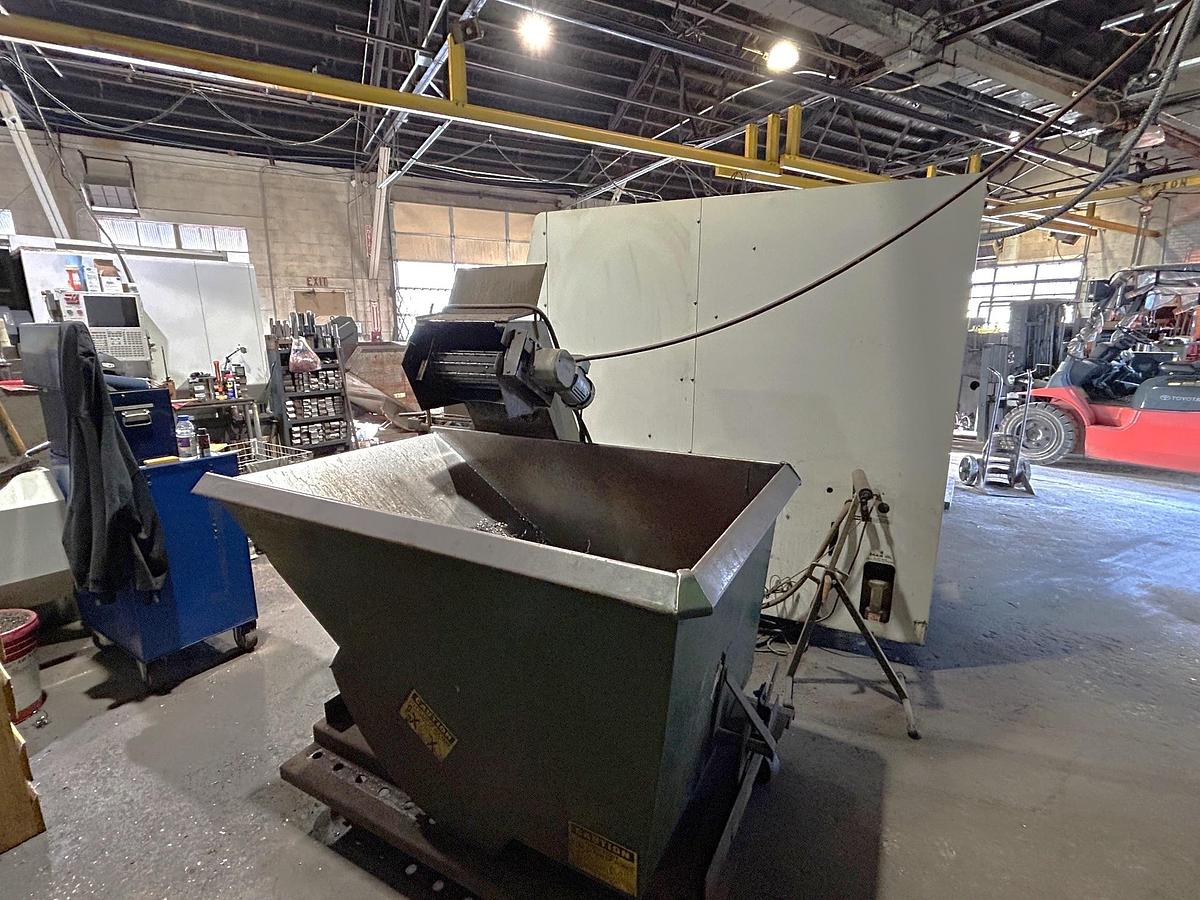

Fully Programmable Tailstock Chip Conveyor Extra Performance Package with 55 HP Spindle Motor
2 Speed Geared Headstock

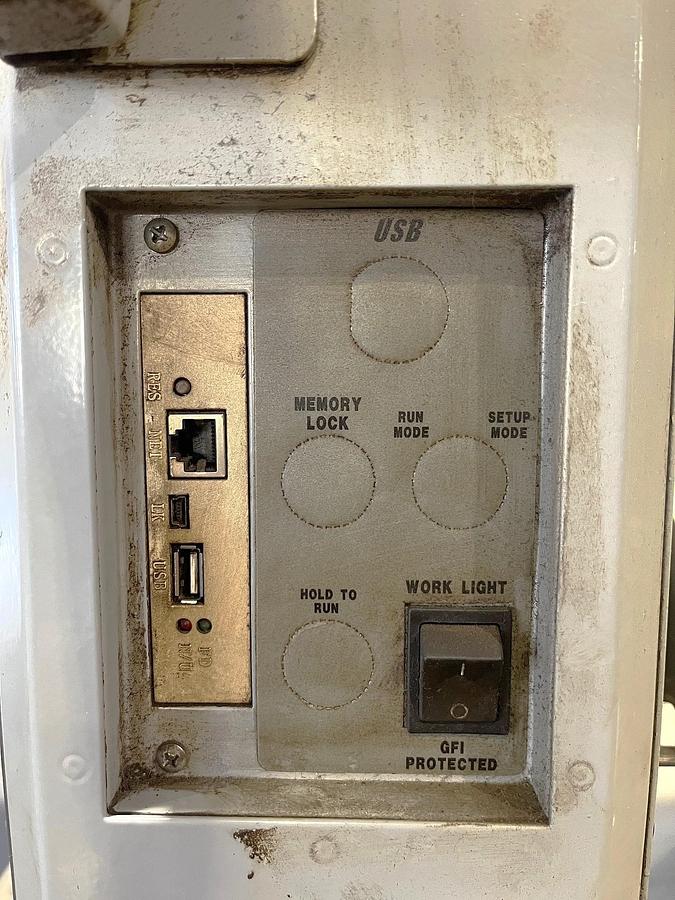

Network Interface
USB Port Interface RS 232 Port Interface Rigid Tapping 95 Gallon Coolant Tank with Pump
Wired 208/230V Electrics All Available Manuals
All Available Tool Blocks

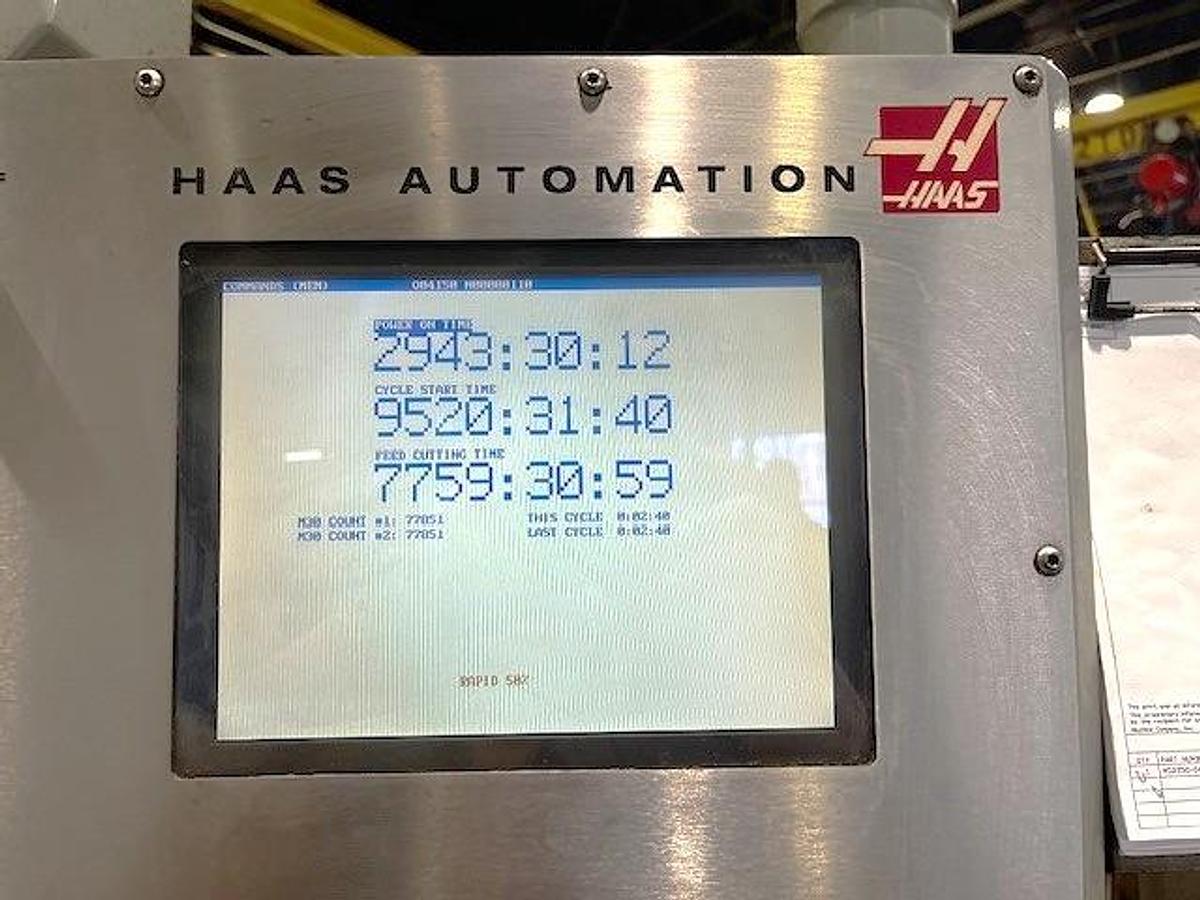

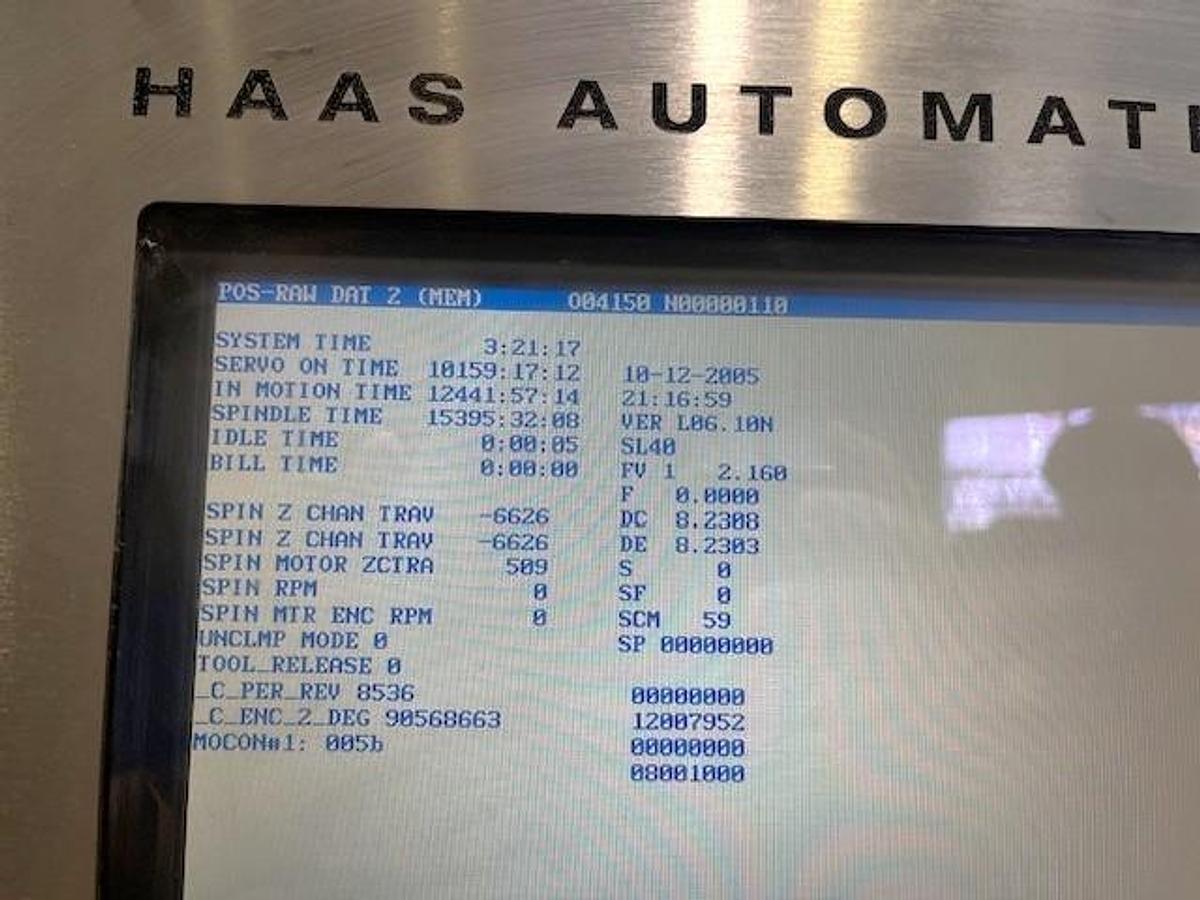

**In Motion Hours 12,441**
**Spindle Hours 15,395**
**The machine has had the following items replaced over the years, new spindle motor, new transmission, new actuator, belts and hoses as needed.**
**Machine is under power cutting parts and is being replaced by a new machine shortly, rigging cost can be greatly reduced if able to live load at time of new machine arrival**
Specifications
| Manufacturer | Haas |
| Model | SL-40T |
| Year | 2005 |
| Condition | Used |
| Stock Number | 120692 |
| Control | Haas CNC Control |
| Chuck Size | 15" Hydraulic Chuck |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25" |
| Maximum Cutting Diameter | 25.5" |
| Maximum Cutting Length | 44" |
| Maximum Distance Between Centers | 51" |
| Maximum Bar Capacity | 4" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Spindle Bore | A2-8" / 4.62" |
| Spindle Speeds | 2,400 RPM |
| Spindle Motor | 55 HP |

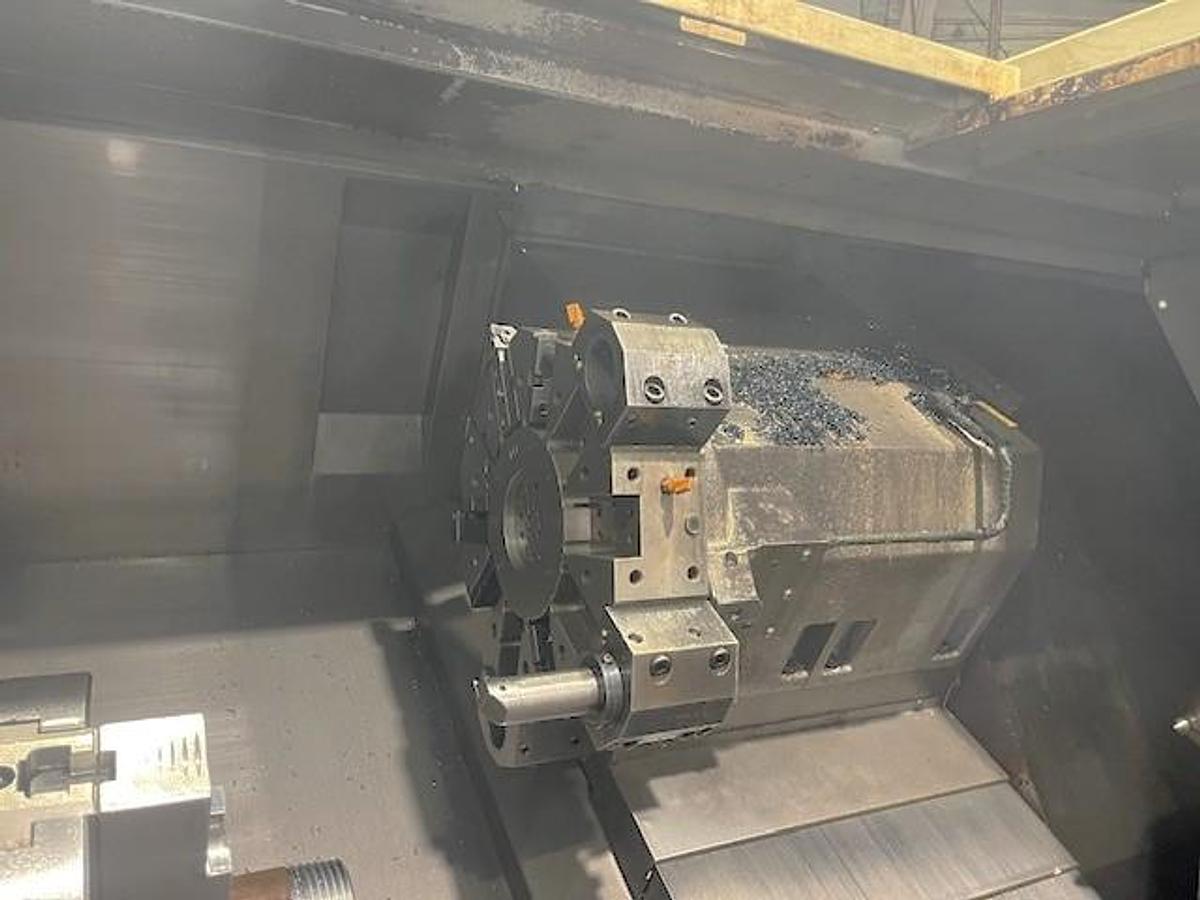

| Number of Turret Positions | 10 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Tailstock Taper | 44" / MT #5 |
| Machine Dimensions | 170" x 102" x 89" |
| Machine Weight | 25,000 lbs. |
