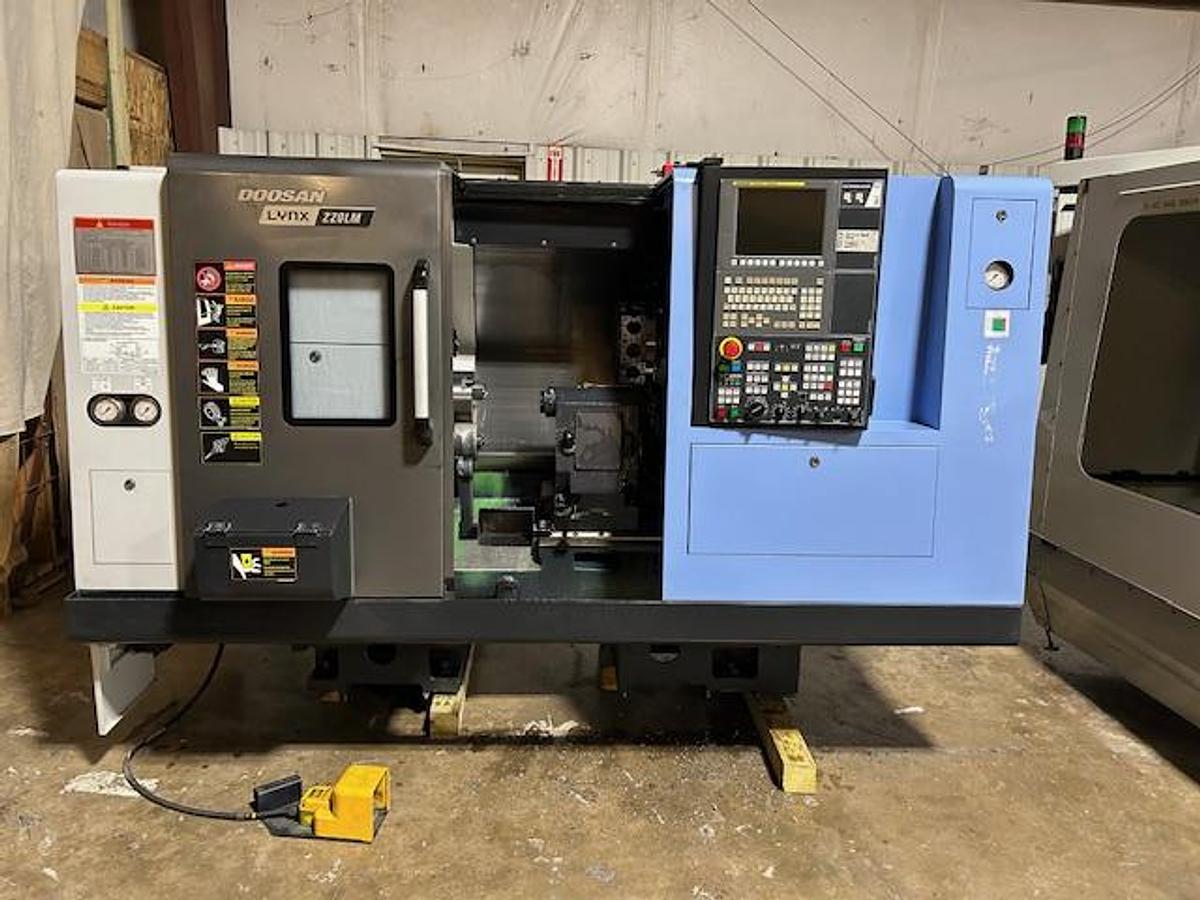

2015 Doosan Lynx 220LMA Tool Eye, Parts Catcher, Live Tooling

2015 Doosan Lynx 220LMA Tool Eye, Parts Catcher, Live Tooling

Contact us for price

Location:Colorado

or
Call (863) 439-6066

Description

6.5" 3 Jaw Samchully Hydraulic Chuck

Full C Axis Spindle Rotation

Live Milling/Drilling Capability

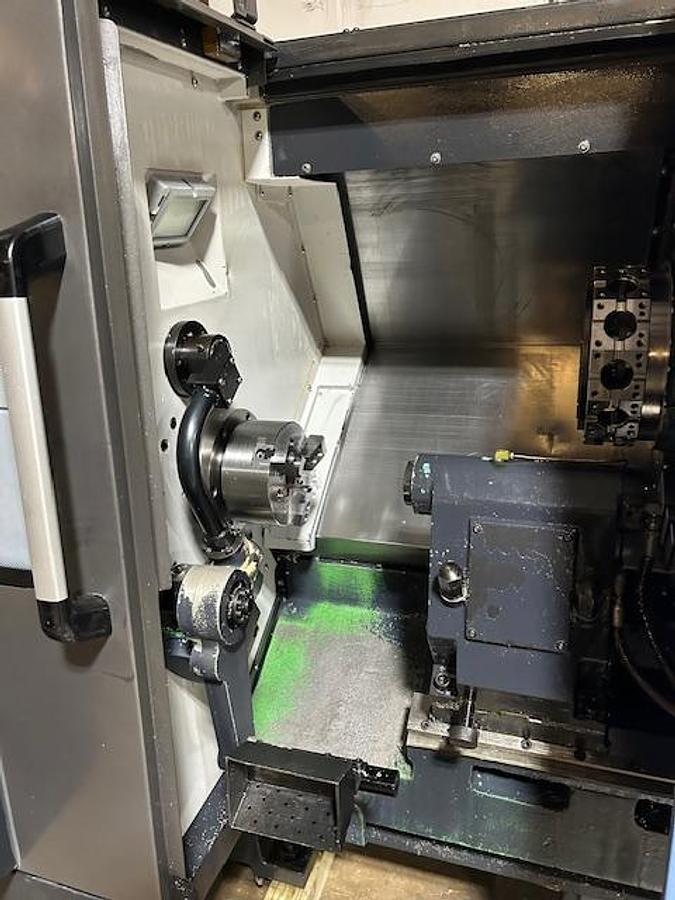

Parts Catcher

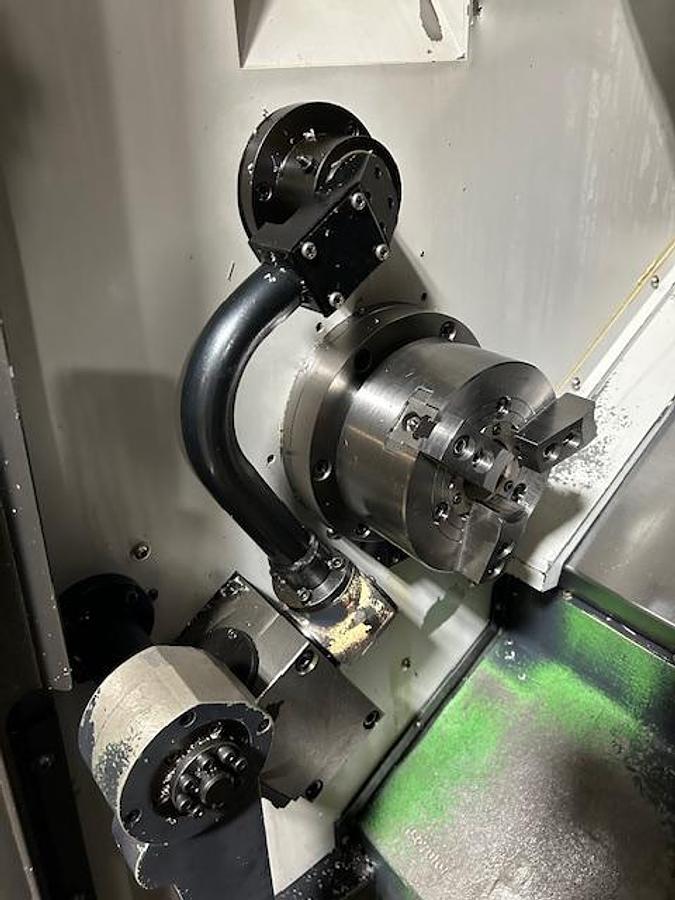

Tool Presetter

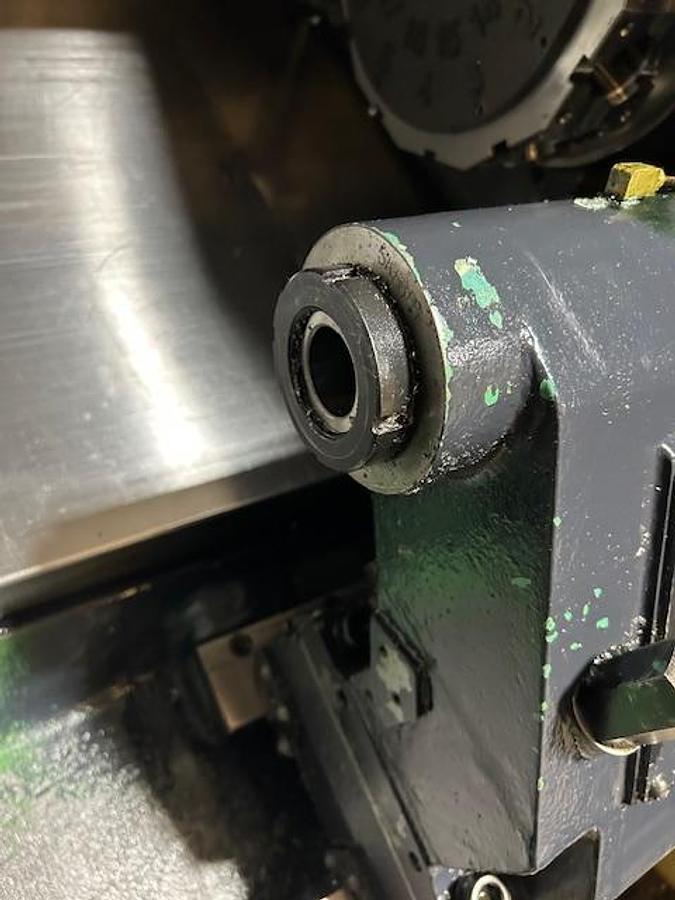

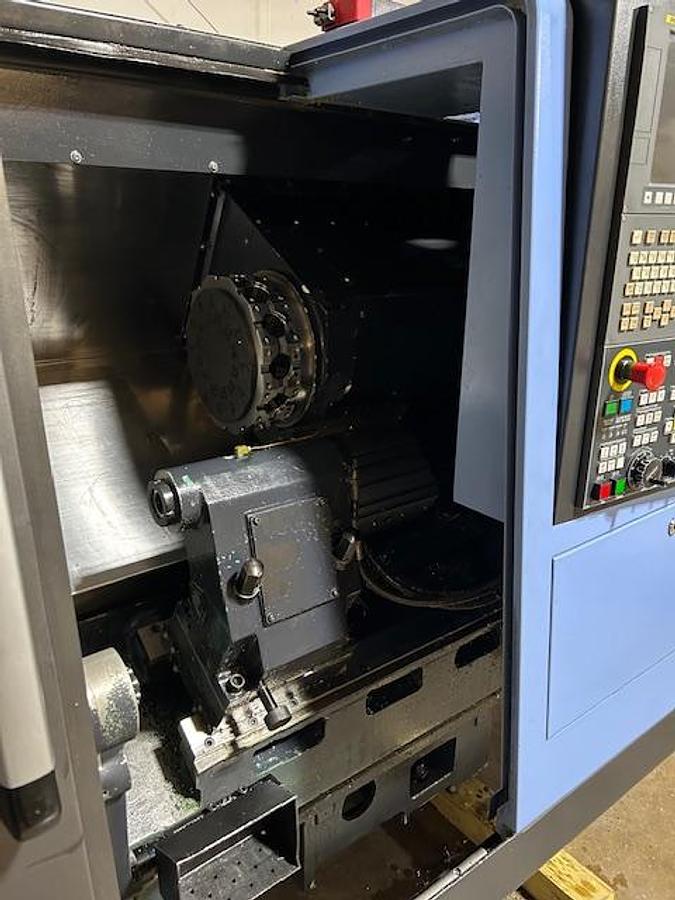

Tailstock

Complete Coolant System

RS-232C Port for DNC Interface

All Available Manuals



Show All

Specifications

ManufacturerDoosan
ModelLynx 220LMA Tool Eye, Parts Catcher, Live Tooling
Year2015
ConditionUsed
Stock Number120690
Chuck size6.5" Hydraulic Chuck

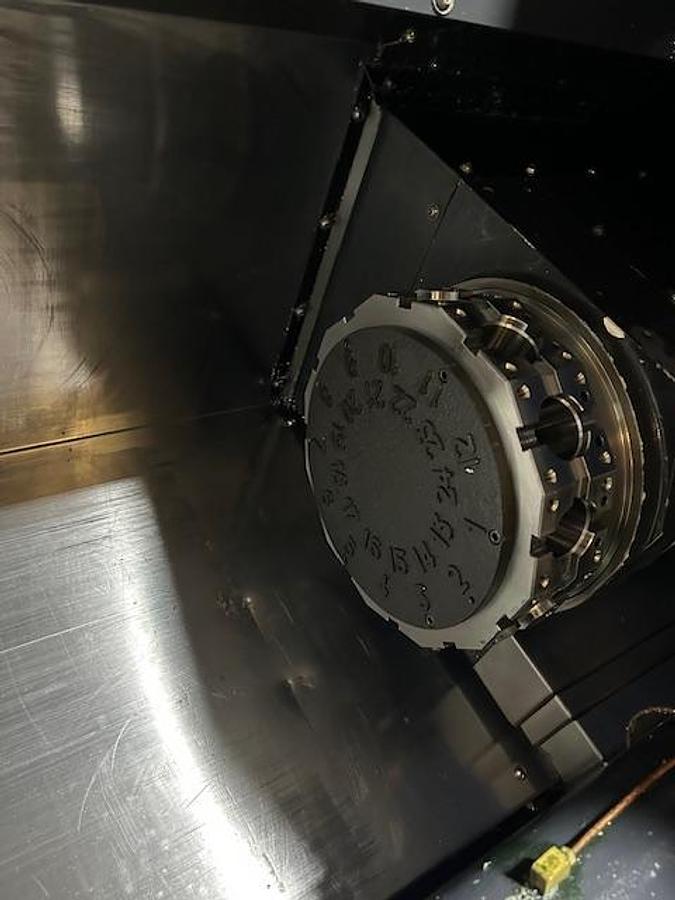

Turret type12 sided/24 positions
Spindle motor20 HP
Spindle speed40 - 6,000 RPM
X-axis travel6.9"
Z-axis travel21.7"
Machine weight7,700 lbs
Maximum bar capacity2.04"
Maximum swing over bed20.1"
Maximum turning length20"
Tailstock quill stroke3.14"
Maximumturning diameter9.8"
Machine dimensions lxwxh104"x64"x65"
Rapid traverse rates x, z1181 PM / 1417 IPM
Rotary tool motor / speeds5 HP / 6000 RPM
Spindle nose / spindle boreA2-5" / 2.4"
Tailstock quill dia. / center2.6" / MT # 4
