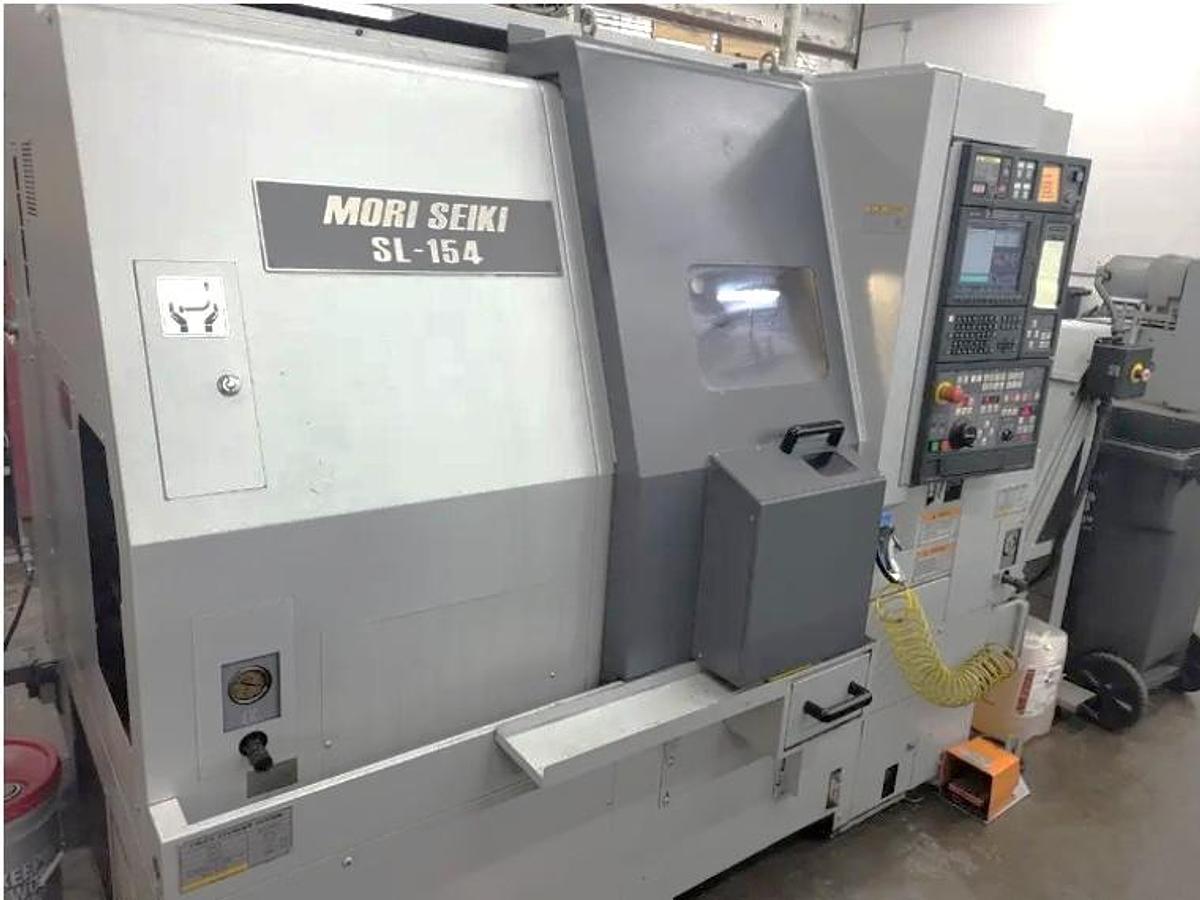

2003 Mori Seiki SL-154SY with Milling, Y Axis, Subspindle, Barfeed, Tooling, VERY NICE CONDITION !!!
2003 Mori Seiki SL-154SY with Milling, Y Axis, Subspindle, Barfeed, Tooling, VERY NICE CONDITION !!!
$46,500 (USD)
Location:Oregon
or
Call (863) 439-6066
Description

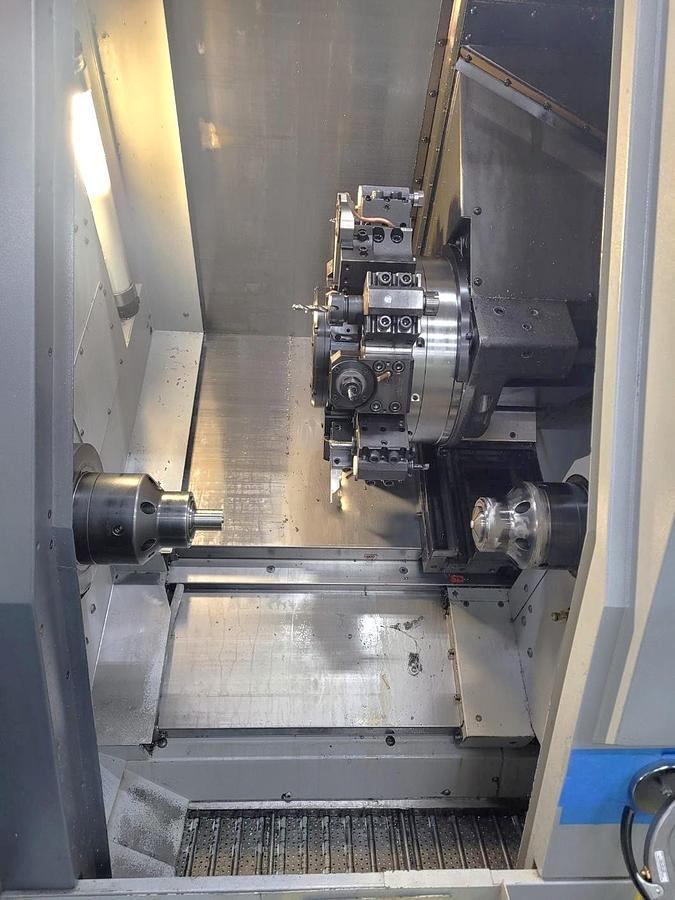

Live Milling/Drilling Capability
Full "C" Axis Spindle Rotation on Main/Subspindle

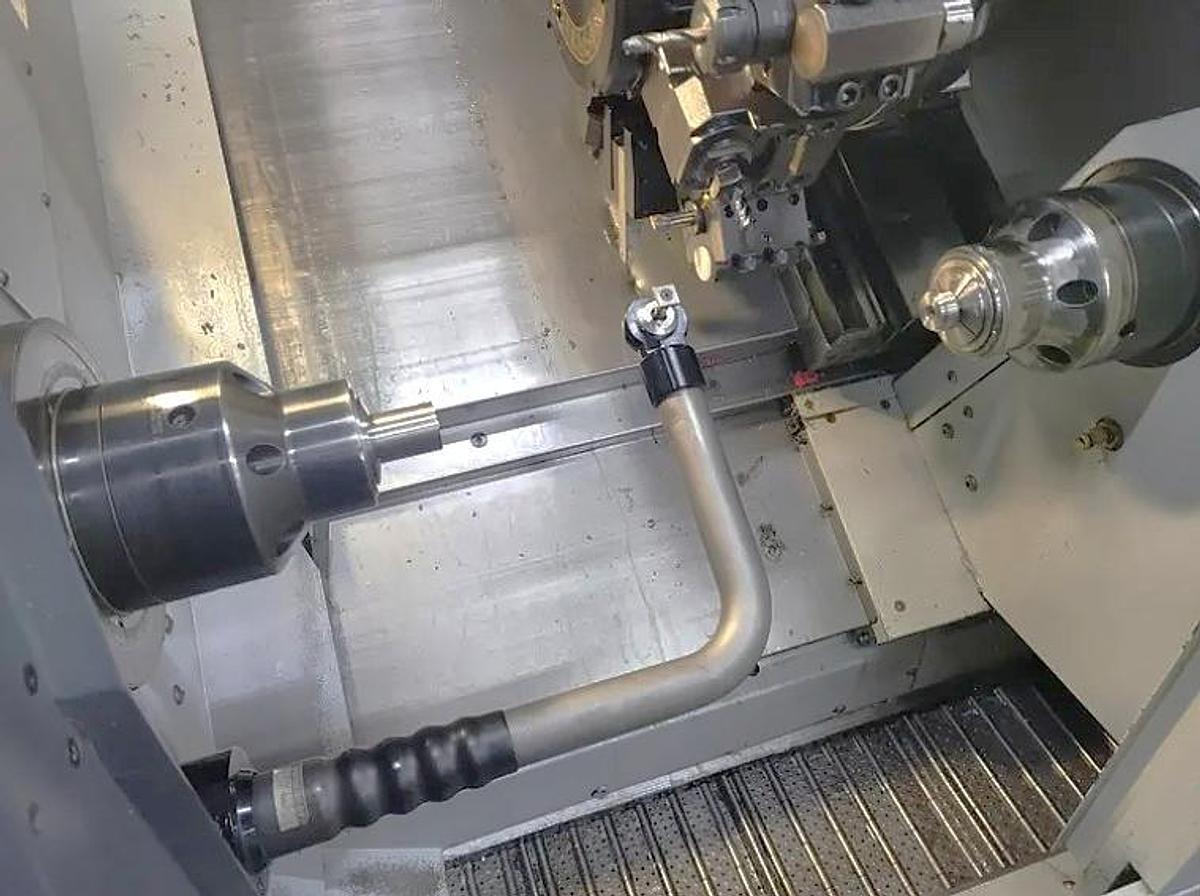

Subspindle
Y Axis Capability

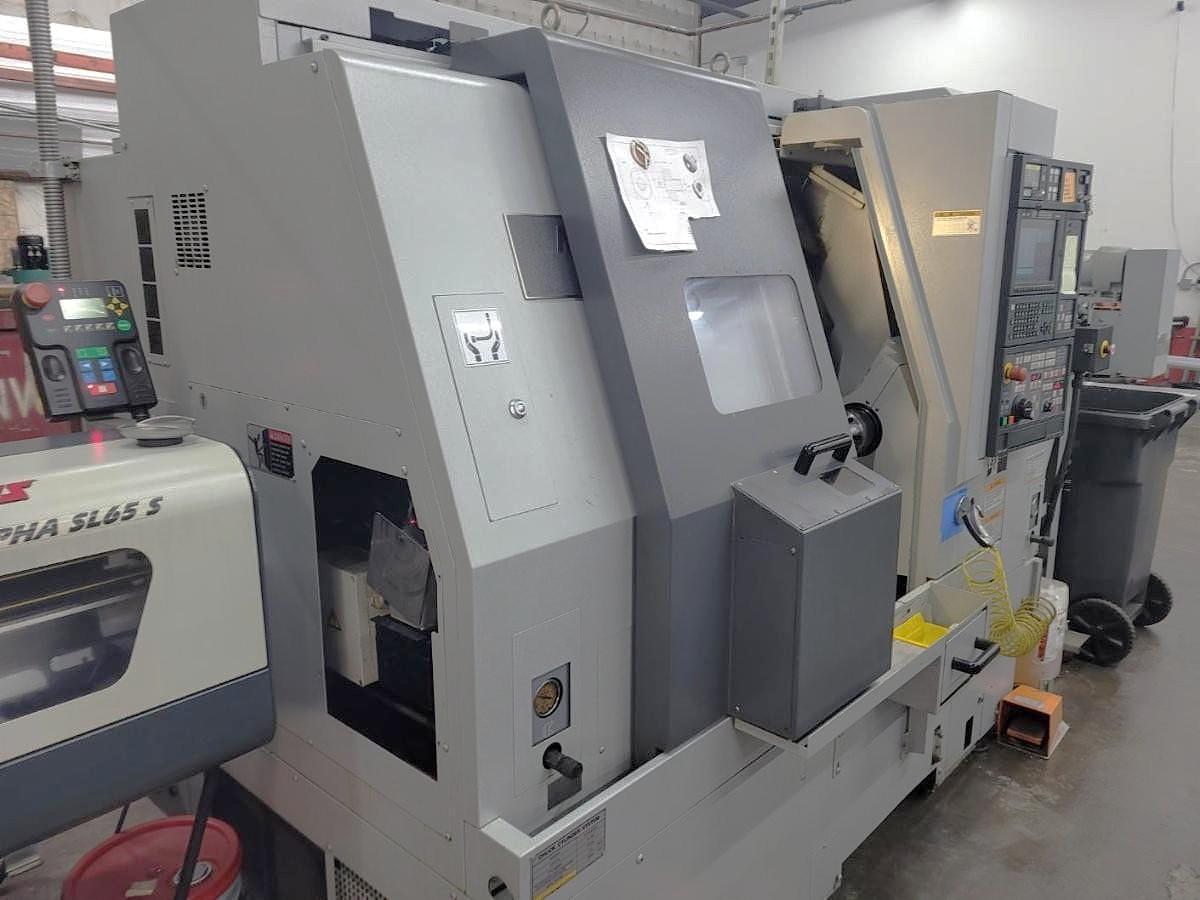

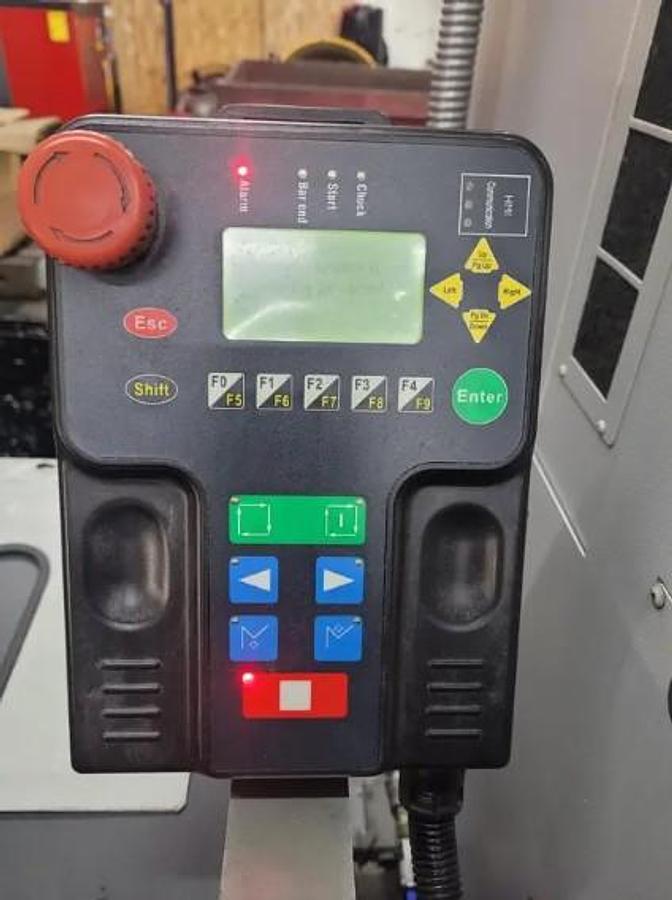

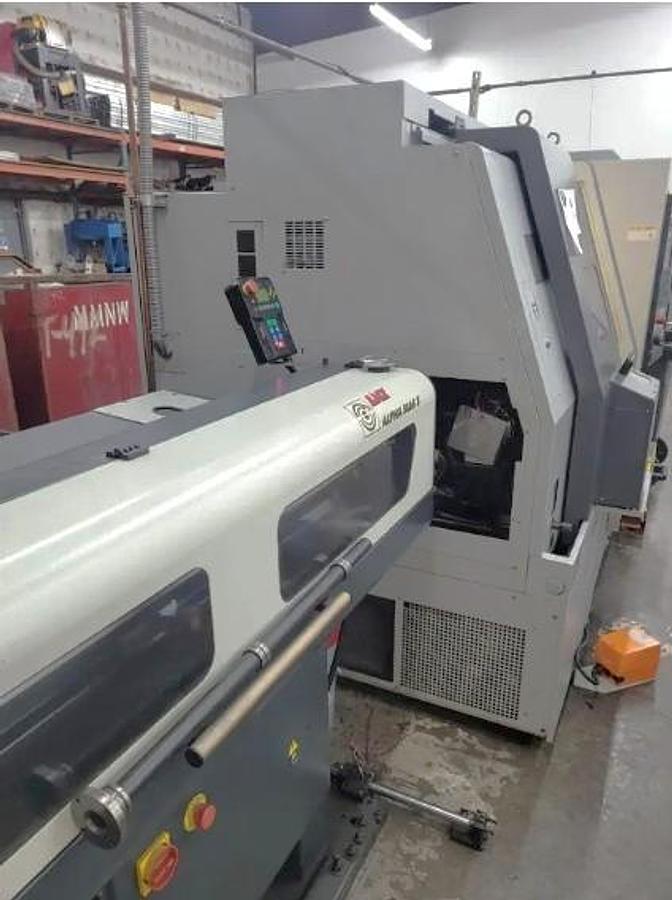

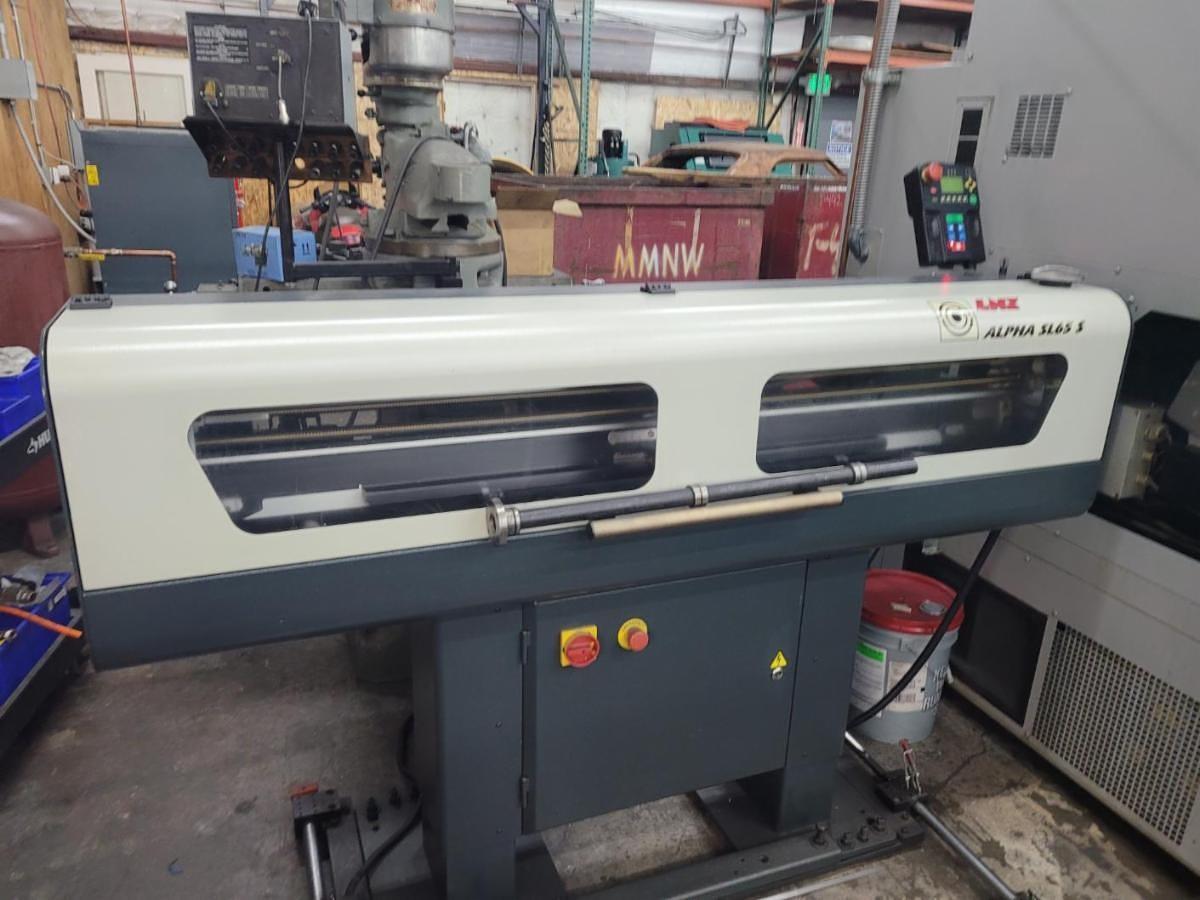

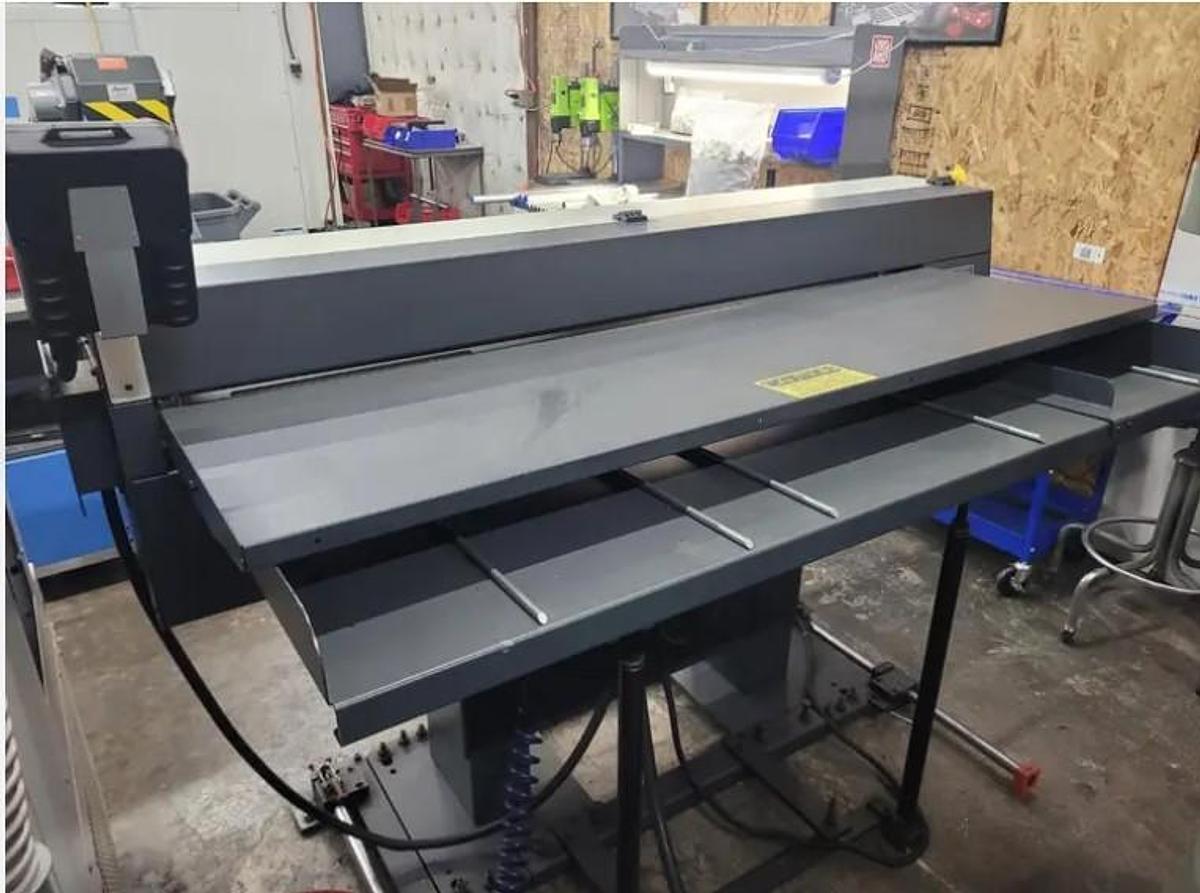

LNS Alpha SL65 S Short Load Type Barfeed System

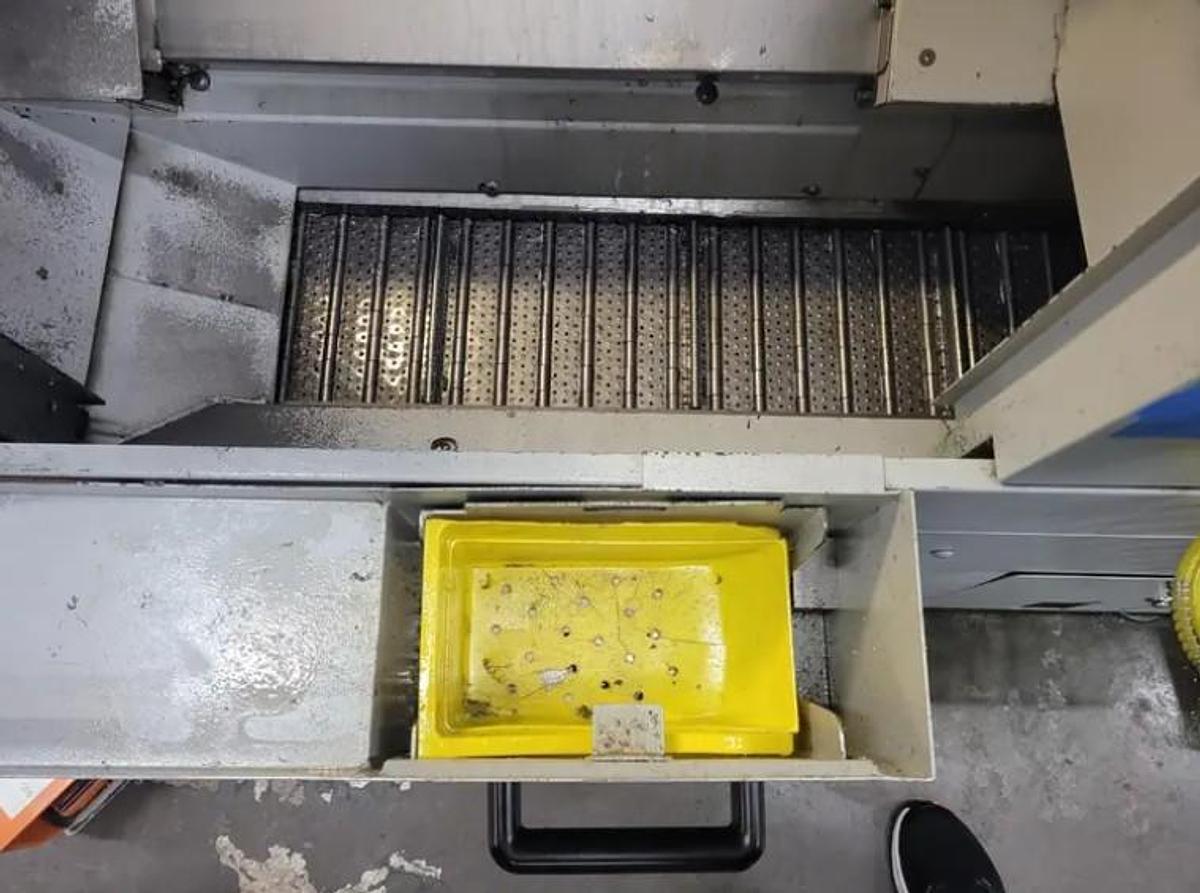

Parts Catcher
Chip Conveyor

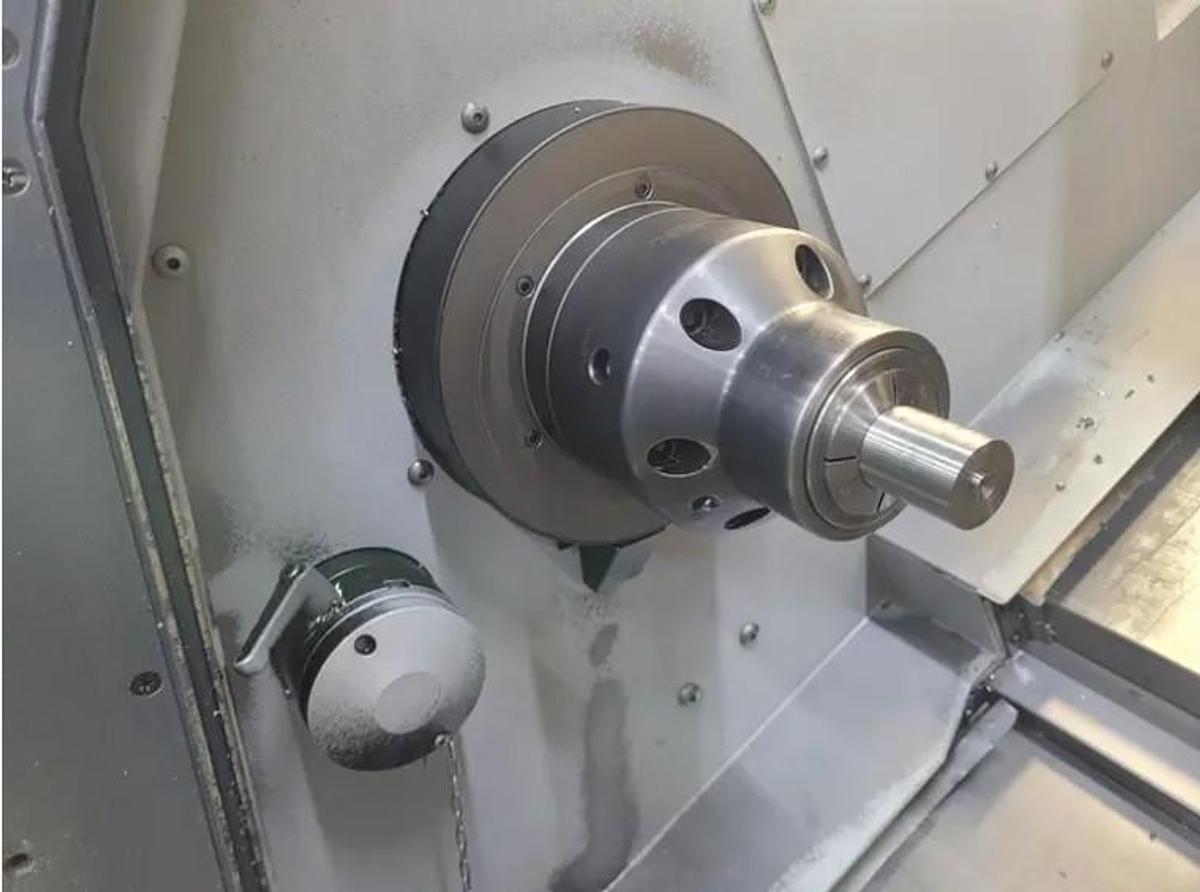

ATS 3J TLS Model Collet Chuck on Main Spindle

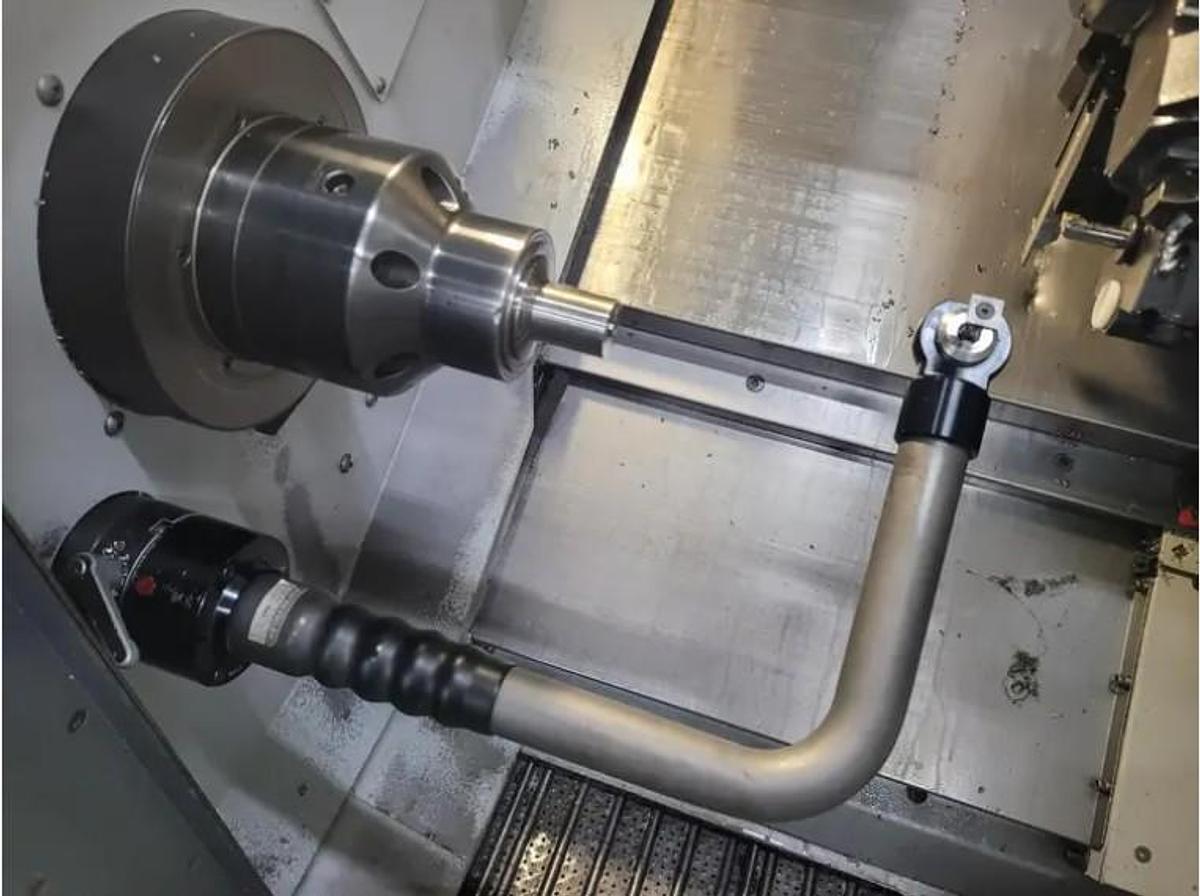

Tool Presetter
RS 232 Port for DNC Interface
Slant Bed Design
Boxed Ways

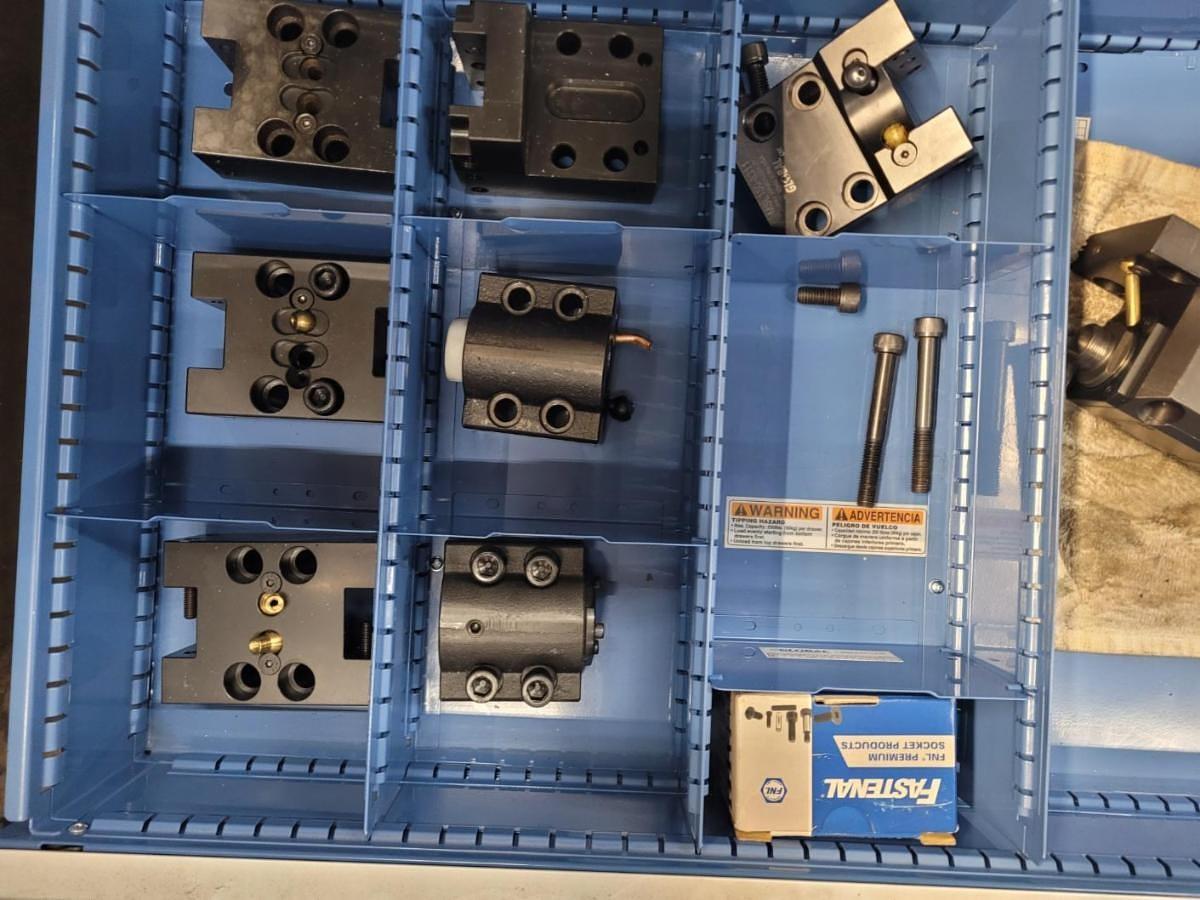

All Available Static Tooling (Approx. 14 Holders)
Miscellaneous Collets

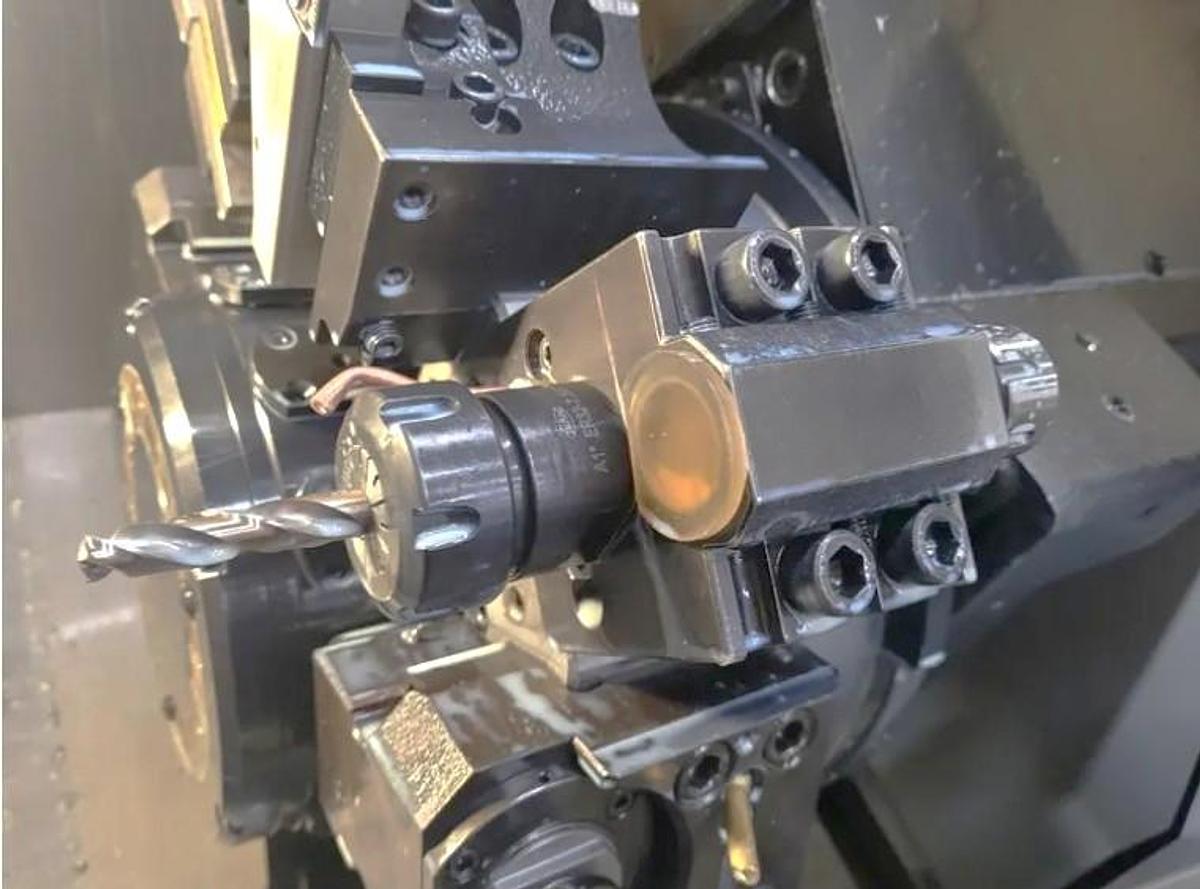

(4) Live Tool Holders
All Available Manuals

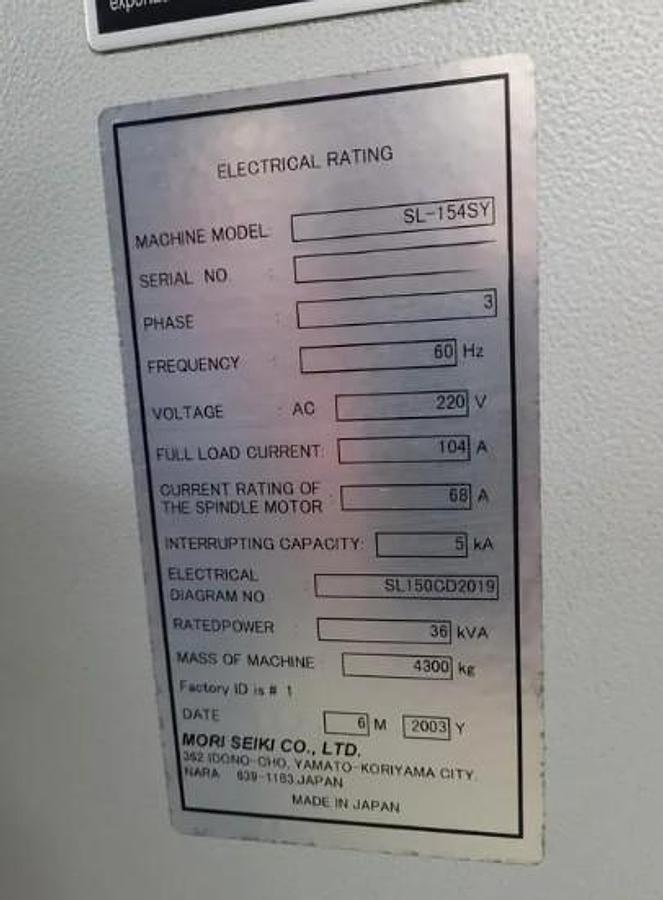

Wired 220V Electrics
Specifications
| Manufacturer | Mori Seiki |
| Model | SL-154SY |
| Year | 2003 |
| Condition | Used |
| Stock Number | 120686 |

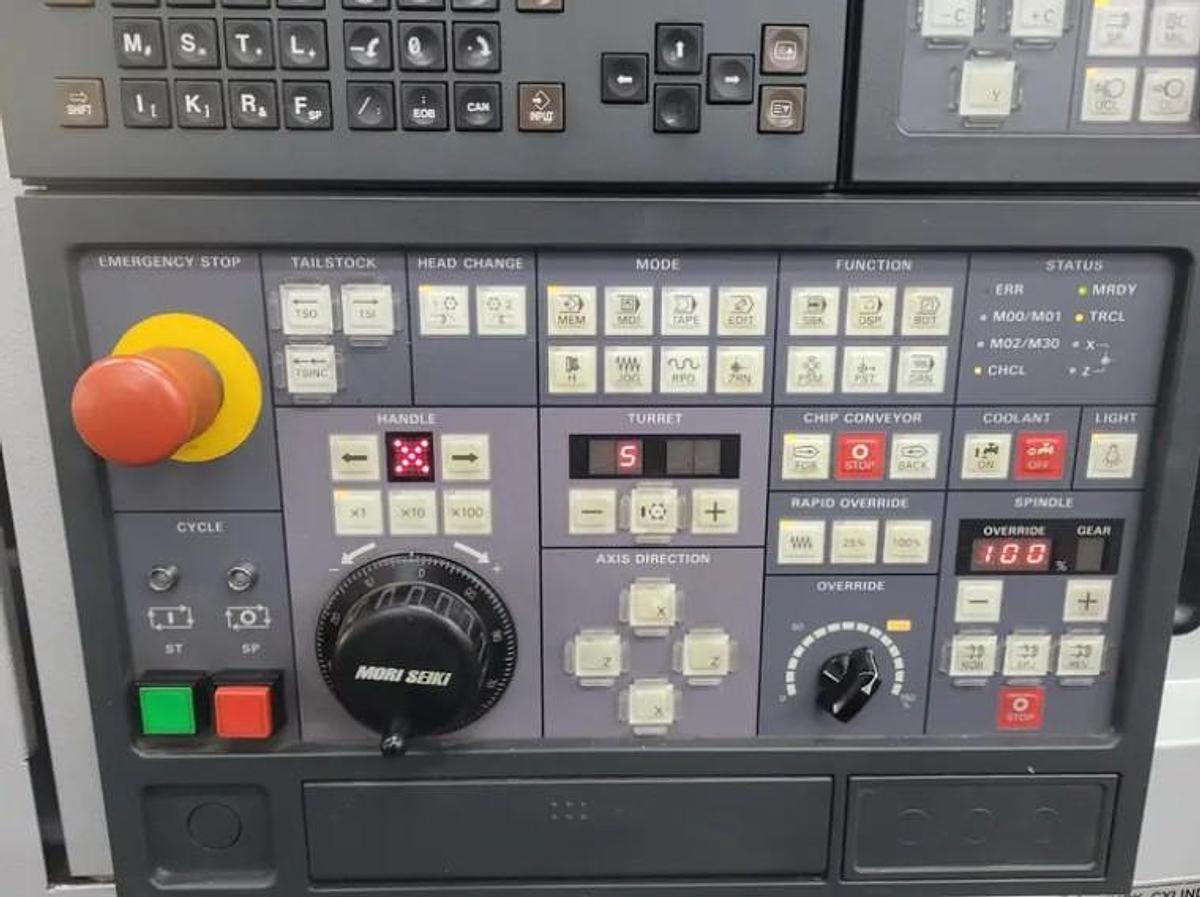

| Control | Mori Fanuc MSC-805 with Mapps Conversational |
| Chuck Sizes Main / Subspindle | 3J Collet Chuck / Collet Chuck |
| Maximum Swing over Bed | 26.77" |
| Maximum Turning Diameter | 11.81" |
| Maximum Turning Length | 13.78" |
| Maximum Bar Capacity | 1.77" |
| X-axis travel | 8.5" |
| Y-Axis Travel | 2.76" |
| Z-Axis Travel | 19.29" |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .001 / .001 Degree |
| Spindle Nose / Spindle Bore | A2-5" / 2.3" |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 10 HP |
| Subspindle Speed / Subspindle Motor | 5,000 RPM / 10 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 3.5 HP |

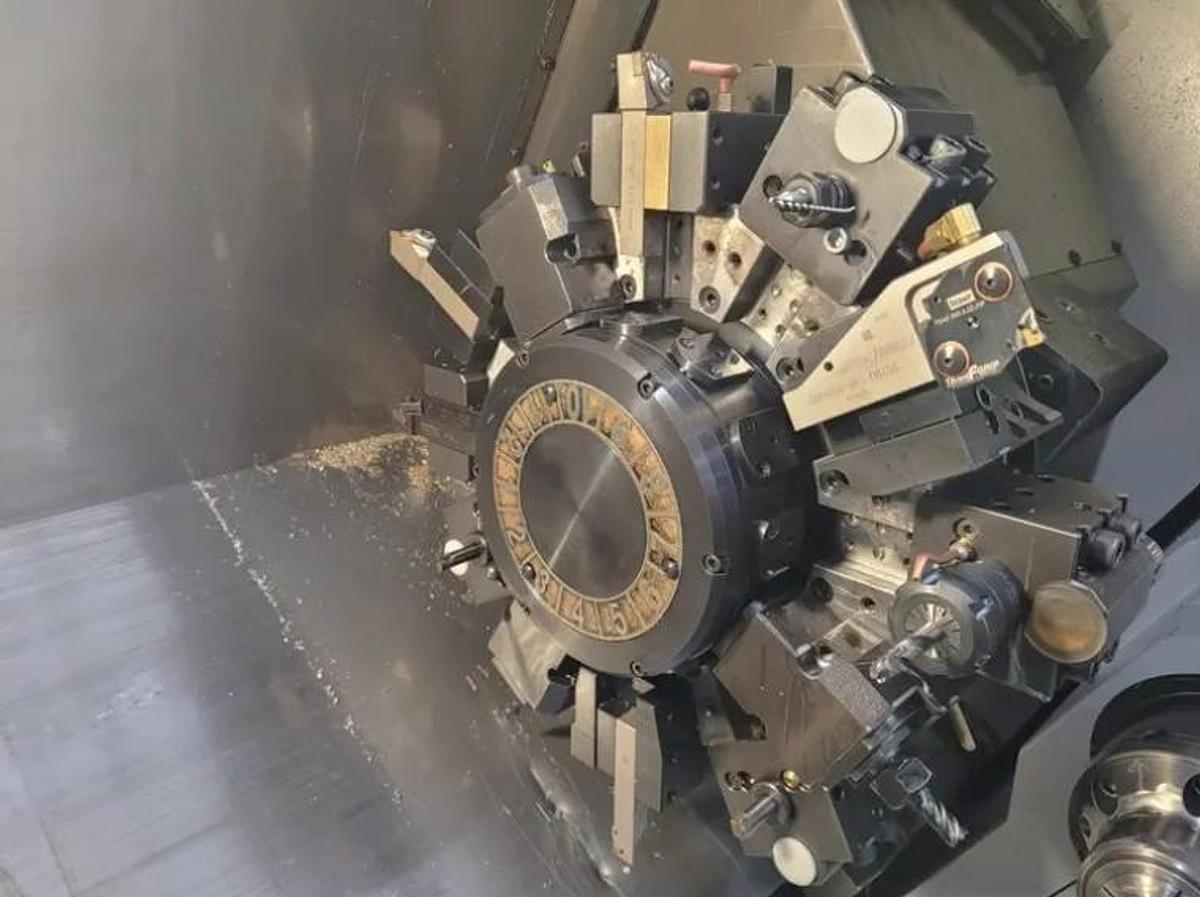

| Number of Turret Positions | 12 Station Turret |
| Machine Dimensions | 92" x 74" x 80" |
| Machine Weight | 9,500 lbs. |
