2018 Haas VF-11/40, WIPS Renishaw Tool & Part Probe, Remote Jog Handle, 1000 psi Coolant thru the Spindle, 12k rpm,
2018 Haas VF-11/40, WIPS Renishaw Tool & Part Probe, Remote Jog Handle, 1000 psi Coolant thru the Spindle, 12k rpm,
Contact us for price
Location:California
or
Call (863) 439-6066
Description
WIPS Renishaw Tool & Part Probe
1000 PSI Coolant thru the Spindle
Remote Jog Handle
High-Speed Machining
12,000 rpm Spindle
Rigid Tapping
Chip Auger
Automatic Coolant Refill System
Enclosure Exhaust System
Wired for 4th/5th Axis
Minimum Quantity Lubrication System
Visual Quick Code Programming
Advance Tool Managment
Spindle Orientation
High-Intensity Lighting
Coordinate Rotation & Scaling
User Definable Macros
1 GB Programming Memory
Ethernet Interface
USB Port Interface
RS 232 Port Interface
DNC Enabled

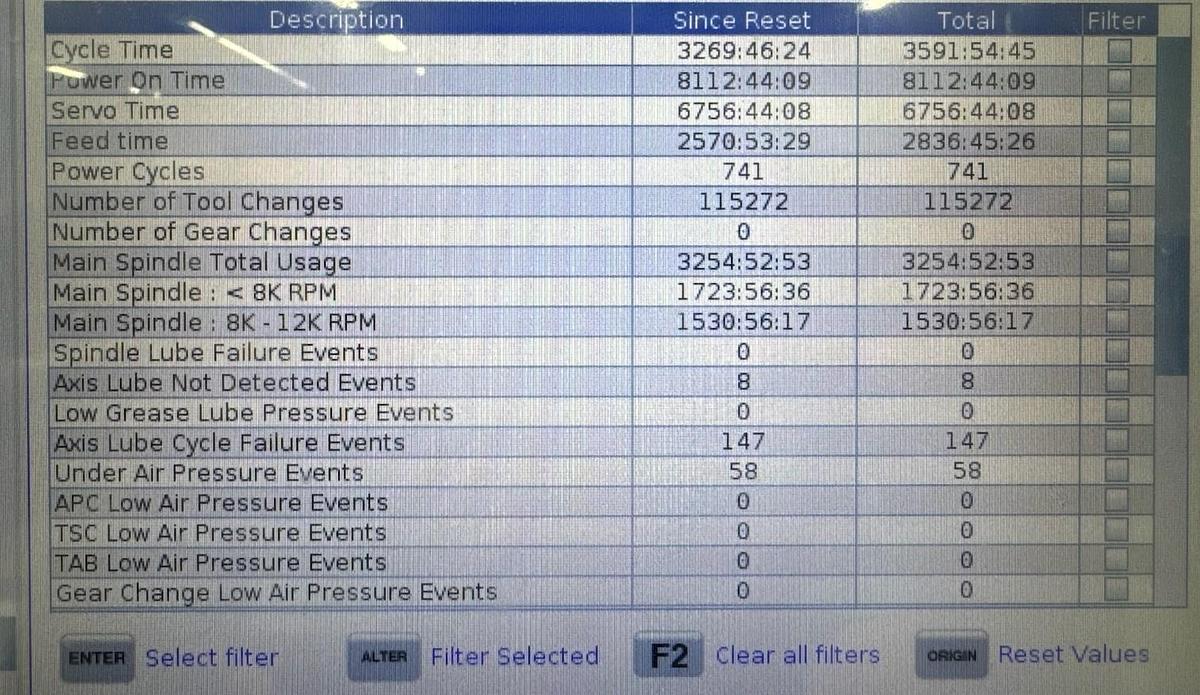

**Power On Hours 8,112**
**Servo On Hours 6,756**
**Total Spindle Hours 3,254**
**Vices on table are not included with machine**
**Price of machine new as equipped is at $400,000**
Specifications
| Manufacturer | Haas |
| Model | VF-11/40, WIPS Renishaw Tool & Part Probe, Remote Jog Handle, Coolant thru the Spindle |
| Year | 2018 |
| Condition | Used |
| Stock Number | 120684 |
| Table Size | 120"x28" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 120" |
| Y-Axis Travel | 40" |
| Z-Axis Travel | 30" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 12,000 RPM |
| Spindle Motor | 30 HP |
| Distance Spindle Nose to Table Top | 5" to 35" |
| Tool Magazine Capacity | 24 Station Side Mounted ATC |
| Rapid Traverse Rates X / Y / Z | 360 IPM / 600 IPM / 600 IPM |
| Power Requirement | 360v-480v / 3-Phase |
| Air Requirement | 100 psi 4 scfm |
| Machine Dimensions LxWxH | 288"x120"x128" |
| Machine Weight | 33,400 lbs |
