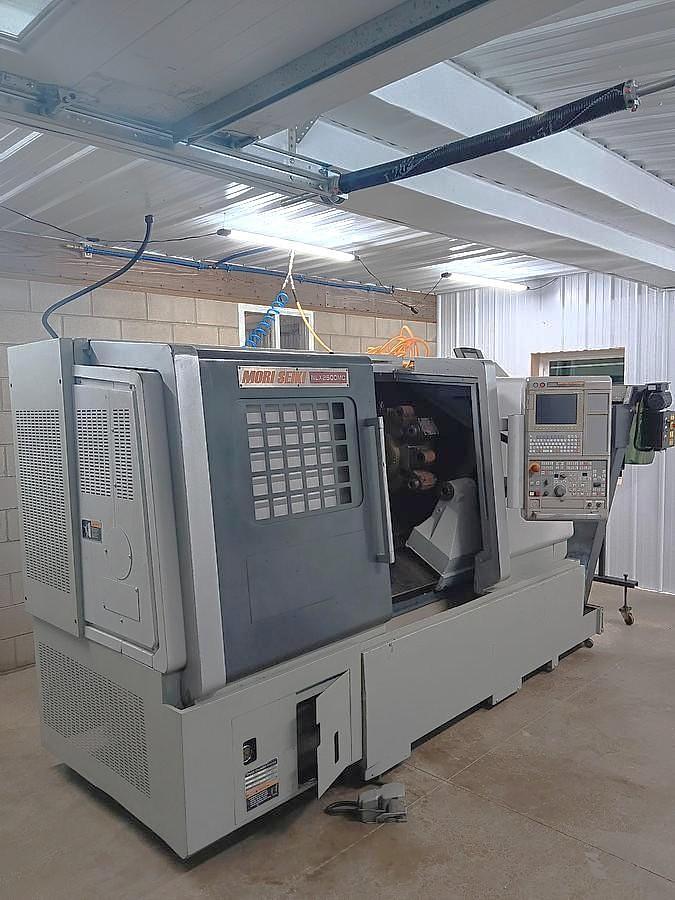

2012 DMG-Mori NLX2500MC/700 with Milling Capability, C Axis Spindle, Chip Conveyor, Tailstock, Tool Presetter, 12" Chuck, 3.1" Bar Cap.
Featured
2012 DMG-Mori NLX2500MC/700 with Milling Capability, C Axis Spindle, Chip Conveyor, Tailstock, Tool Presetter, 12" Chuck, 3.1" Bar Cap.
Contact us for price
Location:Ohio
or
Call (863) 439-6066
Description
12" 3 Jaw Hydraulic Chuck
Full C Axis Spindle Rotation Live Milling/Drilling Capability
Chip Conveyor
Tailstock
Tool Presetter
RS 232 Port Interface Coolant System with Tank & Pump
Wired 220V Electrics
All Available Tooling Including Live Holders
Specifications
| Manufacturer | DMG-Mori |
| Model | NLX2500MC/700 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120682 |
| Machine Control | Mori/Fanuc M730BM Control |
| Chuck Sizes Main / Subspindle | 12" Hydraulic 3-Jaw |
| Maximum Swing over Bed | 36.4" |
| Maximum Swing Over Cross Slide | 23.2" |
| Maximum Turning Diameter | 14.4" |
| Maximum Cutting Length | 27" |
| X-Axis Travel | 10.2" |
| Z-Axis Travel | 31.3" |
| C-Axis Rotation | .001 Degrees |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.5" / 3.1" |
| Spindle Speed | 4,000 RPM |
| Spindle Motor | 25 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 7.5 HP |

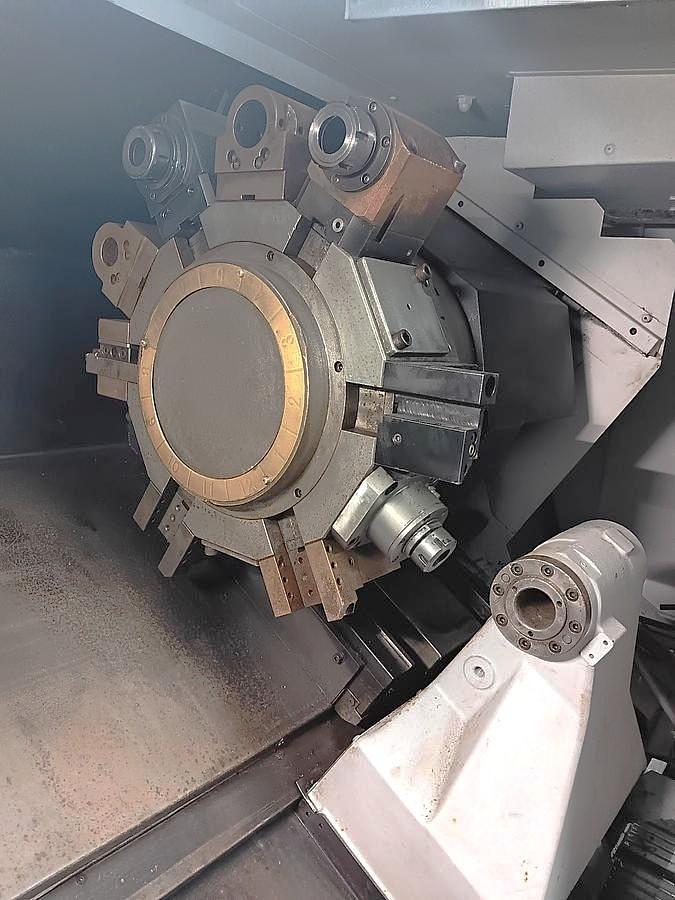

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Chip Conveyor | 120"x36"x48" and 750 lbs. |
| Machine Dimensions LxWxH | 122" x 80" x 84" |
| Machine Weight | 12,100 lbs |
