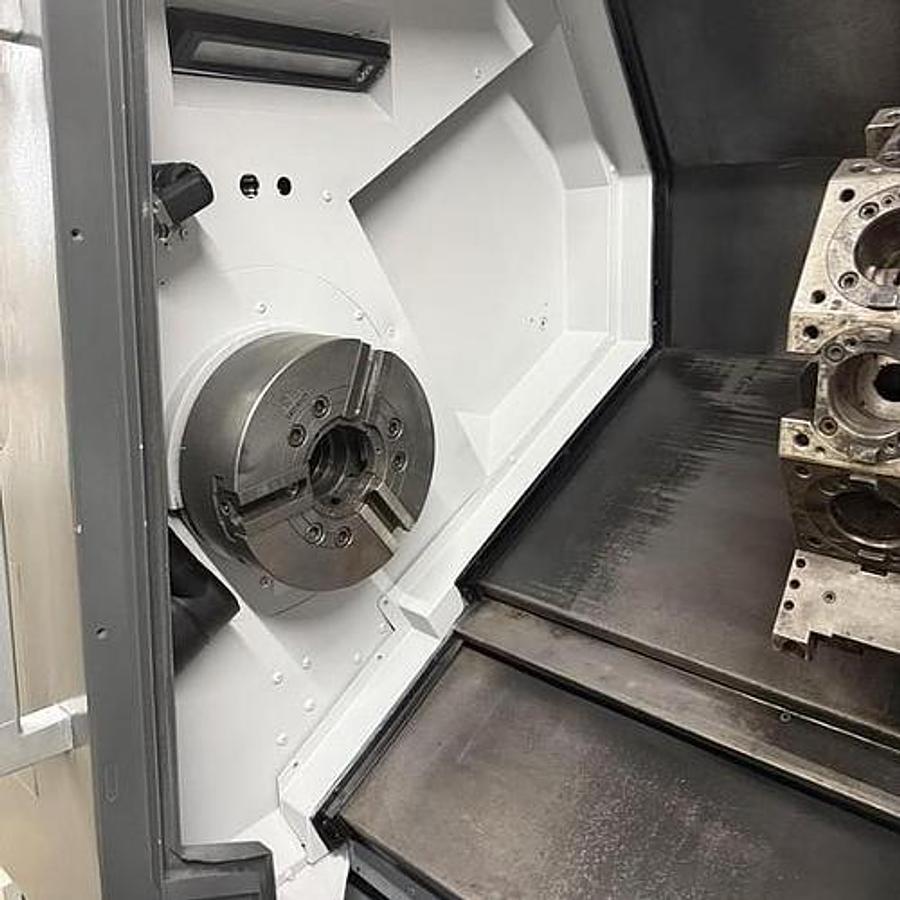

2012 DMG-Mori NLX2500MC/700

2012 DMG-Mori NLX2500MC/700

Contact us for price

Location:Ohio

or
Call (863) 439-6066

Description

Full C Axis Spindle Rotation Live Milling/Drilling Capability

Chip Conveyor

Tool Presetter

12" 3 Jaw Hydraulic Chuck

RS 232 Port Interface Coolant System with Tank & Pump

All Available Tooling


**Machine recently refurbished and repainted**

Show All

Specifications

ManufacturerDMG-Mori
ModelNLX2500MC/700
Year2012
ConditionUsed
Stock Number120682
Machine ControlMori/Fanuc M730BM Control
Chuck Sizes Main / Subspindle12" Hydraulic 3-Jaw
Maximum Swing over Bed36.4"
Maximum Swing Over Cross Slide23.2"
Maximum Turning Diameter14.4"
Maximum Cutting Length27"
X-Axis Travel10.2"
Z-Axis Travel31.3"
C-Axis Rotation.001 Degrees
Spindle Nose / Bore / Bar CapacityA2-8" / 3.5" / 3.1"
Spindle Speed4,000 RPM
Spindle Motor25 HP
Rotary Tool Speed / Rotary Motor6,000 RPM / 7.5 HP
Number of Turret Positions12 Position Turret
Rapid Traverse Rates1181 IPM
Machine Dimensions LxWxH122" x 80" x 84"
Machine Weight13,648 lbs
Chip Conveyor120"x36"x48" 725 lbs
