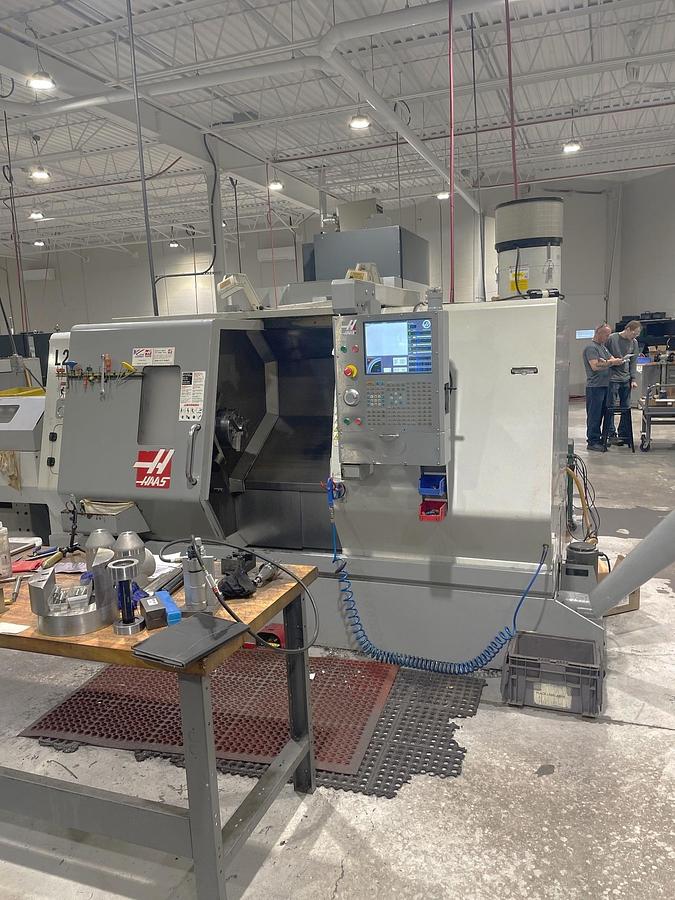

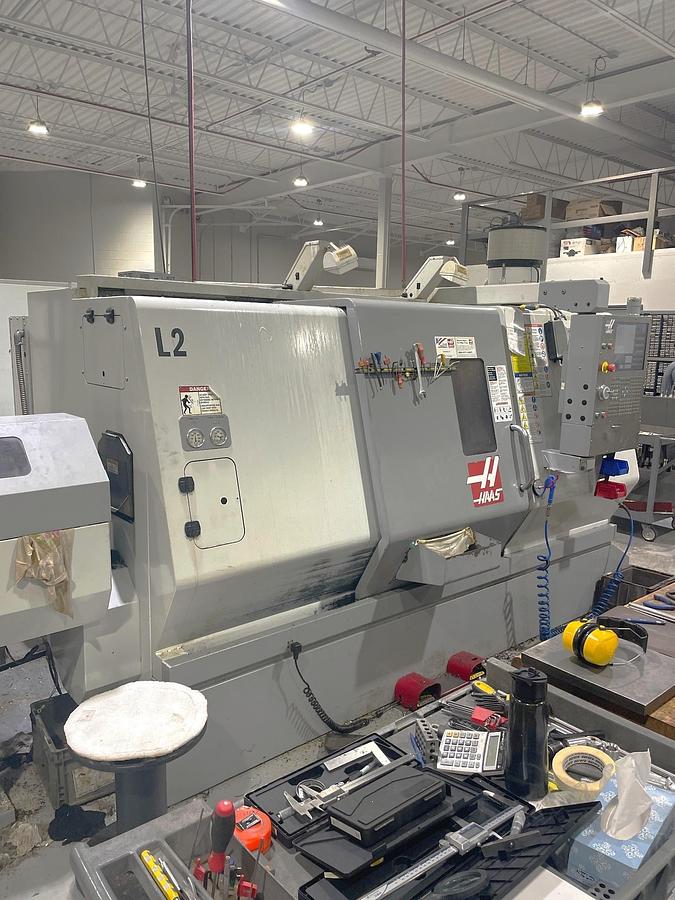

2006 Haas SL-30T with Haas Servo 300 Barfeeder, 3" Bar Capacity, 10" Chuck, Tailstock, Toolsetter, Chip Auger, 12 Pos. Block Turret
2006 Haas SL-30T with Haas Servo 300 Barfeeder, 3" Bar Capacity, 10" Chuck, Tailstock, Toolsetter, Chip Auger, 12 Pos. Block Turret
Contact us for price
Location:Ontario, Canada
or
Call (863) 439-6066
Description
Haas Servo 300 Barfeeder
Brushless Type Barfeed Interface

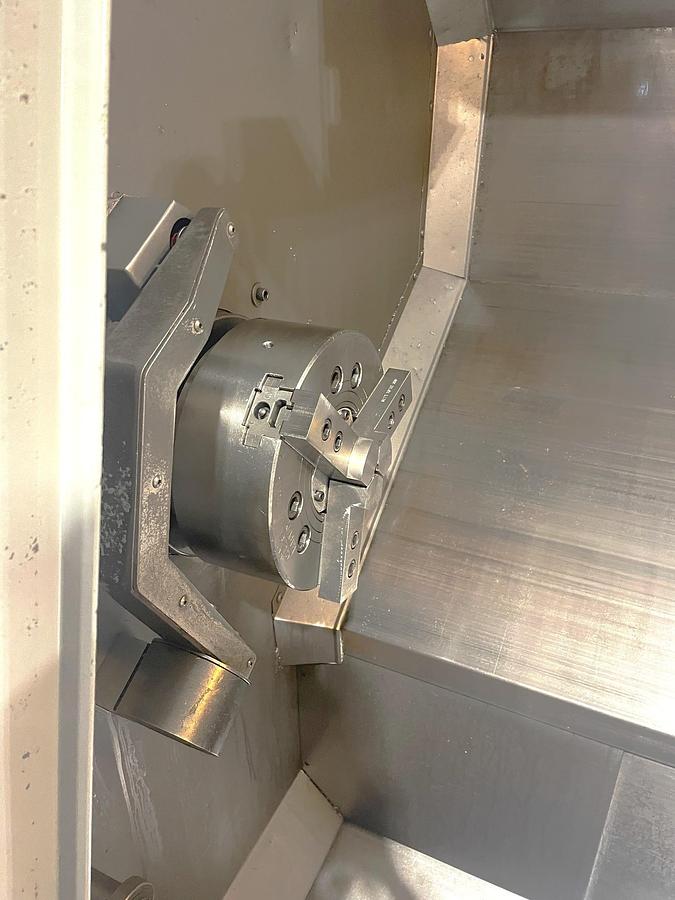

10" 3 Jaw Hydraulic Chuck
3" Bar Capacity
Auger Style Chip Conveyor
Programmable Tailstock
Tool Presetter
User Definable Macros
Visual Quick Code Programming
Spindle Orientation
High Intensity Lighting
12 Station Block Style Turret
Rigid Tapping
Chuck & Tailstock Foot Pedals
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Wired 220V Electrics
All Available Tool Blocks
Specifications
| Manufacturer | Haas |
| Model | SL-30T |
| Year | 2006 |
| Condition | Used |
| Stock Number | 120680 |

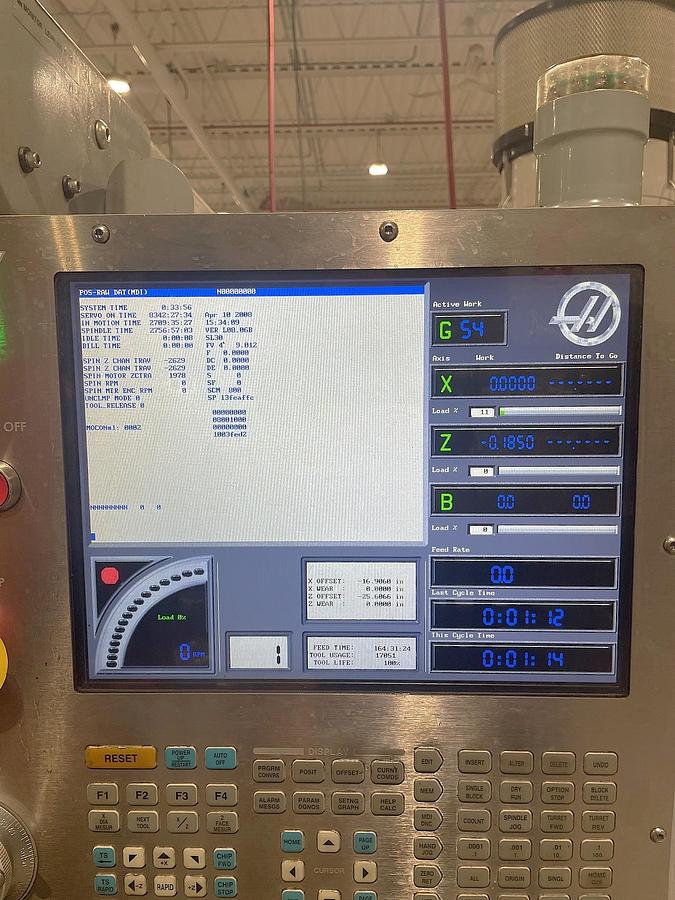

| Machine Control | Haas 32 BIT |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 30" |
| Maximum Swing Over Cross Slide | 14.5" |
| Maximum Cutting Diameter | 14.5" |
| Maximum Turning Length | 34" |
| Maximum Bar Capacity | 3" |
| Distance Between Centers | 39" |
| X-Axis Travel | 11.3" |
| Z-Axis Travel | 34" |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 20 - 3,400 RPM |
| Spindle Motor | 30 HP |
| Number of Turret Positions | 12 Station Turret - Bolt On |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Taper | 33.5" / MT #4 |
| Machine Dimensions LxWxH | 129" x 66" x 74" |
| Machine Weight | 14,000 lbs |
