2015 Doosan Lynx 220LMA

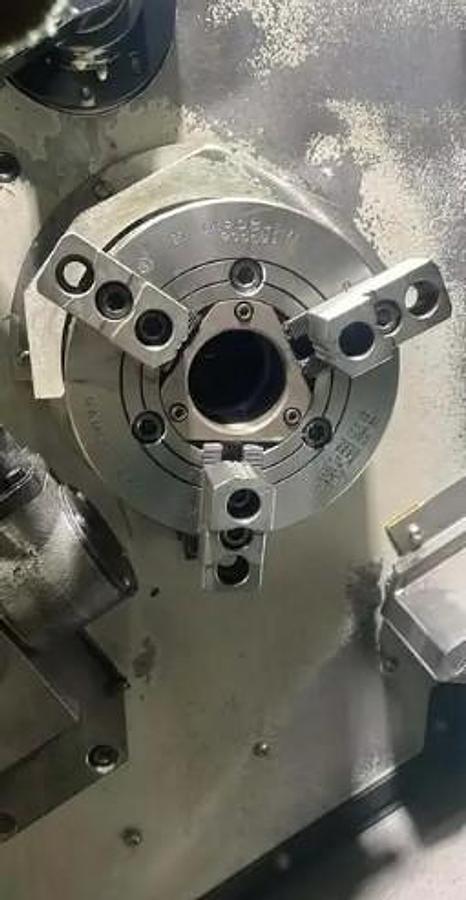

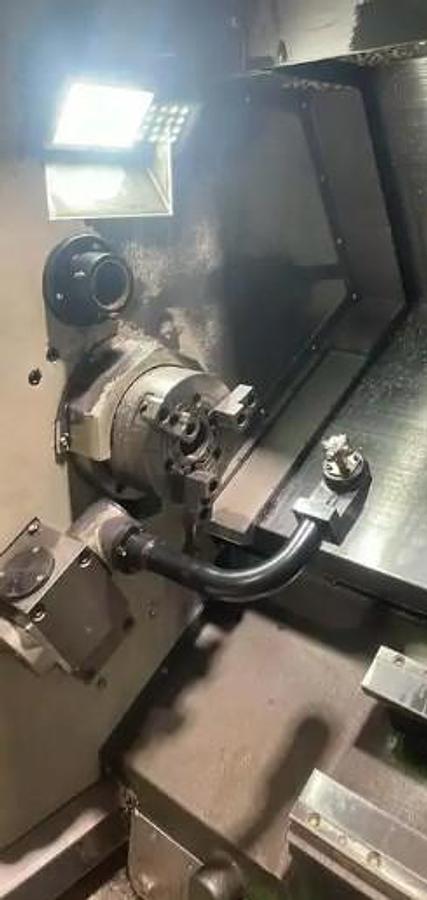

6.5" 3 Jaw Samchully Hydraulic Chuck

Full C Axis Spindle Rotation

Live Milling/Drilling Capability

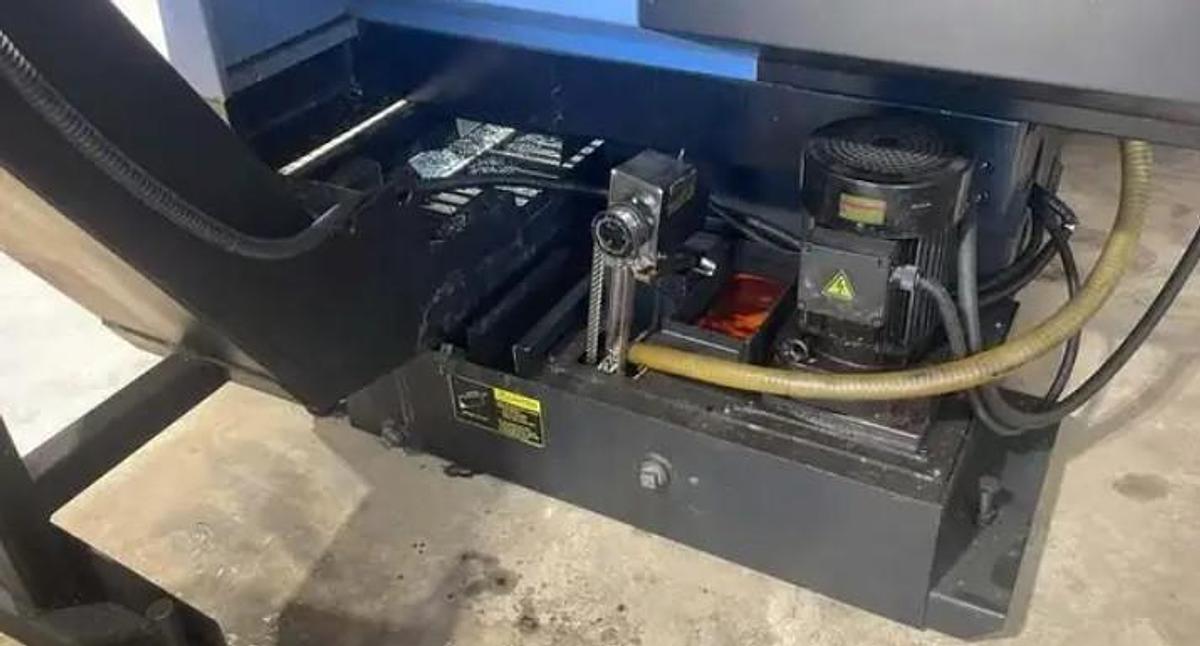

High-Pressure Coolant Pump

KEM Oil Skimmer

Parts Catcher

Chip Conveyor

Tool Presetter

Tailstock

Complete Coolant System

RS-232C Port for DNC Interface

All Available Manuals

220V 3-Phase

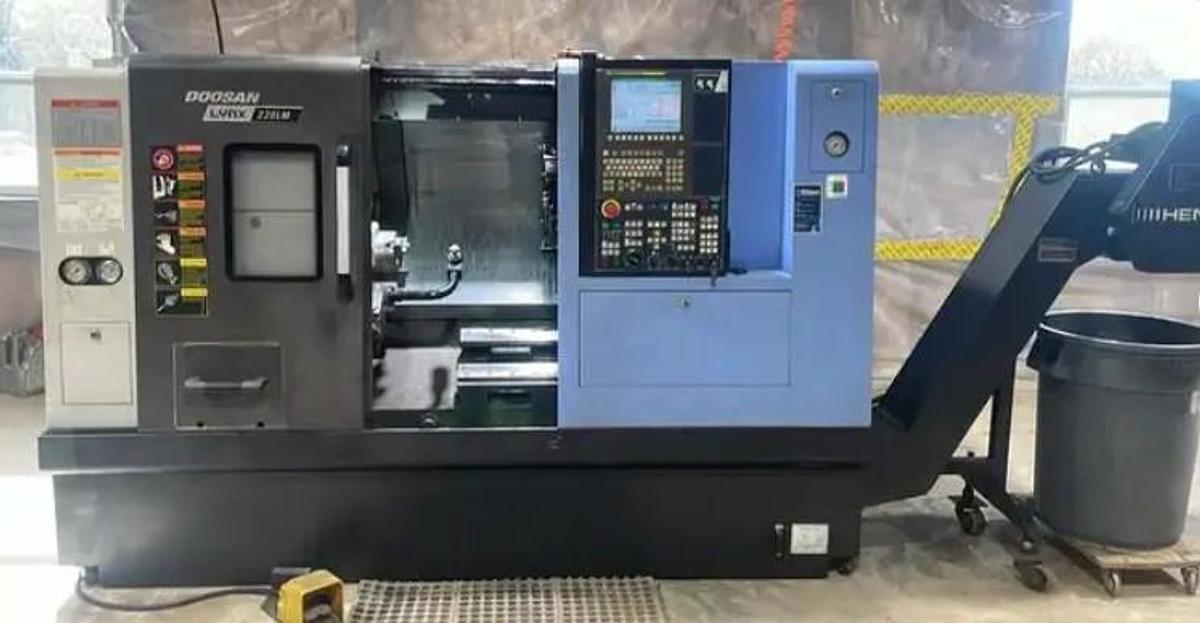

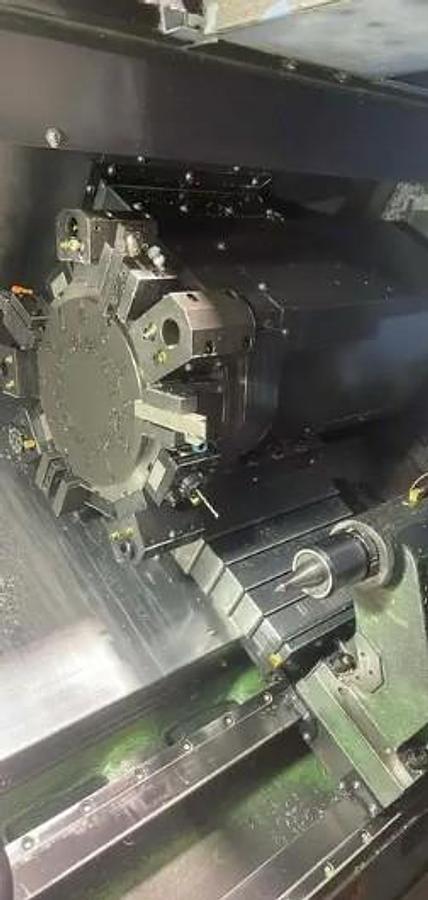

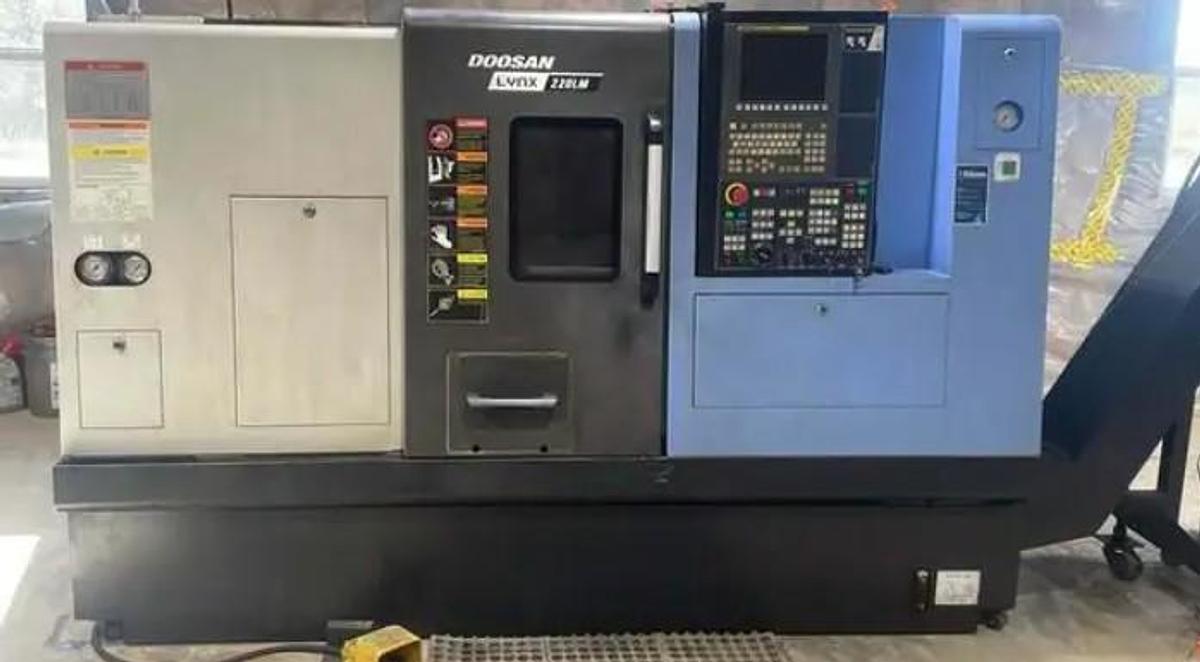

The 2015 Doosan Lynx 220LMA is a used CNC lathe designed for precision and efficiency in metalworking applications. It features a 6.5" hydraulic chuck and a versatile turret with 12 sides and 24 positions, providing flexibility for complex machining tasks. Powered by a robust 20 HP spindle motor, the machine offers spindle speeds ranging from 40 to 6,000 RPM, accommodating a wide range of materials and cutting conditions. With a maximum turning length of 20" and a maximum swing over bed of 20.1", the Lynx 220LMA is suitable for various machining tasks. The X-axis travel is 6.9", while the Z-axis travel extends to 21.7", delivering robust performance within its compact frame. This lathe also includes a tailstock with a 3.14" quill stroke and a maximum turning diameter capability of 9.8". Rapid traverse rates of 1181 IPM on the X-axis and 1417 IPM on the Z-axis ensure swift operation, while the rotary tool motor supports speeds up to 6,000 RPM with a 5 HP motor. The machine, measuring 104" x 64" x 65" and weighing 7,700 lbs, is built for durability and stability, ensuring consistent results in demanding manufacturing environments.
