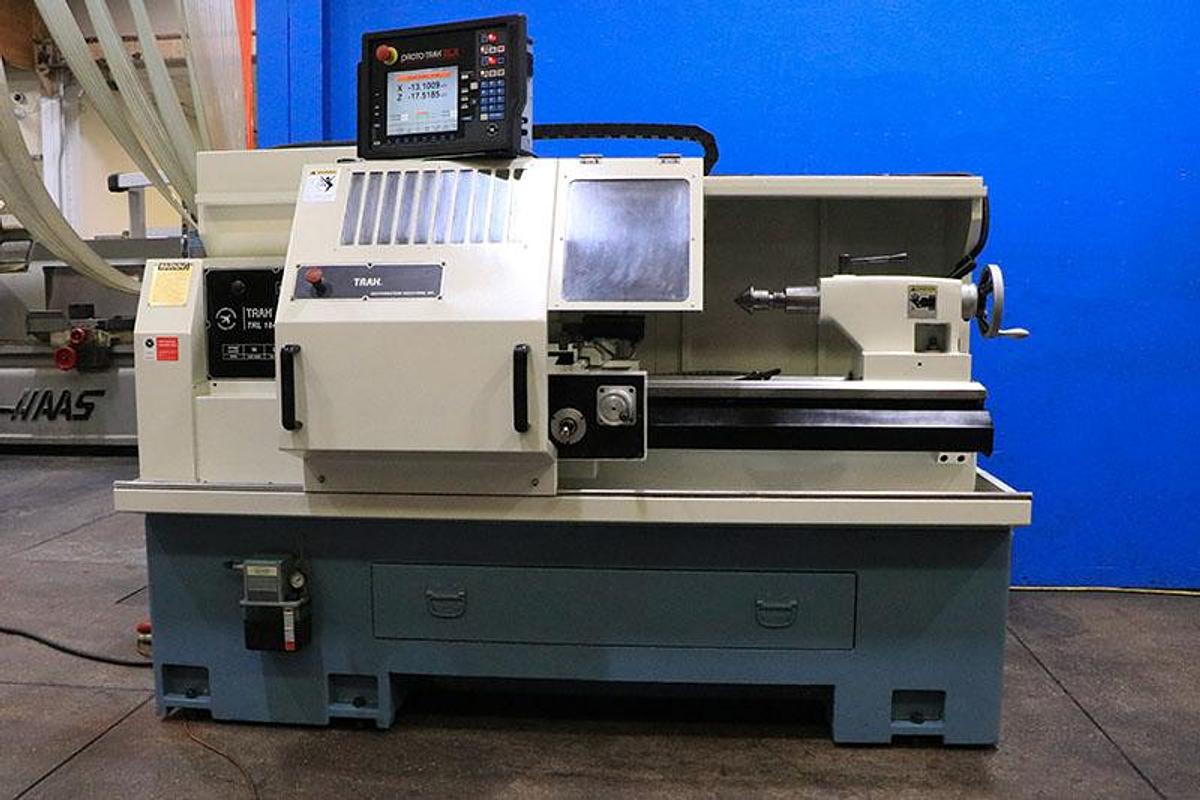

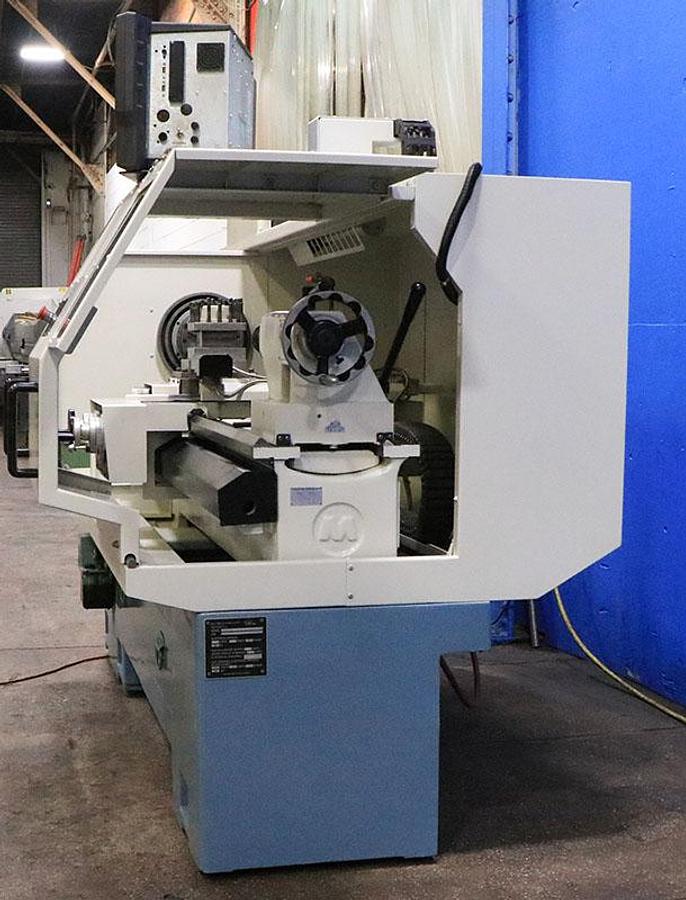

2008 Southwestern Industries TRL 1840SX with Tailstock, 4 Pos. Indexable Turret, 10" Chuck, Geared, SLX Cntrl., Traking, Handwheels
2008 Southwestern Industries TRL 1840SX with Tailstock, 4 Pos. Indexable Turret, 10" Chuck, Geared, SLX Cntrl., Traking, Handwheels
$24,500 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description

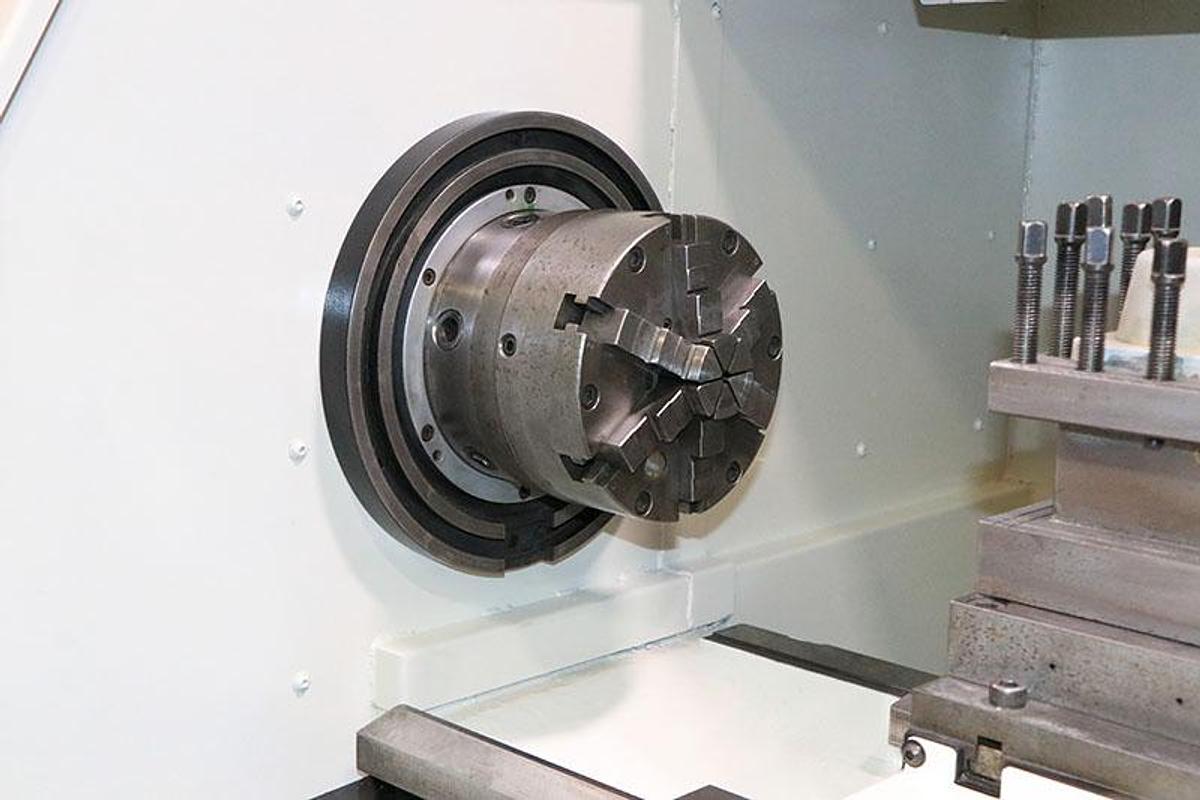

7.5" 6 Jaw Manual Chuck

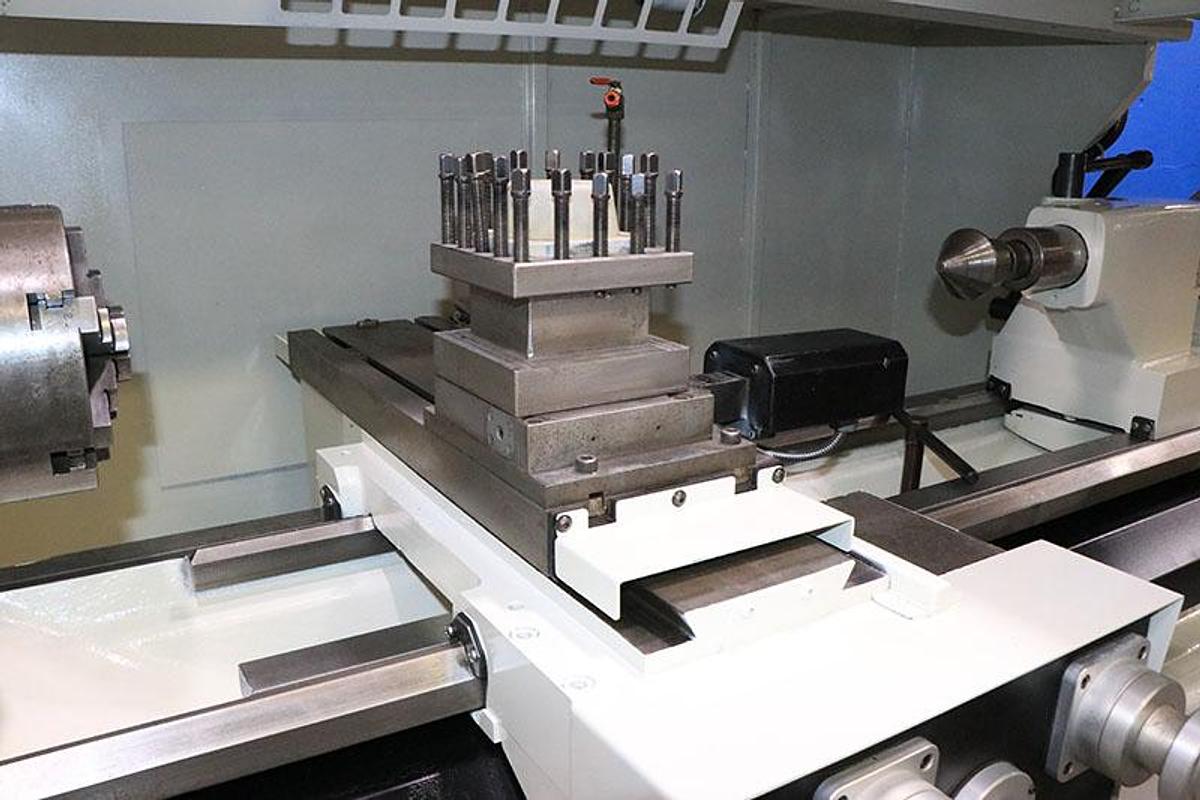

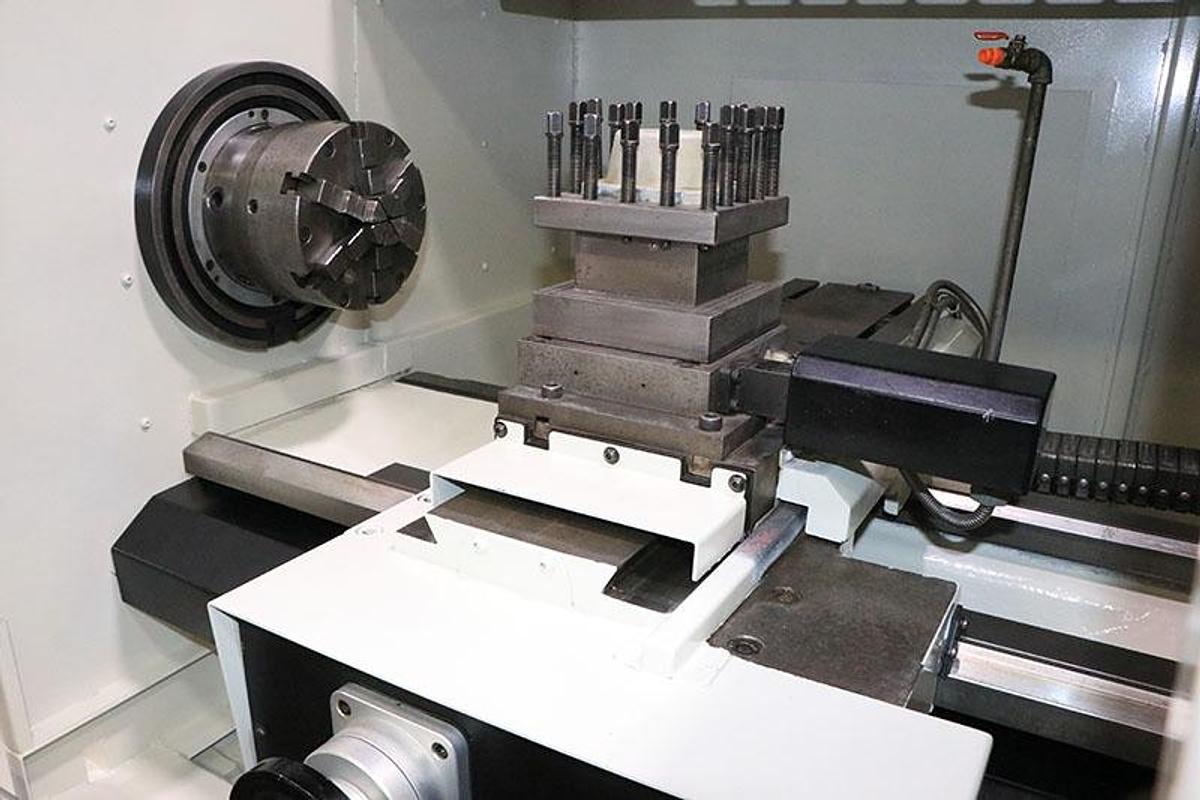

4 Station Indexable Star Turret

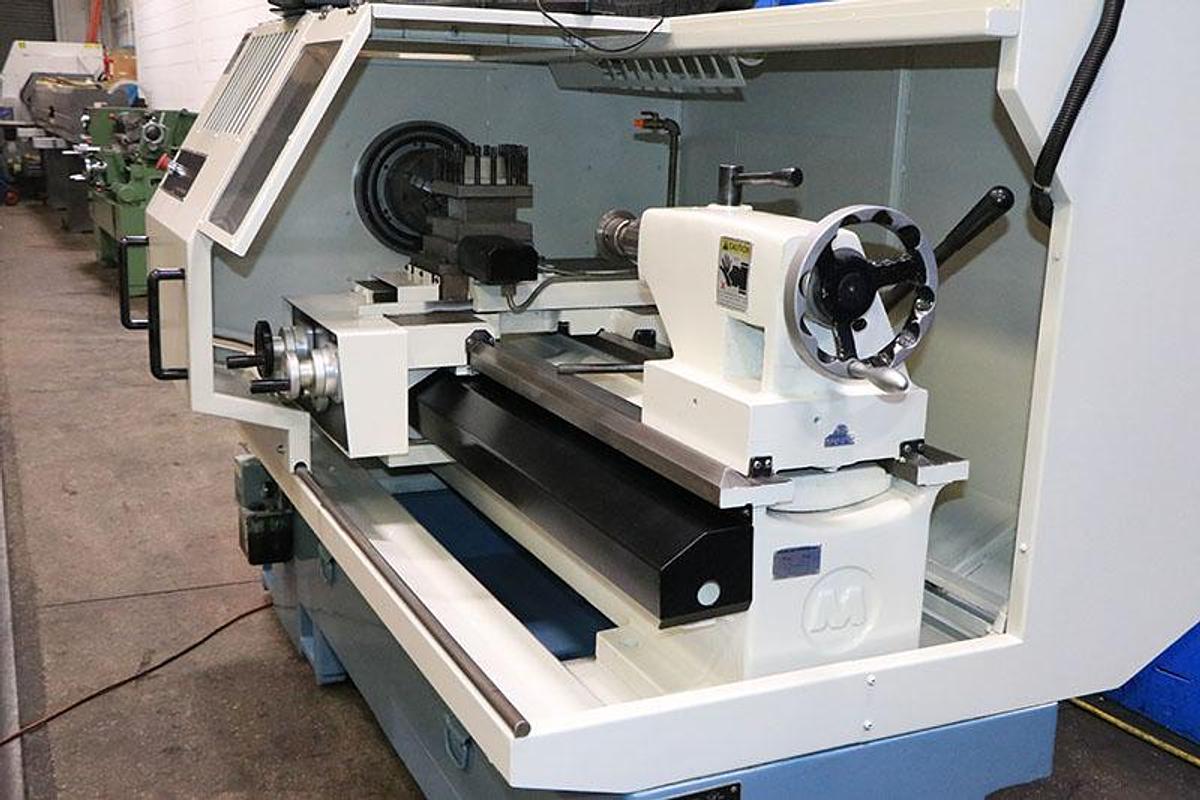

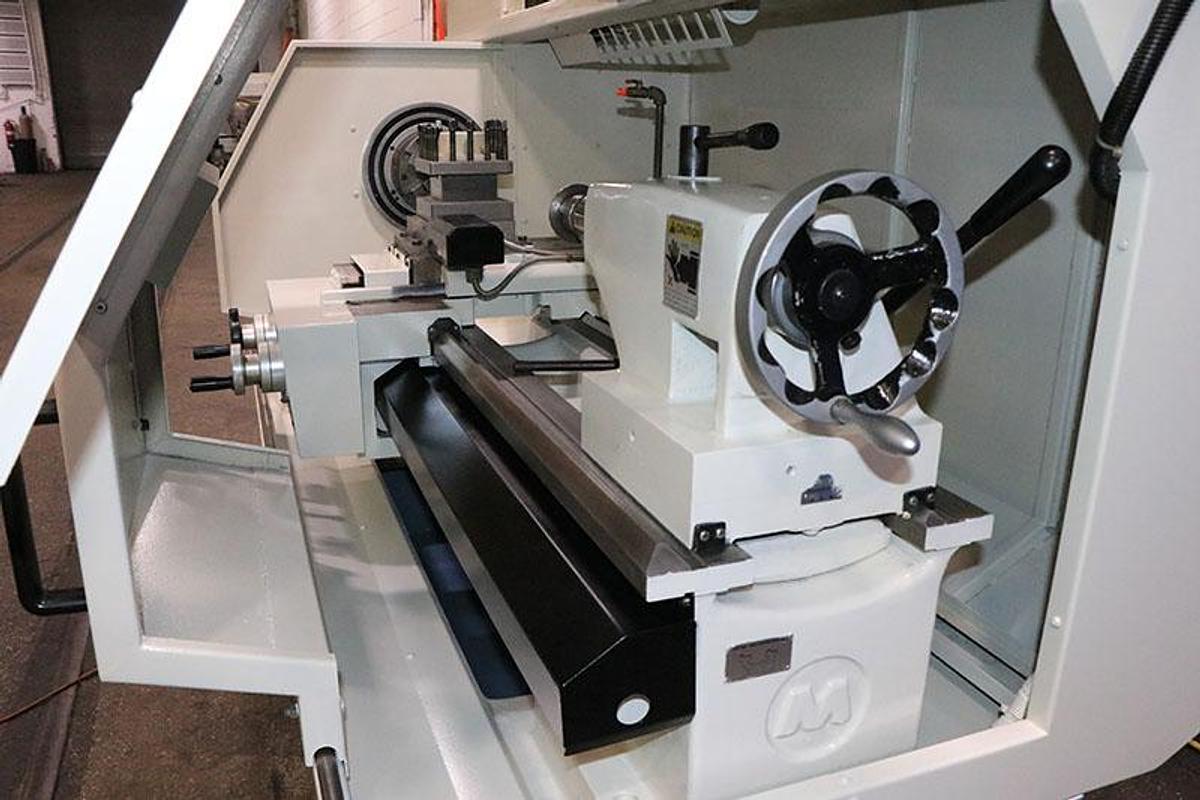

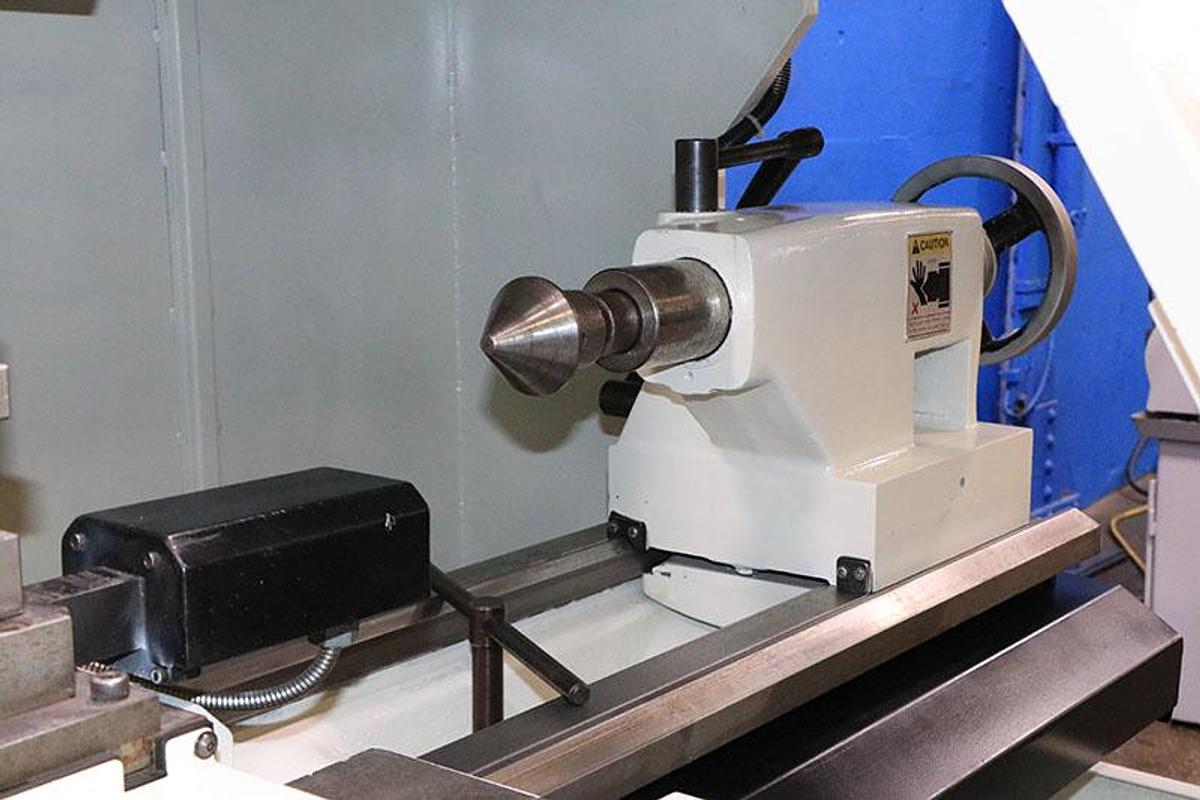

Tailstock

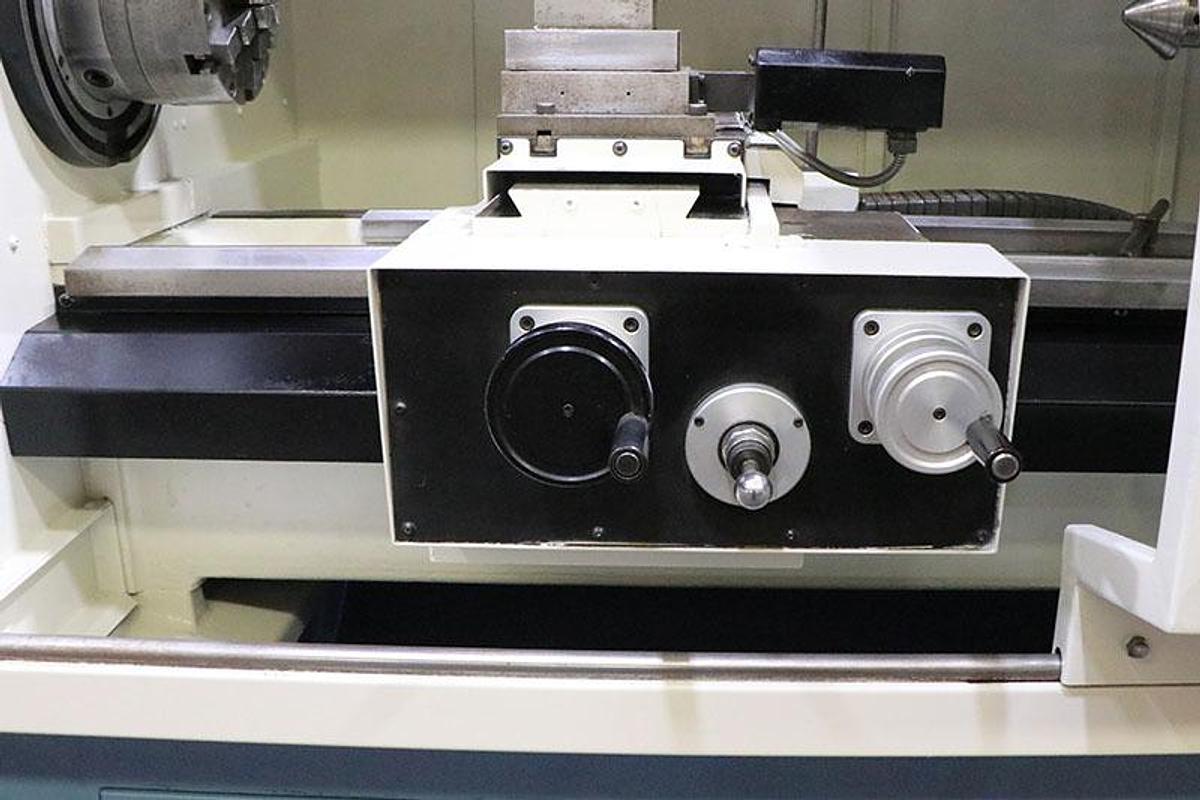

Electronic Handwheels and Joystick
AC Spindle Drive
Constant Surface Speeds
10.4" Color Active Matrix Screen
Networking
USB Port Interface
RS232 Port Interface
Advanced Features
Tracking
Coolant System with Pump

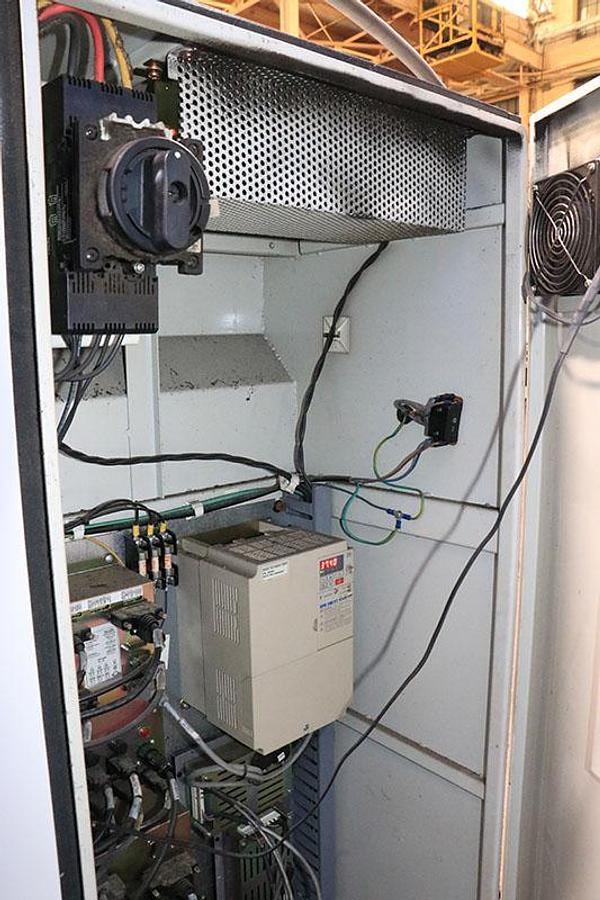

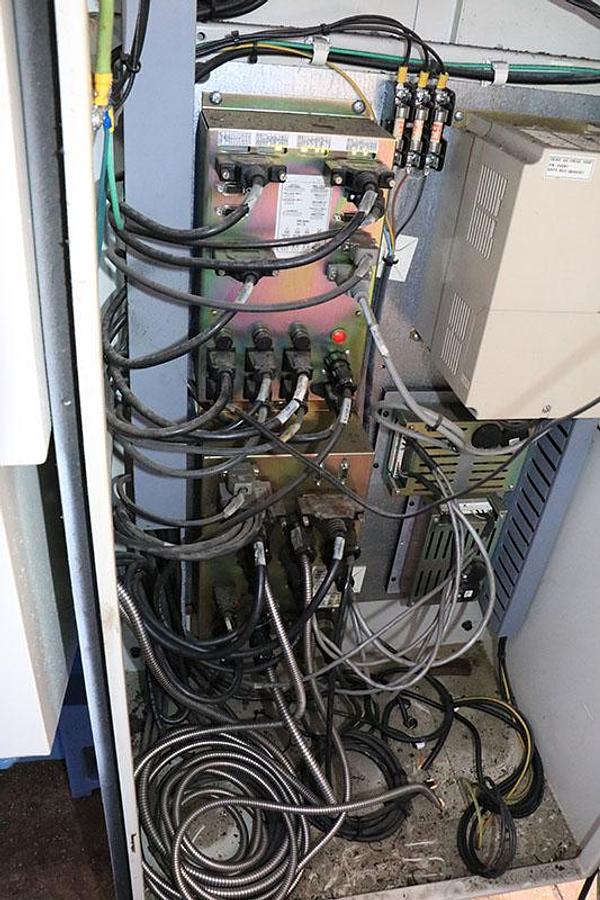

Wired 230V 3 Phase Electrics
Specifications
| Manufacturer | Southwestern Industries |
| Model | TRL 1840SX |
| Year | 2008 |
| Condition | Used |
| Stock Number | 120673 |

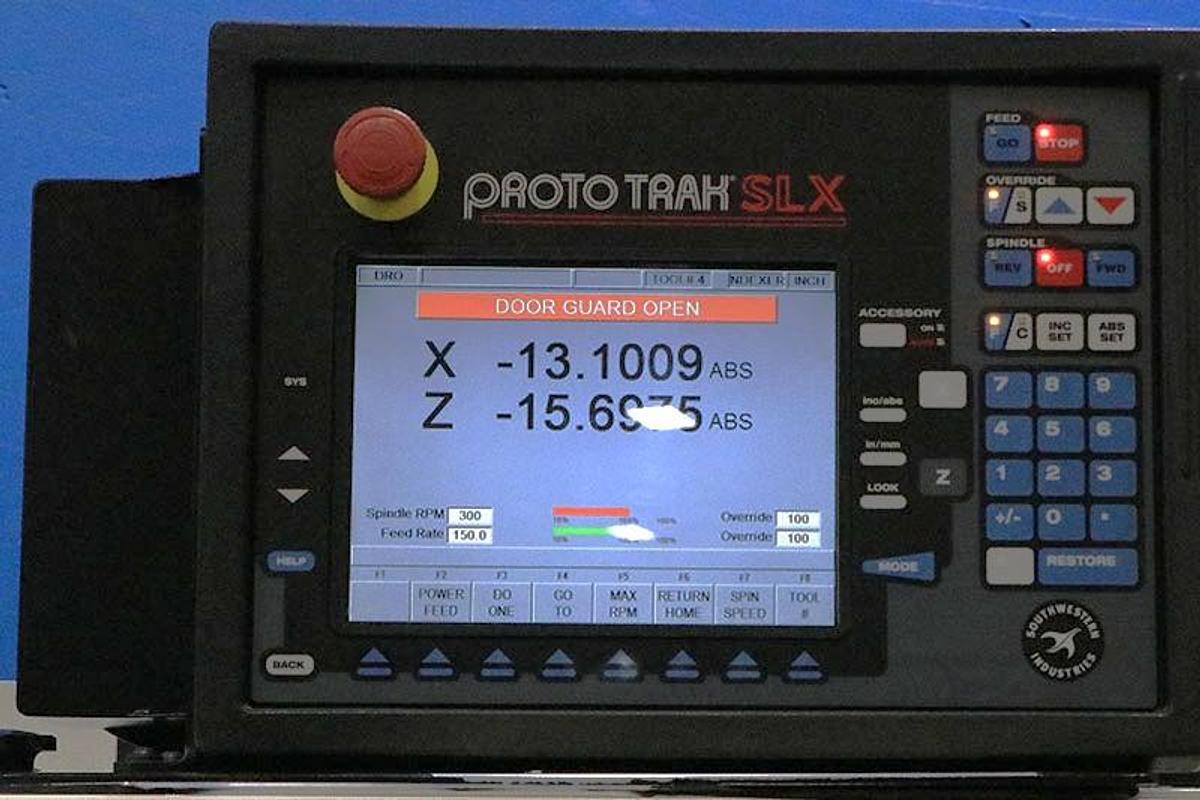

| Machine Control | Prototrak SLX Control |
| Chuck Size | 7.5" 6-Jaw Manual Chuck |
| Maximum Swing over Bed | 18.5" |
| Maximum Swing Over Cross Slide | 9" |
| Distance Between Centers | 40.25" |
| Spindle Nose / Spindle Bore | D1-6" / 2.36" |

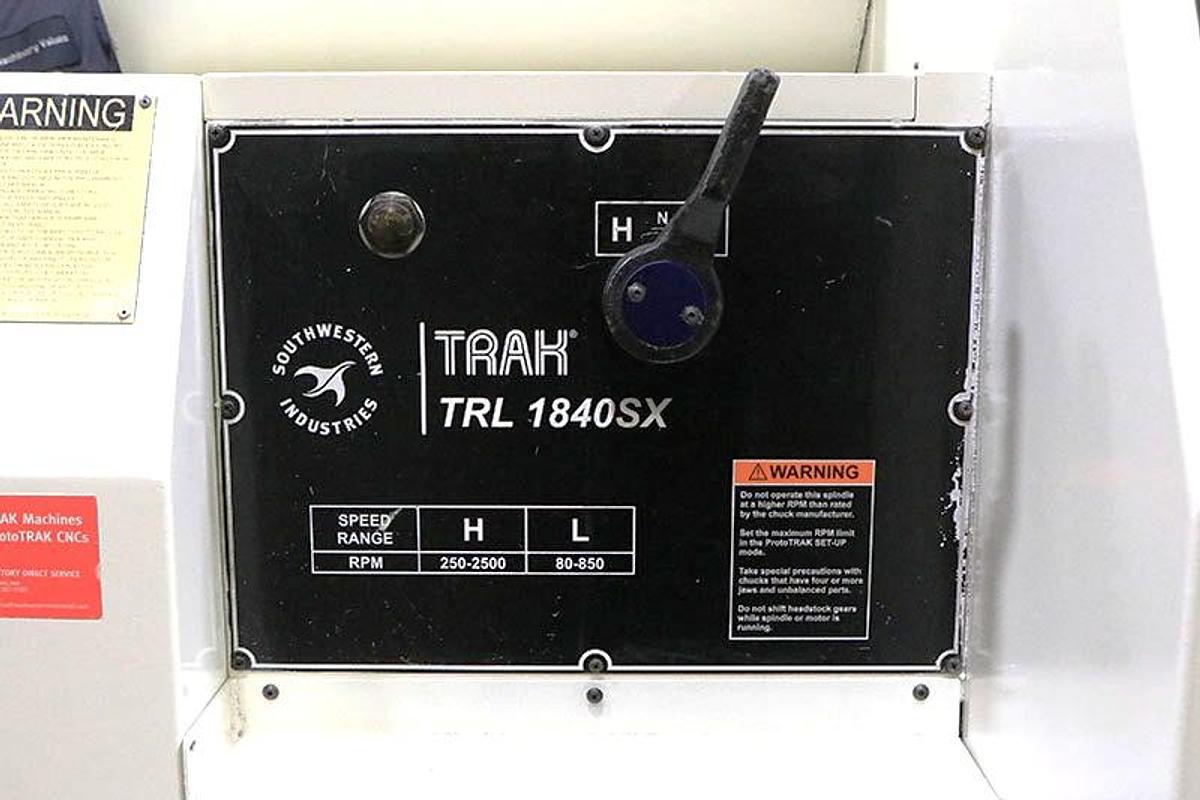

| Spindle Speeds | 50 - 2,500 RPM - 3 Ranges 50-270 / 150-850 / 450-2500 |
| Number of Tool Positions | 4 Station Indexable Turret |
| Spindle Motor | 10 HP |
| Rapid Traverse Rates X/Z | 100 IPM / 150 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.96" / 7.125" / #5MT |
| Power Requirements | 220V / 3 Phase / 60Hz |
| Machine Dimensions LxWxH | 91"x53"x70" |
| Machine Weight | 4,500 lbs |
