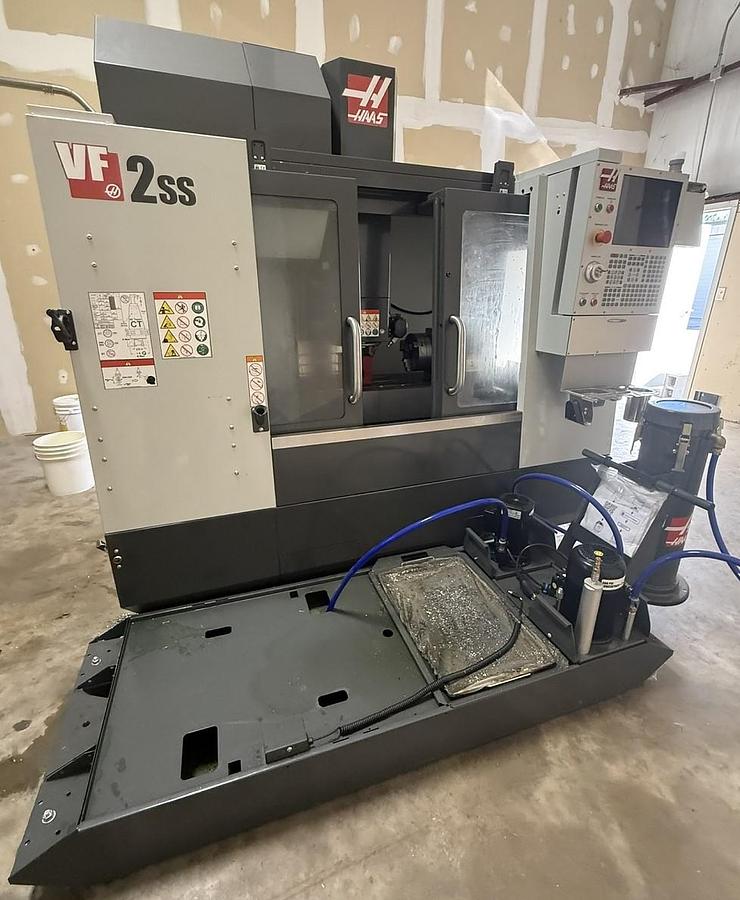

2024 Haas VF-2SS, HRT210 Rotary Table w/8" 3-Jaw Chuck, WIPS Renishaw Tool & Part Probe, Thru the Spindle Coolant, High-Speed Machining, Programmable Coolant
2024 Haas VF-2SS, HRT210 Rotary Table w/8" 3-Jaw Chuck, WIPS Renishaw Tool & Part Probe, Thru the Spindle Coolant, High-Speed Machining, Programmable Coolant
Contact us for price
Location:Virginia
or
Call (863) 439-6066
Description
4th Axis Drive & Wiring

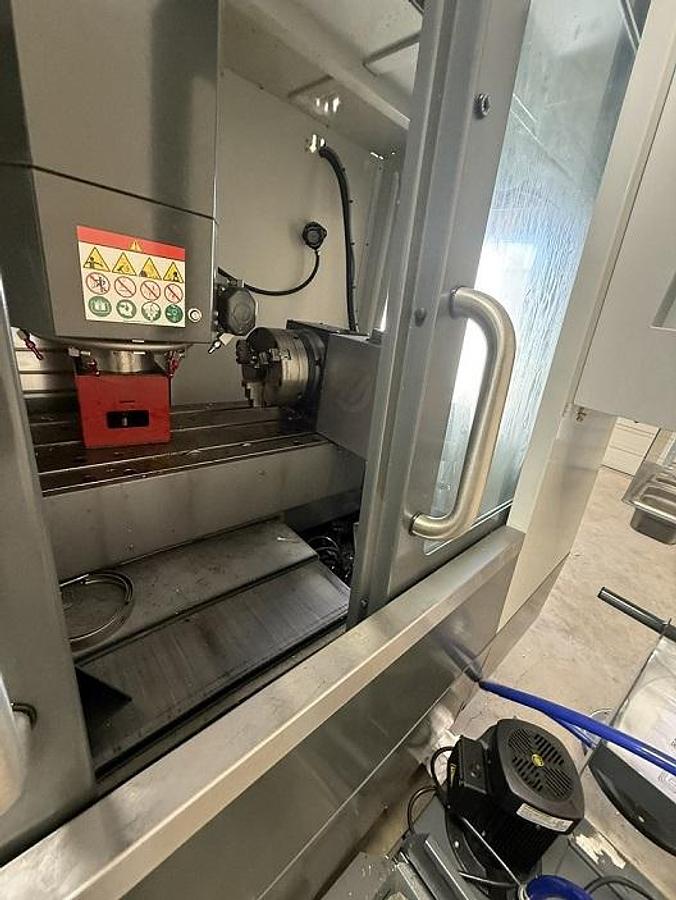

Haas HRT-210 4th Axis Rotary Table w/8" LC8 3-Jaw Chuck
WIPIS Renishaw Tool & Part Probe
Wifi Connection
Ethernet Interface
High Speed Machining
30+1 Position Side Mounted Tool Changer
Auger Style Chip Conveyor
Coolant Through the Spindle - 300 PSI
Auxiliary Coolant Filter System
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Programmable Coolant Nozzle
Variable Flow Coolant-Allows control of flood coolant and pressure via M-Code
Complete Coolant System with Tank & Multi Stage Coolant Pump
Color LCD Monitor
RS 232C Port Interface for DNC Operation
Specifications
| Manufacturer | Haas |
| Model | VF-2SS, HRT210 Rotary Table w/8" 3-Jaw Chuck, WIPS Renishaw Tool & Part Probe, Thru the Spindle Coolant, High-Speed Machining, Programmable Coolant |
| Year | 2024 |
| Condition | Used |
| Stock Number | 120670 |
| Table Size | 36" x 14" |
| Maximum Table Load | 1,500 lbs. |
| Spindle Nose to Table Top | 4" - 24" |
| X Axis Travel | 30" |
| Y Axis Travel | 16" |
| Z Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 30 HP - Direct Drive |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Rapid Traverse Rates (X, Y, Z) | 1400 IPM |
| Cutting Feedrates | 0.1 - 833 IPM |
| Machine Dimensions | 88" x 93" x 106" |
| Machine Weight | 9,000 lbs. |
