2021 Haas UMC-500 5 Axis Universal Machining Center with Coolant Thru Spindle, Probing, 10k RPM
2021 Haas UMC-500 5 Axis Universal Machining Center with Coolant Thru Spindle, Probing, 10k RPM
Contact us for price
Location:Ontario, Canada
Description

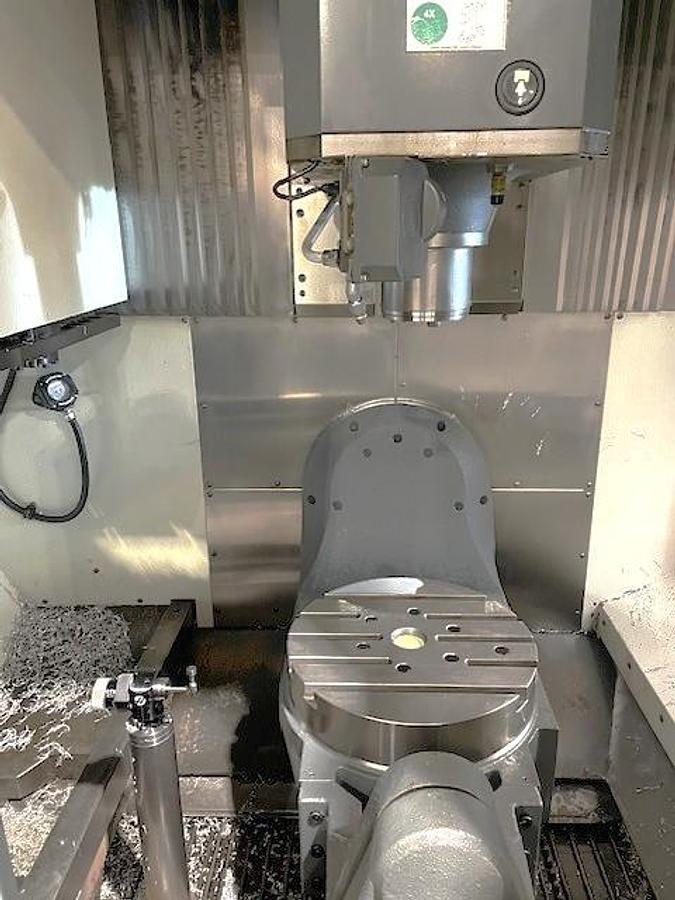

Trunnion Style 5th Axis Table
Coolant Through the Spindle - 300 PSI
Auxiliary Coolant Filter System
Renishaw Probing with Tool & Part Probing

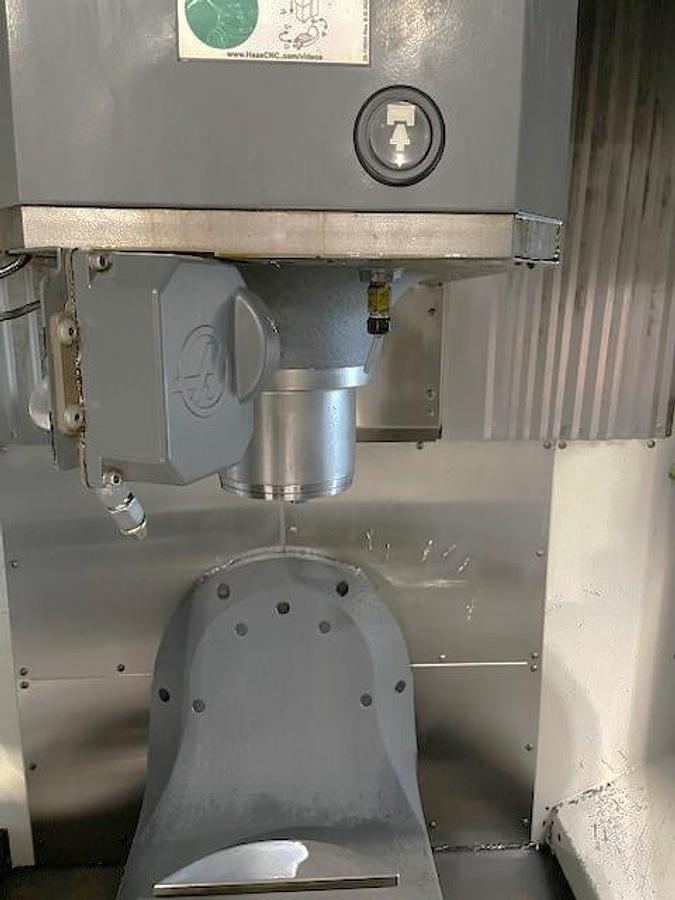

10,000 RPM Spindle
Chip Conveyor
30 Station Tool Changer
Programmable Coolant Nozzle
Electrical Cabinet Cooler
Enclosure Exhaust System
Remote Jog Handle XL
Rotary Scales
High Speed Machining
User Definable Macros
Coordinate Rotation & Scaling
Spindle Orientation
Haas Visual Programming System
Dynamic Work Offset and Tool Center Point Control
Rigid Tapping
Hydraulic Vise Ready
Top Cover
WiFi Camera
Media Display M Code
1 GB Program Memory
Haas Connect
2nd Home Position
Wireless Networking
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
**Spindle Run Hours 6,879**
**Price New Today as Equipped at $199,050**
Specifications
| Manufacturer | Haas |
| Model | UMC-500 |
| Year | 2021 |
| Condition | Used |
| Stock Number | 120666 |
| Table size | 15.7" Diameter |
| Table load capacity | 500 lbs |
| X axis travel | 24" |
| Y axis travel | 16" |
| Z axis travel | 16" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 10,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 20" |
| Tool magazine | 30 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 120" x 98" x 110" |
| Machine weight | 12,500 lbs |
