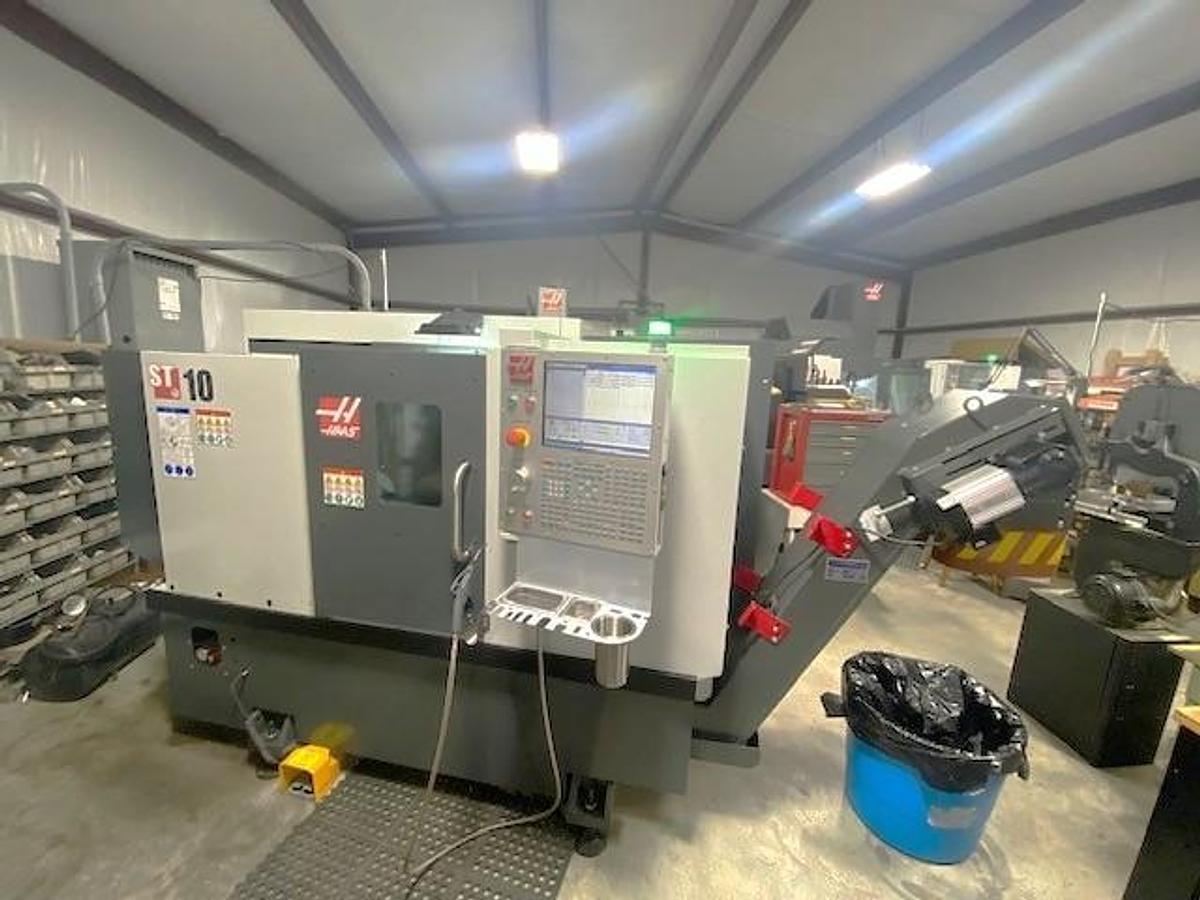

2022 Haas ST-10 Chucker, Tool Presetter, Chip Conveyor, Rigid Tap, 6.5" Hyd Chk, Royal Collet Chk, **Only 121 Run Time Hours**
2022 Haas ST-10 Chucker, Tool Presetter, Chip Conveyor, Rigid Tap, 6.5" Hyd Chk, Royal Collet Chk, **Only 121 Run Time Hours**
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description
6.5" 3 Jaw Hydraulic Chuck
Royal Quick-Change Collet Chuck
Automatic Tool Presetter
Belt Type Chip Conveyor
User Definable Macros
Visual Part Programming System
Rigid Tapping
Touch Screen Control
15" LCD Color Monitor
WIFI Early Power Failure Detection Module
Advanced Tool Management
Media Display M-Code M130
Haas Connect
Remote Monitoring
Safe Run
Haas Drop
1 GB Program Memory
Ethernet Interface
USB Port Interface
RS 232 Port Interface

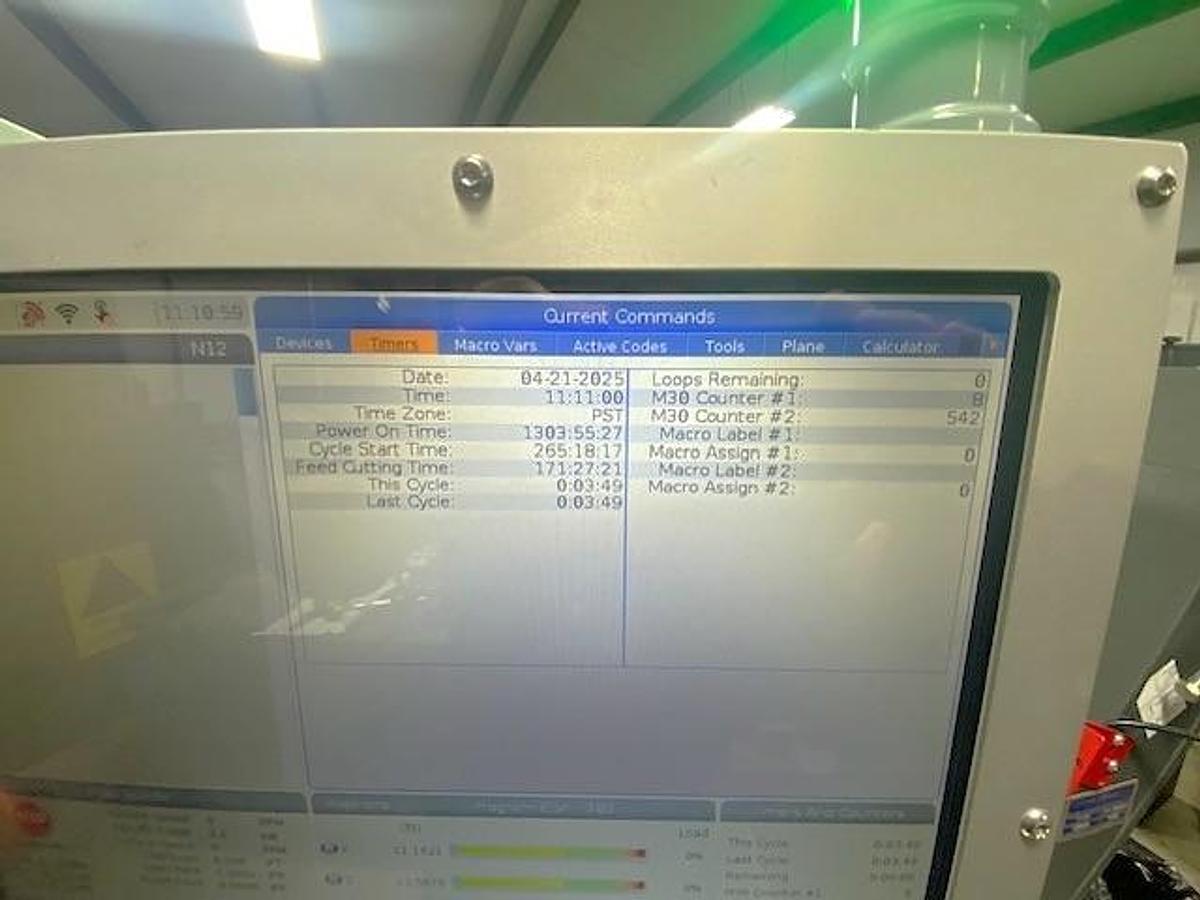

**1,303 Power On Hours**
**121 Total Cut Hours**
**No Tailstock**
**Price as equipped today at $80,000**
Specifications
| Manufacturer | Haas |
| Model | ST-10 Chucker, Tool Presetter, Chip Conveyor, Rigid Tapping 1GB Program Memory **Only 121 Run Time Hours** |
| Year | 2022 |
| Condition | Used |
| Stock Number | 120662 |
| Machine Control | Haas NextGen Control |
| Chuck Size | 6.5" / 1.75" Thru hole |
| Maximum Swing | 25.25" |
| Maximum Swing Over Cross Slide | 16.25" |
| Maximum Machining Diameter | 14" |
| Maximum Machining Length | 14" |
| X-Axis Travel | 7.88" |
| Z-Axis Travel | 14" |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 2.31" / 1.75" |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 15 HP |
| Number of Turret Positions | 12 Bolt on Style Turret |
| Spindle Torque | 75 ft/lbs. |
| Rapid Traverse Rates | 1,200 IPM |
| Machine Dimensions LxWxH | 92"x55"x69" |
| Machine Weight | 6,420 lbs |
