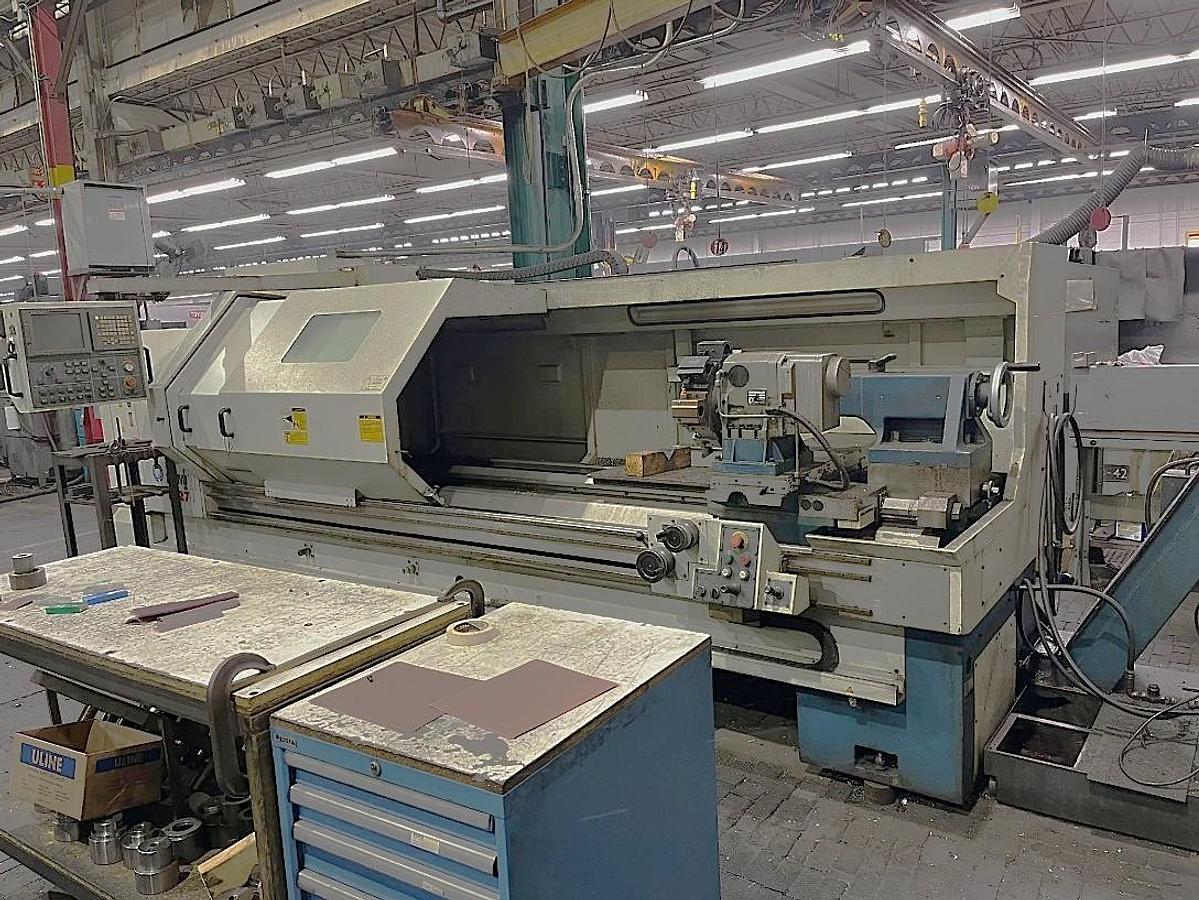

2002 Romi M27 x 120" with 4" Bar Capacity, Tailstock, 15" Chuck, 8 Station Turret, Chip Conveyor
2002 Romi M27 x 120" with 4" Bar Capacity, Tailstock, 15" Chuck, 8 Station Turret, Chip Conveyor
$37,500 (USD)
Location:Ohio
or
Call (863) 439-6066
Description
15" Manual Chuck
8 Station Turret
X & Z Electronic Hand Wheels
Chip Conveyor
All Available Manuals
Card Interface
RS 232 Port Interface
Full Enclosure Guarding
Specifications
| Manufacturer | Romi |
| Model | M27 x 120" |
| Year | 2002 |
| Condition | Used |
| Stock Number | 120658 |
| Machine Control | Fanuc 21i-T CNC Control |
| Chuck Size | 15" Manual Chuck |
| Maximum Swing over Bed | 27" |
| Distance Between Centers | 120" |
| Maximum Swing Over Cross Slide | 16.93" |
| X-Axis Travel | 14.17" |
| Z-Axis Travel | 120" |
| Spindle Nose / Spindle Bore | A2-8" / 4.1" |
| Spindle Speeds | 2 - 1,800 RPM |
| Spindle Motor | 30 HP |
| Number of Tool Positions | 8 Station Turret |
| Rapid Traverse Rates | 295 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.94" / 7.08" / #5MT |
| Floor Space Required | 207" x 80" x 80" |
| Machine Weight | 15,430 lbs |
