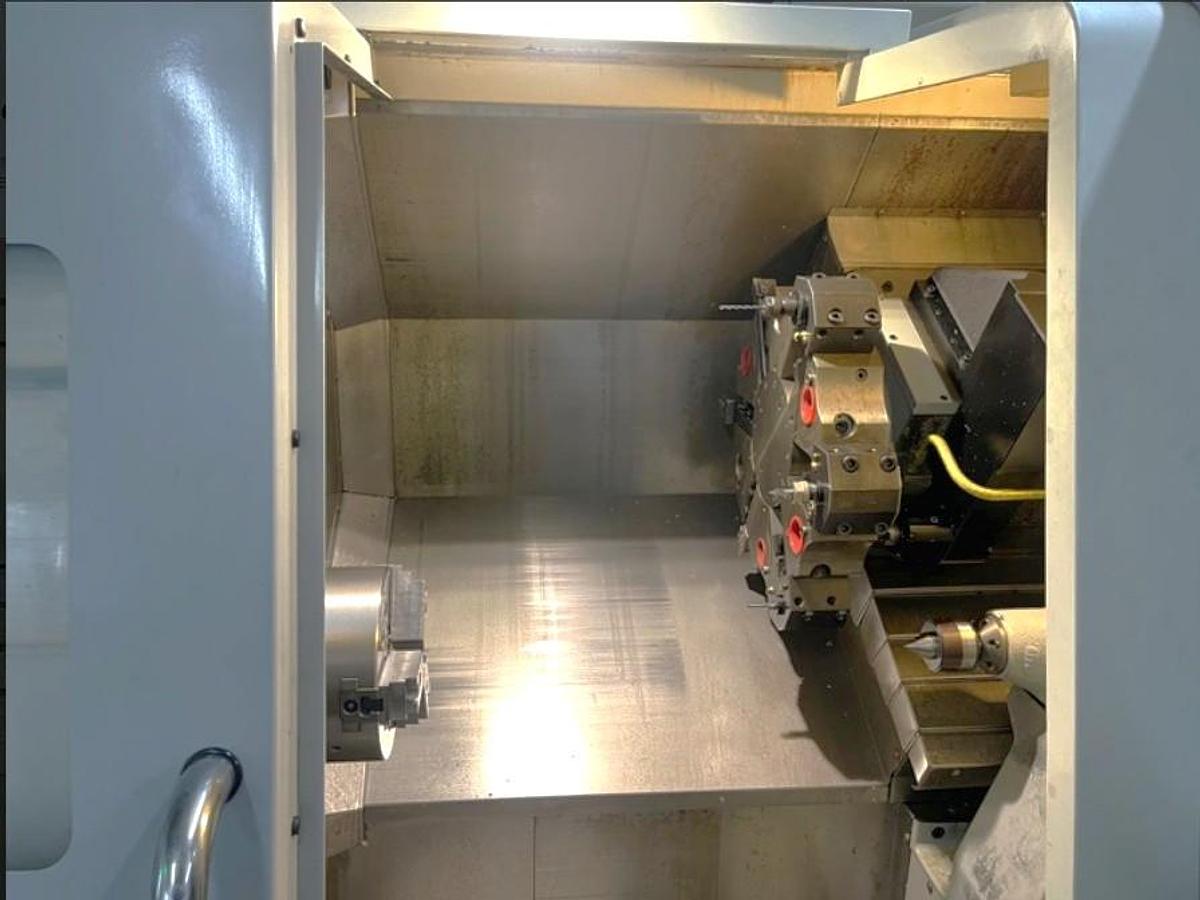

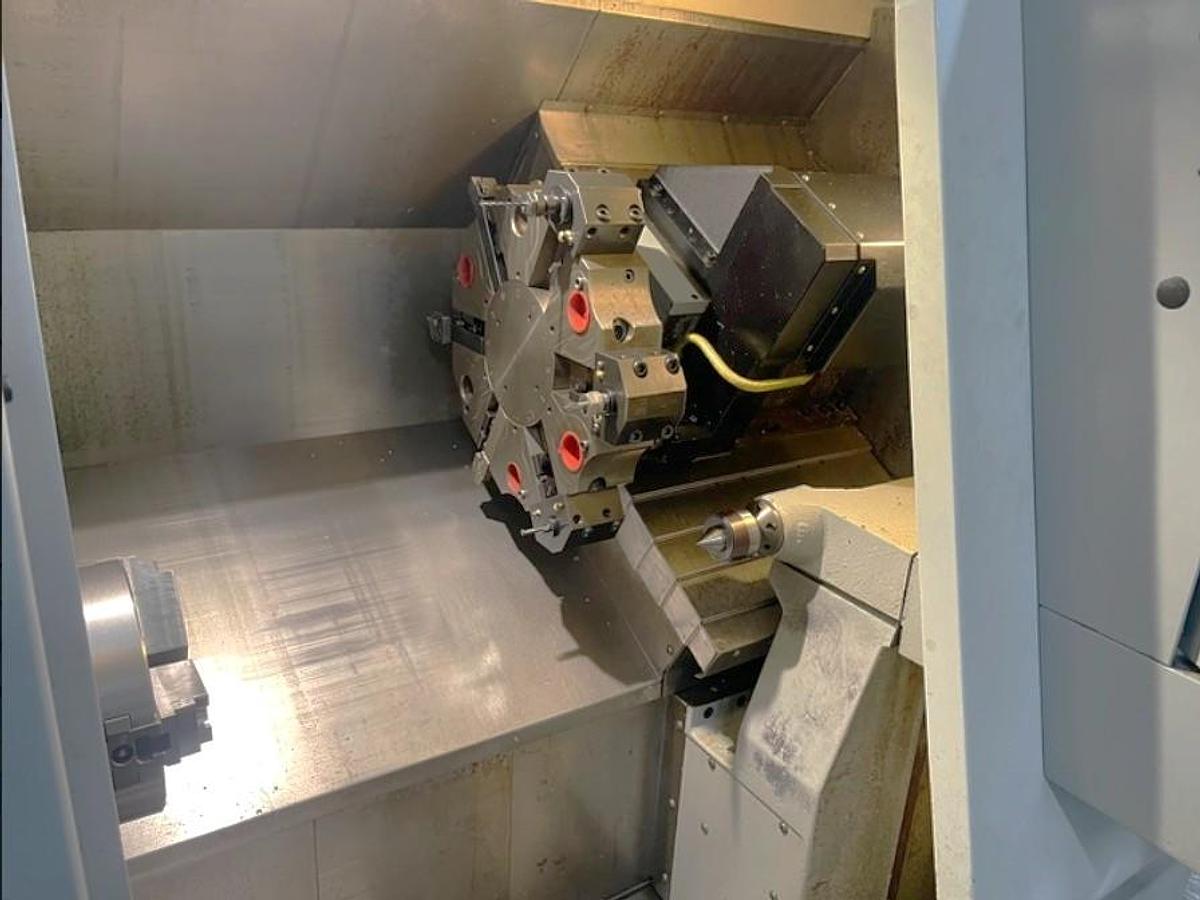

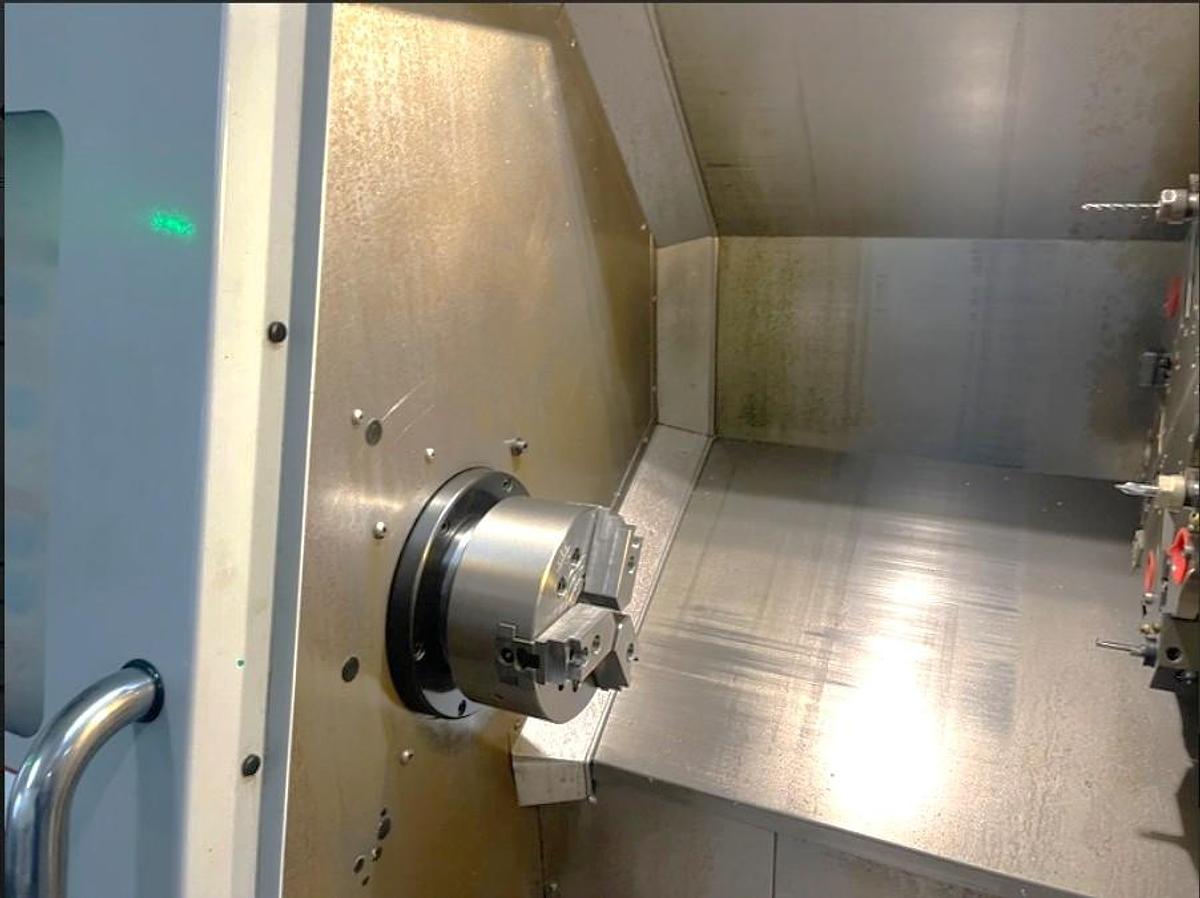

2008 Haas SL-20T with Milling, Full C Axis, Tailstock, 8.3" Chuck, Chip Auger, 12 Pos. Turret, 2" Bar Capacity
2008 Haas SL-20T with Milling, Full C Axis, Tailstock, 8.3" Chuck, Chip Auger, 12 Pos. Turret, 2" Bar Capacity
$46,500 (USD)
Location:California
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling Capability
Auger Style Chip Conveyor
Programmable Hydraulic Tailstock
8" 3 Jaw Hydraulic Chuck
5C Collet Chuck
Rigid Tapping
Spindle Orientation
Visual Quick Code Programming
Rigid Tapping
RS232 Port Interface
Miscellaneous Tool Blocks
Specifications
| Manufacturer | Haas |
| Model | SL-20T with Milling |
| Year | 2008 |
| Condition | Used |
| Stock Number | 120653 |
| Machine Control | Haas CNC Control |
| Chuck Size | 8" 3-Jaw Hydraulic & 5C Collet Chuck |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 11.75" |
| Distance Between Centers | 20" |
| X-Axis Travel | 8.45" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | Full C Axis |
| Spindle Speeds | 0 - 4,000 rpm |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.0" / 2.5" |
| Spindle Motor | 20 HP |
| Spindle Torque | 120 ft/lbs |
| Live Milling Speed | 4,000 RPM |
| Number of Turret Positions | 12 Station Turret -Hybrid Type Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Taper / Travel | MT #4 / 20" |
| Machine Dimensions LxWxH | 126.5"x62"x72" |
| Machine Weight | 9,000 lbs |
