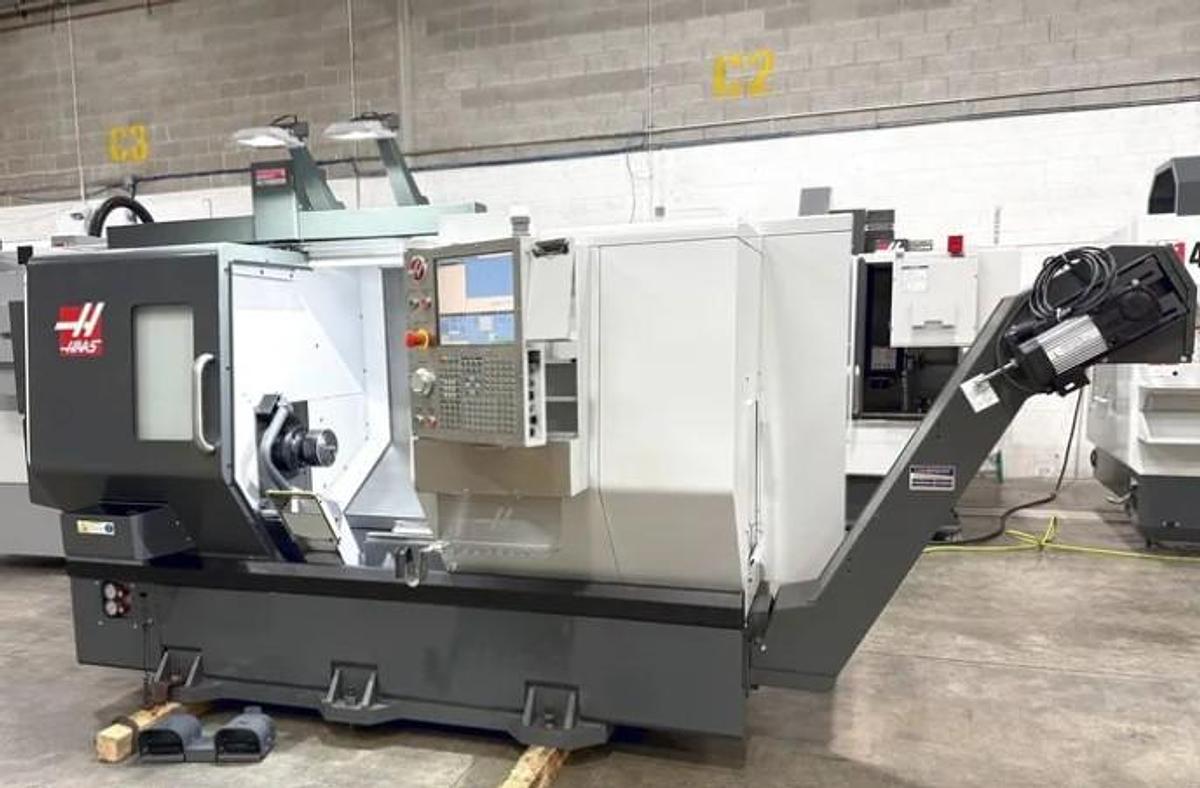

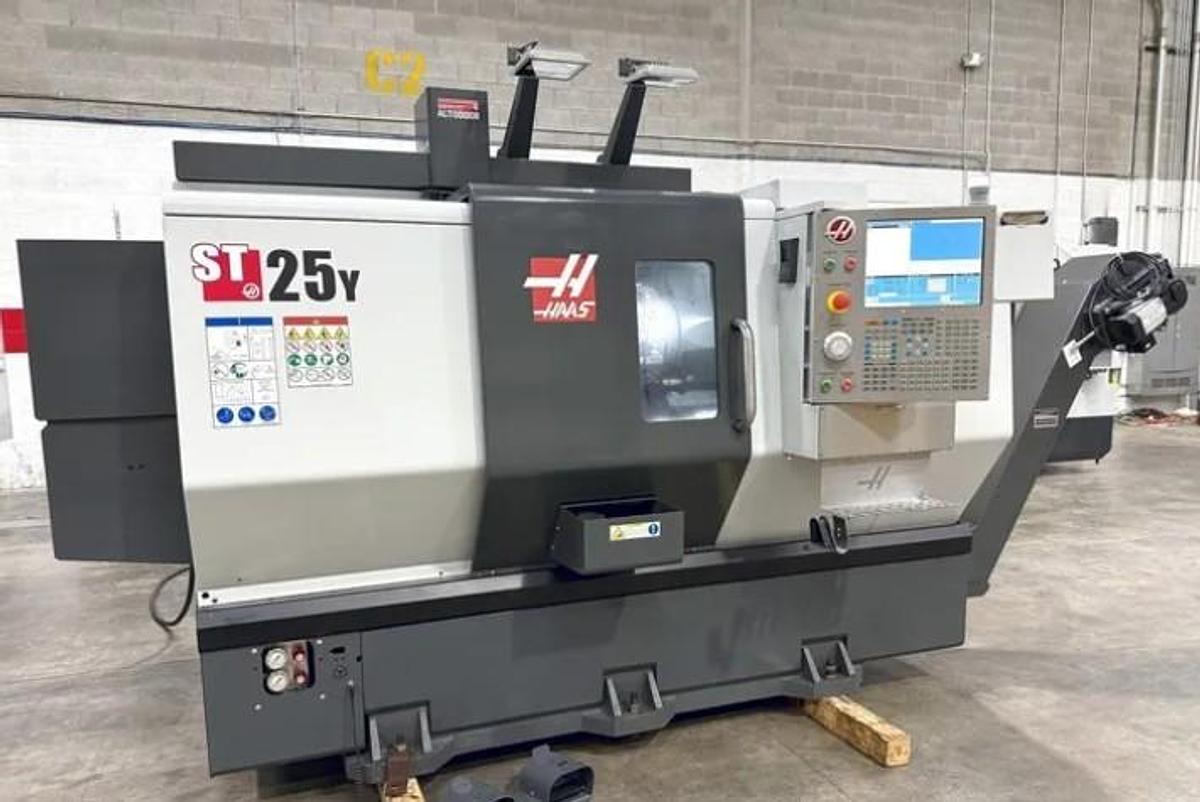

2018 Haas ST-25Y, Tool Eye, Barfeed, Parts Catcher, Chip Conveyor
2018 Haas ST-25Y, Tool Eye, Barfeed, Parts Catcher, Chip Conveyor
$89,500 (USD)
Location:Illinois
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
Remote Jog Handle
Auto Door
3J Collet Chuck

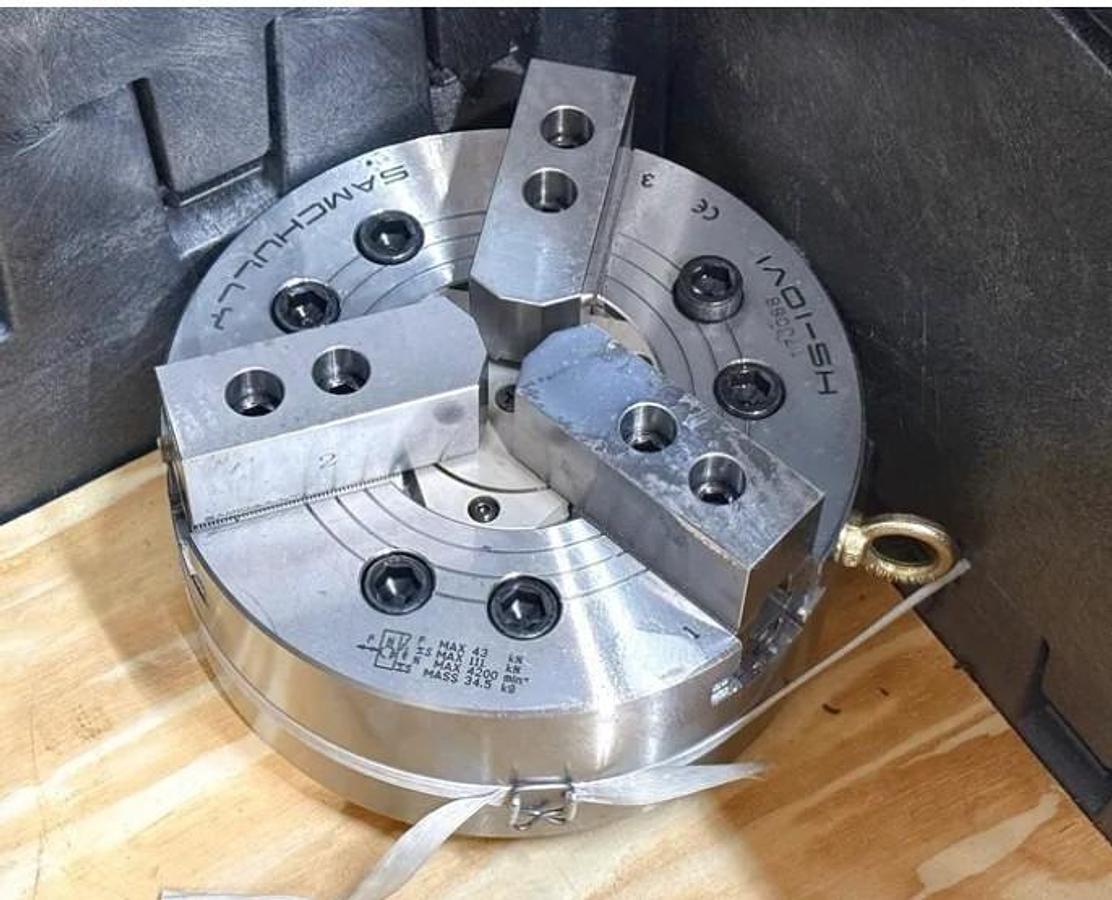

10" 3 Jaw Hydraulic Chuck

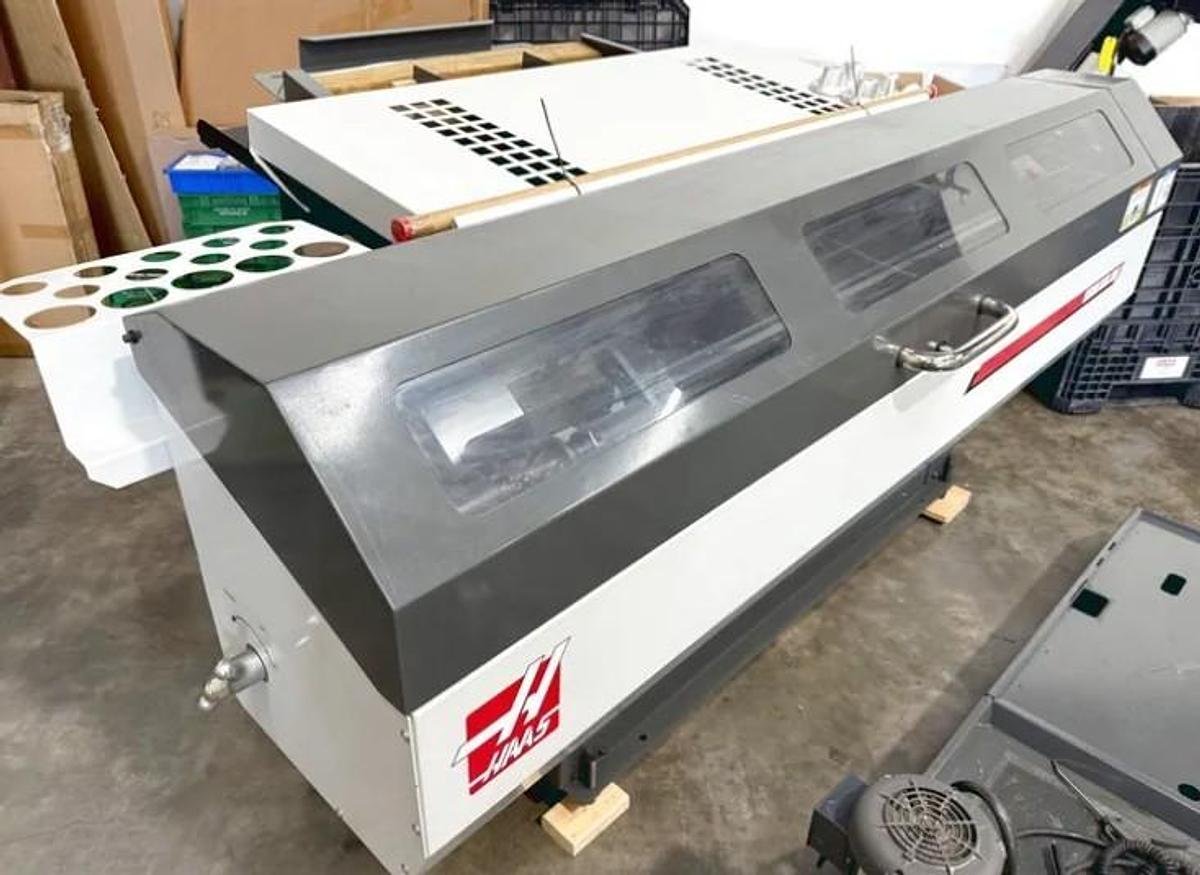

Haas Servo Bar 300 Bar Feeder
Over 25 Spindle Liners

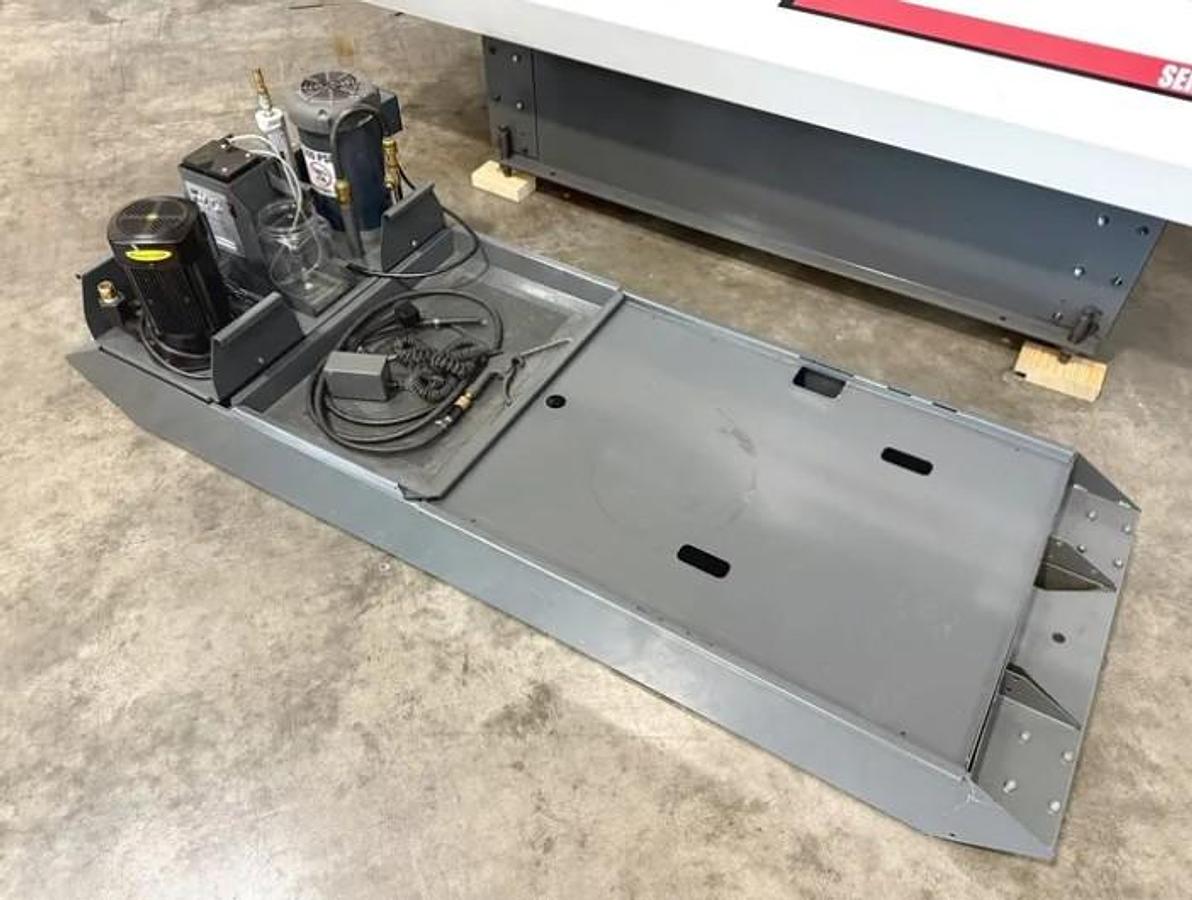

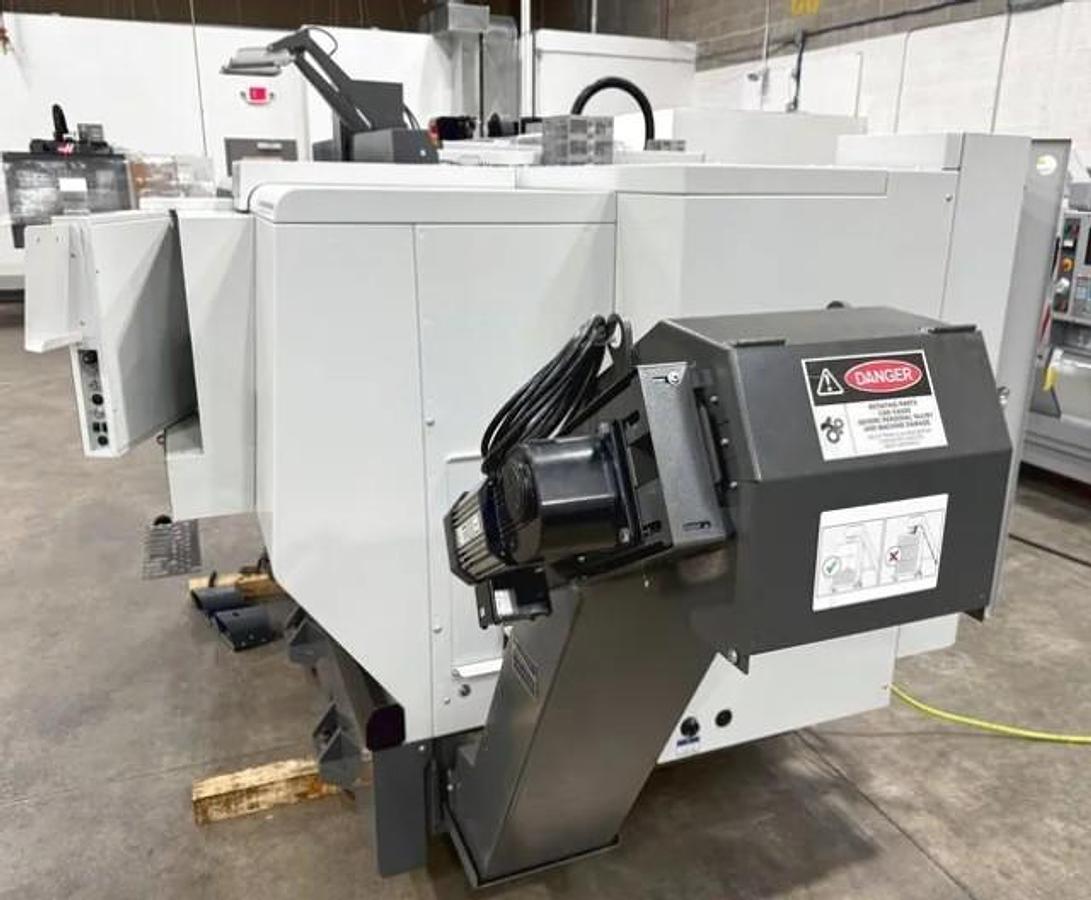

Chip Conveyor
Parts Catcher

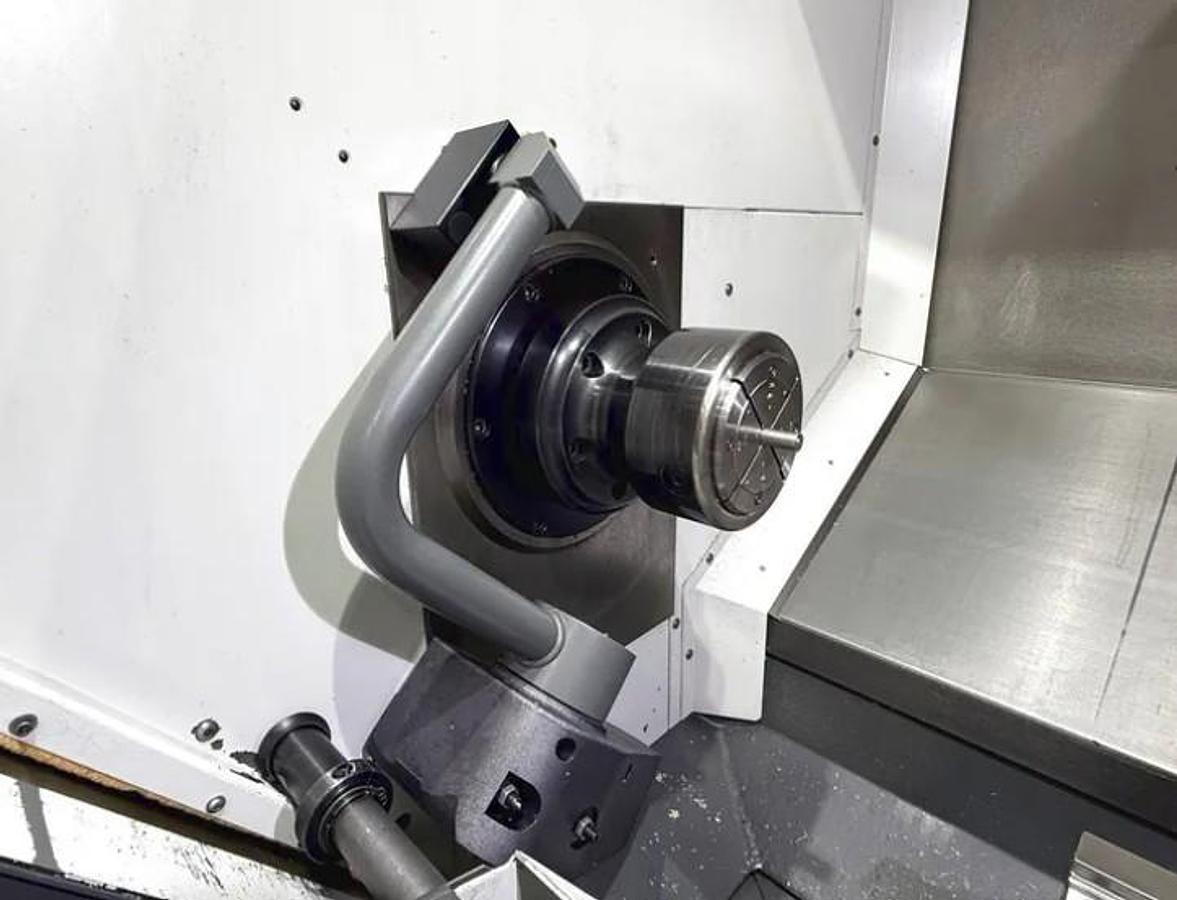

Tool Presetter
User Definable Macros
Spindle Orientation
Rigid Tapping
High Intensity Lighting
Macros

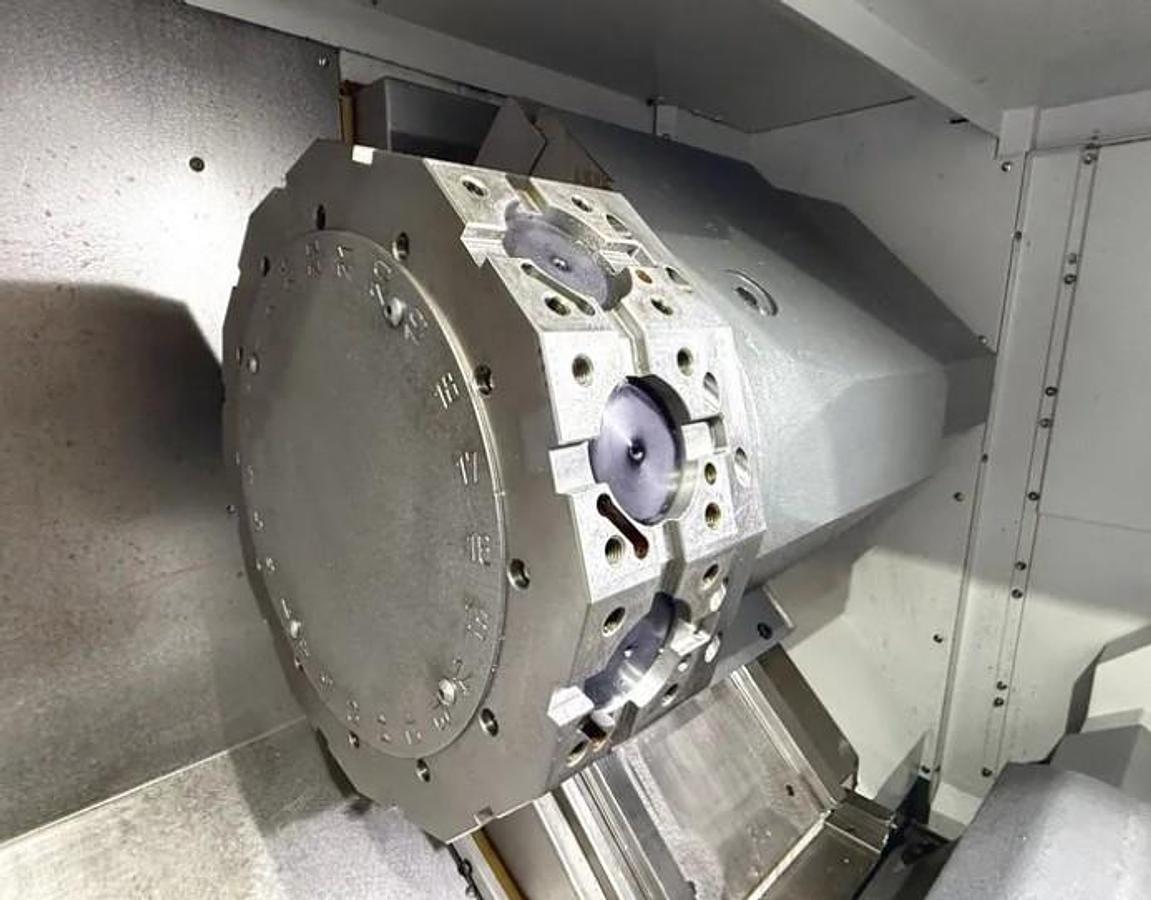

12 Station VDI/BOT Hybrid Turret
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
Wired 195-260V Electrics

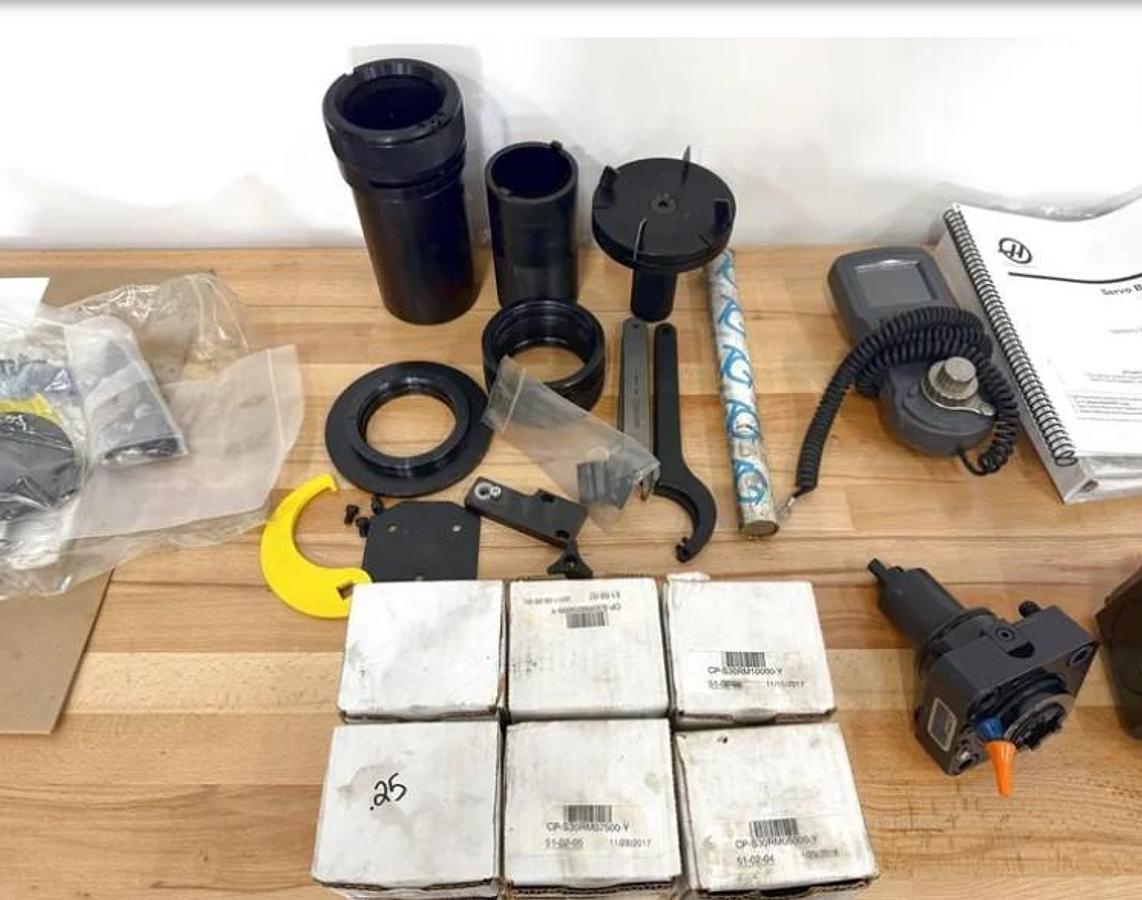

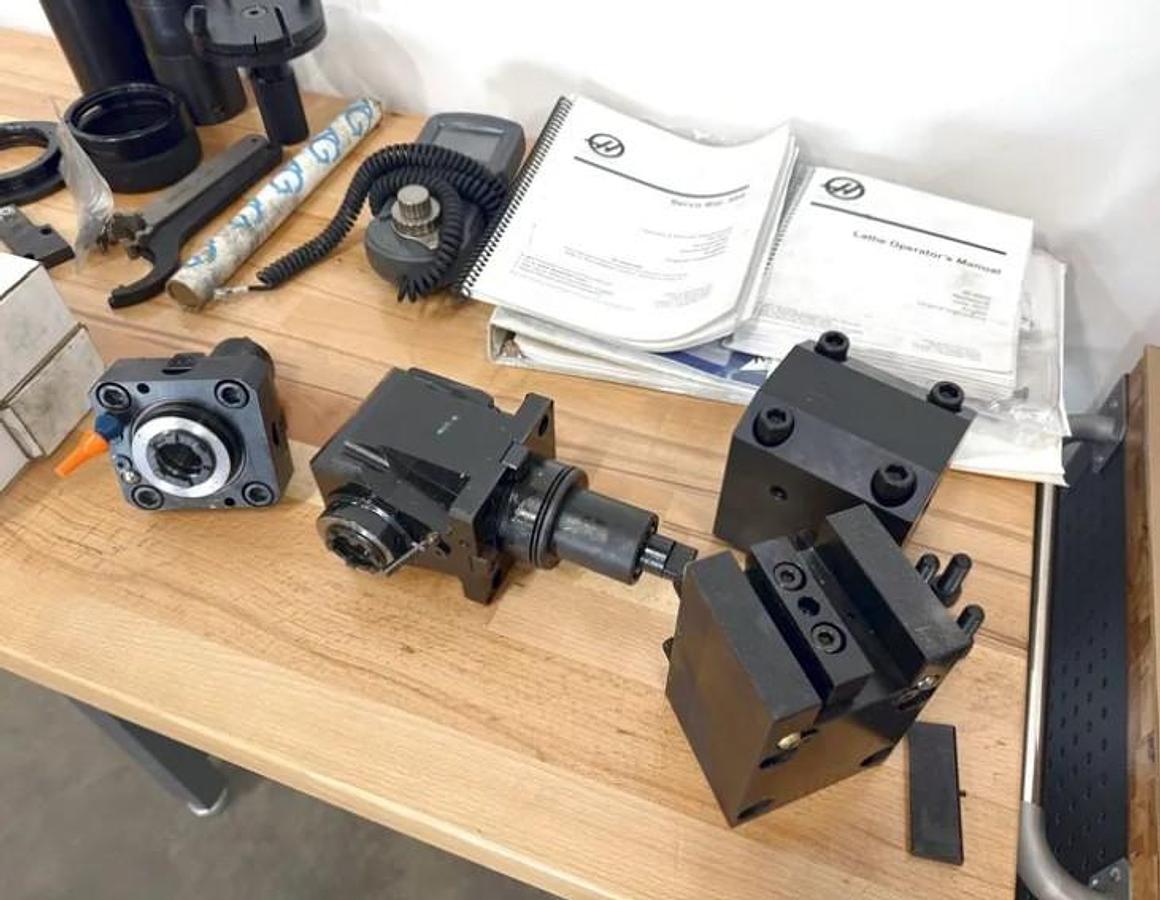

All Available Tool Blocks
All Available Manuals

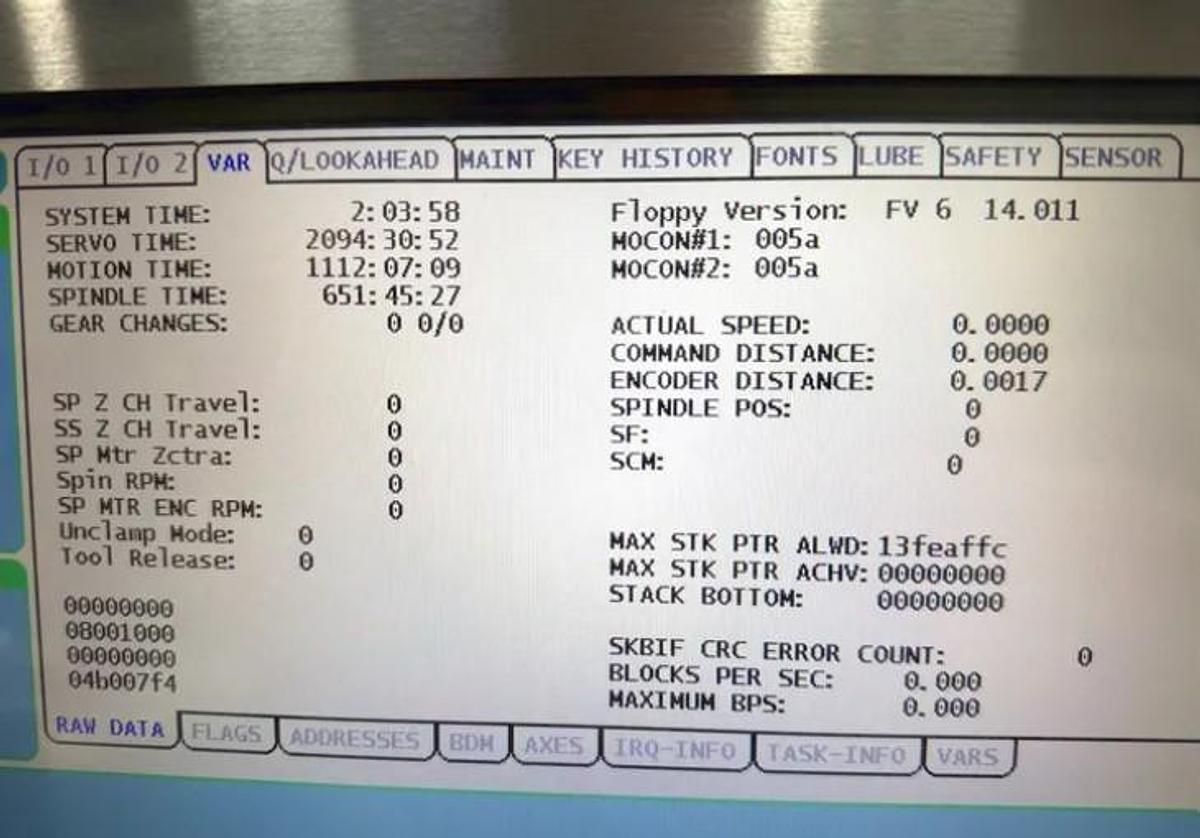

**651 Run Time Hours**
Specifications
| Manufacturer | Haas |
| Model | ST-25Y, Tool Eye, Barfeed, Parts Catcher, Chip Conveyor |
| Year | 2018 |
| Condition | Used |
| Stock Number | 120652 |

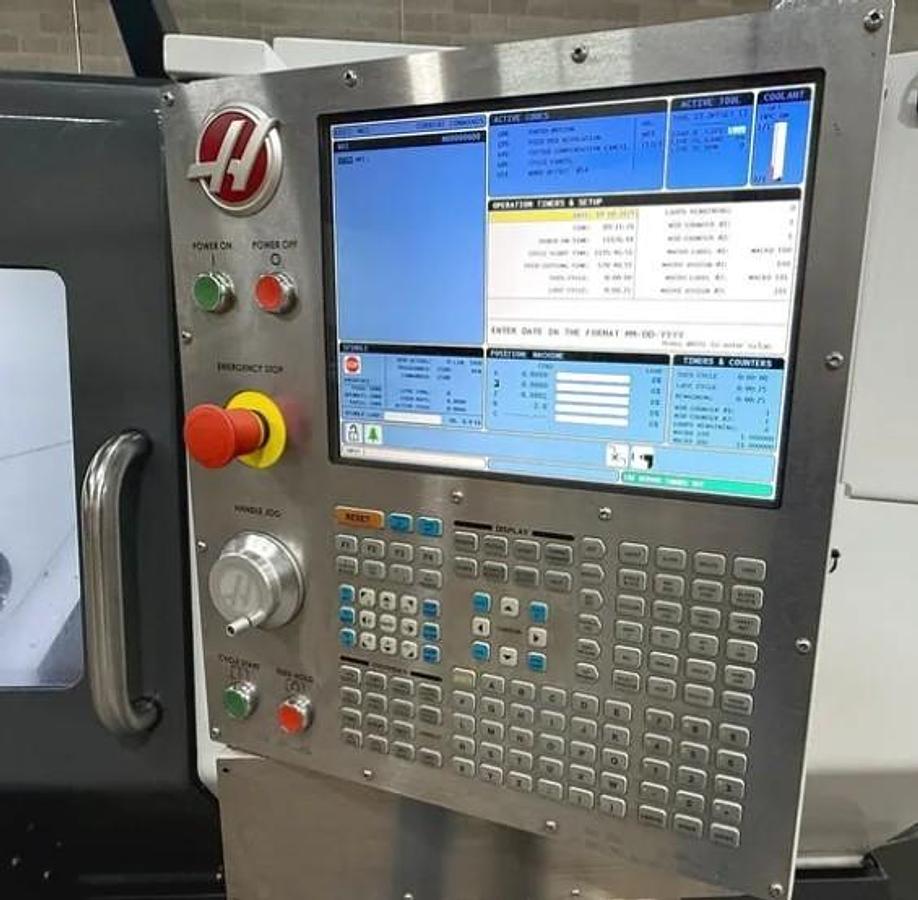

| Machine Control | Haas NextGen Control |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| Maximum Bar Capacity | 3.0" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 3,400 RPM |
| Spindle Motor | 30 HP |
| Spindle Torque | 300 ft./lbs. @ 500 RPM |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |

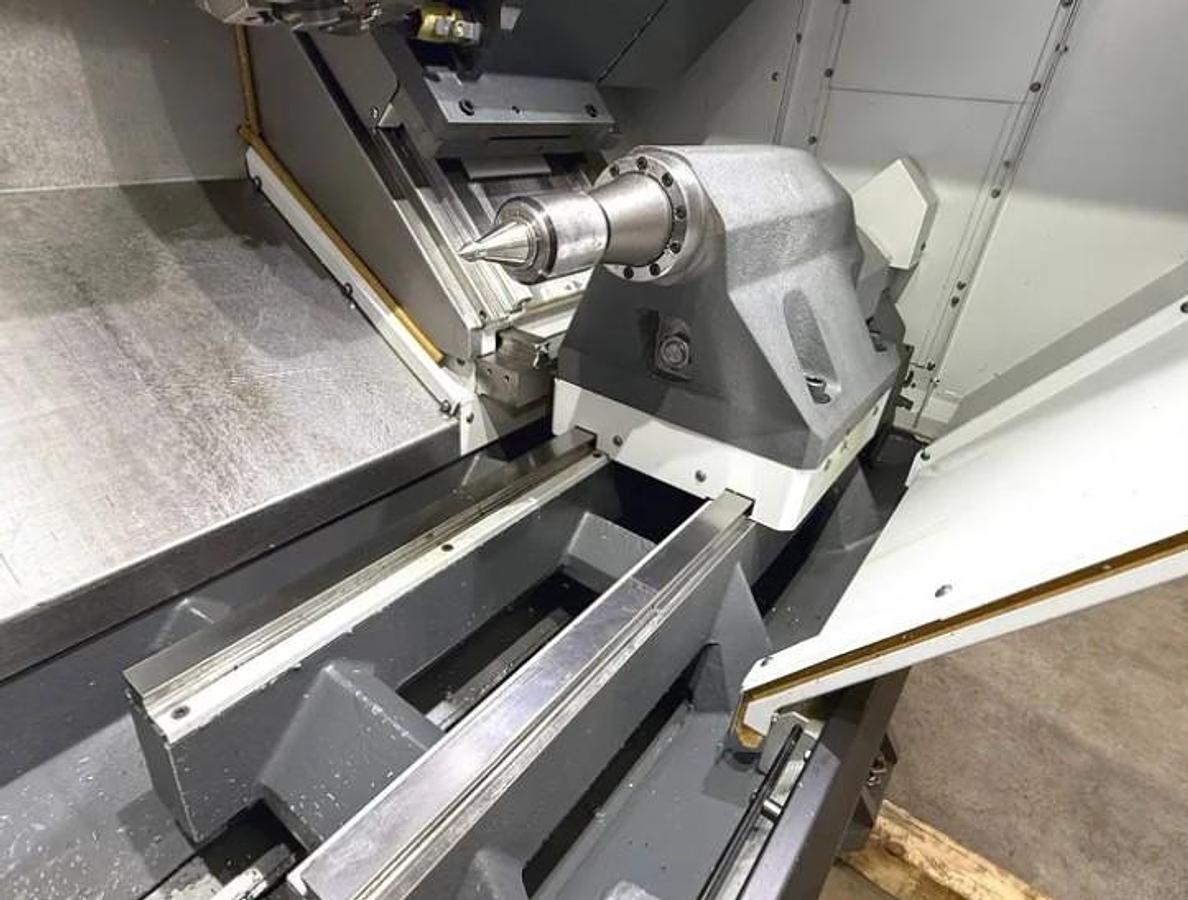

| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 12,300 lbs. |
