2008 Haas Mini Mill

10k rpm Spindle

Direct Belt Drive

RS 232 Port

Coolant Tank w/Pump

Accepts Single or 3-Phase Power

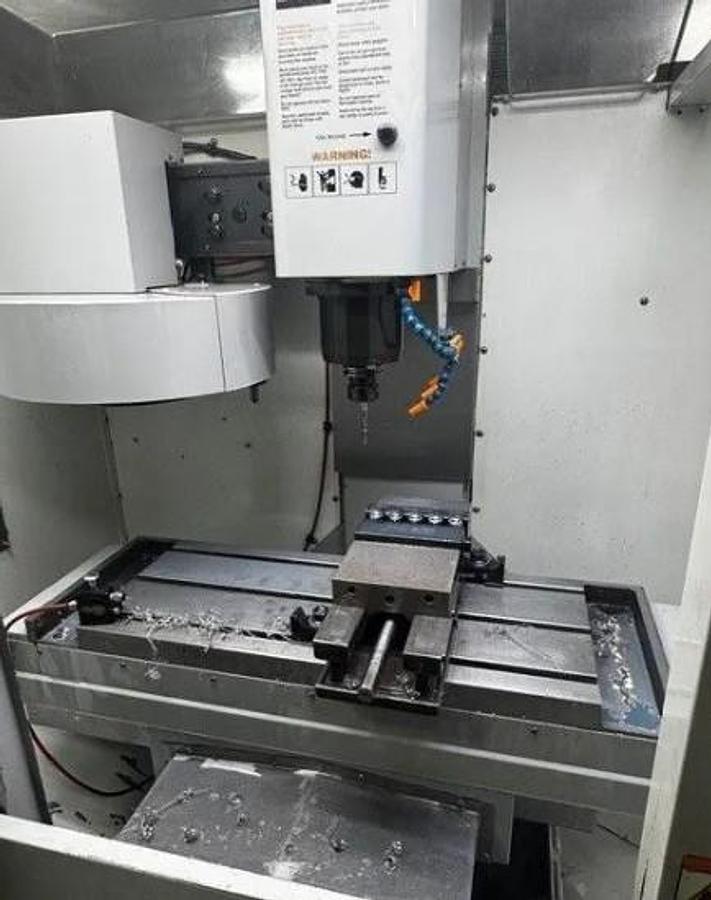

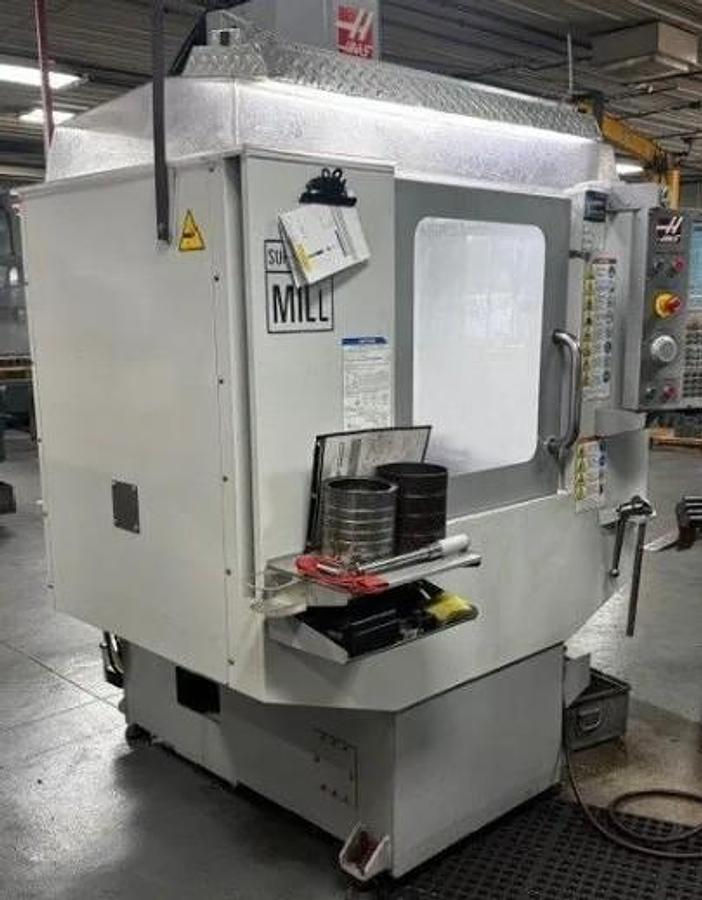

The 2008 Haas Mini Mill is a reliable 3-axis vertical machining center suitable for a range of manufacturing applications. It features a robust table measuring 36" x 12", capable of handling loads up to 500 lbs. The machine offers an X-axis travel of 16", Y-axis travel of 12", and Z-axis travel of 10", enabling versatile machining capabilities. Equipped with a CAT #40 spindle taper, the Mini Mill delivers a maximum spindle speed of 10,000 RPM powered by a 15 HP motor. The spindle nose distance to the table top ranges from 4" to 14", providing flexibility for various workpieces. Its automatic tool changer can hold up to 10 tools, with a swift tool-to-tool change time of 2.5 seconds, streamlining production efficiency. The machine's rapid traverse rates reach 650 IPM, with cutting feed rates of 500 IPM, ensuring quick and precise operations. The overall dimensions of the machine are 78" x 80" x 98", and it weighs 3,400 lbs, making it a compact yet powerful addition to any workshop. This used machine combines performance and durability, making it an excellent option for those seeking cost-effective CNC solutions.
