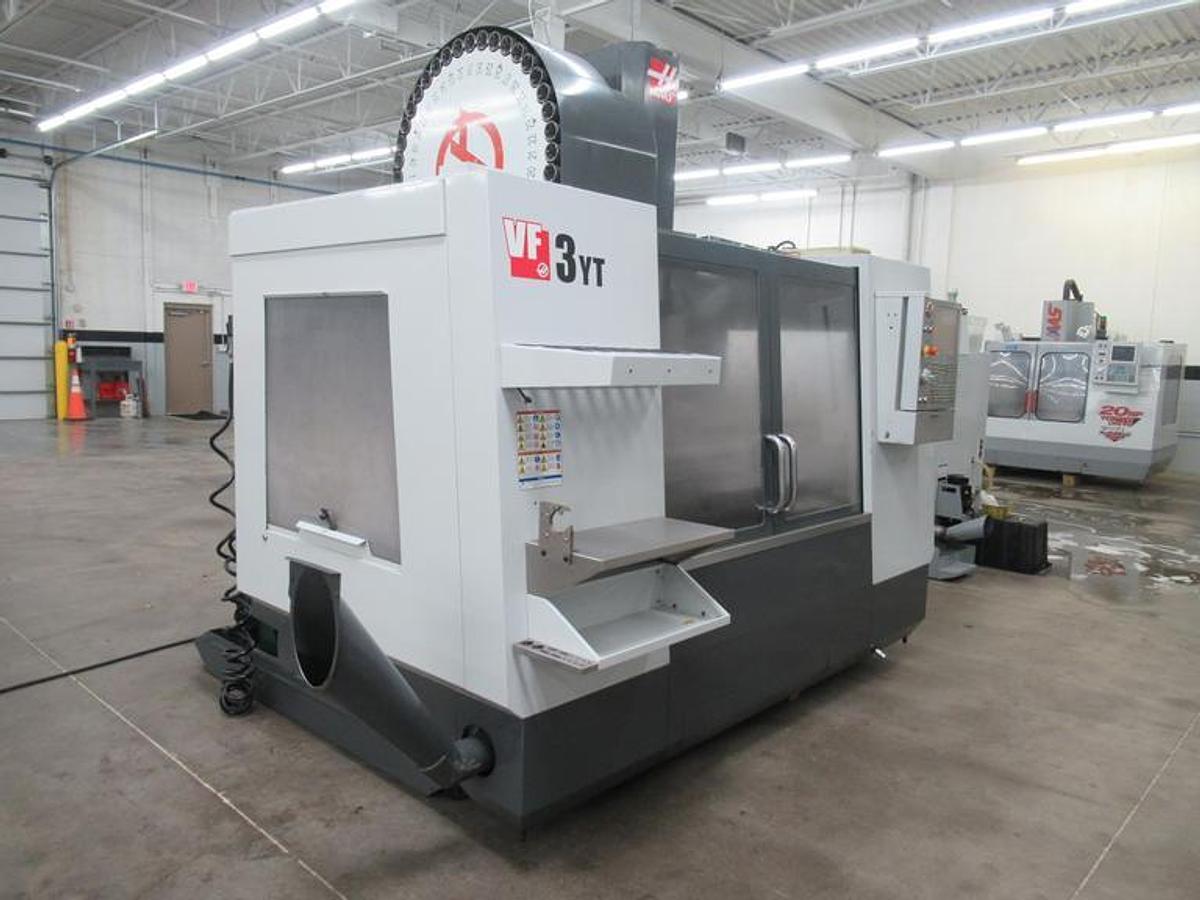

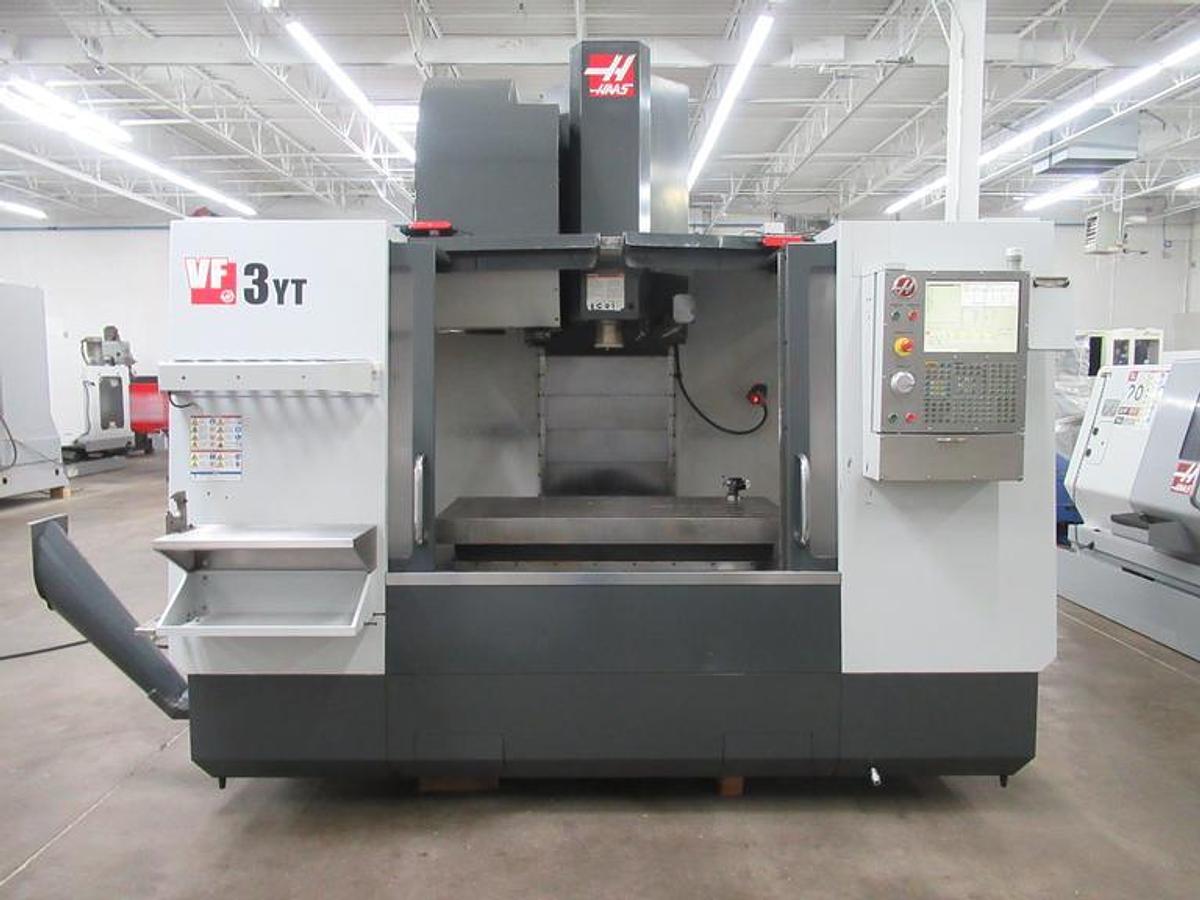

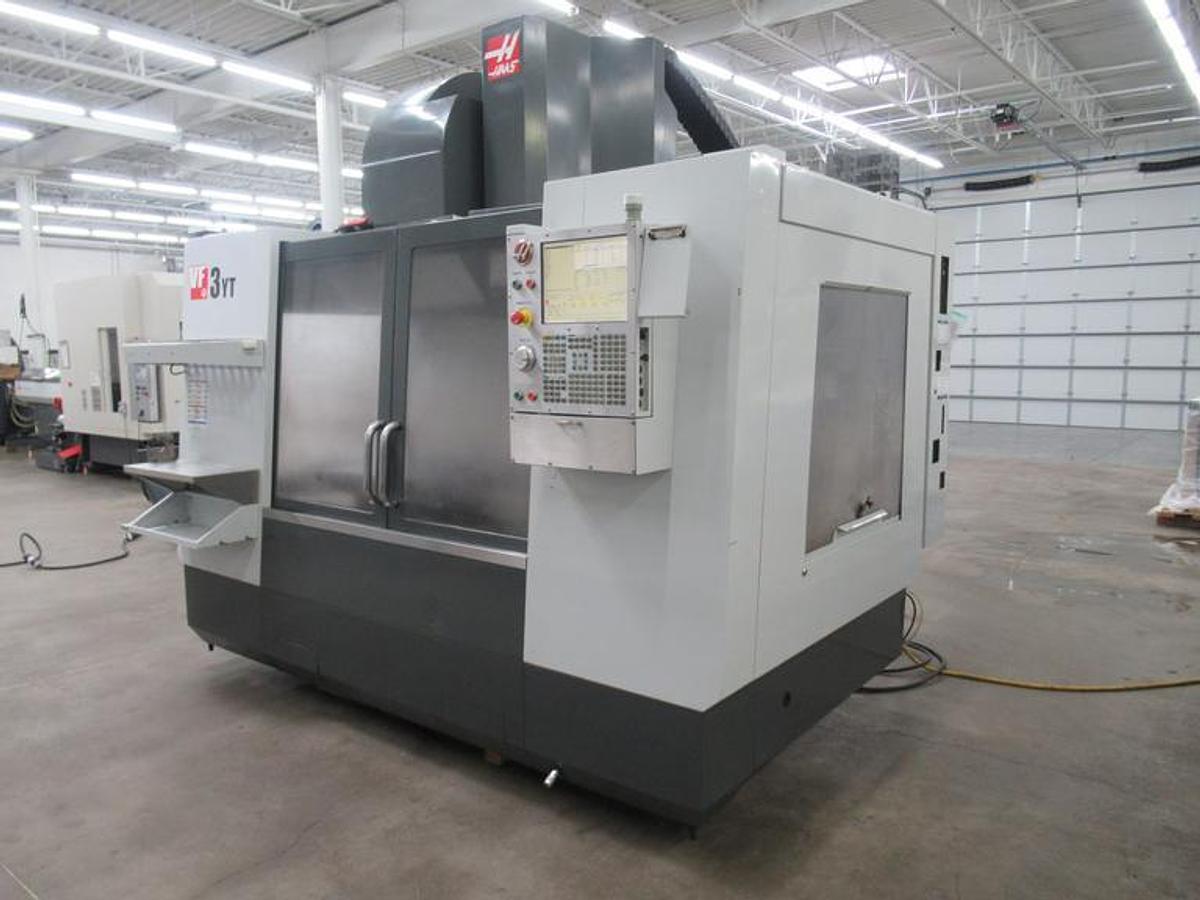

2012 Haas VF-3YT/40 with Coolant Thru Spindle, Haas Probing, 40 Station SMATC, Auger, Pcool
2012 Haas VF-3YT/40 with Coolant Thru Spindle, Haas Probing, 40 Station SMATC, Auger, Pcool
Contact us for price
Location:Minnesota
or
Call (863) 439-6066
Description
Coolant Thru the Spindle - 300 PSI
40 Station Side Mounted Tool Changer

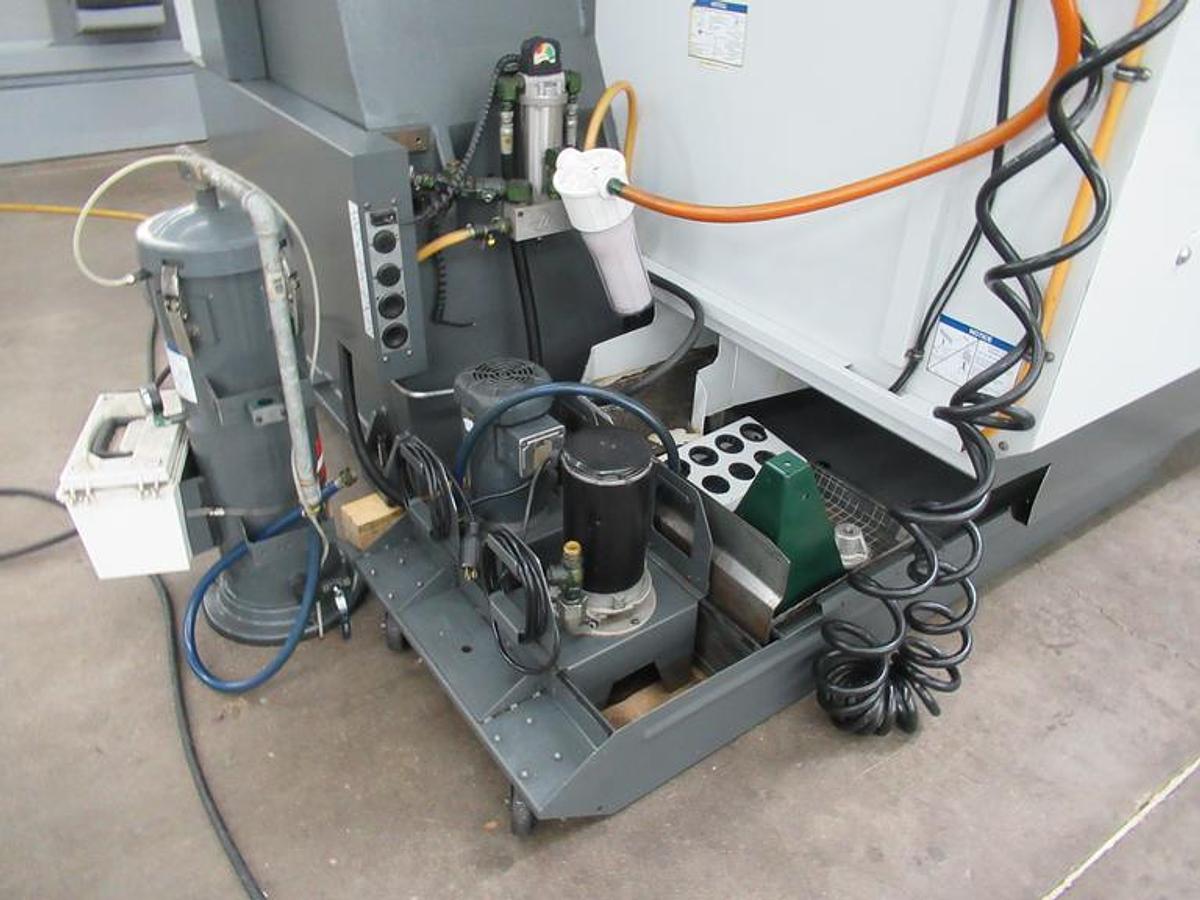

Auxiliary Coolant Filter System

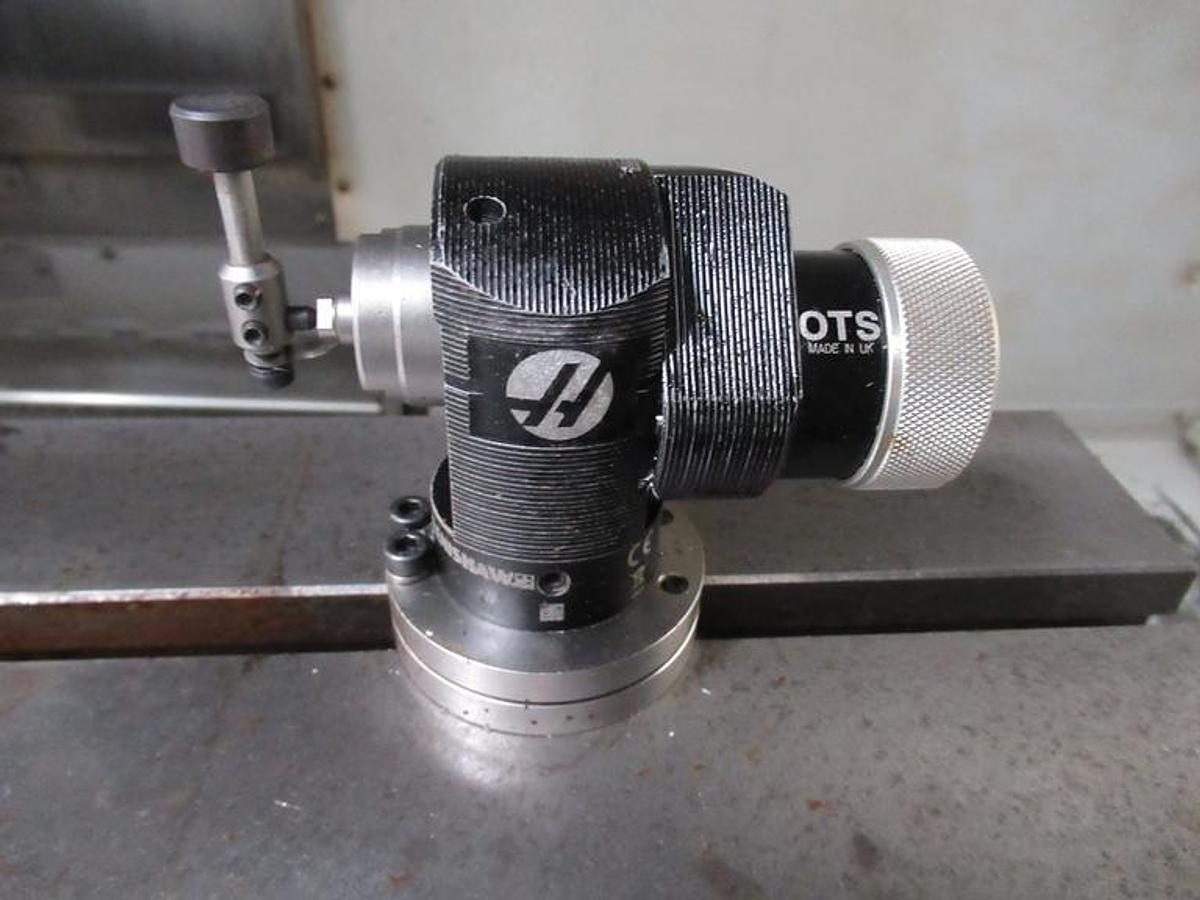

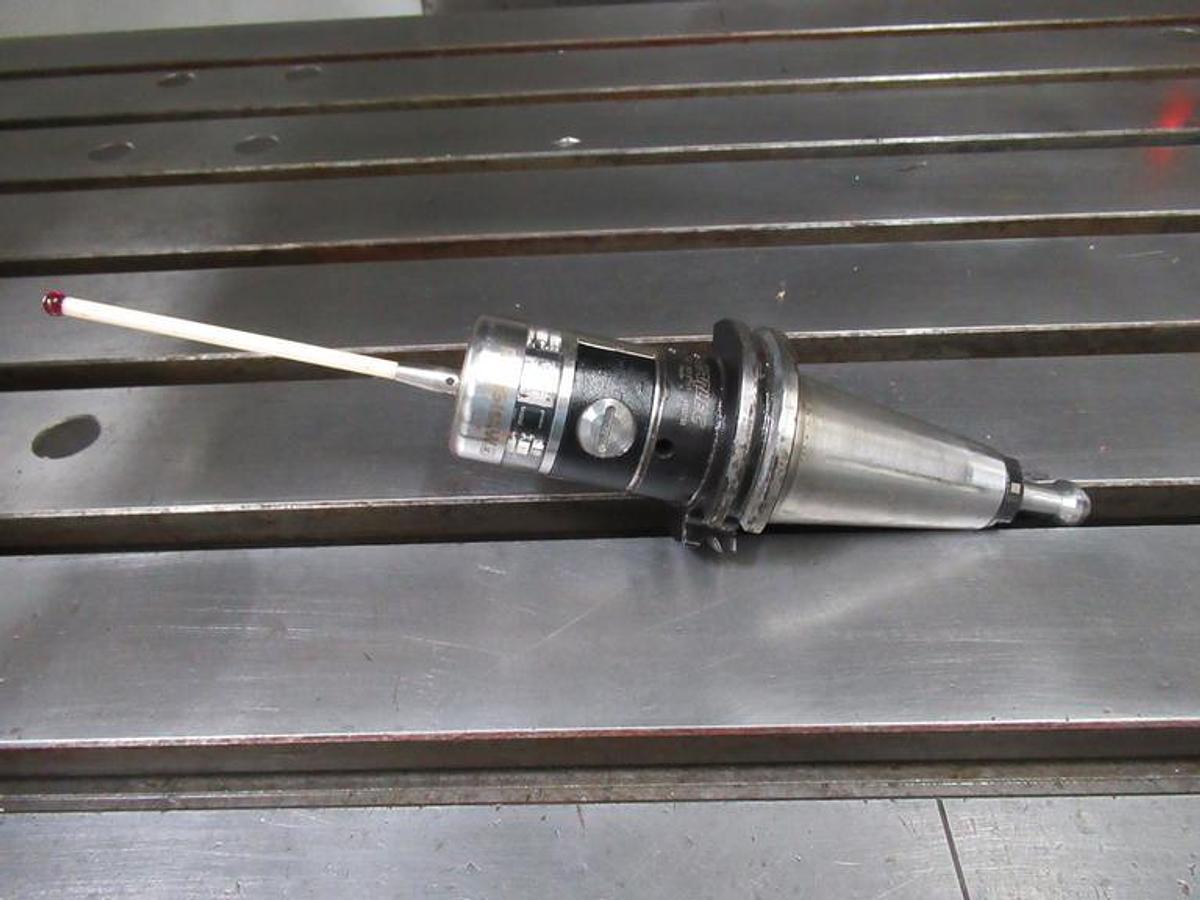

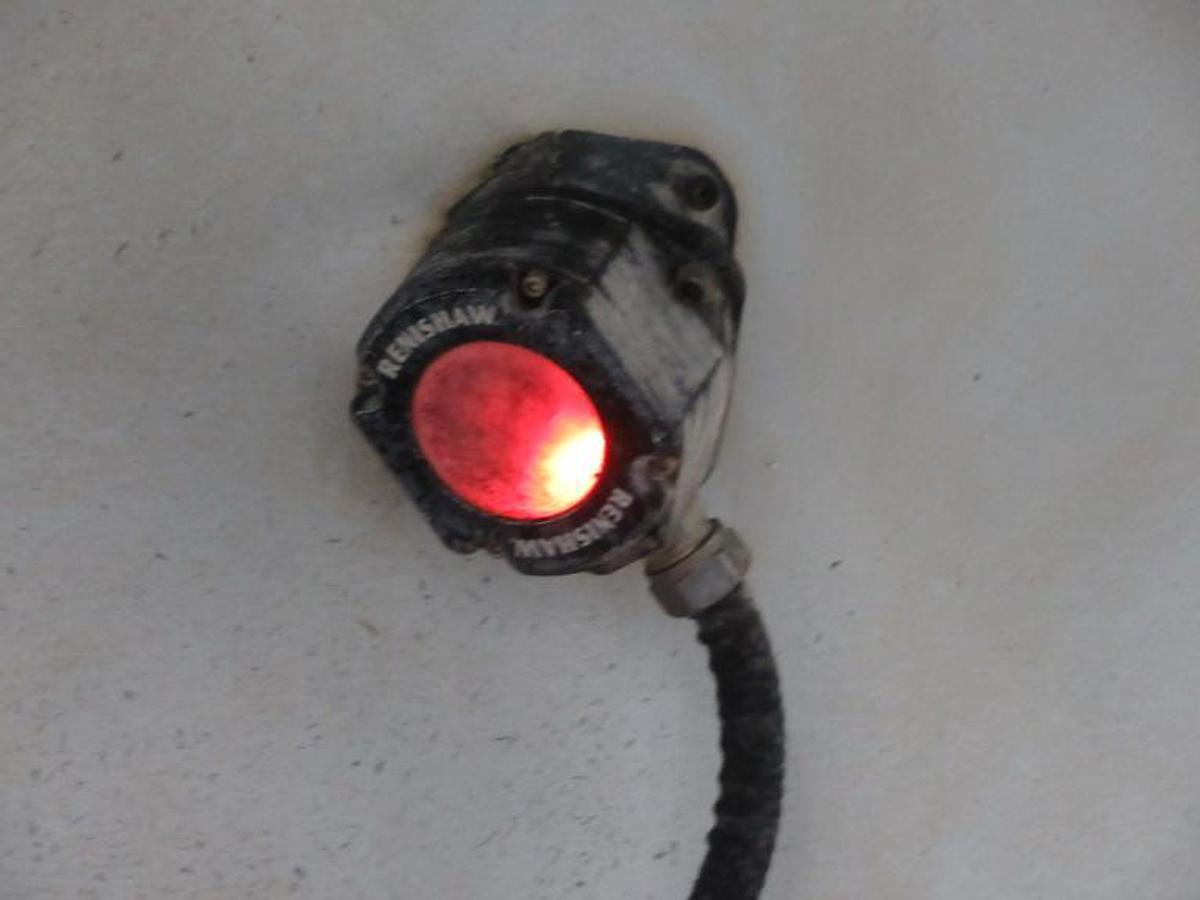

Haas Probing with Tool & Part Probe (WIPS)
Spindle Orientation Coordinate Rotation & Scaling User Definable Macros
Haas Intuitive Programming System
Auger Style Chip Conveyor
2 Speed Gearbox
Programmable Coolant Nozzle
Rigid Tapping
Vector Drive Spindle
USB Port Interface RS 232 Port Interface Coolant System with Tank & Pump
Wired 360-480V Electrics

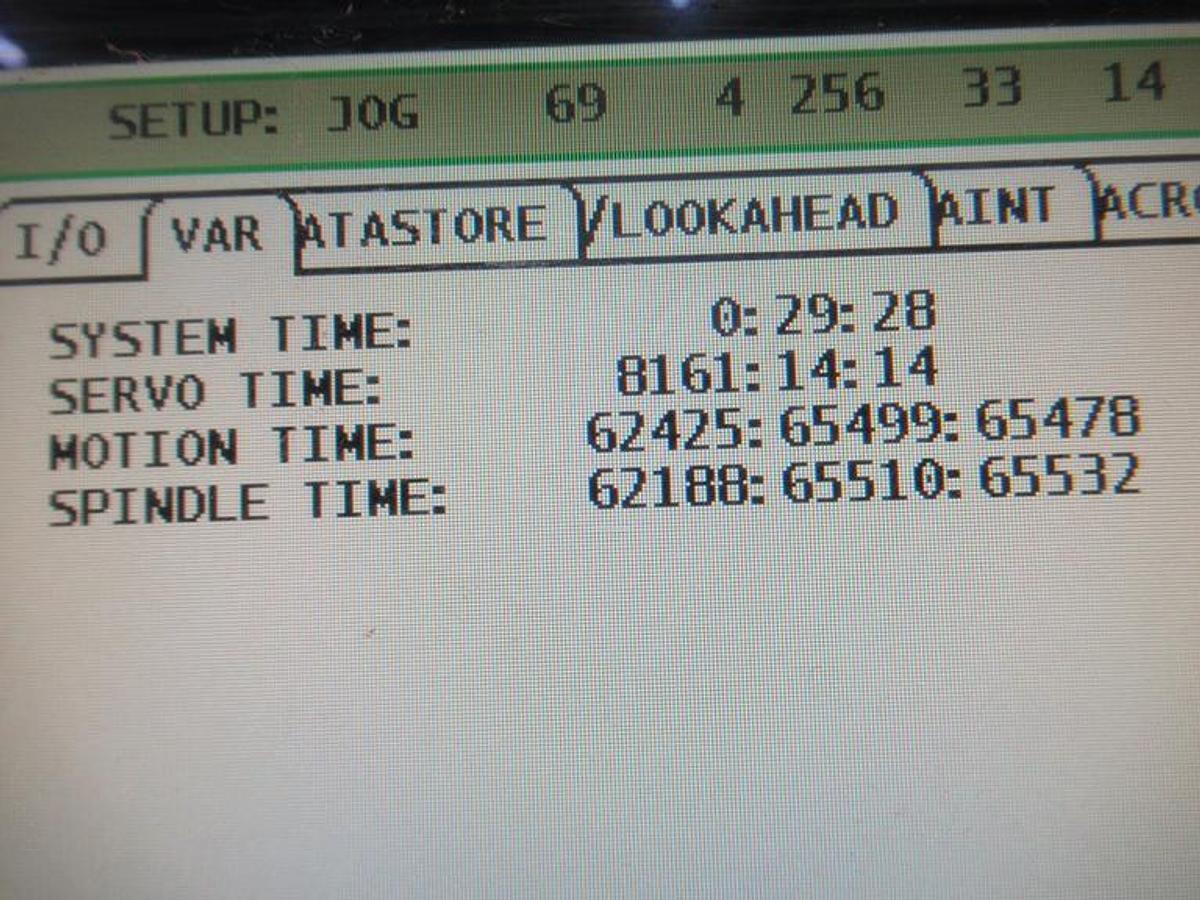

**Servo On Hours 8,161**
Specifications
| Manufacturer | Haas |
| Model | VF-3YT/40 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120642 |

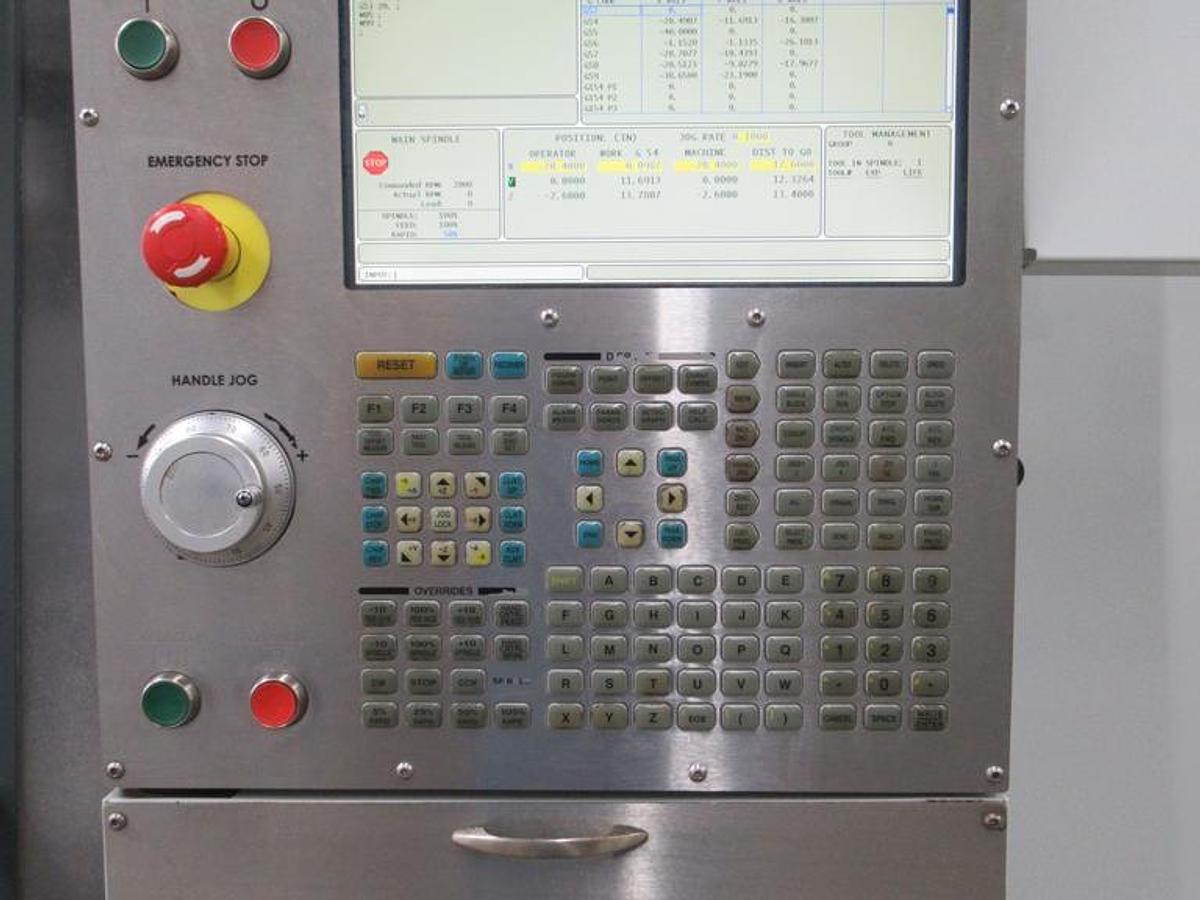

| Control | Haas MainCon CNC Control |

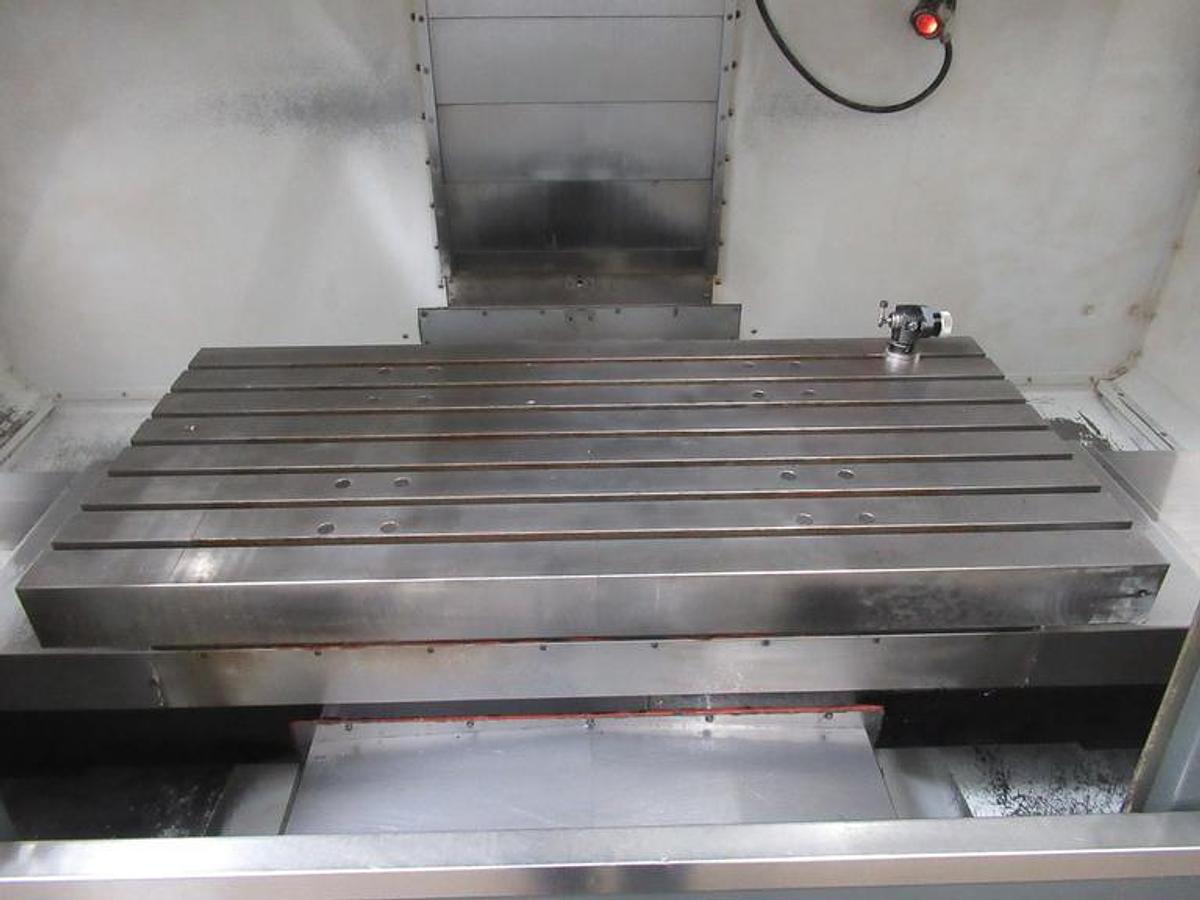

| Table Size | 54 x 25" |
| Maximum Weight on Table | 3,500 lbs. |
| Distance Spindle Nose to Table Top | 4" - 29" |
| X-axis travel | 40" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 8,100 RPM - 2 Speed Gearbox |
| Spindle Motor | 20 HP |
| Number of Tool Positions | 40 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Tool Change Time Chip to Chip | 4.2 seconds |
| Rapid Traverse Rates X/Y, Z | 1000 IPM / 710 IPM |
| Cutting Feedrates | 650 IPM |
| Machine Dimensions | 144" x 97" x 113" |
| Machine Weight | 14,900 lbs. |
