2014 Haas ST-35, 15" Hydrualic Chuck, Remote Jog, Tool Eye, Chip Conveyor, High-Pressure Coolant, HIgh-Intensity LIghting
2014 Haas ST-35, 15" Hydrualic Chuck, Remote Jog, Tool Eye, Chip Conveyor, High-Pressure Coolant, HIgh-Intensity LIghting
$69,500 (USD)
Location:Nevada
or
Call (863) 439-6066

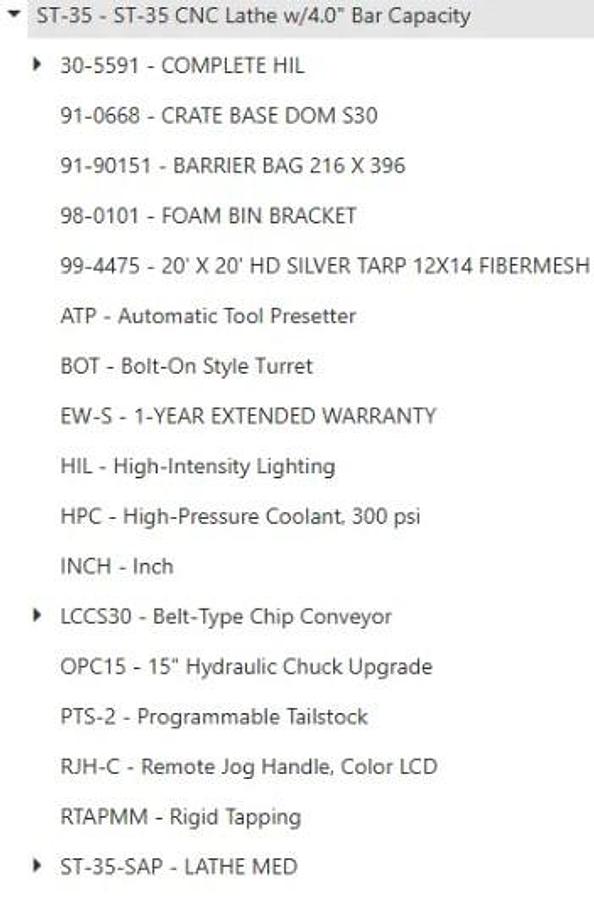

Description
4" Bar Capacity
Programmable Tailstock
15" 3 Jaw Hydraulic Chuck
2 Speed Gearbox
Tool Presetter
High Intensity Lighting
300 PSI High-Pressure Coolant

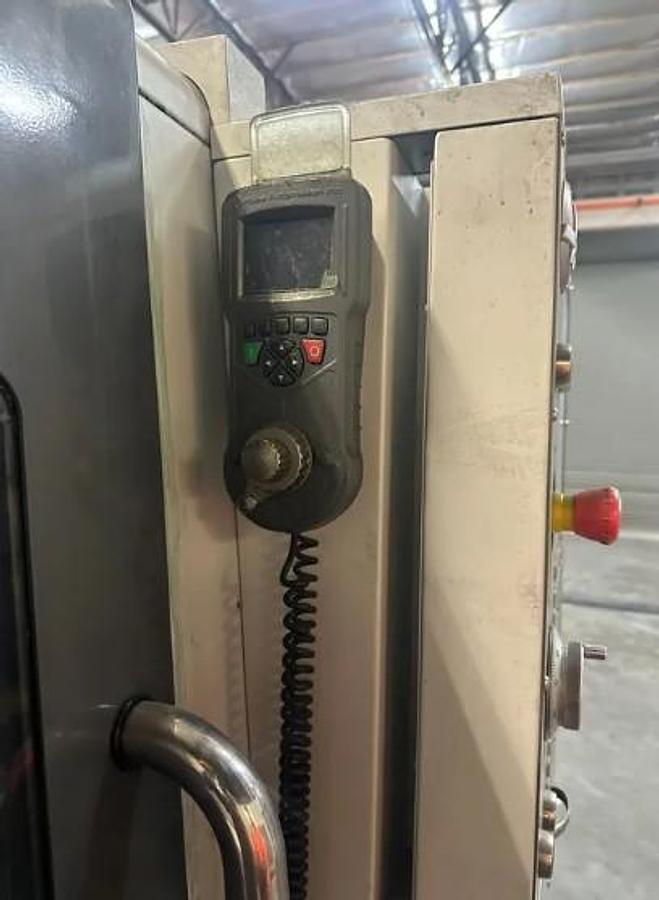

Remote Jog Handle
Chip Conveyor
Rigid Tapping
RS 232 Port Interface
**From Aerospace Facility, not used much**
Specifications
| Manufacturer | Haas |
| Model | ST-35, 15" Hydrualic Chuck, Remote Jog, Tool Eye, Chip Conveyor, High-Pressure Coolant, HIgh-Intensity LIghting |
| Year | 2014 |
| Condition | Used |
| Stock Number | 120641 |
| Chuck Size | 15" 3 Jaw Hydraulic |
| Maximum Swing | 31.75" |
| Maximum Turning Diameter | 21" |
| Maximum Machining Length | 26" |
| Maximum Bar Capacity | 4" |
| X-Axis Travel | 12.75" |
| Z-Axis Travel | 26" |
| Spindle Nose / Spindle Bore | A2-8" / 4.62" |
| Spindle Speeds | 3,200 RPM |
| Spindle Motor | 40 HP |
| Transmission | 2 Speed Gearbox |
| Number of Turret Positions | 12 Station Bolt on Type |
| Rapid Traverse Rates | 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions | 121" x 79" x 83" |
| Machine Weight | 14,300 lbs. |
