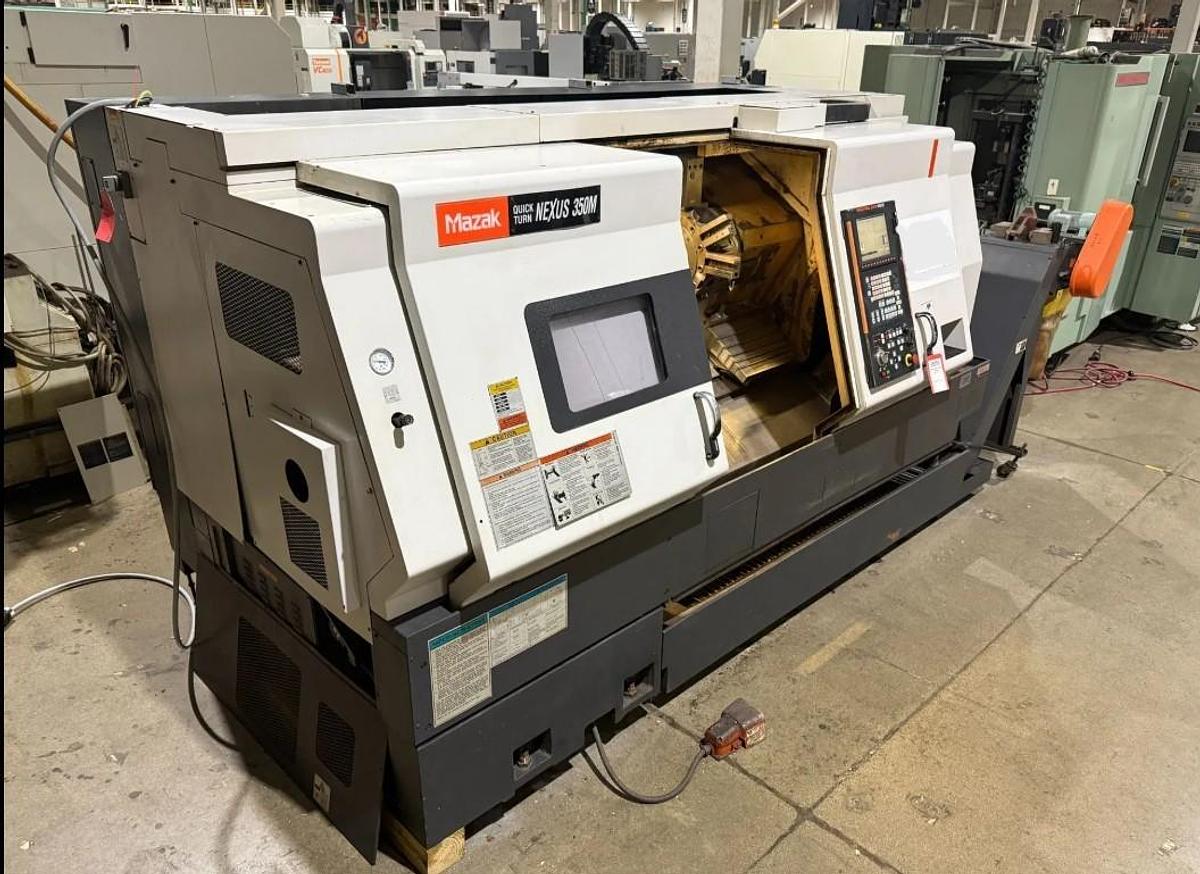

2005 Mazak Nexus QTN 350M/1200 with Full C Axis Milling, Chip Conveyor, 48" cc, 4" Bar Capacity, 15" Chuck, Tailstock
2005 Mazak Nexus QTN 350M/1200 with Full C Axis Milling, Chip Conveyor, 48" cc, 4" Bar Capacity, 15" Chuck, Tailstock
$48,500 (USD)
Location:Michigan
or
Call (863) 439-6066
Description

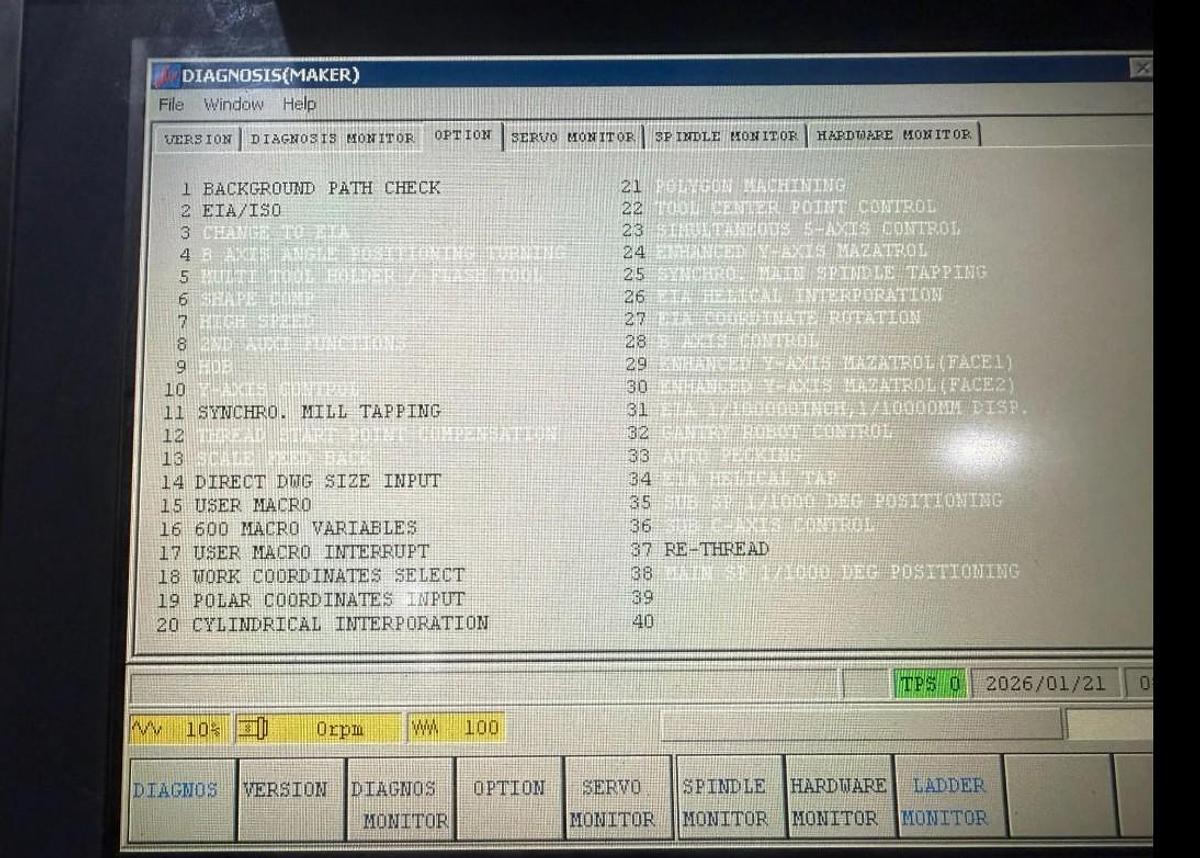

Full C Axis Spindle Rotation
Live Milling / Drilling Capability

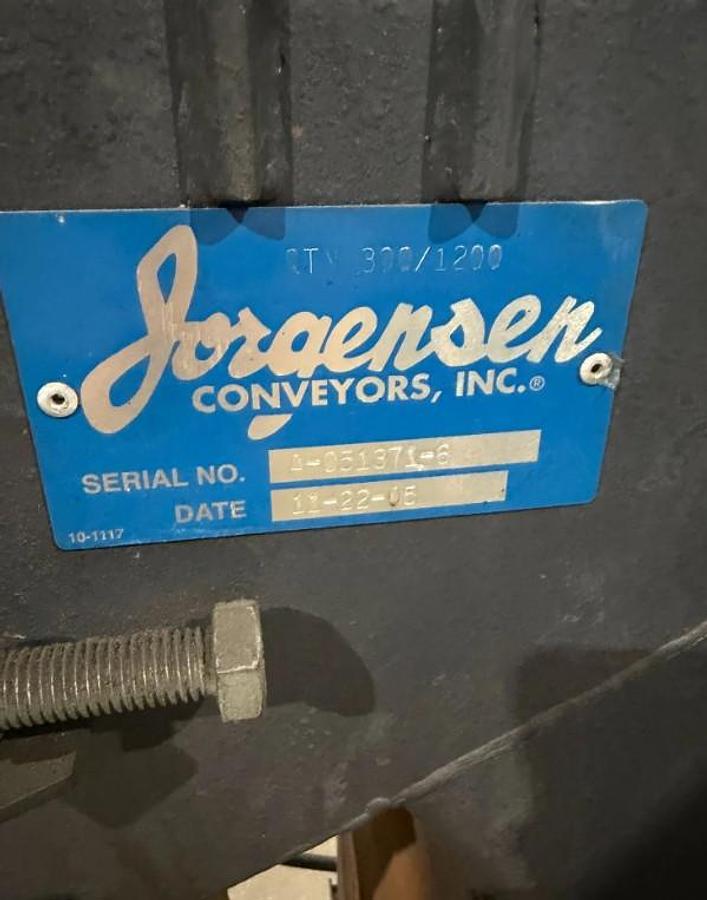

Chip Conveyor
15" 3 Jaw Hydraulic Chuck

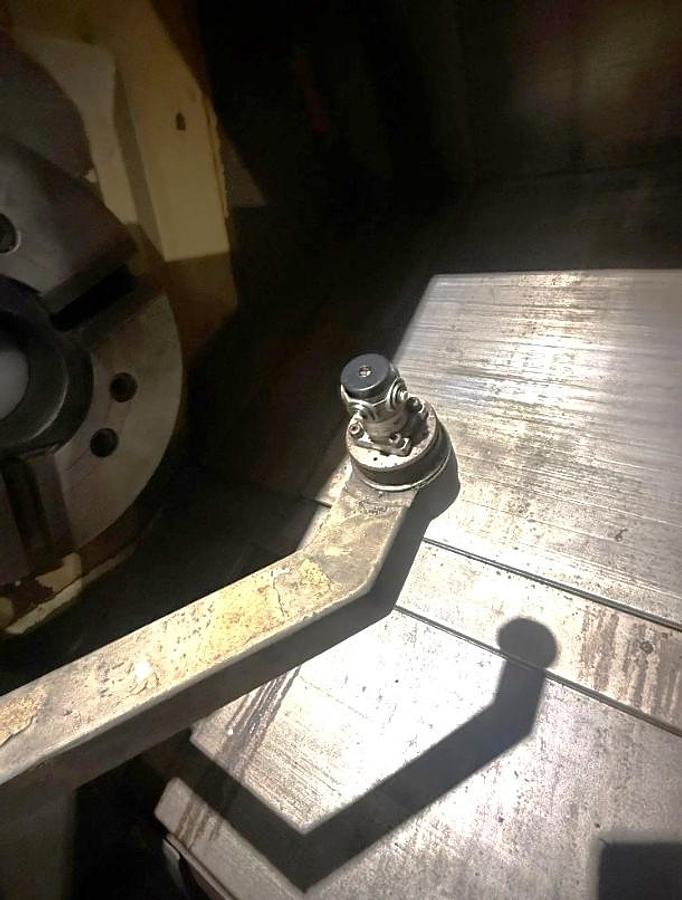

Tool Presetter

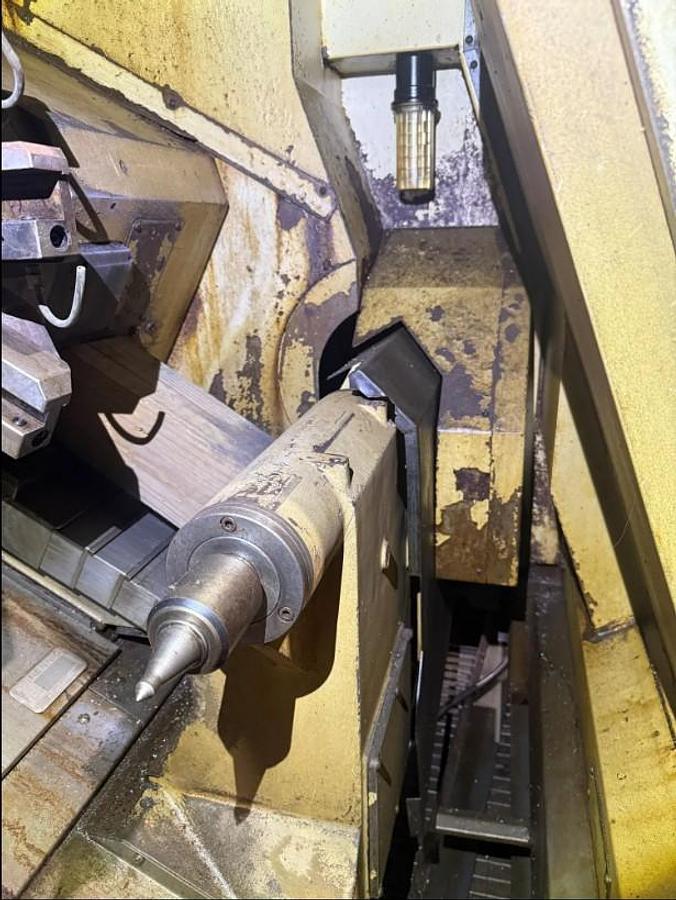

Programmable Hydraulic Tailstock
Cylindrical Interpolation
EIA/ISO Input Function
Mill Synchronous Tapping (rigid tapping)
Re-Threading
Polar Coordinate Input
Work Coordinates Select
600 Macro Variables
User Macro Interupt
User Macro
Direct DWG Size Input
Backround Tool Path Check
Coolant System with Tank & Pump
USB Port Interface
Card Interface
RS 232 Port Interface
All Available Tool Blocks & Manuals
Multi Tap Transformer
208/480V Electrics
*No Live Tool Holders Included with Machine
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 350M/1200 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 120637 |

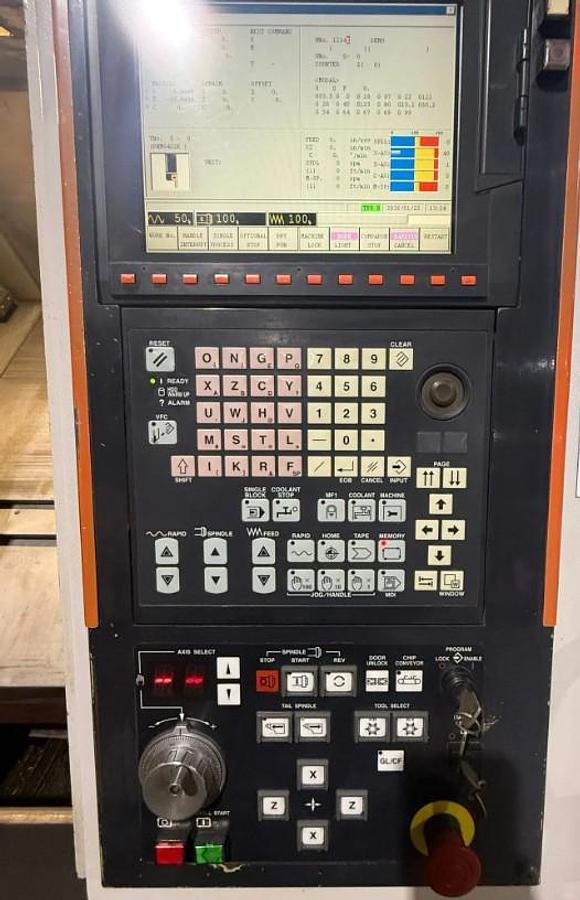

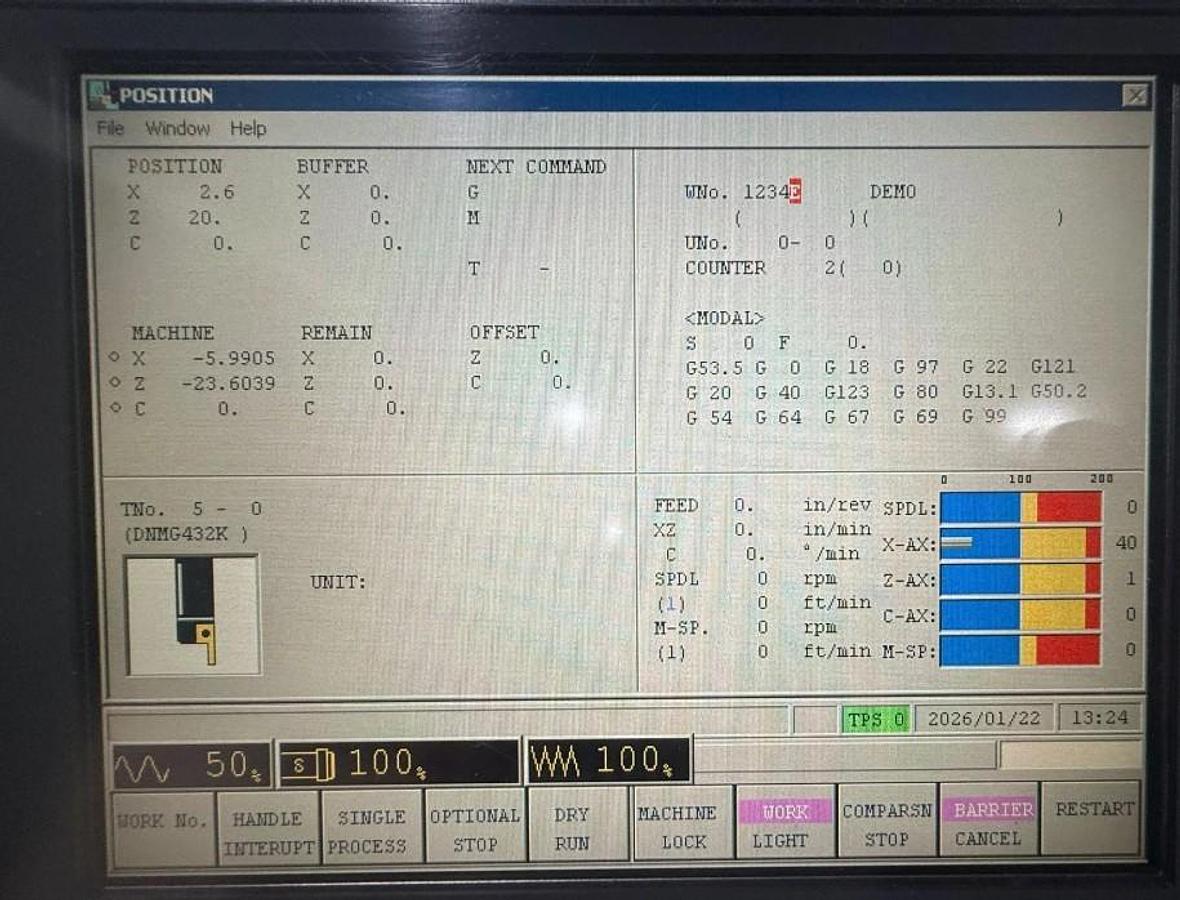

| Machine Control | Mazatrol Fusion 640T Nexus Control |
| Chuck size | 15" Hydraulic Chk |
| Maximum swing | 29.5" |
| Swing over cross slide | 16.5" |
| Maximum cutting diameter | 16.5" |
| Maximum machining length | 48" |
| X-axis travel | 10.125" |
| Z-axis travel | 48.75" |
| C Axis Spindle Rotation | .001 Degree Contouring |
| Spindle nose/spindle bore/bar capacity | A2-11"/4.4"/4.0" |
| Spindle speed | 3,300 RPM |
| Spindle motor 30 min. / cont. | 40 HP / 30 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 10 HP |

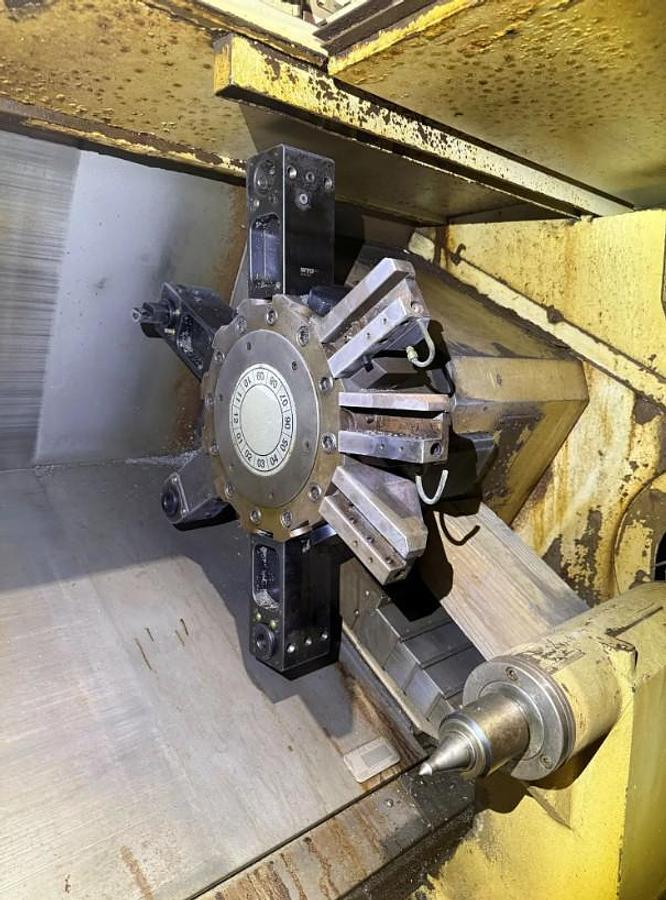

| Turret type | 12 Position Turret |
| Rapid traverse x / z | 1181 / 984 IPM |
| Tailstock center / travel | MT. No. 5 / 55.5" |
| Machine dimensions lxwxh | 152" x 81" x 79" |
| Machine weight | 17,600 lbs. |
