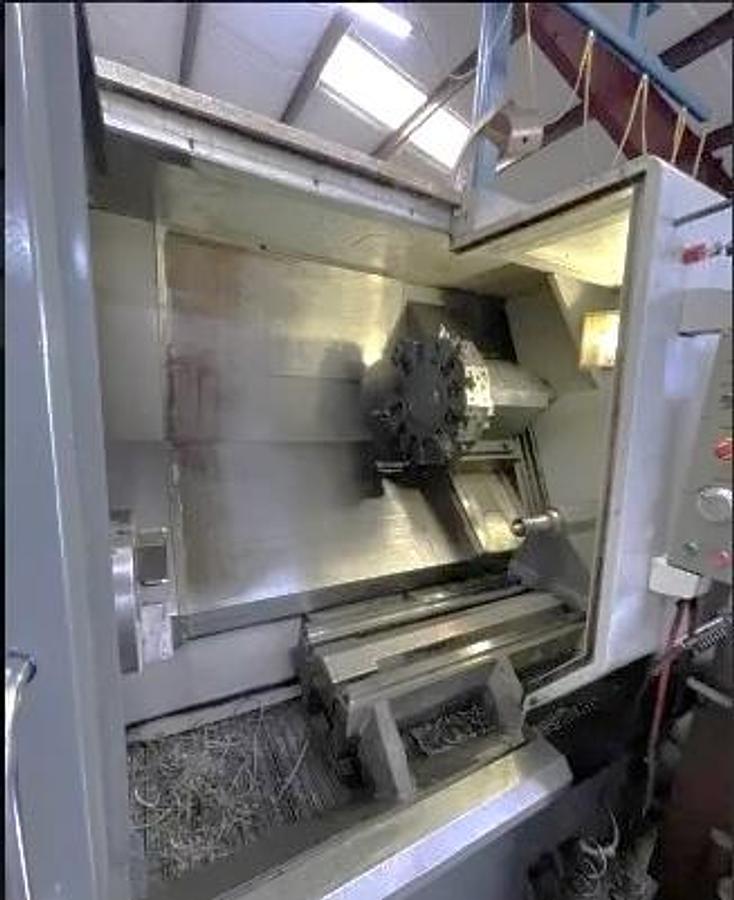

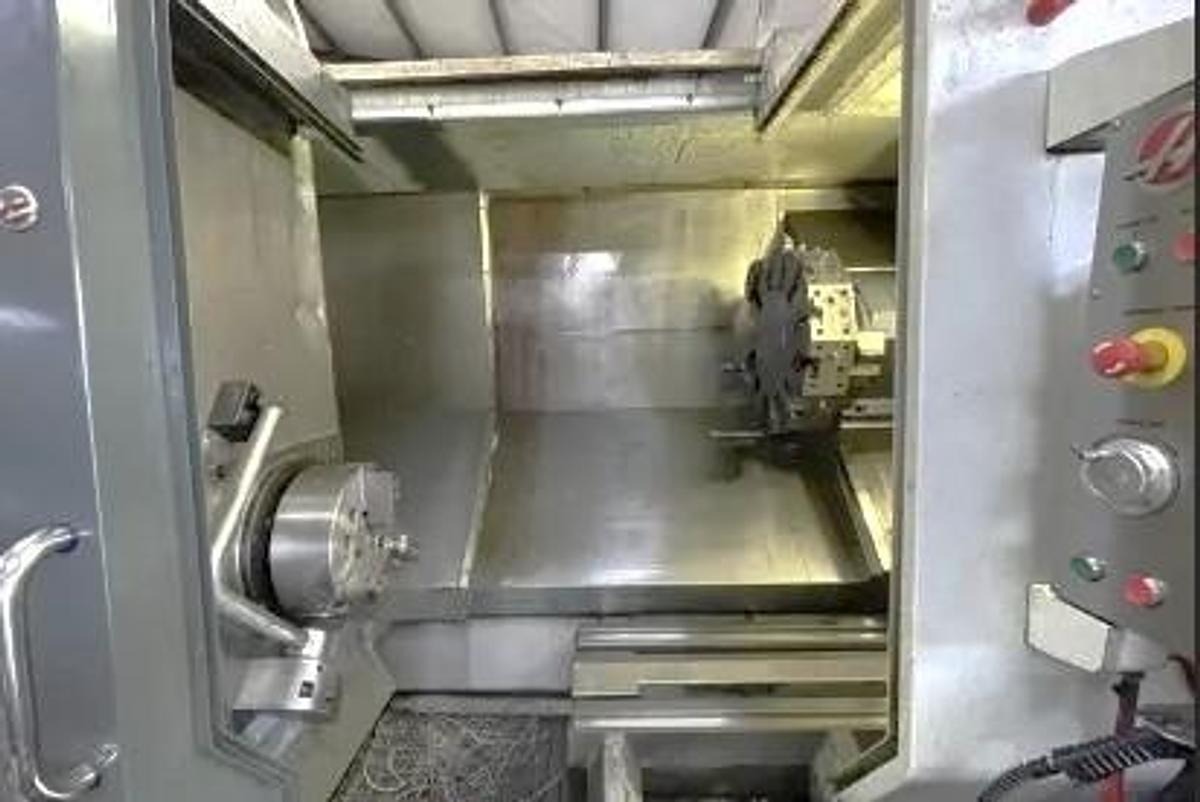

2012 Haas ST-40 with 15" Hyd Chuck, 4" Bar Capacity, Tailstock, Chip Conveyor, High Pressure Coolant, Geared Headstock
2012 Haas ST-40 with 15" Hyd Chuck, 4" Bar Capacity, Tailstock, Chip Conveyor, High Pressure Coolant, Geared Headstock
$55,000 (USD)
Location:Mississippi
or
Call (863) 439-6066
Description
15" 3 Jaw Hydraulic Chuck
4" Bar Capacity
Chip Conveyor - Belt Style
Fully Programmable Tailstock
2 Speed Geared Headstock
High Pressure Coolant - 300 PSI
Tool Presetter (needs new sensor)
High Intensity Lighting (needs repair)
USB Port Interface
RS 232 Port Interface
Rigid Tapping
15" Color LCD Monitor
Coolant System with Tank & Pump
All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Haas |
| Model | ST-40 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120634 |
| Control | Haas CNC Control |
| Chuck Size | 15" Hydraulic Chuck |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25.5" |
| Distance Between Centers | 44" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 4.62" / 4" |
| Spindle Speed | 2,400 RPM |
| Spindle Motor | 40 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Center | #5 MT |
| Machine Dimensions LxWxH | 150"x77"x74" |
| Machine Weight | 27,000 lbs |
