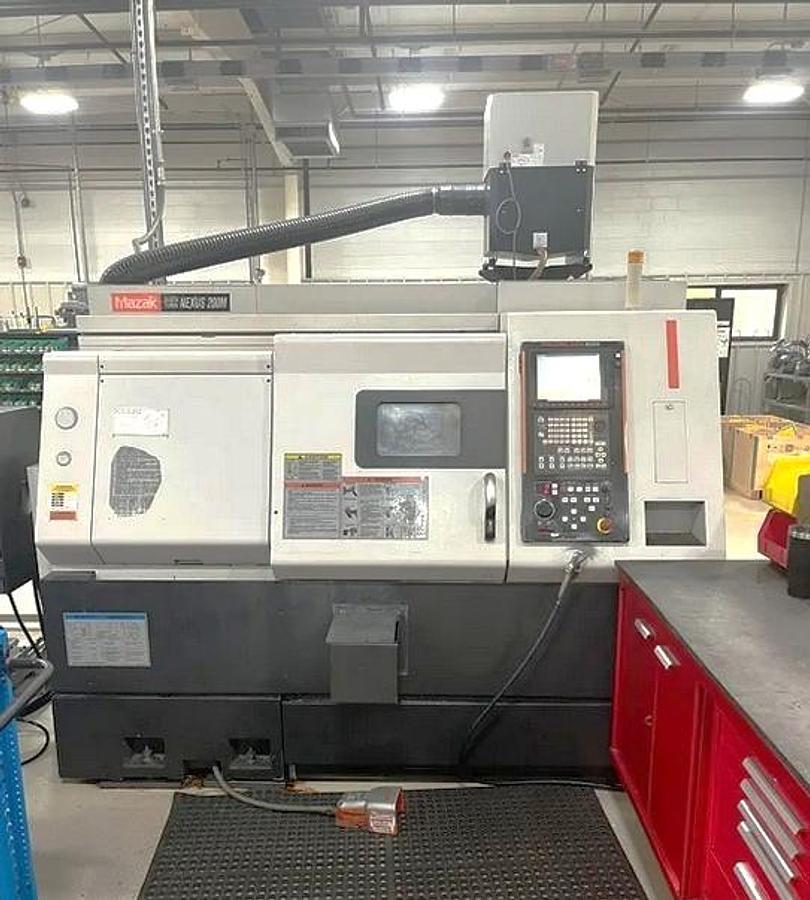

2004 Mazak Nexus QTN 200 M with Live Milling, LNS Barfeed, Parts Catcher, Rear Chip Conveyor, Spindle Liners, Live Holders
2004 Mazak Nexus QTN 200 M with Live Milling, LNS Barfeed, Parts Catcher, Rear Chip Conveyor, Spindle Liners, Live Holders
$49,500 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling / Drilling Capability

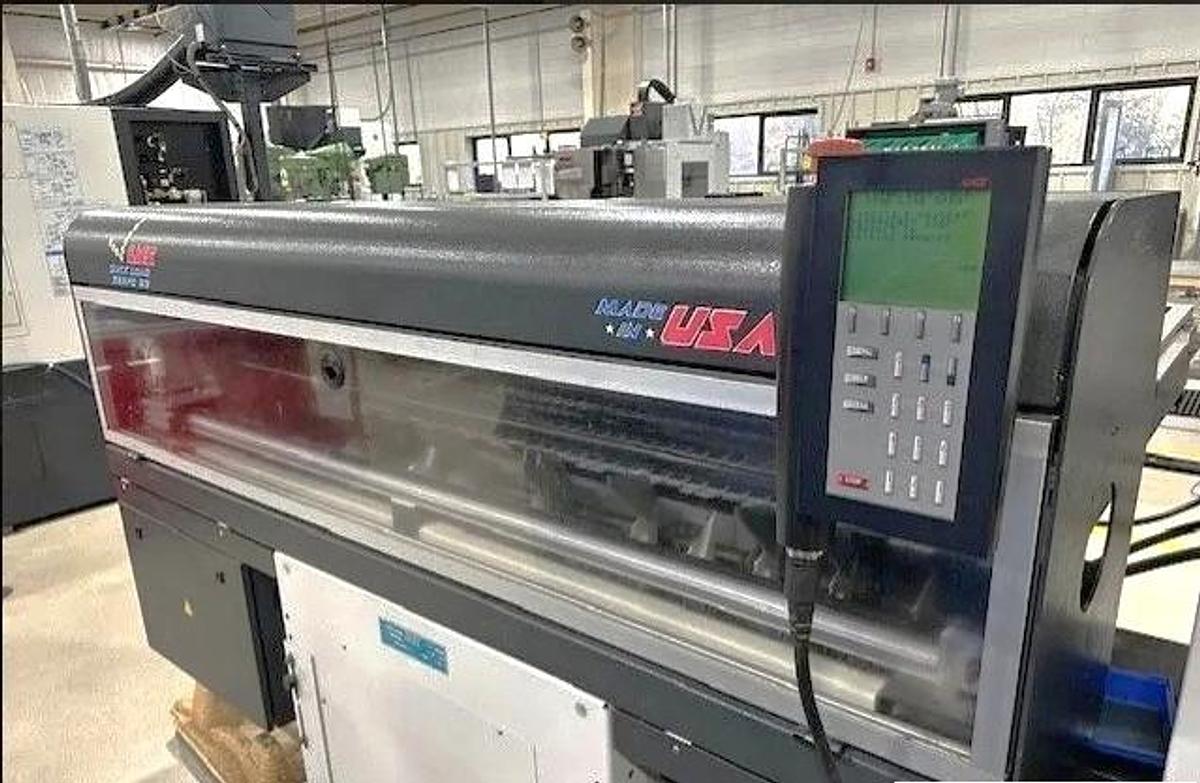

LNS Quick Load Servo S3 Barfeeder

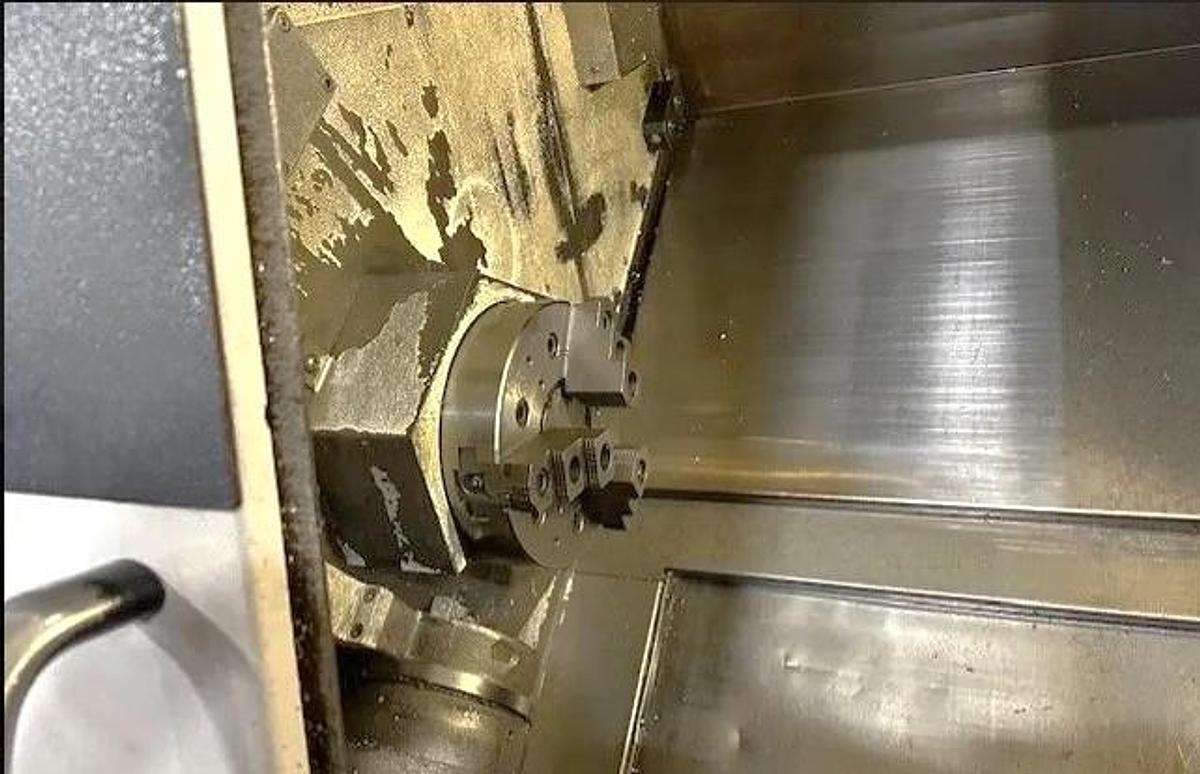

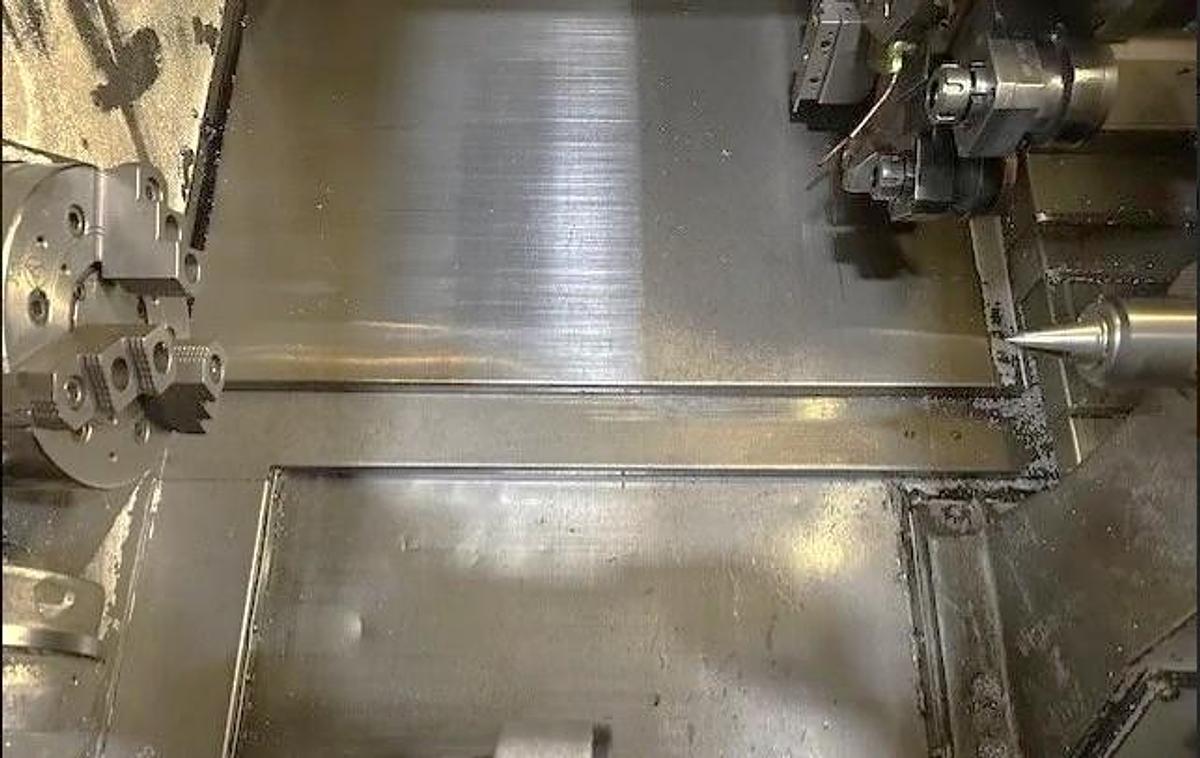

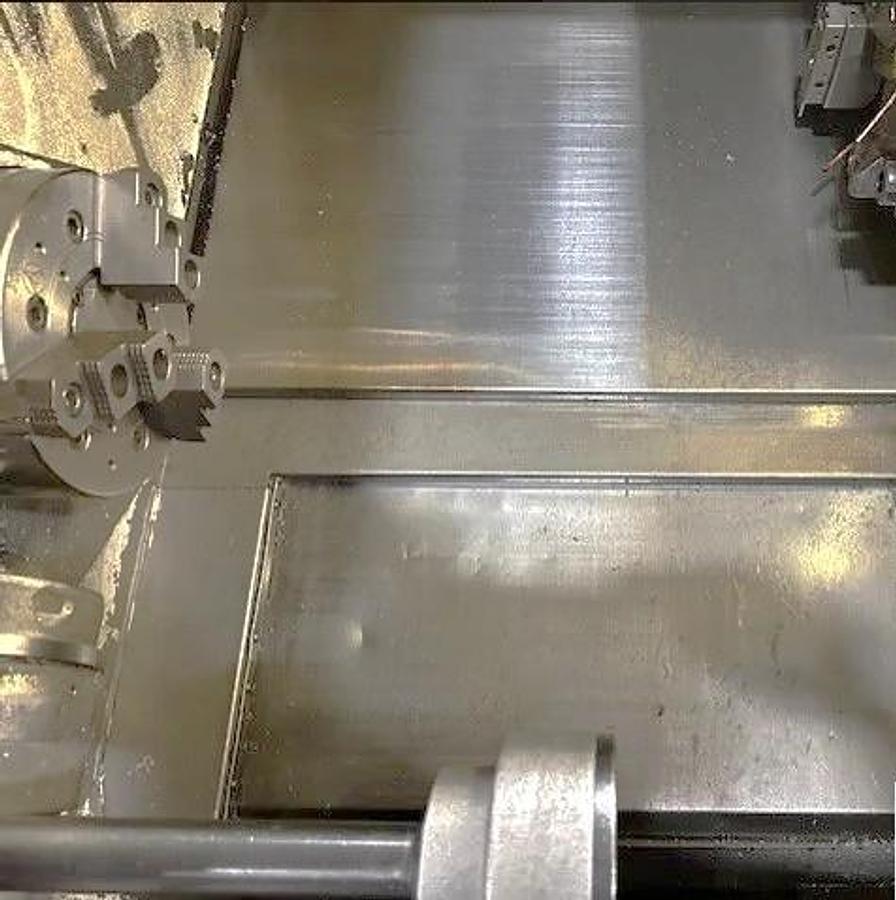

8" 3 Jaw Hydraulic Chuck
Automatic Tool Eye
Rear Exit Chip Conveyor
Programmable Tailstock

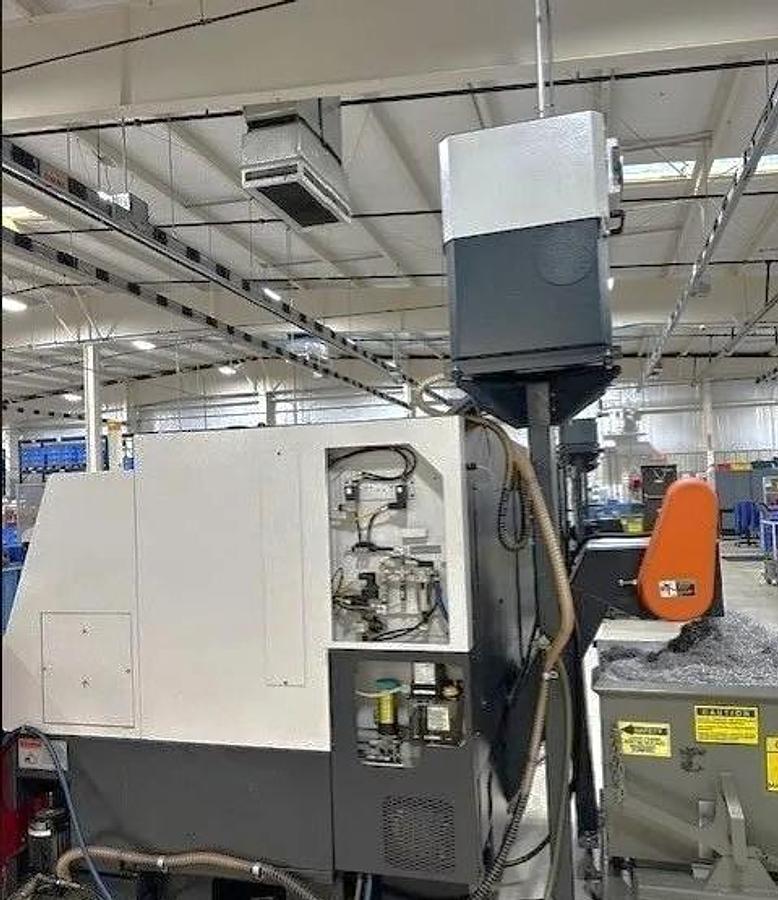

Mist Collector
EIA/ISO Input Function
Mill Spindle Synchronous Tapping
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Multi Tap Transformer
All Available Manuals
(5) Static Tool Holders
(7) Live Tool Holders

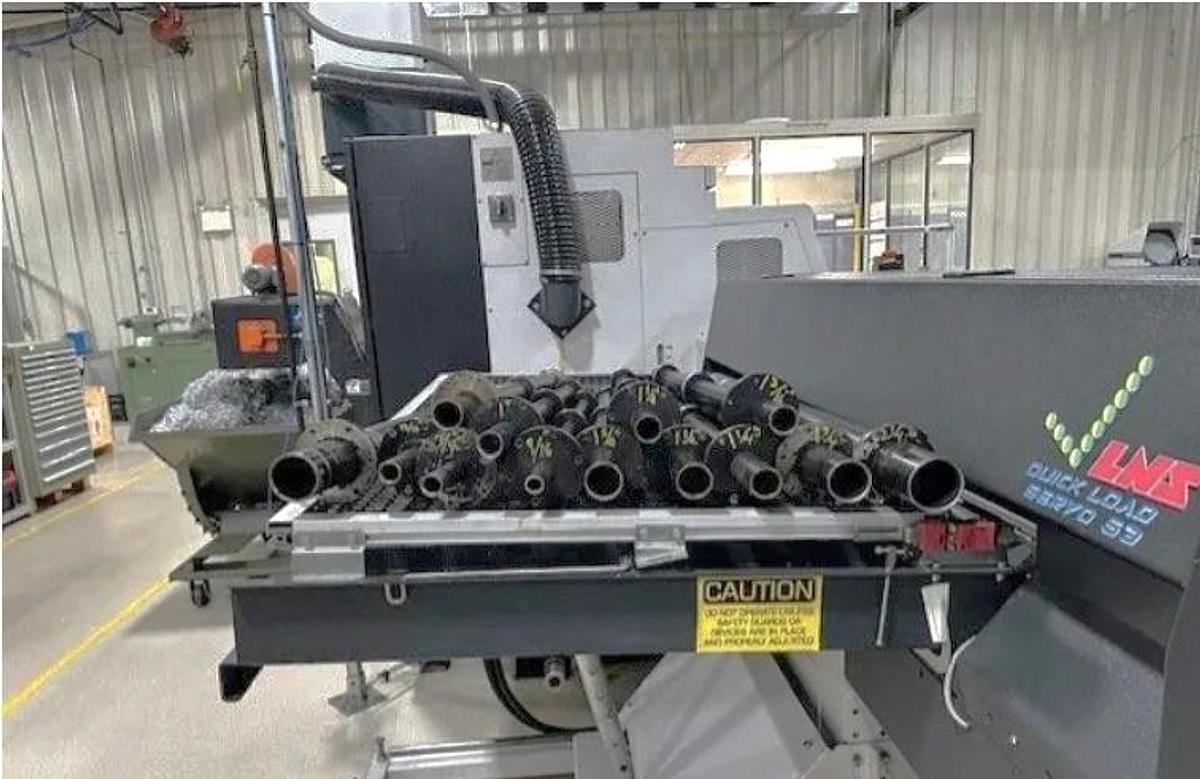

(13) Spindle Liners

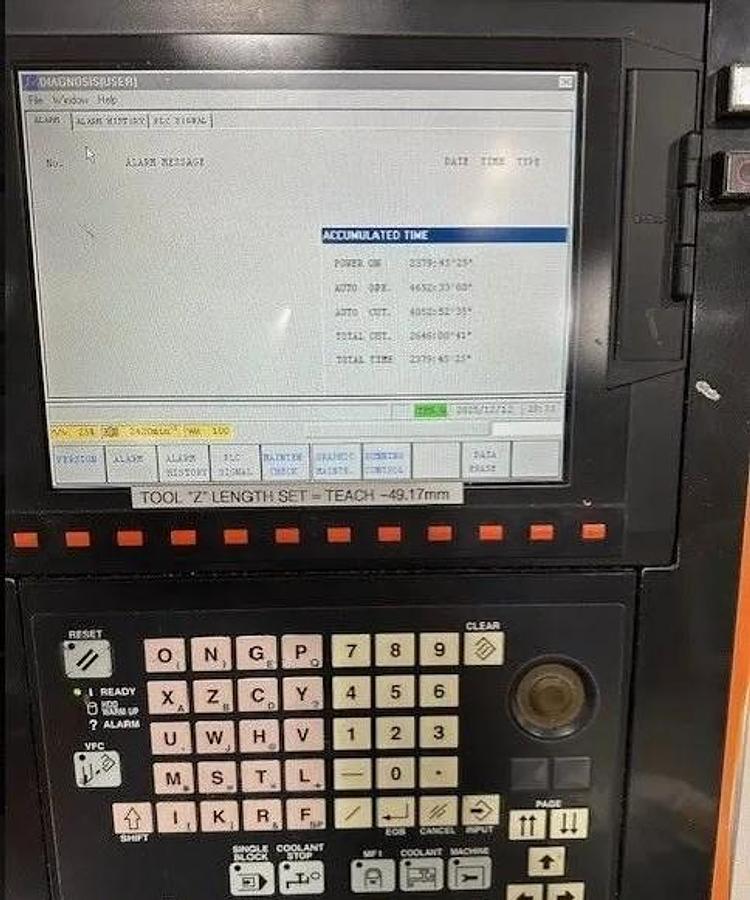

**ONLY 2,646 Total Cutting Hours**
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 200 M |
| Year | 2004 |
| Condition | Used |
| Stock Number | 120627 |

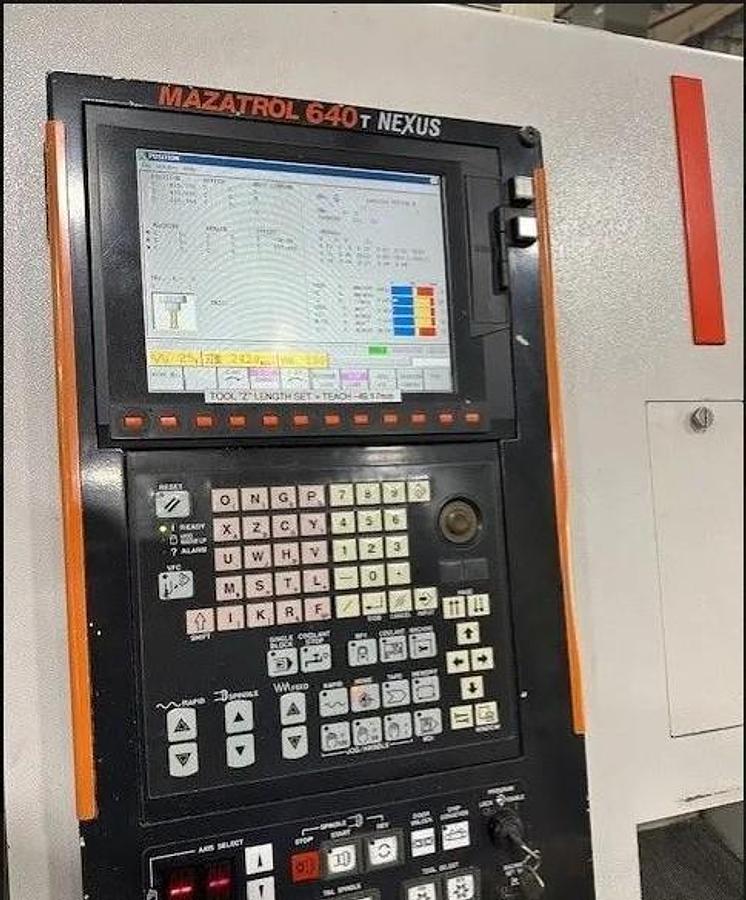

| Control | Mazatrol Fusion 640T Nexus Control |
| Chuck Sizes | 8" 3 Jaw Hydraulic Chuck |
| Maximum Swing/Over Carriage | 26.5" / 14" |
| Maximum Cutting Diameter | 14.75" |
| Maximum Cutting Length | 21.28" |
| Distance Between Centers | 27.231" |
| X-Axis Travel | 9.05" |
| Z-Axis Travel | 22.63" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 3.0" / 2.56" |
| Spindle Speed | 35 - 5,000 RPM |
| Spindle Motor | 35 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 7.5 HP |

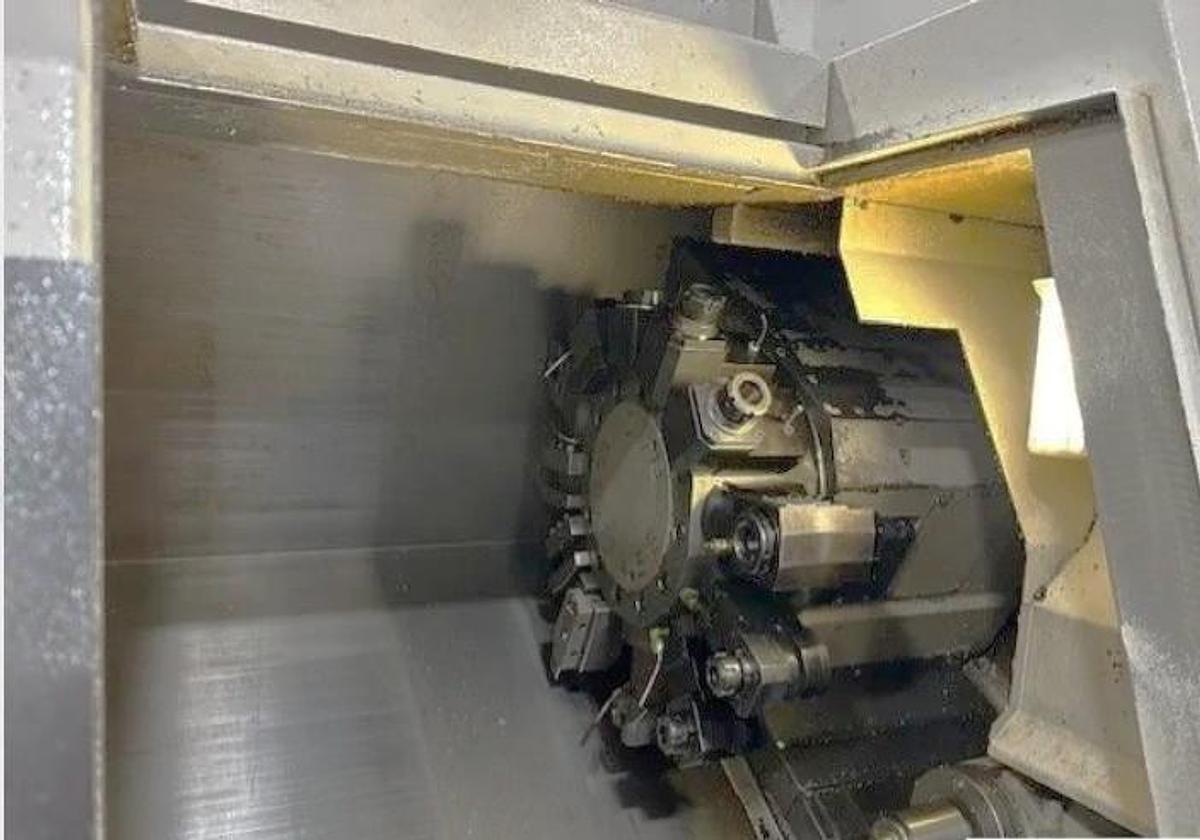

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/Z | 1181 IPM / 1299 IPM |
| Tailstock Body Travel / Tailstock Taper | 21.75" / MT #5 |
| Machine Dimensions | 105" x 74" x 73" |
| Machine Weight | 11,243 lbs. |
