2006 Mazak Nexus QTN 100-II M with Full C Axis Milling, Chip Conveyor, LNS Short Barfeed, Parts Catcher, Tailstock, Tool Eye

Full C Axis Spindle Rotation

Live Milling / Drilling Capability

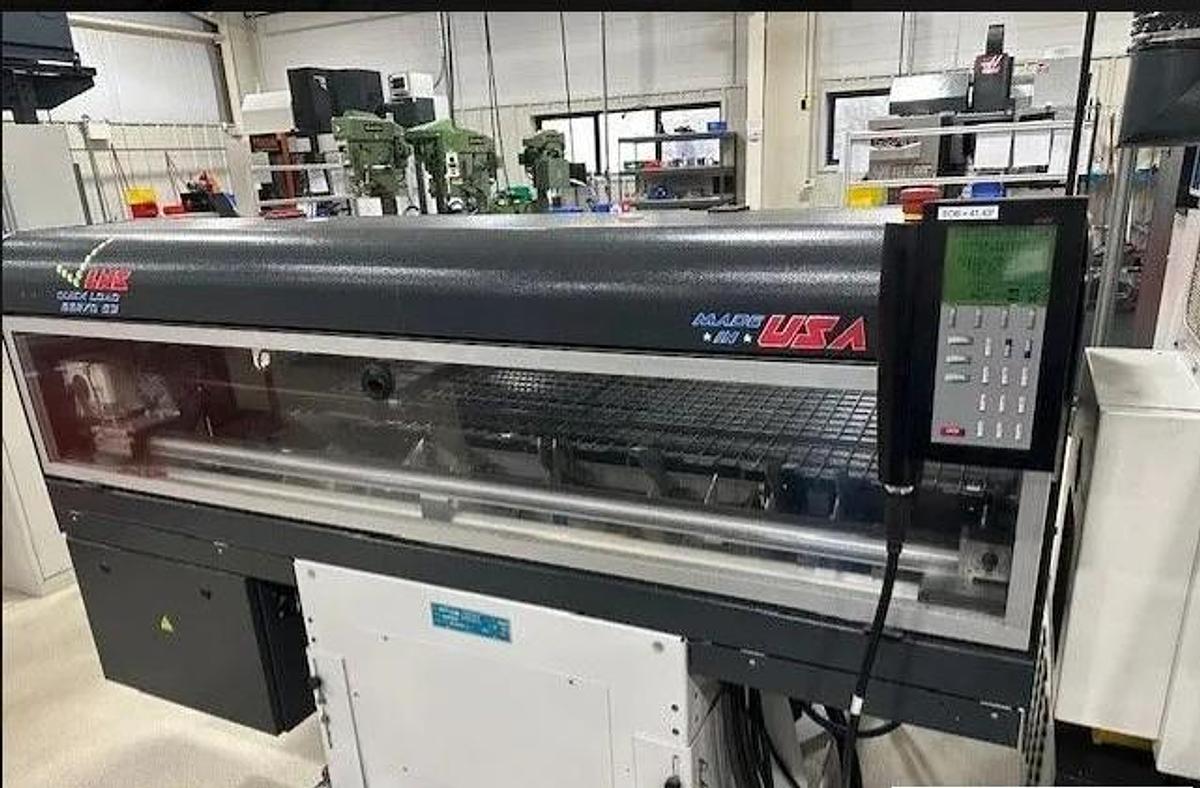

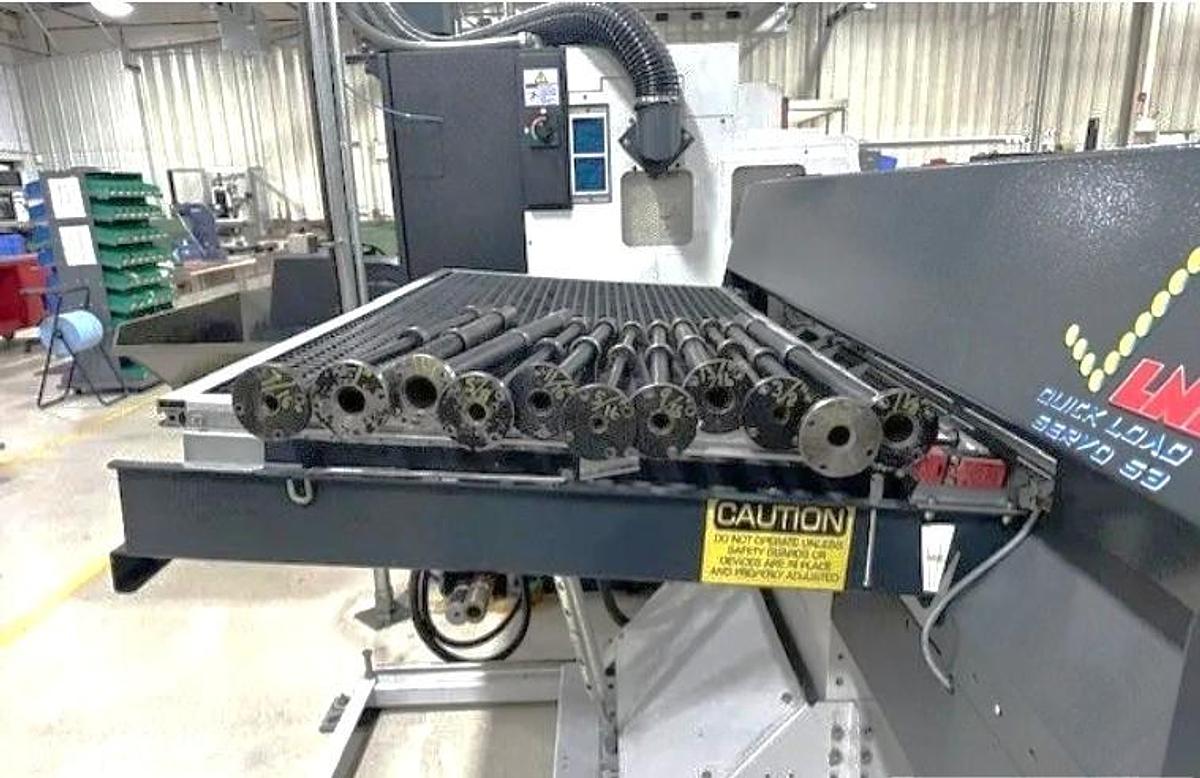

LNS Quick Load Servo S3 Short Bar Feeder

Automatic Tool Eye

Parts Catcher

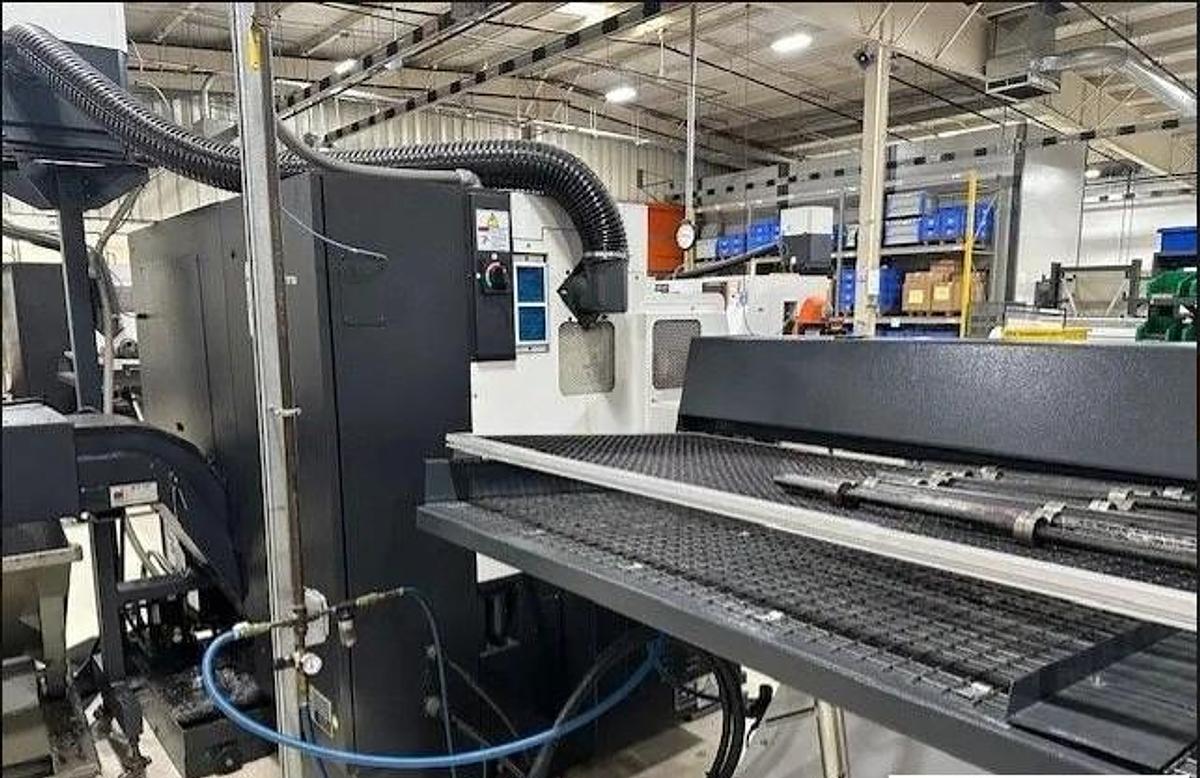

Rear Exit Chip Conveyor

Tailstock

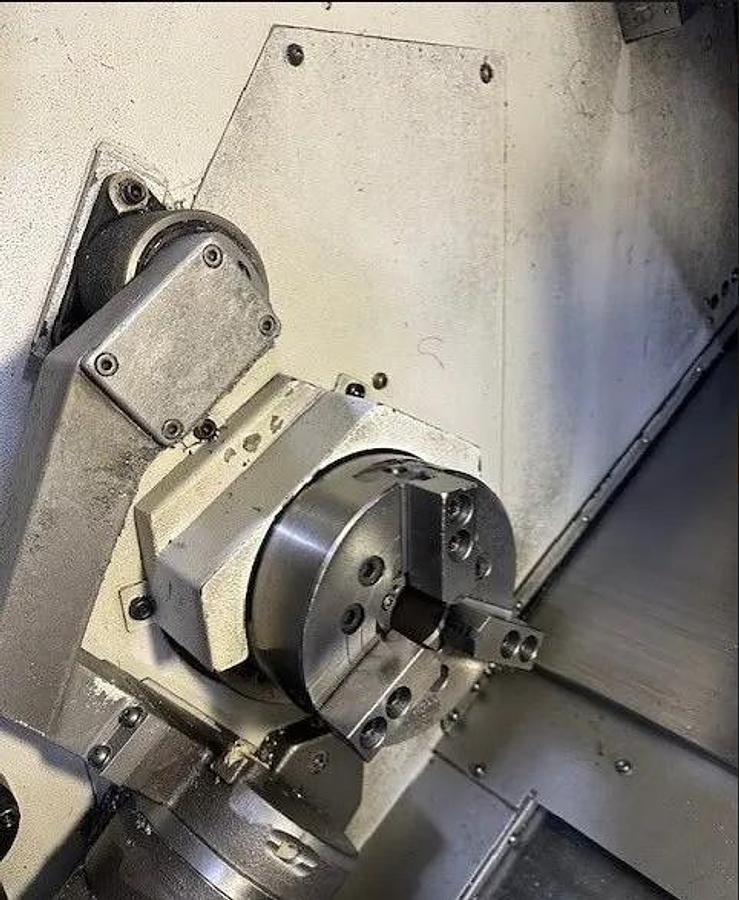

6" 3 Jaw Hydraulic Chuck

Mist Collector

Background Tool Path Check

Milling Spindle Synchronous Tapping

Automatic Chuck Jaws Open/Close

Chuck Air Blast

Complete Coolant System w/ Tank & Pump

Memory Card Interface

Network Interface

3.5" Floppy Disk Drive Interface

RS 232 Port Interface

(14) Static Holders

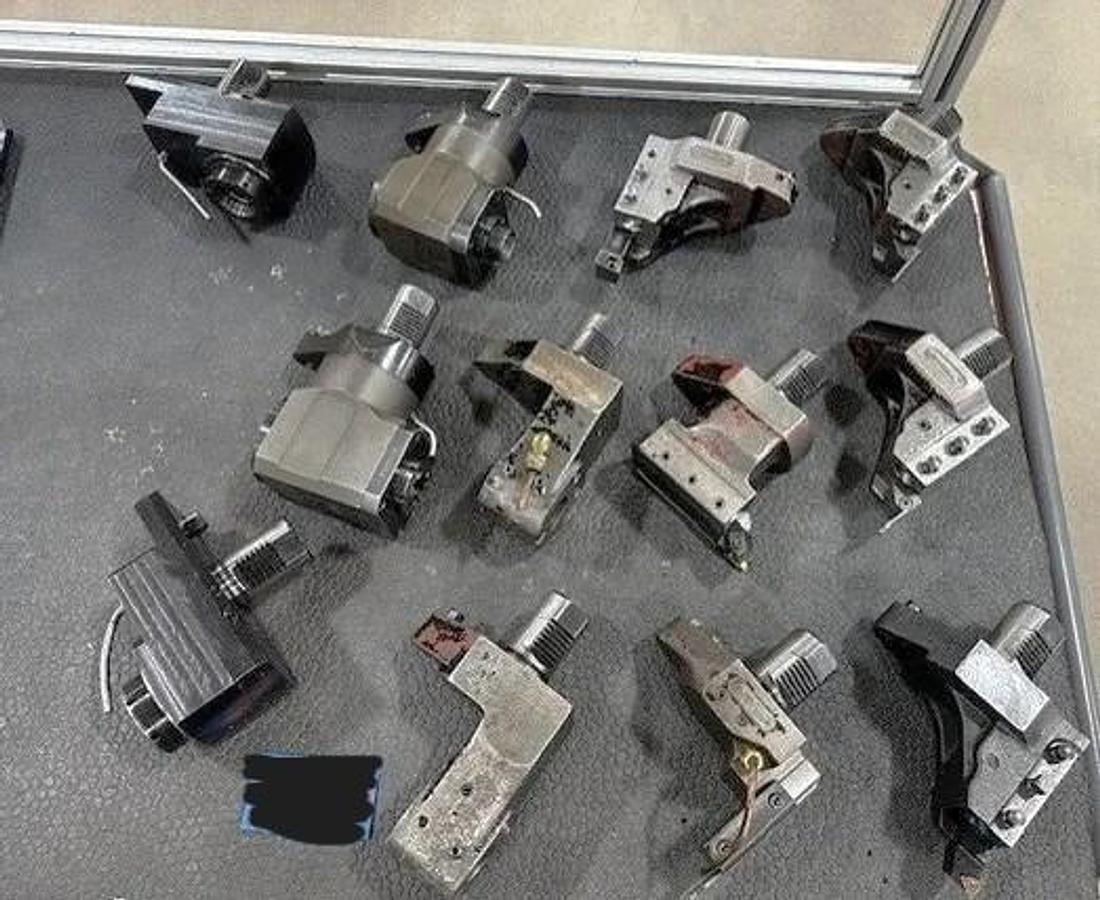

(4) Live Tool Holders

(11) Spindle Lineres

All Available Manuals

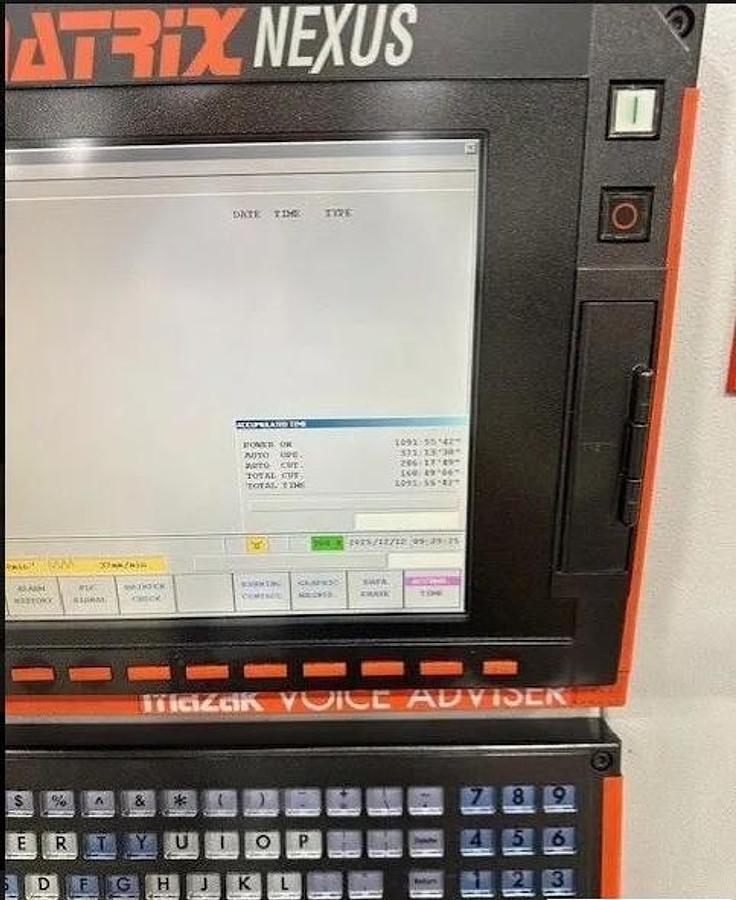

**Very Low Hours**

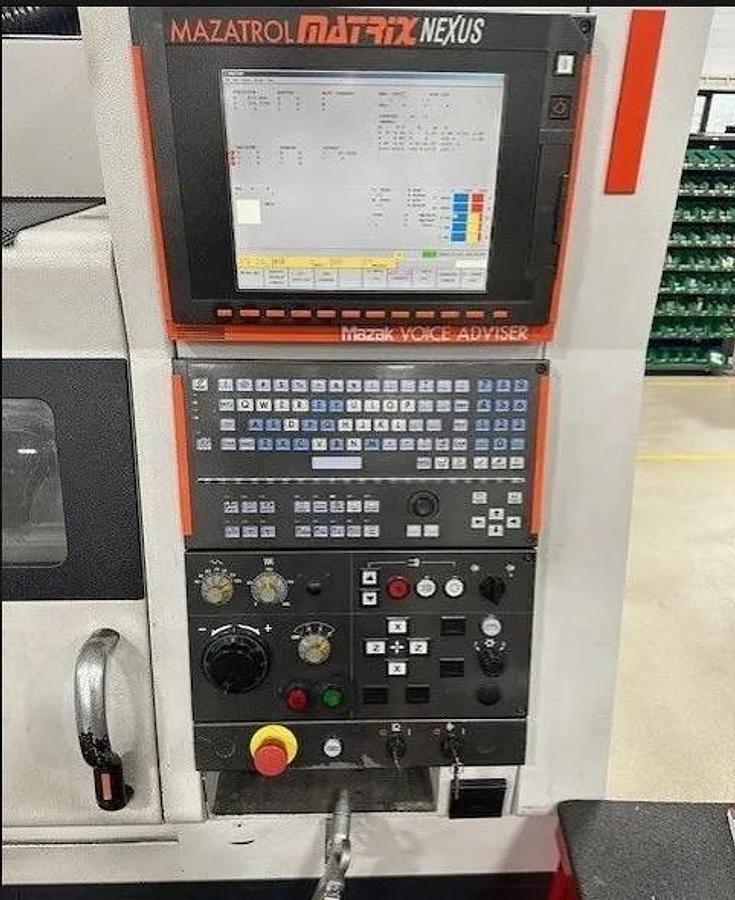

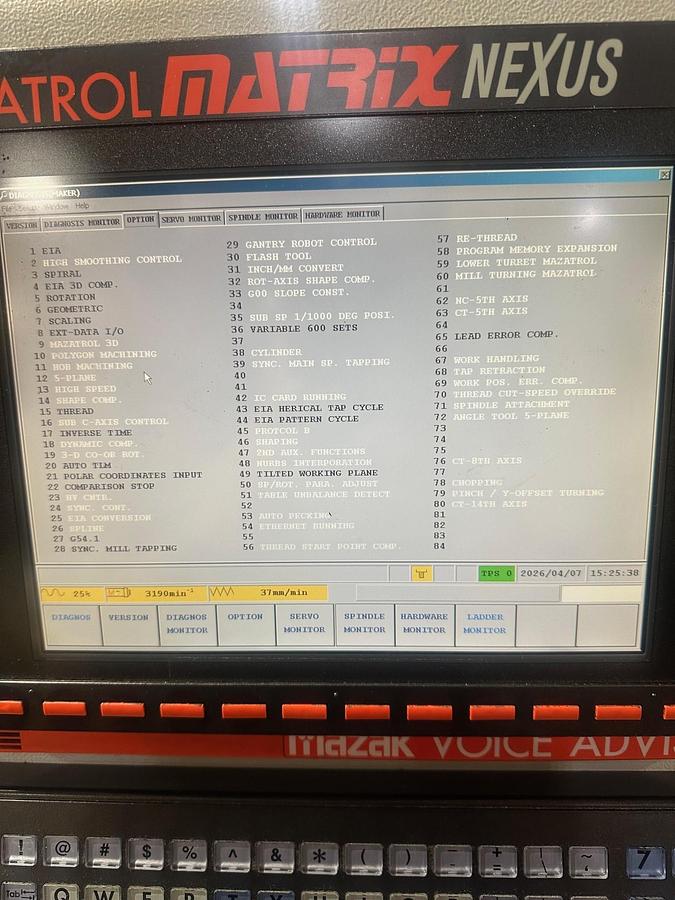

The 2006 Mazak Nexus QTN 100-II M is a versatile CNC lathe equipped with features suited for precision machining. It comes with a Mazatrol Matrix Nexus Control system, providing intuitive operation and efficient programming. The machine boasts a 6" 3-jaw hydraulic chuck and a maximum swing of 21.6", allowing for a cutting diameter of up to 11" and a length of 12.1". With a maximum bar capacity of 1.625", it effectively handles a range of materials. This model is fitted with a robust 15 HP spindle motor capable of reaching speeds of 6,000 RPM, complemented by live tooling that delivers up to 4,500 RPM powered by a 5 HP motor. The 12-station turret provides flexibility in tool handling, optimizing the machining process. Axis travels include 15.12" on the X-axis and 13" on the Z-axis, with rapid traverse rates of 1181 IPM and 1299 IPM respectively, ensuring quick and precise positioning. Additional features like the full C-axis milling capability, chip conveyor, LNS short barfeed, parts catcher, tailstock, and tool eye enhance the machine's efficiency and ease of operation. With dimensions of 78" x 65" x 70" and a weight of 8,597 lbs., this lathe fits well in a variety of production environments, ensuring both performance and reliable output.
