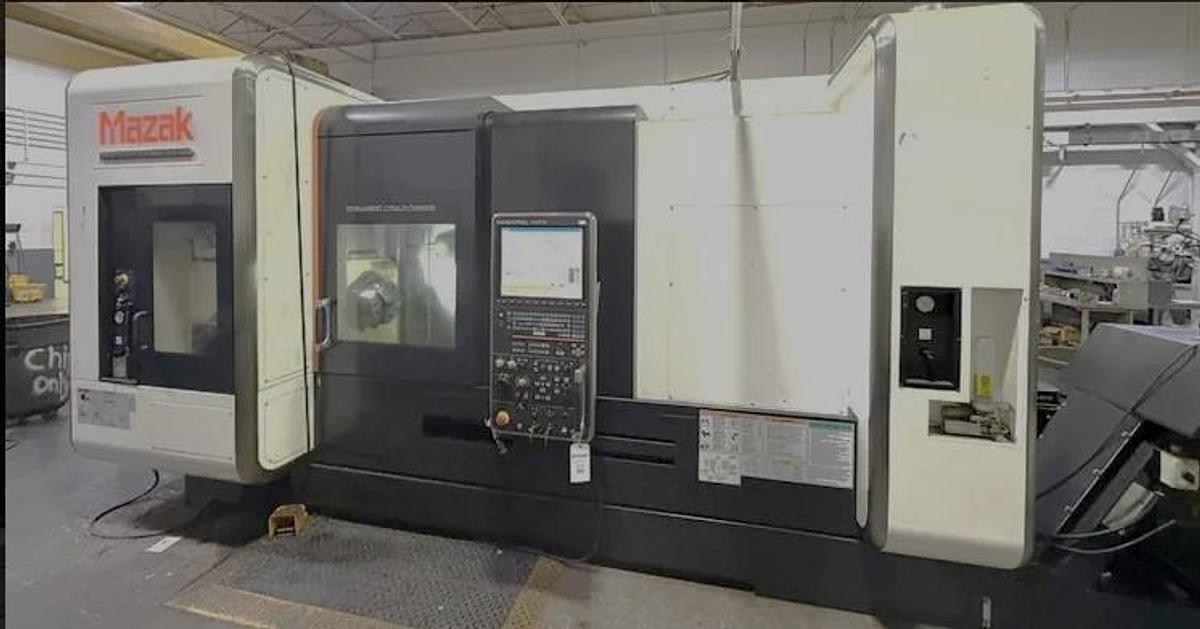

2011 Mazak Integrex i-400 Mill Turn Center with Live Tooling, Y Axis, Tailstock, 60" Centers, 4" Bar Capacity, 36 Pos. ATC
2011 Mazak Integrex i-400 Mill Turn Center with Live Tooling, Y Axis, Tailstock, 60" Centers, 4" Bar Capacity, 36 Pos. ATC
$279,500 (USD)
Location:Michigan
Description
Full "C" Axis Spindle Rotation
Milling/Drilling Capability
Y Axis Capability

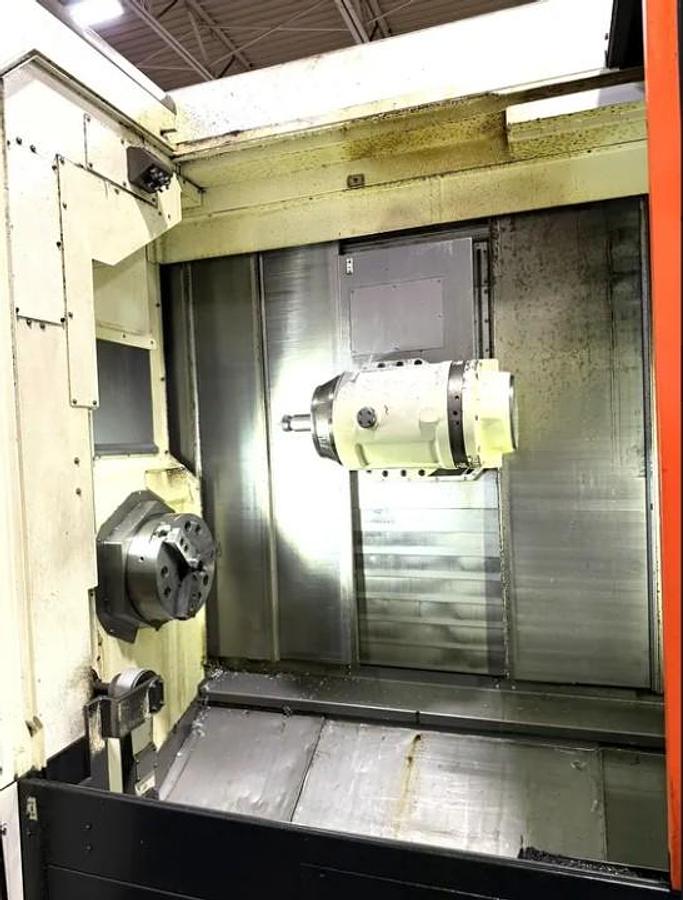

B Axis Pendulum Head

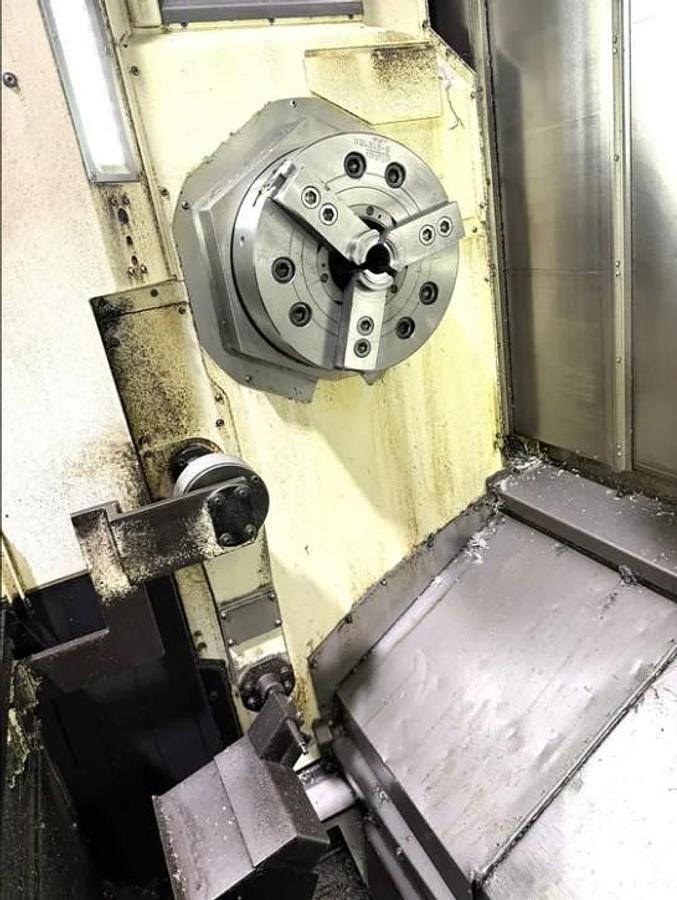

12" Kitagawa Hydraulic Chuck Model BB21215X
36 Position HSK63 Type Tool Magazine

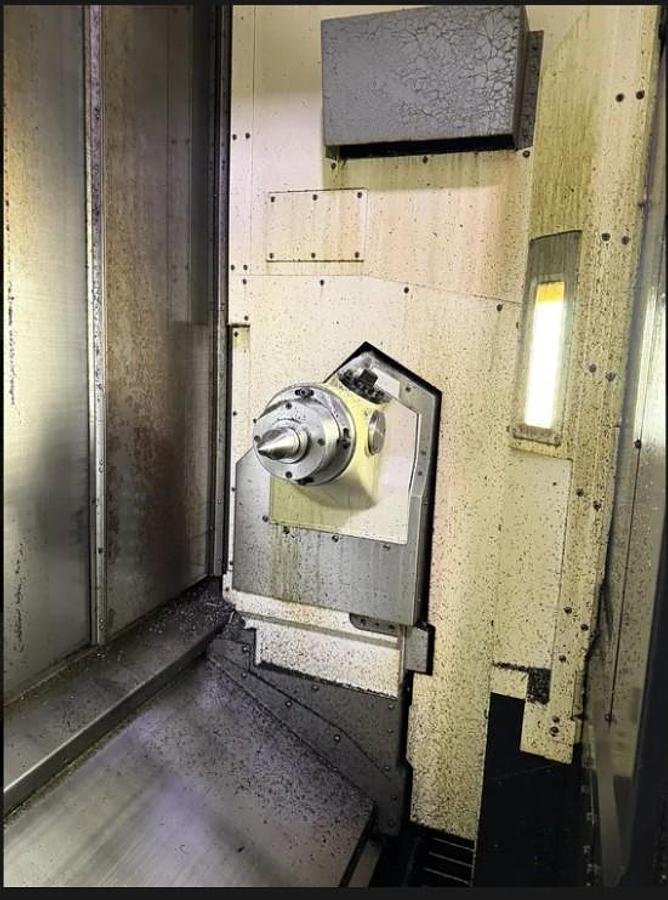

Programmable Tailstock
Chip Conveyor
Parts Catcher
Automatic Tool Length Measurement
Milling Synchronous Tapping

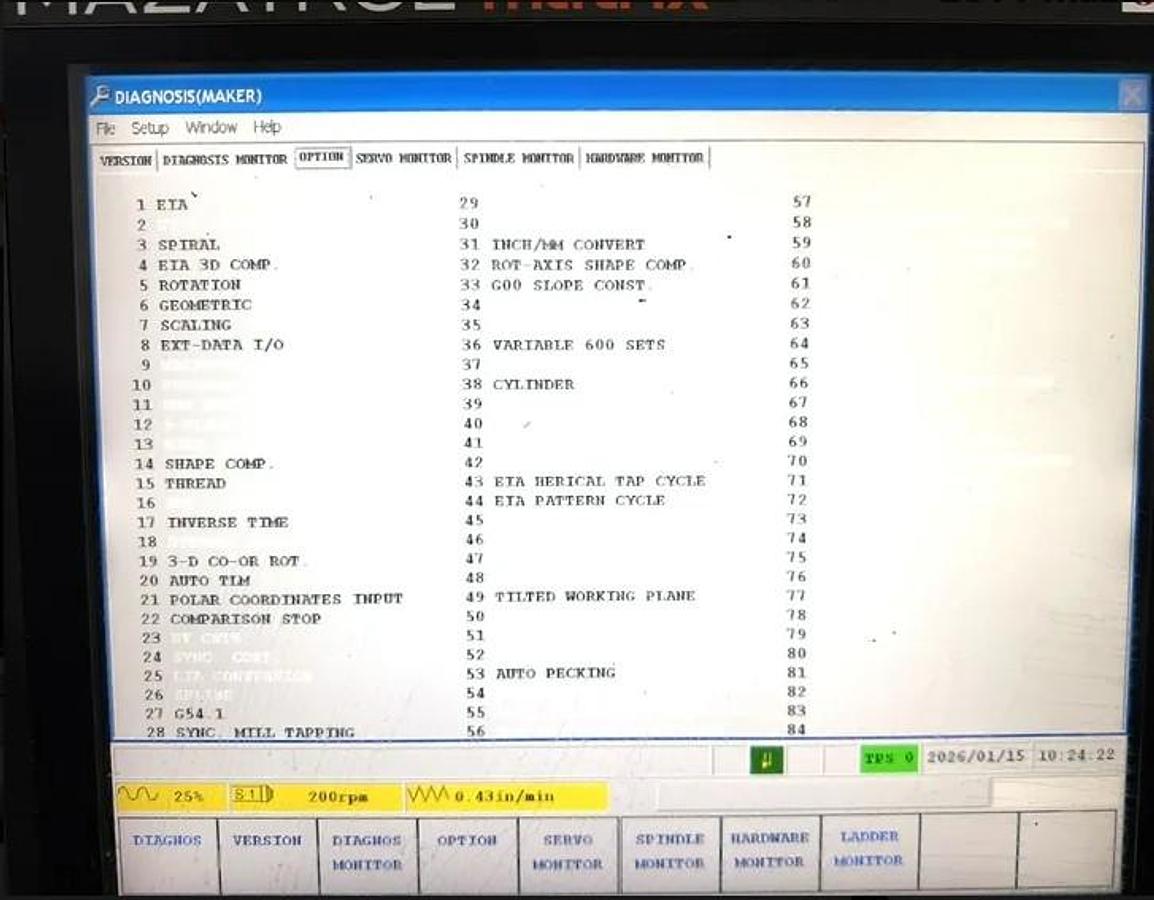

EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tapping Cycle
EIA Pattern Cycle
Threading
Auto Pecking
Tilted Work Plane
Cylindrical Interpolation
Variable 600 Sets
G00 Slope Constant
Rotation Axis Shape Compensation
Inch/Metric Conversion
G54.1
Comparison Stop
Polar Coordinates Input
3D Coordinate Rotation
Inverse Time
Shape Compensation
External Data Input/Output
Rotation & Scaling
Geometric
Spiral Interpolation
IC Memory Card Interface
Cardbus Interface - 2 Slots
LAN Port Interface
USB Interface
Multi Tap Transformer
**Power On Hours 11,107**
**Auto Operation Hours 4,772**
**Total Cutting Hours 3,184**
Specifications
| Manufacturer | Mazak |
| Model | Integrex i-400 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 120623 |
| Chuck Size | 12" 3 Jaw Hydraulic |
| Maximum swing | 25.91" |
| Maximum turning diameter | 25.91" |
| Maximum cutting length | 59.8" |
| Travel x axis | 24.21" |
| Travel y axis | 9.84" |
| Travel z axis | 62.41" |
| B axis movement | 225 Degrees - .0001 Degree Increment |
| C-Axis Rotation | .001 Full C Axis |
| Spindle nose/spindle bore/bar cap. | A2-8" / 4.41" / 4.02" |
| Spindle speeds | 35 - 3,300 RPM |
| Spindle motor | 40 HP |
| Rotary tool spindle speed | 12,000 RPM |
| Rotary tool motor | 30 HP |
| Number of tools in atc | 36 Tools HSK-63 |
| Tailstock Body Travel / Taper | 61.50" / MT #5 |
| Machine dimensions | 204"x110"x107" |
| Machine weight | 36,562 lbs. |
