2014 Mazak Vortex e-1060V/8 Heavy Duty 5 Axis Milling Machine with Built in Rotary Table, Tilting B Axis Head, HPC, 120 Pos. ATC

Simultaneous 5 Axis Machining

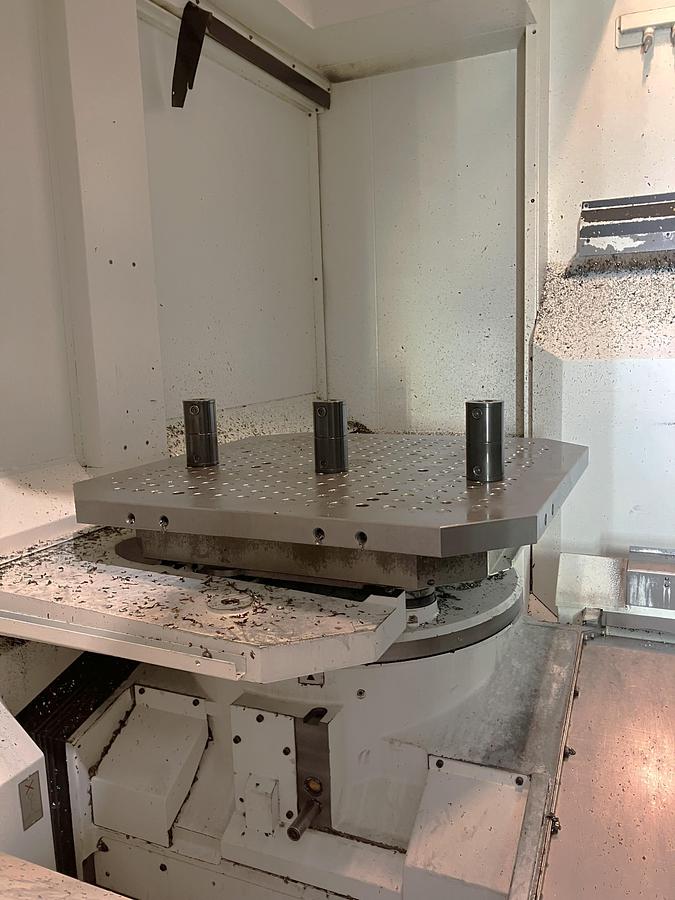

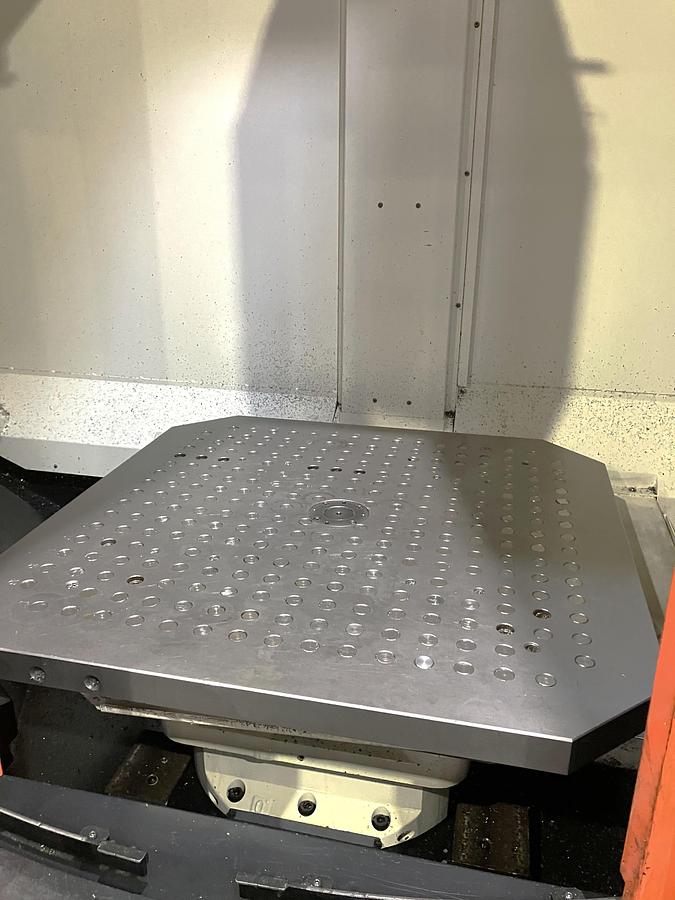

Built in 4th Axis Rotary Table with .0001 Degree Increment

Contouring B Axis Head with -30 Degree to 120 Degree Movement

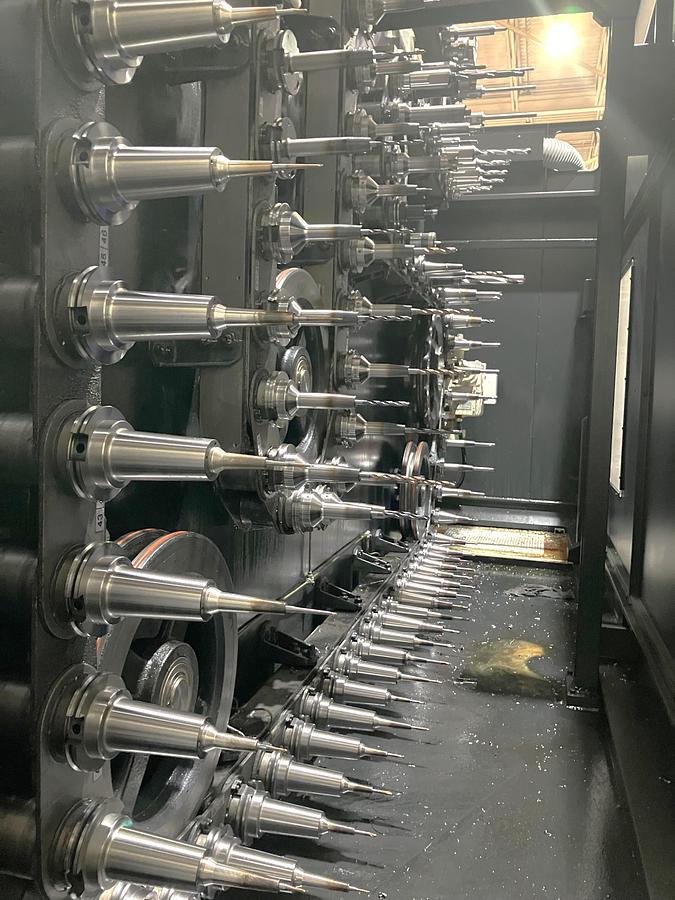

120 Station Tool Changer

(2) 39.4" Pallet Changer System

10,000 RPM Milling Spindle

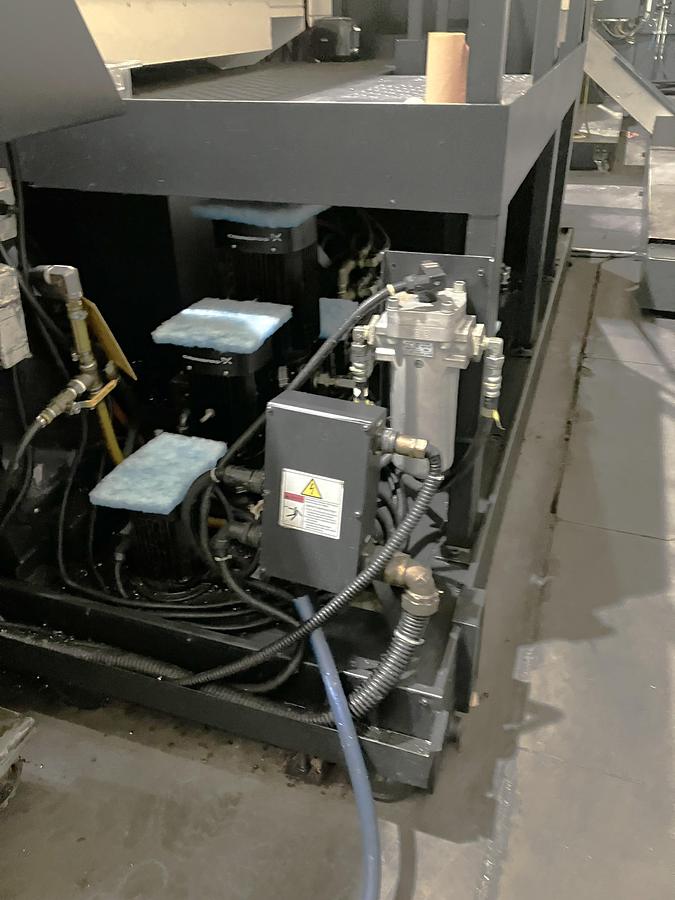

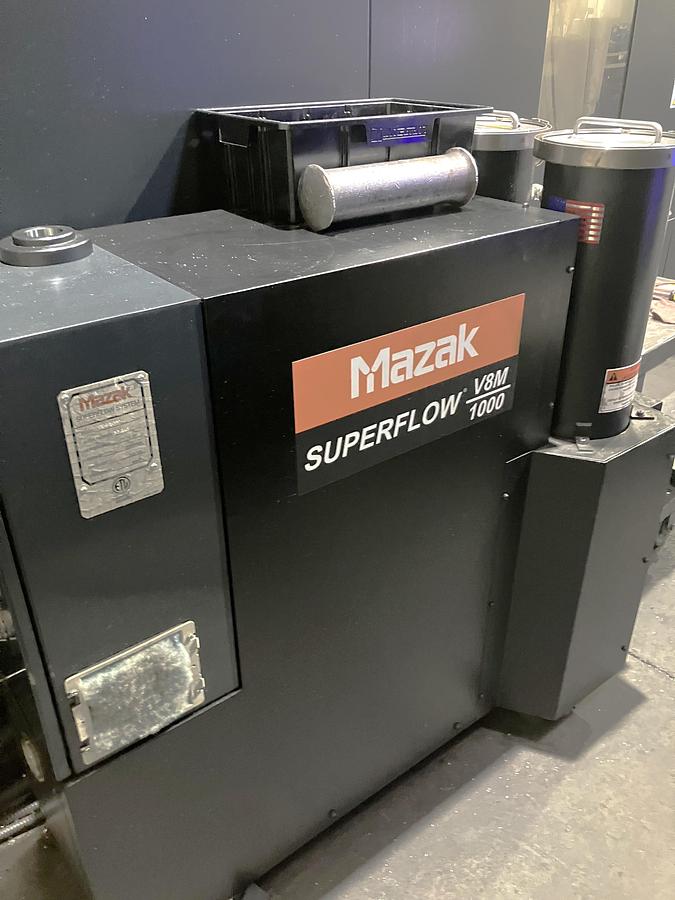

1,000 PSI High Pressure Mazak Superflow V8M Coolant

Renishaw OMP 60 Probe

Renishaw NC4 Laser Tool Measurement Probing

Renishaw Advanced Probe Macros / Inspection Plus

Chip Conveyor

Coolant Washdown at Operator and Pallet Load Stations

Remote Jog Handle

High Smoothing Control

Power Indexing at Work Load Station

Auto Power On/Off/Warm Up

8MB Program Storage

Prep for LAN and Modem

Backround Toolpath Check

Tool Breakage Detection

Adaptive Feedrate Control

Tool Life Monitoring

3D Coordinate Rotation G68.2

Tool Tip Point Control 5 - Axis

Simultaneous 5 Axis Tool Radius Compensation

G00 Slope Constant

2D Software Shape Continuous

Inch/Metric Conversion

Cylindrical G07

Polar Coordinate G12

Mazacc-3D High Speed Software Package

Mill Spindle Synchronous Tapping

Spindle Air Blow

EIA Simultaneous 5 Axis

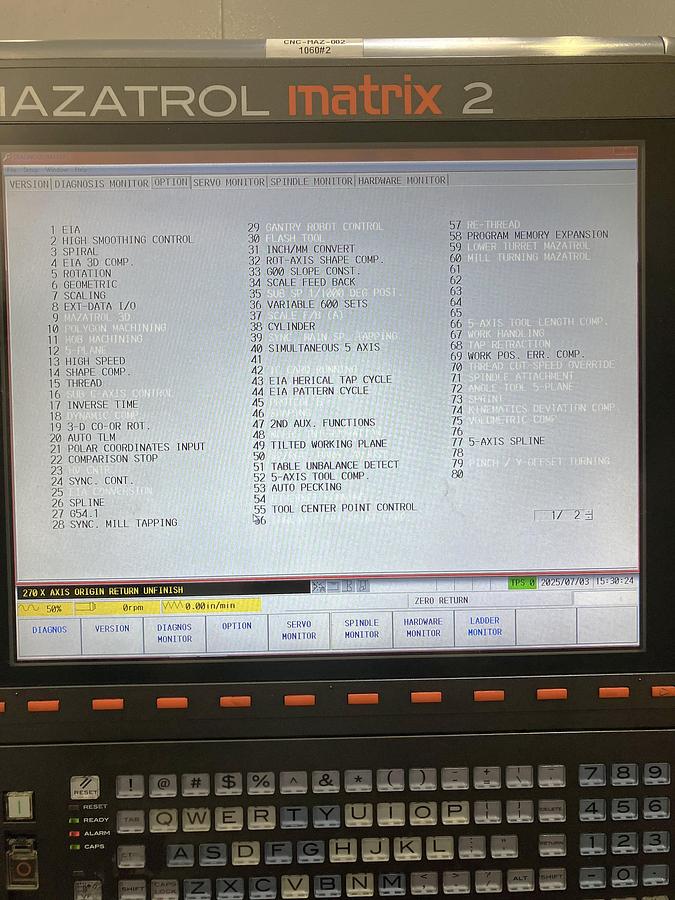

Additional EIA/ISO Functions

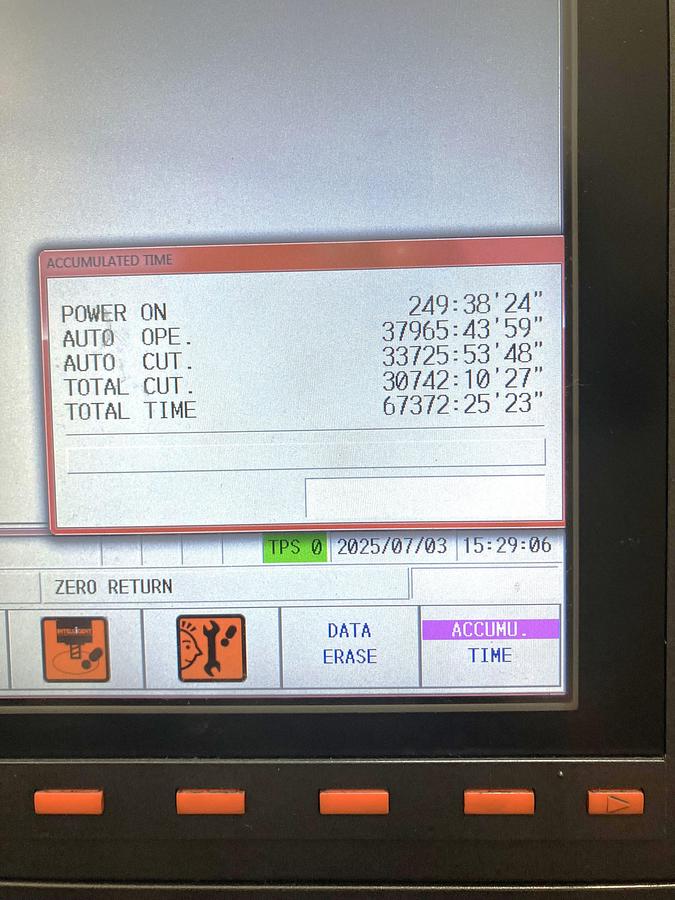

**Total Cutting Hours 30,742**

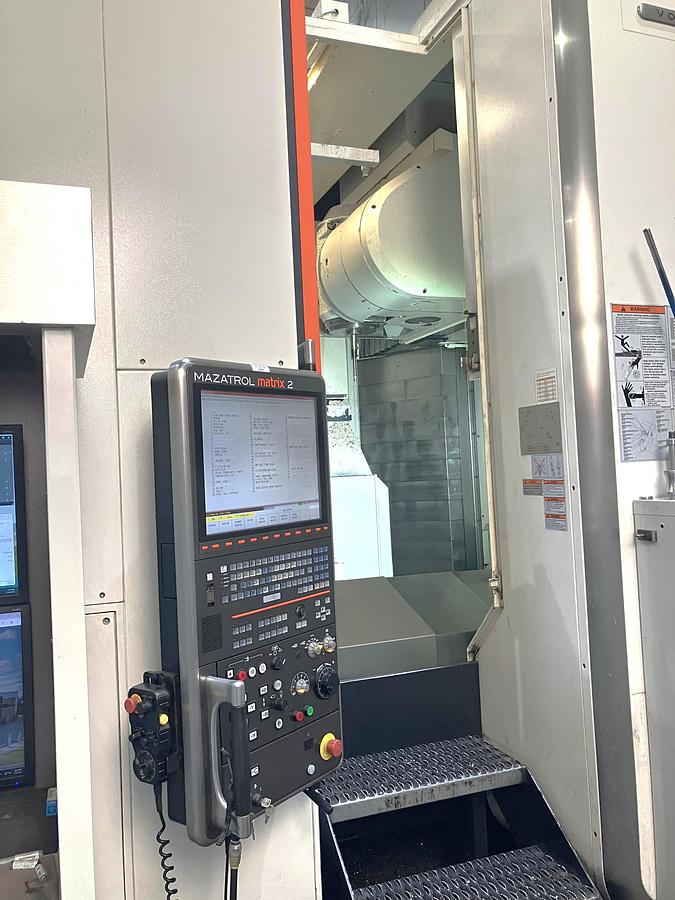

The 2014 Mazak Vortex e-1060V/8 is a robust 5-axis milling machine designed for heavy-duty operations. It features a large built-in rotary table and a tilting B-axis head, providing extensive versatility for complex machining tasks. Equipped with the Mazatrol Matrix 2 control, this machine offers precision with X, Y, and Z-axis travels of 73.82", 41.73", and 52.95" respectively. The B-axis allows for full contouring from -30 to +120 degrees, while the C-axis enables 360-degree rotation in fine increments. The machine supports heavy workpieces with its two 39.4" diameter pallets, capable of handling loads up to 4,784 lbs. Its CAT 50 spindle taper delivers speeds of up to 10,000 RPM powered by a strong 50 HP motor, ensuring efficient material removal for high-demand tasks. The 120-position automatic tool changer facilitates swift tool changes, optimizing uptime and productivity. With dimensions of 309"x210"x174" and a weight of 85,800 lbs, this machine is built for sizable industrial environments. Its rapid traverse rates of 1653 IPM for the X, Y, Z axes and 18 RPM/30 RPM for the C/B axes ensure fast and precise operations. The Mazak Vortex e-1060V/8 stands as a reliable choice for manufacturers seeking a durable and flexible 5-axis solution.
