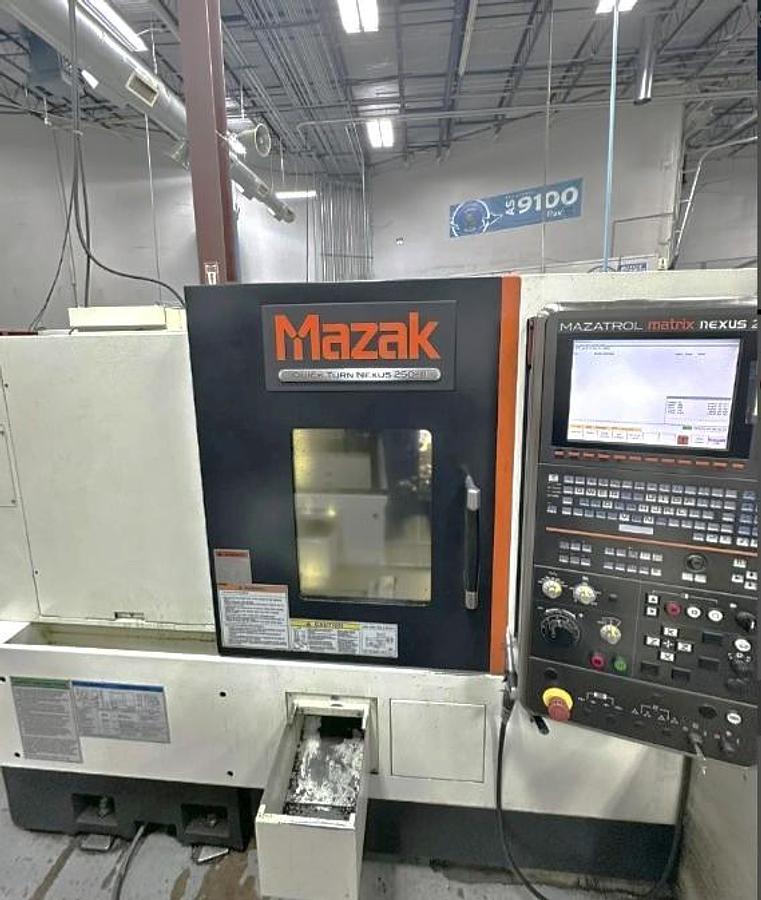

2014 Mazak Nexus QTN 250-II with ATS Barfeeder, Parts Catcher, Chip Conveyor, Tailstock, Collet Chuck, 10" Chuck
2014 Mazak Nexus QTN 250-II with ATS Barfeeder, Parts Catcher, Chip Conveyor, Tailstock, Collet Chuck, 10" Chuck
$49,950 (USD)
Location:Illinois
or
Call (863) 439-6066
Description
10" 3 Jaw Hydraulic Chuck

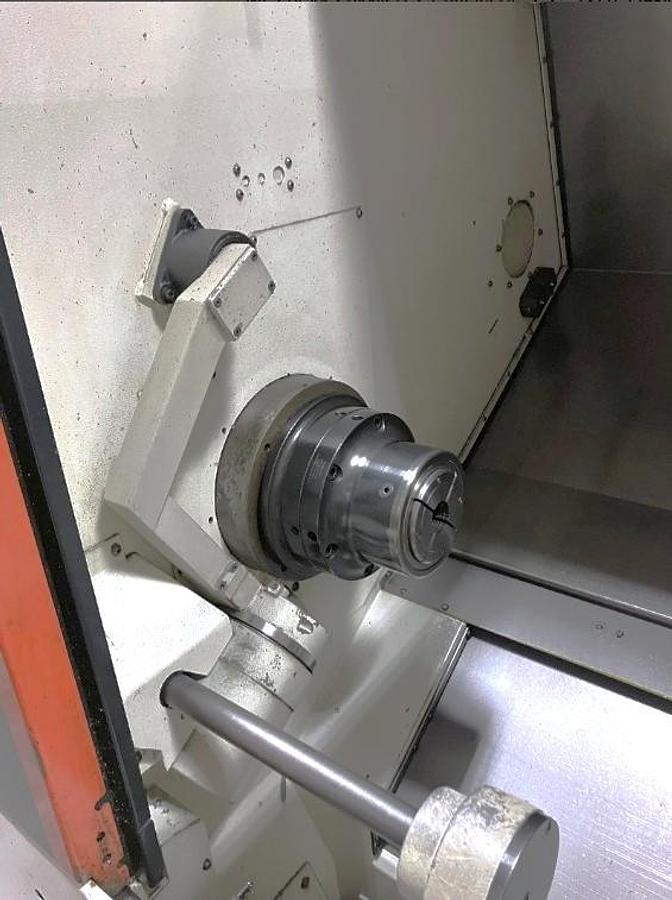

Collet Chuck
Chip Conveyor
Parts Catcher

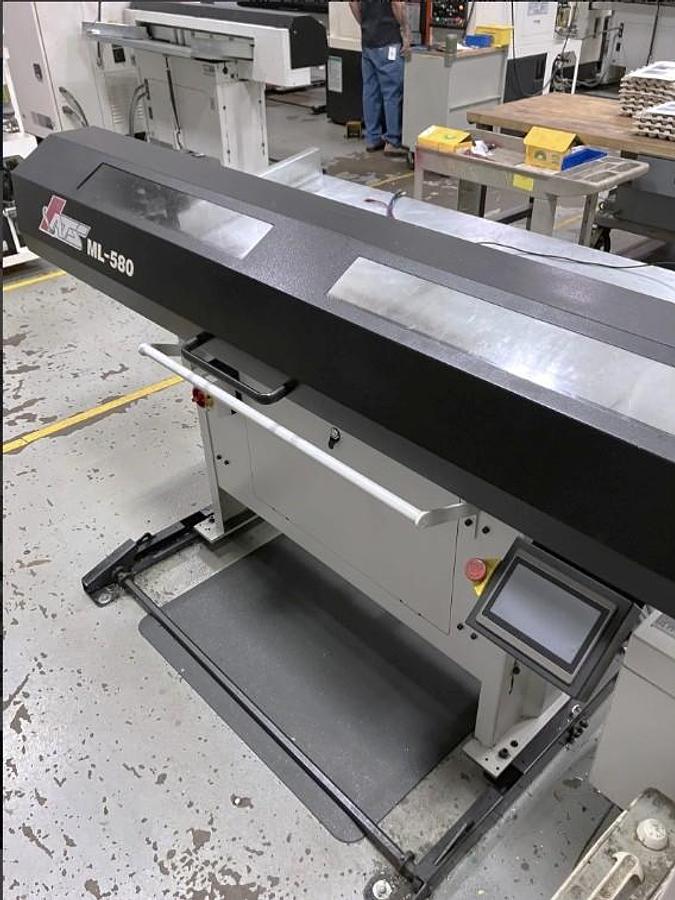

ATS Model ML-580 Bar Feeder
Barfeed Interface
Automatic Tool Eye

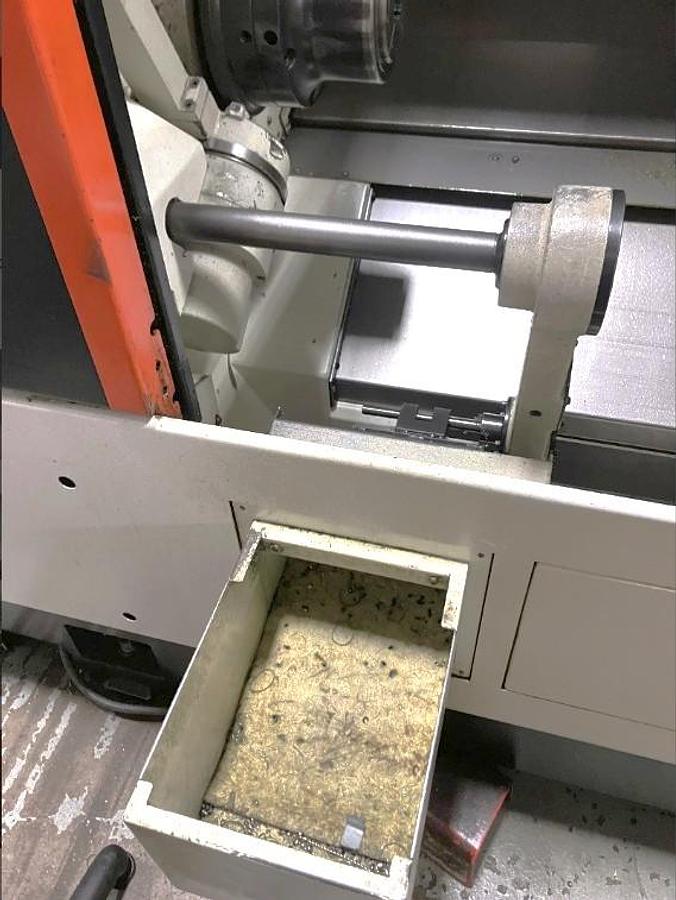

Programmable Tailstock
IC Memory Card Interface
PCM CIA Interface (2 slots)
3.5" Floppy Disk Interface
RS232 Port Interface
Hydraulic Pressure Interlock
Chuck Open/Close Confirmation
Door Interlock
Tool Path Solid Model Multi-Tap Transformer Coolant Tank with Pump All Available Manuals
All Available Tooling
(1) Spindle Liner
**Total Cutting Hours 8,500**
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 250-II |
| Year | 2014 |
| Condition | Used |
| Stock Number | 120610 |

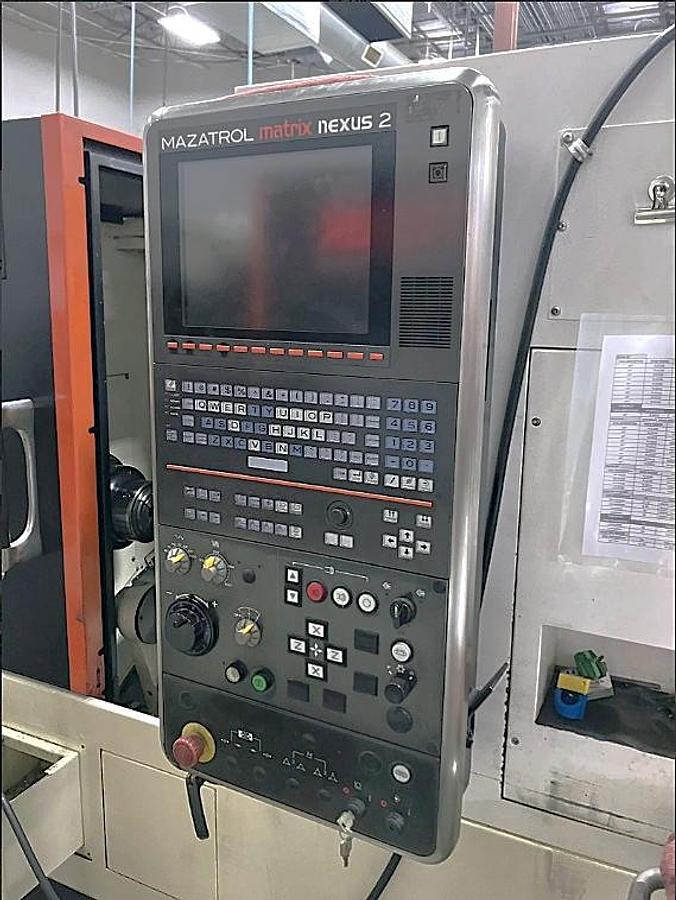

| Control | Mazatrol Matrix Nexus 2 Control |
| Chuck Size | 10" 3-Jaw Hydraulic & Collet Chuck |
| Maximum Swing | 24" |
| Maximum Cutting Diameter | 14" |
| Maximum Machining Length | 18.7" |
| X-Axis Travel | 7.5" |
| Z-Axis Travel | 20.25" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.0" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 35 HP |

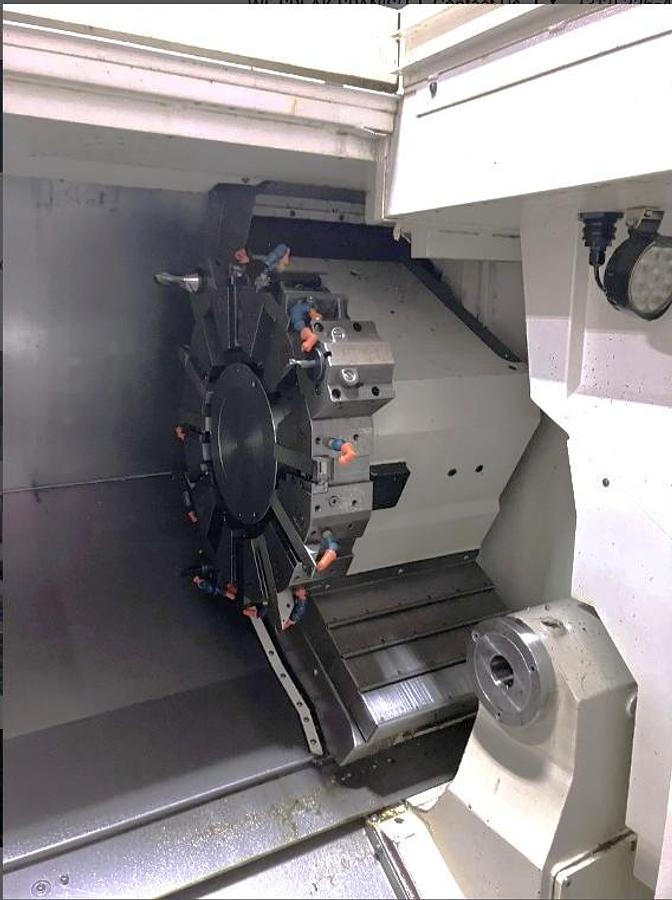

| Number of Turret Positions | 12 Position Drum |
| Rapid Traverse Rates X/Z | 1181 / 1299 IPM |
| Tailstock Body Travel / Center | 20.625" / MT#5 |
| Machine Dimensions LxWxH | 102" x 80" x 76" |
| Machine Weight | 10,400 lbs. |
