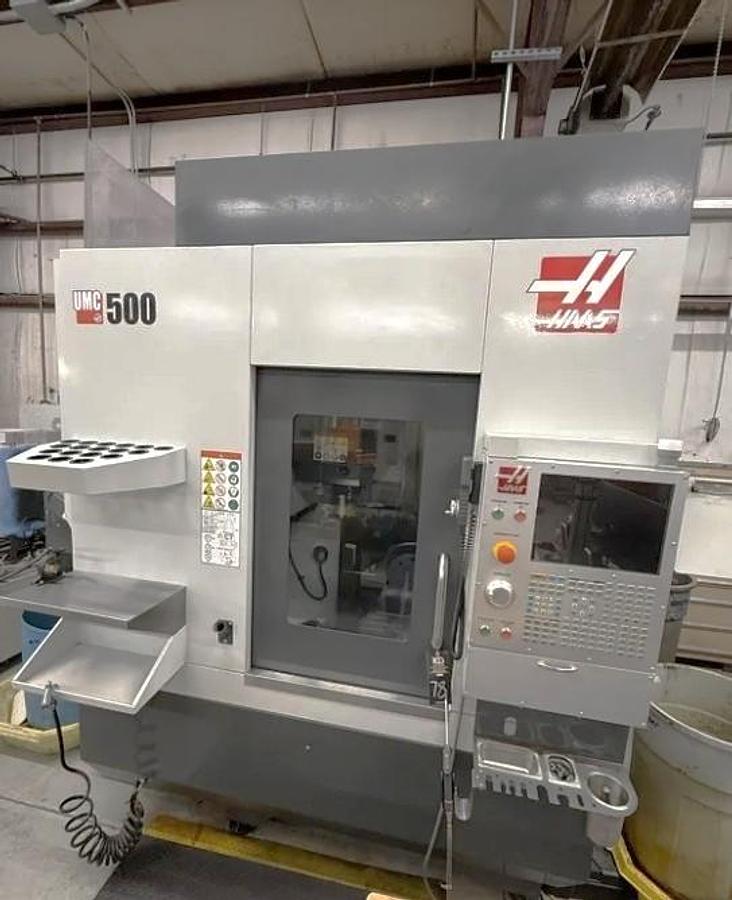

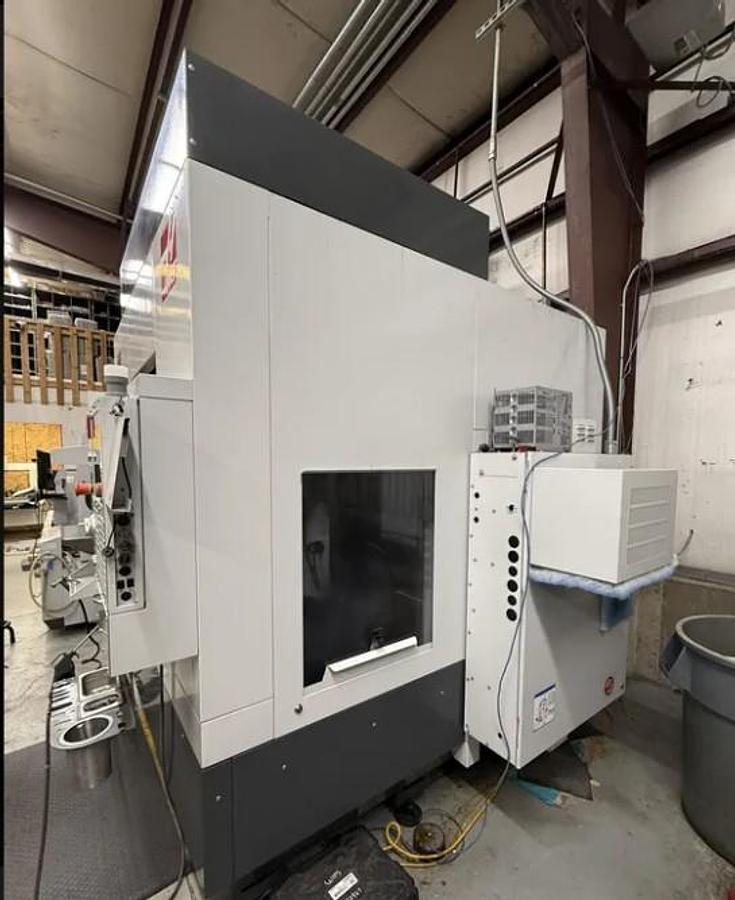

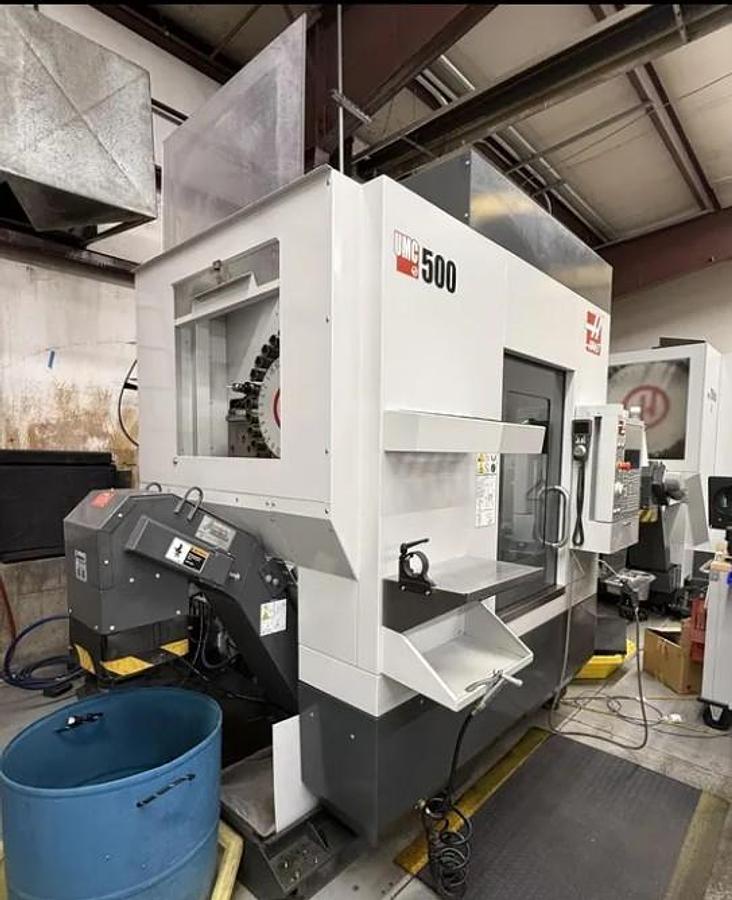

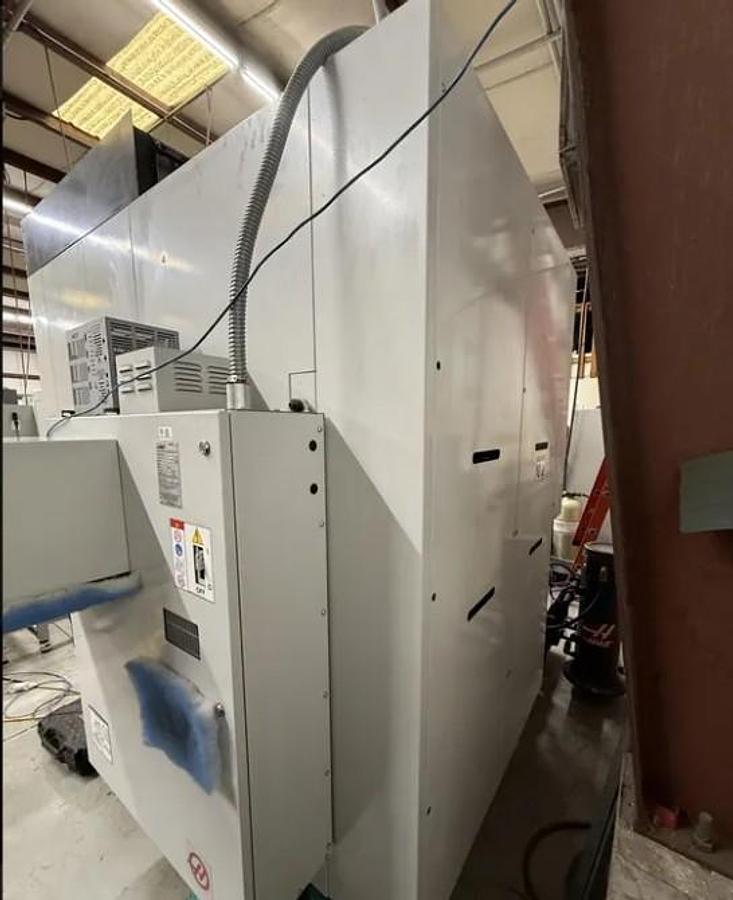

2020 Haas UMC-500, Coolant Thru Spindle, Haas Probing, 30 ATC, Chip Conveyor, 10,000 RPM, PCool, Low Hours
2020 Haas UMC-500, Coolant Thru Spindle, Haas Probing, 30 ATC, Chip Conveyor, 10,000 RPM, PCool, Low Hours
Contact us for price
Location:California
or
Call (863) 439-6066
Description

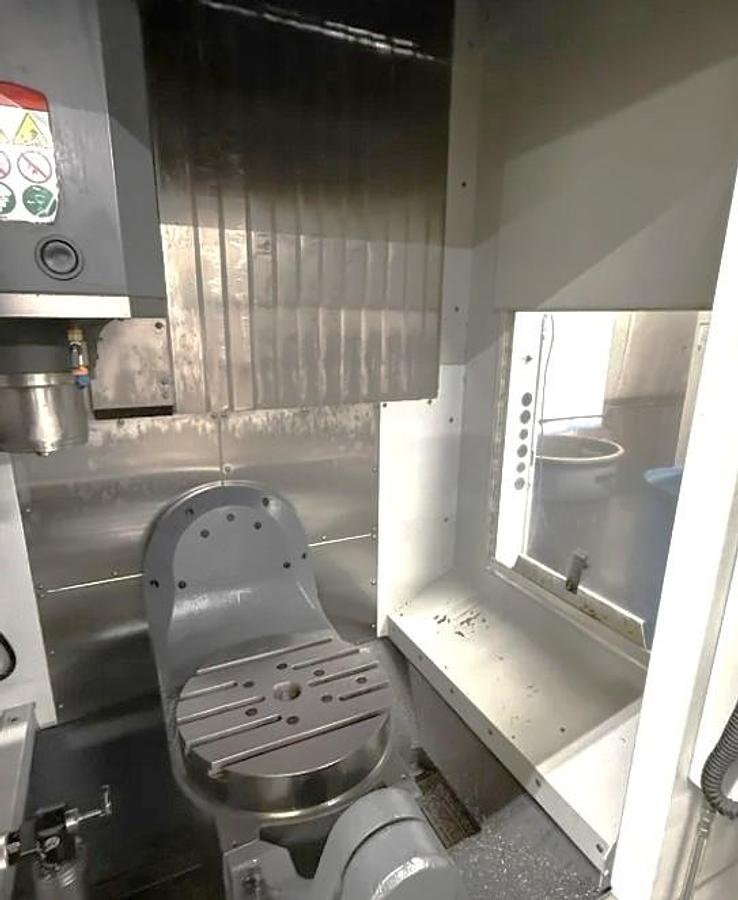

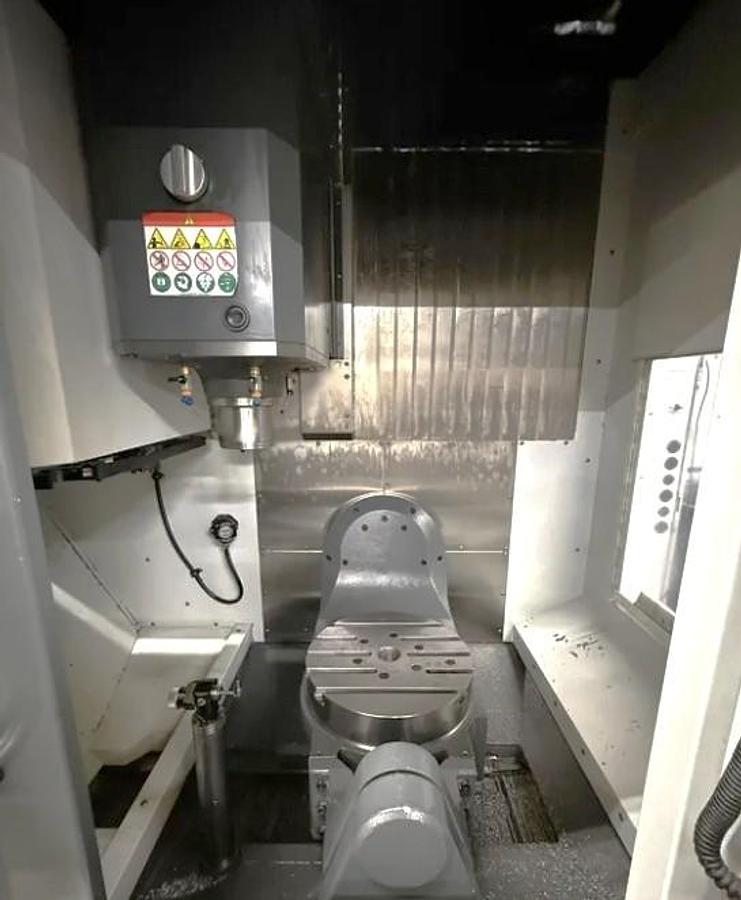

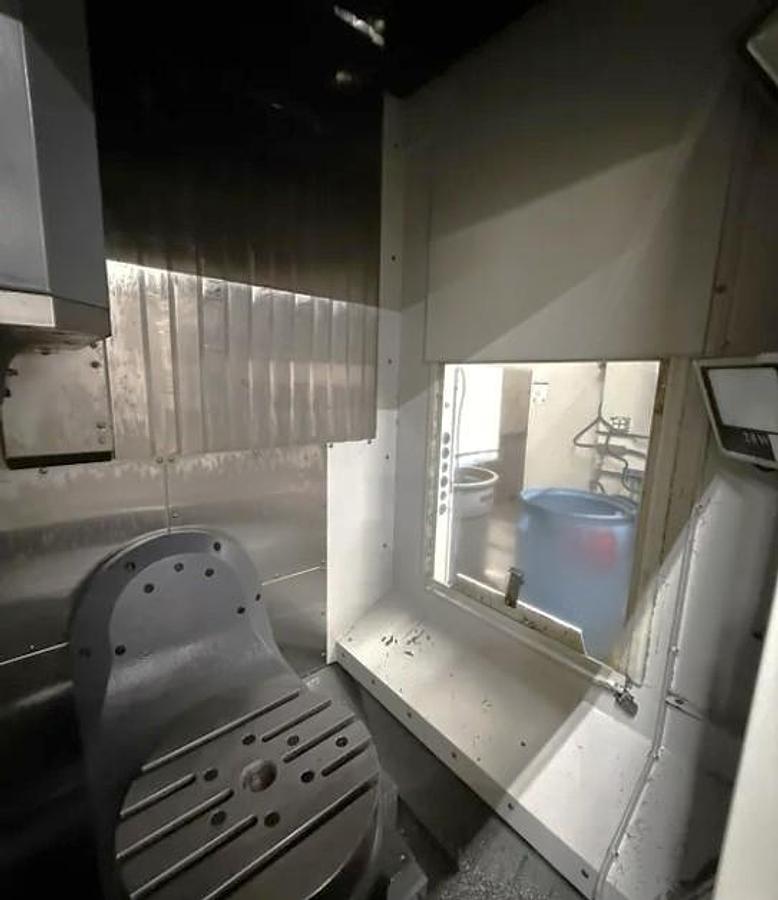

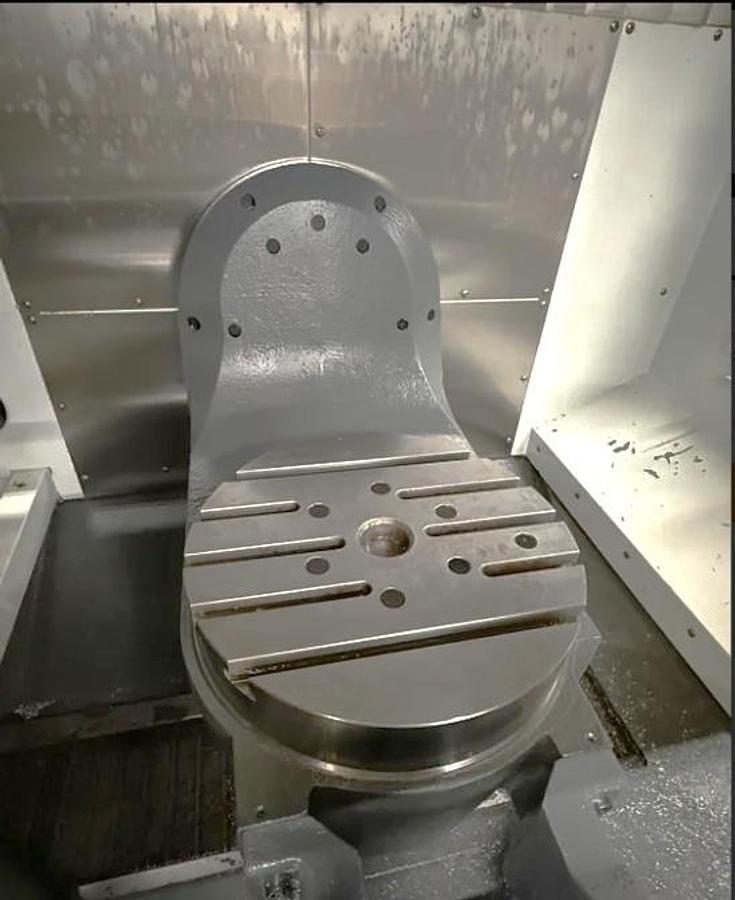

Trunnion Style 5th Axis Table

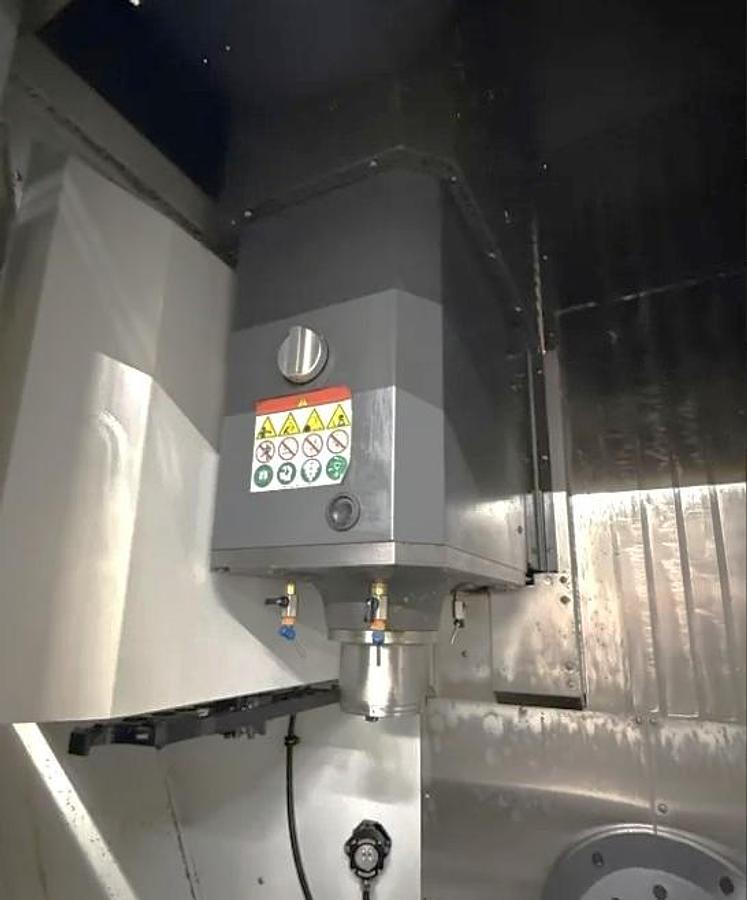

10,000 RPM Spindle
Coolant Through the Spindle - 300 PSI
Auxiliary Coolant Filter

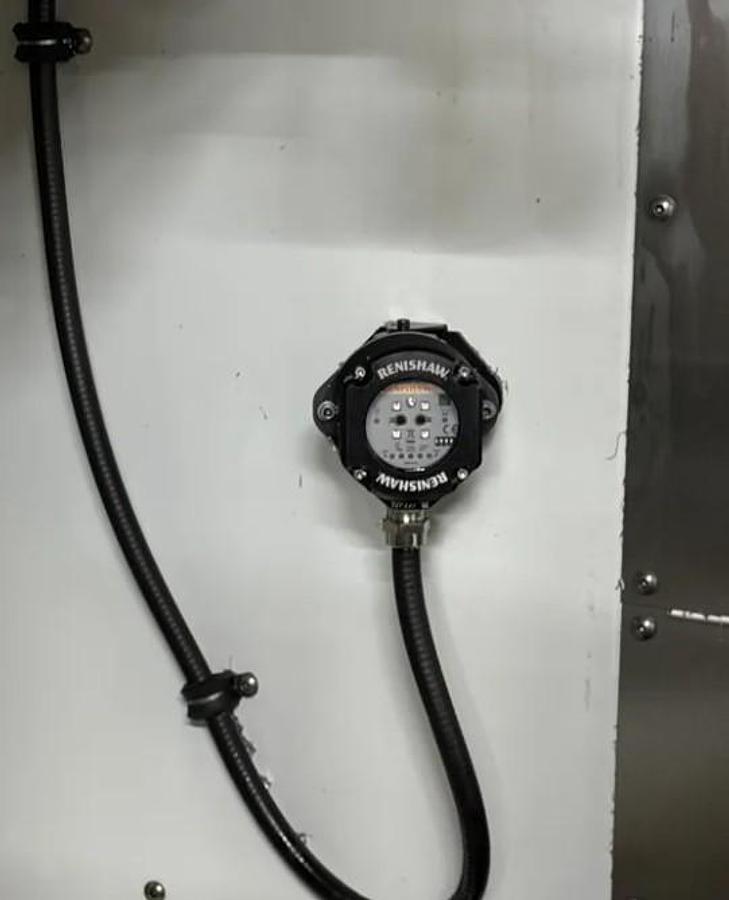

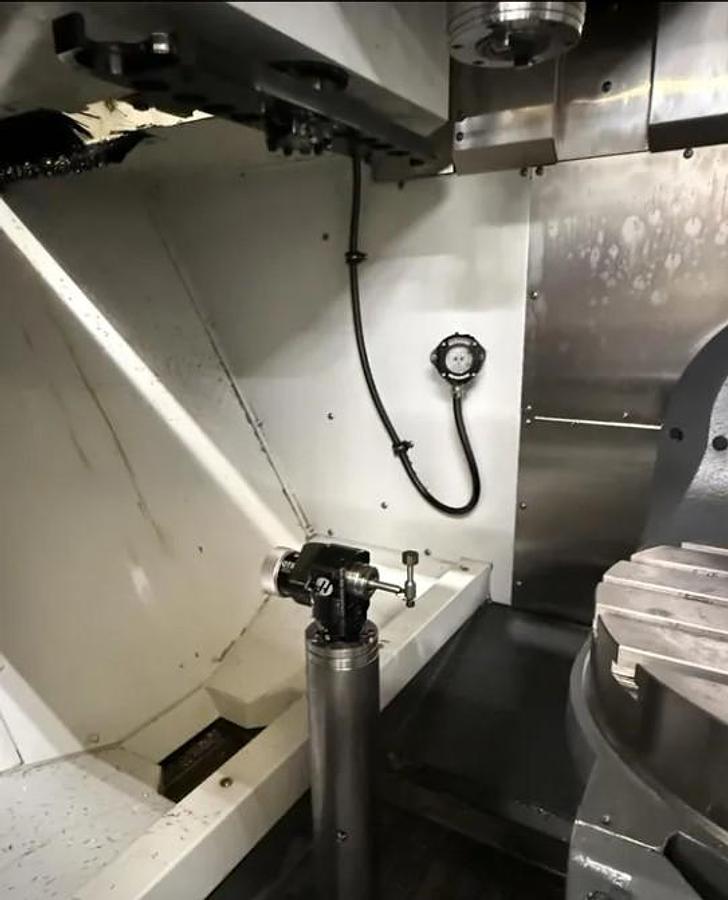

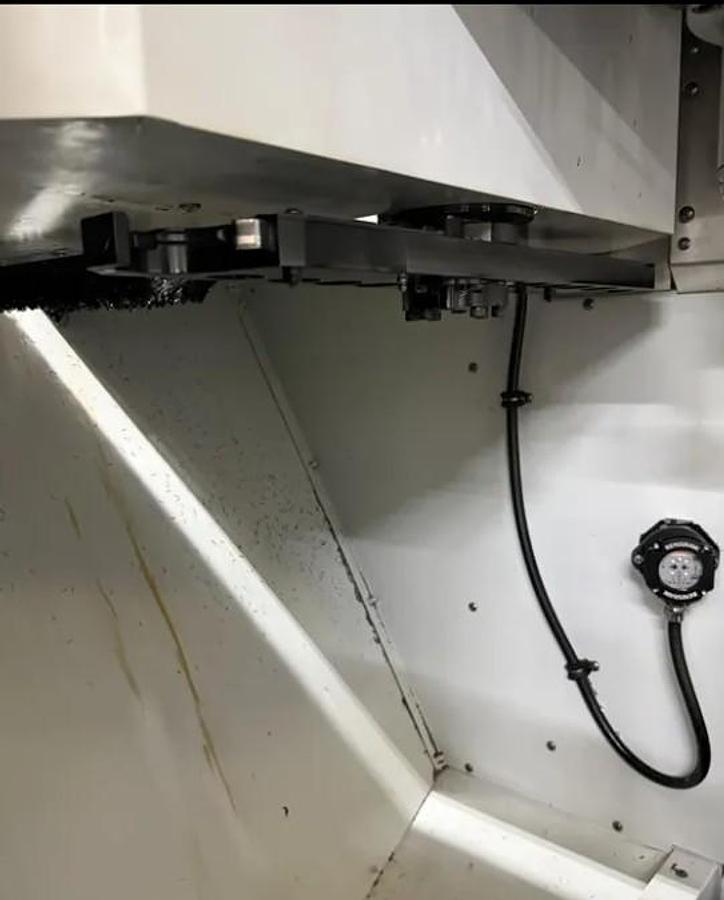

Renishaw Probing with Tool & Part Probing
Chip Conveyor

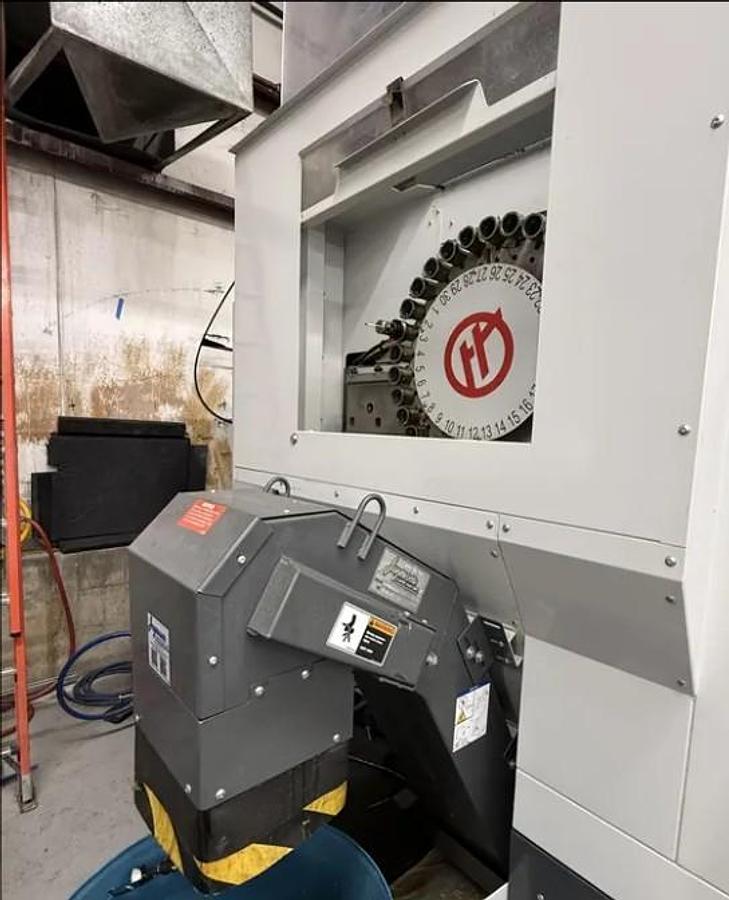

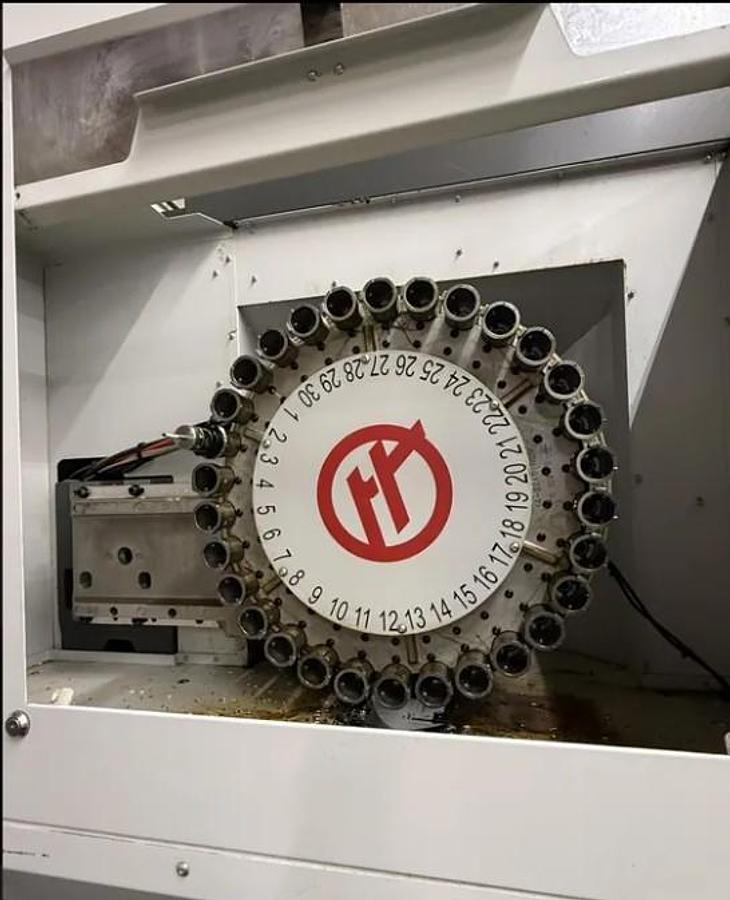

30 Station Tool Changer

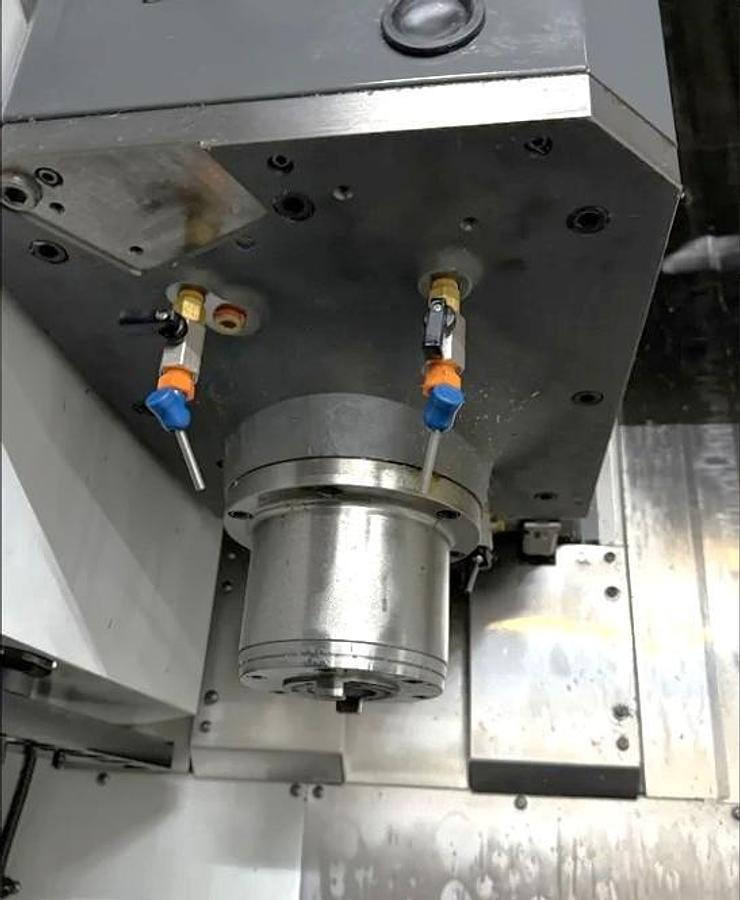

Programmable Coolant Nozzle

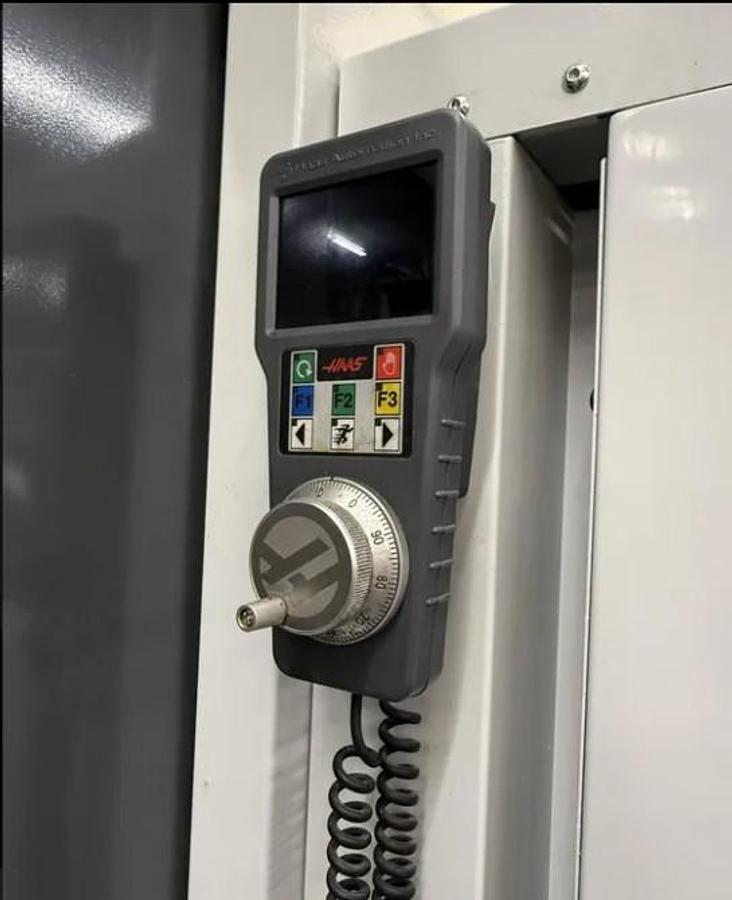

Remote Jog Handle
User Definable Macros
Coordinate Rotation & Scaling
Spindle Orientation
Haas Visual Programming System
Rigid Tapping
Media Display
1 GB Program Memory
Wireless Networking
Ethernet Interface
USB Port Interface
RS 232 Port Interface

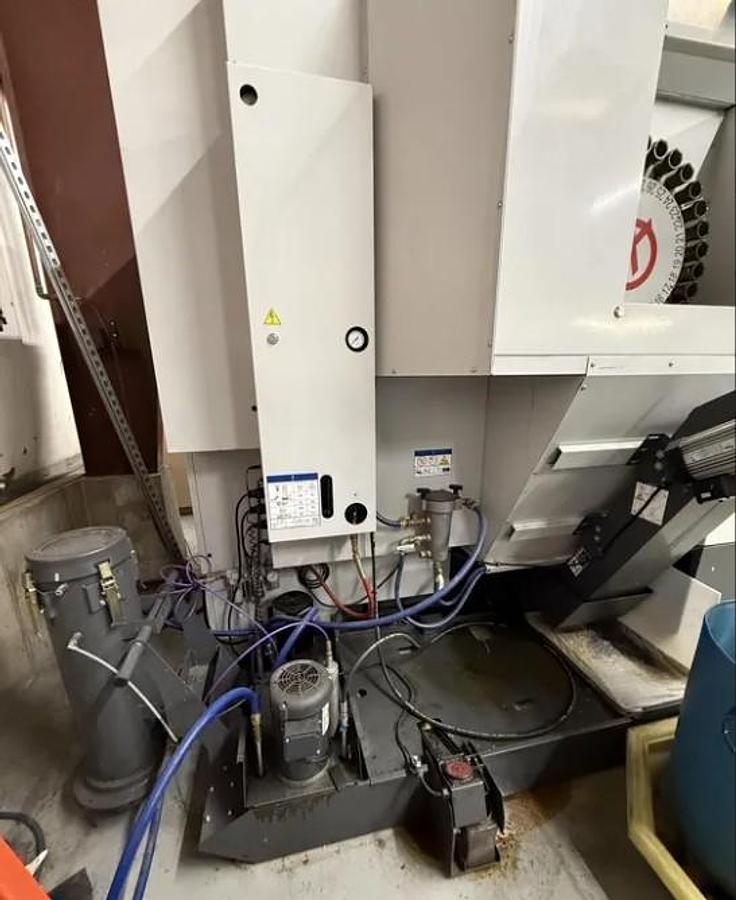

Coolant System with Tank & Pump
Wired 220V Electrics
**Machine New in June of 2020**
**Power On Hours 8.769**
**Motion Hours 3,843**
**Spindle Run Hours 4,089**
Specifications
| Manufacturer | Haas |
| Model | UMC-500 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 120606 |
| Machine Control | Haas NextGen Control |
| Table size | 15.7" Diameter |
| Table load capacity | 500 lbs |
| X axis travel | 24" |
| Y axis travel | 16" |
| Z axis travel | 16" |
| B axis rotate of trunnion | -35 Degrees to 120 Degrees |
| C axis table rotation | 360 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 10,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 20" |
| Tool magazine | 30 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 128" x 92" x 101" |
| Machine weight | 12,500 lbs |
