2015 Doosan Lynx 220LC with 8" Hyd Chuck, Toolsetter, Tailstock, Parts Catcher, Chip Converyor, Barfeed Interface ONLY

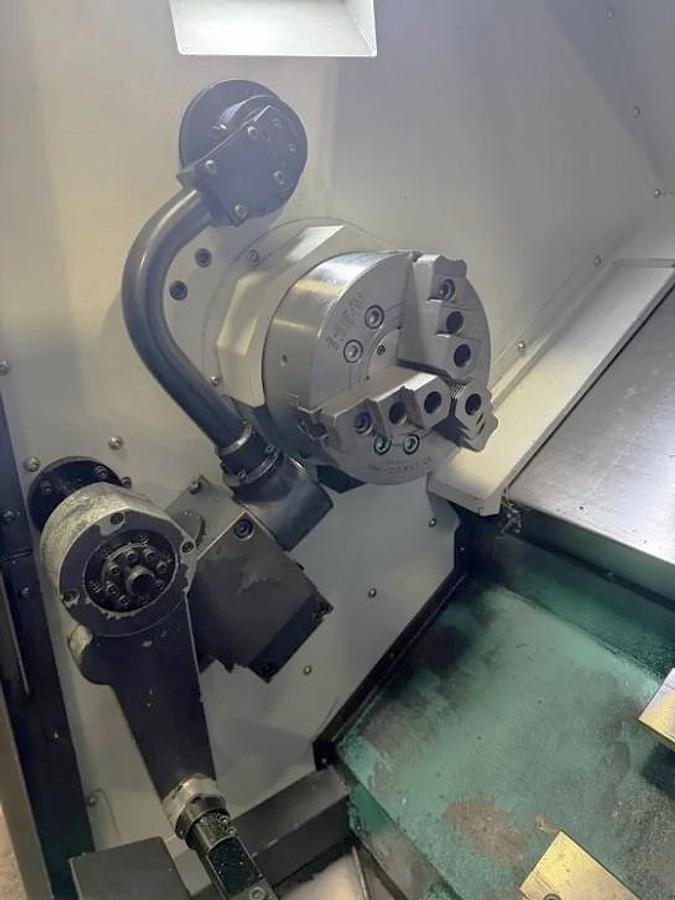

8" Samchully 3 Jaw Hydraulic Chuck

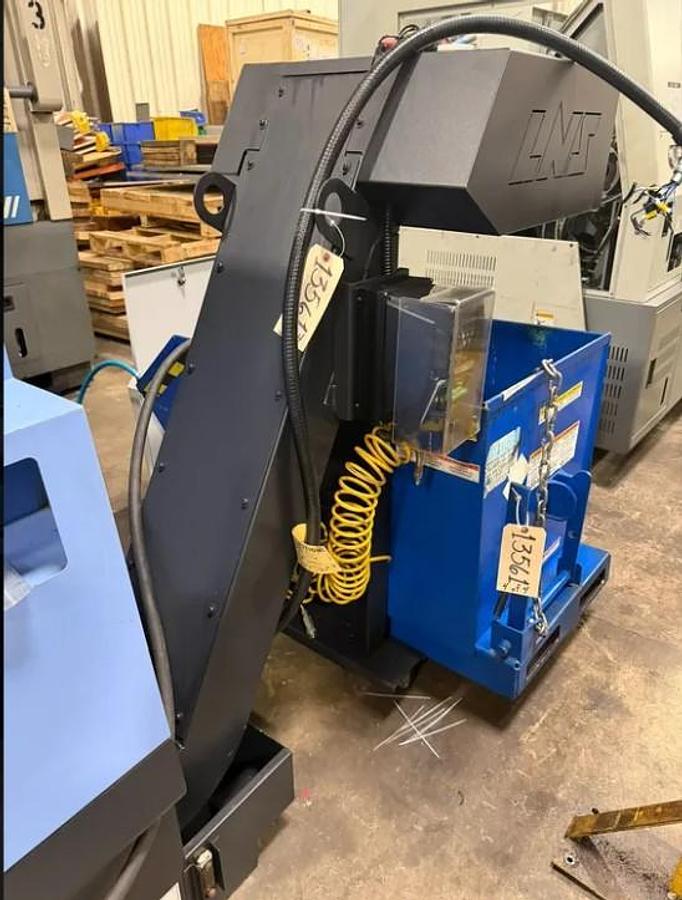

Turbo Chip Conveyor

Tailstock

Tool Pre-Setter

Parts Catcher

Barfeed Interface

Coolant System with Tank & Pump

Embedded Ethernet

64 Pairs Tool Offsets

Card Interface

RS 232 Port Interface

Miscellaneous Tool Blocks

Wired 220V Electrics

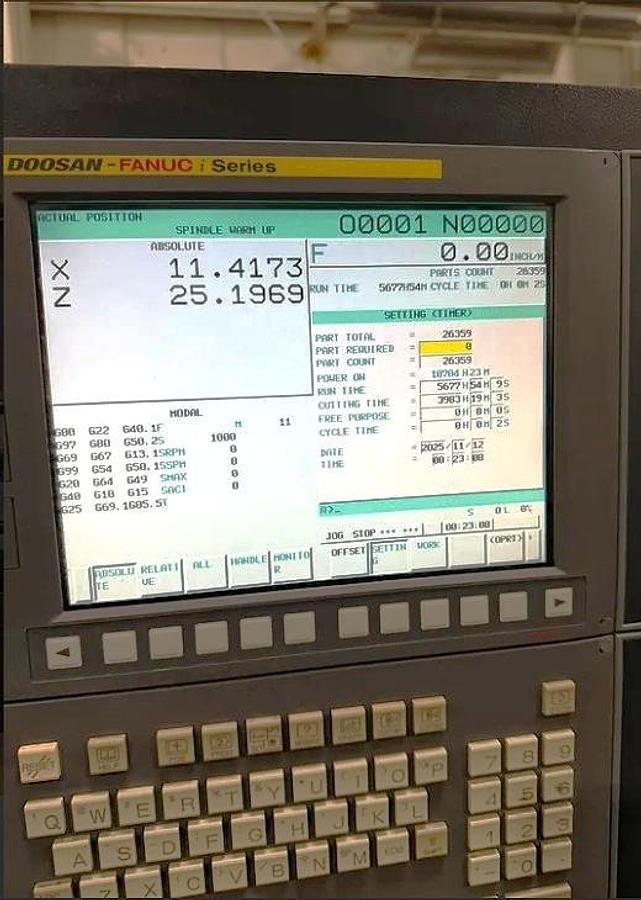

**Run Time Hours 5,677**

**Cutting Time Hours 3,983**

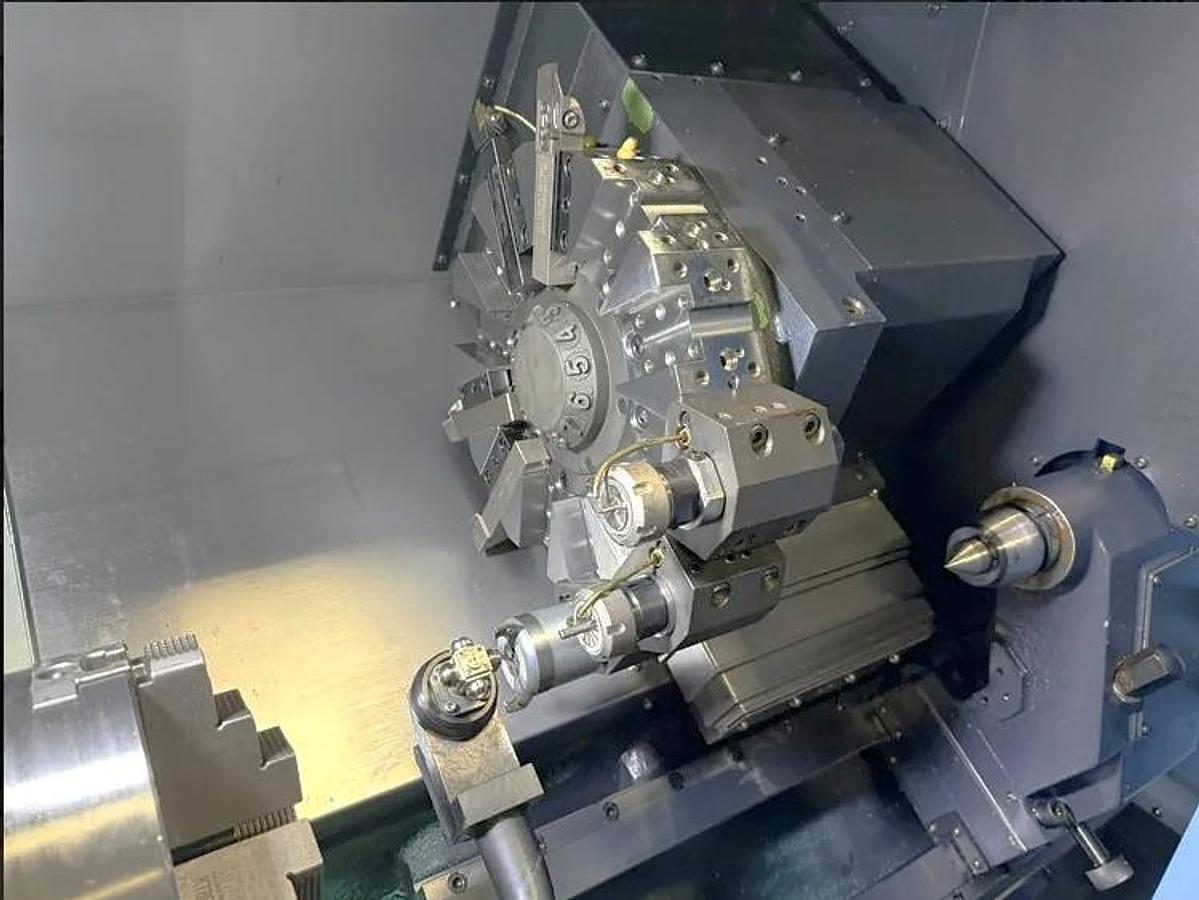

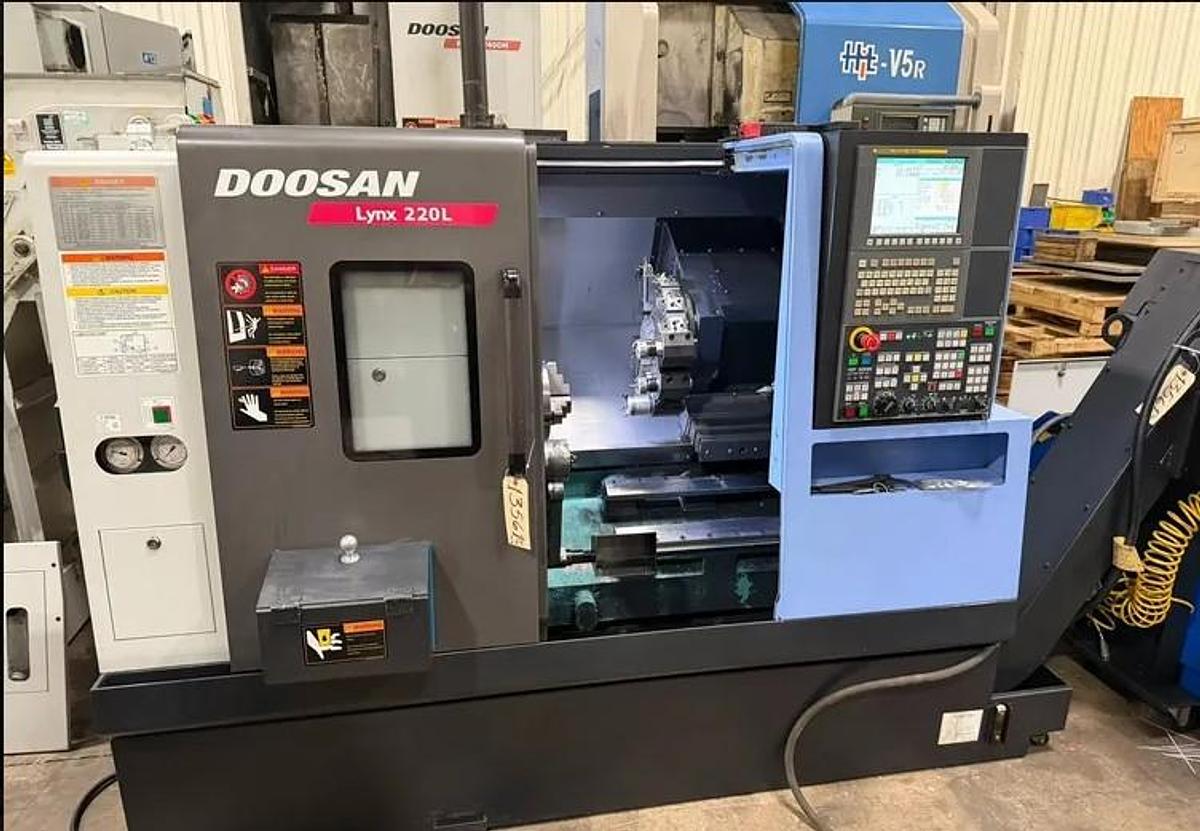

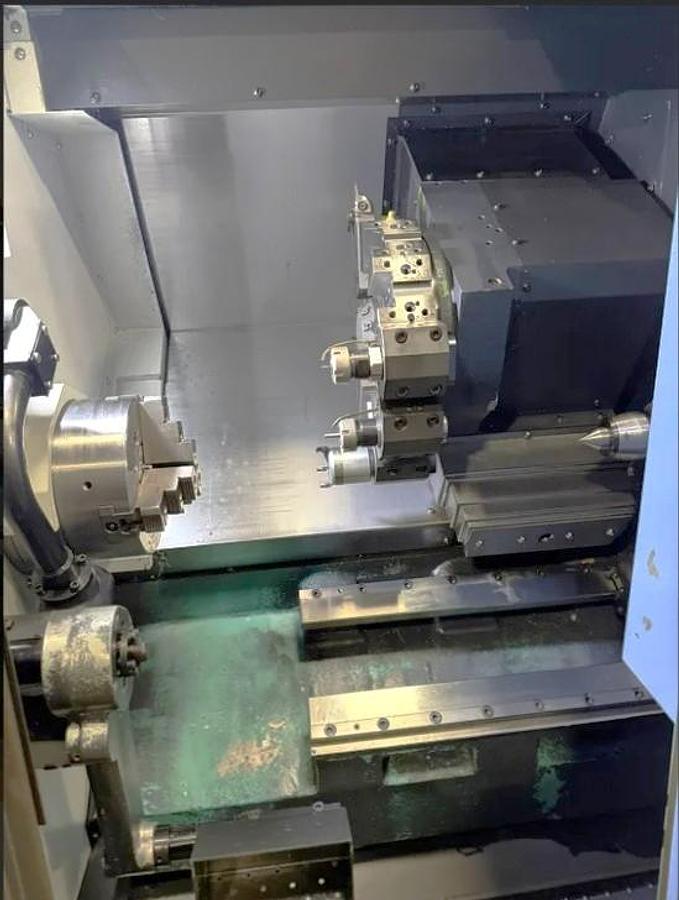

The 2015 Doosan Lynx 220LC CNC Lathe is a reliable machine designed for efficient and precise machining. Equipped with an 8" hydraulic chuck and Fanuc i Series control, it provides excellent performance in various turning applications. The lathe's maximum swing of 20.08" and turning diameter of 12.6" make it versatile for different sized components, while its maximum turning length of 20.7" ensures adequate workspace. With an X-axis travel of 6.89" and Z-axis travel of 21.65", this machine accommodates complex tasks with ease. The spindle, which supports speeds ranging from 40 to 4,000 RPM, is powered by a 20 HP motor, allowing for efficient material removal. The Lynx 220LC is equipped with a 12-position turret, providing flexibility in tooling options and setup. Rapid traverse rates are impressive, standing at 1181 IPM (X-axis) and 1417 IPM (Z-axis), enhancing productivity. Additional features include a parts catcher, tailstock with a quill diameter of 2.6" and MT #4 center, and a barfeed interface. The machine dimensions are 90"x72"x65", with a weight of 7,780 lbs, making it a compact yet robust choice for industrial settings. Tailoring to user convenience, the machine integrates a chip conveyor and toolsetter, promoting smooth operation and maintenance. This used CNC lathe is well-suited for operations requiring precision and durability.
