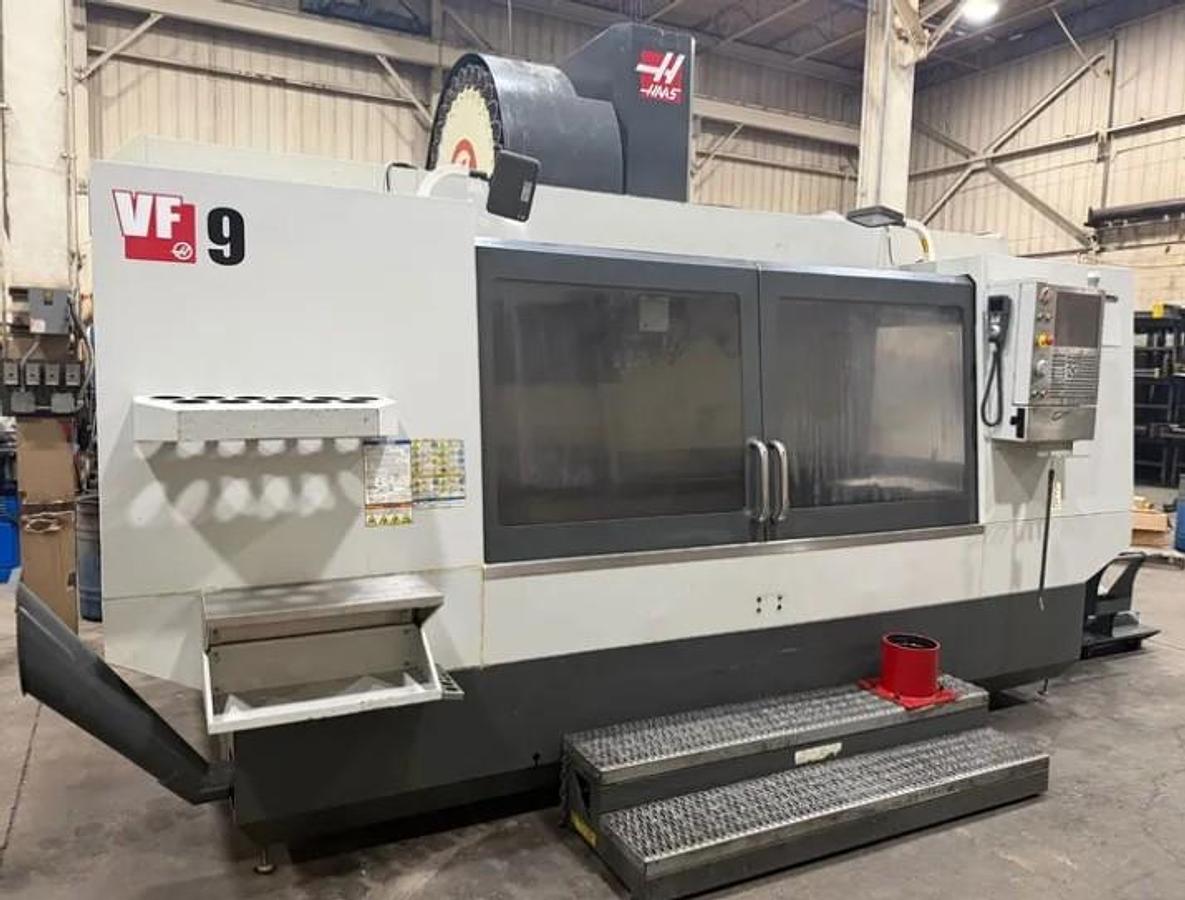

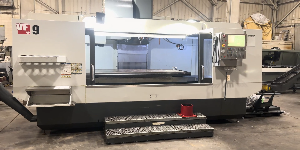

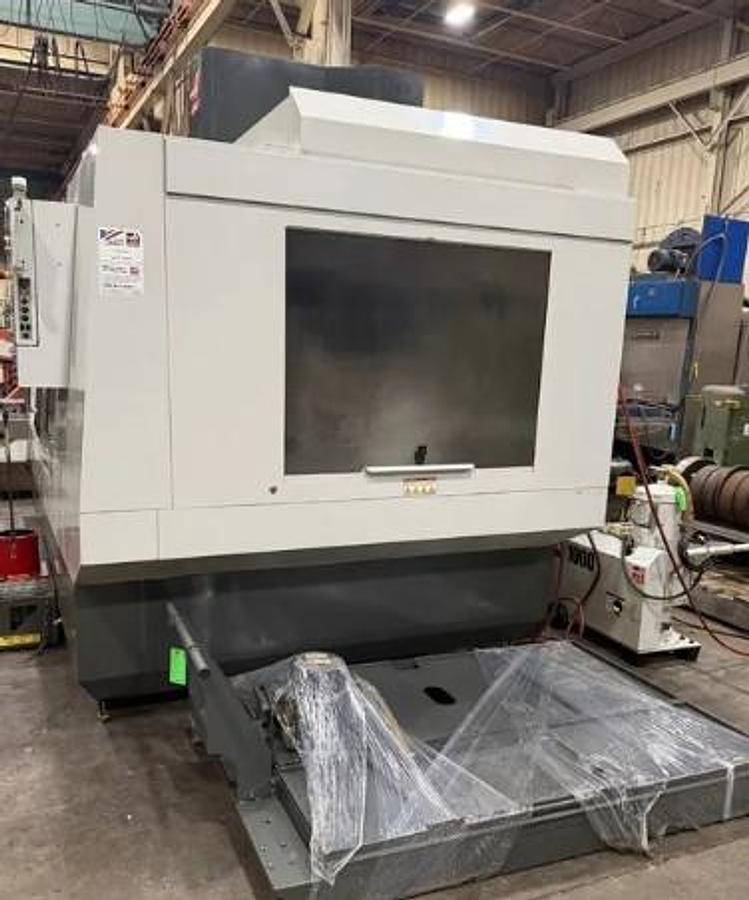

2010 Haas VF-9/50
No longer available
2010 Haas VF-9/50
Location:Michigan
Description
Haas WIPS Renishaw Part & Tool Probing

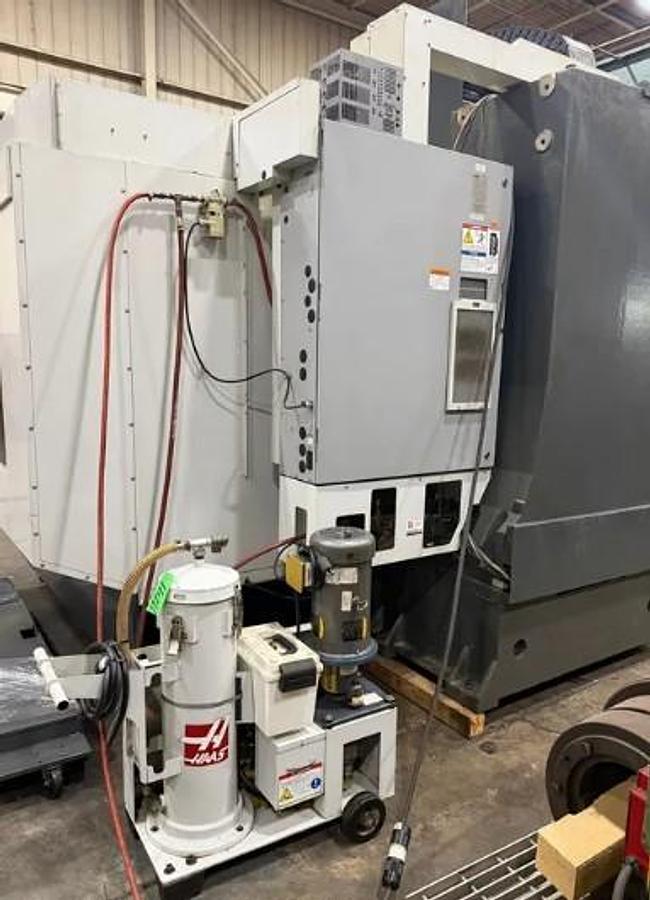

1,000 PSI High Pressure Through the Spindle Coolant

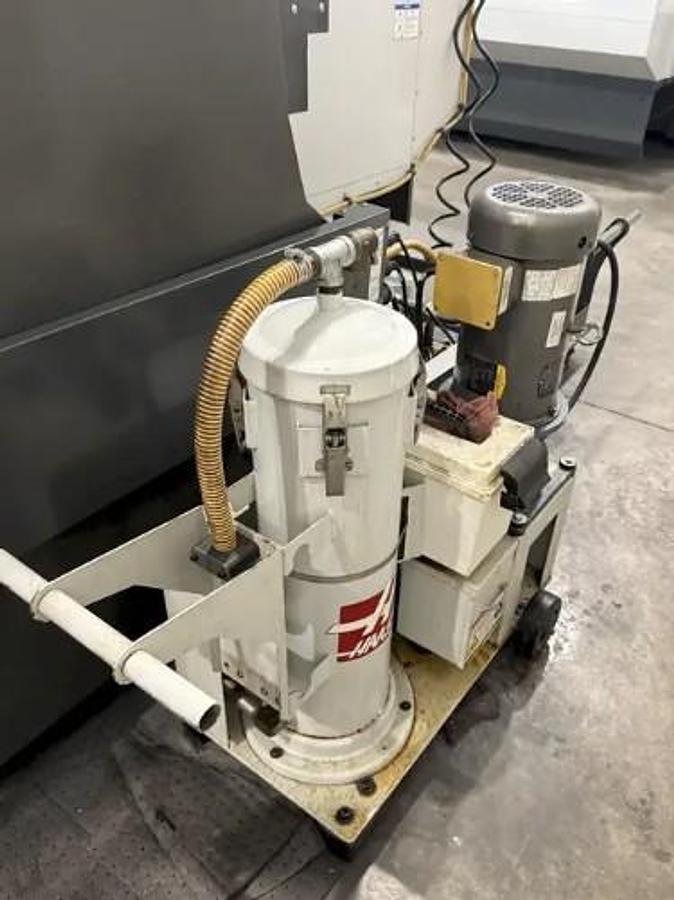

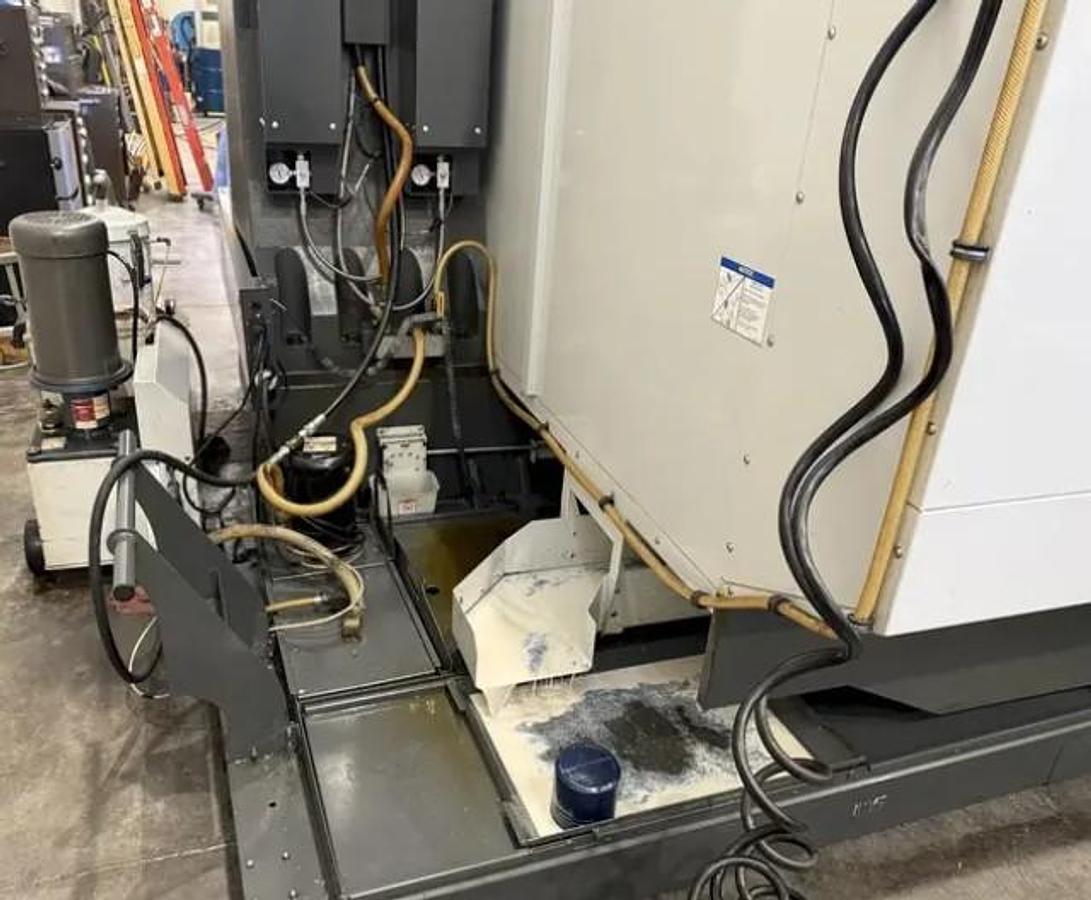

Auxiliary Coolant Filter System
CAT 50 Spindle Taper

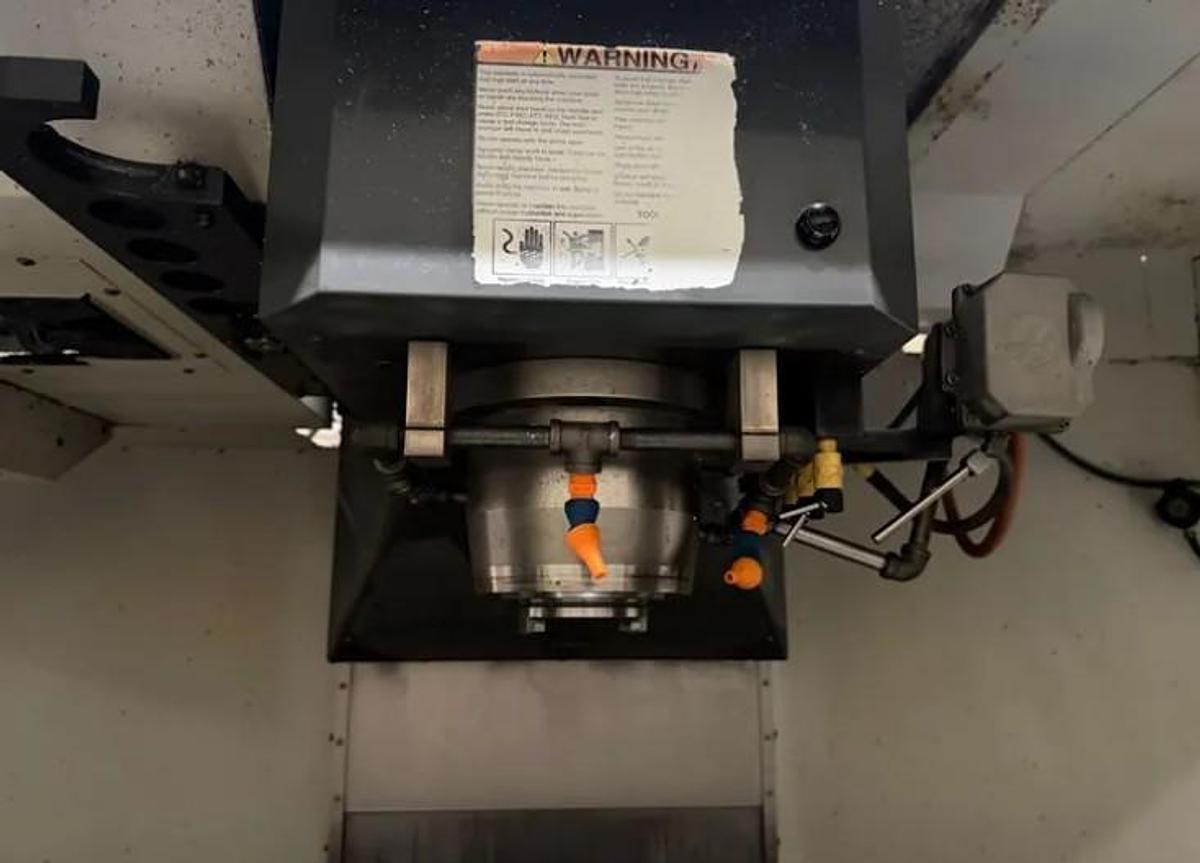

Programmable Coolant Nozzle
Auger Style Chip Conveyor
2 Speed Geared Headstock
Linear Scales

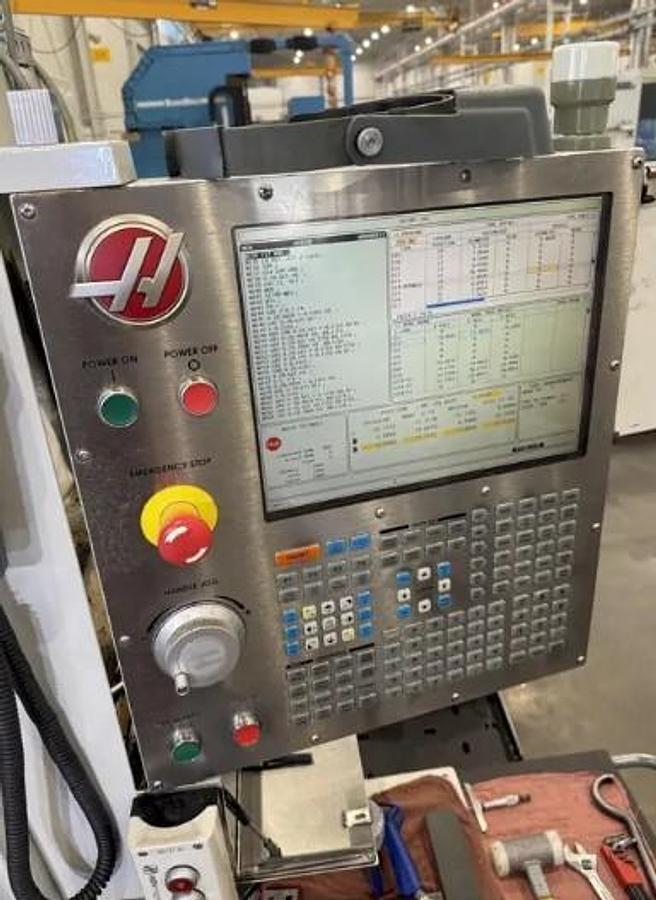

Haas Intuitive Programming System
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Rigid Tapping
High Intensity Lighting

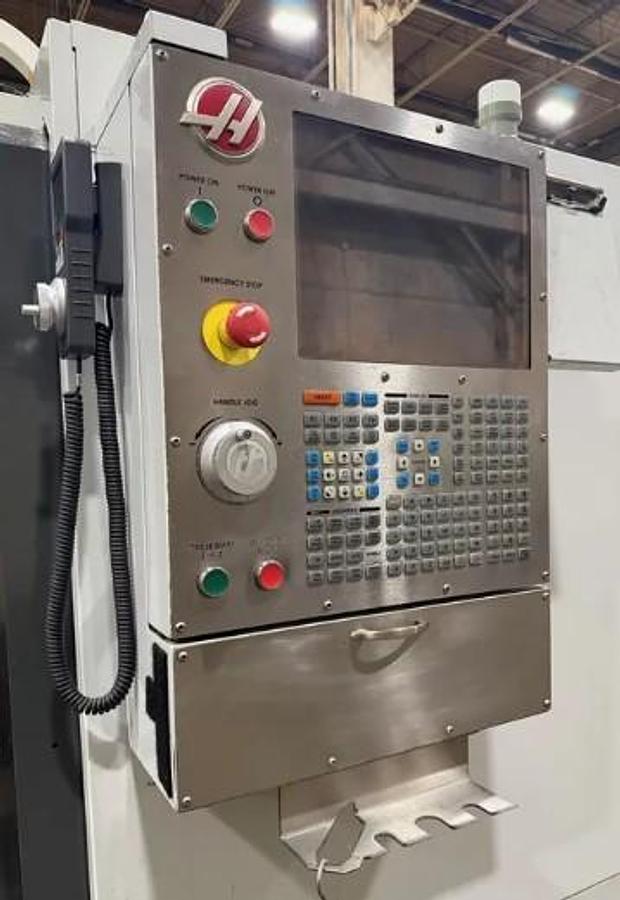

Remote Jog Handle
Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface
Specifications
| Manufacturer | Haas |
| Model | VF-9/50 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 120593 |

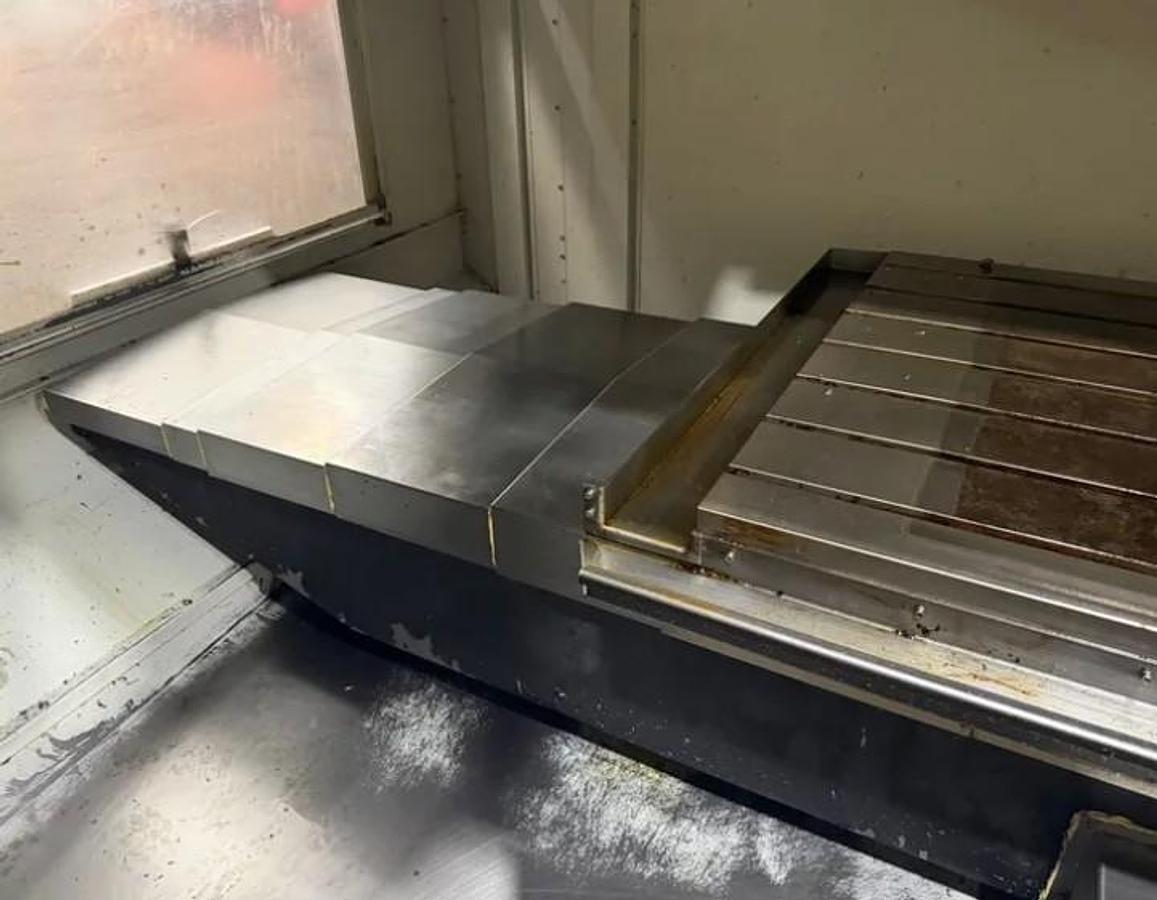

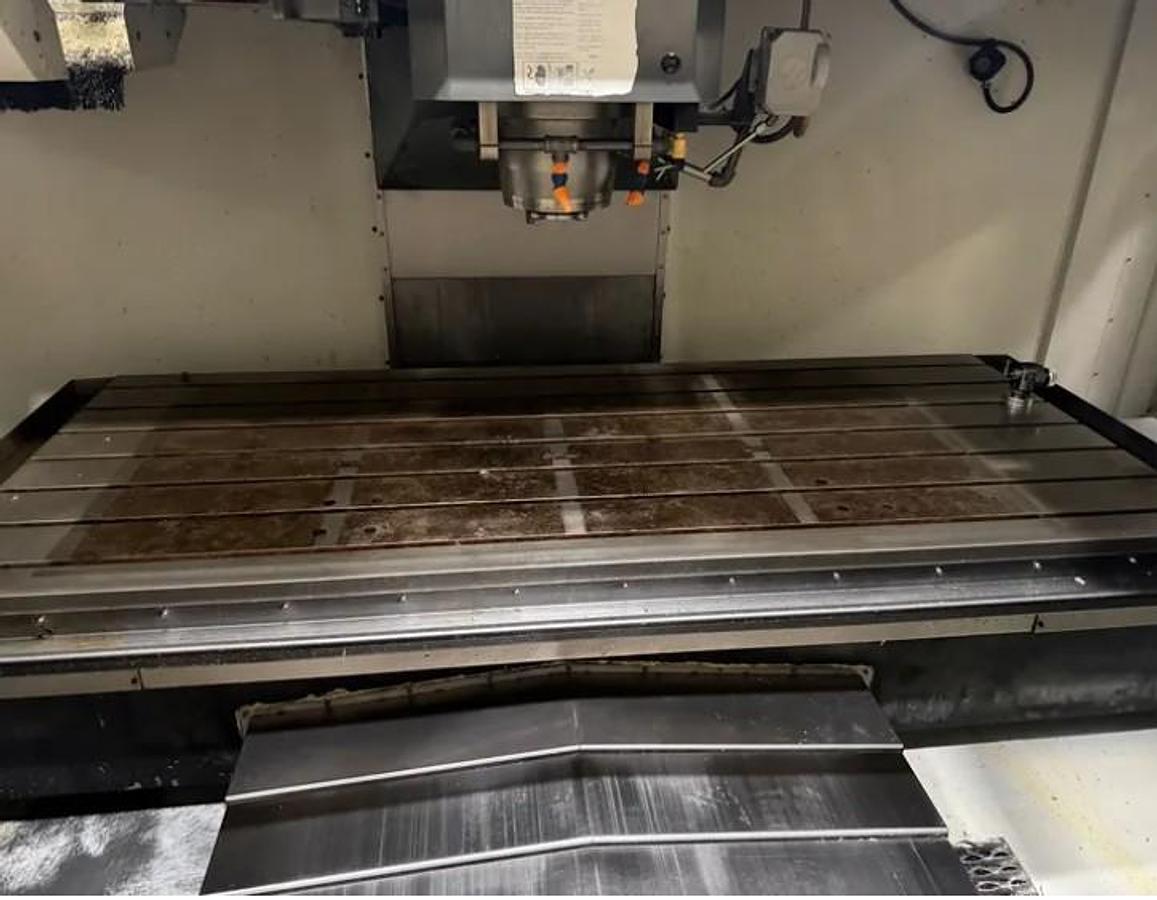

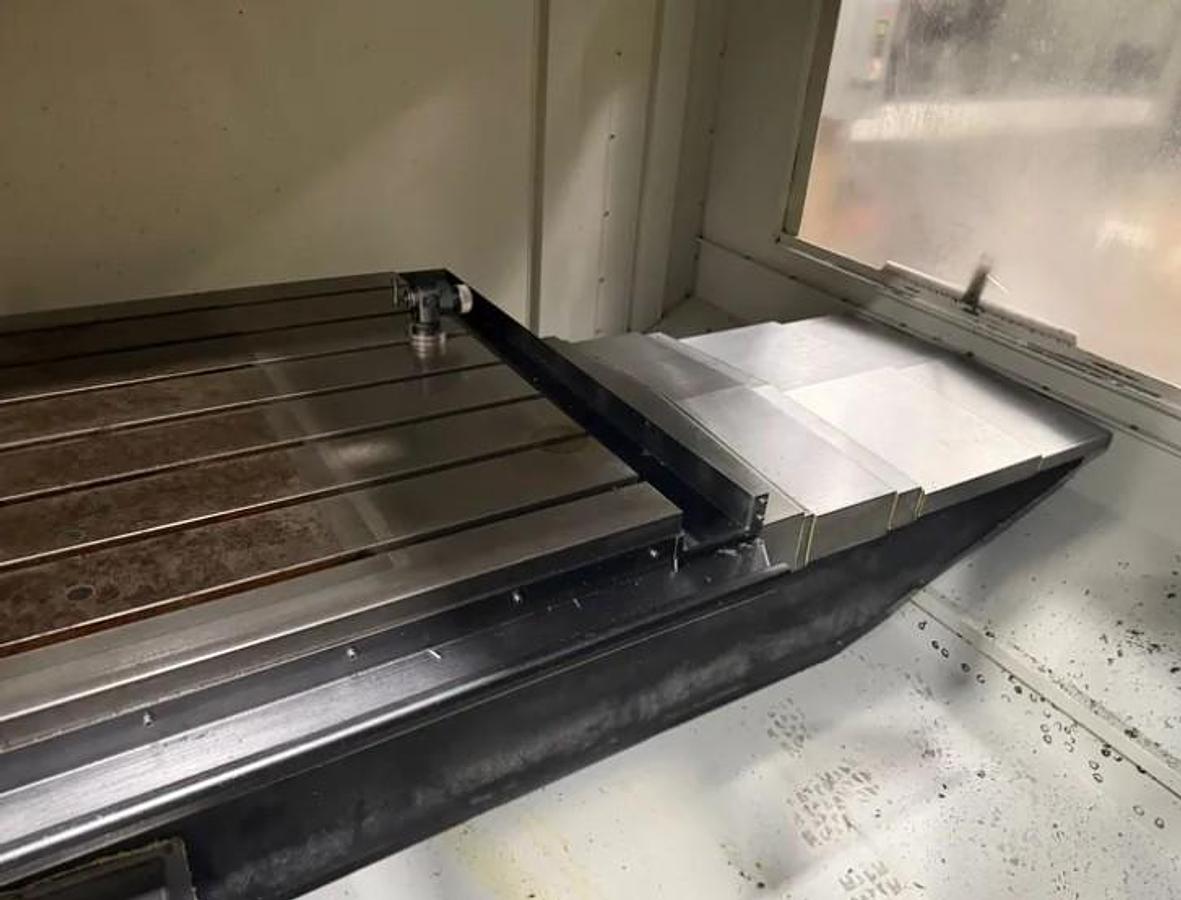

| Table size | 84" x 36" |
| Table load capacity | 4,000 lbs. |
| X axis travel | 84" |
| Y axis travel | 40" |
| Z axis travel | 30" |
| Spindle nose to table top | 4" - 34" |
| Spindle taper | CAT 50 |
| Spindle speed | 7,500 RPM |
| Spindle Motor | 30 HP |
| Transmission type | 2 Speed Geared |

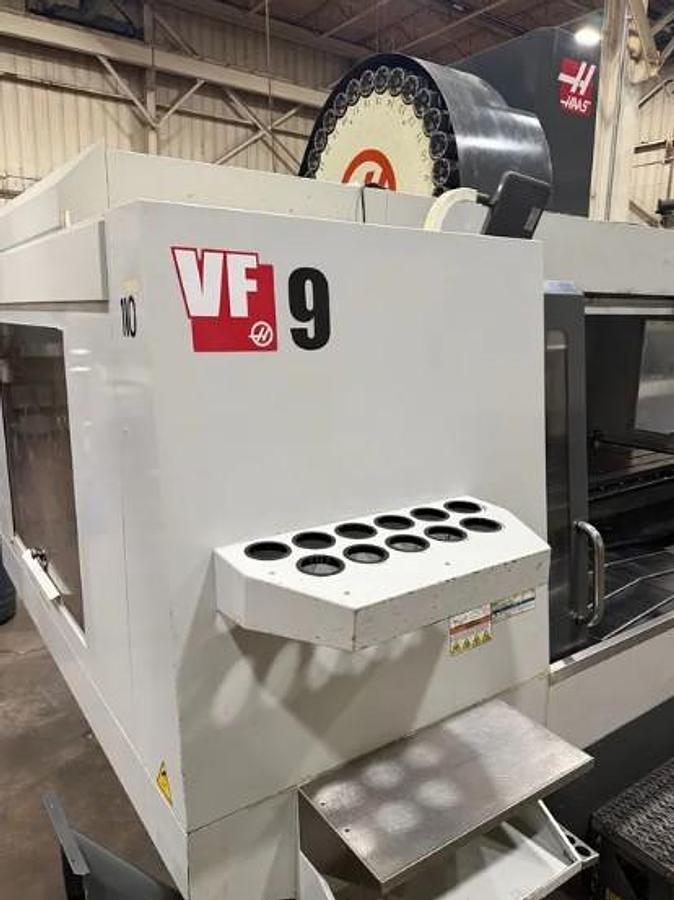

| Tool magazine capacity | 30 Position ATC |
| Tool change time | 4.0 sec tool-tool |
| Max. tool diam./length/weight | 3.5"/8"/12 lbs. |
| Rapid traverse rates | 600 IPM |
| Machine dimensions | 193"x122"x122.5" |
| Machine weight | 28,900 lbs. |
