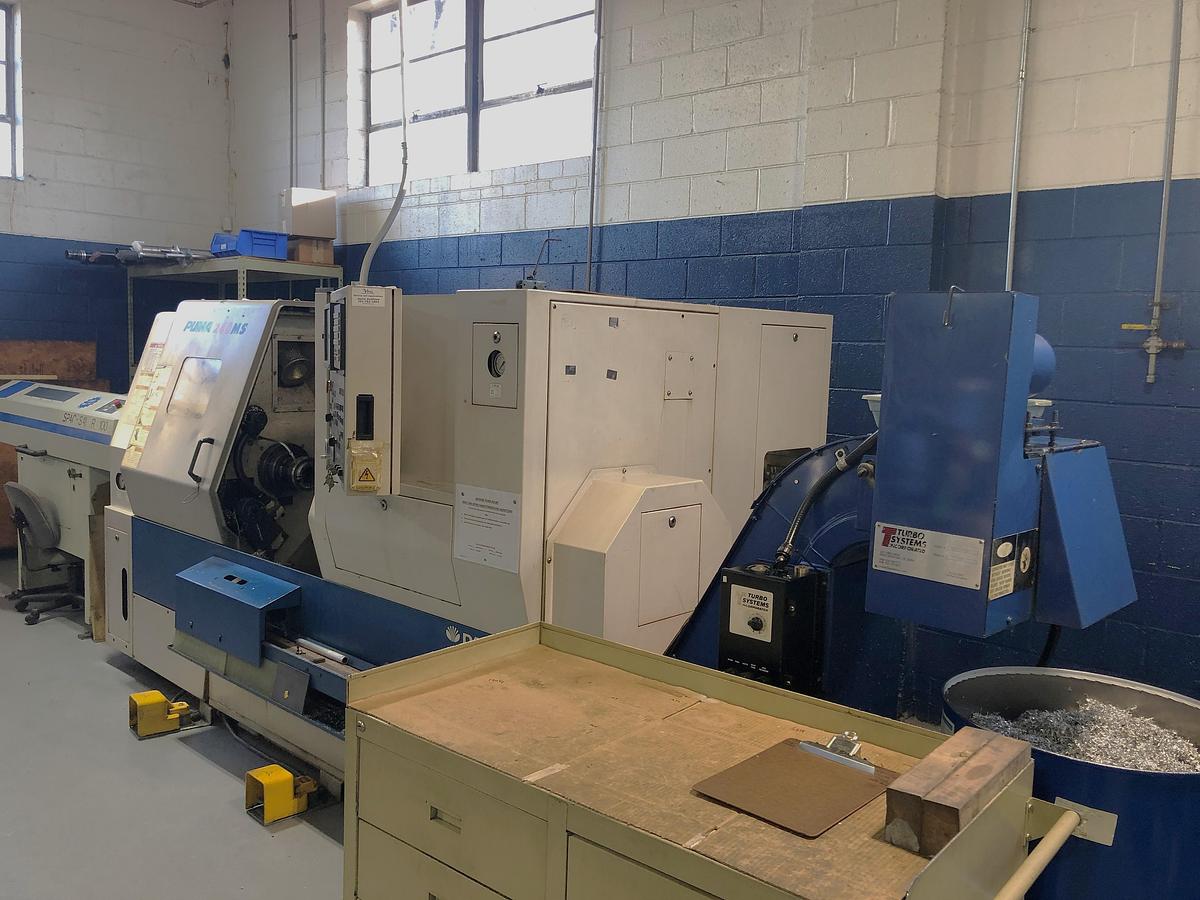

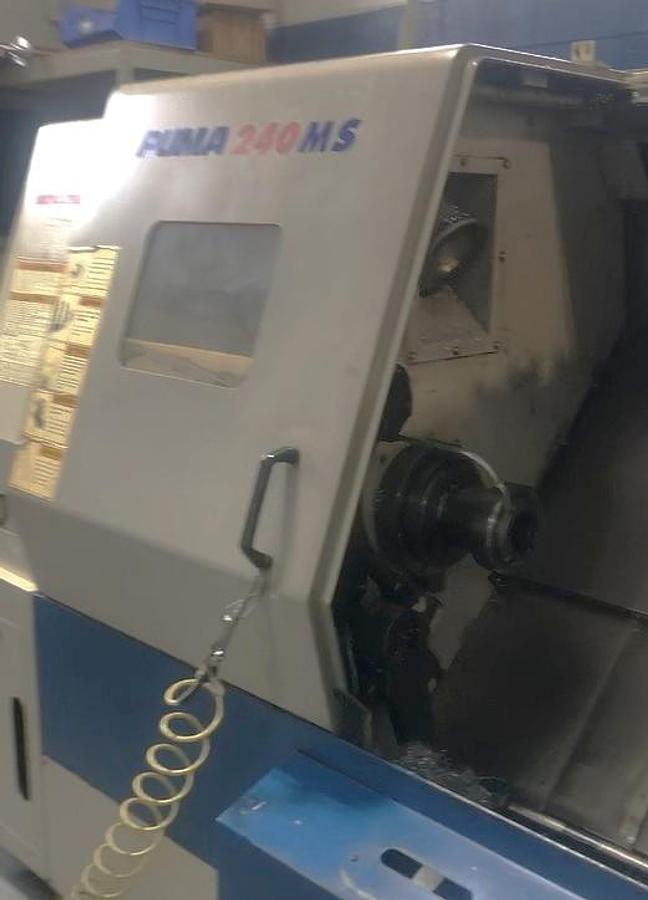

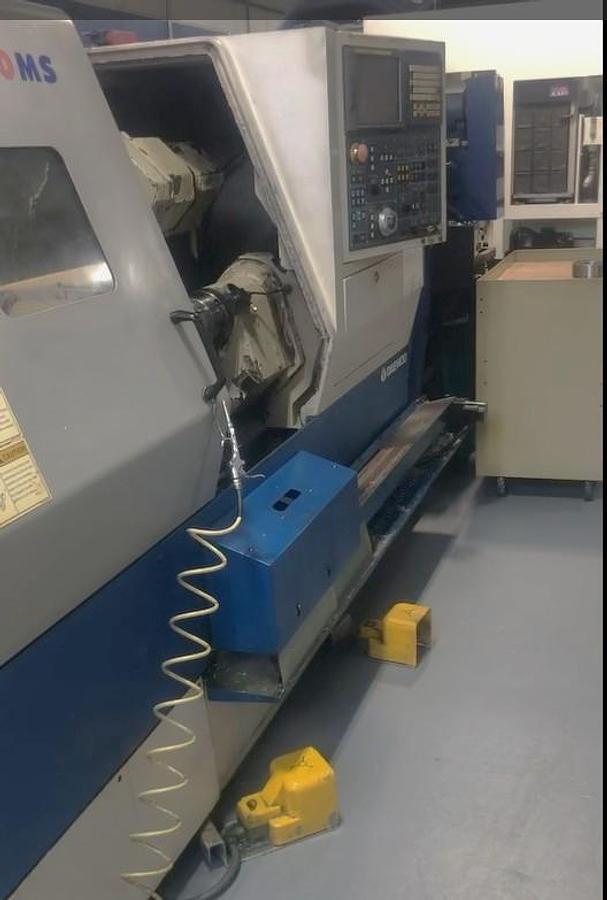

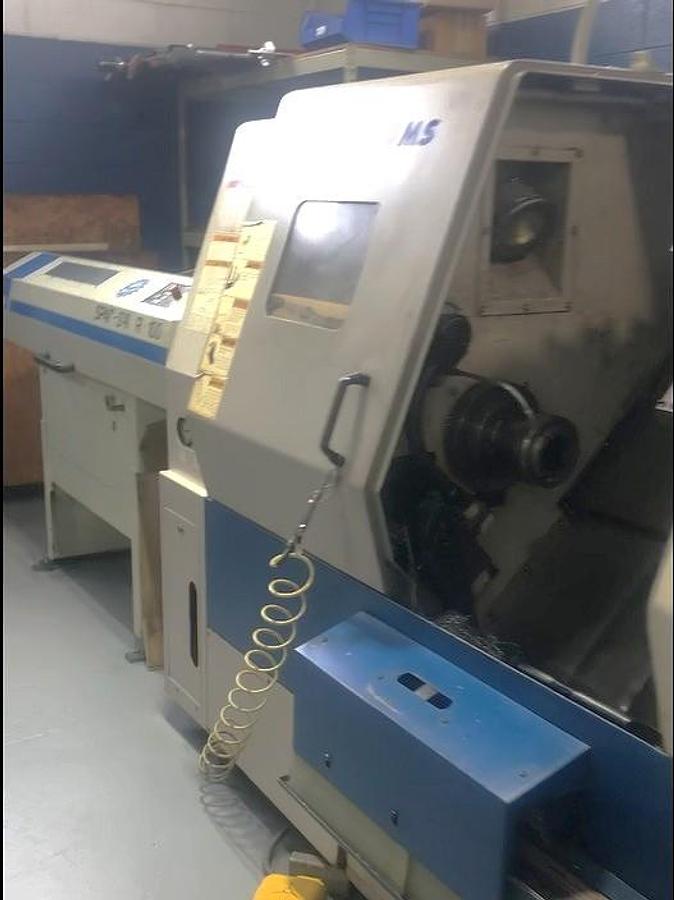

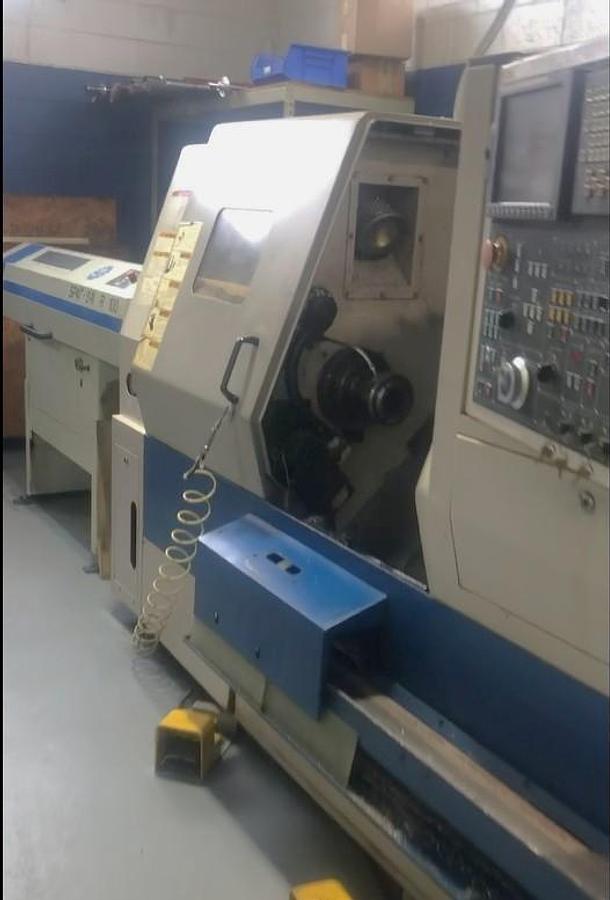

2004 Daewoo Puma 240MSB with Milling Capability, C Axis, SMW Barfeed, Chip Conveyor, Parts Catcher
2004 Daewoo Puma 240MSB with Milling Capability, C Axis, SMW Barfeed, Chip Conveyor, Parts Catcher
$12,500 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Subspindle
Tool Presetter

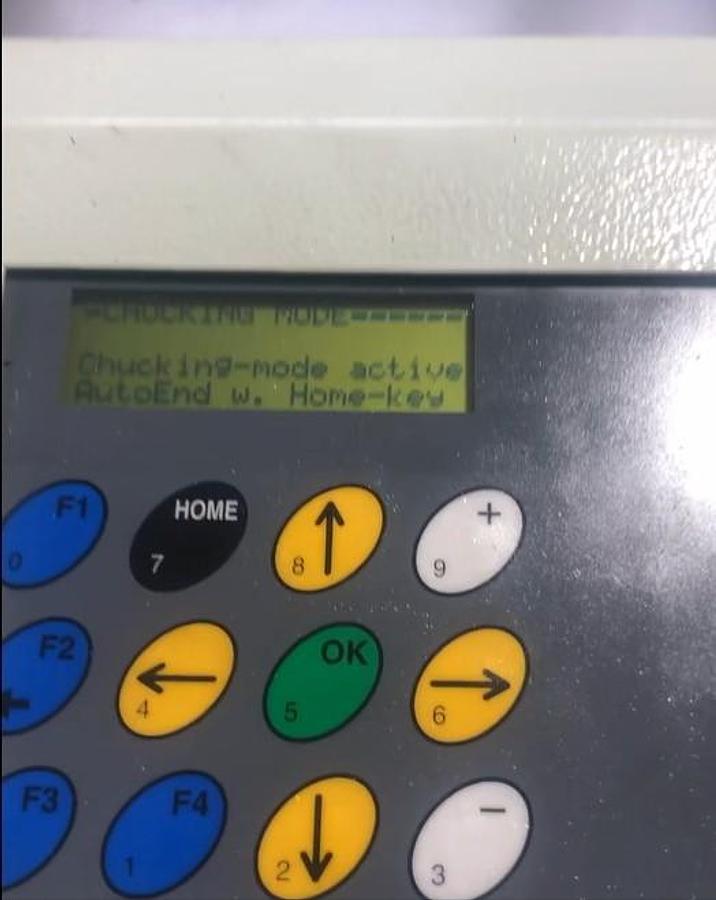

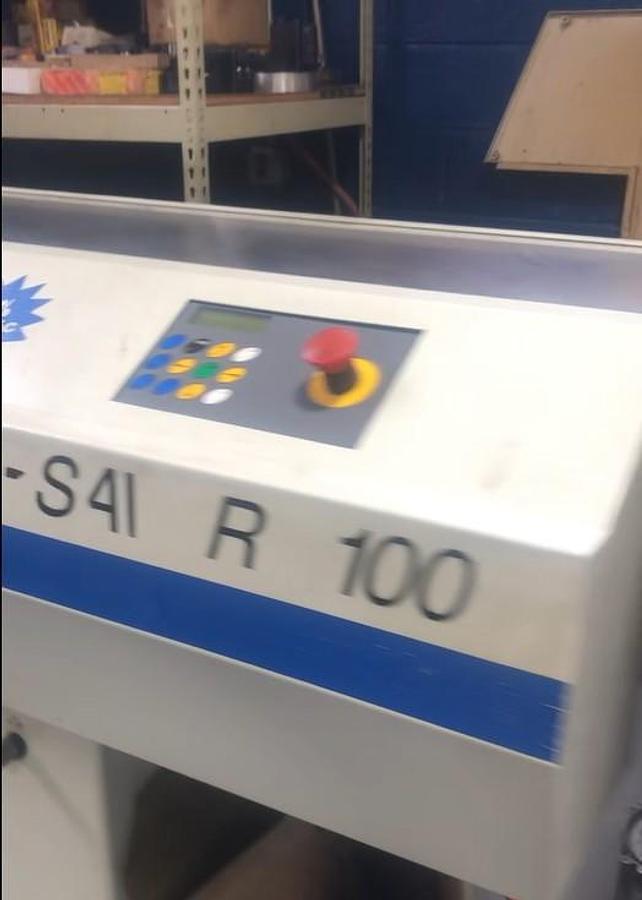

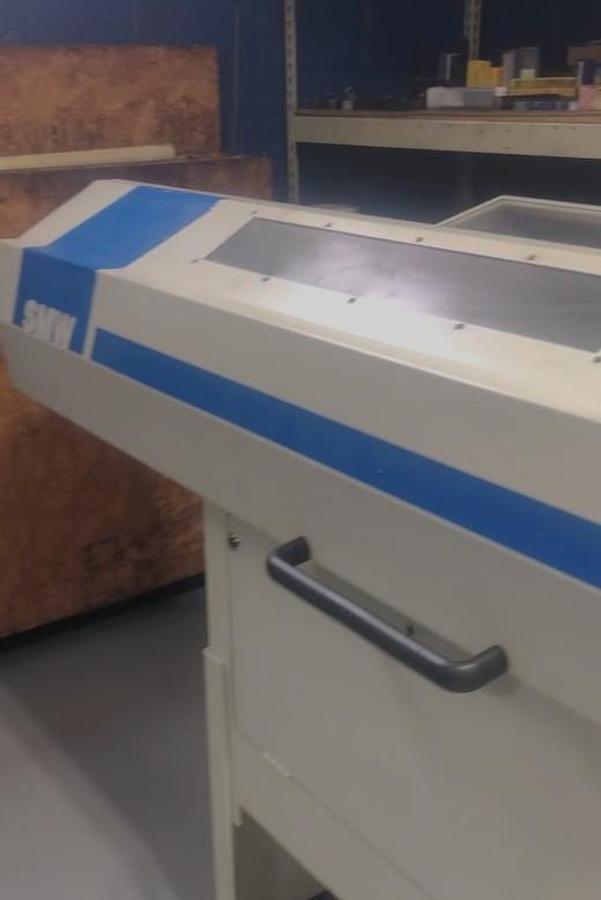

SMW Spacesaver 3100 Short Load Barfeeder
Parts Catcher
Parts Exit Conveyor
Chip Conveyor

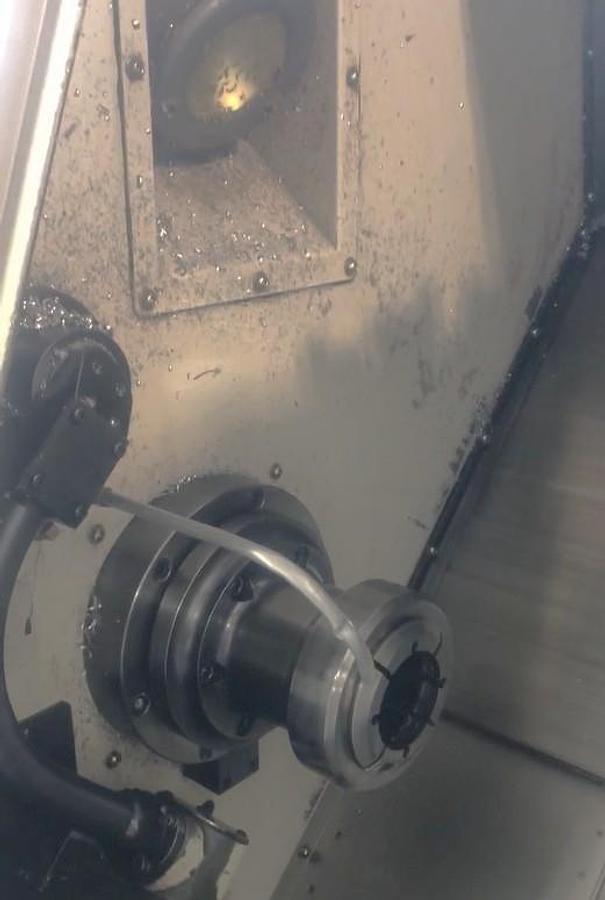

Collet Chuck on Main Spindle

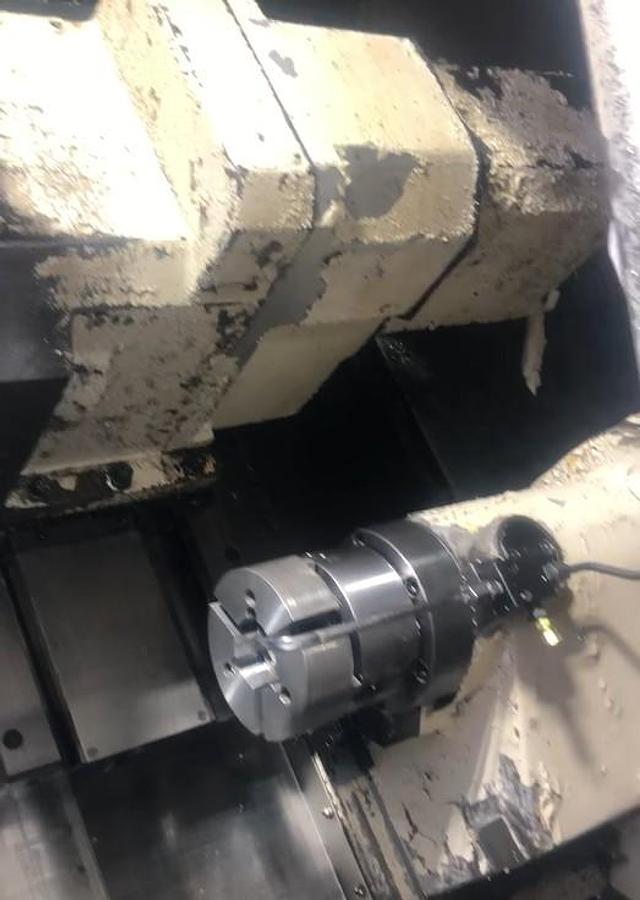

6" Hydraulic Chuck on Subspindle
Card Interface RS 232 Port Interface Boxed Ways
Coolant Tank with Pump All Available Tooling
All Available Manuals
**Shows 10,218 Cycle Hours**
**Spindle needs repair estimated at $5000**
Specifications
| Manufacturer | Daewoo |

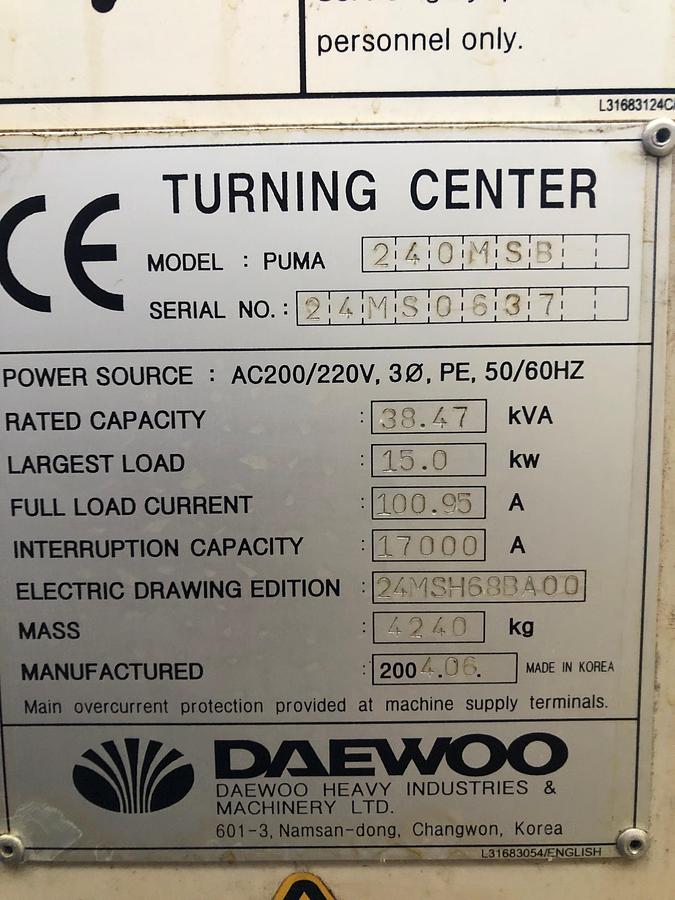

| Model | Puma 240MSB |
| Year | 2004 |
| Condition | Used |
| Stock Number | 120591 |

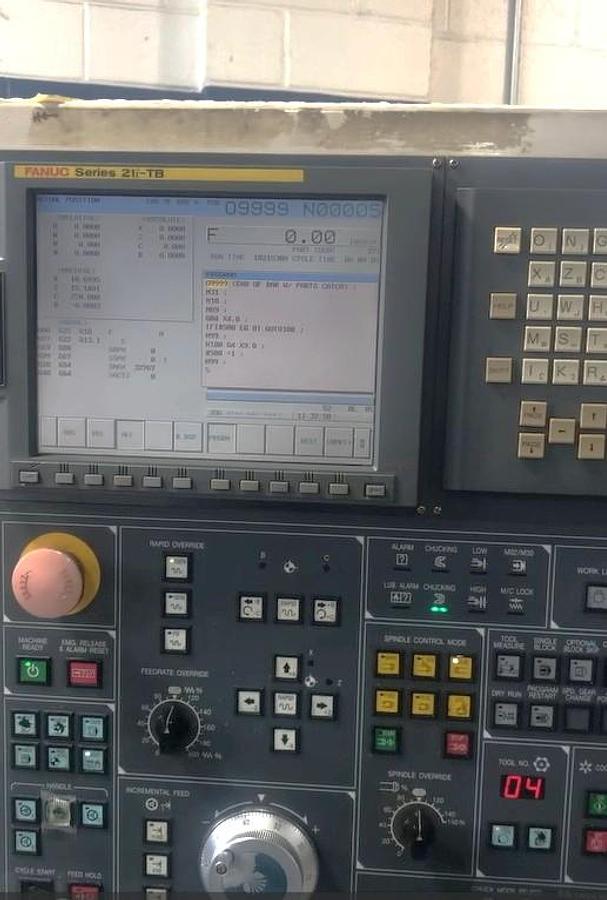

| Control | Fanuc 21i-TB Control |
| Chuck Size | Collet Chuck / not available |
| Maximum Swing over Bed | 21.7" |
| Maximum Cutting Diameter | 11.4" |
| Maximum Machining Length | 19.37" |
| Maximum Bar Capacity | 2.56" |
| X-Axis Travel | 8.07" |
| Z-Axis Travel | 22.83" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 2.99" |
| Spindle Speeds - Main | 55 - 5,000 RPM |
| Spindle Motor - Main | 25 HP |
| Subspindle Speed / Motor | 6,000 RPM / 7.5 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |

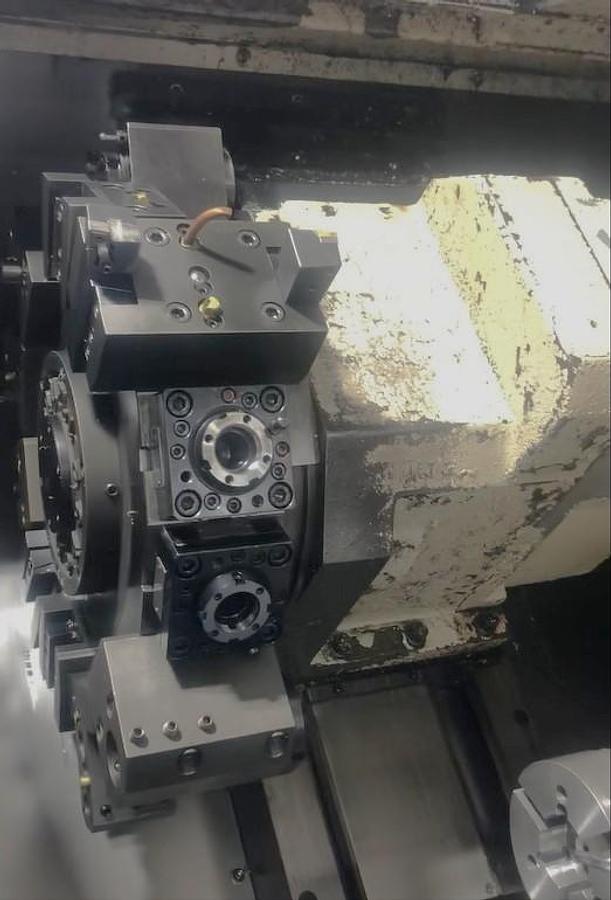

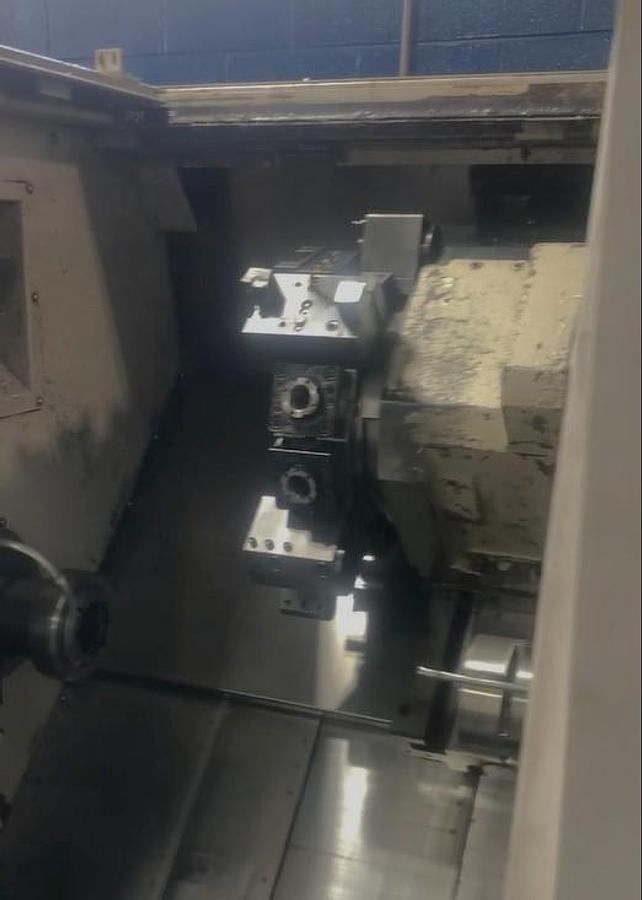

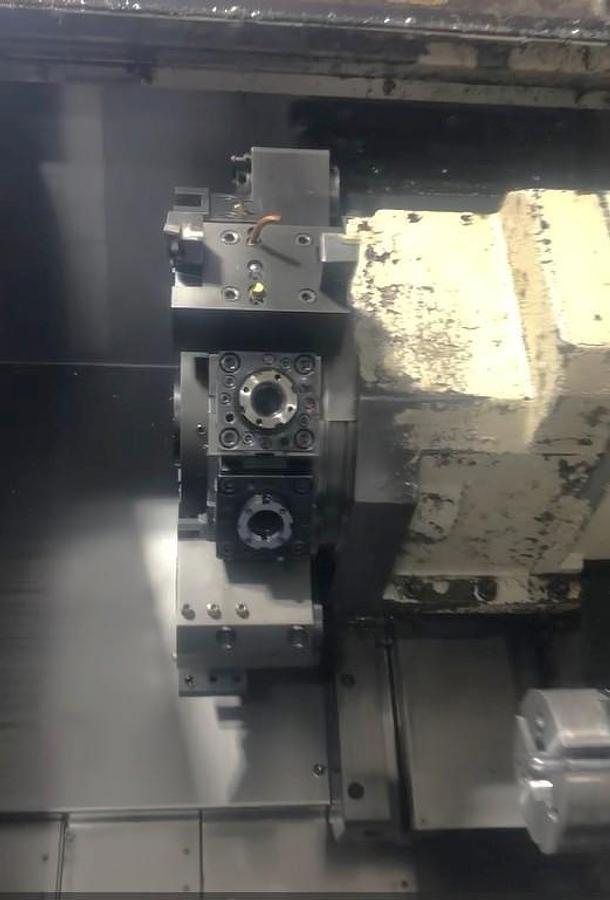

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/ Z / C | 945 IPM / 1181 IPM / 200 RPM |
| Machine Dimensions | 130" x 63" x 70" (machine only), 170" with conveyor gooseneck |
| Machine Weight | 9,780 lbs. |
