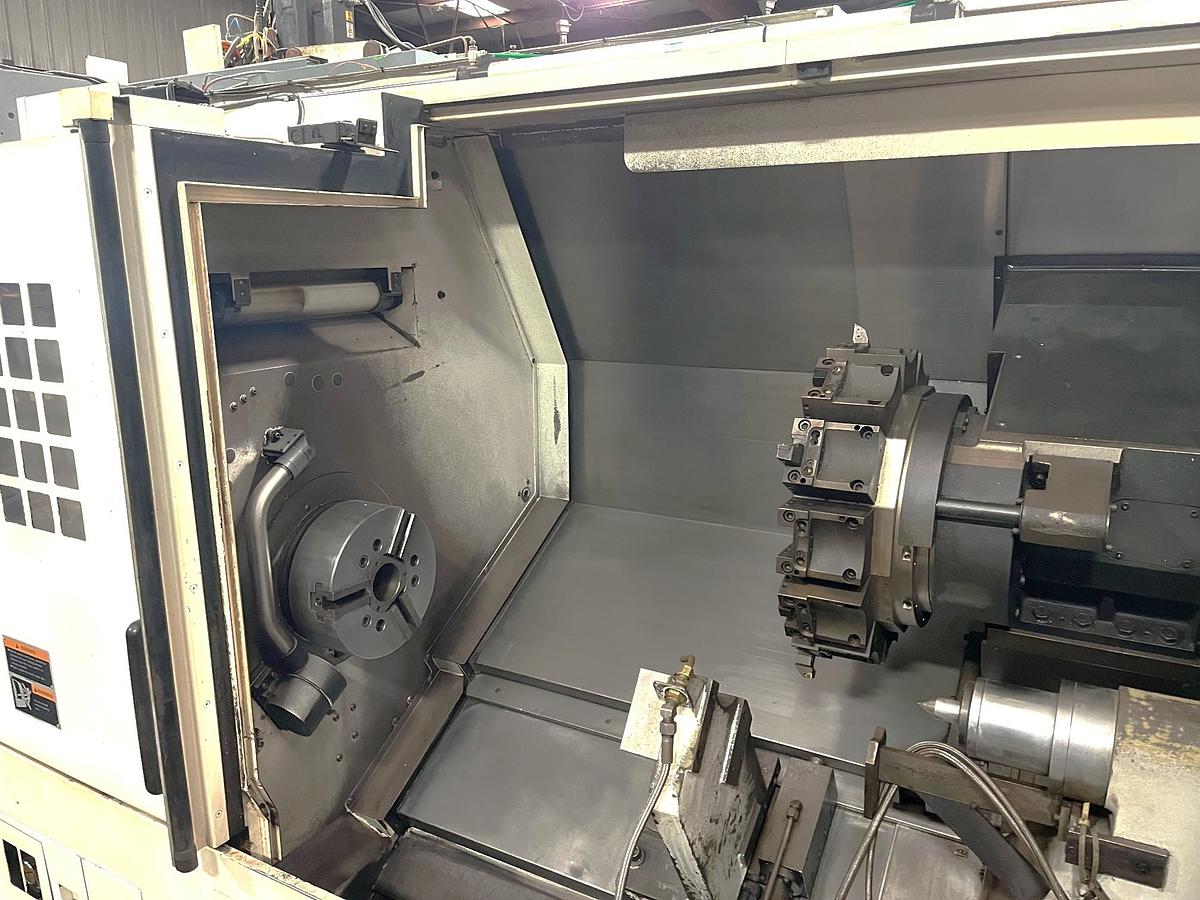

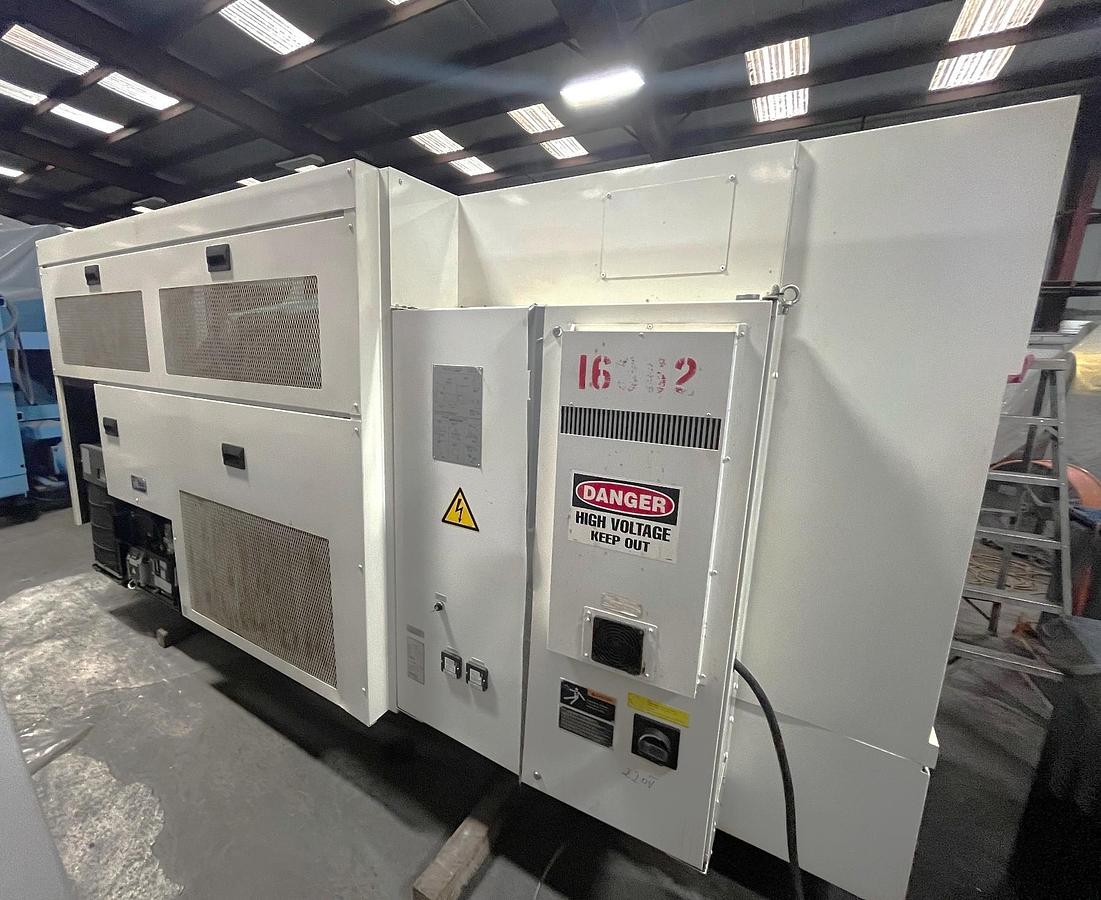

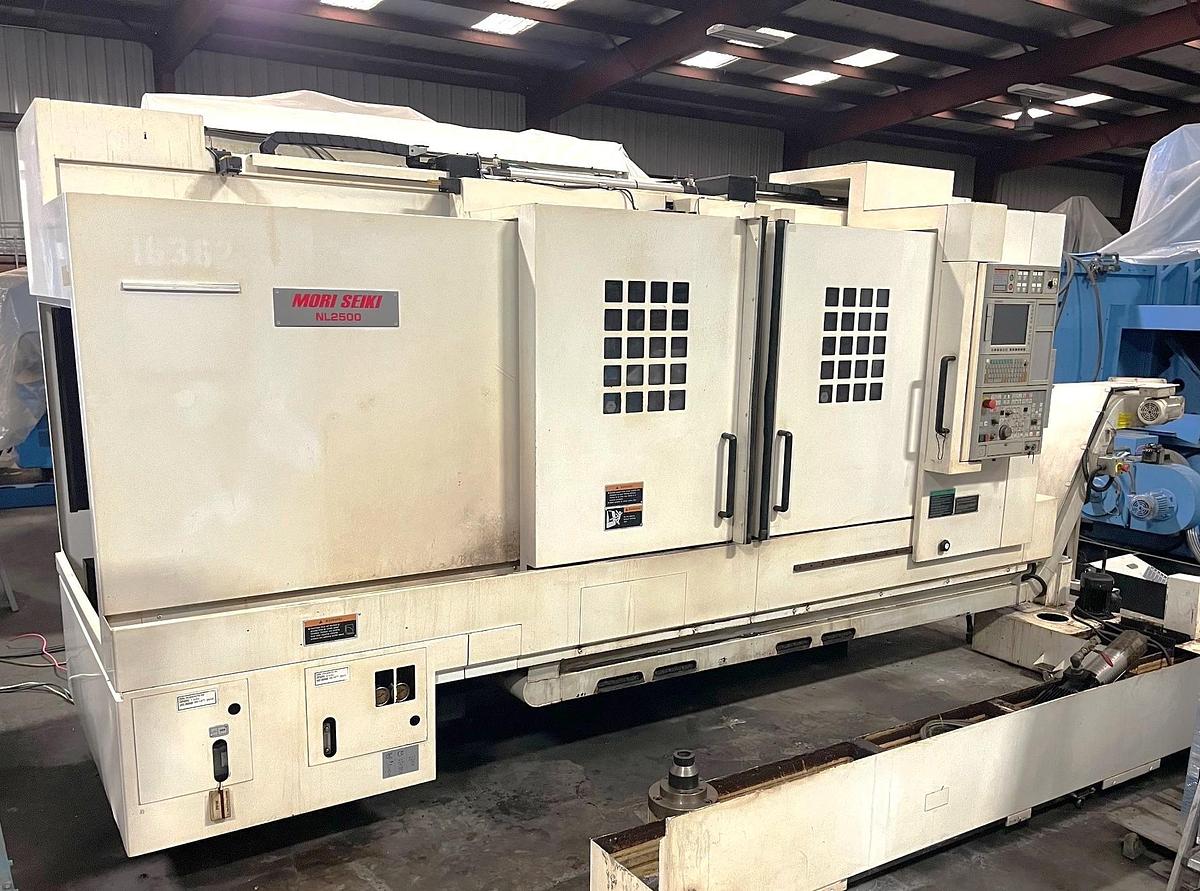

2011 Mori Seiki NL2500/1250 with Tailstock, Tool Presetter, 12" Hyd Chuck, Chip Conveyor
2011 Mori Seiki NL2500/1250 with Tailstock, Tool Presetter, 12" Hyd Chuck, Chip Conveyor
$49,500 (USD)
Location:Texas
or
Call (863) 439-6066
Description
12" 3 Jaw Kitagawa Hydraulic Chuck
Tailstock
Tool Presetter
Chip Conveyor
Coolant System with Tank & Pump
Card Interface
RS 232 Port Interface
All Available Tooling
Specifications
| Manufacturer | Mori Seiki |
| Model | NL2500/1250 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 120584 |

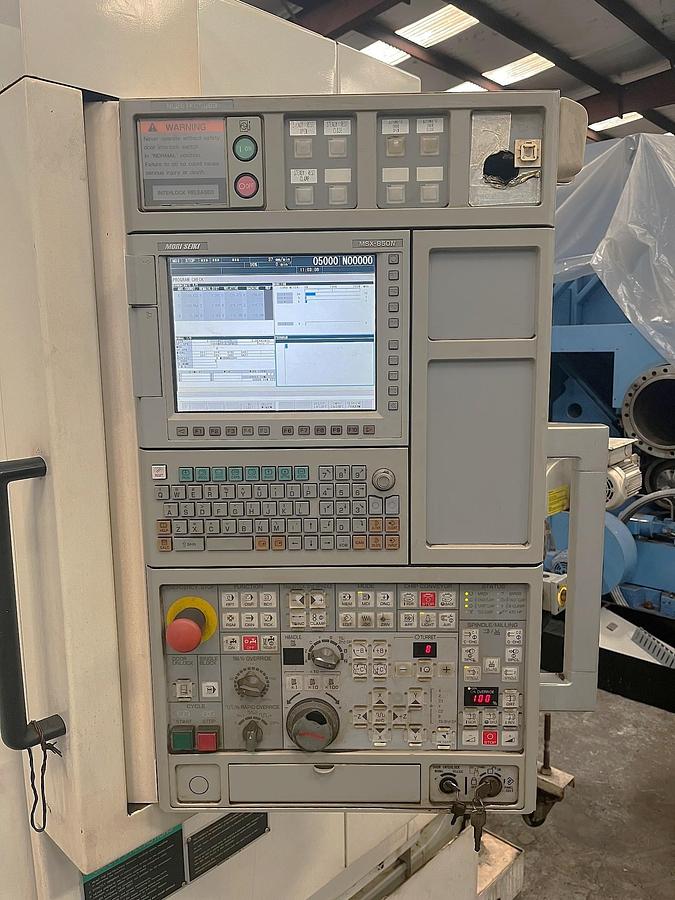

| Machine Control | Mori MSX-850IV Control |
| Chuck size | 12" Hydraulic Chuck |
| Swing over bed/over cross slide | 36.4" / 29.7" |
| Max turning dia/standard turning dia | 14.18" / 10.8" |
| Max turning length | 49.25" |
| X-axis travel | 10.2" |
| Z-axis travel | 51.22" |
| Spindle nose / spindle bore | A2-8" / 3.1" |
| Spindle speeds | 4,000 RPM |
| Spindle motor | 30 HP |
| Number of turret positions | 12 Position Turret |
| Rapid traverse rates x, z, b / y | 1181 IPM / 394 IPM |
| Machine dimensions lxwxh | 197"x83"x91" |
| Machine weight | 13,640 lbs. |
