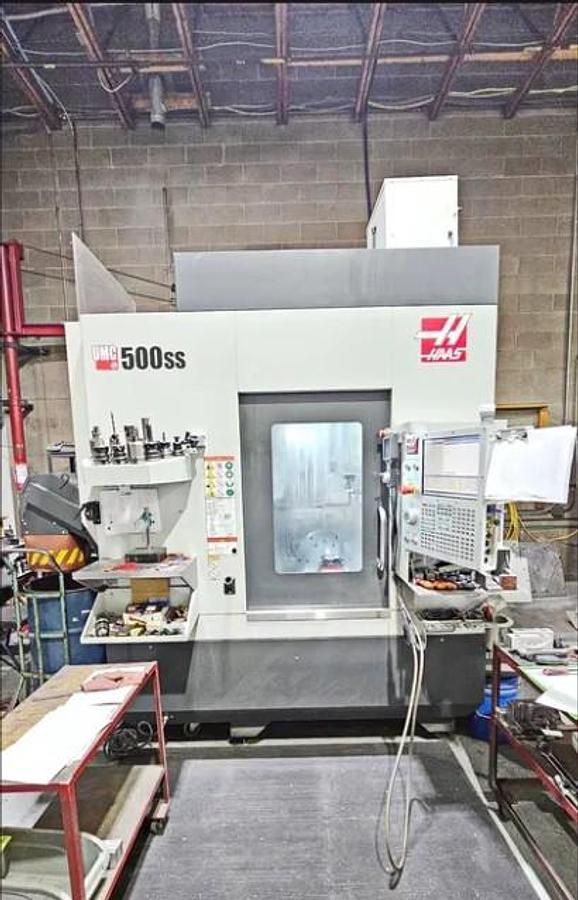

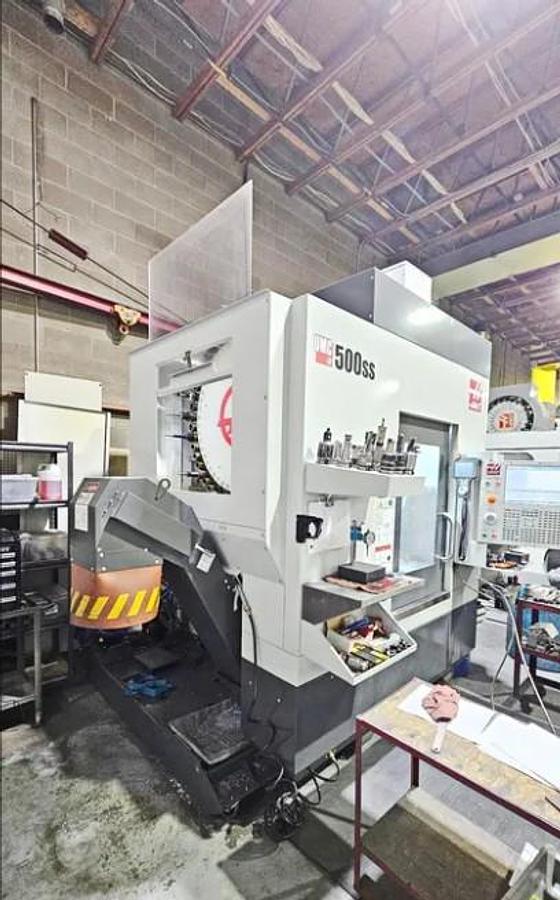

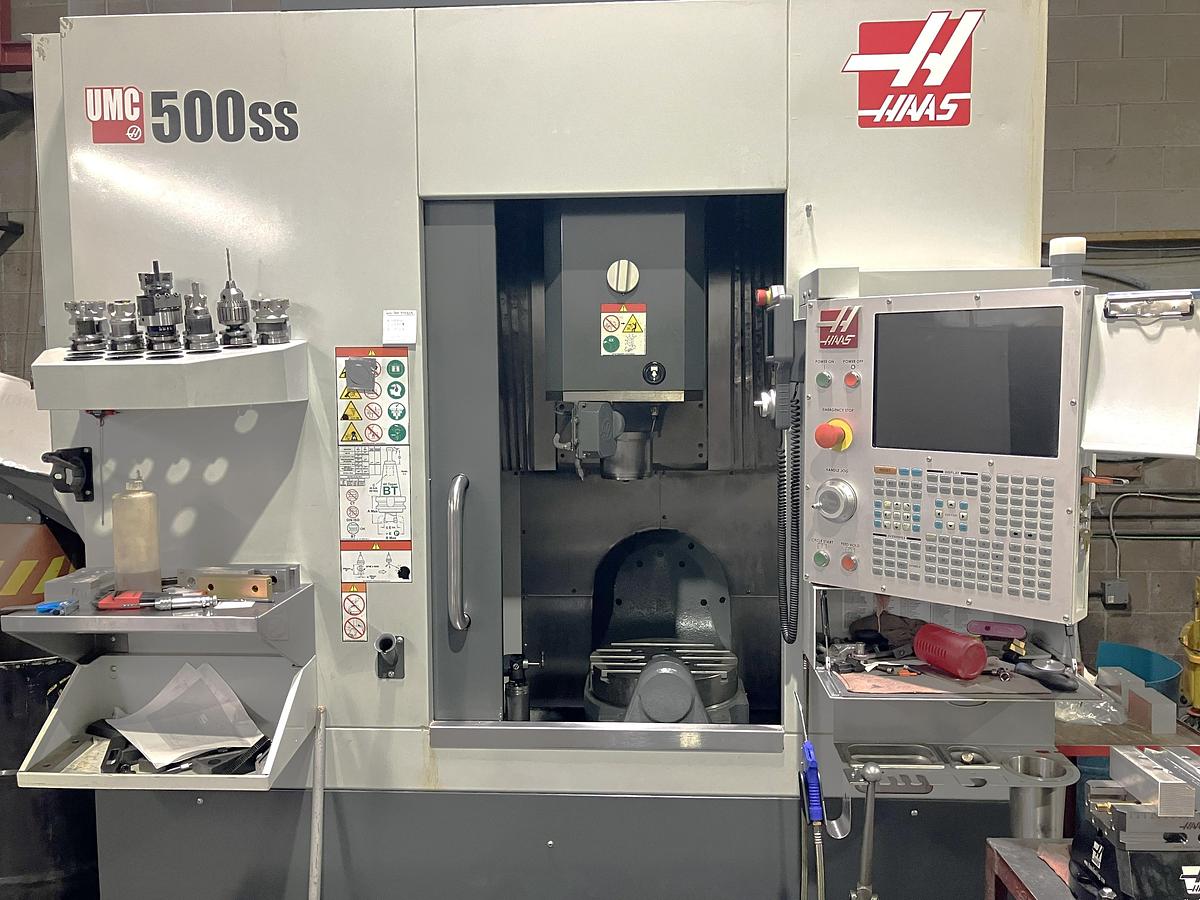

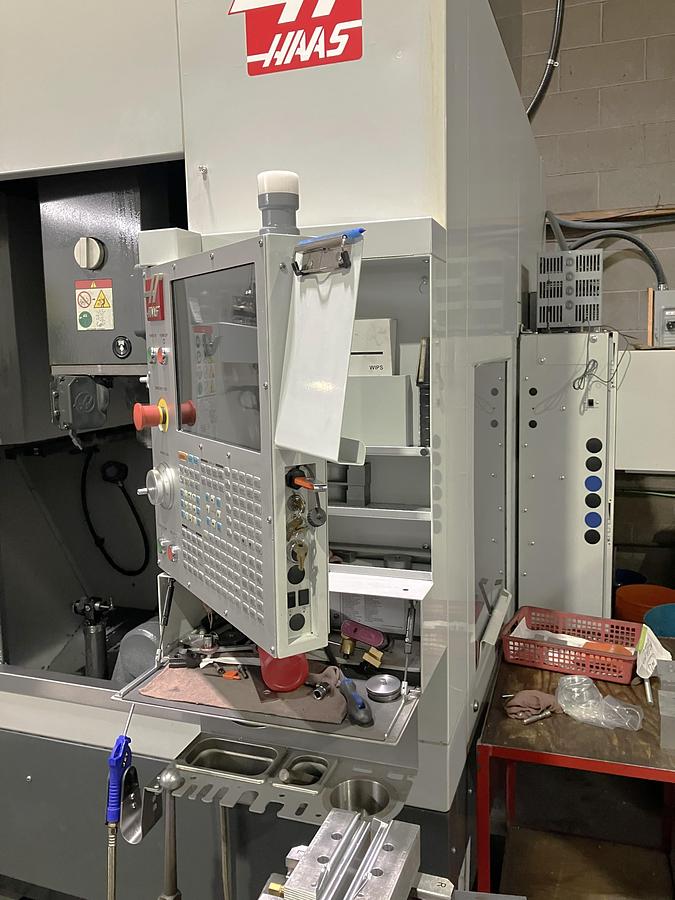

2021 Haas UMC-500SS 5 Axis Universal Machining Center with Coolant Thru Spindle, Probing, HSM, Conveyor, 50 Station ATC

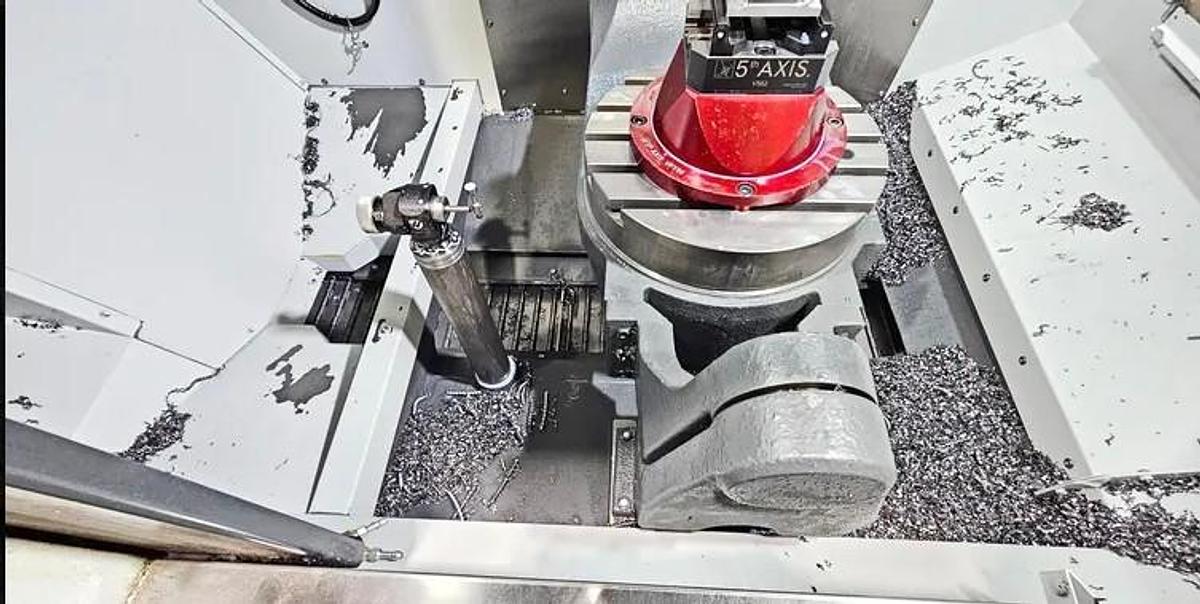

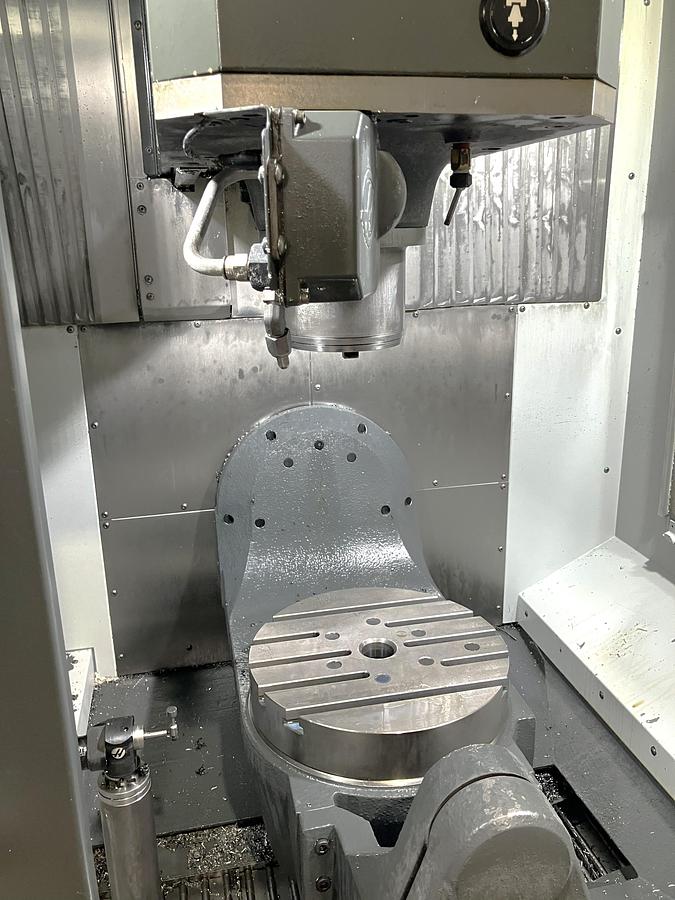

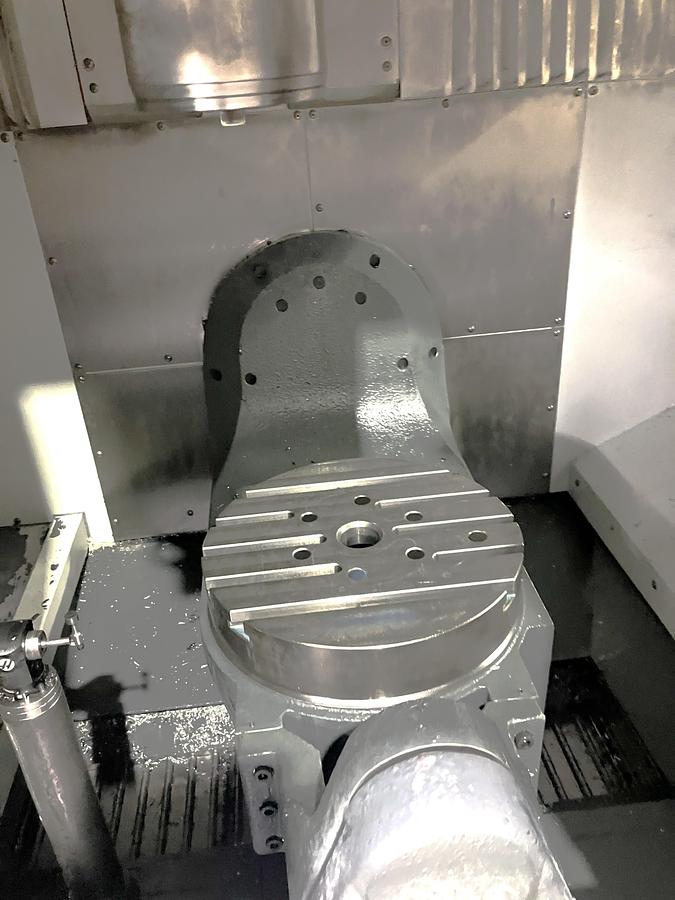

Trunnion Style 5th Axis Table

Coolant Through the Spindle - 300 PSI

Renishaw Probing with Tool & Part Probing

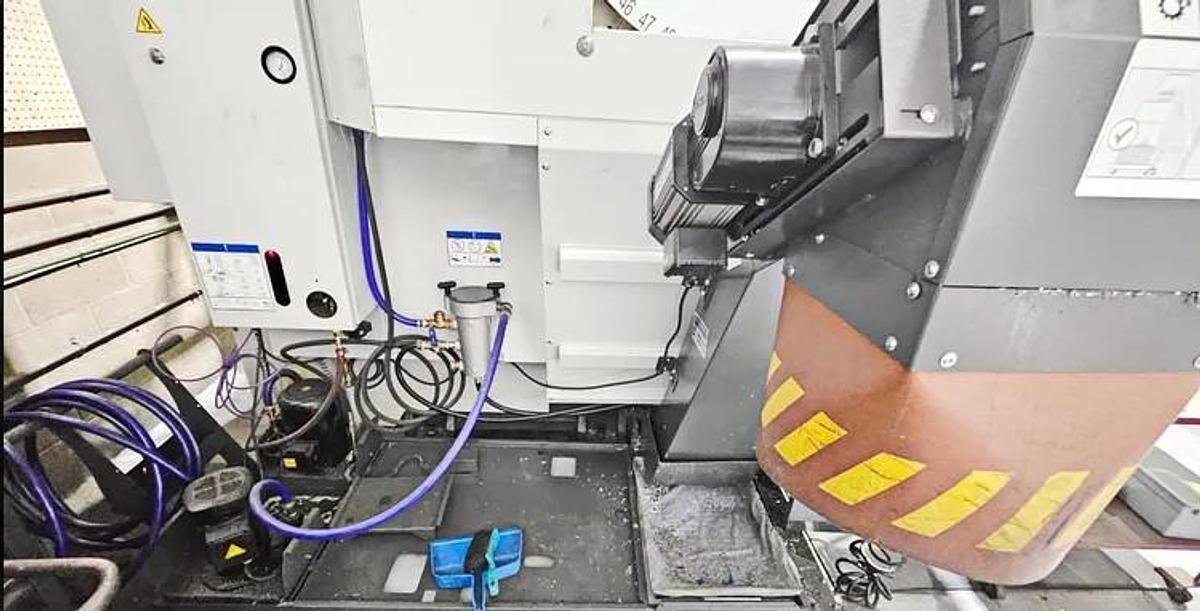

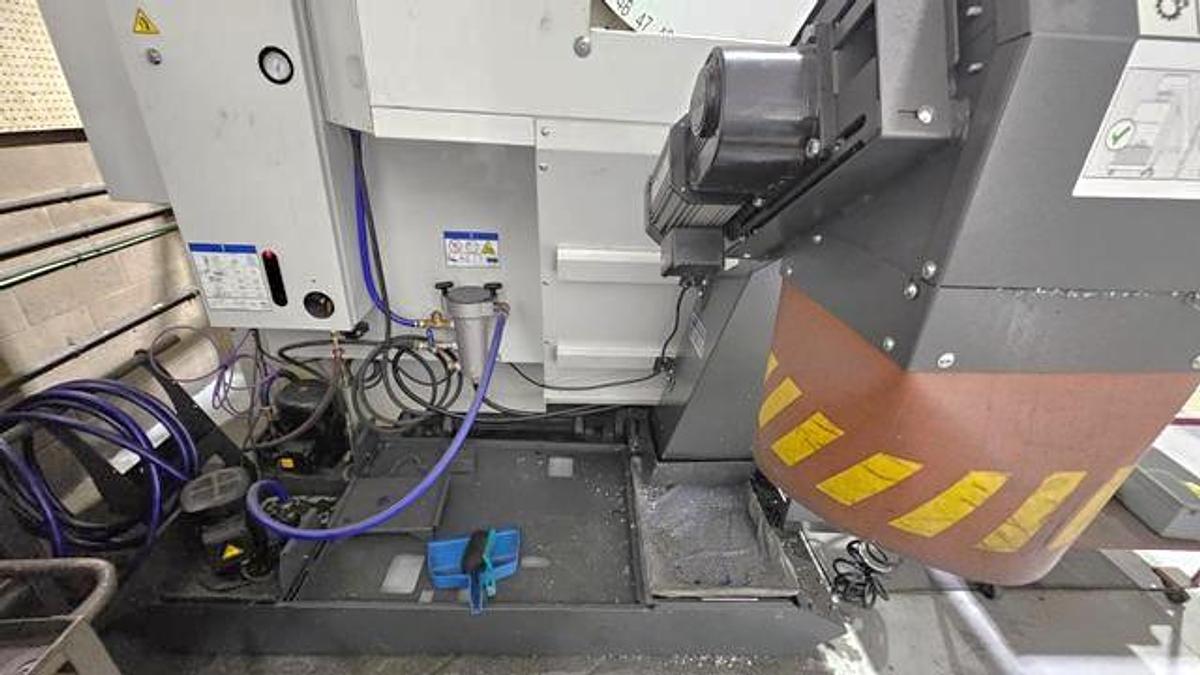

Chip Conveyor

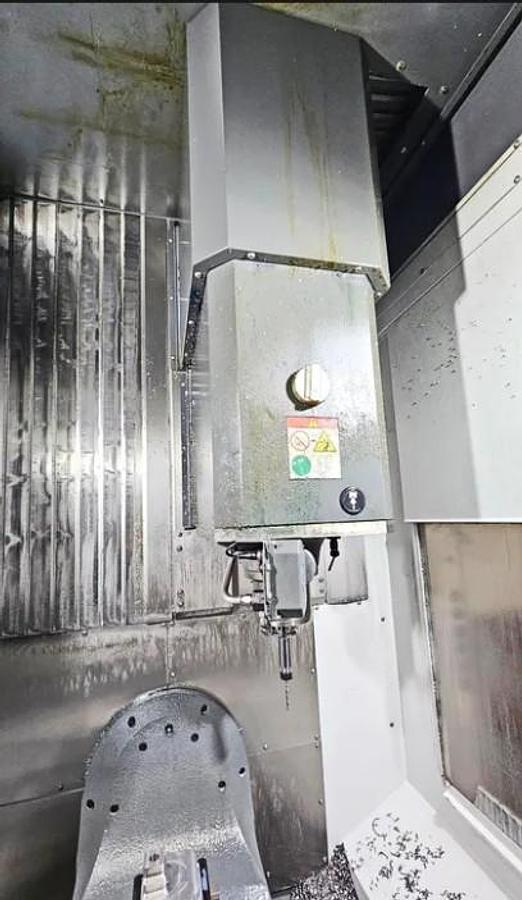

12,000 RPM Spindle

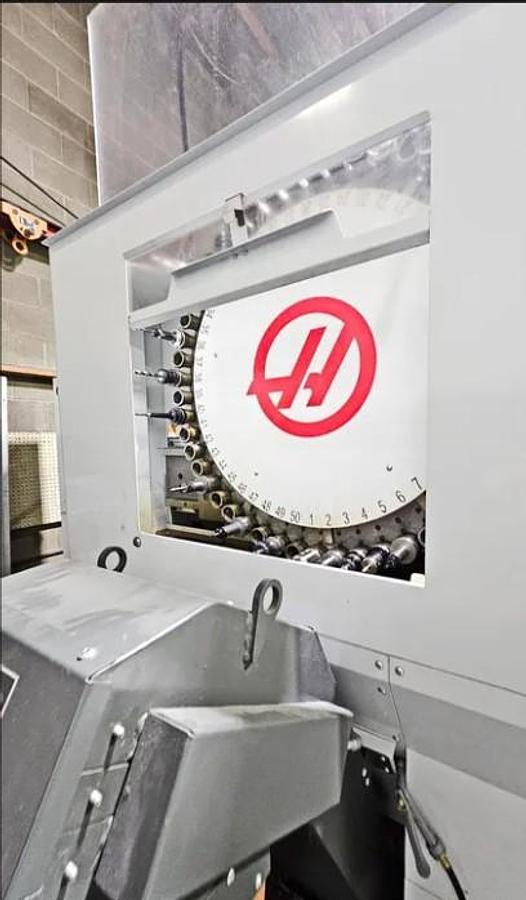

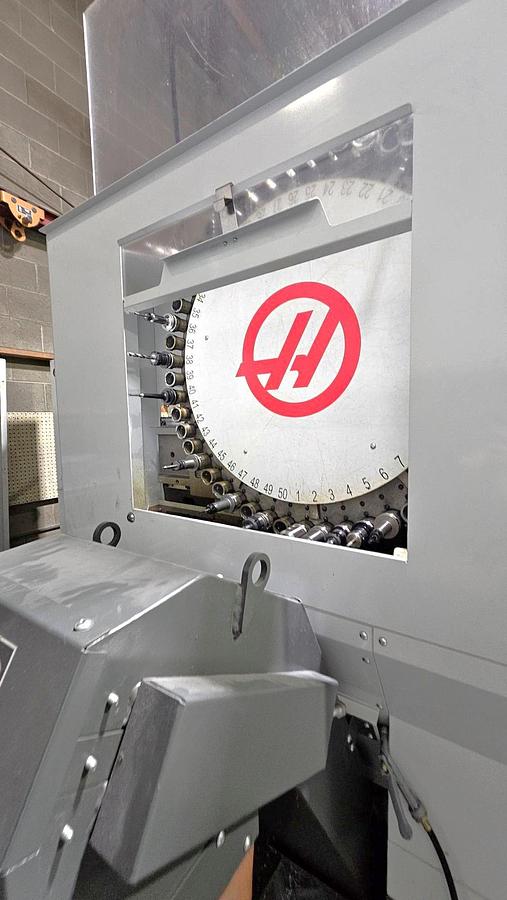

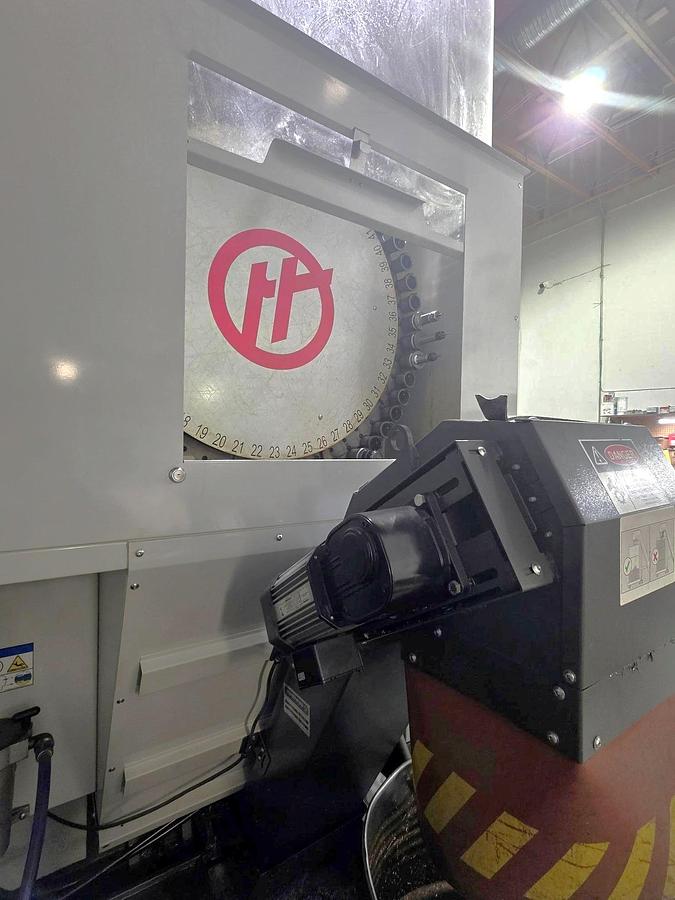

50 Station Side Mounted Tool Changer

Programmable Coolant Nozzle

Remote Jog Handle

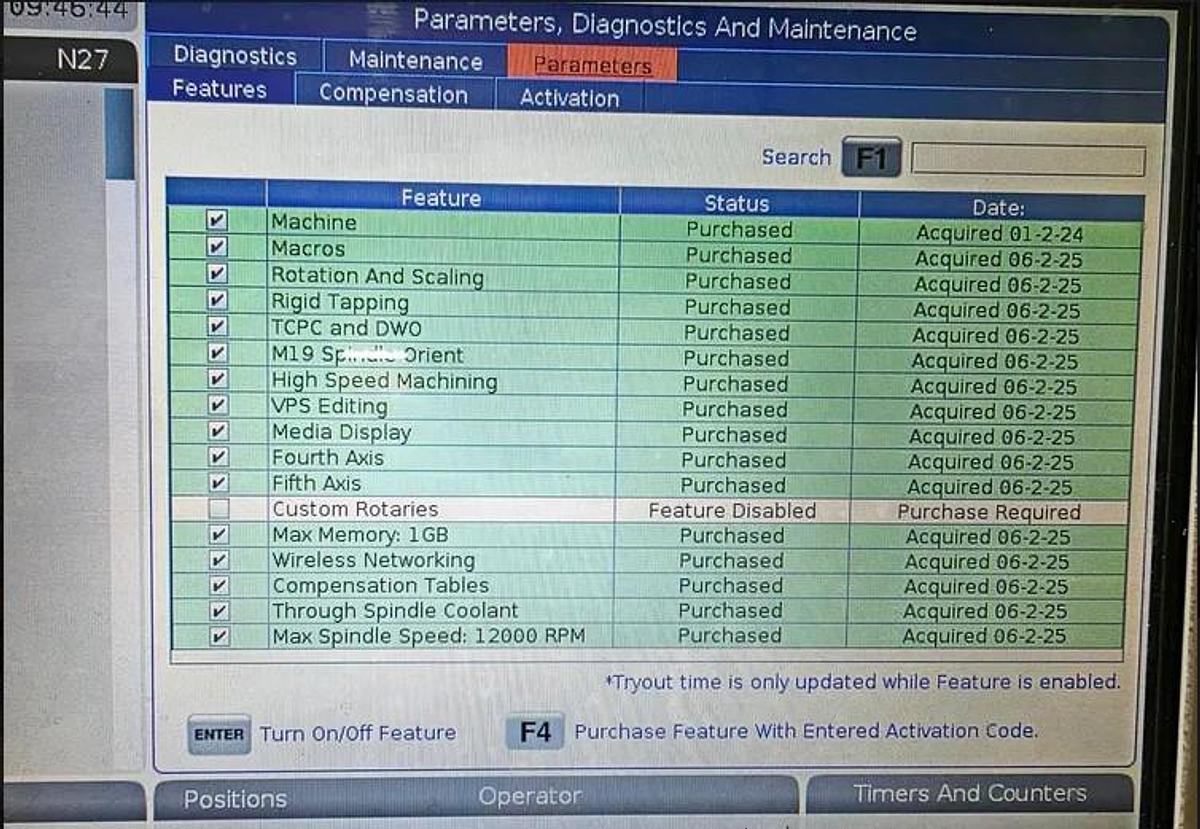

User Definable Macros

Coordinate Rotation & Scaling

Spindle Orientation

Haas Visual Programming System Editing

Rigid Tapping

High Speed Machining

Mist Away Mist Collector

Compensation Tables

Media Display

1 GB Program Memory

Wireless Networking

Ethernet Interface

USB Port Interface

RS 232 Port Interface

Coolant System with Tank & Pump

Chip Strainer

Wired 220V Electrics

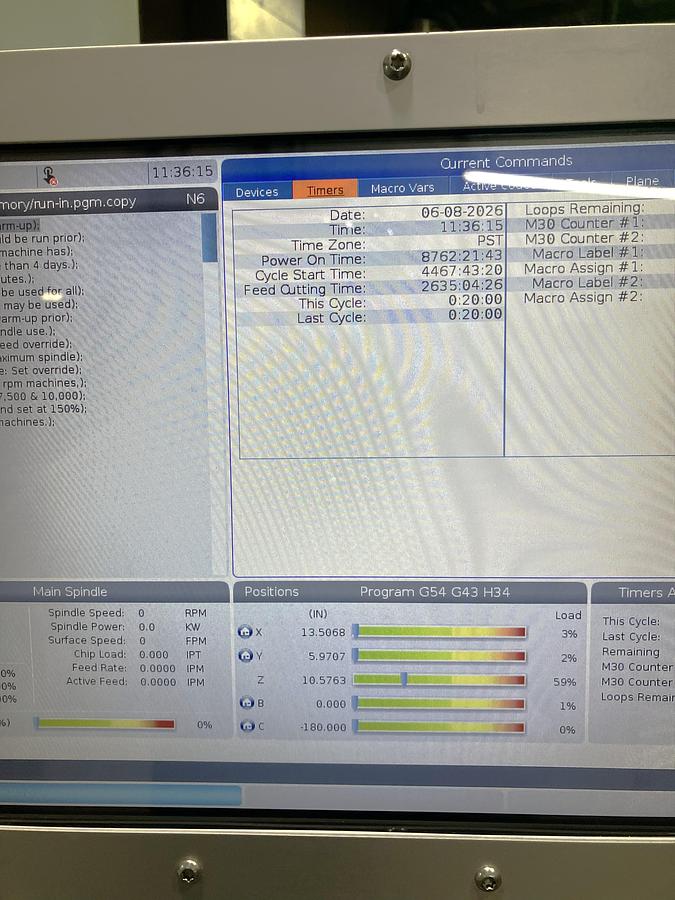

**Power On Hours 8,762**

**Cycle Start Hours 4,467**

**Feed Cutting Hours 2,635**

**This unit has a BT40 spindle taper, which can be changed out to a CAT40 if need be at a reasonable cost**

The 2021 Haas UMC-500SS 5 Axis Universal Machining Center was delivered new in 2022 and is a high-performance CNC vertical machining center designed for precision and efficiency. This used model comes equipped with essential features such as a Coolant Thru Spindle and a comprehensive probing system for enhanced accuracy in sophisticated machining applications. With High-Speed Machining (HSM) capabilities and a conveyor for smooth operations, it is an excellent choice for demanding production environments. It offers a versatile working area with an X-axis travel of 24 inches, Y and Z-axis travel of 16 inches each. The trunnion-style table with a diameter of 15.7 inches can handle loads up to 500 lbs, and provides B axis rotation from -35 to 110 degrees, and C axis positioning with .001-degree accuracy. The spindle operates at a robust 12,000 RPM and is driven by a 30 HP motor, capable of handling substantial production demands. Furthermore, the tool changer accommodates 50 tools plus one additional, supporting a variety of sizes and weights. This machine is compact yet powerful, with overall dimensions of 128" x 98" x 110" and a weight of 12,500 lbs, making it suitable for diverse manufacturing environments. It includes an upgraded 50 station tool changer with a BT40 taper spindle. The Haas UMC-500SS ensures efficiency with rapid traverse rates of 1200 IPM and maximum feed rates of 650 IPM, providing an exceptional balance of speed and precision for your machining needs.
