2018 Haas Mini Mill

Rigid Tapping

Programmable Coolant

Chip Auger

4th Axis Drive & Wiring

High-Speed Maching

Educational Control Software

**Used for educational purposes, never ran parts**

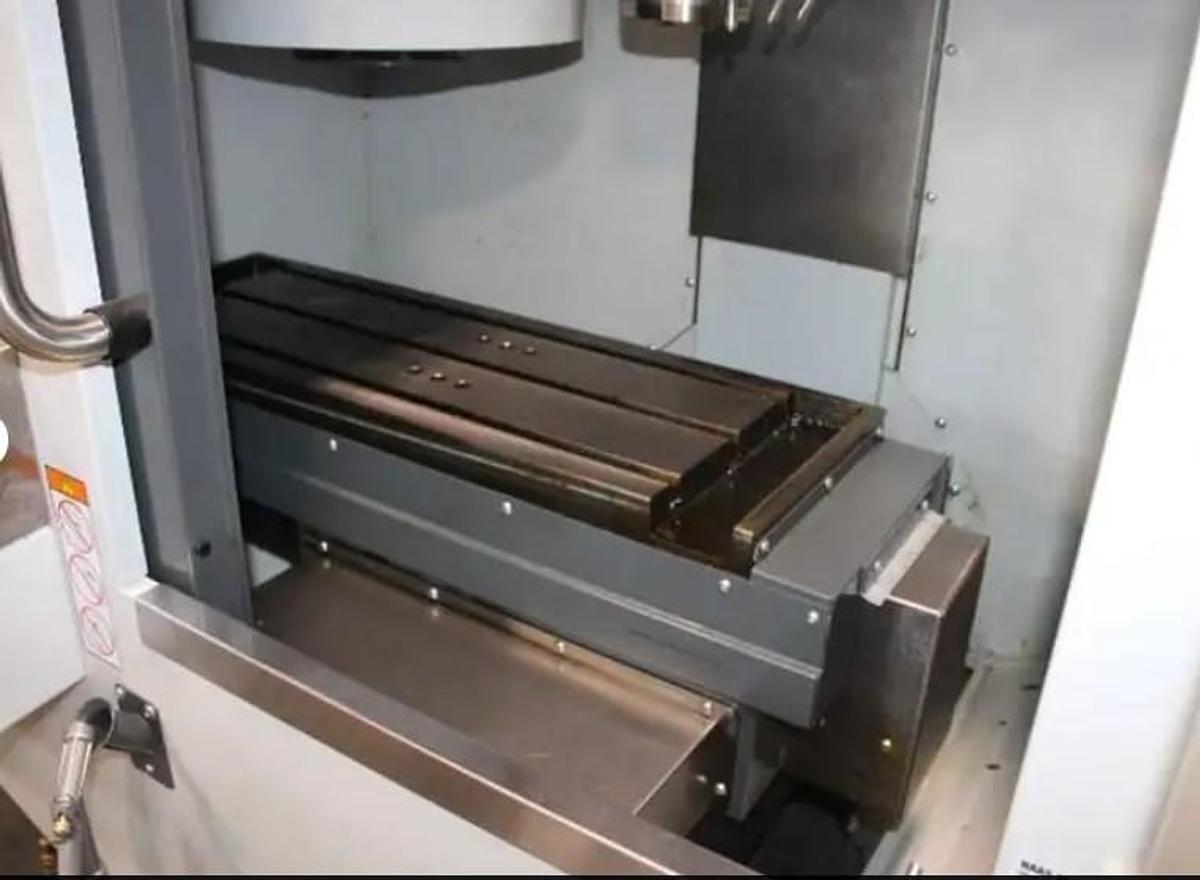

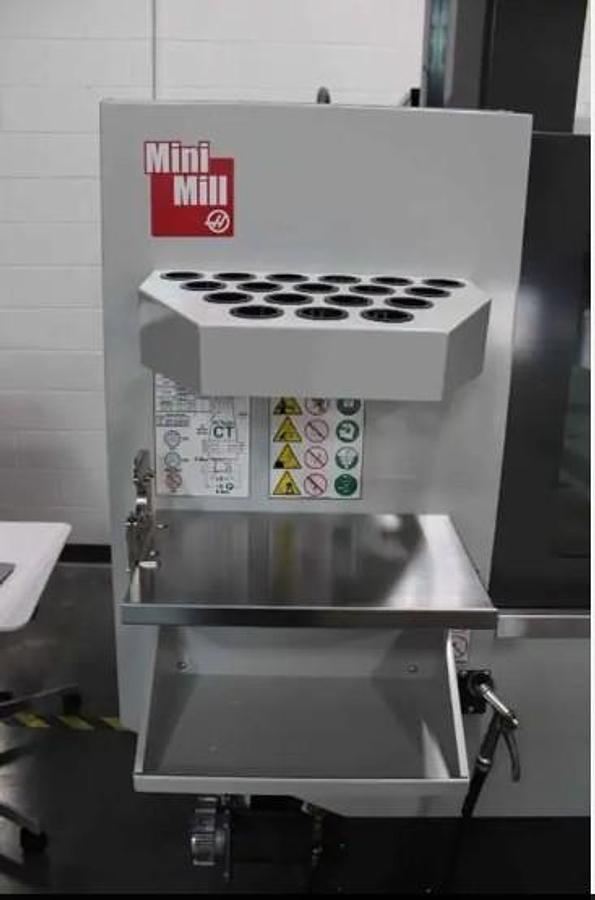

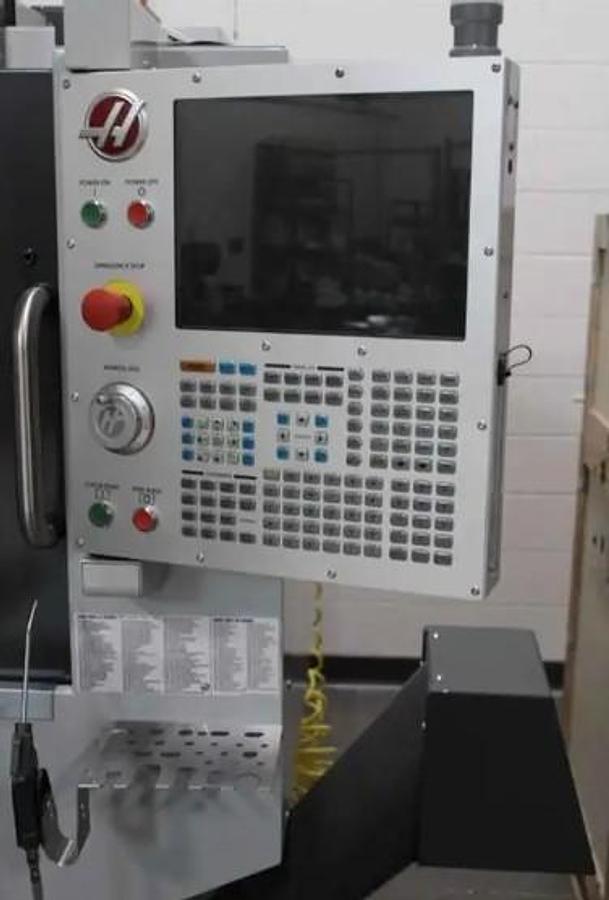

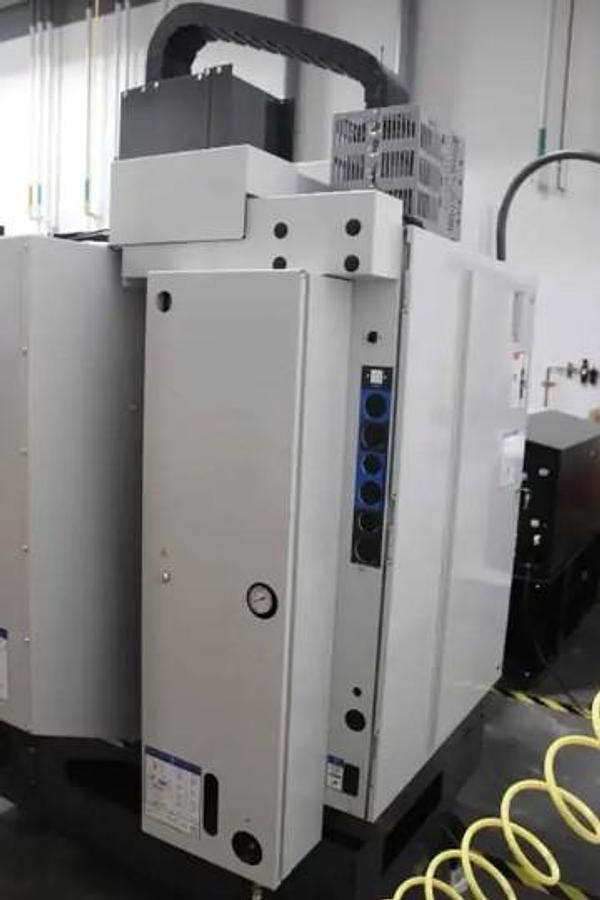

The 2018 Haas Mini Mill is a reliable CNC Vertical Machining Center well-suited for small parts machining. It's a used model, offering a 36" x 12" table size capable of handling loads up to 500 lbs. The machine features 16" of X-axis travel, 12" of Y-axis travel, and 10" of Z-axis travel, making it versatile for a variety of applications. Equipped with a CAT #40 spindle taper, the Mini Mill runs at spindle speeds up to 6,000 RPM, powered by a 7.5 HP motor. It accommodates a 10-position automatic tool changer, with swift tool changes in just 2.5 seconds. The device offers rapid traverse rates of 650 IPM and cutting feed rates of 500 IPM, ensuring efficiency in operation. The machine fits within compact dimensions of 78" x 72"x 85" and weighs 4,100 lbs., making it suitable for shops with limited space. With a spindle nose to table top distance ranging from 4" to 14", the setup provides flexibility in tooling and machining operations. This Mini Mill is a practical choice for those looking for a robust yet compact CNC solution.
