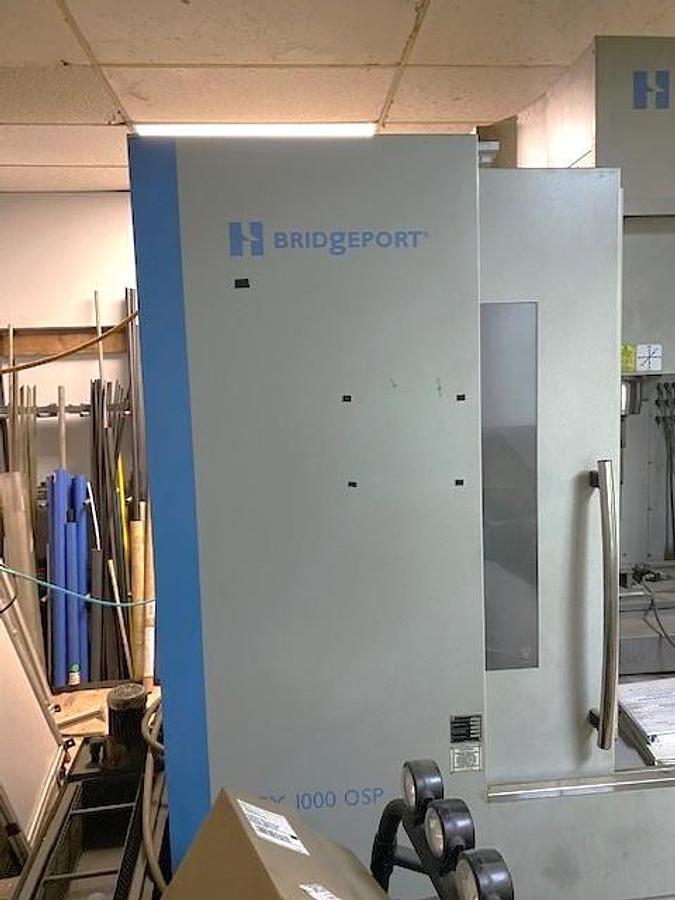

2011 Hardinge Bridgeport GX1000 OSP with 4th Axis Rotary Table
2011 Hardinge Bridgeport GX1000 OSP with 4th Axis Rotary Table
$12,500 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description
4th Axis Rotary Table
Card Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Boxed Ways
All Available Manuals
Wired at 220V Electrics
Specifications
| Manufacturer | Hardinge Bridgeport |

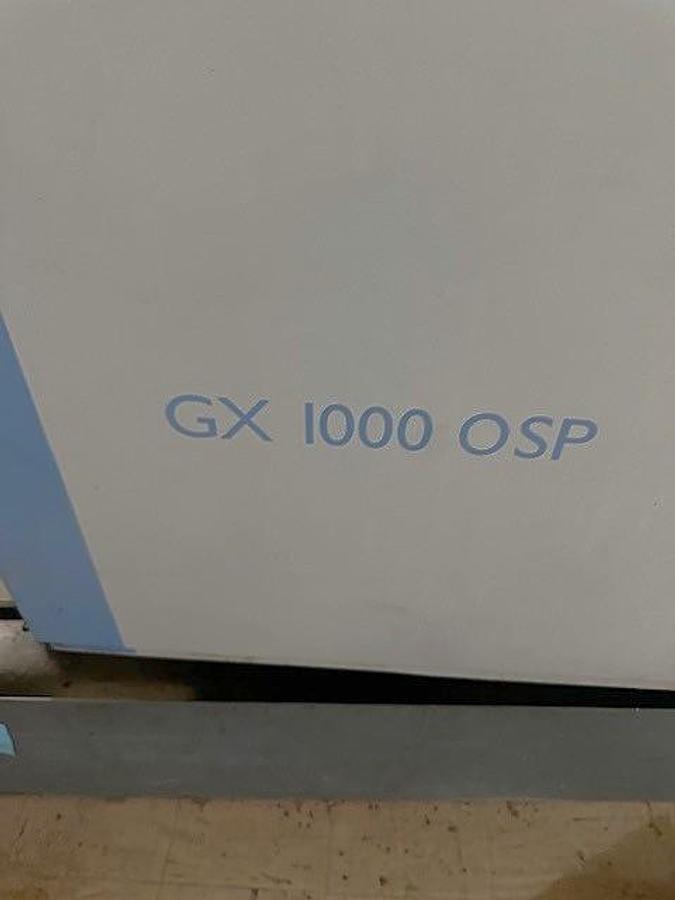

| Model | GX1000 OSP |
| Year | 2011 |
| Condition | Used |
| Stock Number | 120568 |

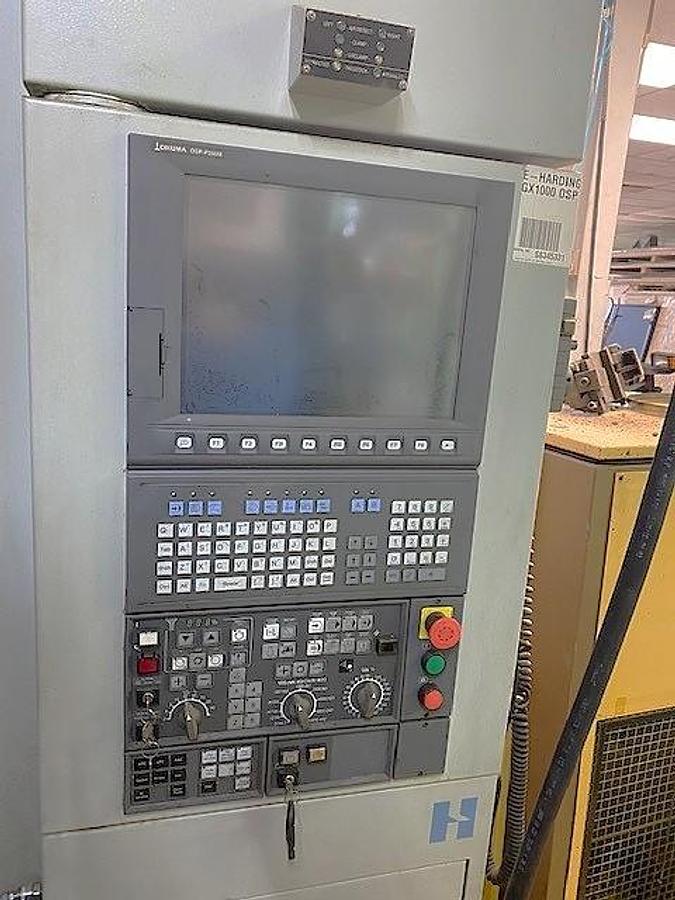

| Machine Control | OSP-P200M-R Control |
| Table Size | 44.09" x 21.25" |
| Maximum Table Load | 1,760 lbs |
| X-axis travel | 40.16" |
| Y-Axis Travel | 21.25" |
| Z-Axis Travel | 21.25" |
| Spindle Nose to Table Top | 5.7" - 26.97" |
| Spindle Speed | 10,000 RPM |
| Spindle Taper | CAT 40 Big Plus |
| Spindle Motor | 20 HP |
| Maximum Tool Diameter / Length / Weight | 5.9" / 11.81" / 17.6 lbs |
| Tool Magazine Capcity | 30 Position ATC |
| Rapid Traverse Rates (X, Y, Z) | 1417 IPM |
| Cutting Feedrates | 472 IPM |
| Machine Dimensions LxWxH | 116" x 84" x 107" |
| Machine Weight | 12,500 lbs |
