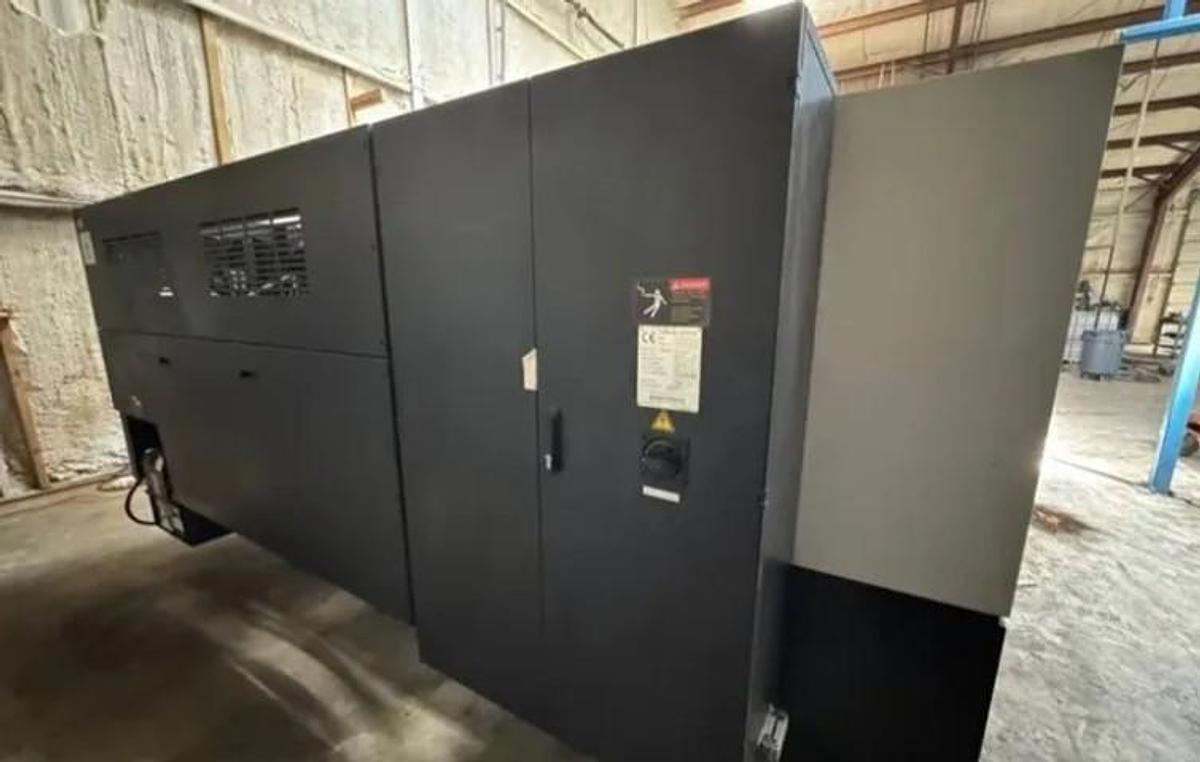

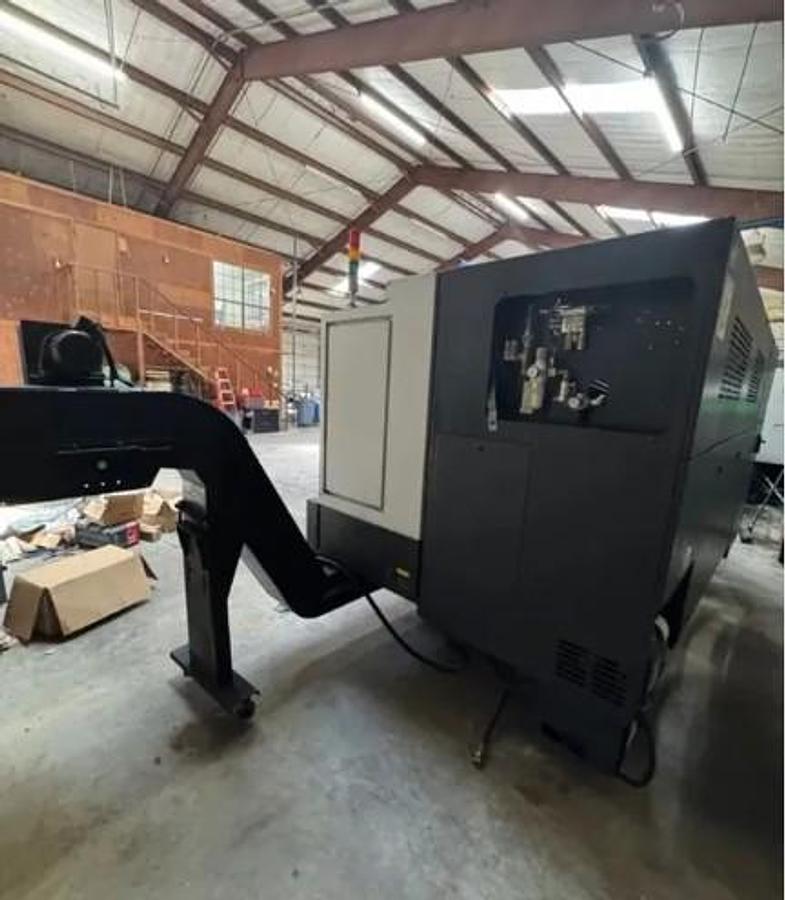

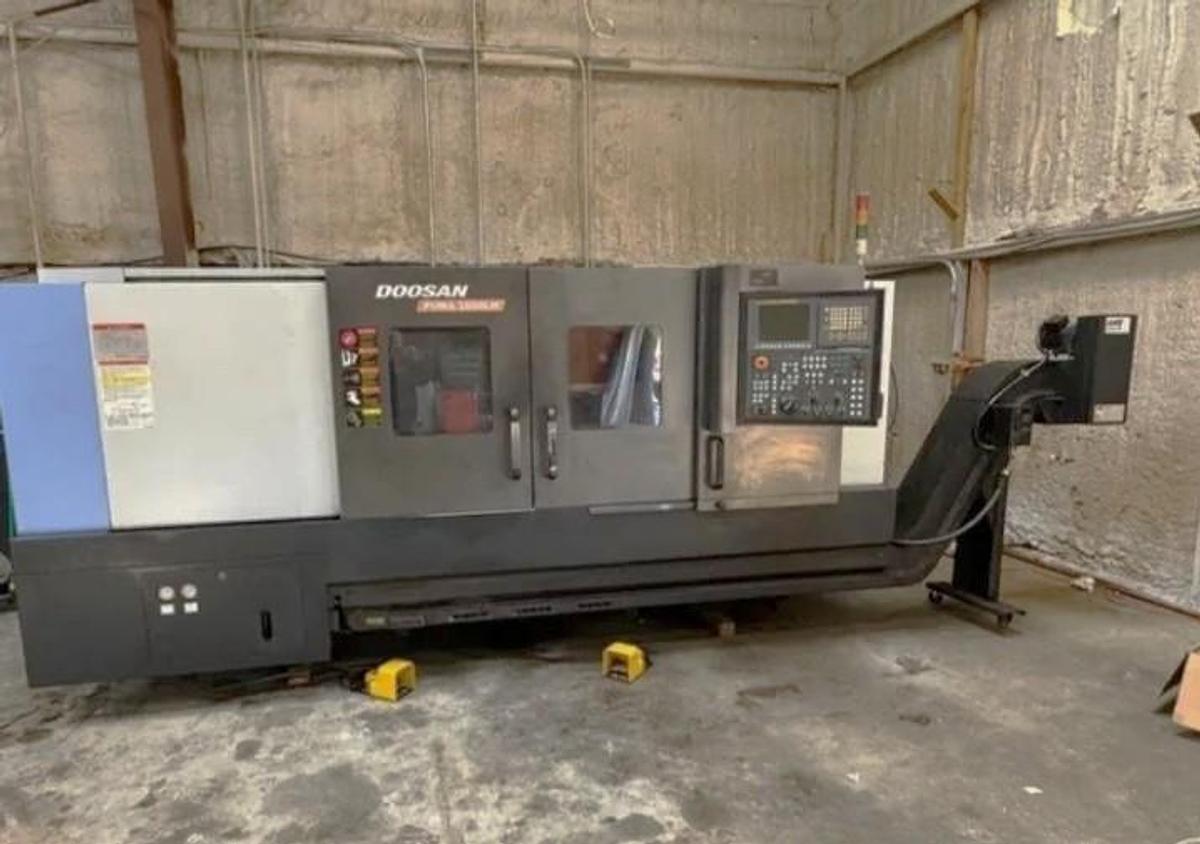

2010 Doosan Puma 2600LM, 30.7" sw, 50.4" cc, C Axis, Milling/Drilling, 3" Bar Capacity, 10" Chuck, Tailstock, Chip Conveyor, Tool Eye
2010 Doosan Puma 2600LM, 30.7" sw, 50.4" cc, C Axis, Milling/Drilling, 3" Bar Capacity, 10" Chuck, Tailstock, Chip Conveyor, Tool Eye
$62,500 (USD)
Location:Texas
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability Programmable Tailstock 10" 3 Jaw Hydraulic Chuck on Main Spindle
Tool Presetter

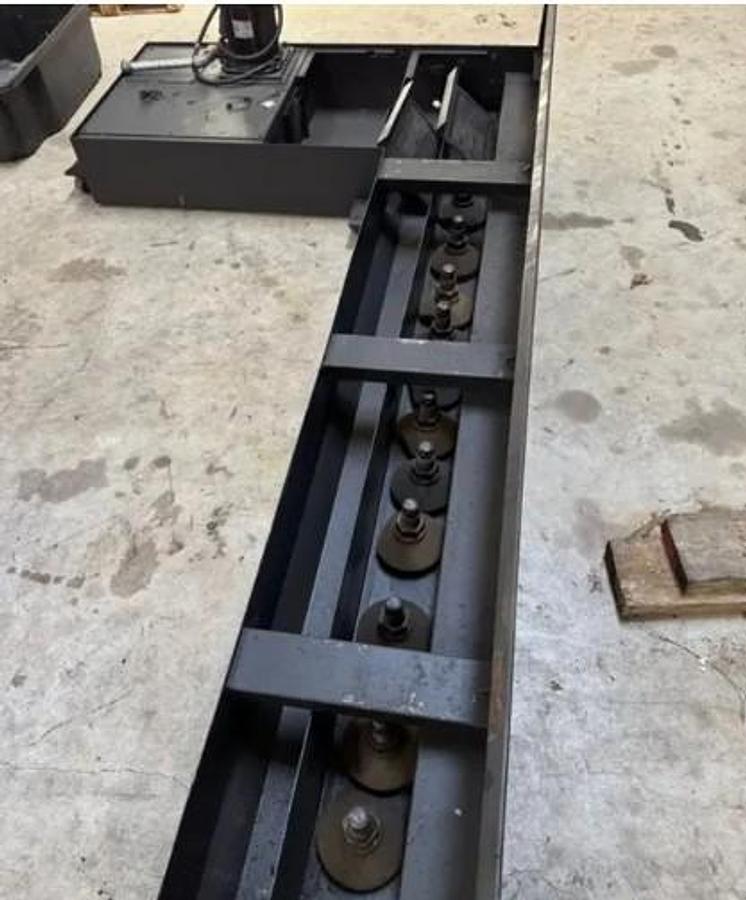

Chip Conveyor
Long Bed Design Option
Coolant System with Tank & Pump
PCMCIA Card Interface RS 232 Port Interface Boxed Ways All Available Tooling
3 Color Machine Status Condition Lights
Specifications
| Manufacturer | Doosan |
| Model | Puma 2600LM |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120567 |
| Control | Fanuc 0i-TD |
| Chuck Size | 10" 3 Jaw Hydraulic |
| Maximum Swing over Bed | 30.7" |
| Maximum Cutting Diameter | 14.8" |
| Maximum Machining Length | 50.4" |
| Maximum Bar Capacity | 3.0" |
| X-Axis Travel | 10.2" |
| Z-Axis Travel | 53.1" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-8" / 3.3" |
| Spindle Speeds - Main | 3,500 RPM |
| Spindle Motor - Main | 25 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |
| Number of Turret Positions | 24 Station Turret - BMT Type |
| Rapid Traverse Rates | 1181 IPM |
| Machine Dimensions | 171" x 78" x 86" |
| Machine Weight | 15,500 lbs. |
