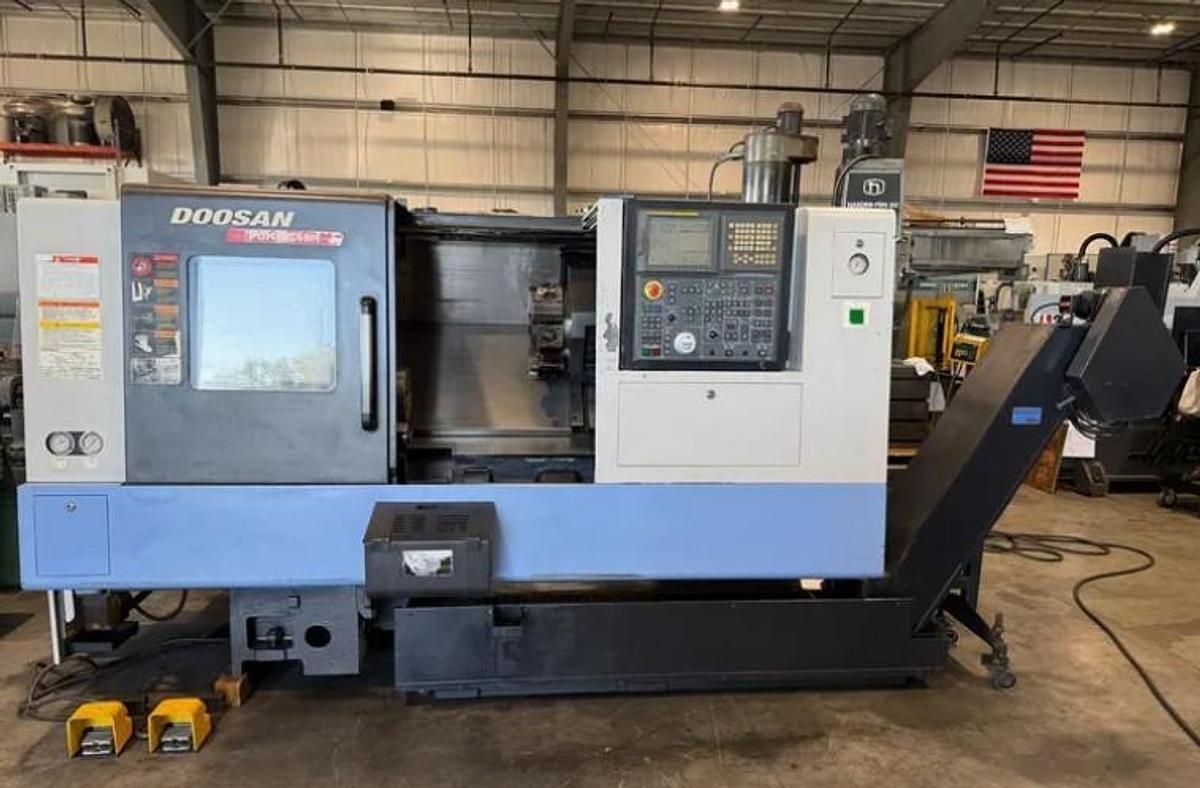

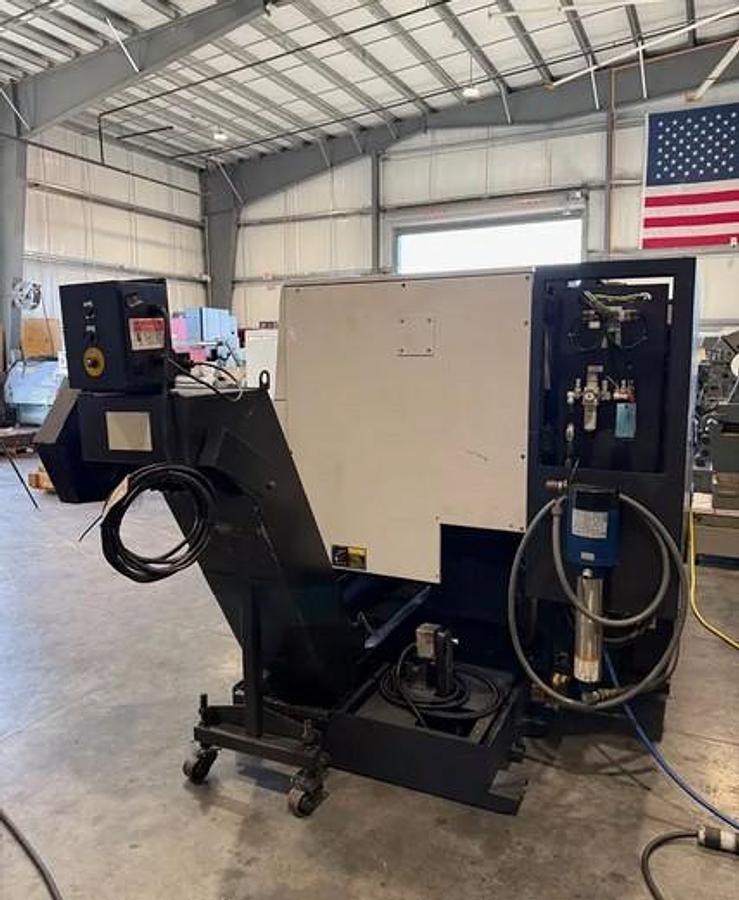

2007 Doosan Puma 240MB with Full C Axis Spindle, Milling/Drilling Capability, Chip Conveyor, Parts Catcher, 8" Chuck, 2.55" Bar Cap.
2007 Doosan Puma 240MB with Full C Axis Spindle, Milling/Drilling Capability, Chip Conveyor, Parts Catcher, 8" Chuck, 2.55" Bar Cap.
$42,500 (USD)
Location:Florida
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability 8" 3 Jaw Hydraulic Chuck
Tool Presetter

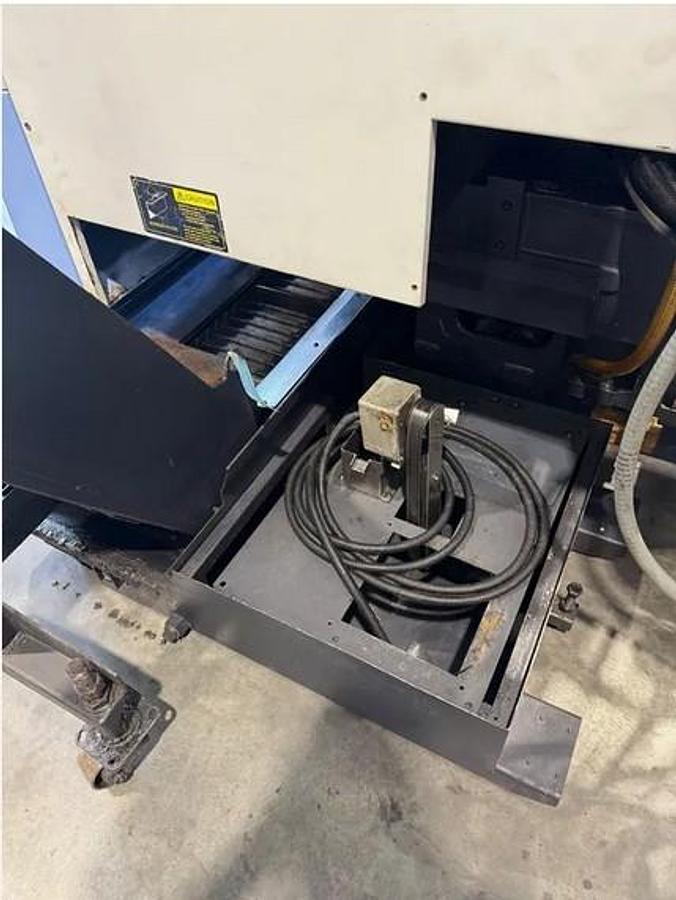

Parts Catcher
Chip Conveyor
Tailstock w/ Live Center
PCMCIA Card Interface RS 232 Port Interface Boxed Ways
Coolant Tank with Pump
Leveling Pads

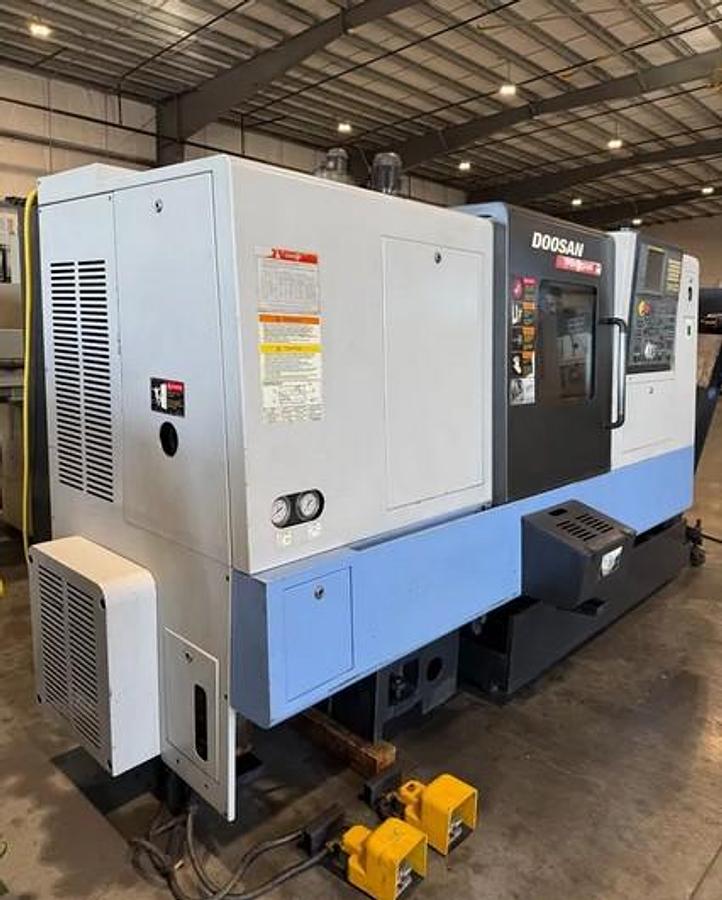

(2) Foot Pedals for Chuck and Tailstock Assorted Static Tool Holders

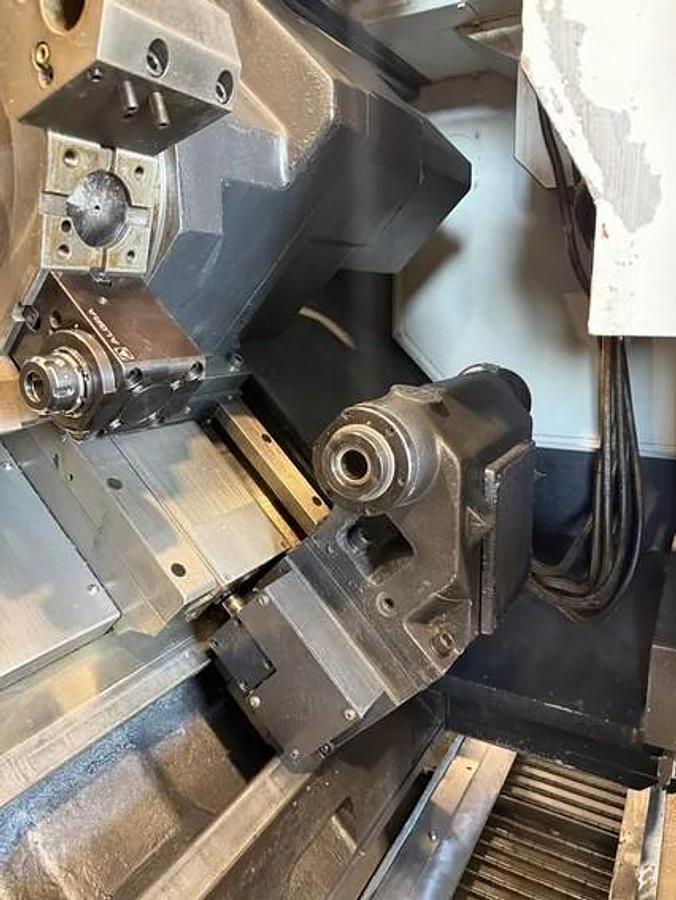

(1) Live Tool Holder
All Available Manuals
Wired 230V / 3 Phase Electrics
**Manufactured New in May of 2007, Very Good Condition from Medical Plant**

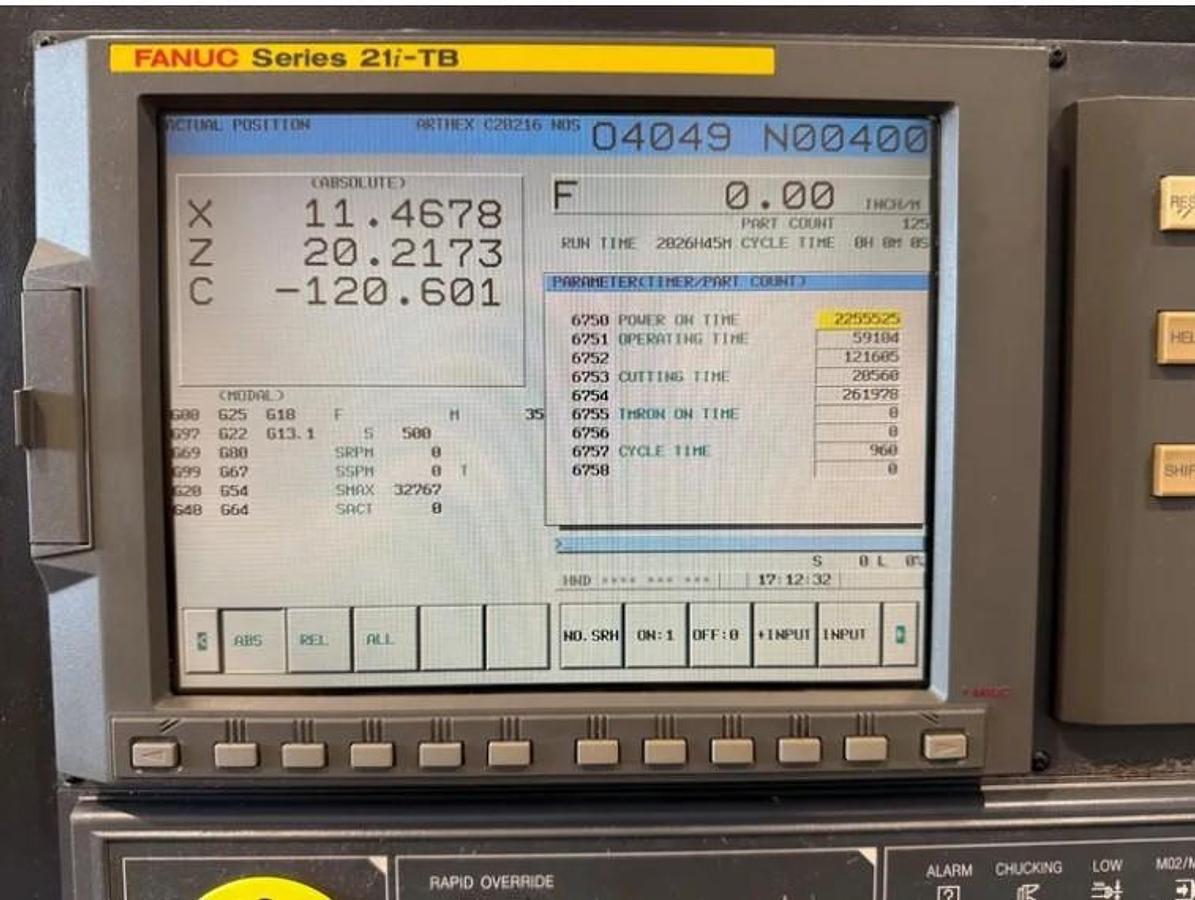

**Operating Time (*time data seen in photo is in minutes, not hours) ONLY 3,011 Hours**
**Cutting Time ONLY 4,708 Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma 240MB |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120564 |
| Control | Fanuc 21i-TB Control |
| Chuck Size | 8" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 21.7" |
| Maximum Cutting Diameter | 11.4" |
| Maximum Machining Length | 19.37" |
| Maximum Bar Capacity | 2.56" |
| X-Axis Travel | 8.07" |
| Z-Axis Travel | 22.83" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 2.99" |
| Spindle Speeds - Main | 45 - 4,500 RPM |
| Spindle Motor - Main | 25 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |

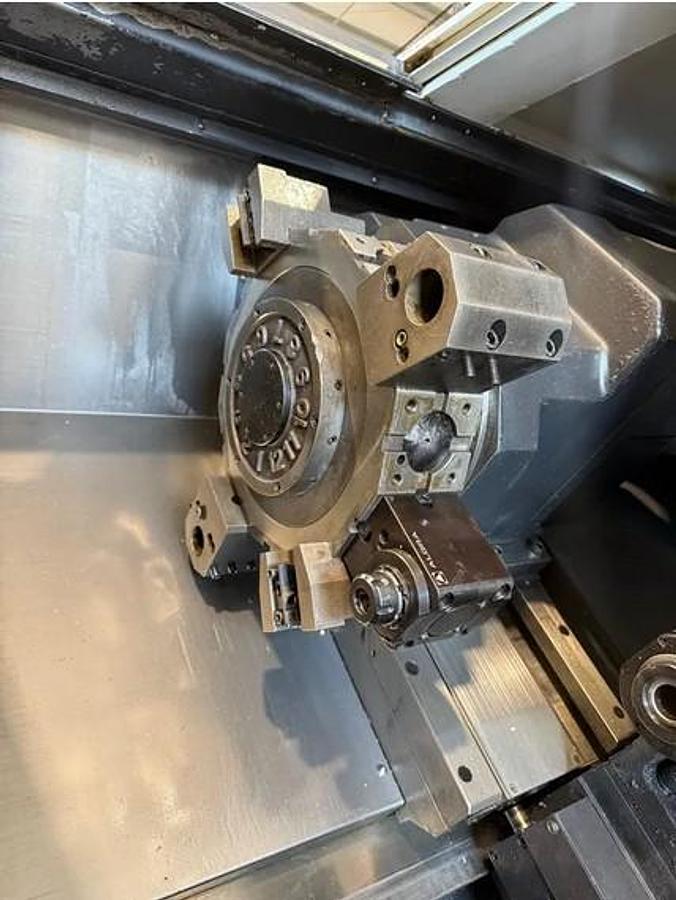

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/ Z / C | 945 IPM / 1181 IPM / 200 RPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.1" / 4.7" / MT #4 |
| Machine Dimensions | 130" x 63" x 70" (machine only), 170" with conveyor gooseneck |
| Machine Weight | 9,780 lbs. |
