2020 Doosan Puma TT2100SYYB with LNS Sprint 12' Barfeed, Parts Catcher, Chip Conveyor, Full C Axis, Y Axis, Subspindle
2020 Doosan Puma TT2100SYYB with LNS Sprint 12' Barfeed, Parts Catcher, Chip Conveyor, Full C Axis, Y Axis, Subspindle
Contact us for price
Location:Indiana
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation on Both Spindles
Live Milling/Drilling Capability Y Axis Capability

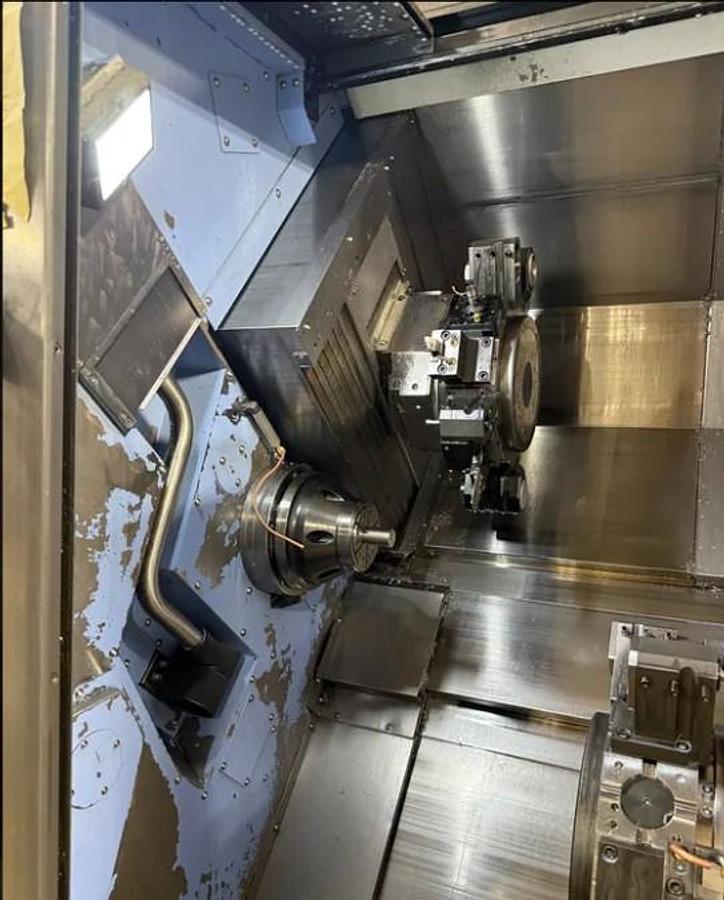

Twin Turret Design with Upper and Lower Turrets
Dual Spindle Design
Royal QG-80 Compact Accu-Length Quick Grip Collet Chuck with A2-8" Mount
8.25" 3 Jaw Hydraulic Chuck on Subspindle
Tool Presetter

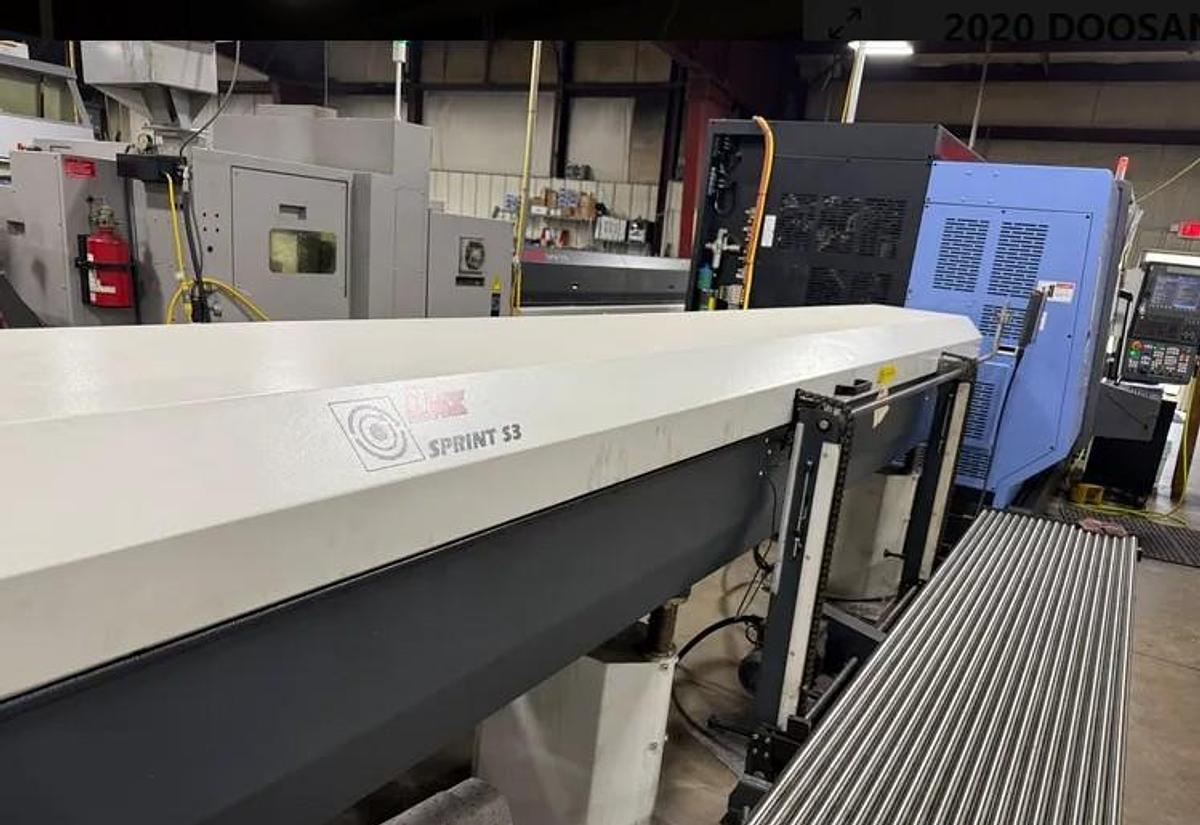

LNS Sprint S3 12 ft.Autoload Type Bar Feeder
Chip Conveyor
Parts Catcher
Parts Exit Conveyor
Step Down Transformer 480V - 208V
PCMCIA Card Interface Ethernet Interface
USB Port Interface RS 232 Port Interface Boxed Ways
Coolant Tank with Pump

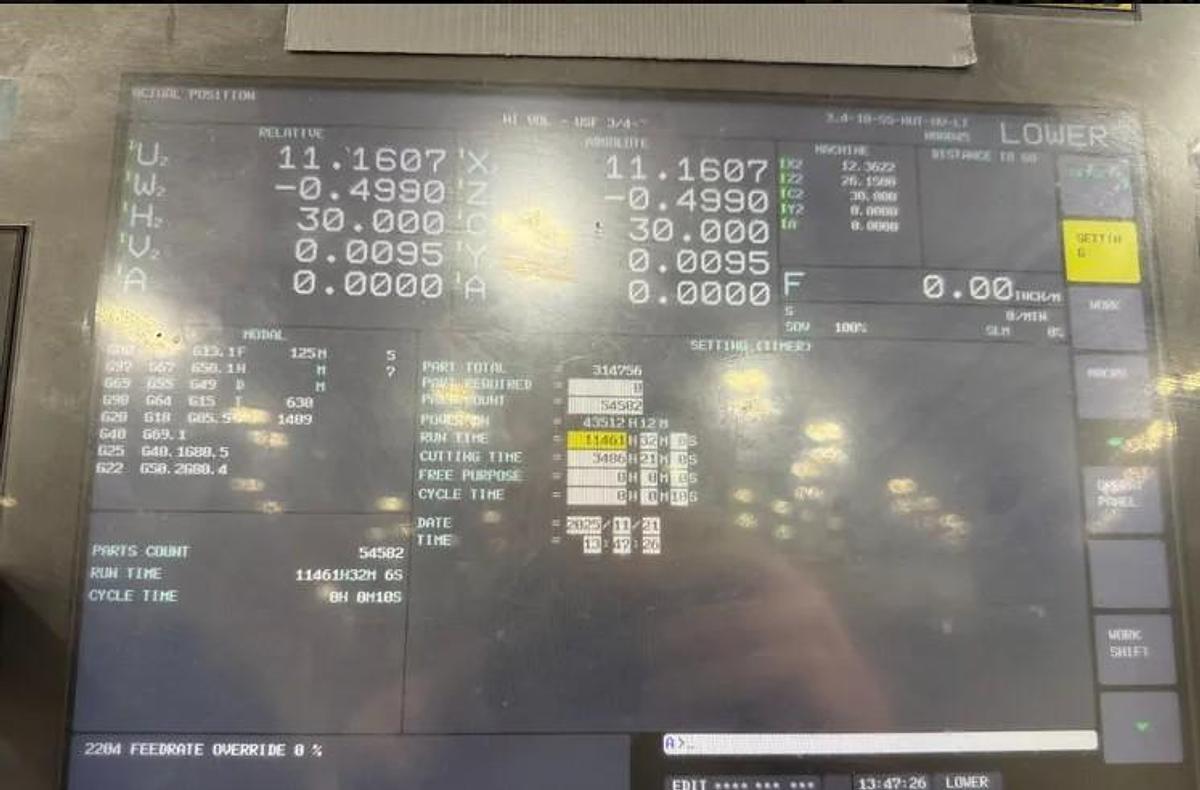

**Cutting Hours 3,486**
Specifications
| Manufacturer | Doosan |
| Model | Puma TT2100SYYB |
| Year | 2020 |
| Condition | Used |
| Stock Number | 120553 |
| Control | Fanuc 0i-T CNC Control |
| Chuck Size | Collet Chuck / 8.25" 3 Jaw Hyd. |
| Maximum Swing over Bed | 9.05" |
| Maximum Cutting Diameter | 9.05" |
| Maximum Machining Length | 9.06 |
| Maximum Distance Between Centers | 38.5" |
| Maximum Bar Capacity | 3.2" / 3.0" |
| X1-Axis Travel / X2-Axis Travel | 6.5" / 6.5" |
| Y-Axis Travel | 3.94" |
| Z1-Axis Travel / Z2-Axis Travel | 28" / 28" |
| C Axis Spindle Rotation | .001 Degrees - both Spindles |
| A-Axis Travel - Subspindle | 28.7" |
| Spindle Nose / Spindle Bore | A2-8" - 3.6" Left / A2-6" - 3.6" Right |
| Main Spindle Speed | 3,500 RPM |
| Main Spindle Motor | 30 HP |
| Subspindle Speed | 5,000 RPM |
| Subspindle Motor | 25 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 10 HP |
| Number of Turret Positions | 12 Station Turret - Each BMT-55 |
| Rapid Traverse Rates X / Y / Z | 1182 IPM / 590 IPM / 1576 IPM |
| Machine Dimensions | 155" x 89" x 93" |
| Machine Weight | 21,164 lbs. |
