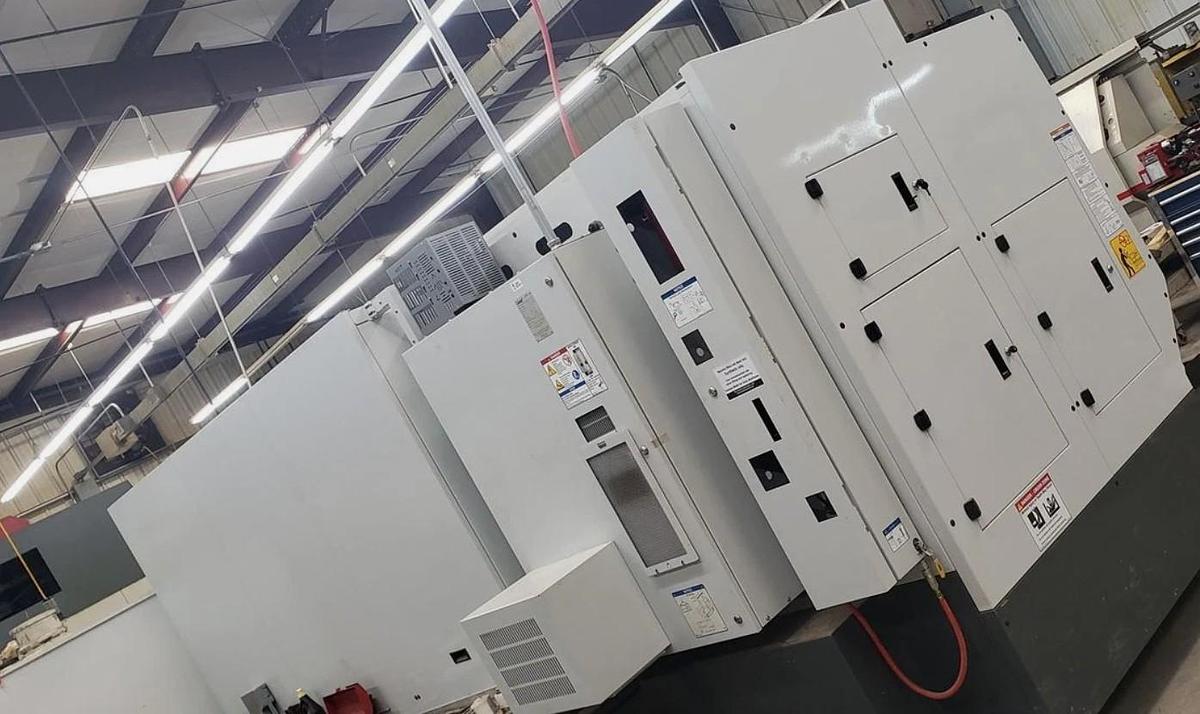

2014 Haas ST-40 with SMW Hydraulic Steady Rest, 4" Bar Capacity, Toolsetter, Tailstock, Chip Conveyor, 44" Centers
2014 Haas ST-40 with SMW Hydraulic Steady Rest, 4" Bar Capacity, Toolsetter, Tailstock, Chip Conveyor, 44" Centers
$82,500 (USD)
Location:Mississippi
or
Call (863) 439-6066
Description
15" 3 Jaw Hydraulic Chuck 4" Bar Capacity

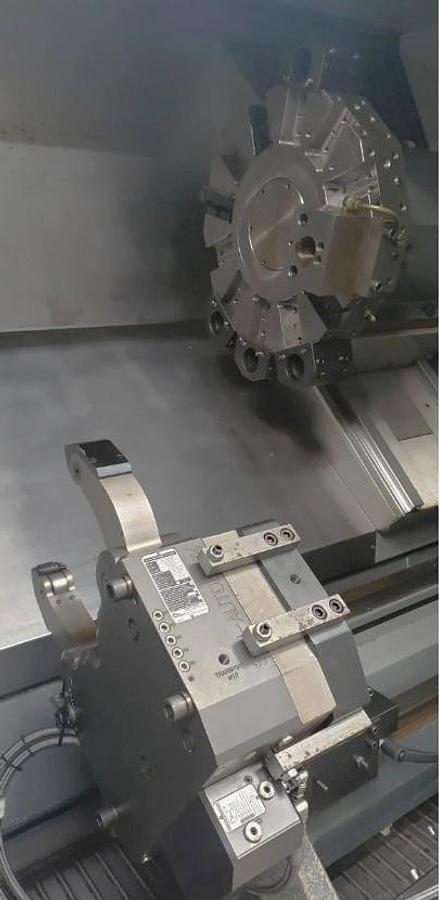

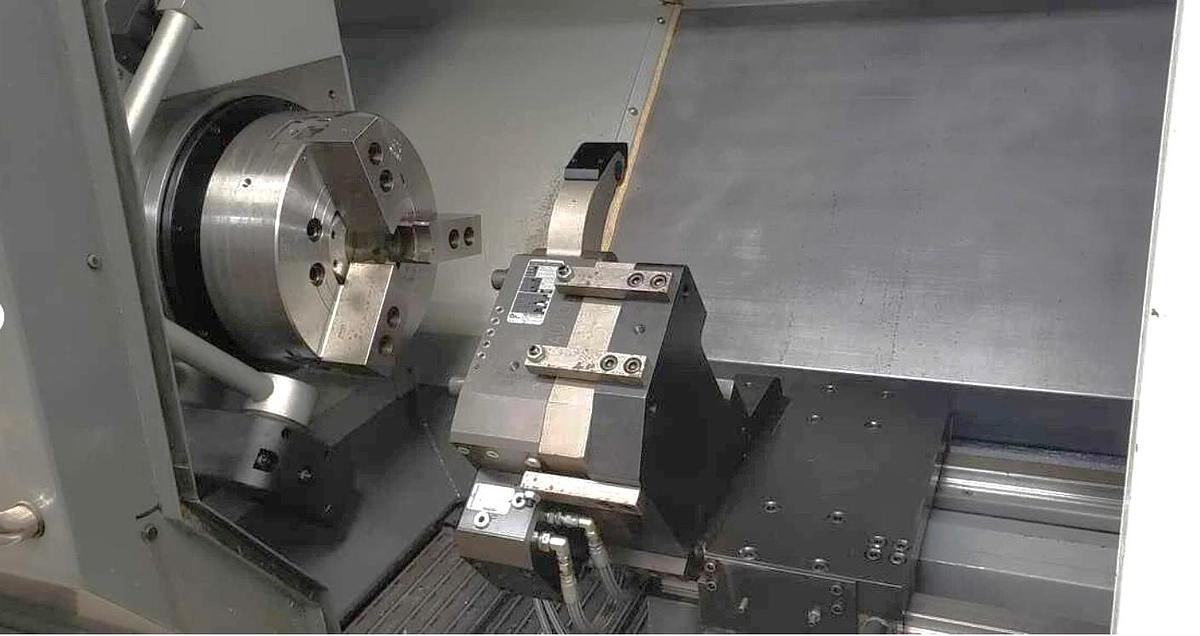

SMW Autoblok Hydraulic Steady Rest
Tool Presetter
Chip Conveyor - Belt Style High Intensity Lighting Fully Programmable Tailstock
Remote Jog Handle
2 Speed Geared Headstock USB Port Interface RS 232 Port Interface Rigid Tapping 15" Color LCD Monitor All Available Tooling

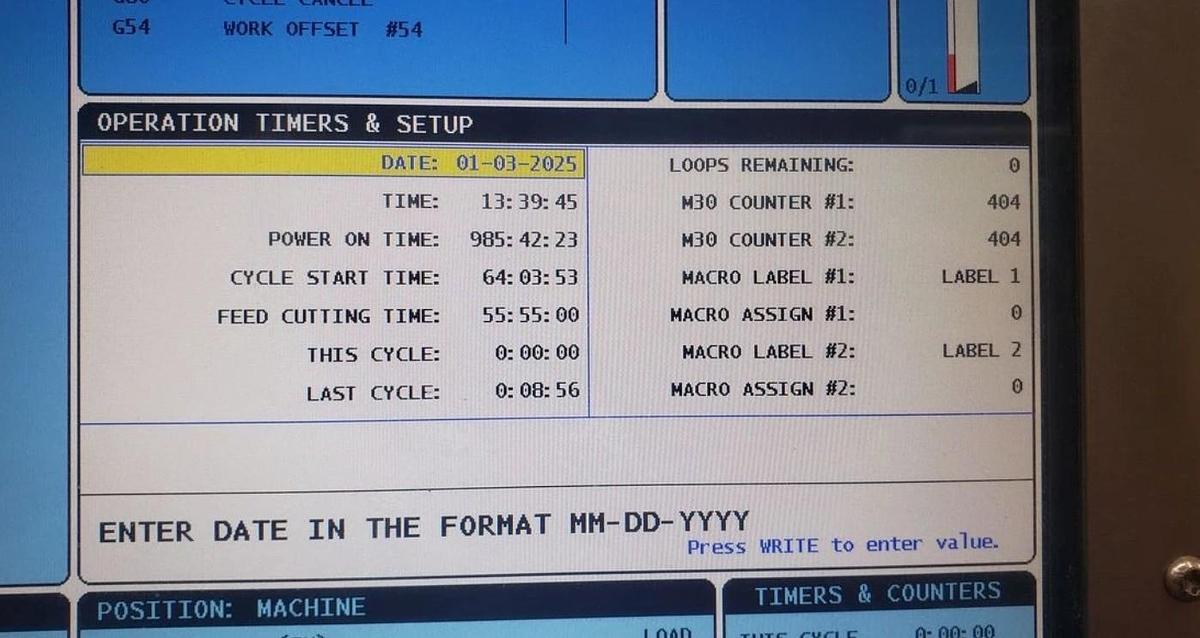

**Total Power On Hours ONLY 985**
**Feed Cutting Hours JUST 55**
Specifications
| Manufacturer | Haas |
| Model | ST-40 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 120552 |
| Control | Haas CNC Control |
| Chuck Size | 15" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25.5" |
| Distance Between Centers | 44" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 4.62" / 4" |
| Spindle Speed | 2,400 RPM |
| Spindle Motor | 40 HP |
| Number of Turret Positions | 12 Position Block Style Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Center | #5 MT |
| Machine Dimensions LxWxH | 150"x77"x74" |
| Machine Weight | 27,000 lbs |
