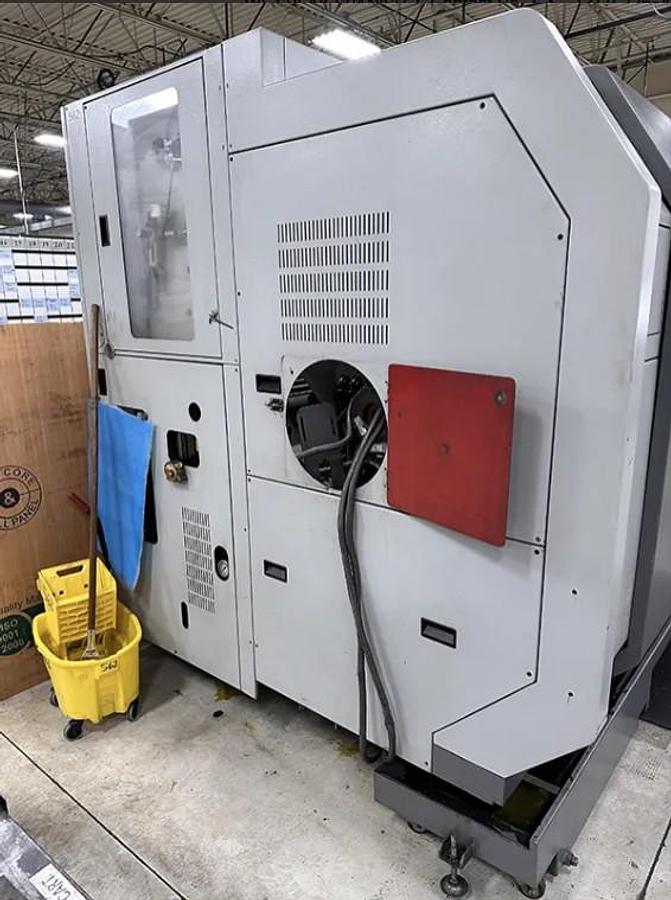

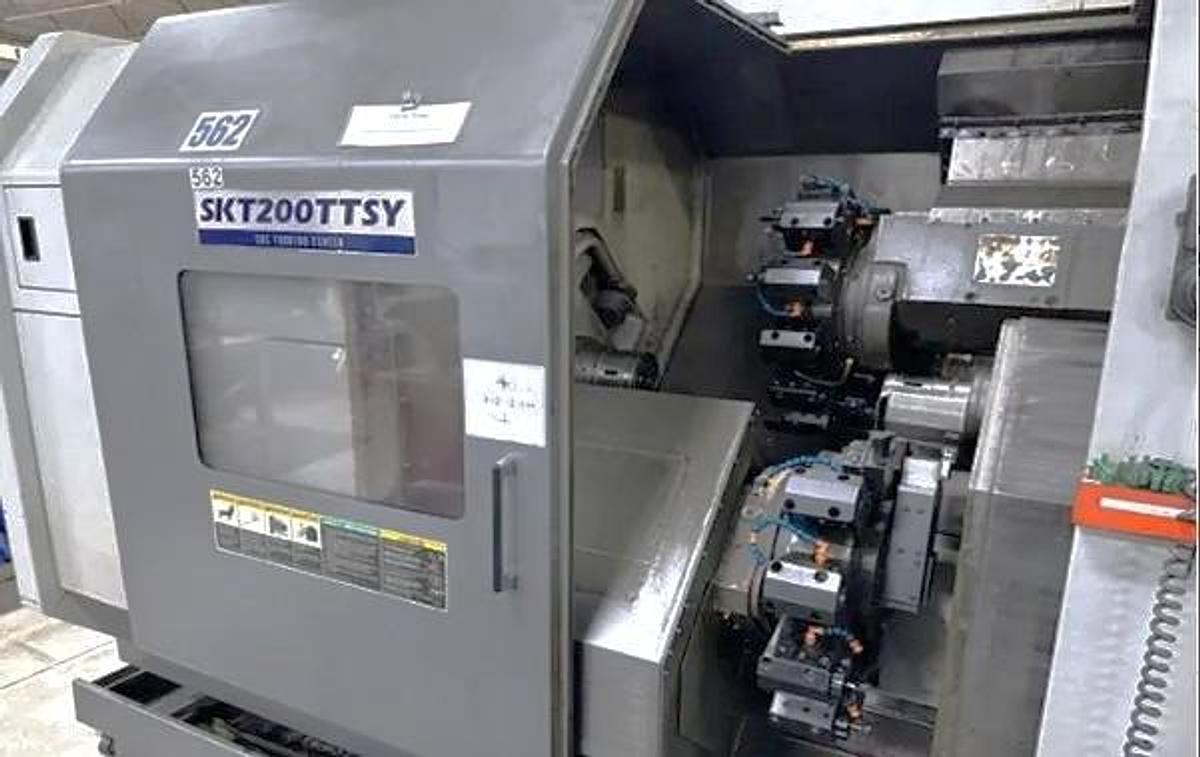

2008 Hyundai-Kia SKT200TTSY with Twin Turrets, Twin Spindles, Live Tooling, Y Axis, 2.56" Bar Capacity, Chip Conveyor
2008 Hyundai-Kia SKT200TTSY with Twin Turrets, Twin Spindles, Live Tooling, Y Axis, 2.56" Bar Capacity, Chip Conveyor
$49,500 (USD)
Location:Illinois
or
Call (863) 439-6066
Description

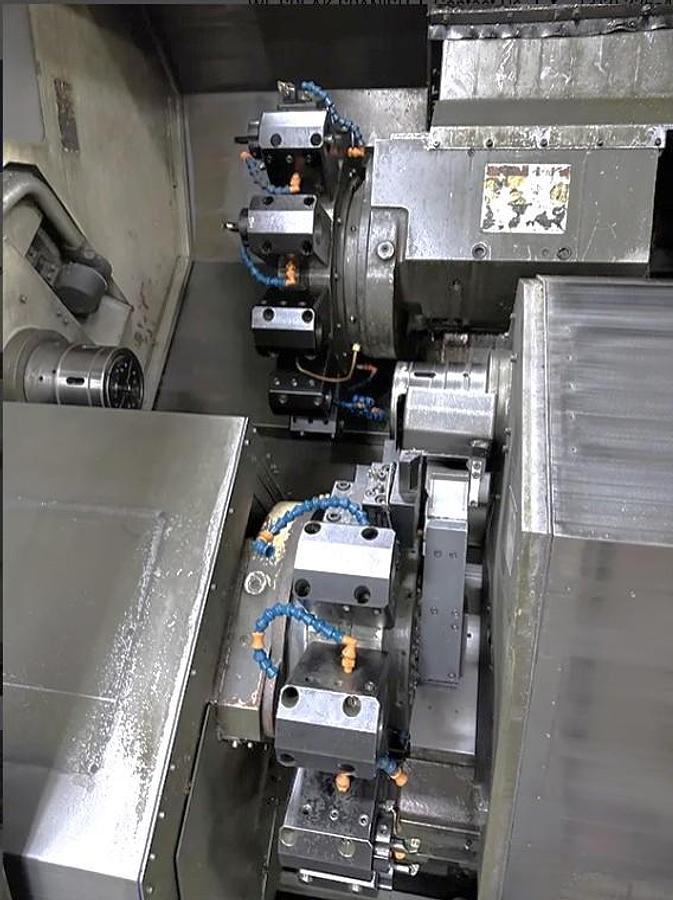

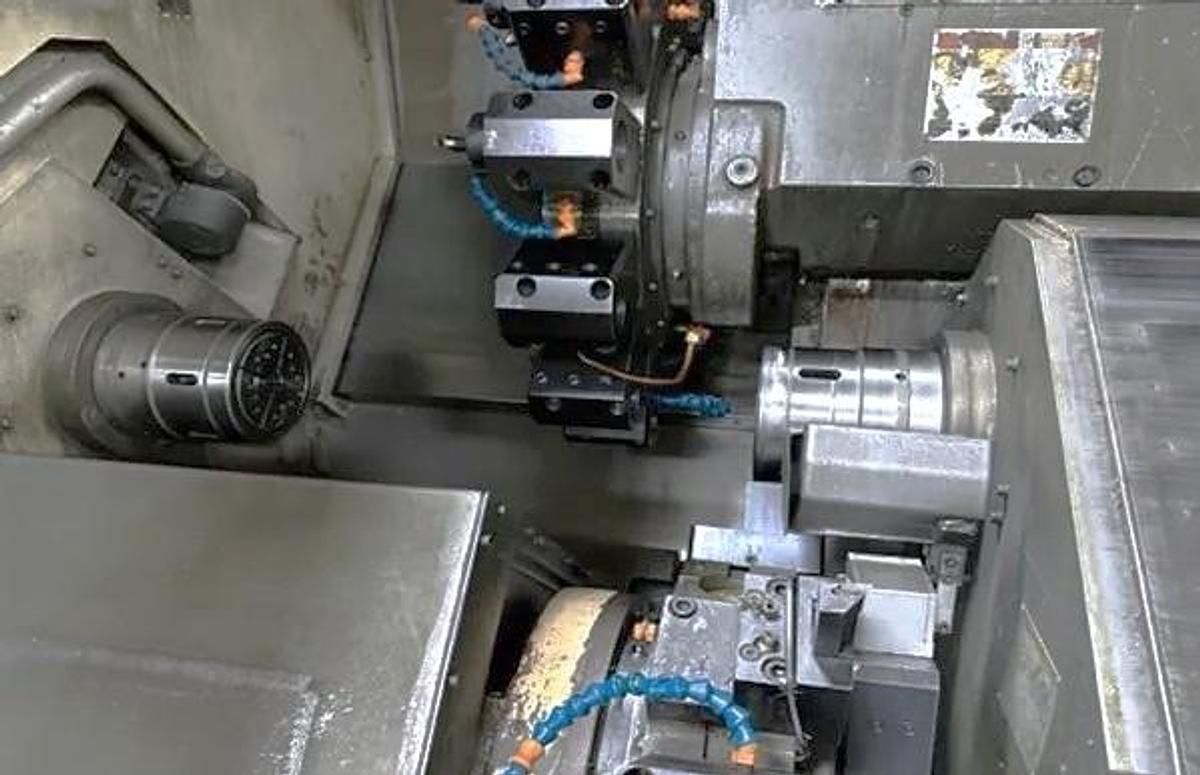

Twin Turret Design (Upper-Lower)
Twin Spindle Design
Y Axis on Upper Turret
Live Milling/Drilling Capability
Full C Axis on Both Spindles
10" Hydraulic Chuck on Main Spindle
8" Hydraulic Chuck on Subspindle
Remote Jog Handle

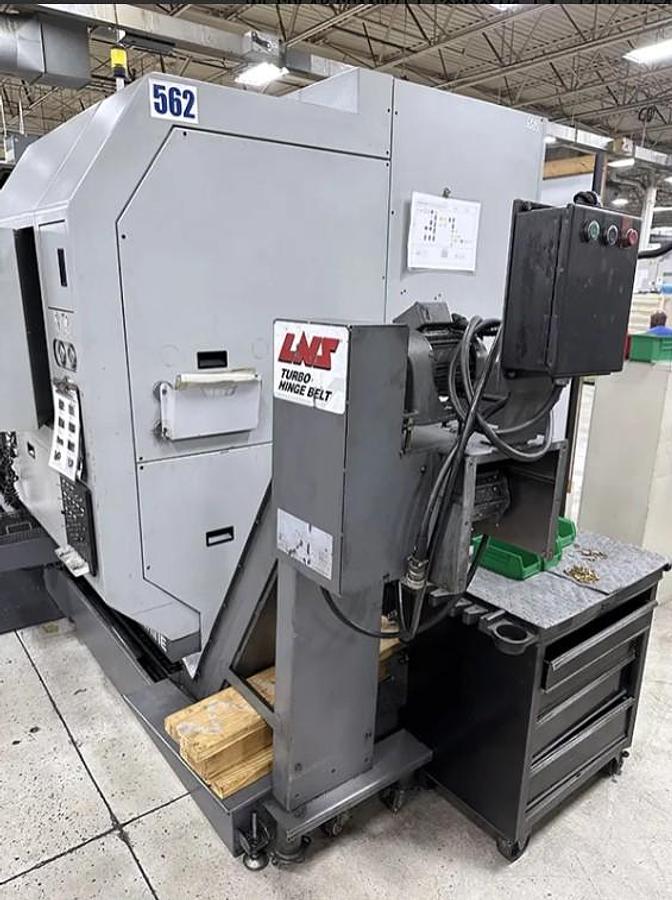

Chip Conveyor
Parts Catcher
Barfeed Interface ONLY
Tool Presetter
Coolant System with Tank & Pump
Card Interface
RS 232 Port Interface
Compliment of Static Tooling - (25 Total)
Compliment of Live Tool Holders - (3 Total)
Specifications
| Manufacturer | Hyundai-Kia |
| Model | SKT200TTSY |
| Year | 2008 |
| Condition | Used |
| Stock Number | 120543 |
| Chuck sizes | 10" / 8" Hydaulic Chucks |
| Maximum swing over bed | 30.7" |
| Maximum turning diameter (upper / lower) | 15.4" / 11.8" |
| Maximum turning length | 36.2" |
| X-axis travel (upper / lower) | 10.63" / 7.48" |
| Z-axis travel (both) | 36.22" / 11.3" |
| Y axis | 4.72" (+/- 2.36") |
| C axis movement - both spindles | 360,000 Positions |
| Spindle nose / spindle bore | A2-8" / 3.1" |
| Maximum bar capacity | 2.56" |
| Spindle speeds - both | 5,000 RPM |
| Spindle motors - both | 33.5 HP / 20 HP |
| Rotary tool speed | 30 - 4,000 RPM |
| Number of turret positions (upper / lower) | 12 / 12 Positions |
| Rapid traverse rates x, z / y | 1181 IPM / 472 IPM |
| Machine dimensions | 145" x 89" x101" |
| Machine weight (approx) | 23,250 Lbs |
