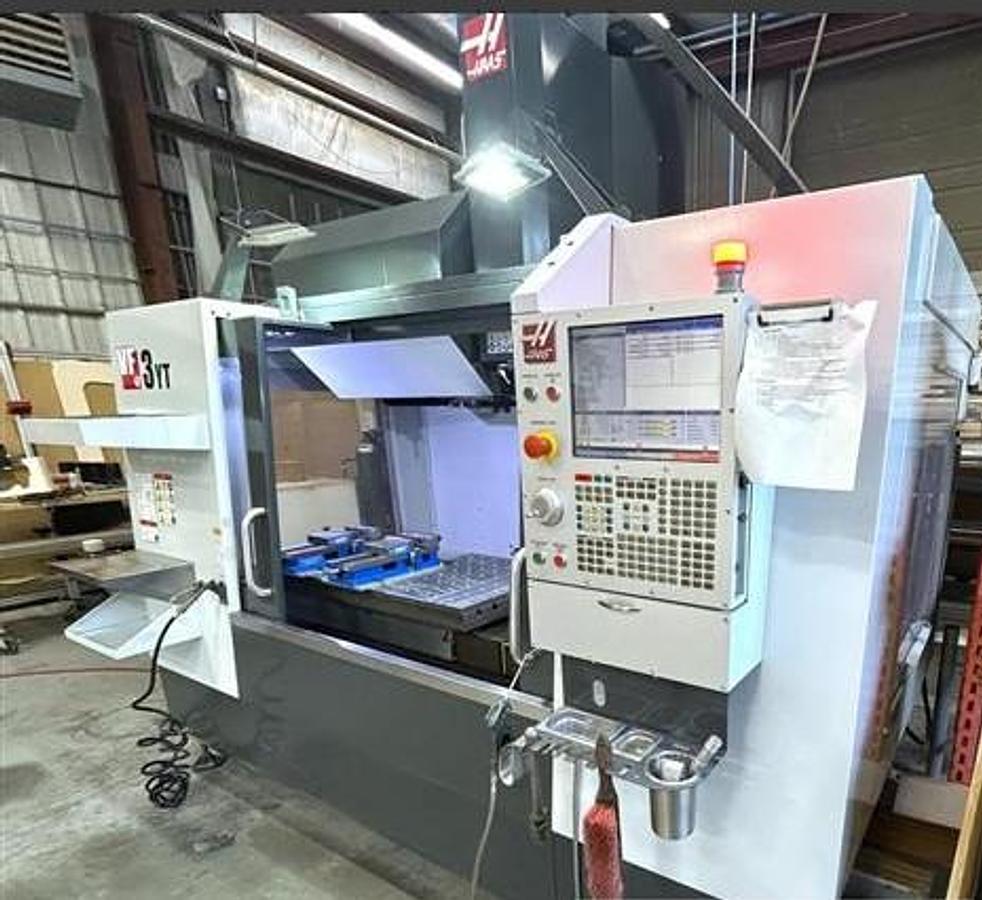

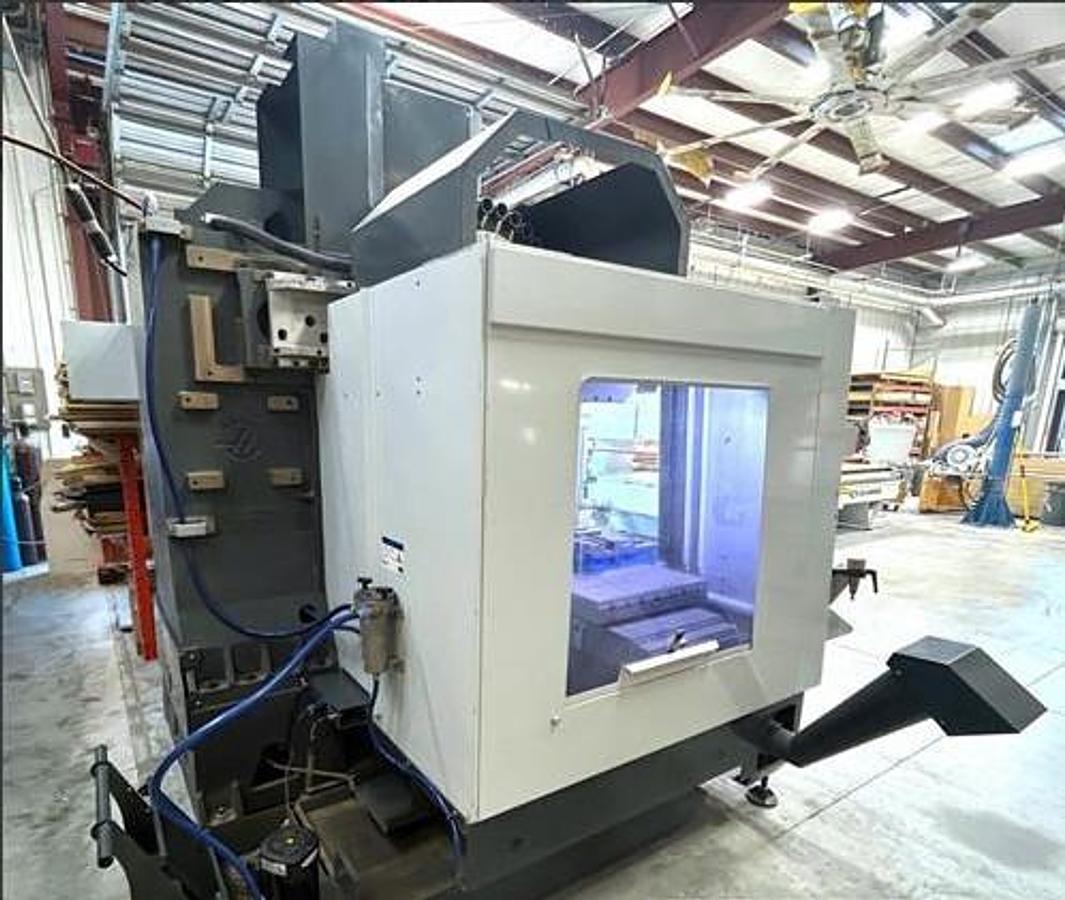

2020 Haas VF-3YT/40 with Haas HRT210 Rotary Table, 10,000 RPM, Renishaw Probing, 30 Station Side Mounted ATC
2020 Haas VF-3YT/40 with Haas HRT210 Rotary Table, 10,000 RPM, Renishaw Probing, 30 Station Side Mounted ATC
Contact us for price
Location:North Carolina
or
Call (863) 439-6066
Description
Wired for 4th Axis

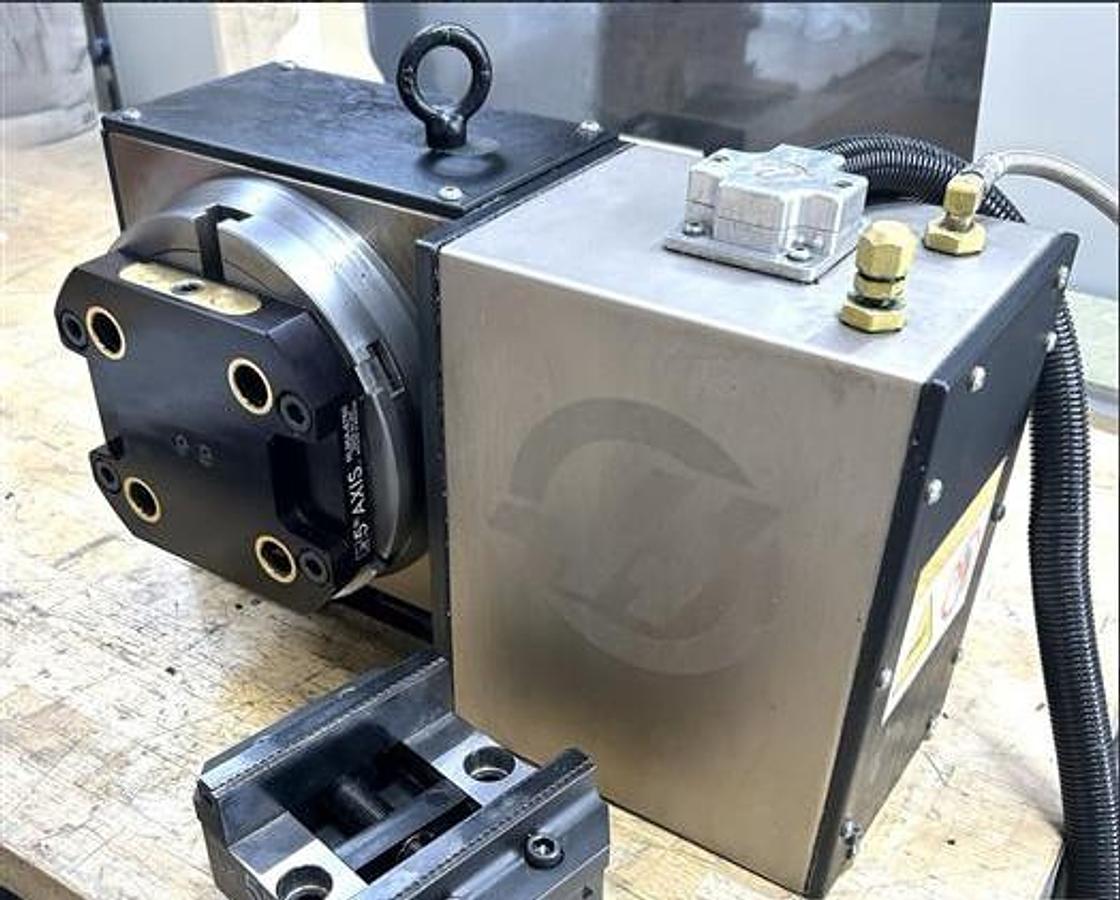

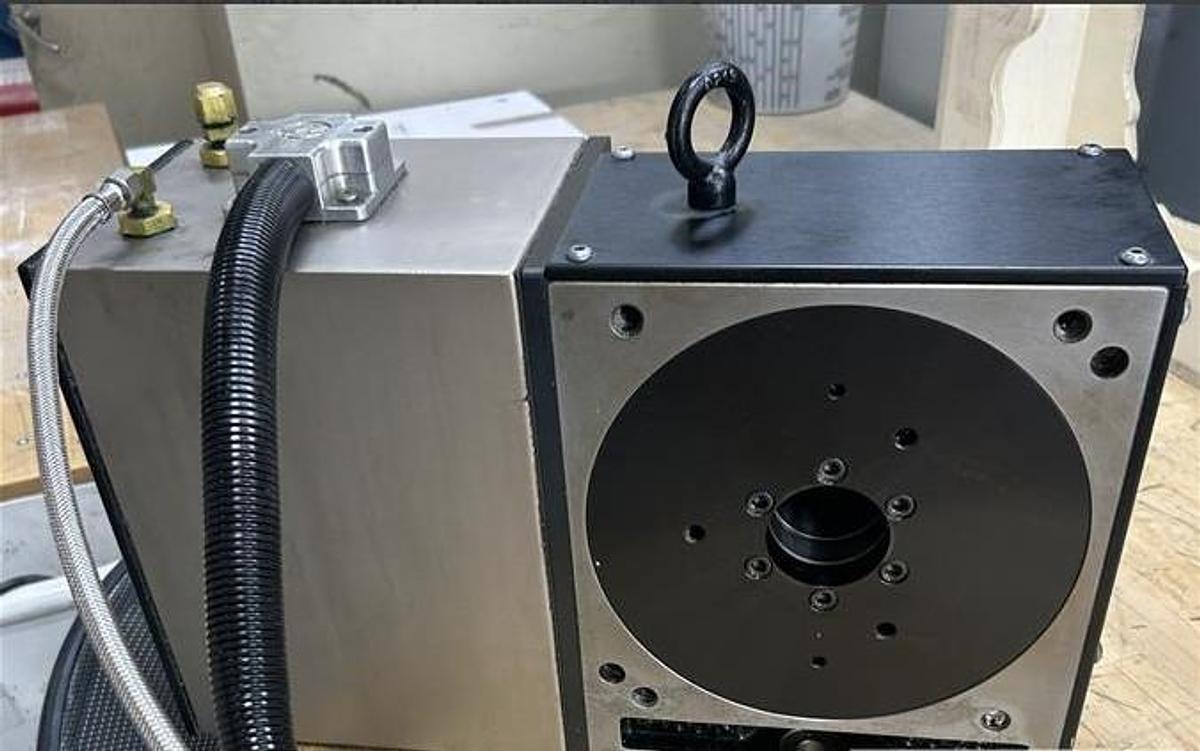

Haas HRT-210 4th Axis Rotary Table
10,000 RPM Spindle
30 Station Side Mounted Tool Changer Programmable Coolant Nozzle
Renishaw Tool & Part Probe (WIPS)
Auger Style Chip Conveyor
High-Intensity Lighting
Rigid Tapping
Auto Air Gun
CNC Cabinet Cooler Spindle Orientation Coordinate Rotation & Scaling
Haas Visual Part Programming System Remote Jog Handle User Definable Macros
Oil Skimmer Vector Drive Spindle
Ethernet Interface
USB Port Interface RS 232 Port Interface Coolant System with Tank & Pump CAT 40 Pull Studs

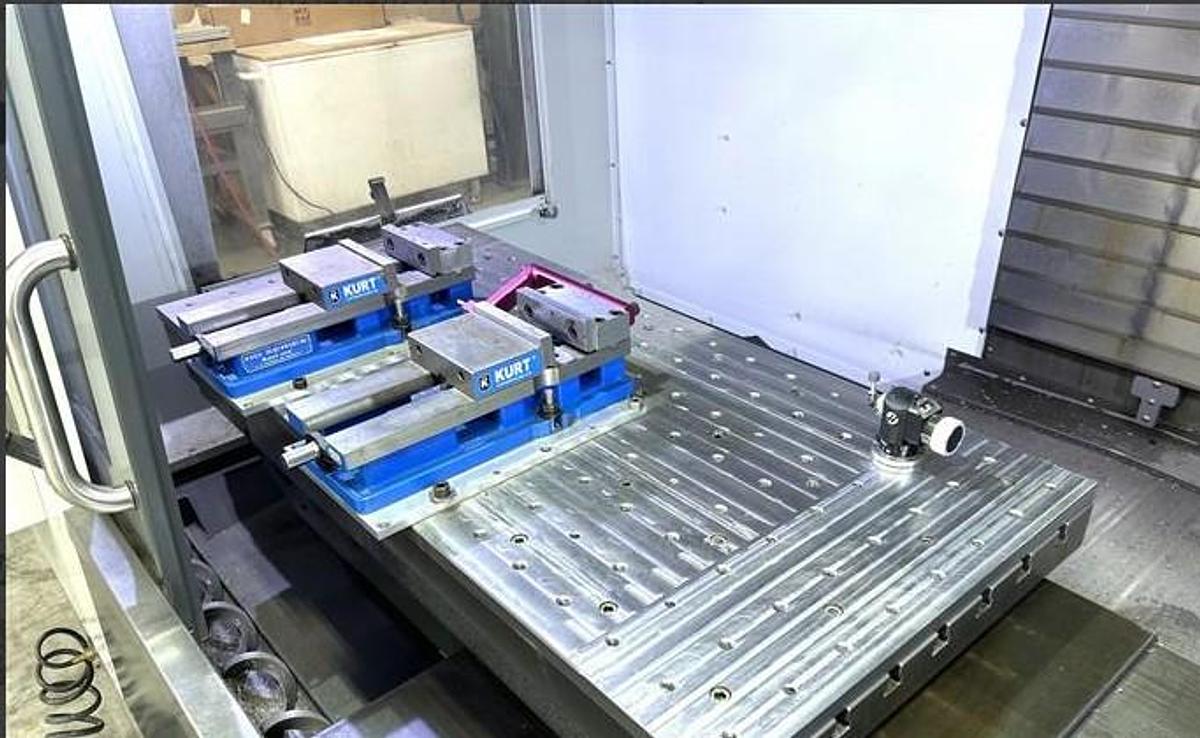

(2) Kurt Vices

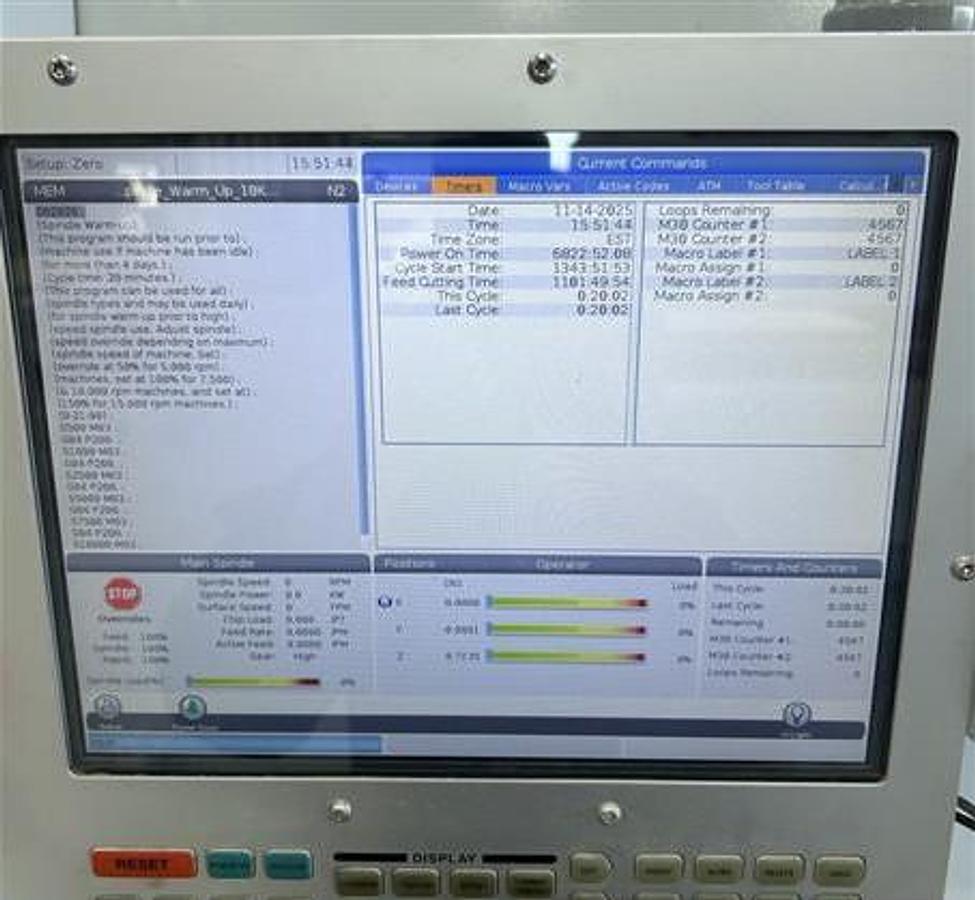

**Power On Hours 6,822**
**Cycle Start Hours 1,343**
**Feed Cutting Hours 1,101**
**Price New as Equipped at $150,940**
Specifications
| Manufacturer | Haas |
| Model | VF-3YT/40 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 120542 |
| Control | Haas NextGen Control |

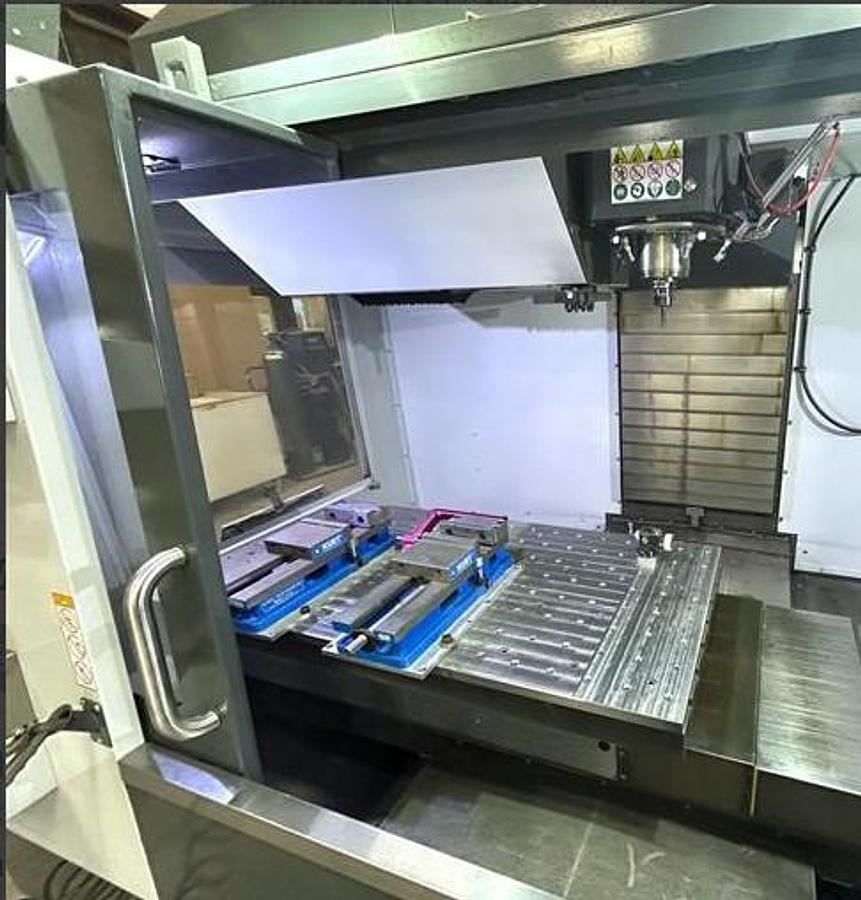

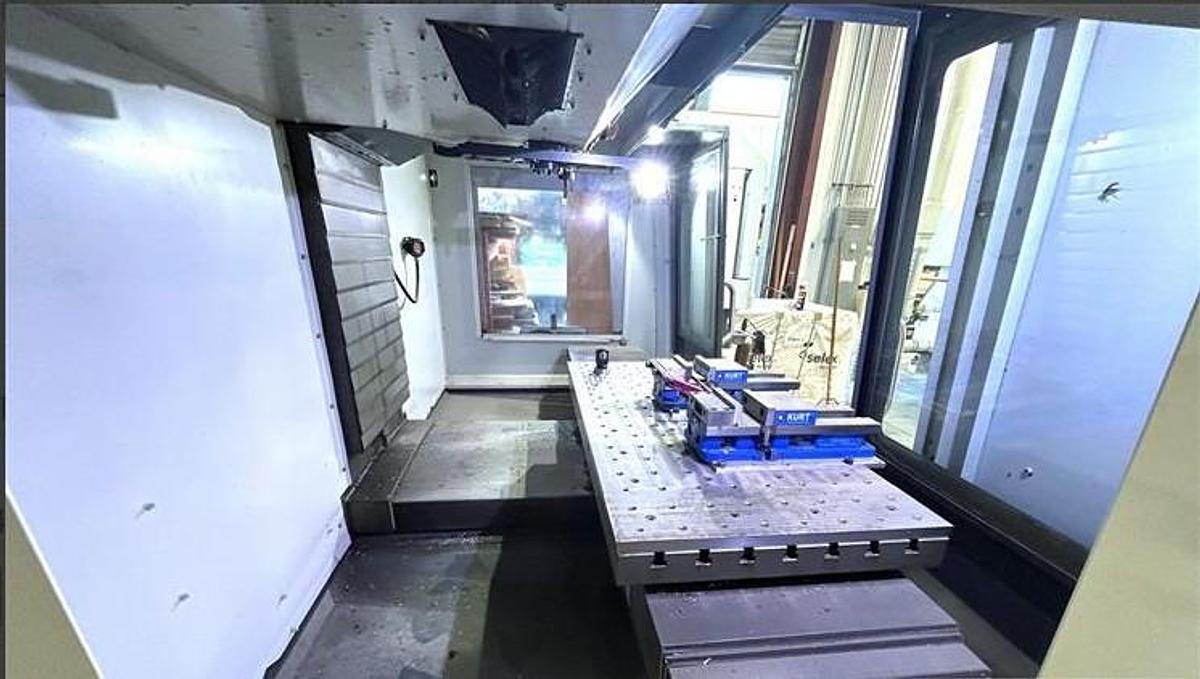

| Table Size | 52" x 23" |
| Maximum Weight on Table | 4,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 29" |
| X-axis travel | 40" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 20 HP |

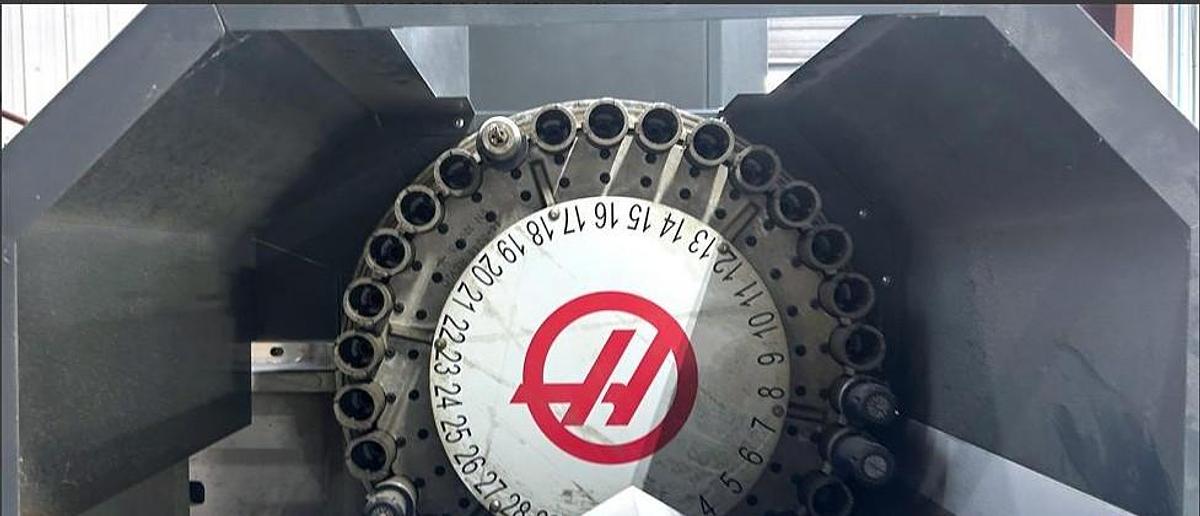

| Number of Tool Positions | 30 Station Side Mounted Tool Changer |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Tool Change Time Chip to Chip | 4.2 seconds |
| Rapid Traverse Rates | 710 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions | 124" x 105" x 125" |
| Machine Weight | 16,500 lbs. |
