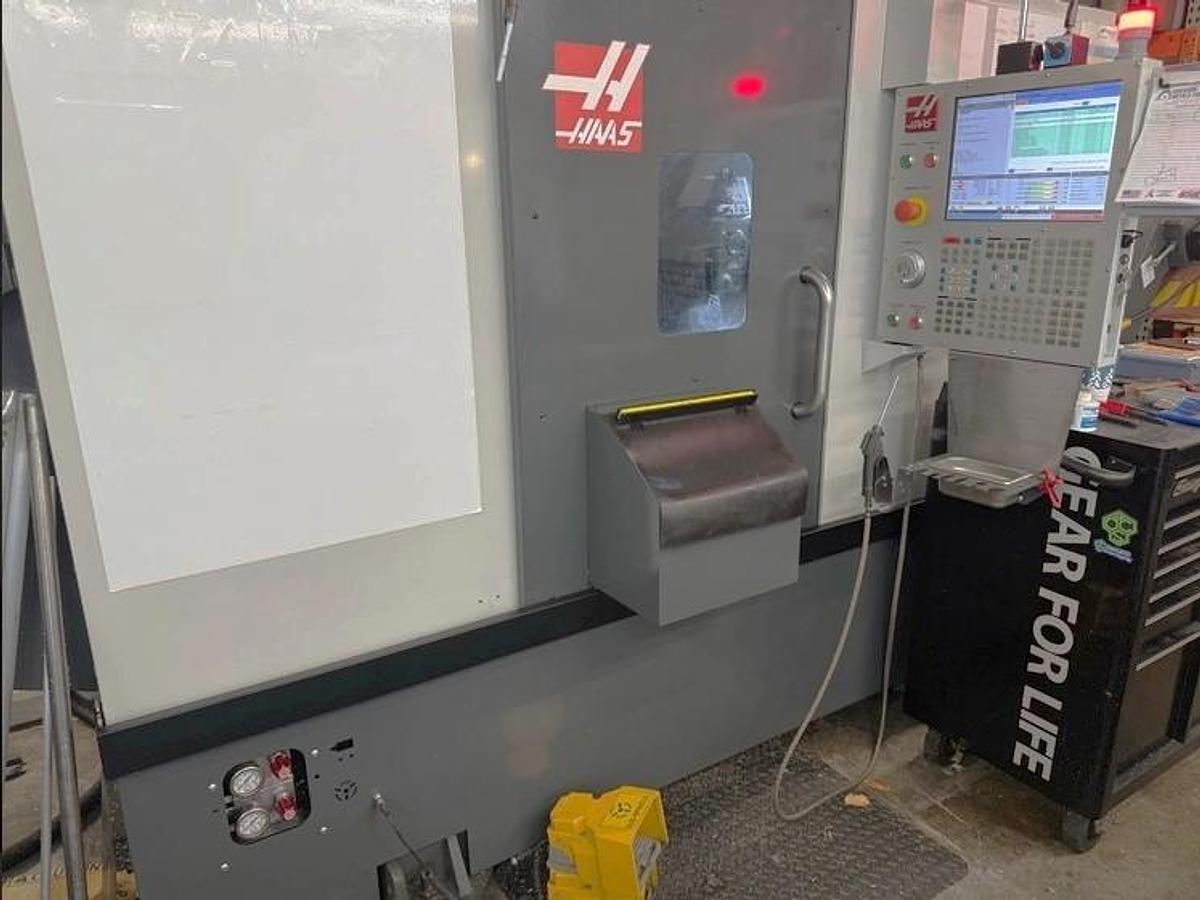

2019 Haas ST-20Y with Subspindle, 6,000 RPM Milling, Y Axis, Barfeed, Chip Conveyor, Parts Catcher, High Press. Coolant
2019 Haas ST-20Y with Subspindle, 6,000 RPM Milling, Y Axis, Barfeed, Chip Conveyor, Parts Catcher, High Press. Coolant
$109,950 (USD)
Location:Colorado
Description

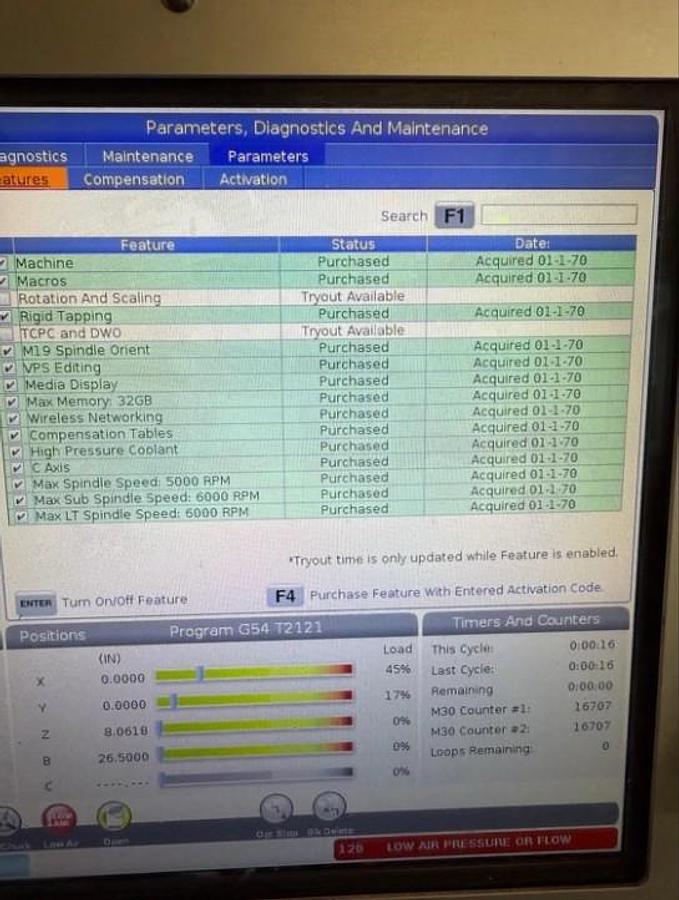

C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability

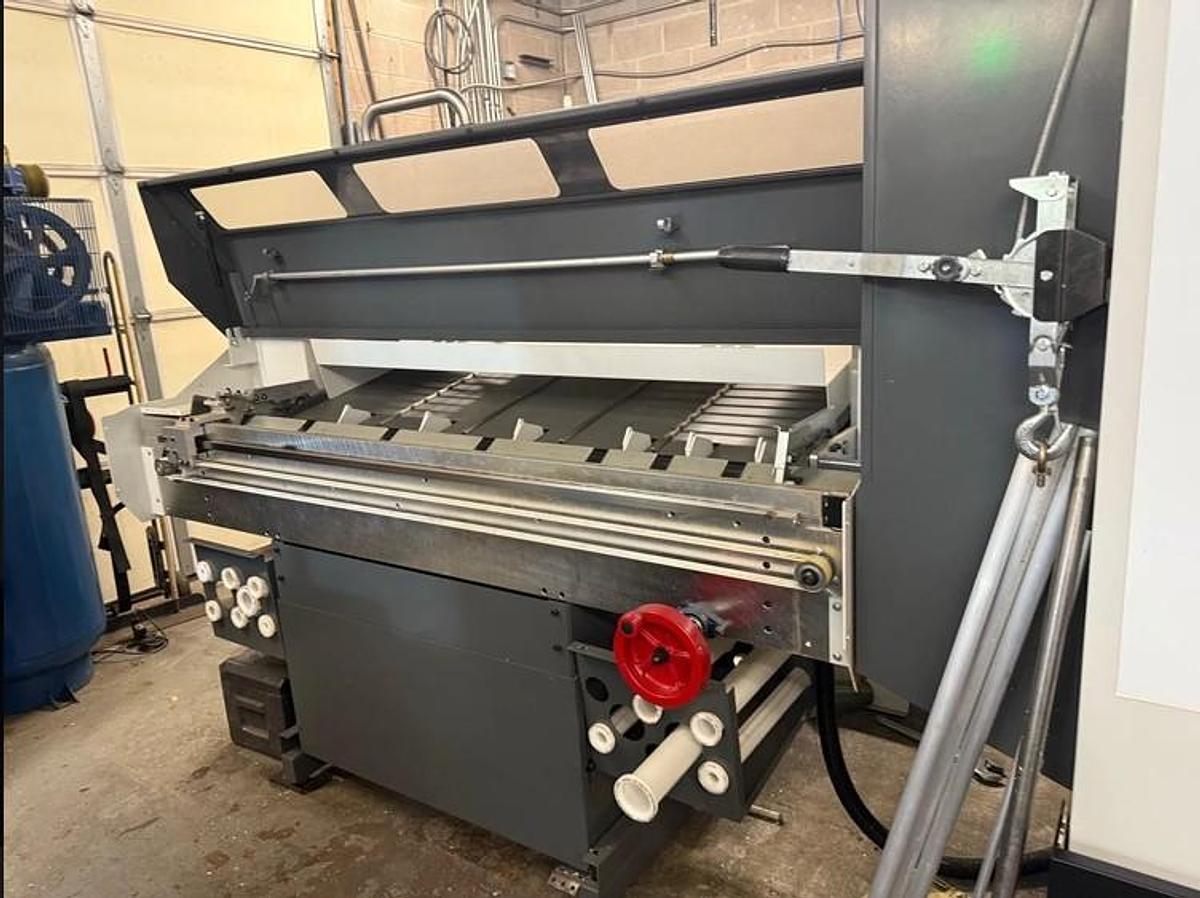

Haas Barfeed System

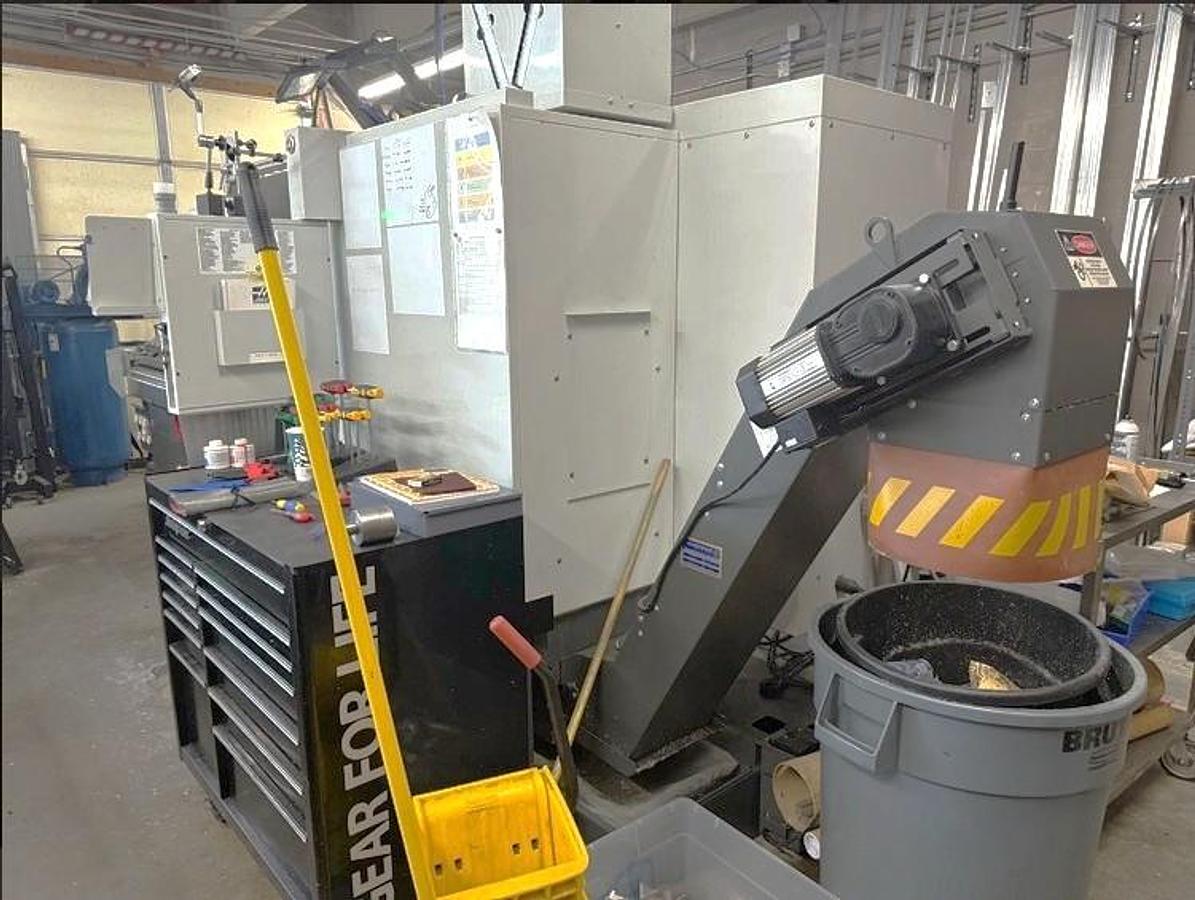

Chip Conveyor
Parts Catcher
Haas Visual Part Programming System
Spindle Orientation

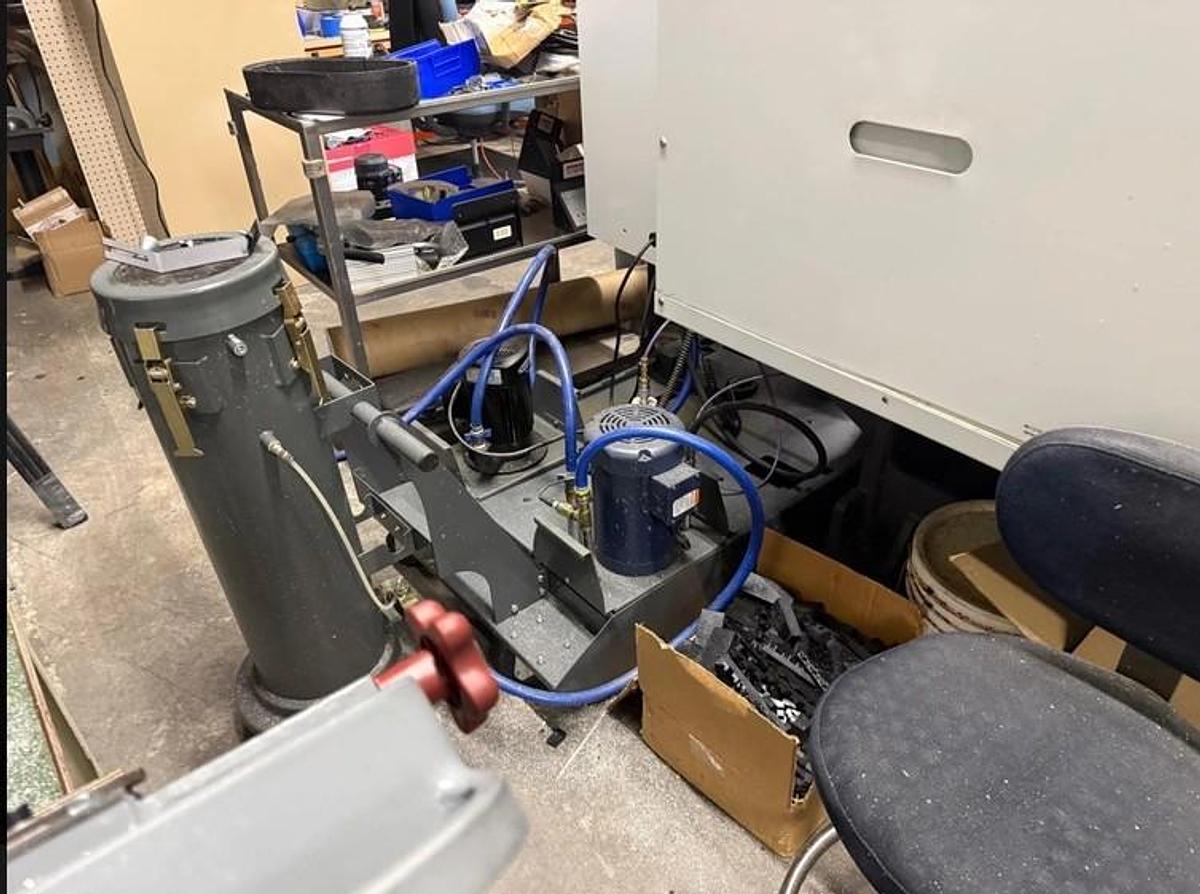

High Pressure Coolant
Auxiliary Coolant Filter System
6,000 RPM Milling Option
User Definable Macros
Media Display
Haas Connect
32 GB Program Storage
Rigid Tapping
15" LCD Color Monitor
Early Power Failure Detection Module

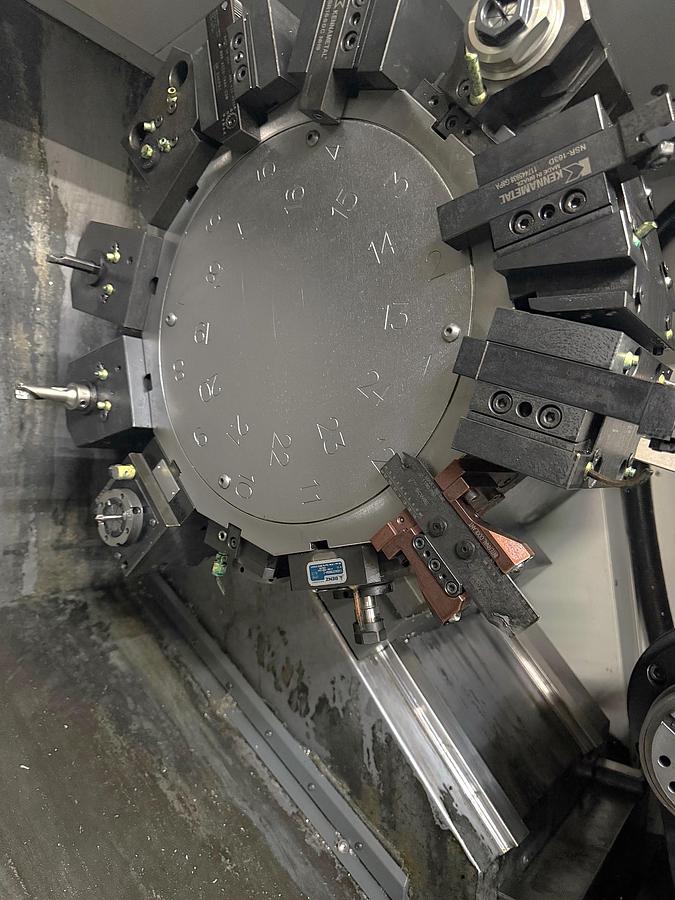

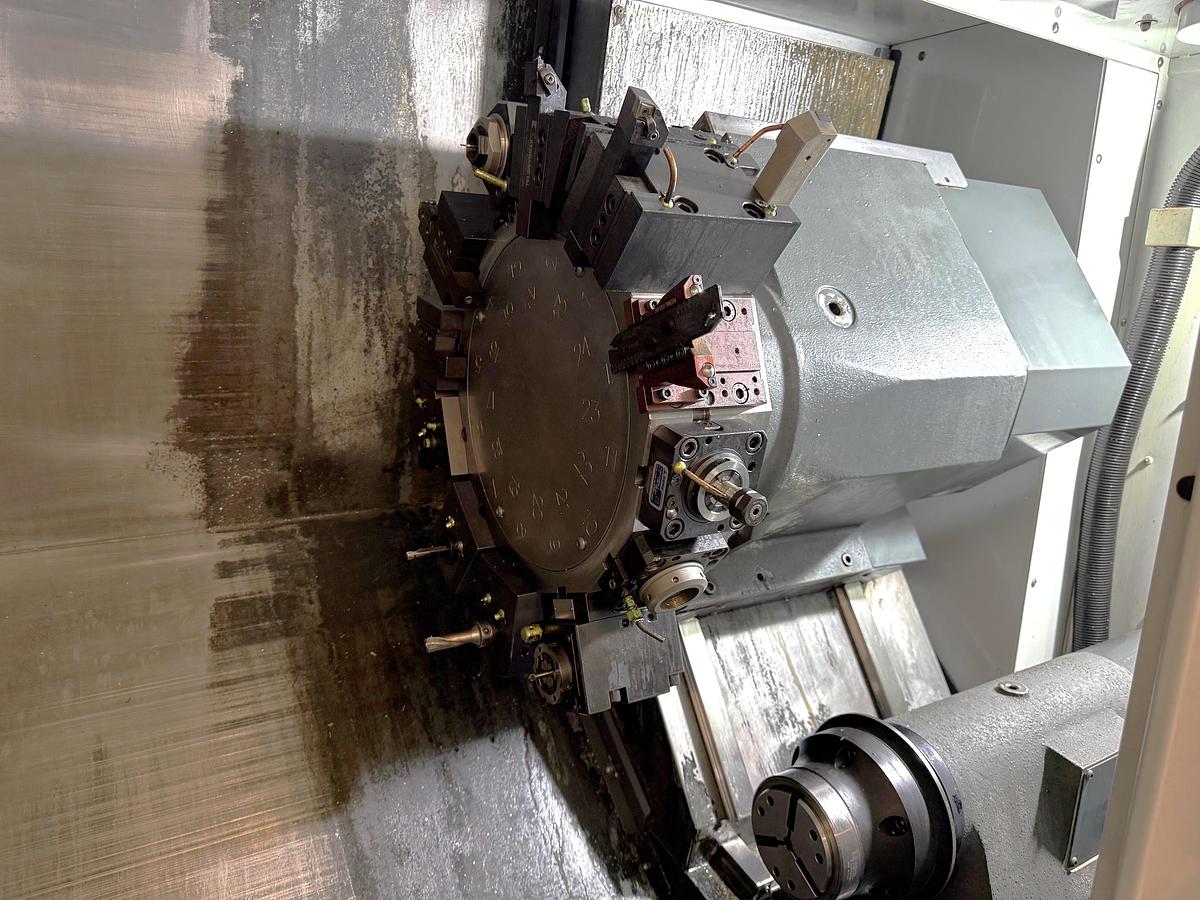

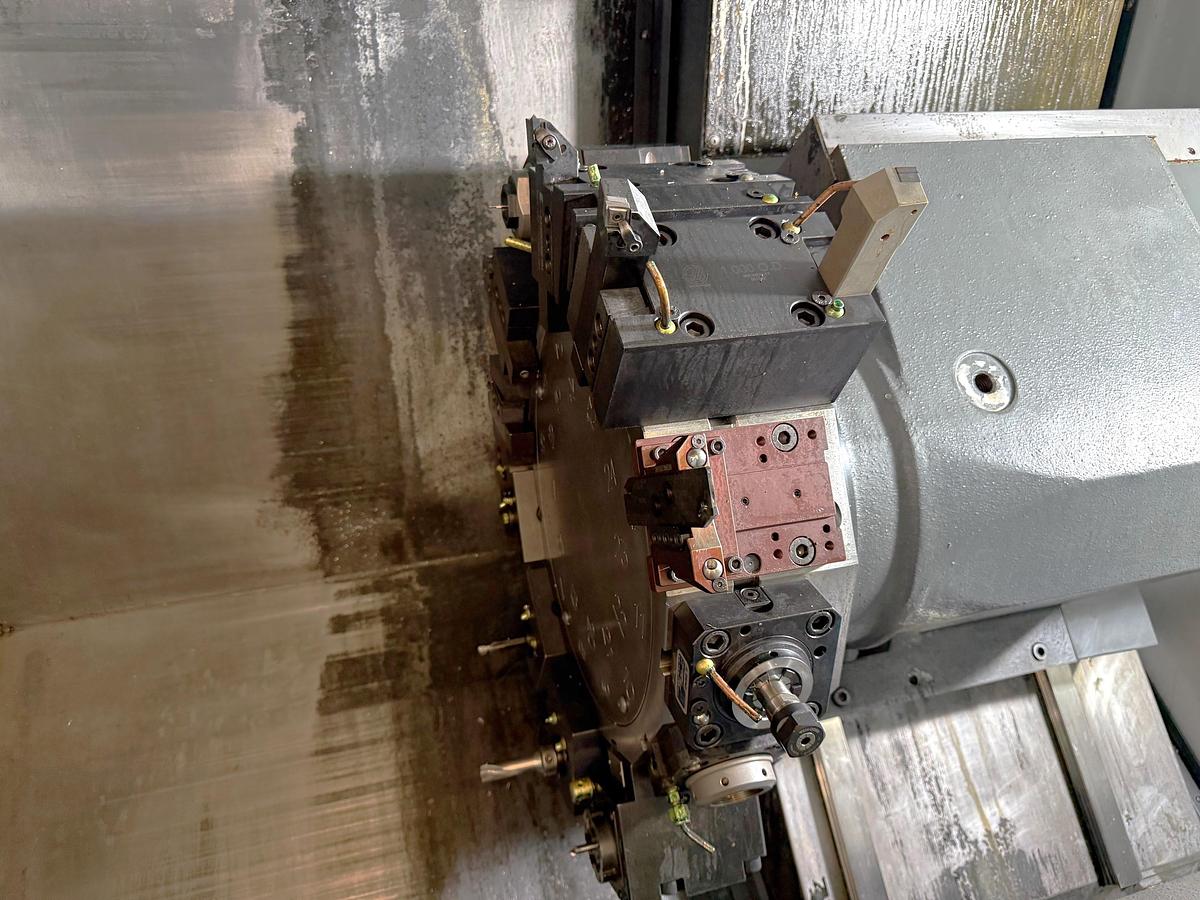

12 Station BMT65 Turret
Memory Lock Key Switch
Wireless Networking
Compensation Tables
USB Port Interface
RS 232 Port Interface

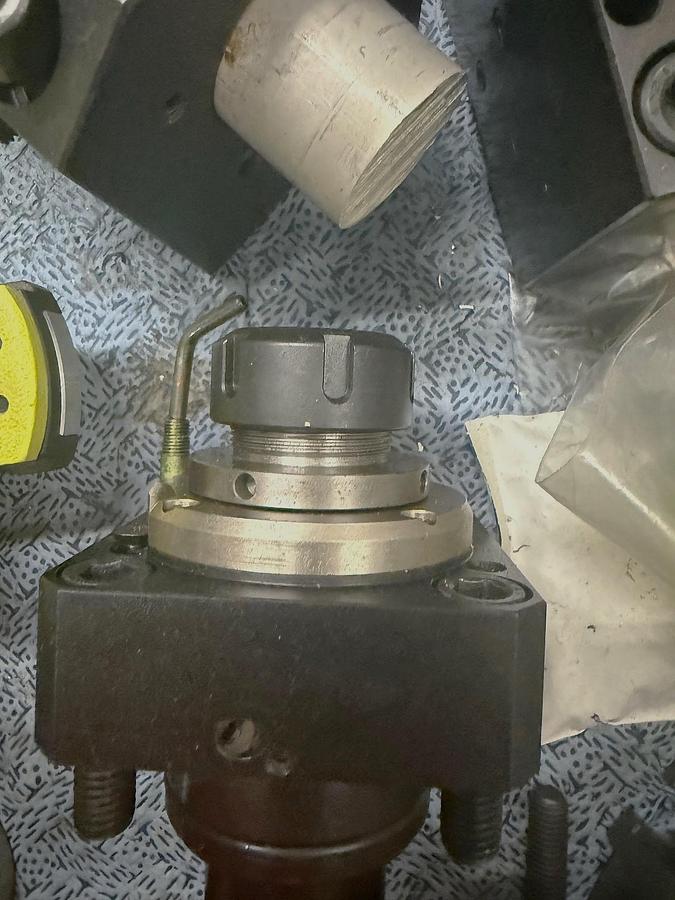

All Available Tool Blocks

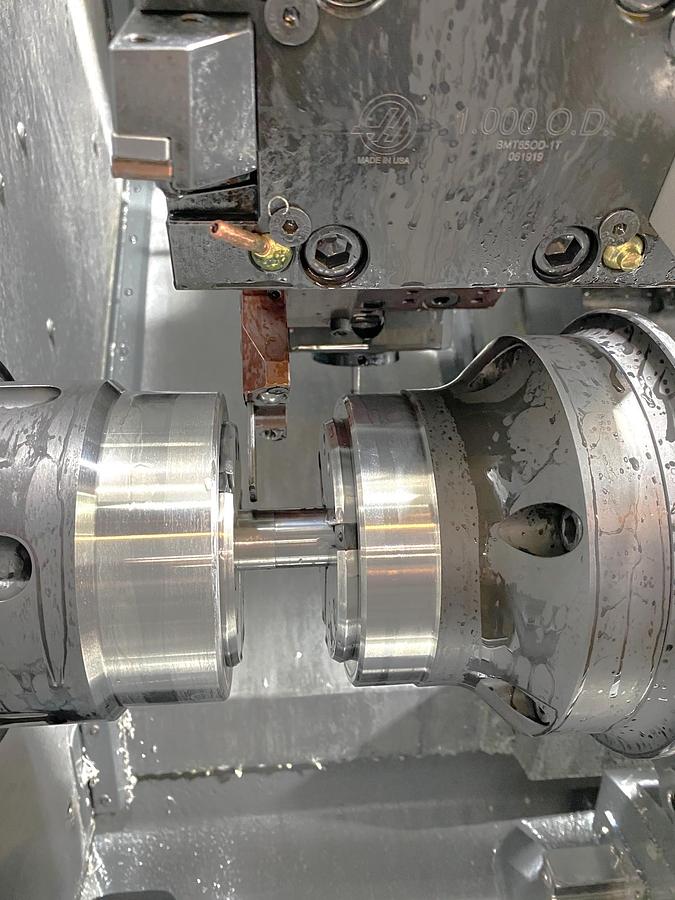

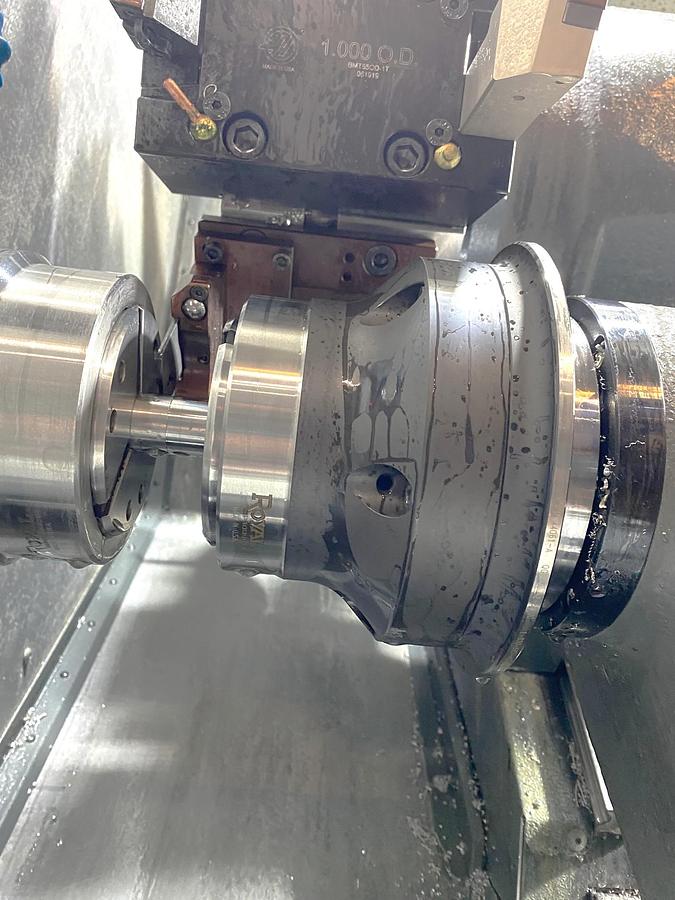

No Workholding is included---**Royal Collet Chucks Available for Additional $5,000**

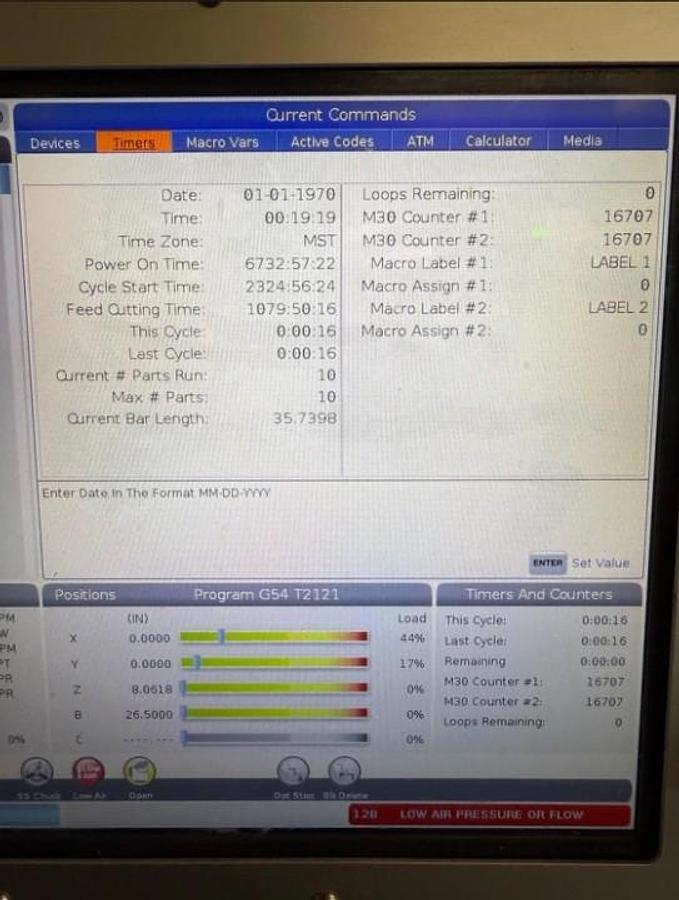

**Power On Hours 6,732**
**Cycle Start Hours 2,324**
**Feed Cutting Hours 1,079**
**Price as equipped today at $170,570**
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2019 |
| Condition | Used |
| Stock Number | 120541 |
| Machine Control | Haas NextGen Control |
| Chuck Size | None Included |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Subspindle Speed | 6,000 RPM |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 5 HP |

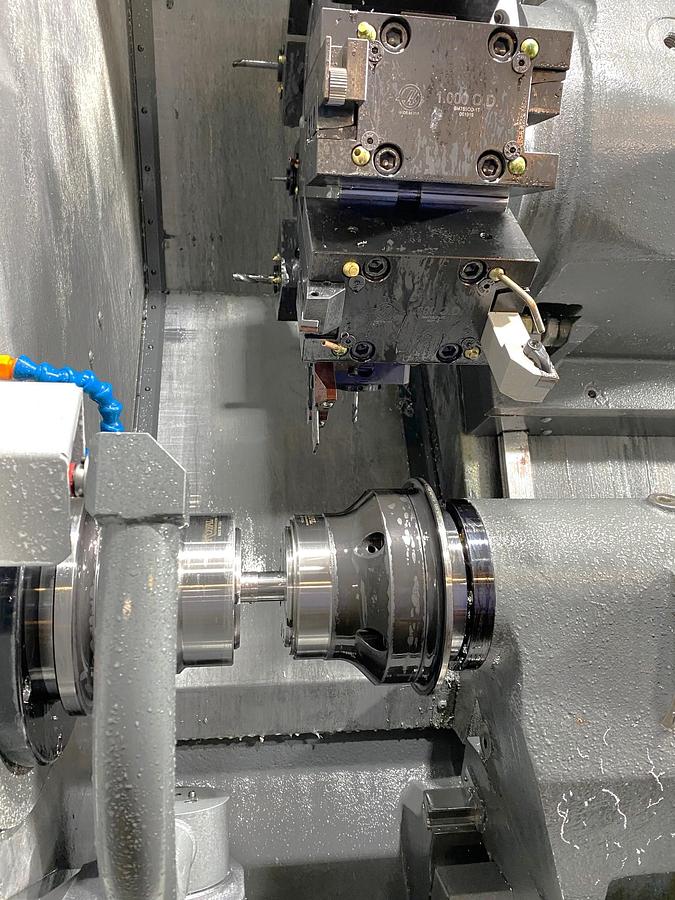

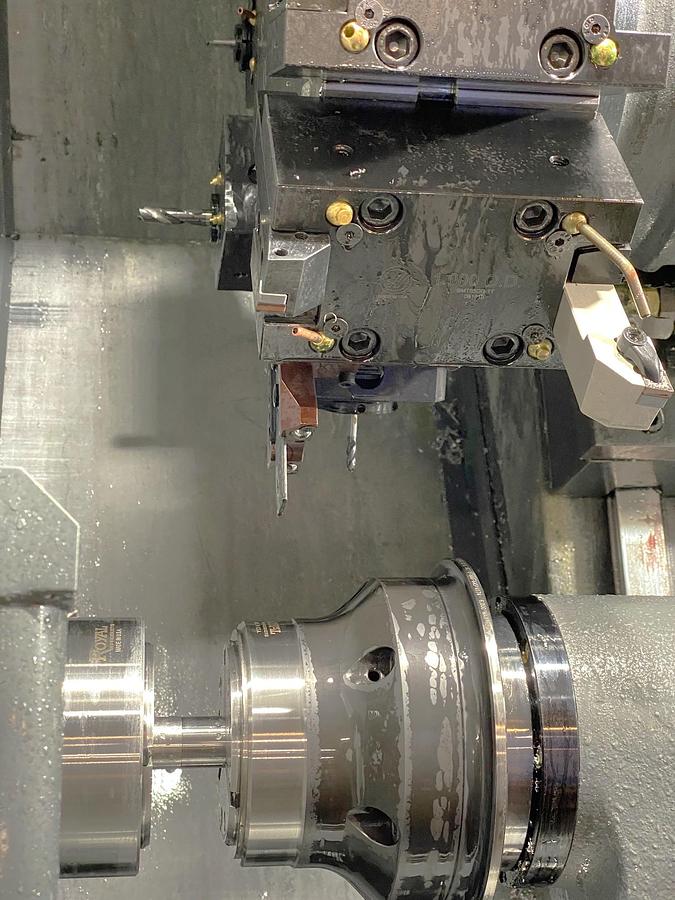

| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
