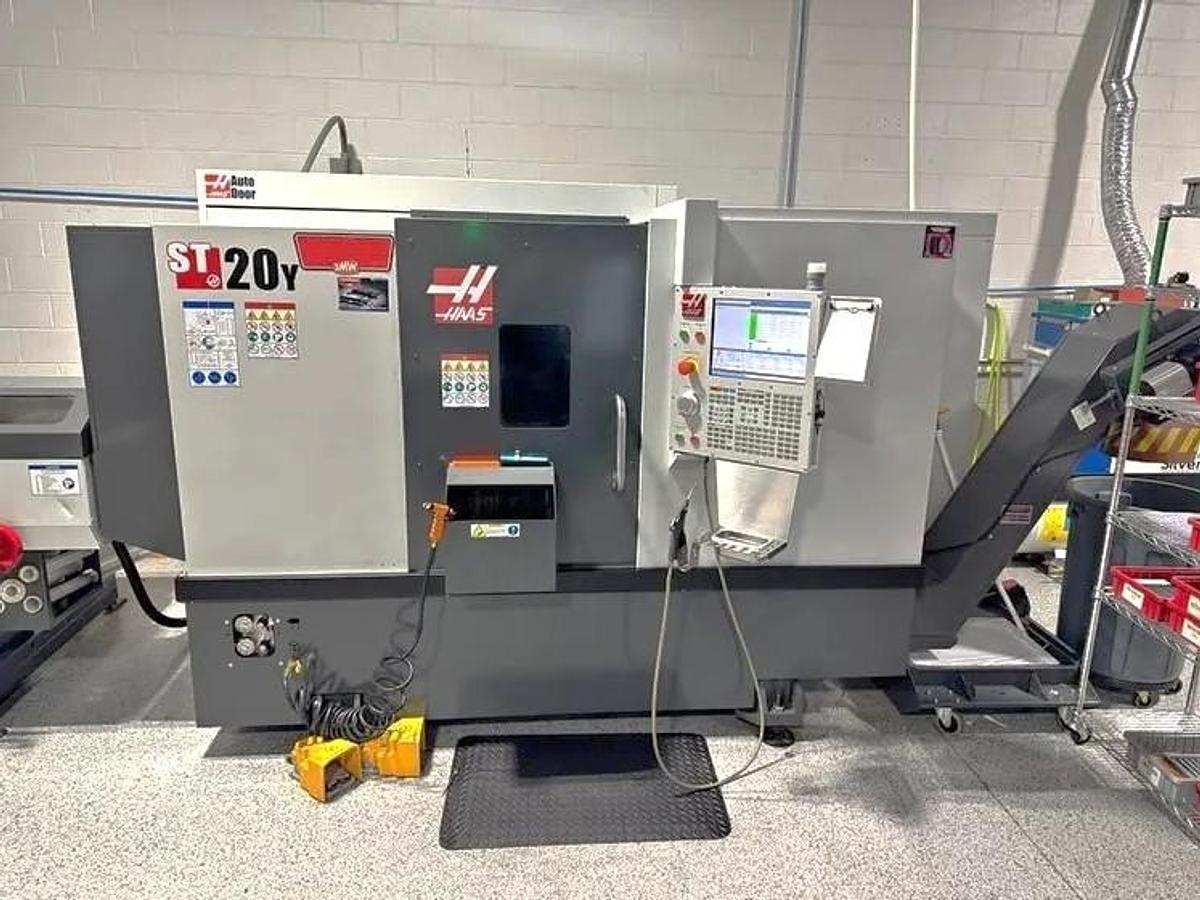

2019 Haas ST-20Y with Subspindle, Milling, Y Axis, Haas Barfeeder, Chip Conveyor, Parts Catcher, LOW HOURS
2019 Haas ST-20Y with Subspindle, Milling, Y Axis, Haas Barfeeder, Chip Conveyor, Parts Catcher, LOW HOURS
$109,500 (USD)
Location:Ohio
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability

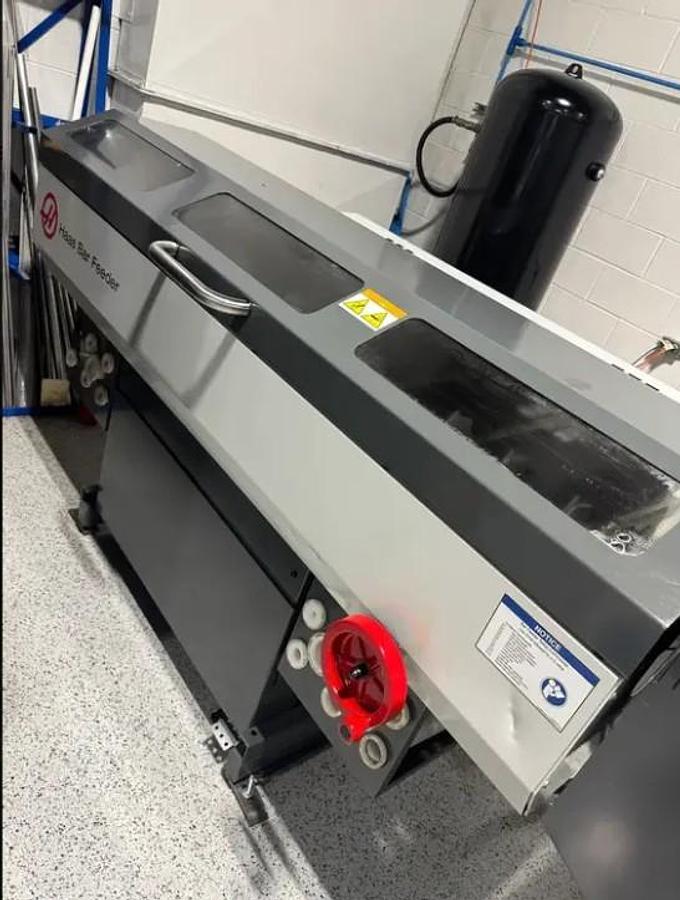

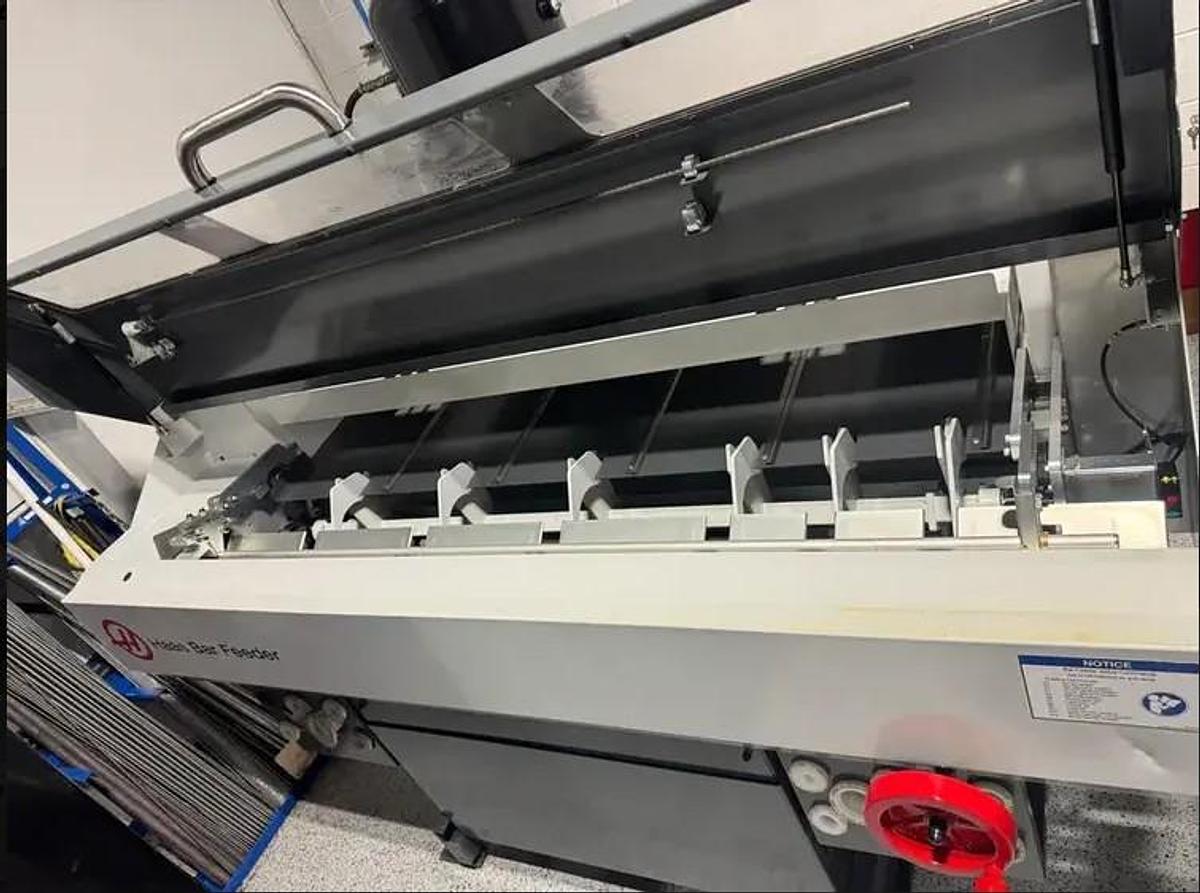

Haas Barfeed System

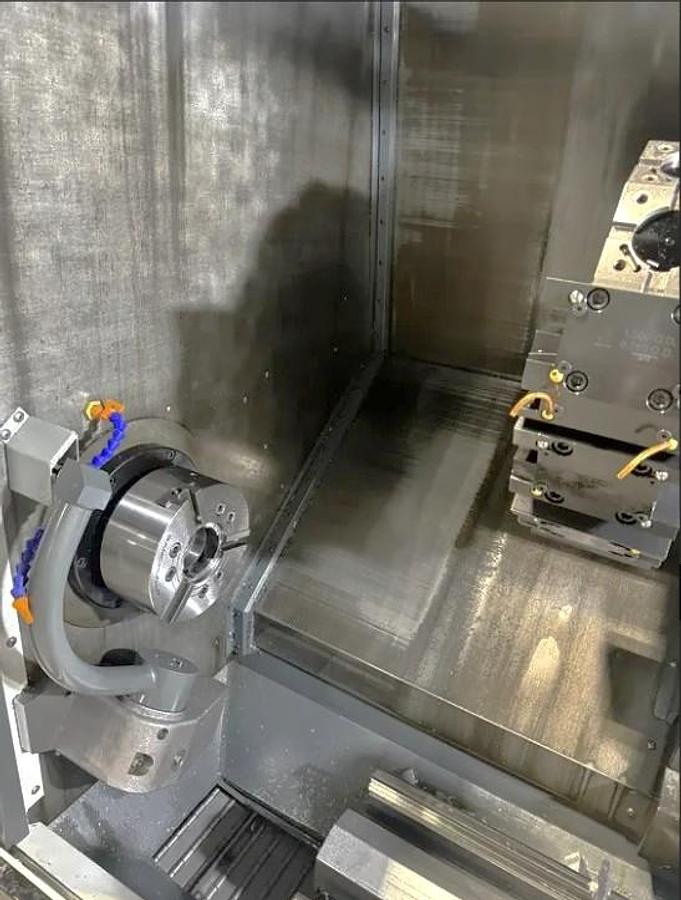

8.3" 3 Jaw Hydraulic Chuck - main spindle
5.3" 3 Jaw Hydraulic Chuck - subspindle
Chip Conveyor

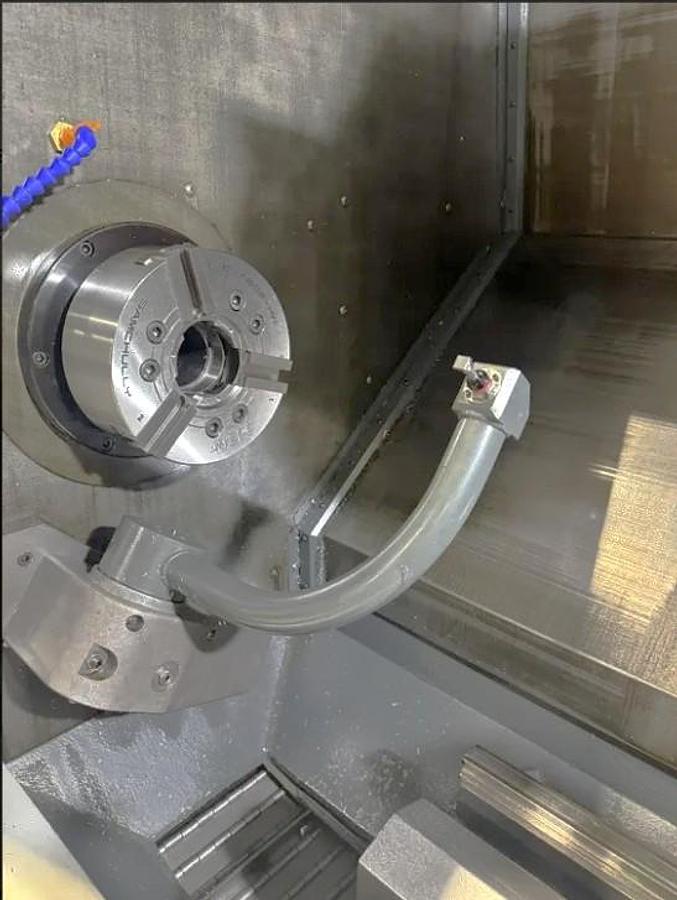

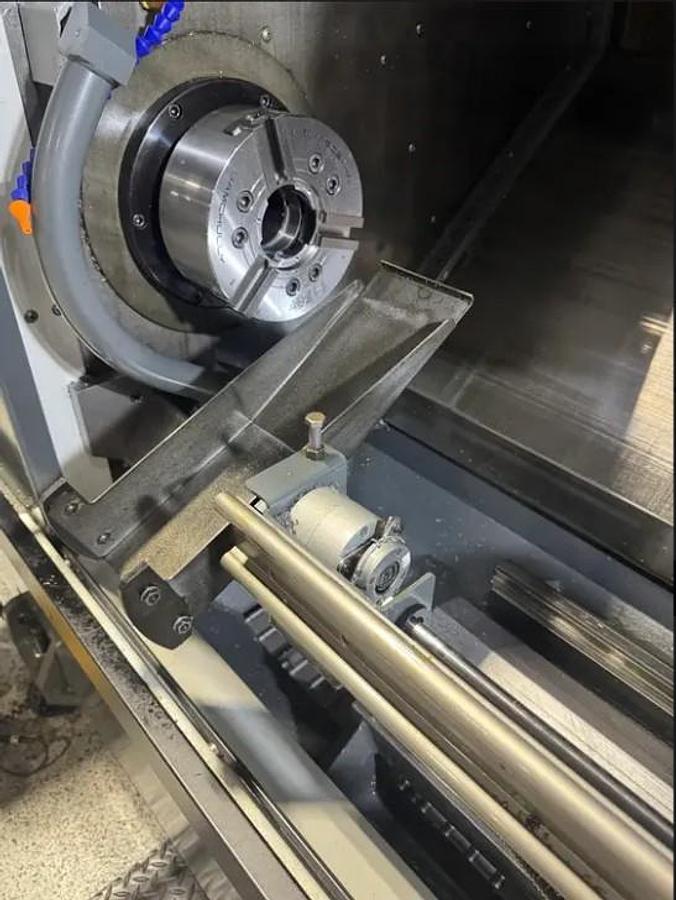

Parts Catcher
300 PSI High Pressure Coolant
Tool Presetter
Chuck Air Blast on Main Spindle
Auto Door

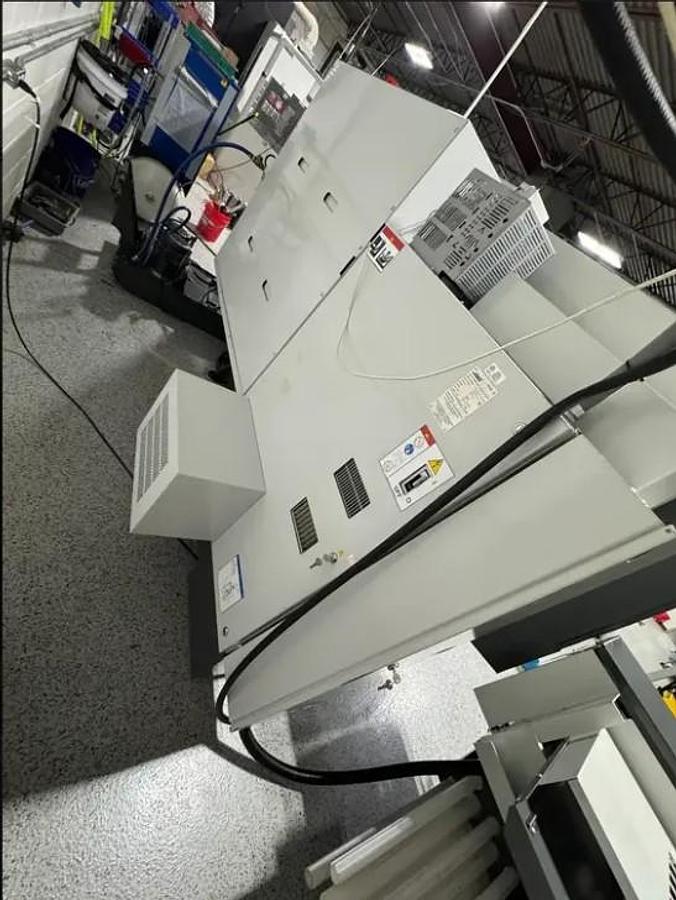

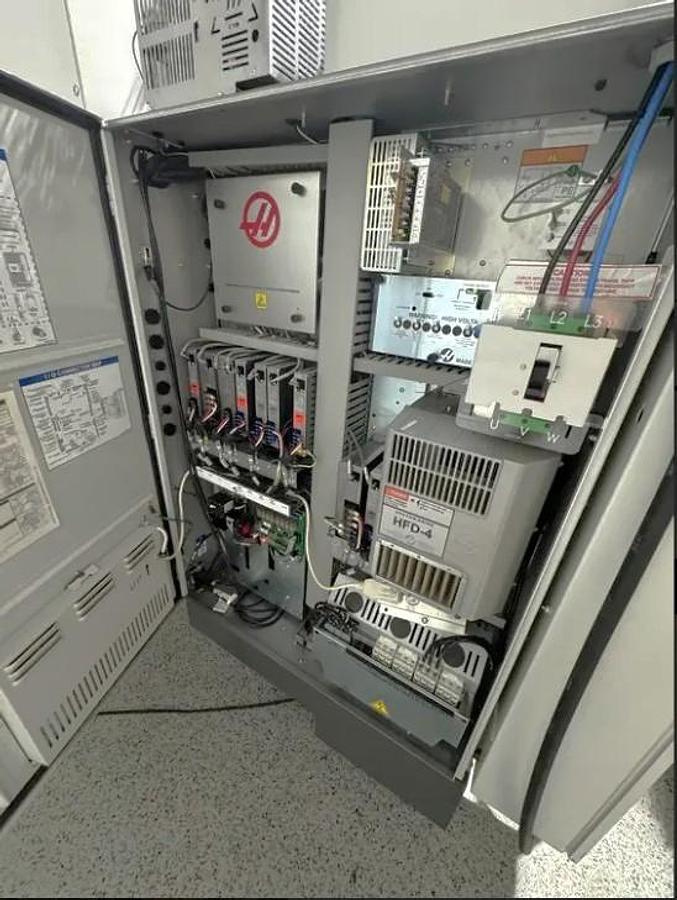

CNC Control Cabinet Cooler
Rigid Tapping
User Definable Macros
Haas Visual Part Programming System
Spindle Orientation
Media Display M Code M130
Haas Connect
1 GB Program Storage
Rigid Tapping
15" LCD Color Monitor
Early Power Failure Detection Module

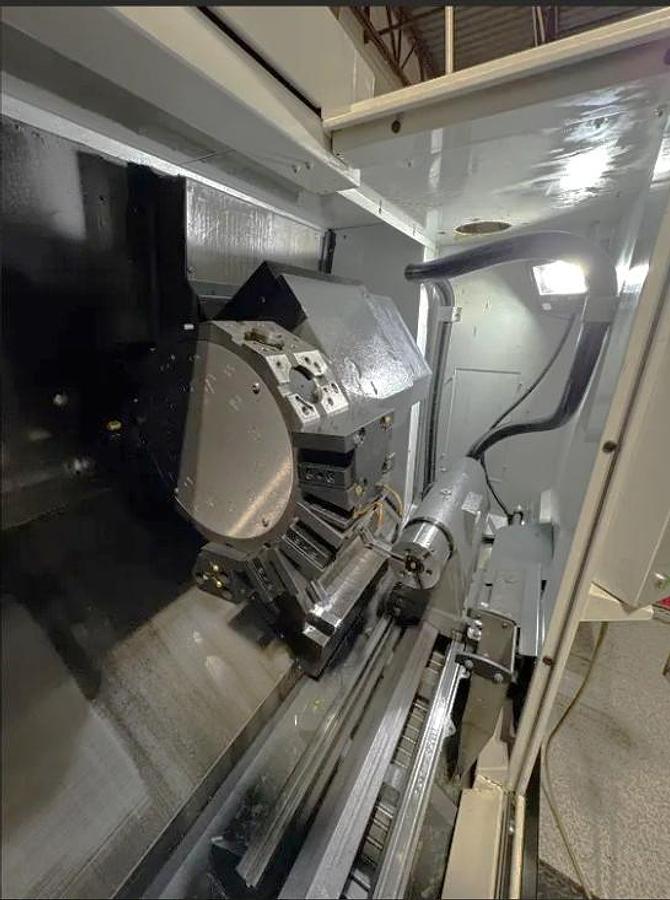

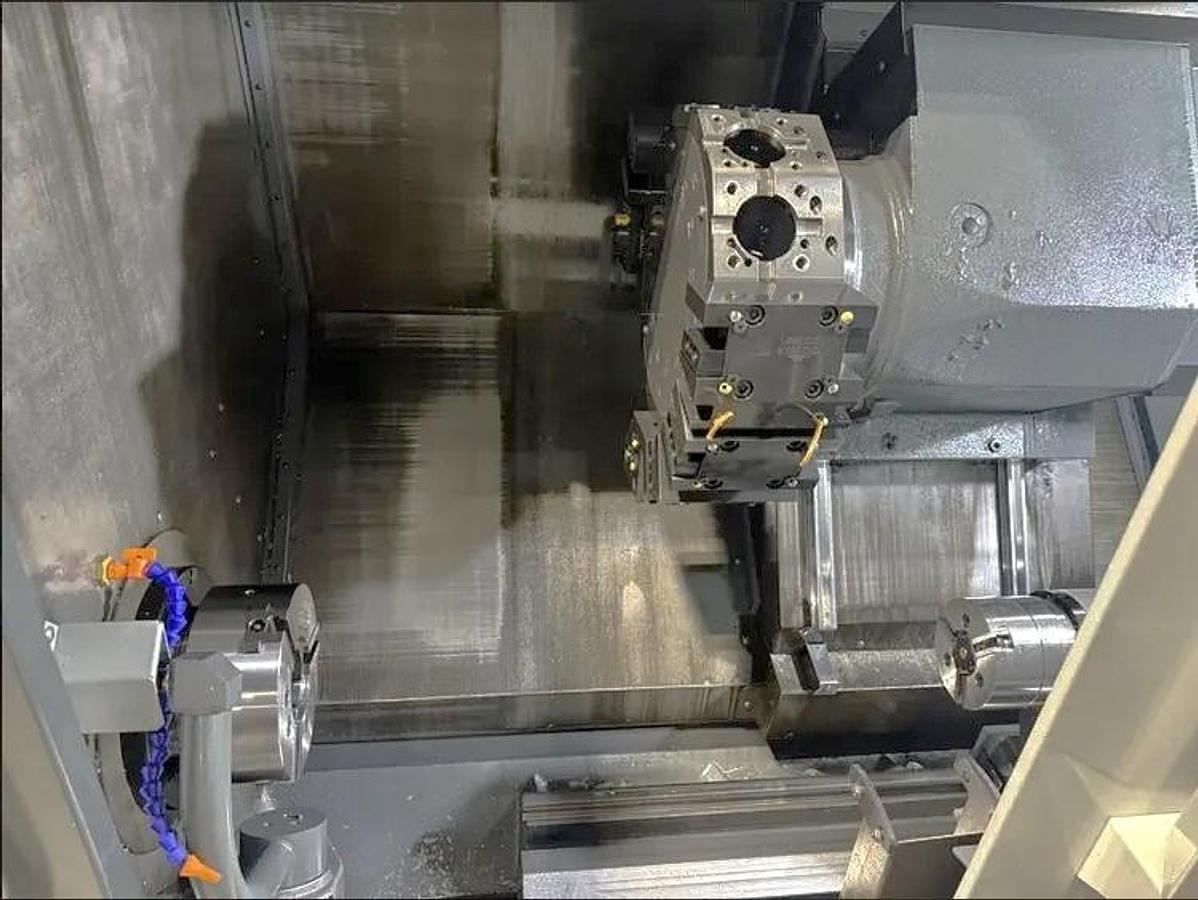

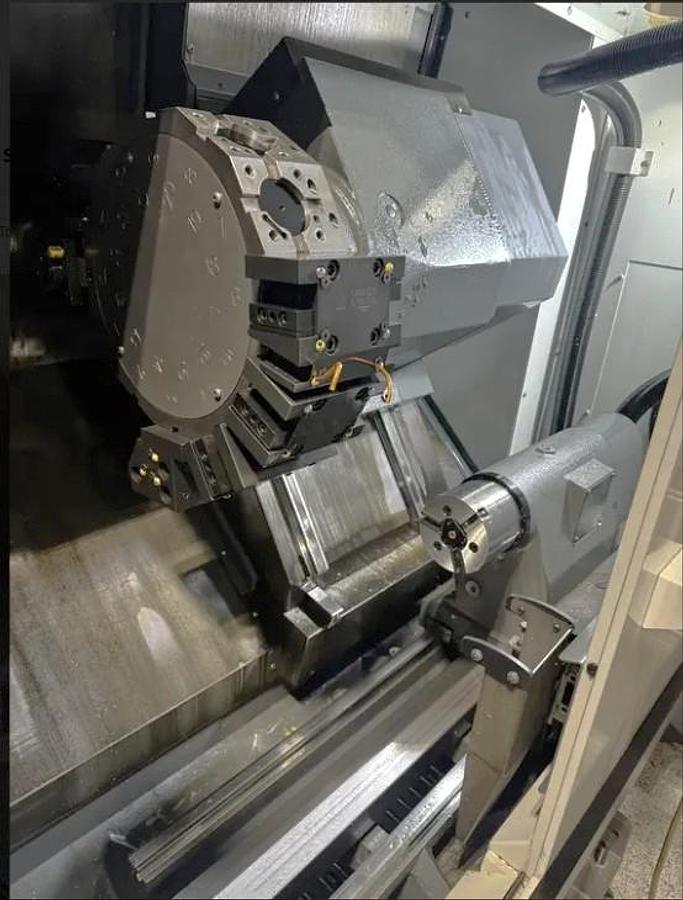

24 Station BMT65 Turret - Half Index
Memory Lock Key Switch
Ethernet
USB Port Interface
RS 232 Port Interface
All Available Tool Blocks
(1) Axial Live Tool Holder
(1) Radial Live Tool Holder

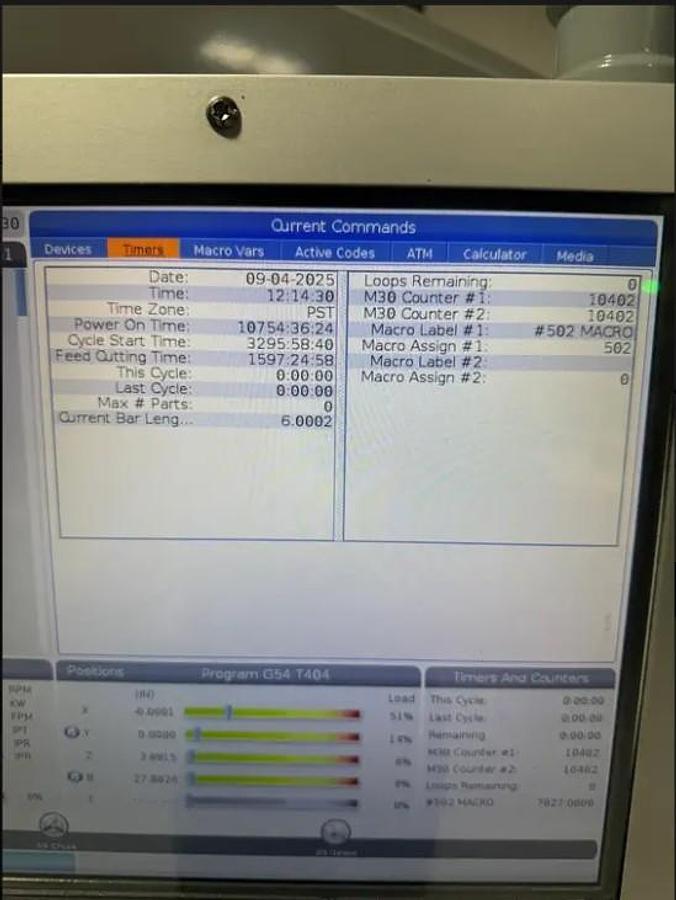

**Cycle Start Hours 3,295**
**Feed Cutting Hours 1,597**
**Price as equipped today at $182,570**
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2019 |
| Condition | Used |
| Stock Number | 120539 |
| Machine Control | Haas NextGen Control |
| Chuck Size | 8.3" / 5.3" 3-Jaw Hydraulic Chucks |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 5,000 RPM |
| Spindle Motor | 20 HP |
| Subspindle Speed / Subspindle Motor | 6,000 RPM / not available |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
