Full C Axis Spindle Rotation

Live Milling/Drilling Capability

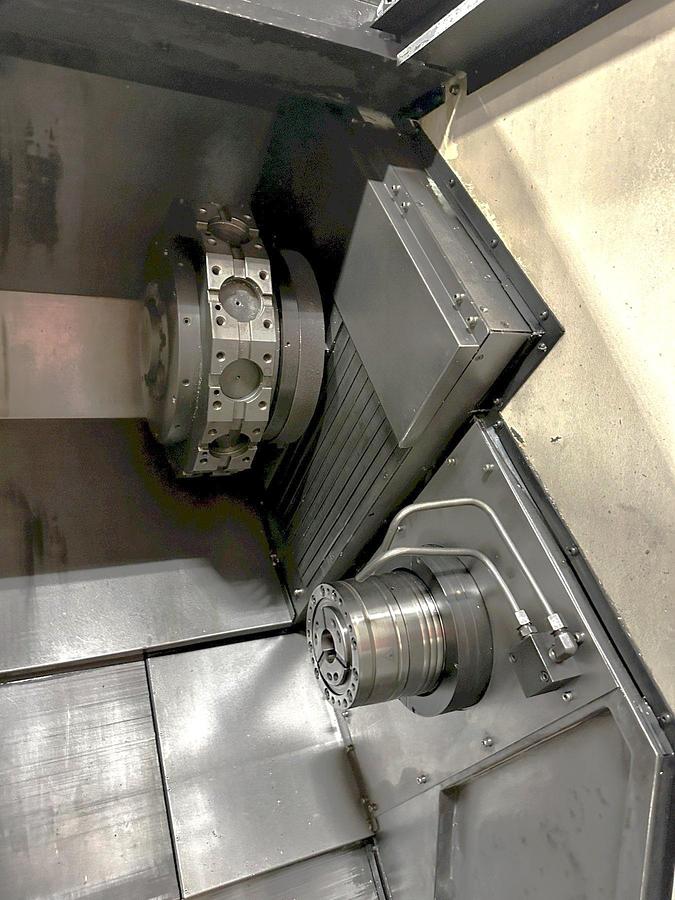

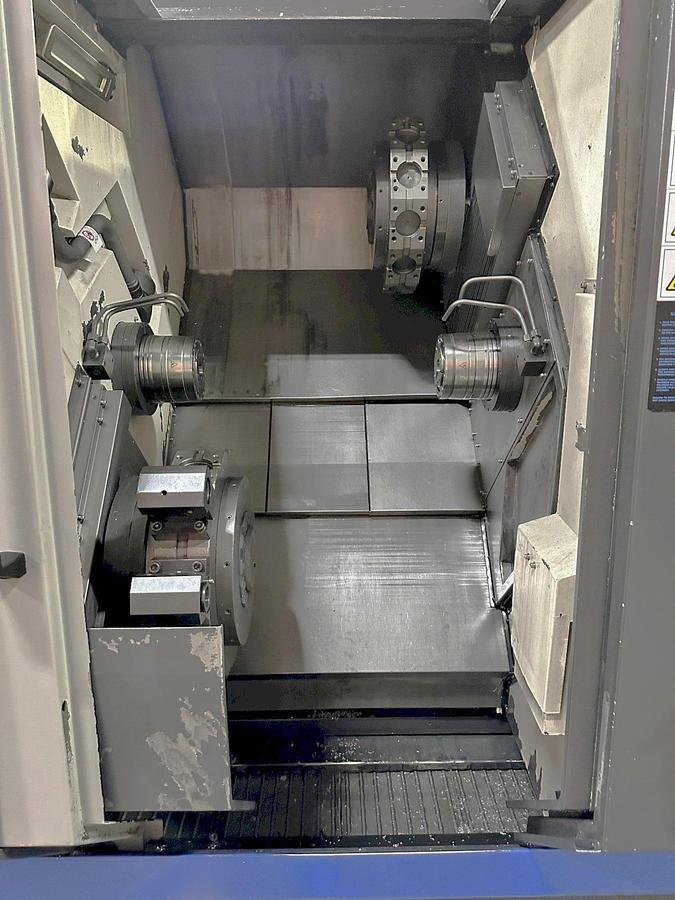

Twin Turret Design with Upper and Lower Turrets

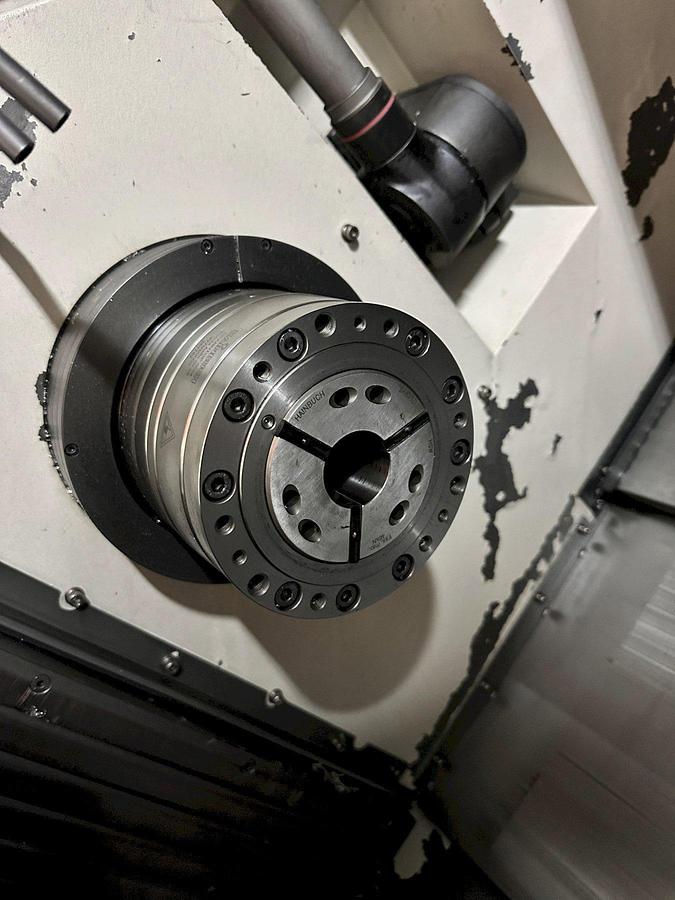

Dual Spindle Design

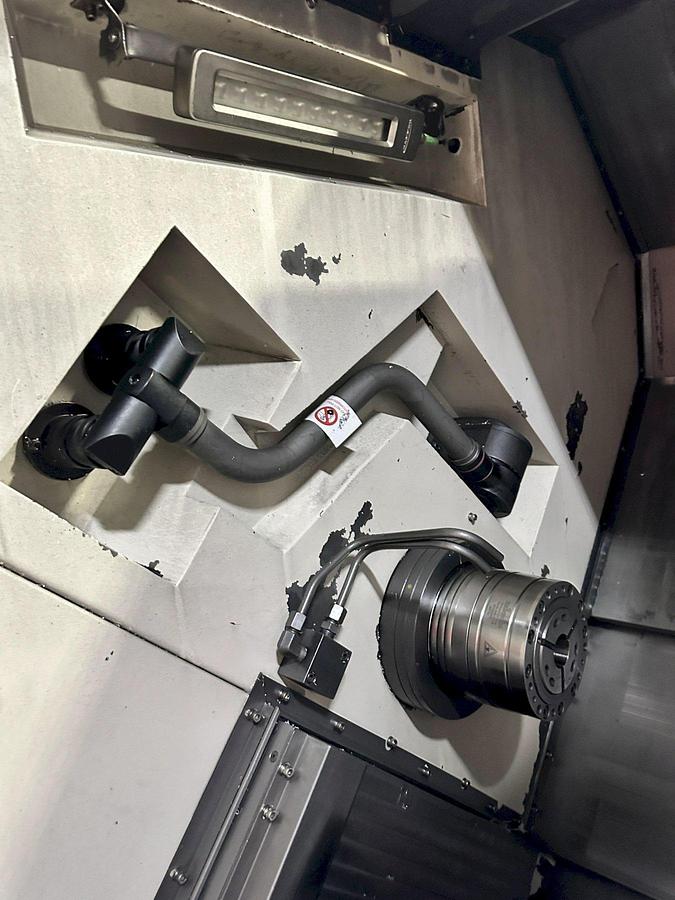

Tool Presetter

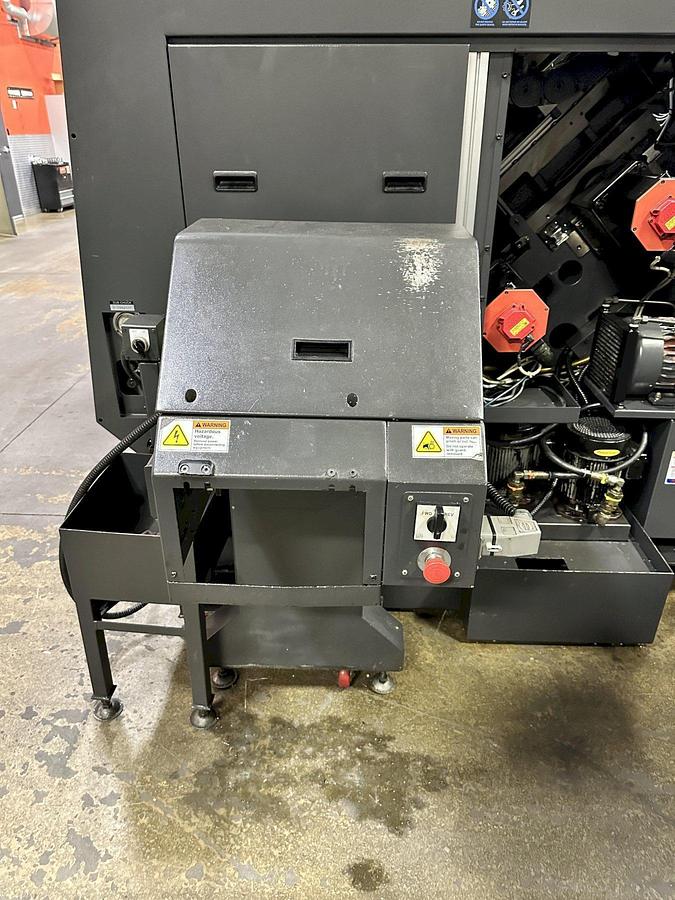

Chip Conveyor

Parts Catcher

Parts Exit Conveyor

Oil Chiller

PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways

Coolant Tank with Pump

Transformer All Available Manuals

All Available Tooling Including Live Holders

Manufacturer	Doosan
Model	T2-2T
Year	2013
Condition	Used
Stock Number	120538

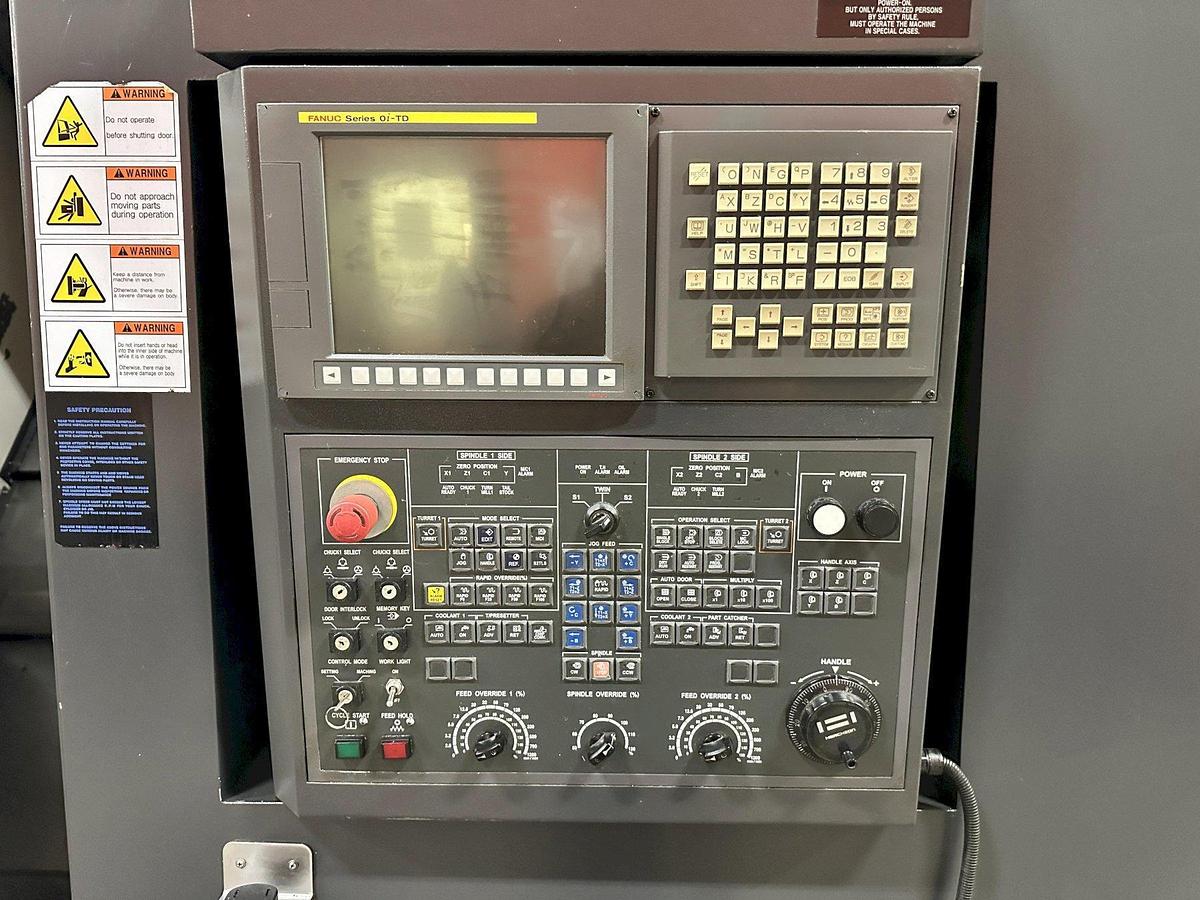

Control	Fanuc 0i-TD Series Control

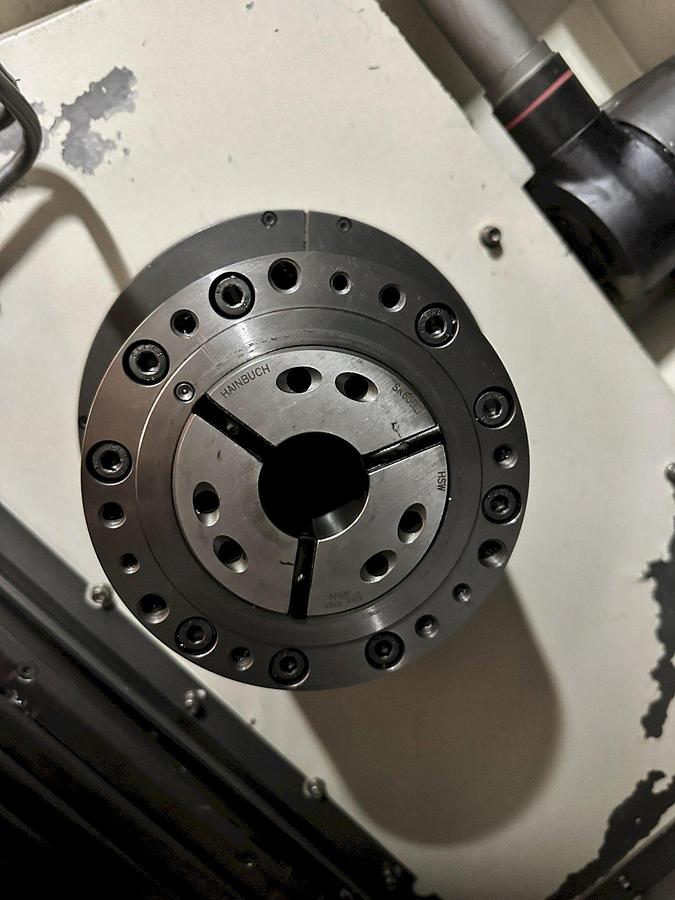

Chuck Size	(2) 8" 3-Jaw Hydraulic
Maximum Cutting Diameter	18.1"
Maximum Distance Between Centers	24.5"
X1-Axis Travel / X2-Axis Travel	9.65" / 8.27"
Z1-Axis Travel / Z2-Axis Travel	20.47" / 20.47"

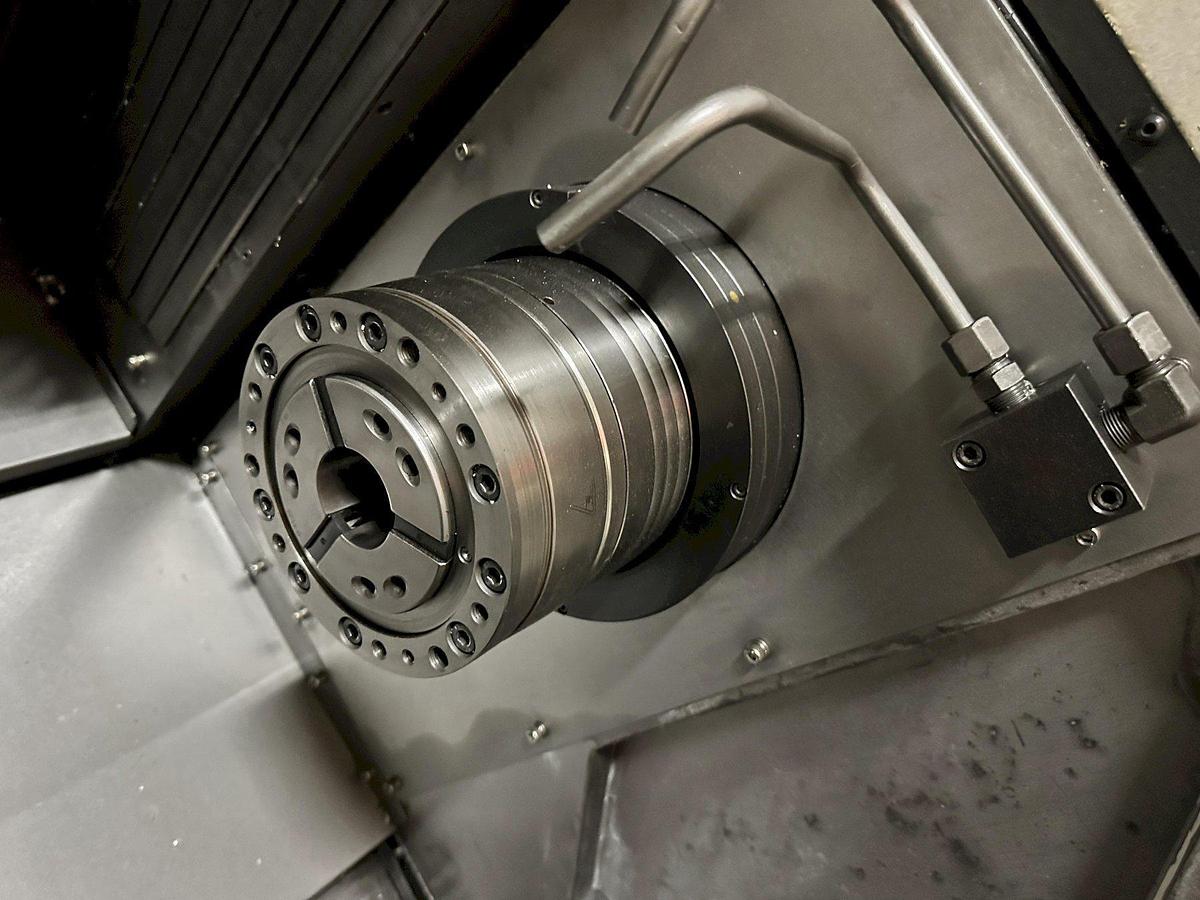

B-Axis Travel (Subspindle)	21.62"
C Axis Spindle Rotation	.001 Degrees - both Spindles
Spindle Nose / Spindle Bore	A2-6" / 3.15" Main Spindle
Main & Subspindle Speeds	5,000 RPM
Spindle Motor - Both Spindles	20 HP
Rotary Tool Speed / Rotary Motor	6,000 RPM / not known

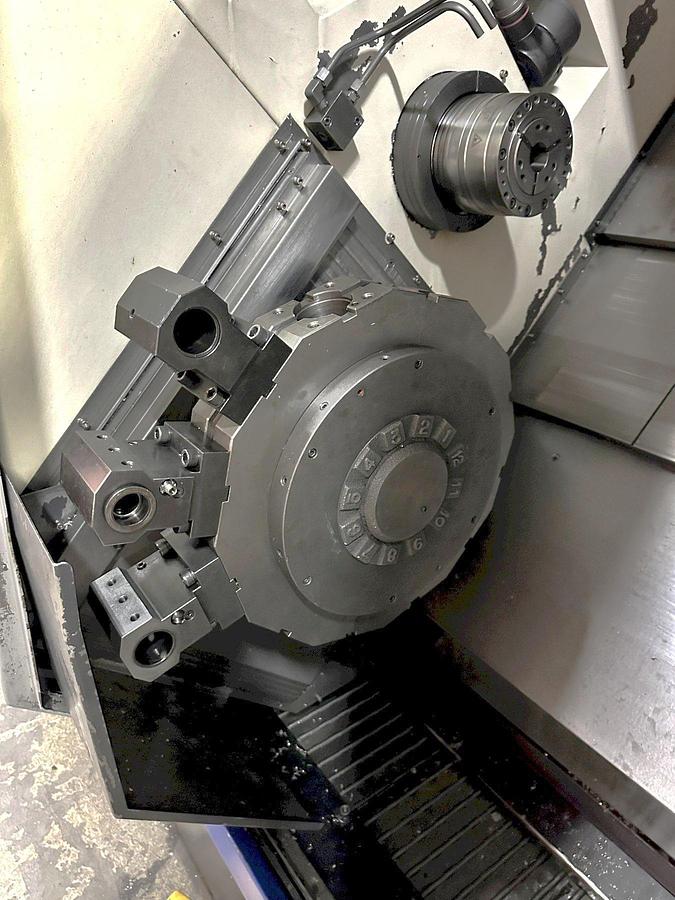

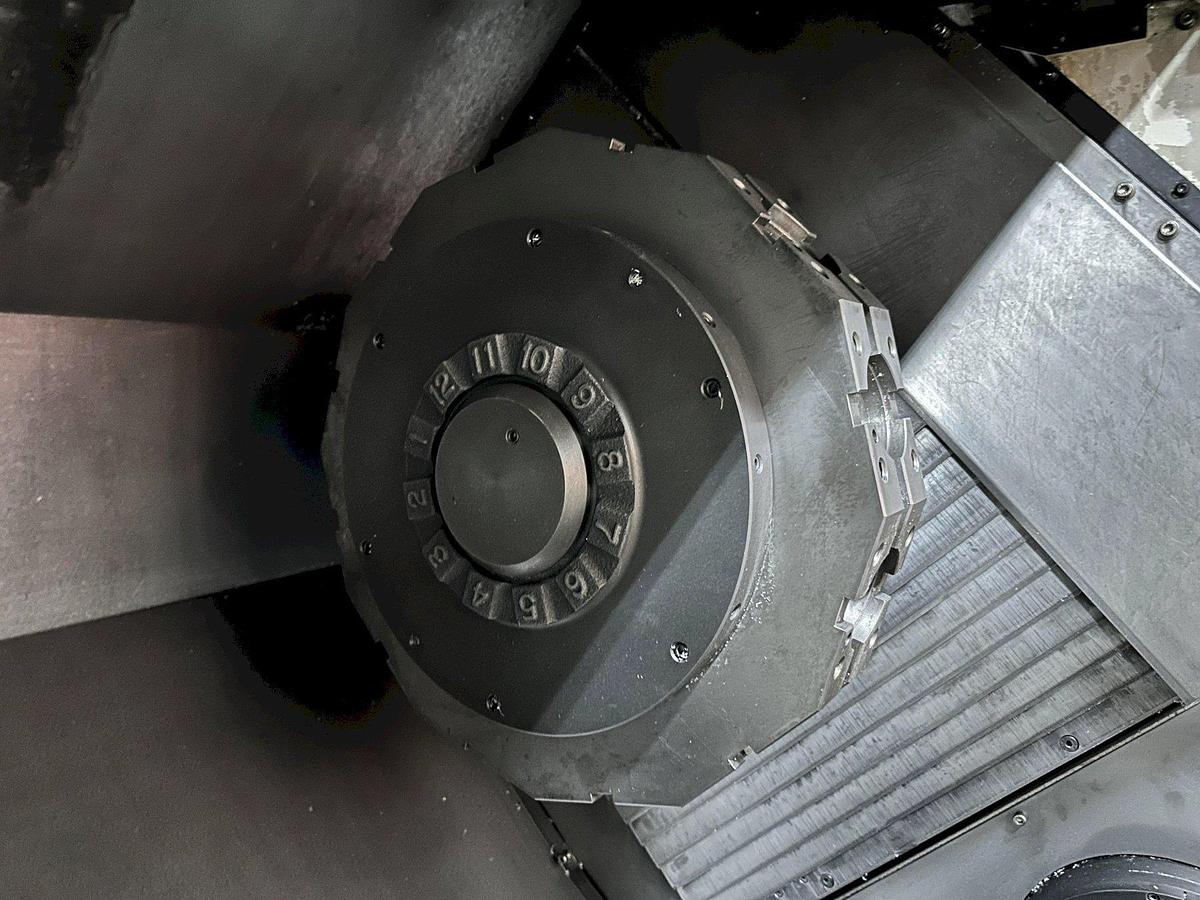

Number of Turret Positions	12 Station Turret - Each
Rapid Traverse Rates X / Y / Z	787 IPM / 295 IPM / 984 IPM
Machine Dimensions	122" x 86" x 83"
Machine Weight	21,000 lbs

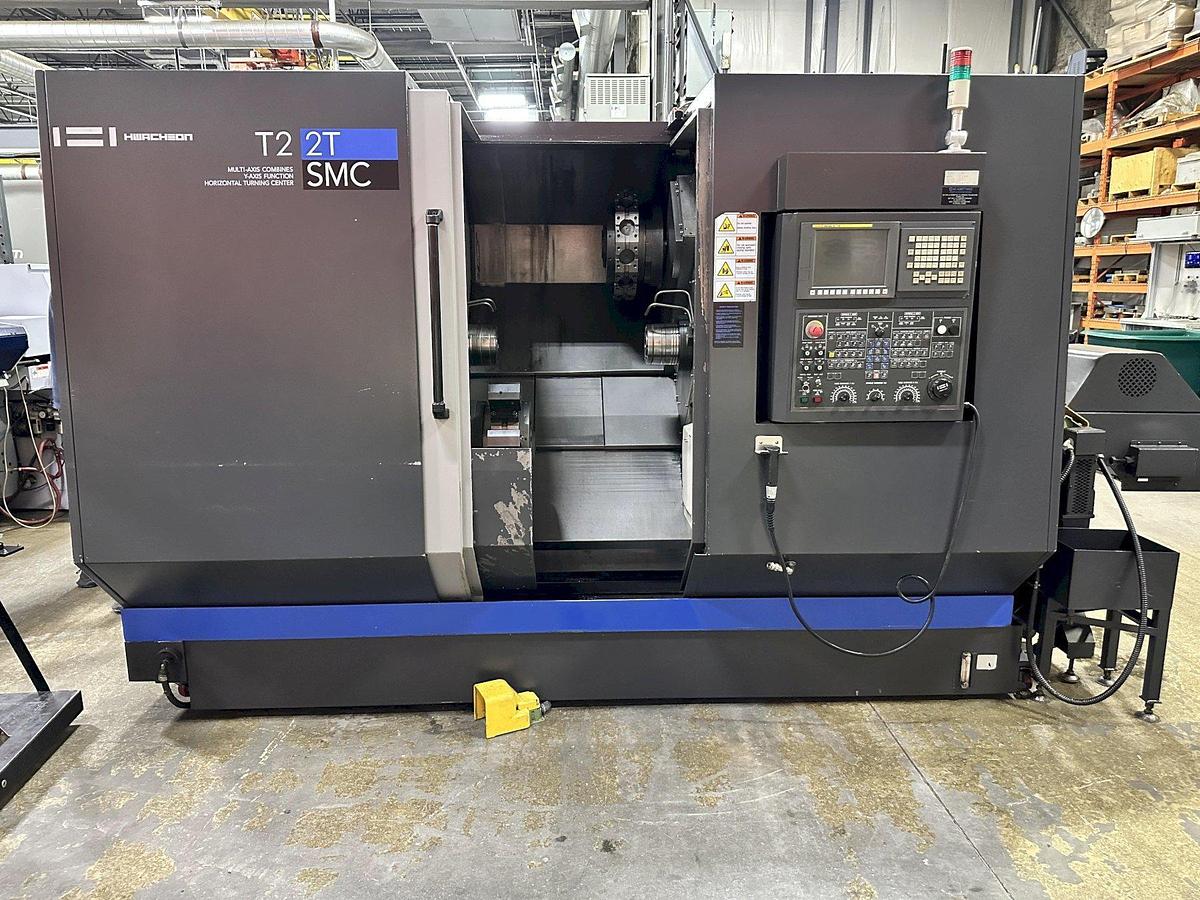

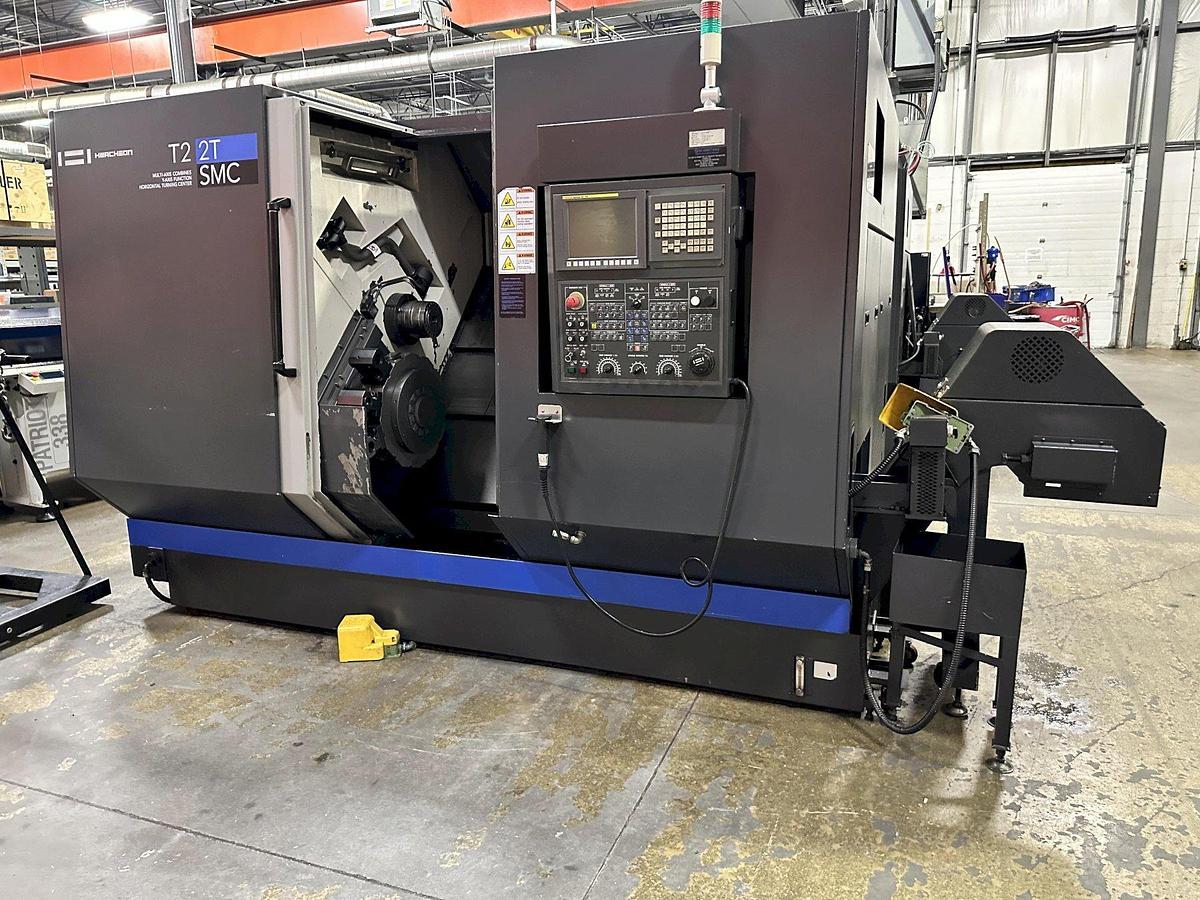

2013 Hwacheon T2-2T with Twin Spindle, Twing Turrets, Live Milling/Drilling, Parts Catcher & Conveyor, Chip Conveyor, Fanuc 0i-TD
